Features:
1. Dual‑chip diversity receiving design with ESP8285 + SX1276, effectively reduces signal dropout for reliable long‑range FPV flight
2. Works on 915/868 MHz frequency band, supports 25‑200 Hz refresh rate with up to 50 mW max telemetry RF power for responsive control
3. Preflashed ELRS V3.2.0 firmware out‑of‑box, adopts CRSF protocol, directly compatible with flight controllers and Foxeer 900 RX
4. Compact and lightweight: 14.8×24 mm dimension, weighs only 7.2 g together with 160 mm antennas, adds little load to your drone
5. 4‑5.5 V wide voltage input, blue LED status indicator, full set of accessories included for quick installation
Description:
Foxeer ELRS Diversity 915/868MHz long‑range receiver adopts dual SX1276 diversity receiving design, max 50mW telemetry power, supports 25‑200Hz refresh rate, pre‑flashed V3.2.0 ELRS firmware, CRSF protocol, lightweight for long‑distance FPV drone.

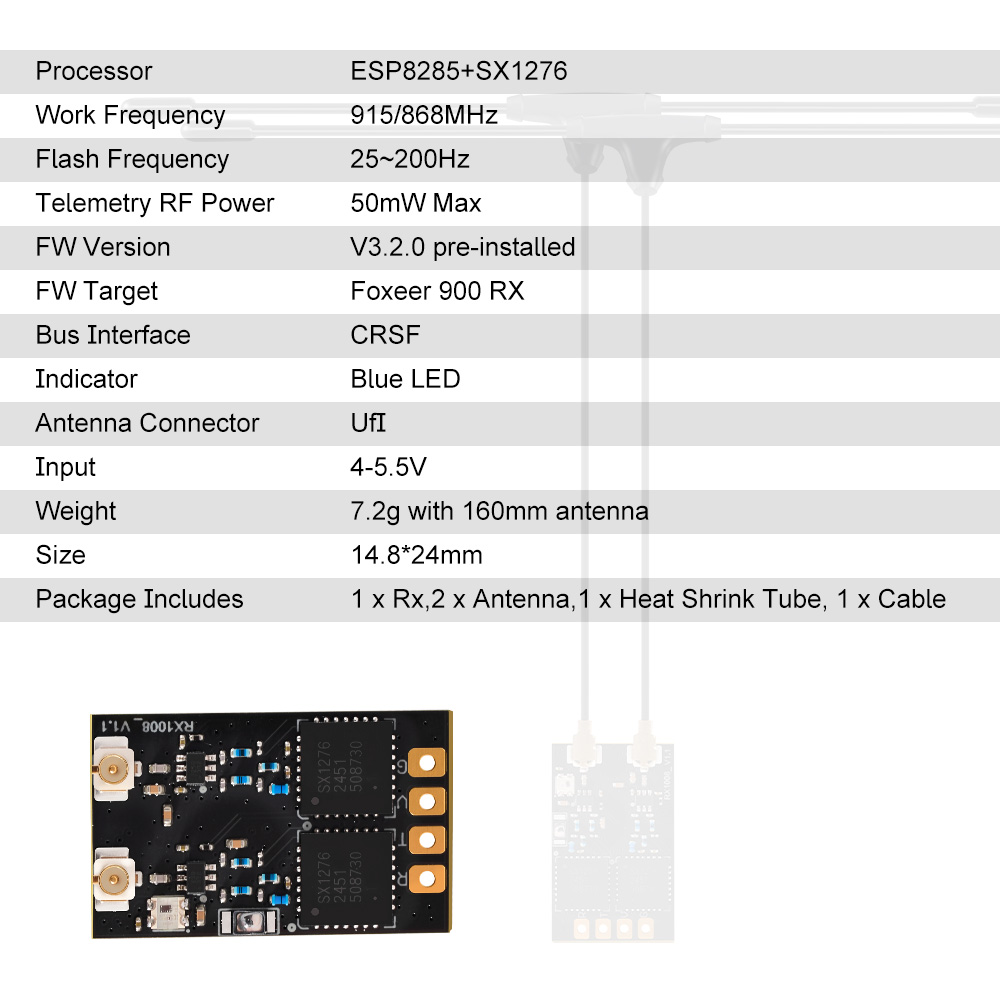

Specifications:
Processor: ESP8285+SX1276
Working Frequency: 915/868MHz
Flash Rate: 25~200Hz
Max Telemetry RF Power: 50mW
Pre‑installed Firmware: V3.2.0
Firmware Compatibility: Foxeer 900 RX
Bus Protocol: CRSF
Indicator Light: Blue LED
Antenna Interface: U.Fl
Input Voltage: 4~5.5V
Weight: 7.2g (with 160mm antenna)

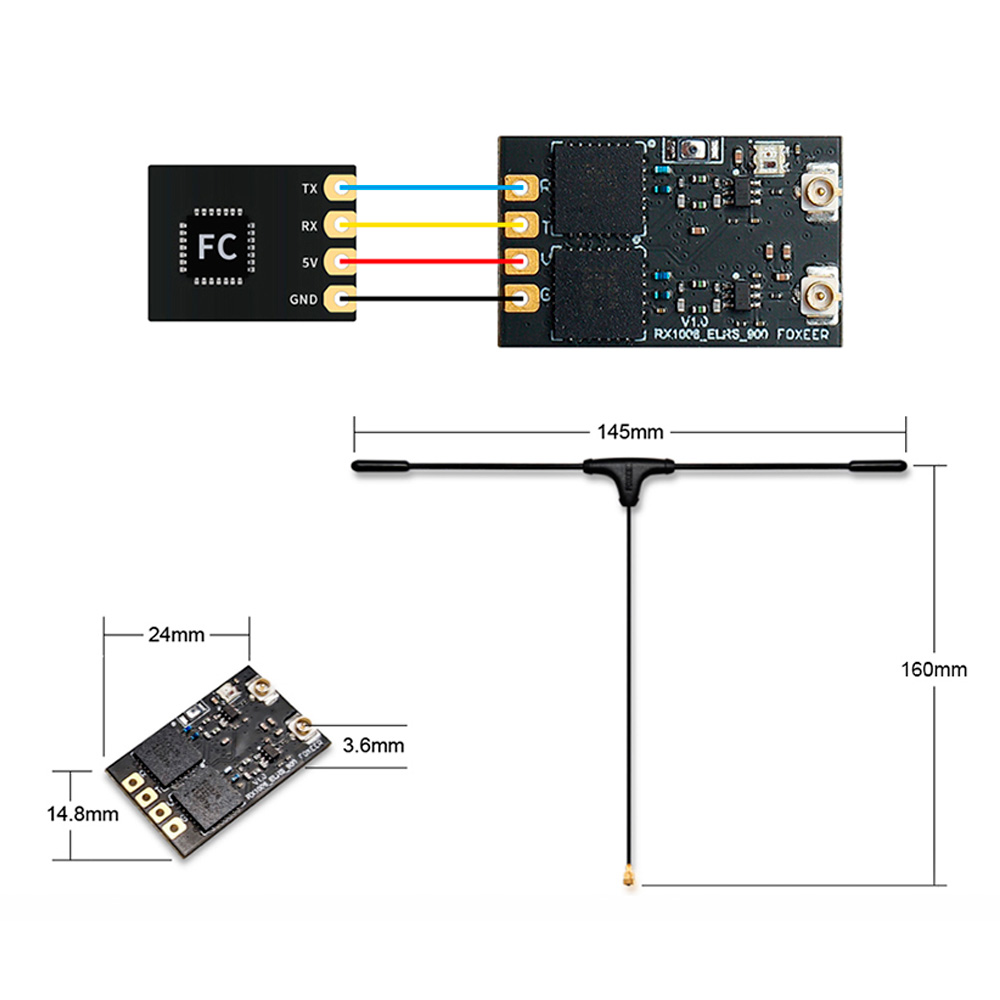

Dimension: 14.8×24mm

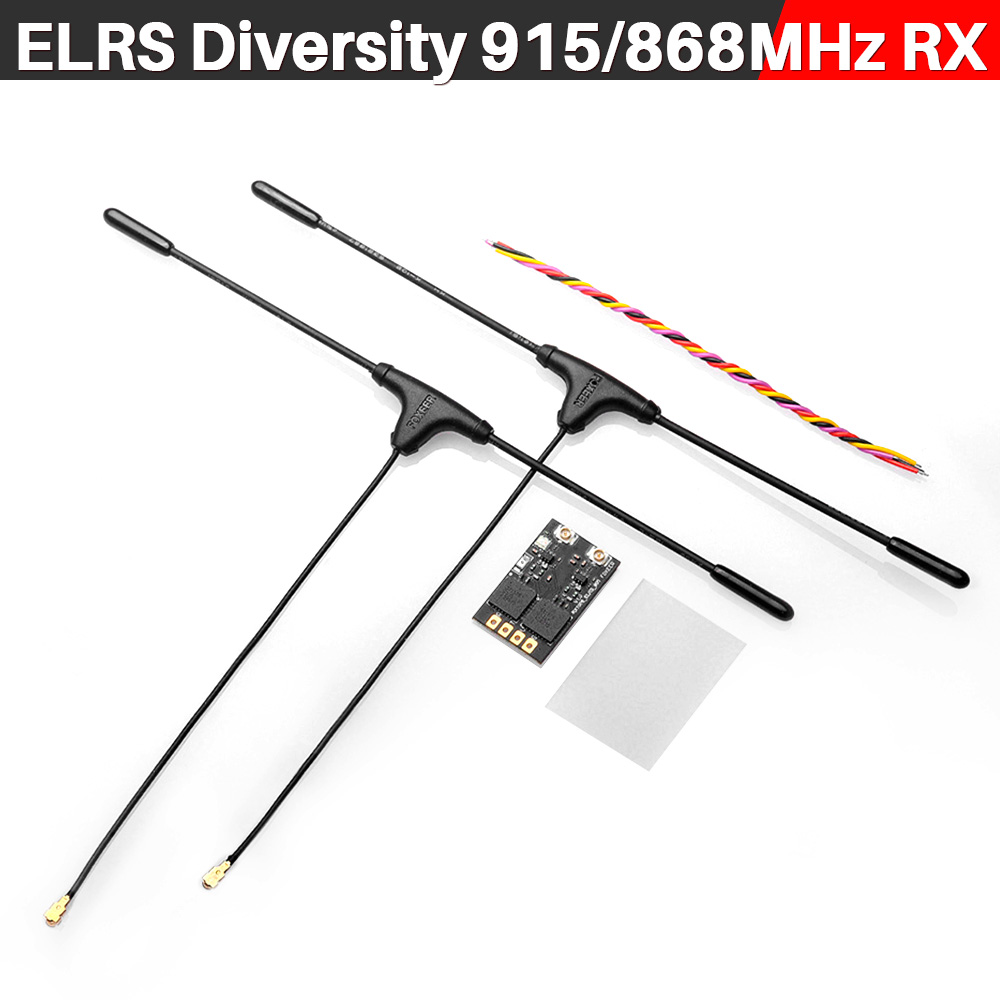

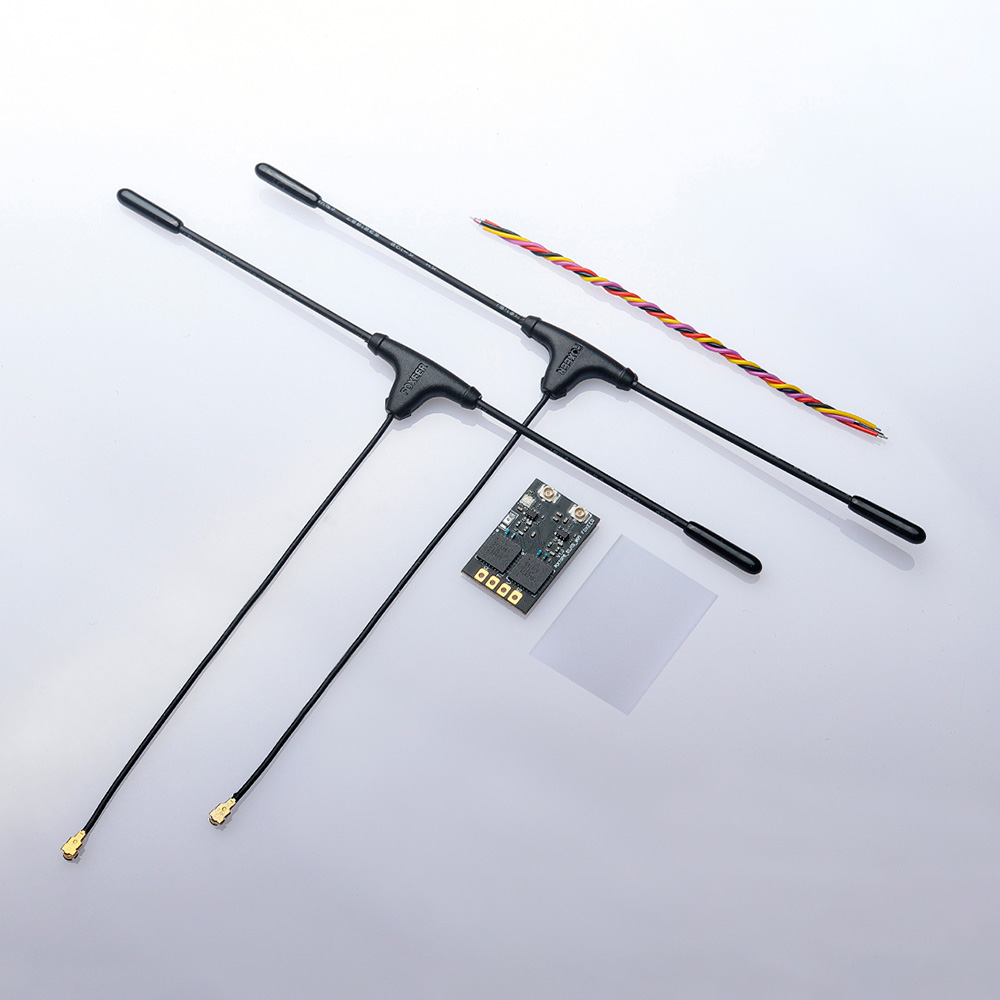

Package contents:
1 * ELRS Diversity 915/868MHz Receiver
2 * T‑type Antennas
1 * Heat‑shrink tube
1 * Connecting Cable
Note:
Only the above package content, other products are not included.
