SCS Sentinel SCS Sentinel Tor Drive Control SCS Sentinel MVE0056 OneGate1 12V

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.


Control fits SCS Sentinel Onegate 1

MVE0056 OneGate1

 12V

Also suitable for swing gates with 24 V drives


Characteristics:

  • Automatic closing: Adjustable (Off / 30/60 sec.
  • Safety - When an obstacle (child, car, etc.) is encountered, the gate stops and starts moving in the opposite direction
  • Safety can be further increased by installing a photocell set (option).
  • Convenience and flexibility of settings. In the event of a power failure, the gate can be opened by loosening the drive with the wing screw
  • Opening time 90 degrees: approx. 16 seconds
  • Control buttons: an alternative to external control buttons (e.g. bell) on the wires (or the keyboard encryption, access protection reader, GSM module, etc.)
  • LED display: easy and convenient programming of the control using the buttons and LED display
  • Expandable - the possibility of connecting a range of accessories m.in: - additional remote controls - photocell - an antenna for increased range, - a wireless keypad code, - key switch;.Surge protection: IT IS
  • Pedestrian crossing function (so-called wicket function)
  • There is also the possibility of using the battery of the same company for attachment (not included), which allows you to maintain multiple cycles of opening and closing in the event of a power failure.

Control technical data:

  • Input voltage: 12V DC
  • Maximum output current: 2.5A
  • Fuse: thermal over-voltage protection, anti-short circuit
  • Working temperature: -20 to 60 degrees C
  • Radio band: 433.92 MHz (code variable)
  • Stop/reverse if there is an obstacle when opening/closing the gate.
  • Optional light barrier protection
  • Built-in adjustable auto-close (0-100 seconds)
  • Power supply for drive: 12V DC
  • Stop/reverse if there is an obstacle when opening/closing the gate.
  • Easy to handle and low maintenance
  • 12V low safety voltage with solar panel as backup battery
  • Certifications: CE, LVD

Backup:

  • Amperometric: anti-overload protection with programmable sensitivity smoothly (2 channels)
  • Optical emergency entrance (light barriers, sensors, keys, etc.)
  • countdown time,
  • Thermal interruption if (+) or (-) temperature is exceeded.
  • Battery: the ability to connect the 24V battery in an emergency

The set includes:

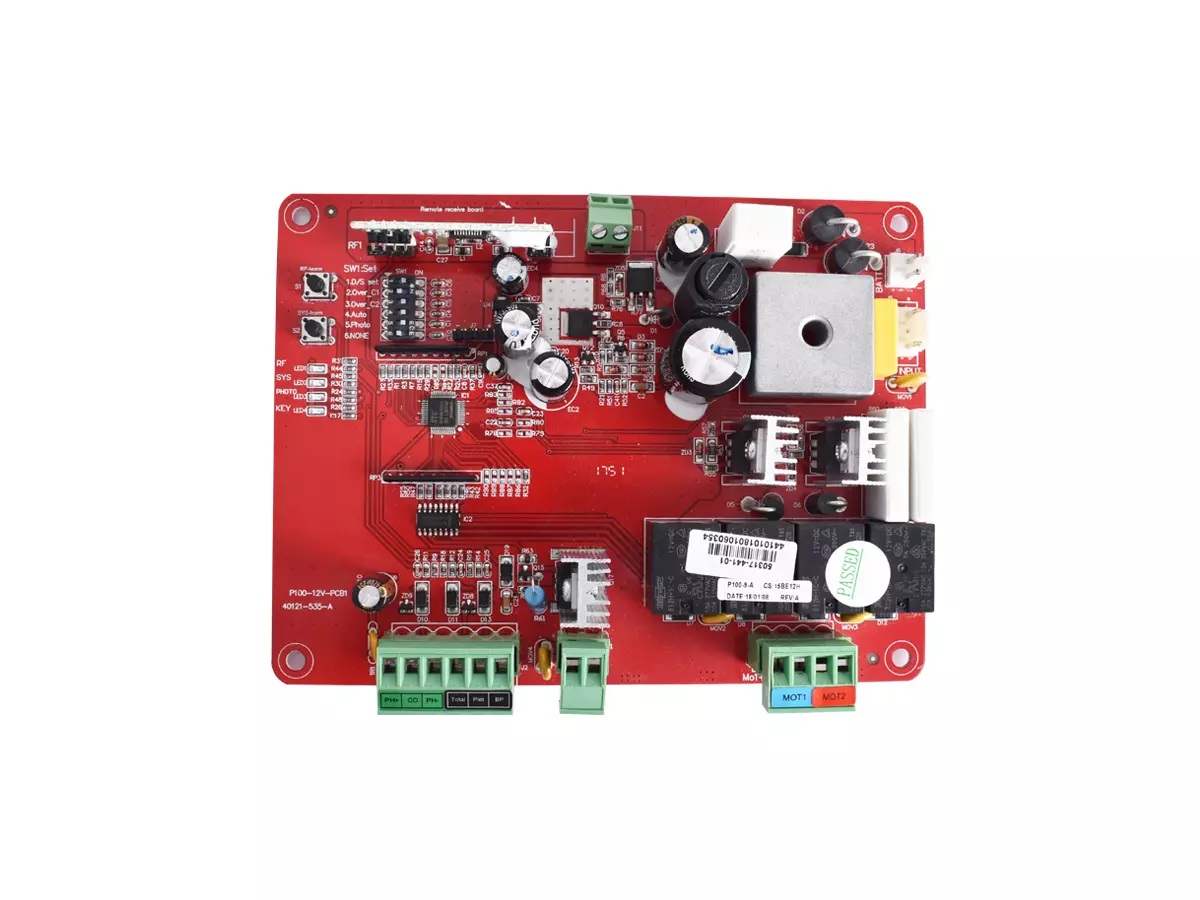

  • 1 x controller 24 V
  • 1 x transformer

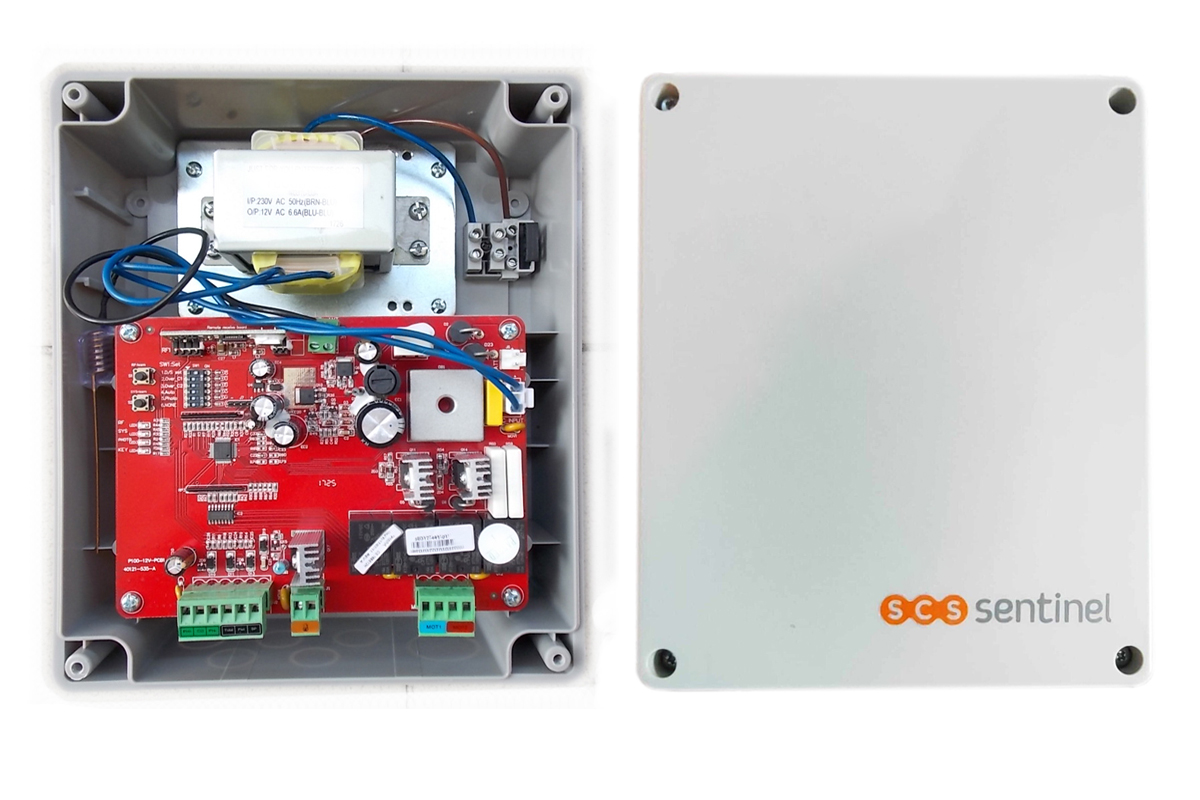

  • 1 x Control Box
  • 1 x circuit diagrams, operating instructions in German
Safety - When an obstacle (child, car, etc.) is encountered, the gate stops and starts moving in the opposite direction Convenience and flexibility of settings. In the event of a power failure, the gate can be opened by loosening the drive with the wing screw Control buttons: an alternative to external control buttons (e.g. bell) on the wires (or the keyboard encryption, access protection reader, GSM module, etc.) Expandable - the possibility of connecting a range of accessories m.in: - additional remote controls - photocell - an antenna for increased range, - a wireless keypad code, - key switch;.Surge protection: IT IS There is also the possibility of using the battery of the same company for attachment (not included), which allows you to maintain multiple cycles of opening and closing
