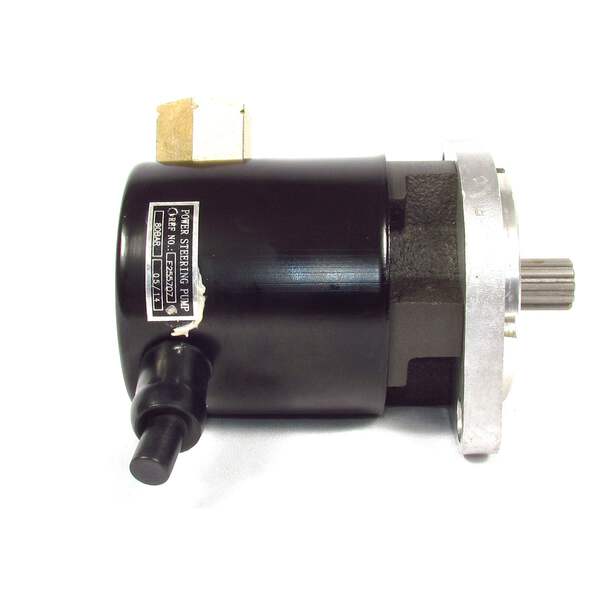

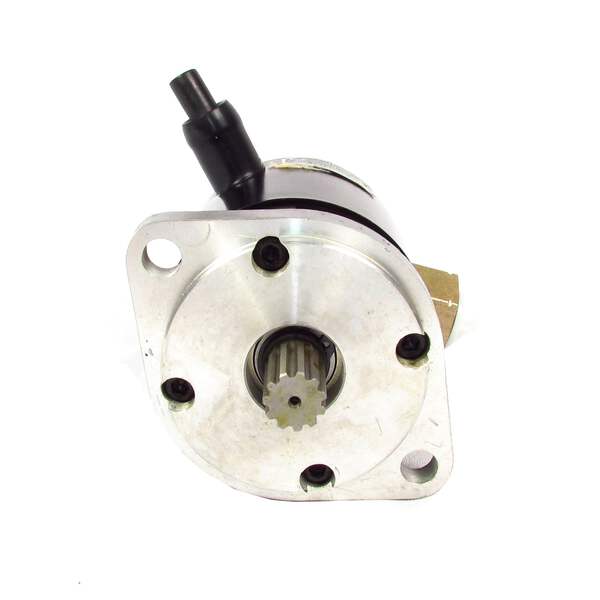

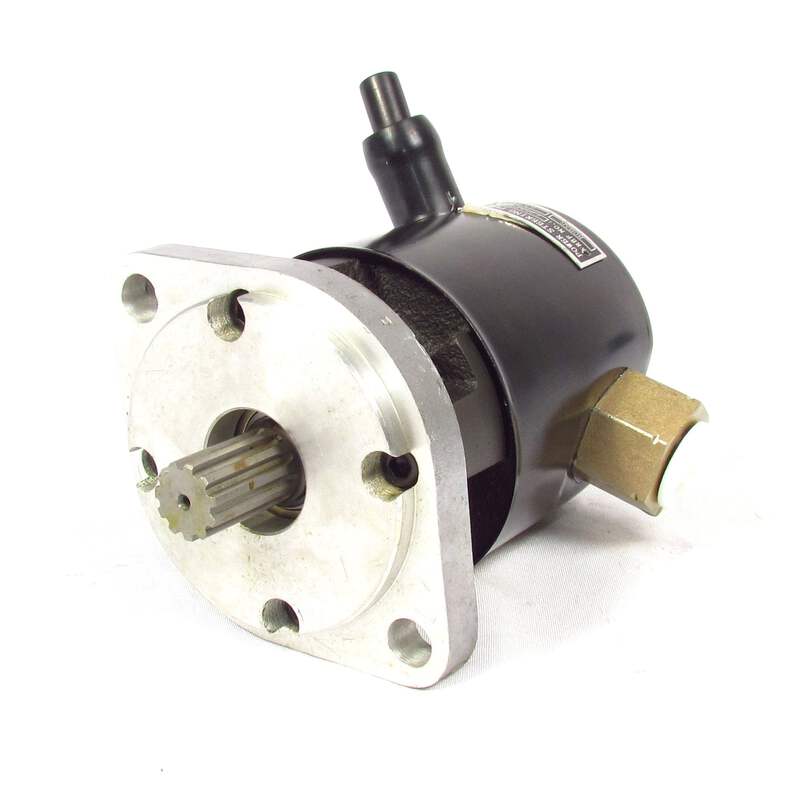

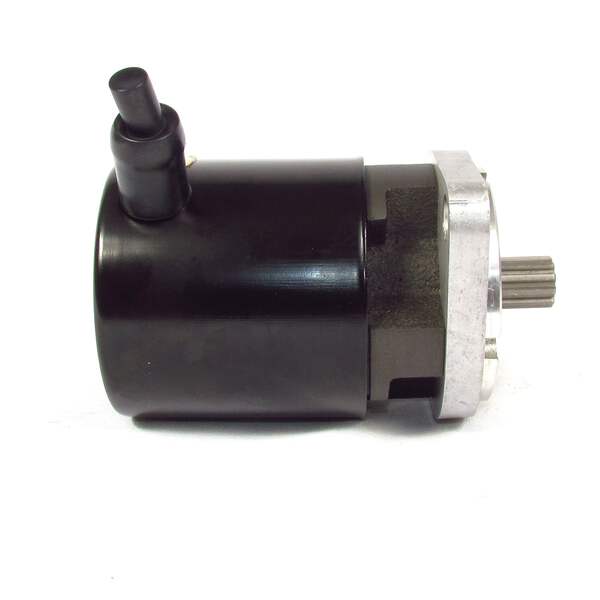

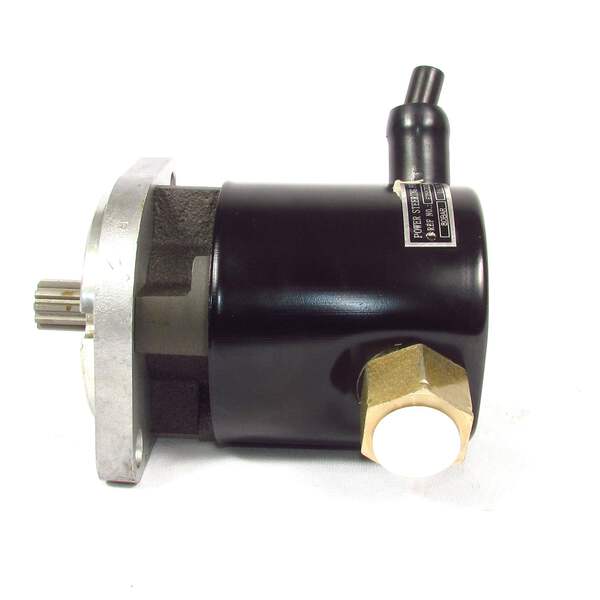

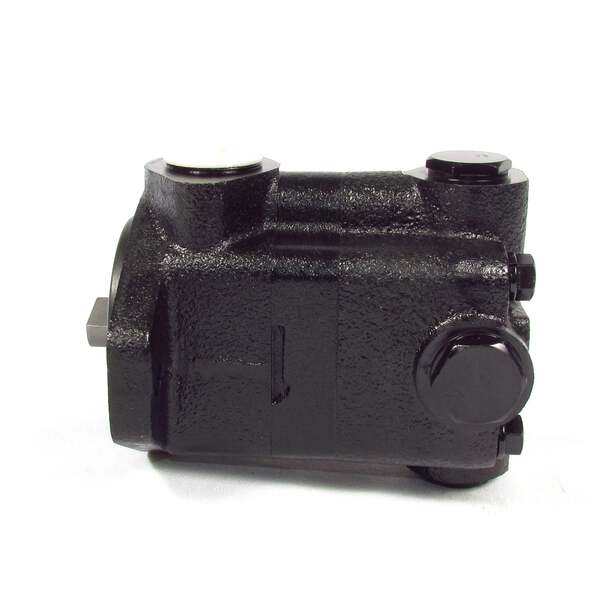

Fortpro Power Steering Pump Compatible with Caterpillar 3116 Engines | F255707

Key Features
  • Most of the power steering pump's housing look identical with the pressure port pointing to the same direction, this is why, you should be aware of the direction of rotation because if you don not choose the right one, the pump will not work
  • Direction of Rotation: Left
  • Nominal Displacement: 10.5 ml/r, Maximum Pressure: 80 bar, Controlled Flow Rate 10 L/min
  • Highest Rotational speed 500 - 3200 r/min
  • Perfect Fit is a must for Steering Pumps, Ours are precisely built to ensure proper Fit and Performance . Be sure of your truck OEM part number
Specifications
  • Product Line: Steering Components
  • Category Name: Power Steering Pump
  • Part Type: Steering Pump
  • Alternate Part Name: Hydraulic Power Steering Pump
  • OEM Part Number: 0810L/276-1
  • Application Type: Semi-Trucks, Heavy Duty Trucks
  • Inlet Port Thread Size: 1 1/16-12 UN-2B
  • Mounting Type: 2 Bolt Flange SAE-A SIZE
  • Outlet Port Thread Size: M22 x 1.5
  • Material: Cast Iron
  • Max Operating Speed: 3200 rpm
  • Max Relief Pressure: 80 bar
  • Nominal Flow Rate: 10.0 L/min
  • Pump Displacement: 10.5 cm³/rev
  • Shaft Rotation Direction: Left-Hand
  • Net Weight: 8.30 lb.

Intended Application
Compatible with Caterpillar 3116 Engines

Cross-references
  • 0810L/276-1, 0810L/2761, KODIAK316
×
×
×
×
×
×
×
×
