Features:
1. Dual-Band 915MHz+2.4GHz Dual Band Design
Integrates 915MHz long-range and 2.4GHz high-speed racing frequency bands in one module. Fully compatible with mainstream ELRS receivers, meeting different flight demands without frequent module replacement.

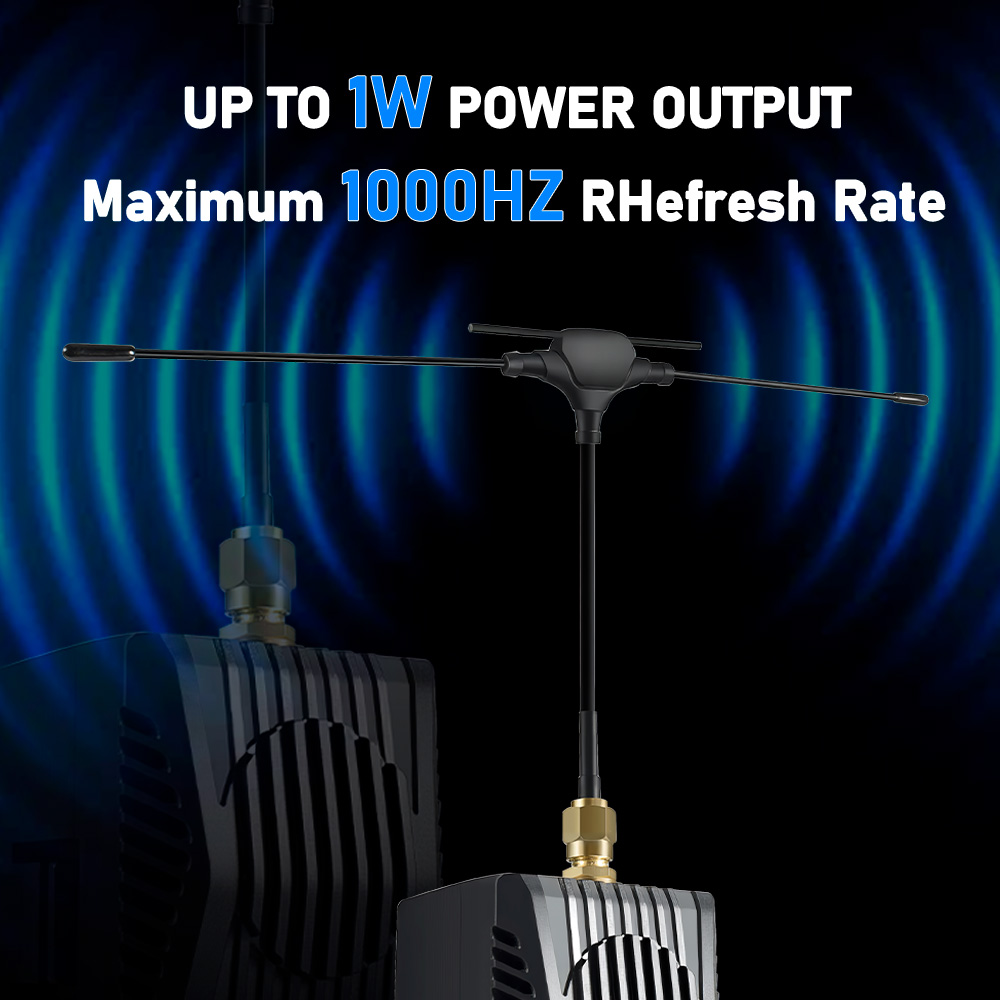

2. Up to 1W High Power Output & Dynamic Power Adjustment
Max 1000mW stable transmit power for ultra-long-distance control. Built-in dynamic power adjustment function, automatically adjusts transmit power according to signal strength to balance flight distance, stability and power consumption.
3. 1000Hz High Refresh Rate & Low Latency
Supports up to 1000Hz high refresh rate, brings ultra-low delay control experience. Perfect for FPV freestyle and high-speed racing, effectively avoid frame drop and lag, smooth and sensitive operation.
4. TCXO Crystal
Built-in high-precision TCXO temperature-compensated crystal oscillator, effectively eliminates frequency drift caused by temperature changes to prevent flight loss.

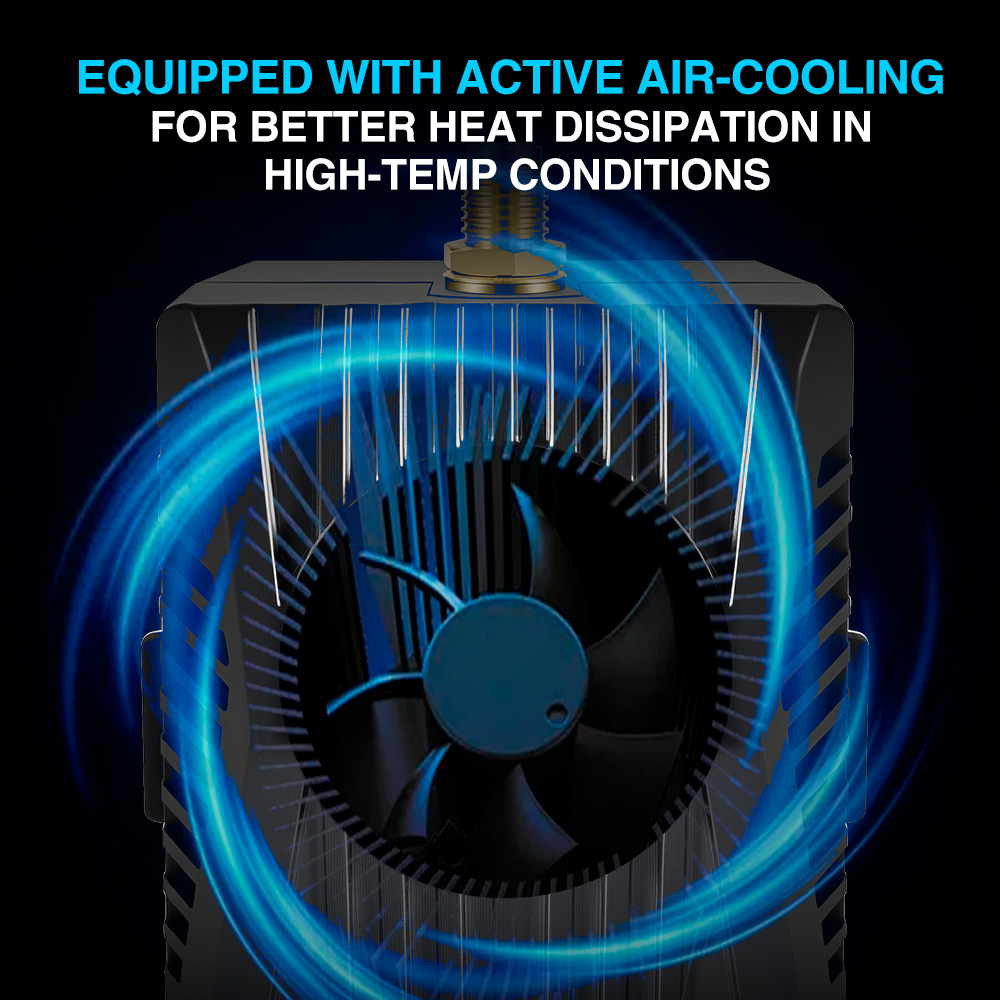

5. Active Fan Cooling System
Equipped with active cooling fan with adjustable temperature threshold, stable heat dissipation under high-power and long-time working conditions.
6. Multi-Function Expansion & Wide Compatibility

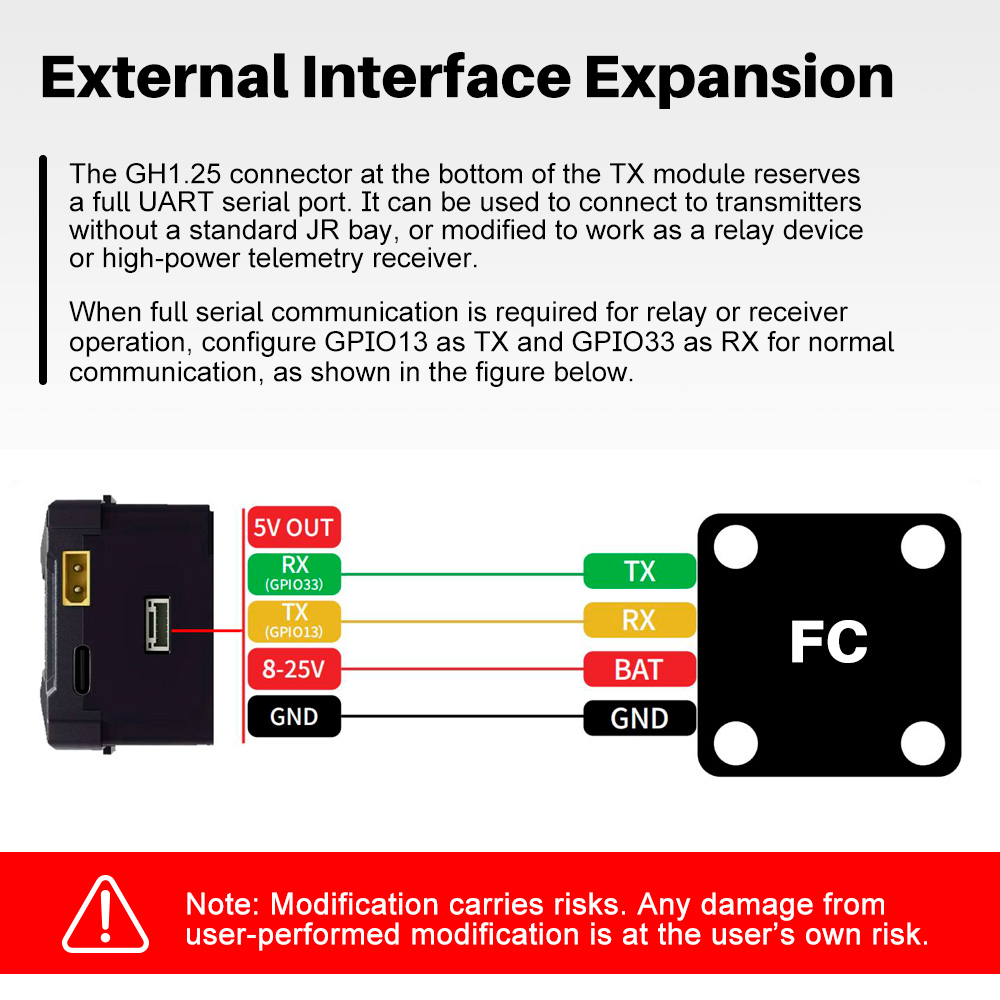

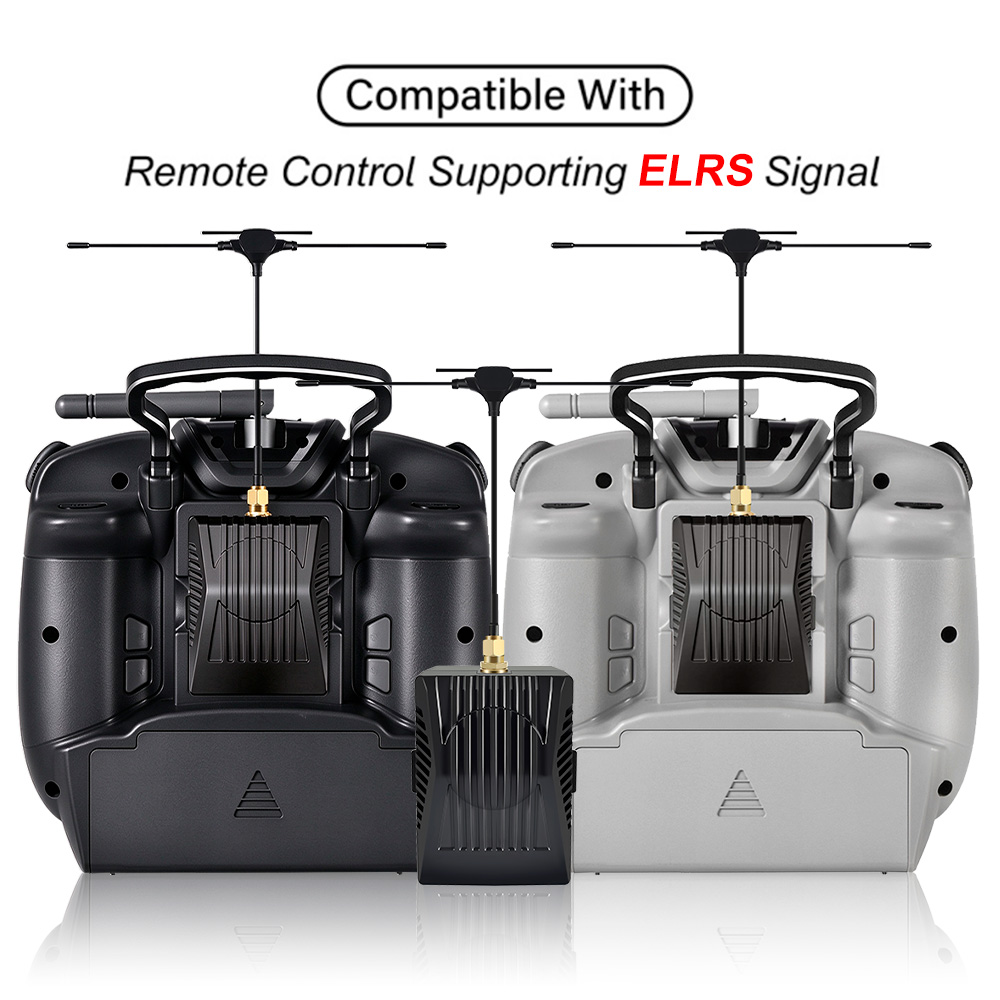

Standard JR Bay design, compatible with most mainstream remote controllers. Reserved GH1.25 UART interface, supports DIY modification for relay or high-power telemetry receiver. Pre-installed ELRS 3.6 firmware, supports WiFi upgrade and BLE joystick mode, rich functions and easy operation.
7. MAVLink Telemetry Support
Built-in MAVLink protocol for bi-directional telemetry. Real-time transmits flight data like altitude, GPS and battery info to your transmitter, great for long range fixed-wing FPV.
(Compatible with Dumbo DRC16P, DRC10, DRC10L remote controls)
Description:
Description:

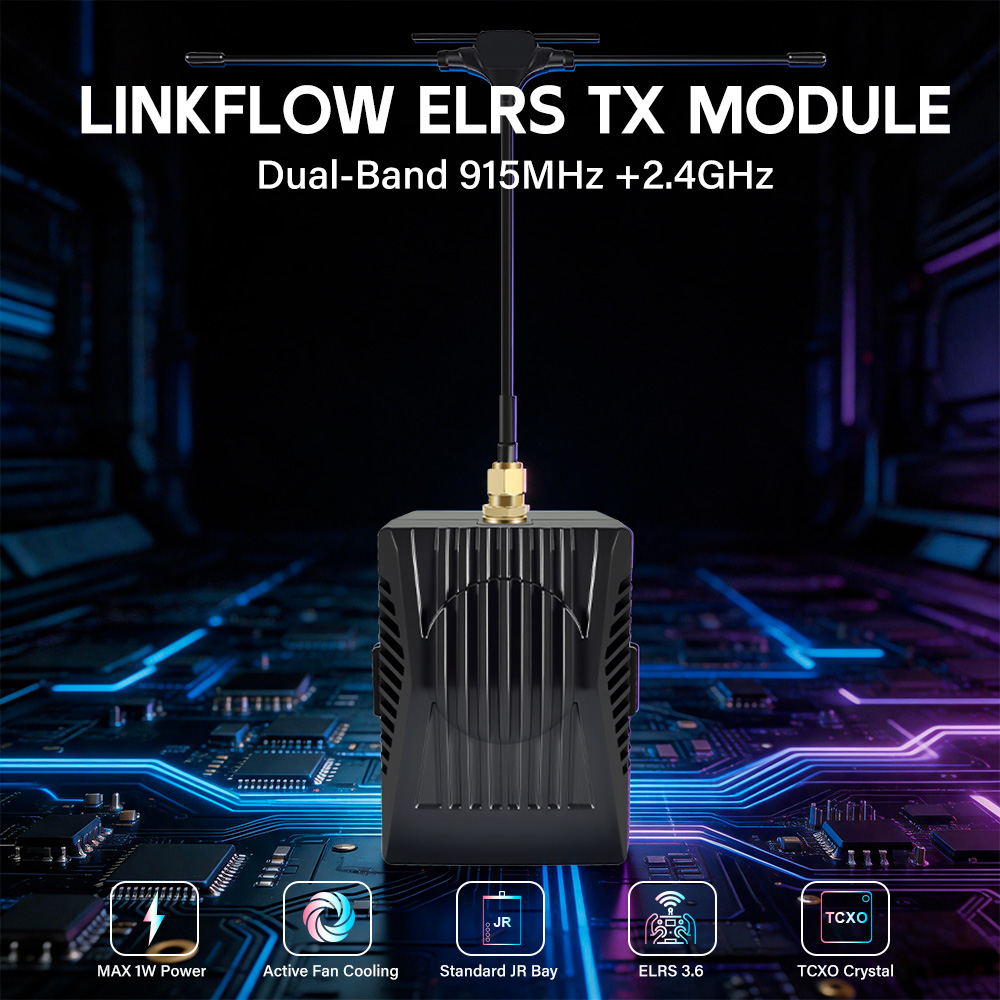

This LINKFLOW 915MHz/2.4GHz ELRS transmitter module delivers up to 1W transmit power and 1000Hz high refresh rate, equipped with TCXO, adjustable active fan cooling and MAVLink telemetry, supporting dual-band FPV long range and racing flight with rich DIY expansion.
Specifications:
Product: LINKFLOW 915MHz / 2.4GHz ELRS TX Module
Frequency Band: 915MHz & 2.4GHz Dual Band
Max Transmit Power: Up to 1000mW (1W)
Refresh Rate: Up to 1000Hz
Oscillator: TCXO Temperature Compensated Crystal
Cooling: Active Fan Cooling
Telemetry: ELRS Telemetry, MAVLink Supported
Firmware: Pre-flashed ELRS 3.6
Upgrade: WiFi Web Update
Function Mode: BLE Joystick Mode

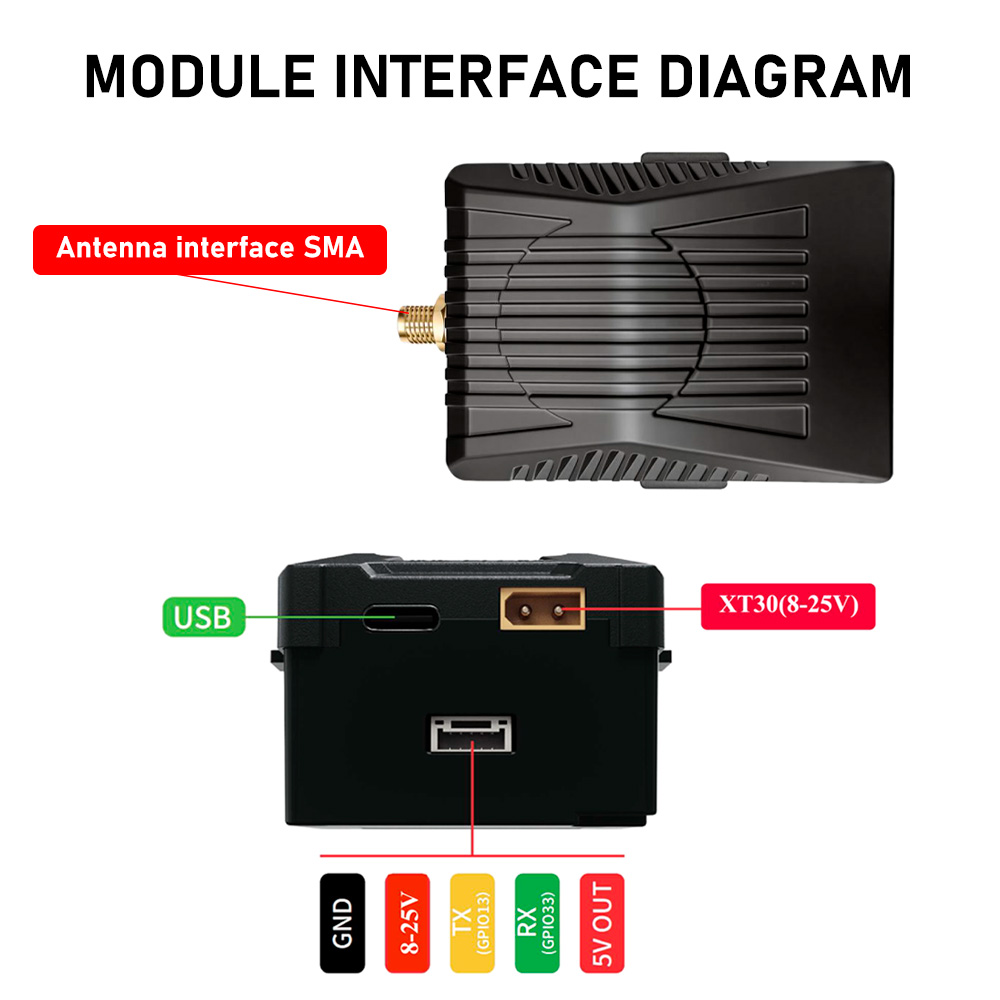

External Interface: GH1.25 UART Port (GPIO13-TX, GPIO33-RX)
Power Input: 8V~25V
Mount: Standard JR Bay
Package contents:
1* ELRS TX Module
1* Antenna
Note:
Only the above package content, other products are not included.
