Feature:

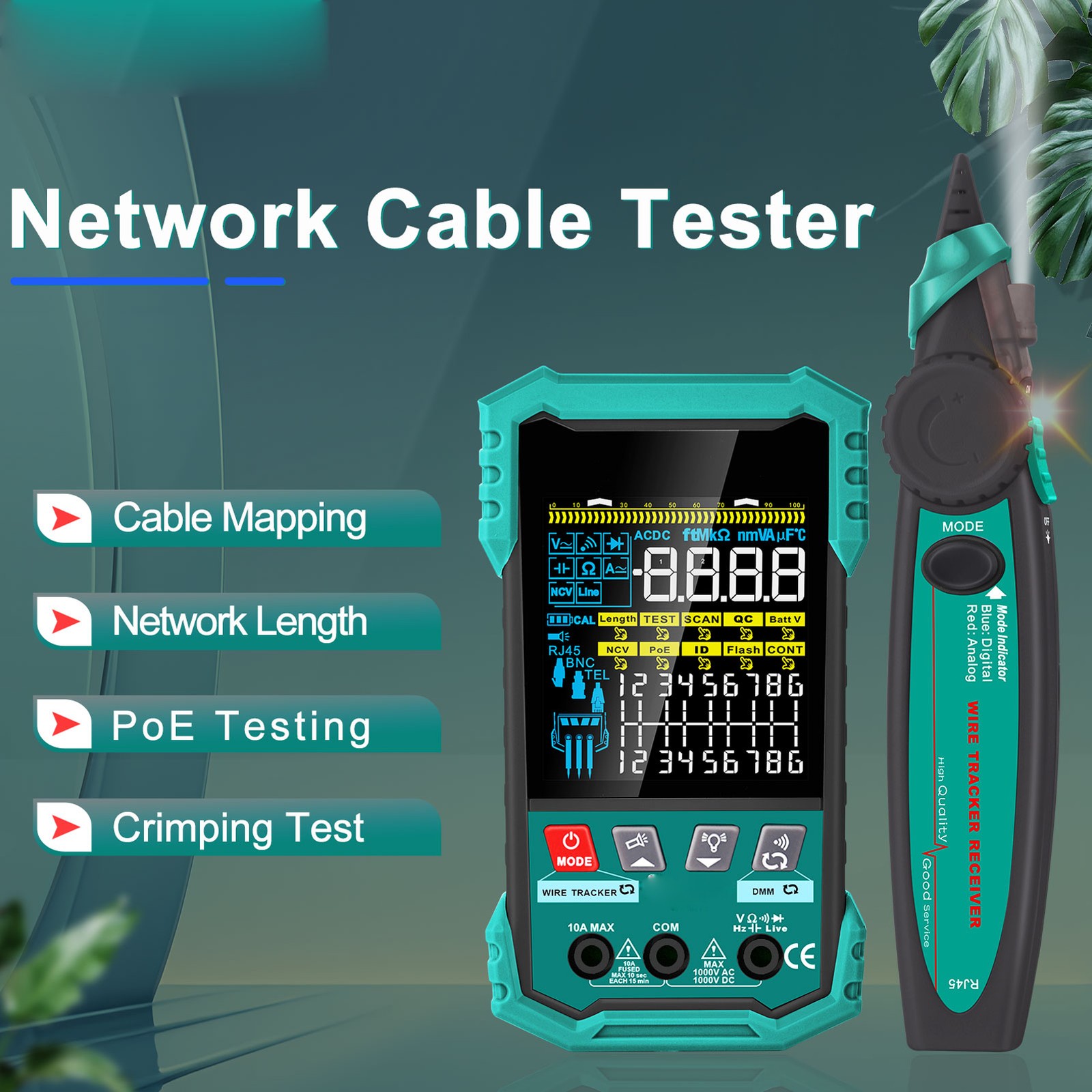

1. Network Cable Tester: The tester features functions such as CONT, power supply, 400 meter line measurement, port tracking, no fault scanning, loopback testing, LED light. Compatible with cables such as CAT5, CAT5e, CAT6, and CAT6A.

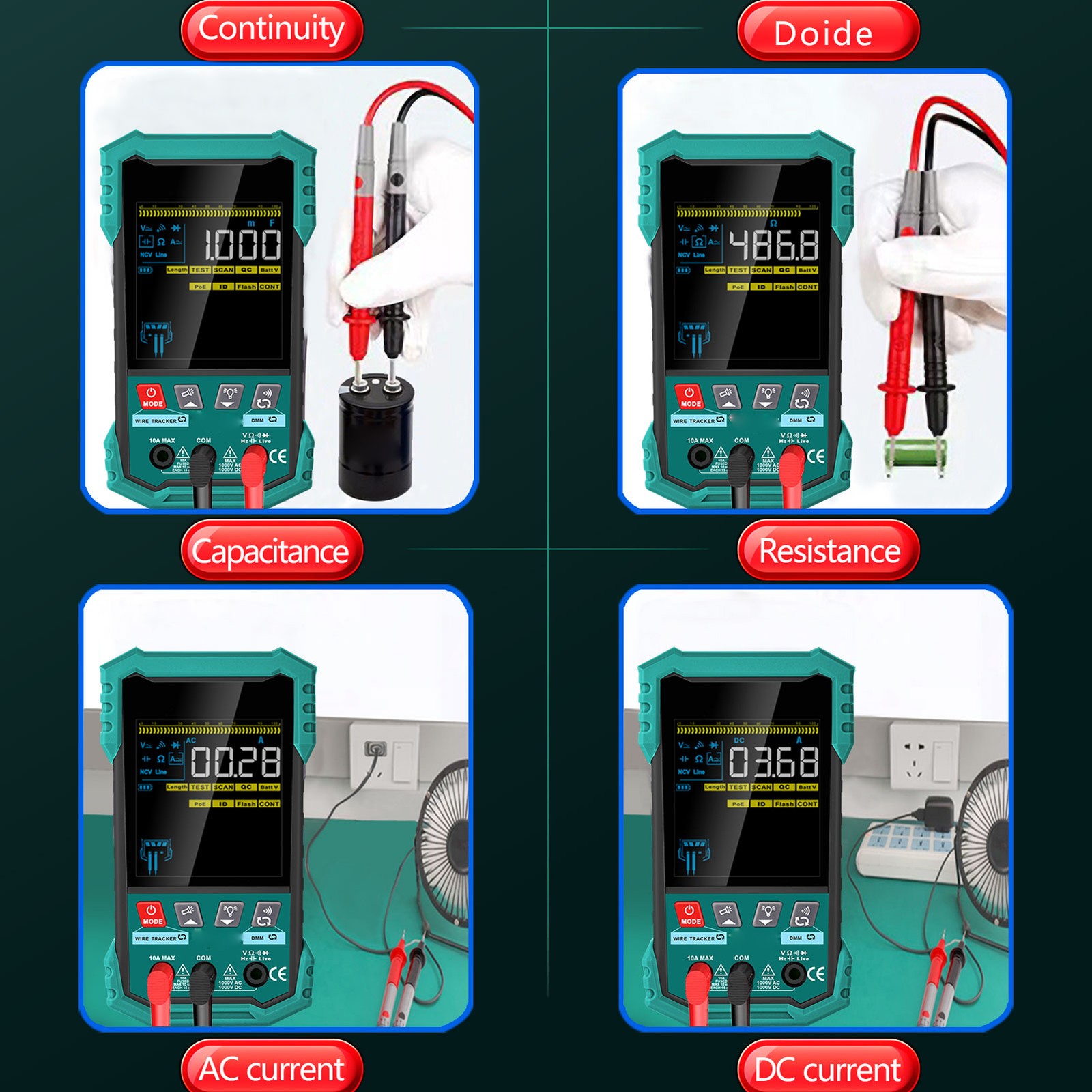

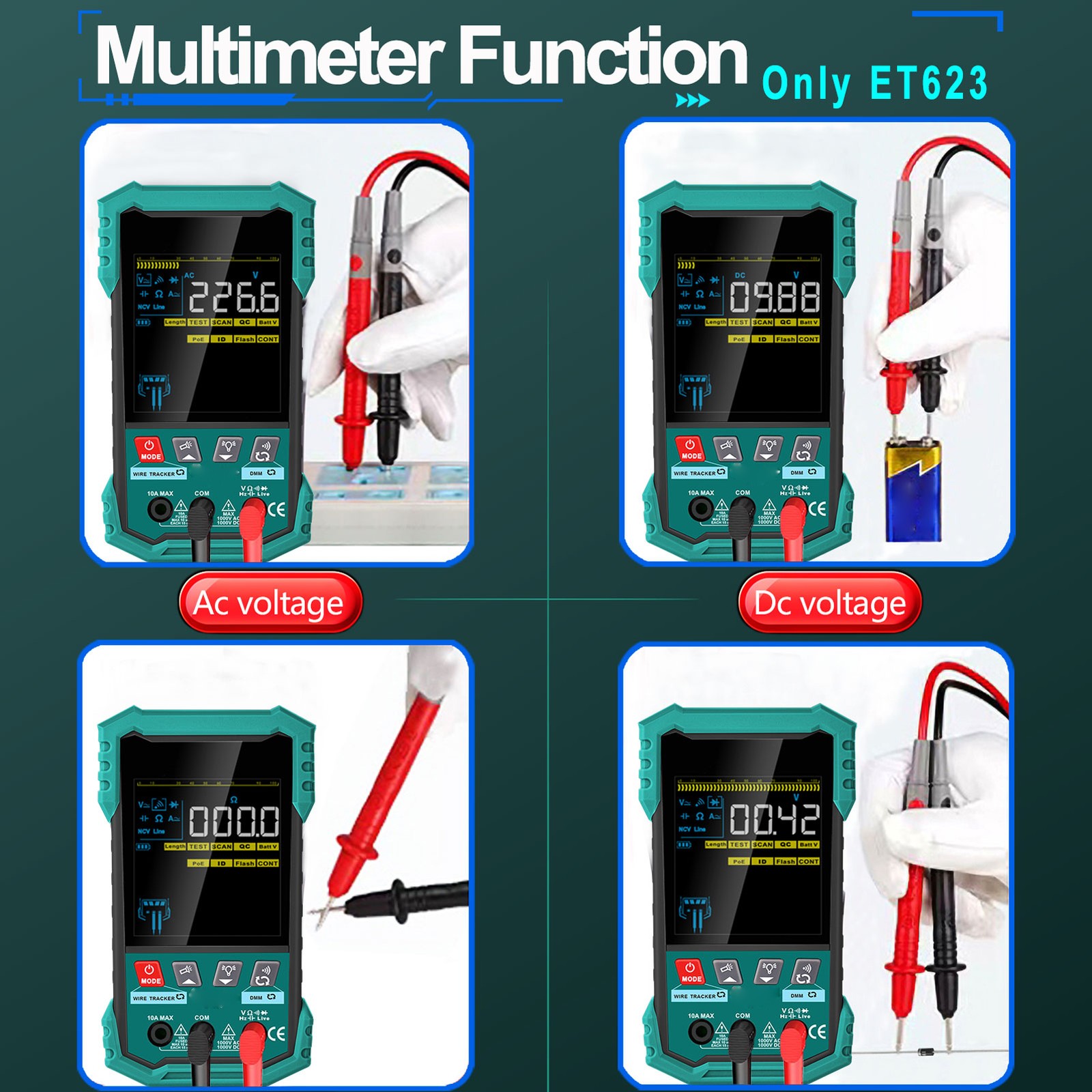

2. Multimeter Function: The multimeter can measure up to 1000V DC voltage and 600V AC voltage, 10A AC DC current, and 60MΩ resistor, can also test capacitor, wire continuity, diodes, and continuity.

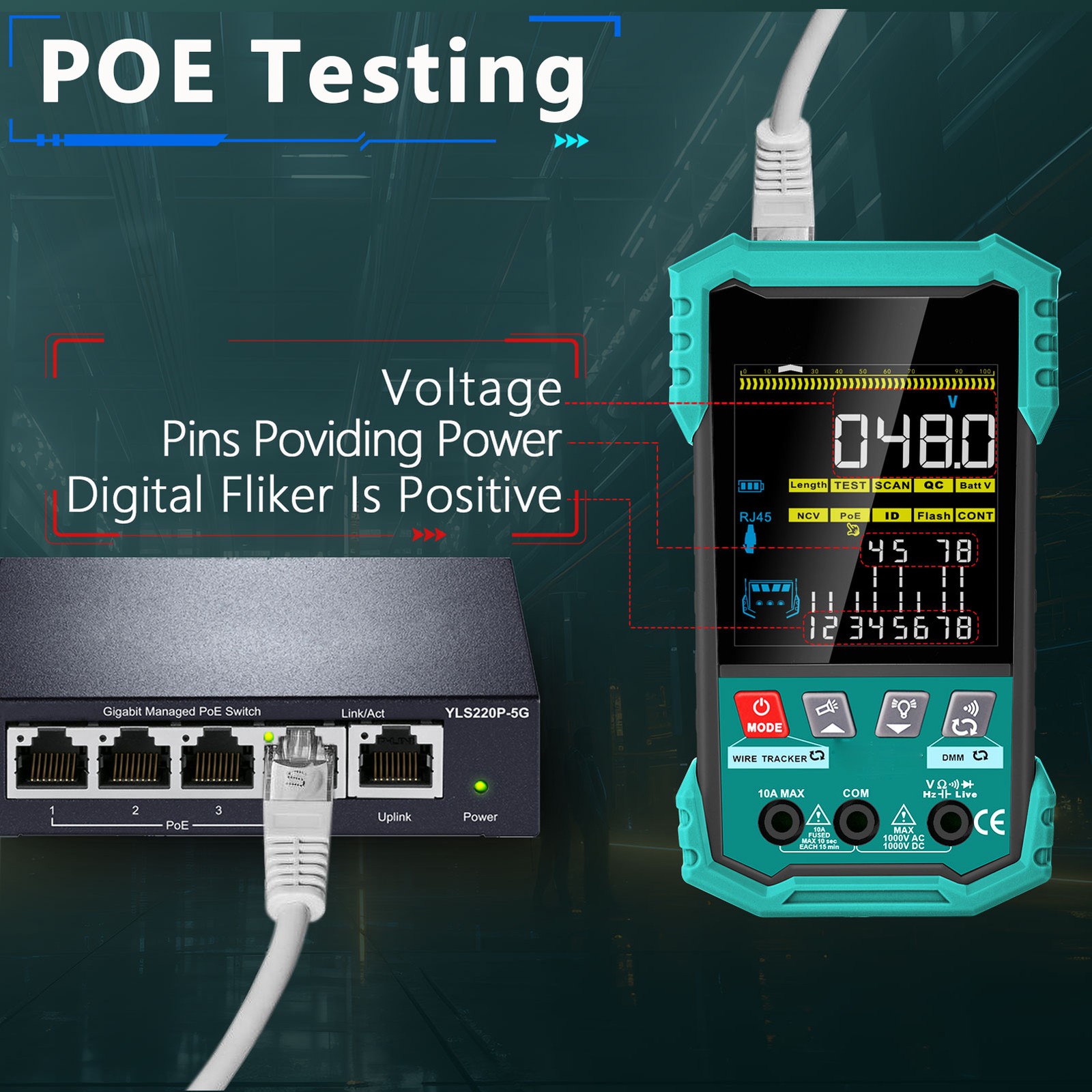

3. POE NCV Test: The Ethernet tester can determine which pins are supplying power and detecting voltage, determine the PSE type (according to af standards), and detect whether there is AC voltage (50V to 1000V), can also test the physical status of STP and UTP network cables.
4. Three Tracking Modes: The Ethernet cable tester kit provides AC filter and analog signal, with three cable tracking modes to choose from: normal mode, anti interference mode, and PoE mode.

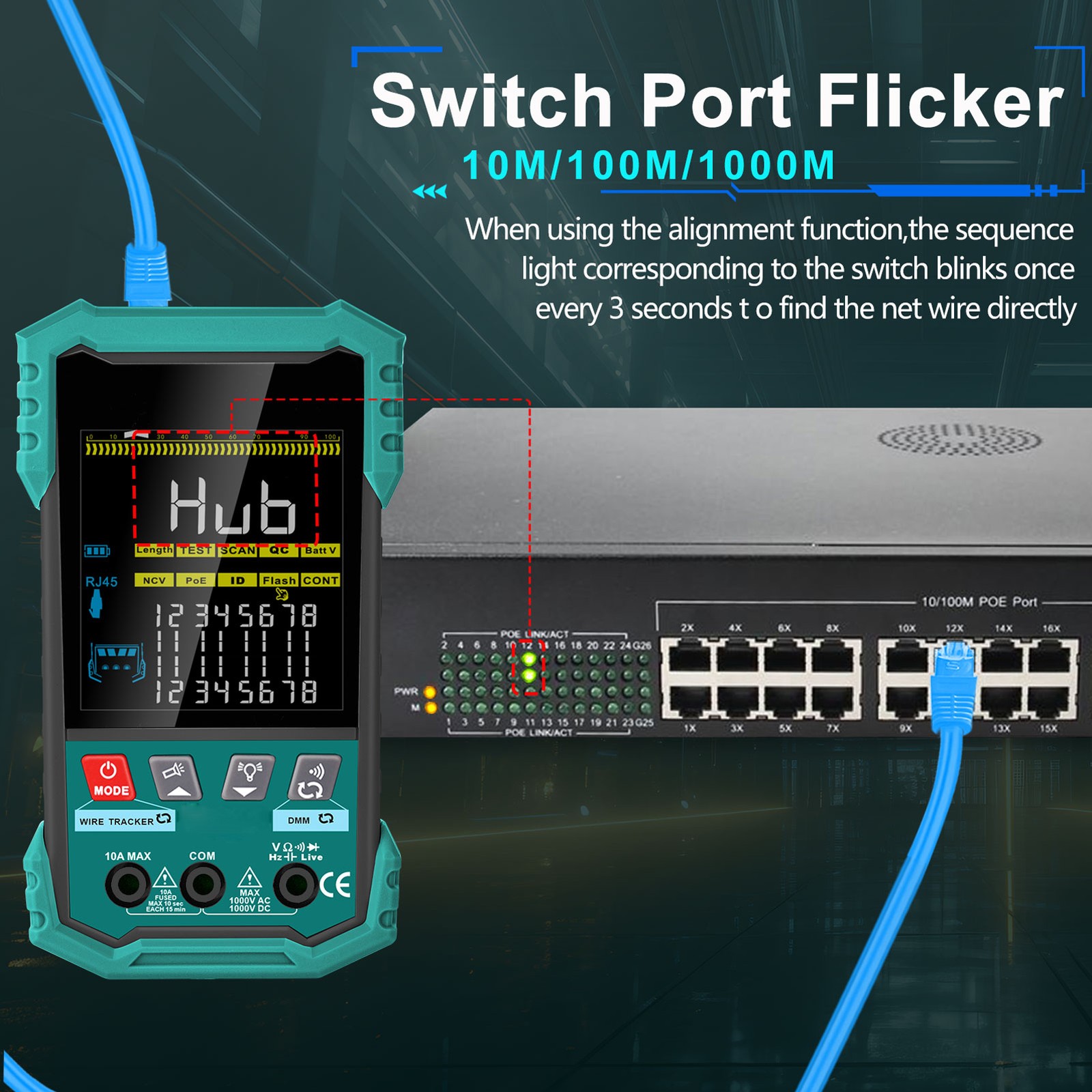

5. Port Flashing: The network tester has anti interference line finding function, which can locate the network port through indicator light flashing, and quickly find the network cable on the switch or router, can be used for 10M, 100M, 1000M hub or switch.

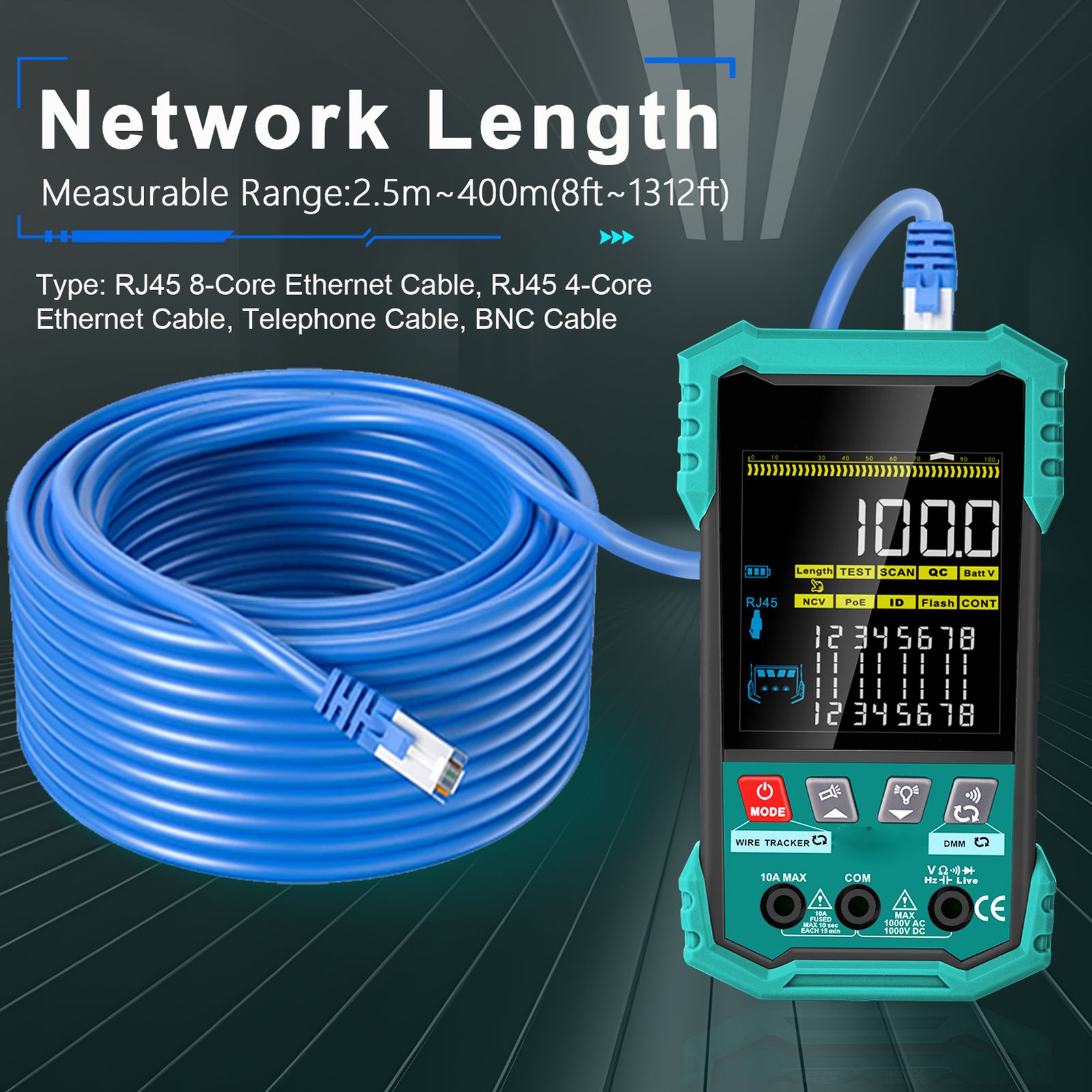

6. Precise Length Measurement: The network cable tester supports LED light, convenient to use in low light or dark environments. It can accurately measure cable length without calibration, with a measurement range of 2.5-400 meters and an accuracy of up to 99%.
7. Rechargeable Battery: The Ethernet cable tester is equipped with a built in 1250mAh rechargeable battery, which provides long battery life and supports Type C charging, making it convenient for long term use.
Specification:
Item Type: Network Cable Tester
Battery: ABS
Host Battery: 1 x 1250mAh rechargeable li battery (built in)
Line Finding Pen Battery: 1 x 6F22 550mAh dry battery (equipped)
Length Measurement: 2.5-400M Ethernet cable, 200m reference
Crystal Head Crimp Test: Yes
Line Finding Function: Digital/vibration
Line Pairing Function: Normal/short circuit/open circuit/crossover
Short Circuit On/Off: Multimeter measurement
Switch Port Flashing: 10M/100M/1000M
Live POE Switch: Yes
Voltage (Battery): Multimeter measurement
POE Polarity: Standard/non standard, POE voltage/polarity (5-60V)

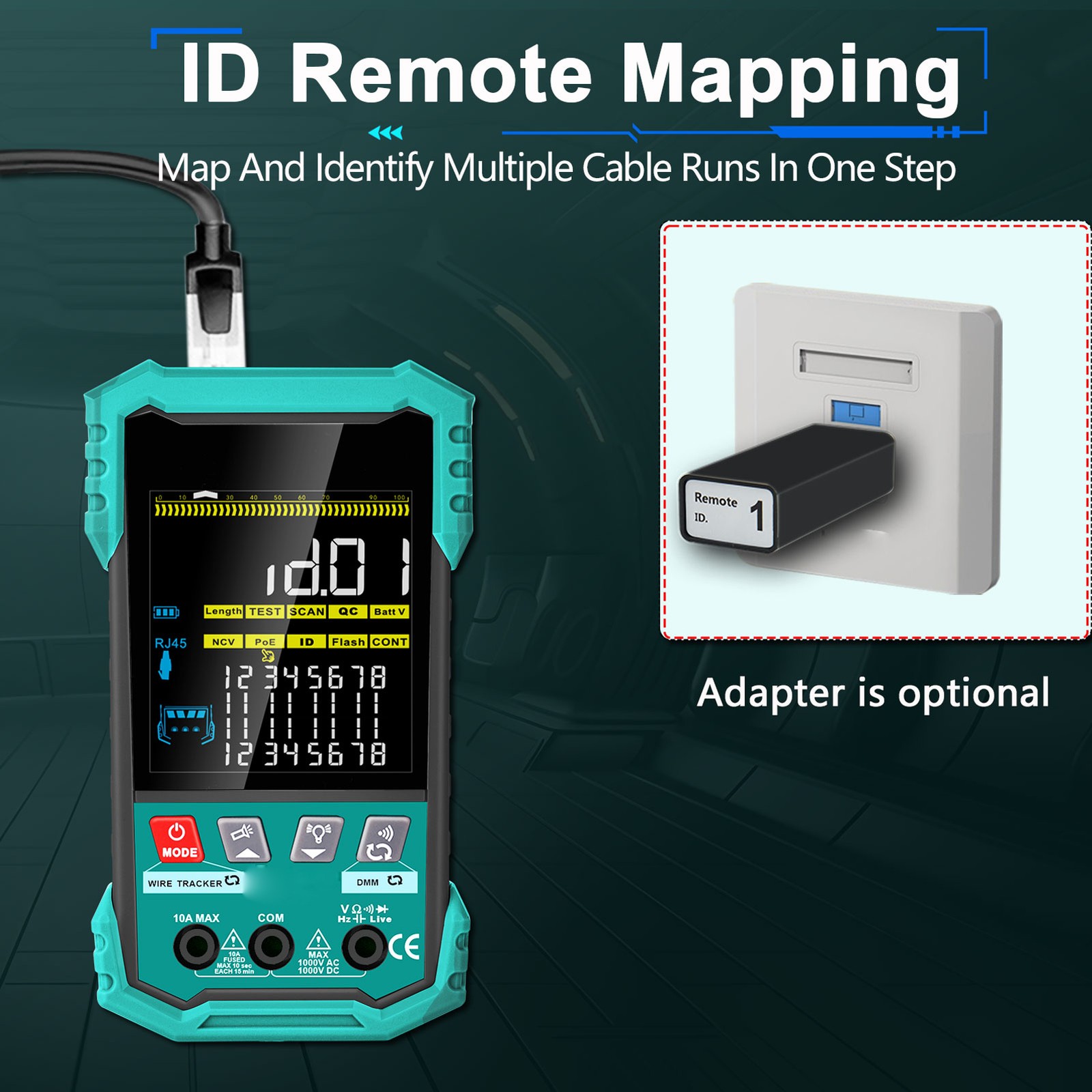

ID Pairing Function: Optional adapter accessory (shipped without adapter)
Input Instructions: Yes
NCV Function: Multimeter measurement
Other Functions: Host lighting function, multimeter probe prompt function, VA display, white light flashlight function, adjustable digital line finding sensitivity, low voltage detection
Multimeter Function:
DC Voltage: 600.0mV~1000V ±(0.5%+3)
AC Voltage: 6V~600V ±(1%+3)
DC Current: 999.9mA~9.999A ±(1.2%+3)
AC Current: 999.9mA~9.999A ±(1.5%+3)
Resistor: 600.0Ω~60.00MΩ ±(1.5%+5)
Capacitor: 6.000nF-666.6uF ±(2.0%+6)
On Off Buzzing: 6.000mF-60.00mF ±(5%+20)
Diode: <10Ω beep
NCV: Level 0-4
Live Detection: Single probe ACV

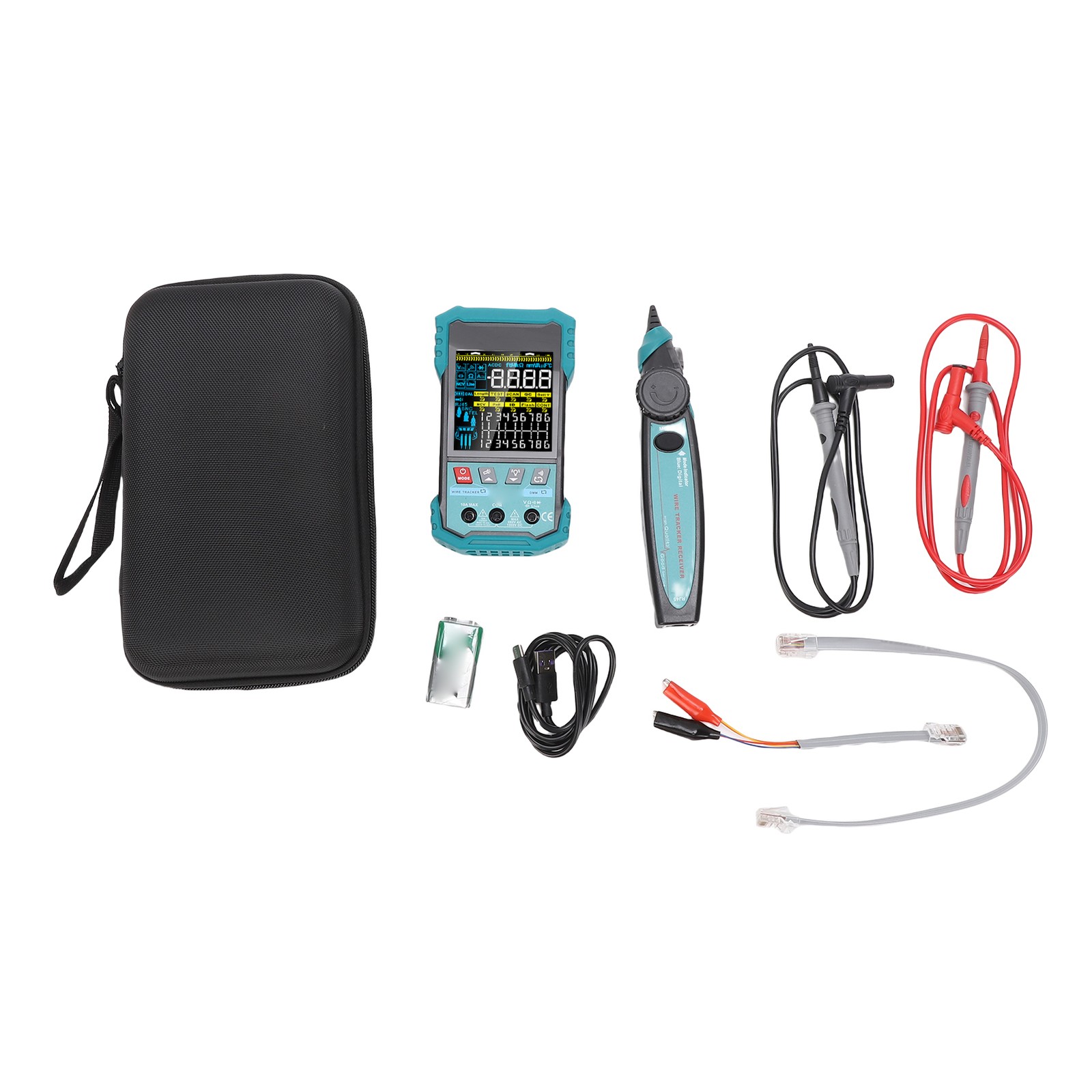

Package List:

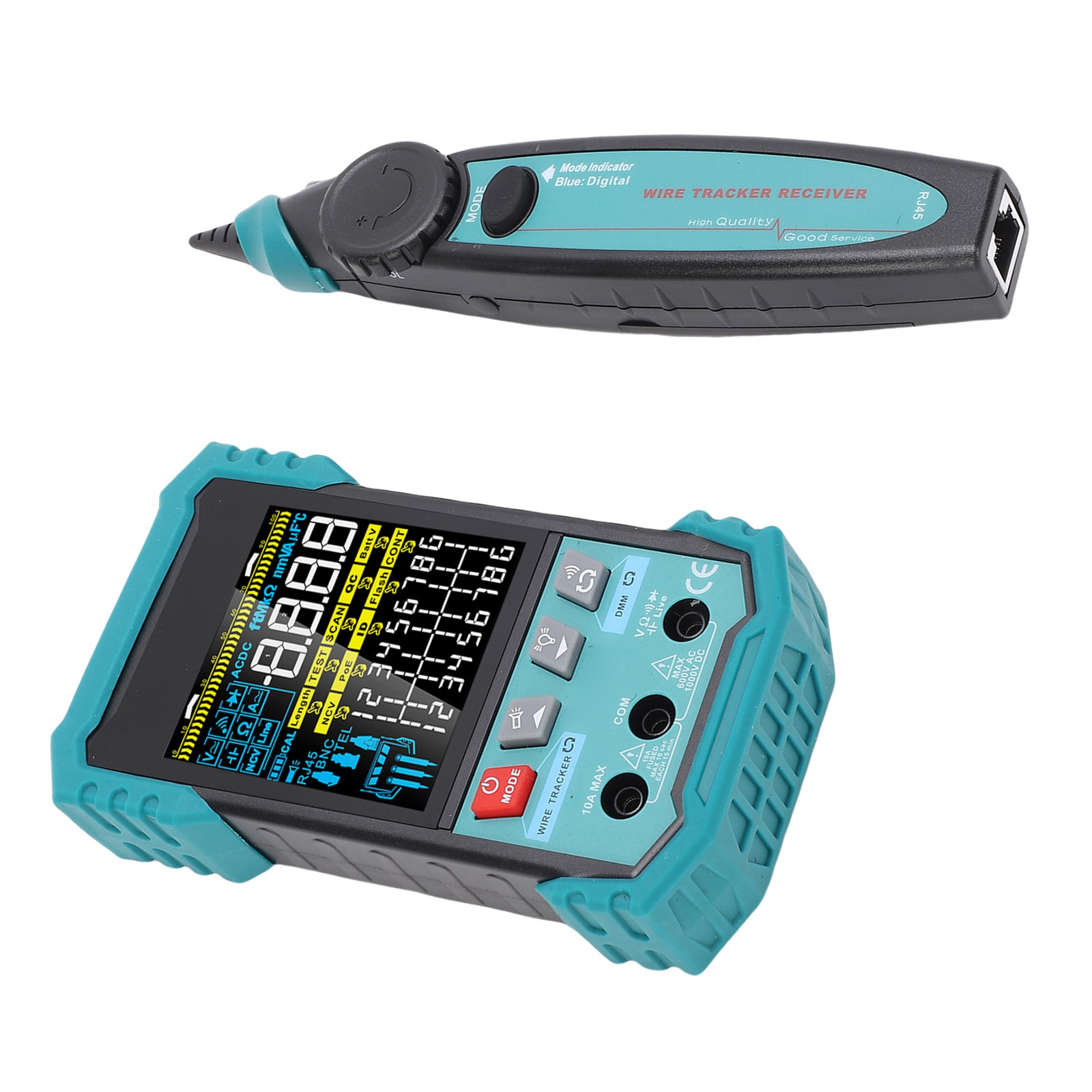

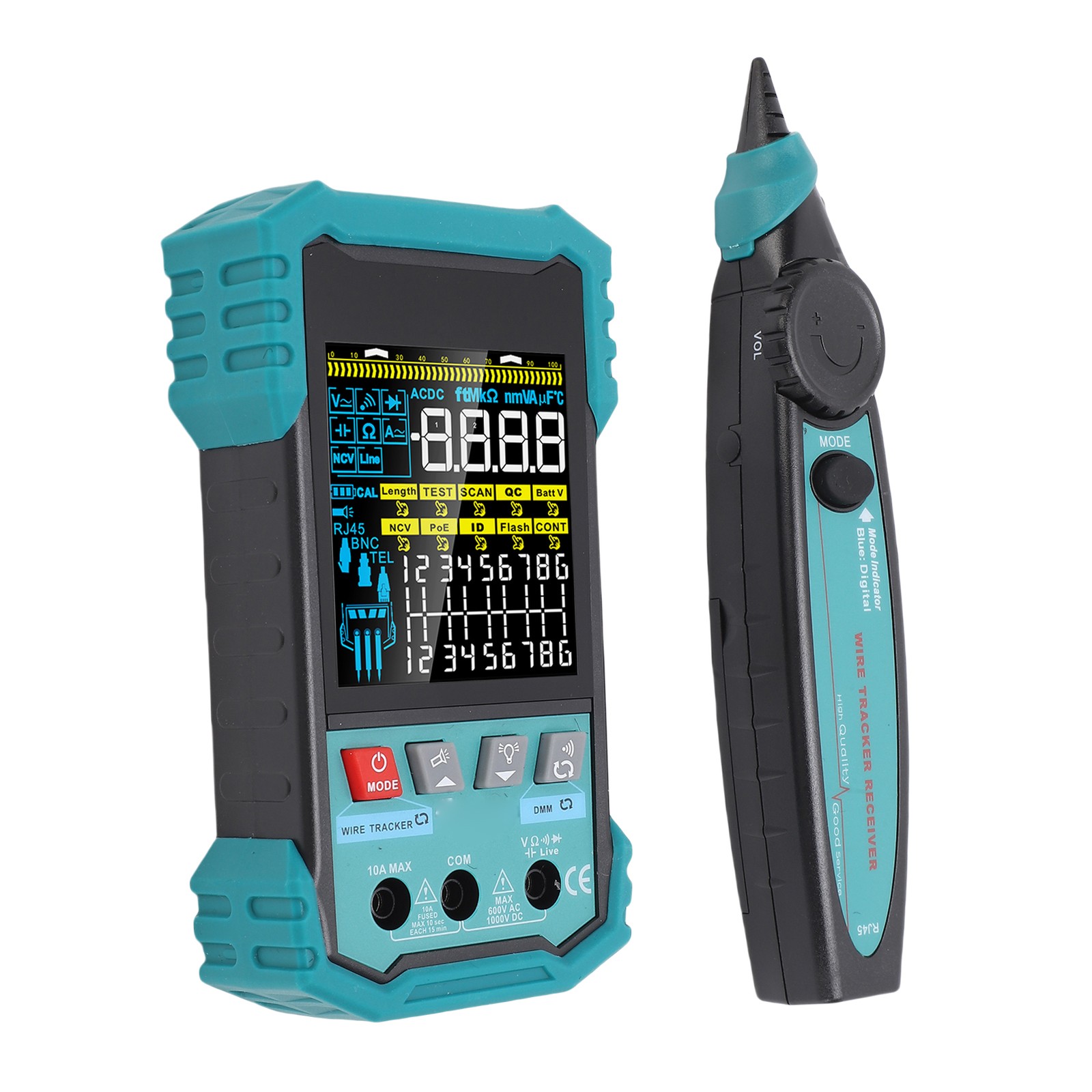

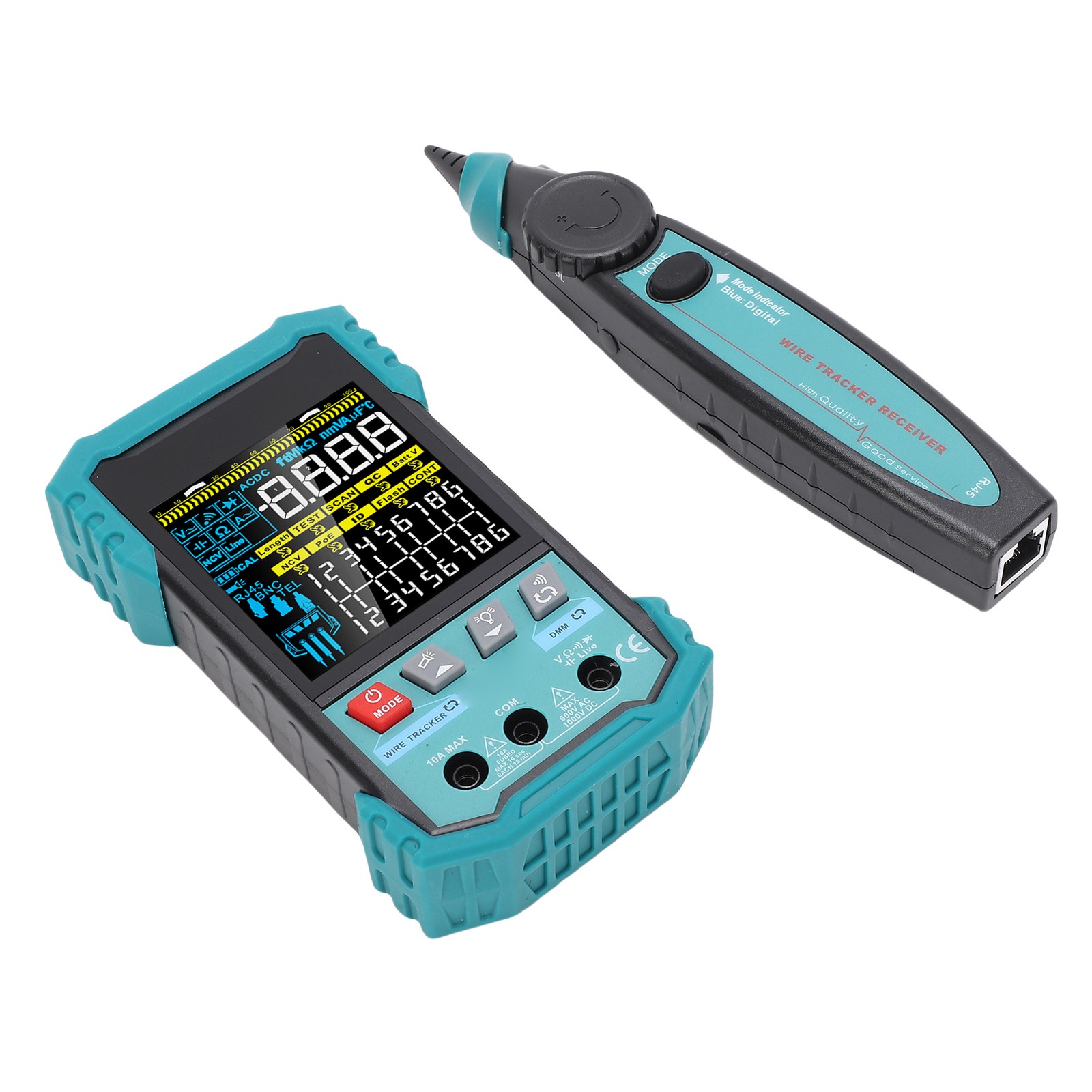

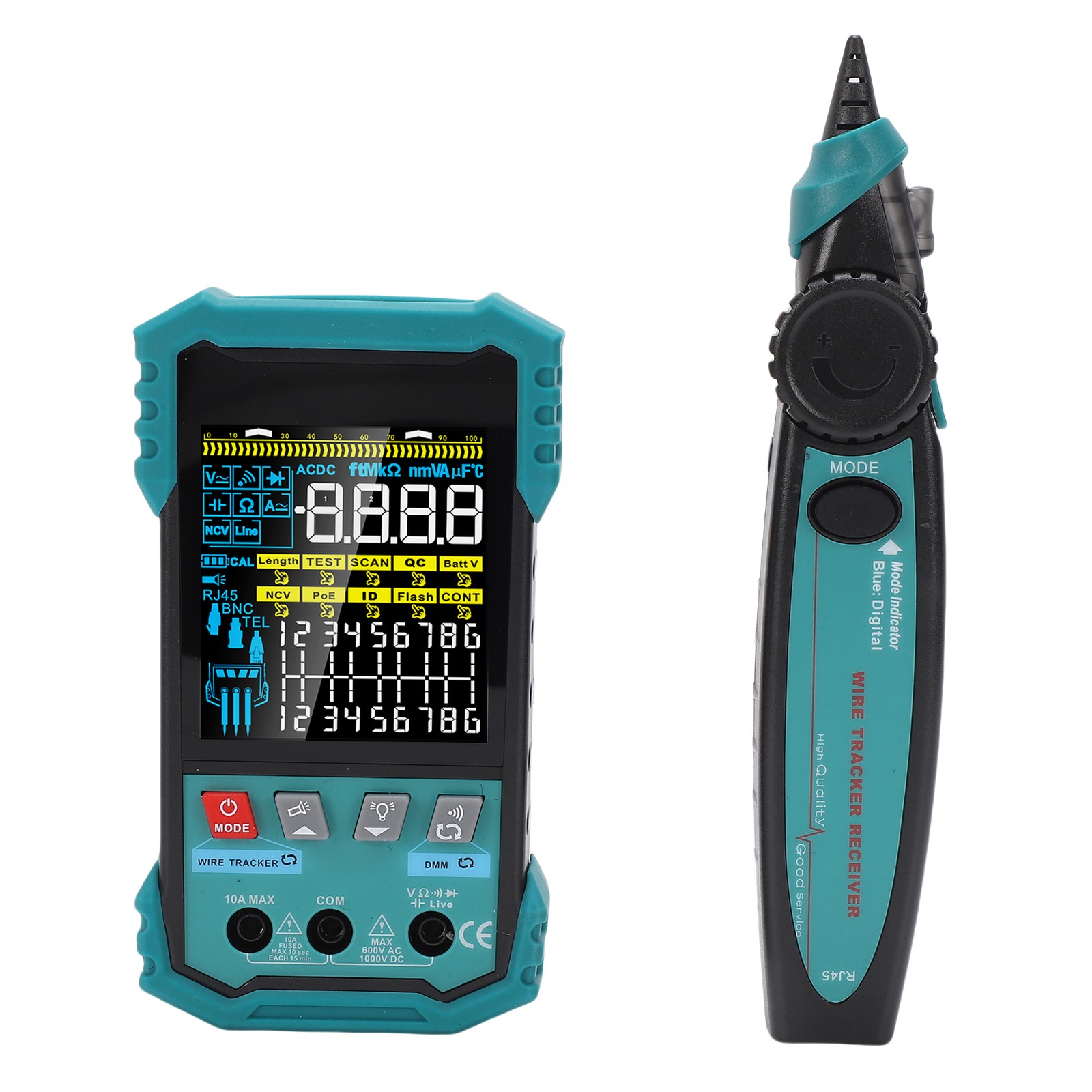

1 x Network Cable Tester
1 x Line Finder
1 x Instruction Manual
2 x Test Cable
1 x USB Cable
1 x Battery
1 x Storage Bag
2 x Test Pen
