Semi-automatic Single-head Digital Liquid Gear Pump Filling Machine

Product Description

CLB series Digital Filling Machine



1. The Digi-Fill uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.

2.The volume, speed, filling time can be set.

3. Each filling can be fast first and slow later, bubble cam be eliminated.

4.Sealed waterproof control panel; setting parameters and displaying working state are on screen by slightly touching.

5.10 sizes data can be stored.

6.Pump unit easily dismantled for cleaning.

7.Can be extending to use in conveyor on line.

Main Technical Specification

Machine model

CLB-7.5

CLB-18

CLB-45

CLB-78

CLB-120

Flow rate per minute

7.5L

18L

45L

78L

120L

Drive motor

400W servo motor

750W servo motor

1000W servo motor

motor speed

3000 rpm/min

Each revolution of the motor

3ml

6ml

15ml

26ml

40ml

Example: Time for filling 1L of water

8 second

3.5 second

1.5 second

0.8 second

0.5 second

Minimum filling capacity

10ml

20ml

45ml

80ml

120ml


Additionally, it is possible to choose a conveyor line and modify it into a fast single head filling machine, which is very fast.

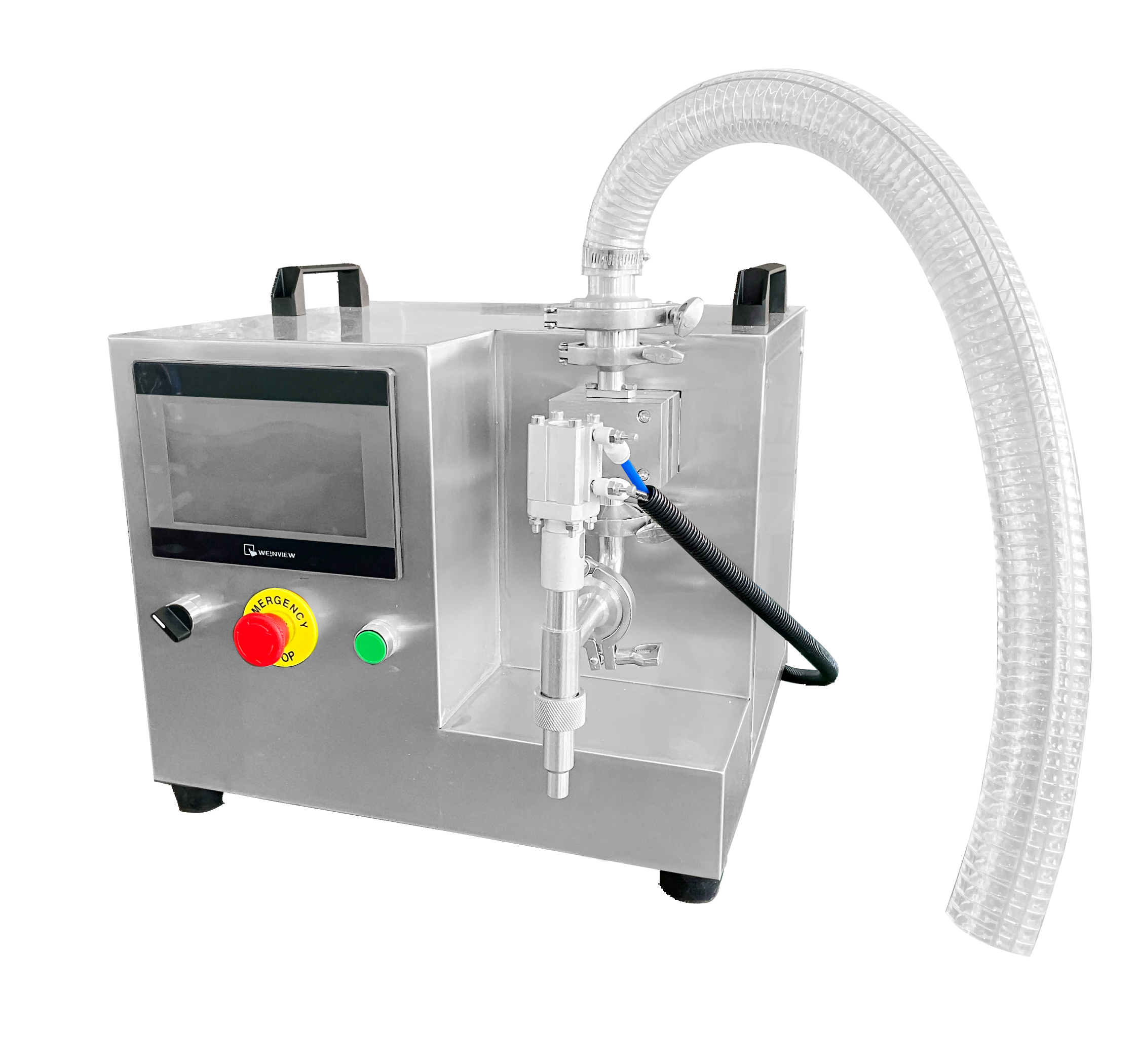

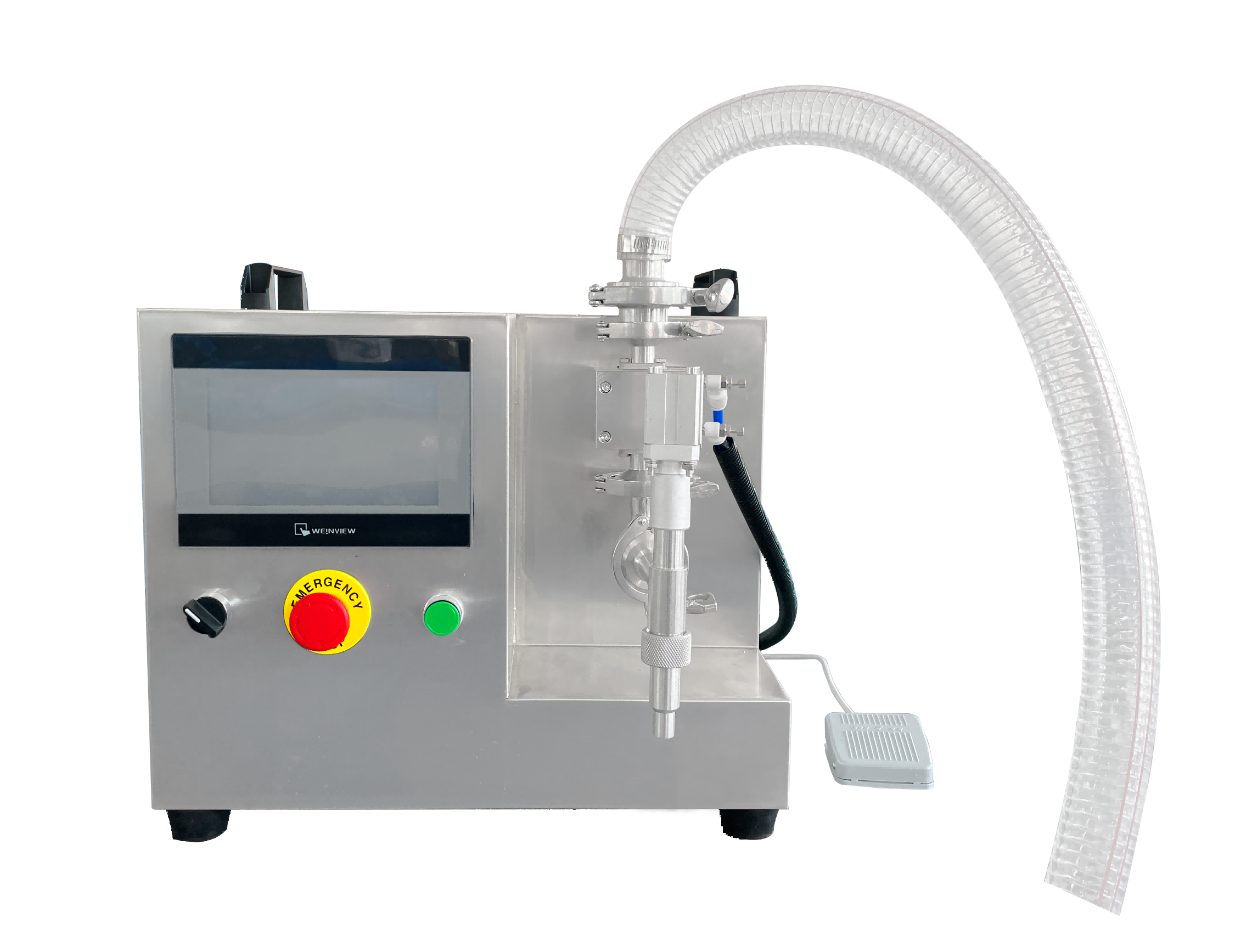

Reference photo:

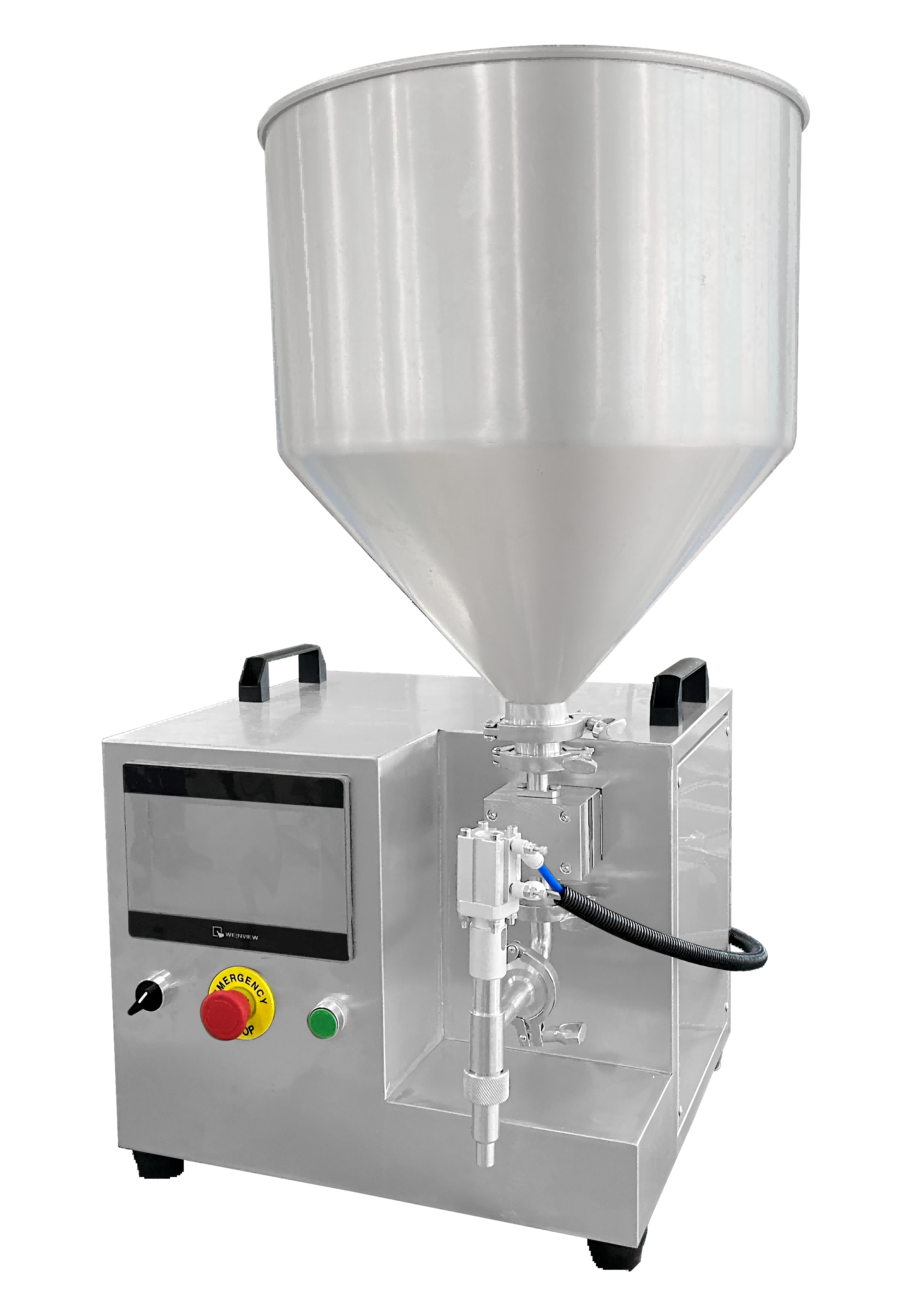

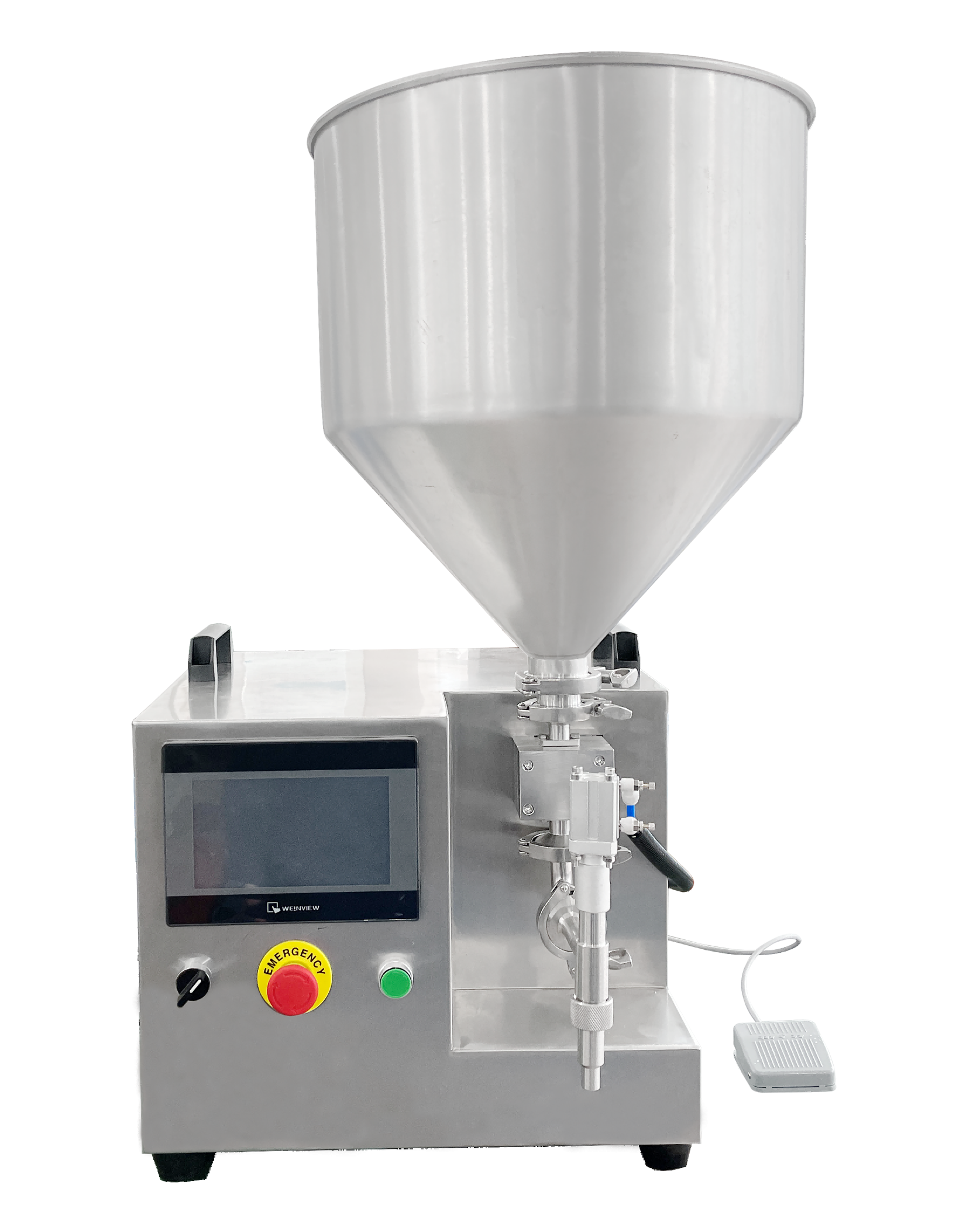

Note: Additionally, you can choose to purchase a hopper that can be used to fill the paste.
