UE Systems Ultraprobe 2000 Ultrasonic Detector Scanner Kit UP2000
The Ultraprobe 2000 is a multifaceted instrument that provides testing capability ranging from simplistic forms of leak detection to extremely sophisticated methods of mechanical analysis.

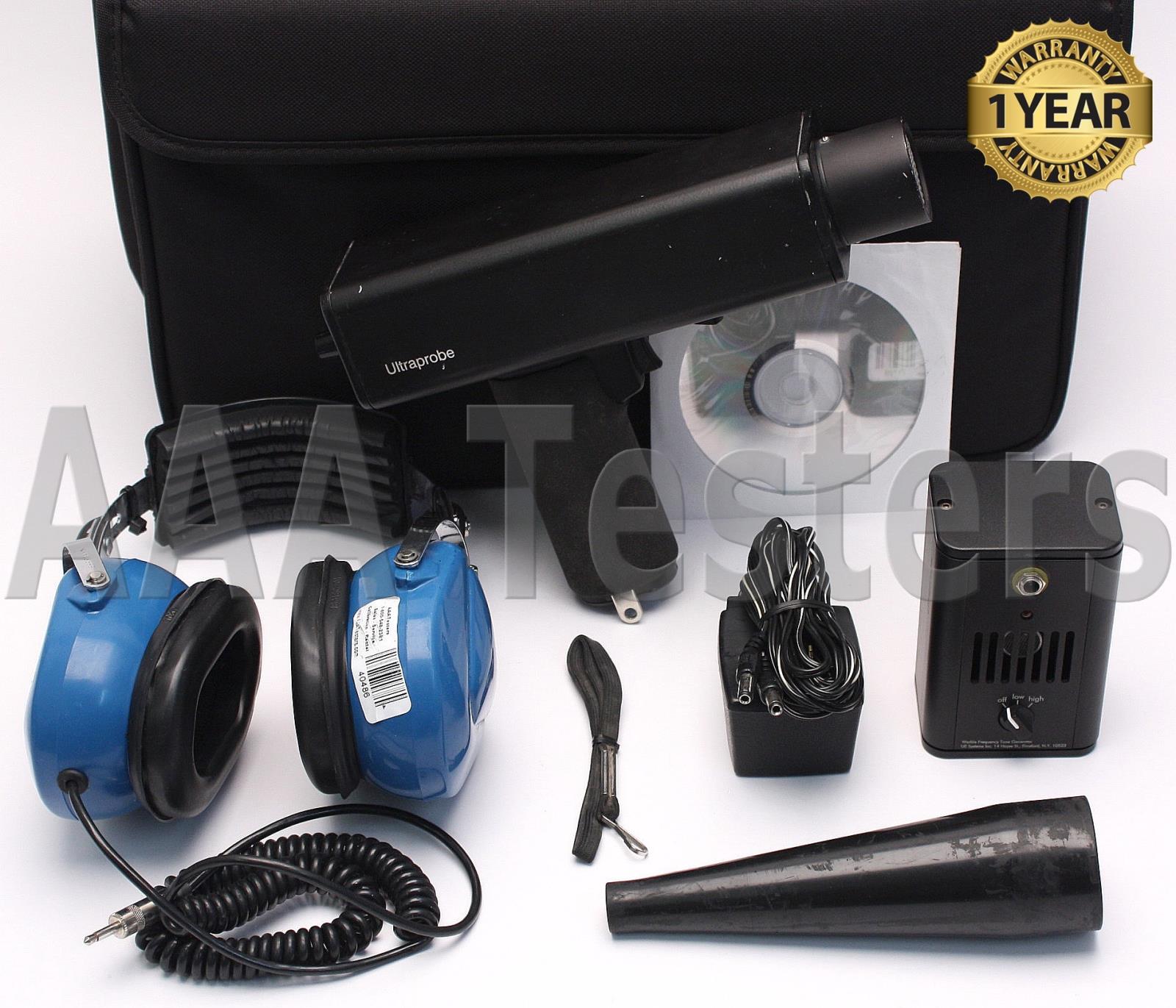

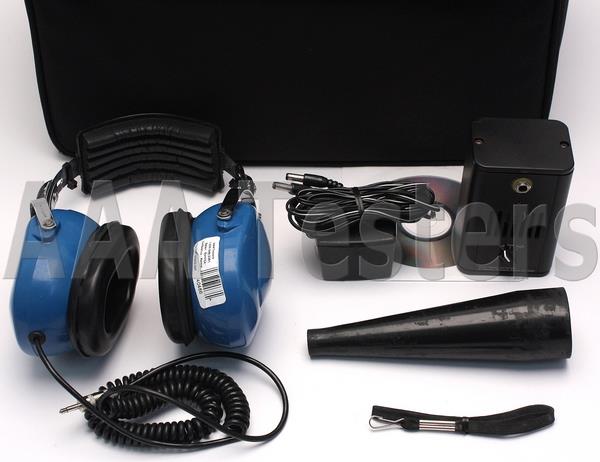

Includes Hard Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

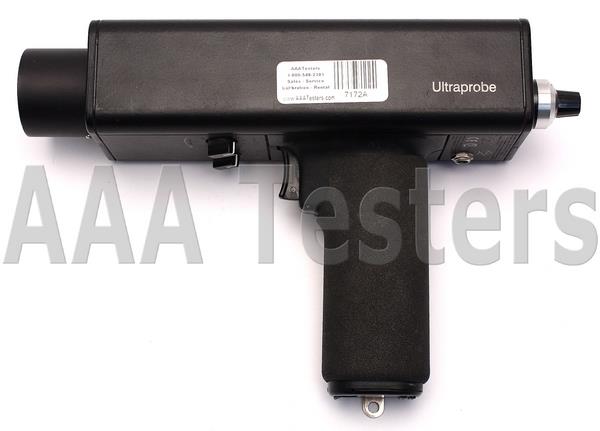

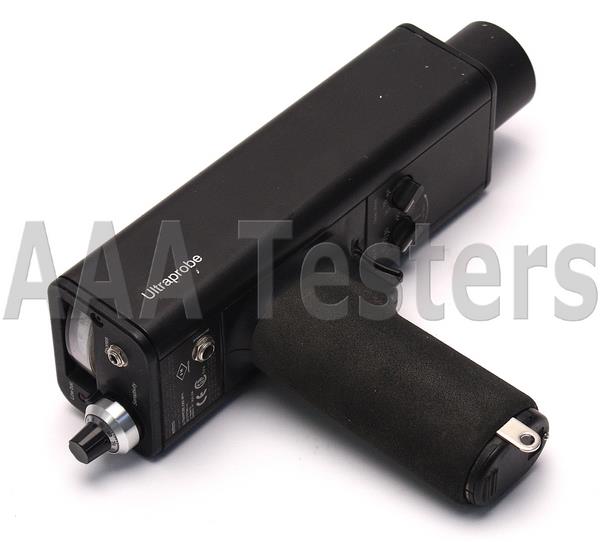

UE Systems UltraProbe 2000 Ultrasound Inspection System UP2000
The Ultraprobe 2000 is a multifaceted instrument that provides testing capability ranging from simplistic forms of leak detection to extremely sophisticated methods of mechanical analysis. It is a testing laboratory that fits in the palm of your hand.
Flexible - Adaptable
Recognizing that every test environment is different, UE Engineers designed the Ultraprobe with many user friendly features, so that it can be adapted to approach almost any inspection problem.
Frequency Tuning allows the operator to select the specific frequency of a problem sound while reducing interference from competing ultrasonic signals.
Bi-Modal Meter Switch has two meter functions: Logarithmic Metering which provides instant “real time” response for enhanced leak and fault detection, Linear Mode for bearing and mechanical monitoring, which accommodates an expanded range of sound that is averaged for stabilized readings
A Ten-Turn Sensitivity Adjust Dial covers a wide range of ultrasonic signal reception so that users may detect subtle mechanical and leak problems as well as focus in on gross signals for accurate analysis.
Trisonic Scanning Module This patented transducer consists of a phased array of three transducers which provides a level of sensitivity beyond anything previously obtainable.

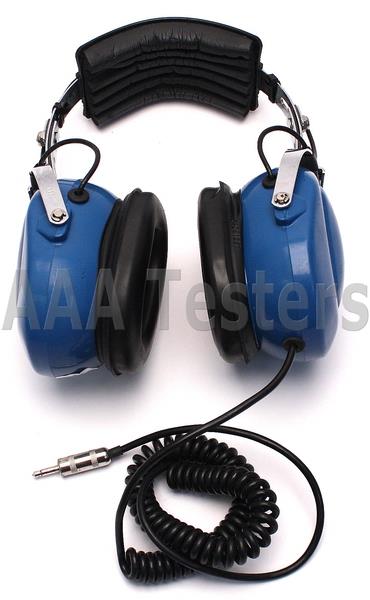

Acoustic Headphones Noise isolating type: double headset wired monophonic. Impedance, 16 ohms. Over 23 dB of noise attenuation. Meets or exceeds ANSI specifications and OSHA standards.
Intrinsically Safe, Class I, Division 1, Groups A B C & D, Factory Mutual.
Specifications:
Construction:
|
Hand held metered pistol type made with anodized aluminum and ABS plastic
|
Circuitry:
|
Solid state heterodyne receiver with temperature compensation.
|
Frequency Response:
|
Detect ultrasonic frequencies between 20 kHz and 100 kHz continuously variable. Frequencies are converted to 50 Hz to 3 kHz audio.
|
Probes:
|

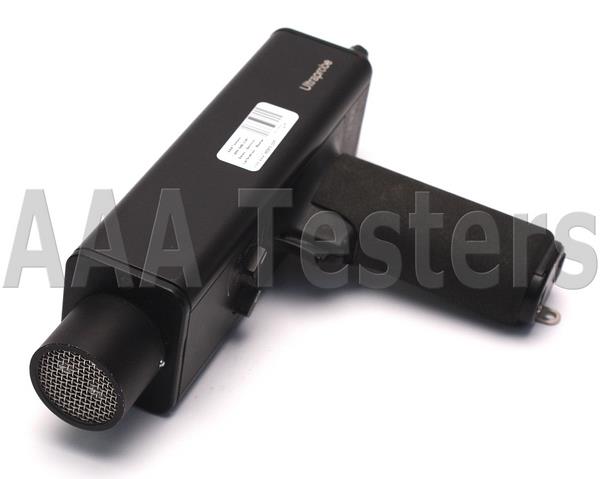

Scanning Module patented TRISONIC plug-in type consisting of a phased array of multiple transducers for airborne ultrasound. This probe is shielded against RF
interference.
Rubber Focusing Probe (flexible) slips over scanning module to concentrate conical directivity and to shield reception of stray ultrasound. Also fits over Stethoscope
Module to shield against high ambient ultrasound while unit is at maximum sensitivity.
Stethoscope Module: plug-in type, insulated probe with RF shielding; 4 1/2” (11.4 cm)
long stainless steel probe tip, conically shaped for uniform surface contact. Probe tip is interchangeable.
Stethoscope Extension Kit: 3 piece, segmented metal rods to increase stethoscope contact range 20” (50.8 cm) and 31” (76.2 cm).
|
Transmitter:
|
Patented warble tone transmission
|
Headset:
|
Noise isolating type: double headset wired monophonic. Impedance, 16 ohms. Over
23 dB of noise attenuation. Meets or exceeds ANSI specifications and OSHA standards
|
Indicators:
|

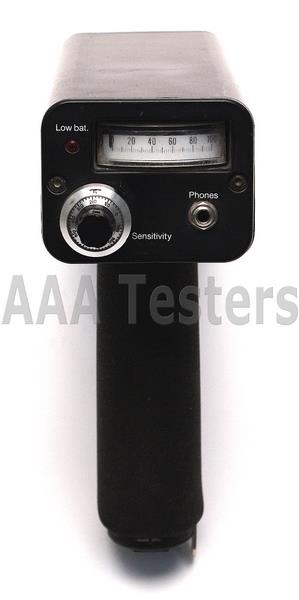

Ballistic output meter: linear calibration scale of 0 - 100 for logging relative measurements. Meter is accurate 1% throughout entire scale. Low Level Battery LED indicator
for main housing internal power supply.
|
Batteries:
|
Self contained Ni-MH rechargeable.
RECHARGING SYSTEM: Standard 110V. Also available in 220 V.
|
Features:
|

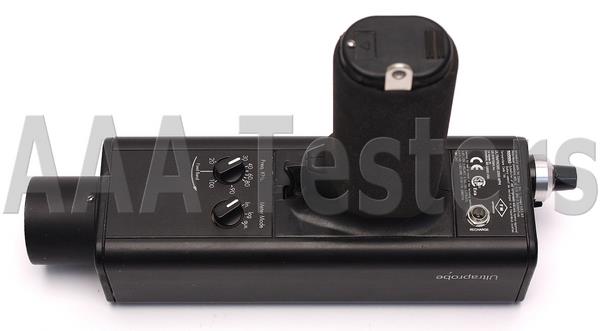

Frequency tuning adjustment dial: Scale 20 - 100 kHz with “fixed band” position for
ultra-narrow frequency response.
Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments.
Optional auxiliary mode selection for chart recorder output: 0 - 50 mV
Sensitivity Control, Precision 10 turn adjustment dial with numerically calibrated
sensitivity increments for finite gain adjustment.
Spring loaded trigger switch.
|
Over-All Size:
|
Complete kit in Zero Haliburton aluminum carrying case:
15” x 22” x 7” (38.1 x 55.9 x 17.8 cm)
Pistol Unit: 2 lbs. (.9 kg)
Complete carrying case: 14 lbs. (6.4 kg)
|
Sensitivity:
|
Detects .005” (.127 mm) diameter leak @ 5psi (.34 bar) at a distance of 50 ft. (15.24 m)
|
Threshold:
|
1 x 10-2 std. cc/sec to 1 x 10-3 std. cc/sec. freon
|
Ultraprobe 2000 Kit:
|
Meets and exceeds ASTM E1002-96 requirements for Leak Detection.
|
For full UE Systems Ultraprobe 2000 product specifications, please click here: UE Systems Ultraprobe 2000
|
|
|
|
