Universal Audio UA Volt 2 Max USB Audio Interface 10-in/4-out -Belfield Music BM

Universal Audio UA Volt 2 Max USB Audio Interface 10-in/4-out -Belfield Music BM

×
×
×
×
×
×

Tell a friend Visit store Watch now

Product Information

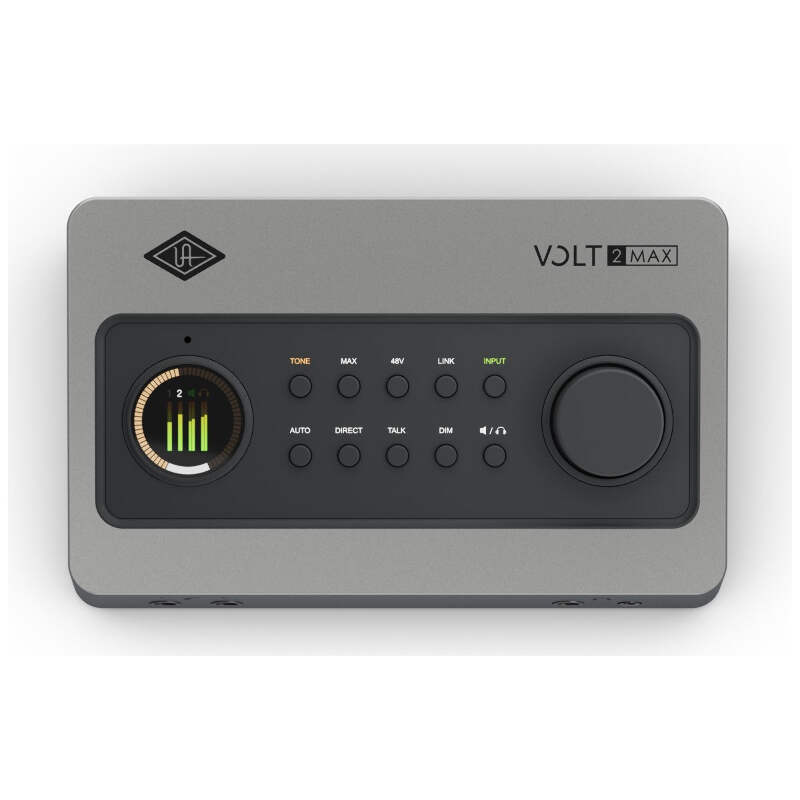

The Universal Audio Volt 2 Max is a next-generation 10-in / 4-out desktop USB audio interface designed for musicians, producers, songwriters, podcasters, and content creators who want professional studio sound with hands-on control. Featuring 32-bit / 192 kHz conversion, dual Tone Shaping Preamps, onboard Max compression, a full-colour Smart Display, Auto-Gain, Clip Protection, ADAT expansion, MIDI connectivity, and a built-in talkback microphone, Volt 2 Max brings a powerful recording workflow to a compact desktop format.

Built by the same Universal Audio team behind the renowned Apollo interfaces, Volt 2 Max features two digitally controlled mic preamps with 60 dB of available gain and three selectable harmonic character modes — Warmth, Focus, and Shine. These provide Tube, Solid State, and British Class-A-inspired tonal options, giving vocals and instruments additional colour and character before they reach your recording software.

Max Processing adds onboard real-time compression with six musical presets designed for vocals, guitars, bass, and other sources. Inspired by classic studio compressors including the LA-2A and 1176, these presets can be combined with the three Tone Shaping modes to provide more than 18 tonal combinations directly from the interface.

Two mic / line inputs and two front-panel Hi-Z instrument inputs allow vocals, guitars, basses, and stereo sources to be recorded simultaneously. Independent 48V phantom power is available for condenser microphones, while ADAT or S/PDIF optical input provides digital expansion for adding additional channels when your recording setup grows.

A full-colour Smart Display provides clear visual feedback for input levels, settings, and gain reduction. Auto-Gain automatically sets suitable recording levels, while Clip Protection helps manage unexpected peaks, allowing you to focus on the performance instead of constantly watching meters.

Volt 2 Max also includes MIDI In and Out, two studio-quality headphone outputs, a built-in talkback microphone, a USB hub for connecting compatible peripherals, and Loopback for podcasting, livestreaming, and content creation. Full integration with the UAD Console app and LUNA provides session recall and low-latency cue mixes for an efficient studio workflow.

USB bus power and class-compliant operation make Volt 2 Max suitable for both desktop and mobile recording. It also includes the UAD Volt Studio Bundle and a comprehensive collection of third-party software, giving you a complete toolkit of EQs, compressors, reverbs, guitar and bass amps, instruments, and production software.

Features

  • 10-in / 4-out desktop USB audio interface with professional 32-bit / 192 kHz audio conversion
  • Two Tone Shaping Preamps with 60 dB of digitally controlled gain
  • Three preamp character modes: Warmth, Focus, and Shine
  • Warmth mode provides tube-inspired tonal character
  • Focus mode provides solid-state-inspired tonal character
  • Shine mode provides British Class-A-inspired tonal character
  • Max Processing with six onboard real-time compression presets
  • Compression presets inspired by classic LA-2A and 1176 studio compressors
  • More than 18 tonal combinations using Tone Shaping and Max Processing together
  • Two mic / line inputs and two front-panel Hi-Z instrument inputs
  • Independent 48V phantom power on each microphone channel
  • ADAT or S/PDIF optical input for digital expansion
  • Up to eight additional channels via ADAT at 44.1 or 48 kHz
  • MIDI In and Out for connecting keyboards, controllers, and synthesizers
  • Built-in talkback microphone for studio communication
  • Full-colour Smart Display with gain-reduction metering
  • Auto-Gain automatically sets recording levels
  • Clip Protection helps prevent unexpected peaks from ruining takes
  • Two studio-quality headphone outputs with one shared cue mix
  • Built-in USB hub for compatible peripherals
  • Built-in Loopback for podcasting, streaming, and content creation
  • Full integration with UAD Console and LUNA
  • Session recall and low-latency cue mix support
  • USB bus powered and class compliant
  • Compatible with Mac, Windows, iPad, and iPhone
  • Rugged desktop construction designed for long-term studio use

Included Software

  • LUNA Digital Audio Workstation: Universal Audio's recording, mixing, and mastering environment
  • Topline Vocal Tune: Vocal tuning software included with the UAD Volt Studio Bundle
  • UA 610 Tube Preamp & EQ Collection: Classic UA tube preamp and EQ emulation
  • Century Tube Channel Strip: Tube channel strip for recording and mixing
  • Teletronix LA-2A Tube Compressor: Classic optical tube compression
  • UA 1176 Classic FET Compressor: Classic FET compression
  • Pure Plate Reverb: Plate-style reverb effect
  • Galaxy Tape Echo: Vintage-inspired tape echo effect
  • Oxide Tape Recorder: Tape recording emulation
  • Vibe Analog Machines: Analog-inspired processing tools
  • PolyMAX Synth: Polyphonic software synthesiser
  • Anthem Analog Synth: Analog-style software synthesiser
  • UAD Lion '68 Super Lead Amp: Guitar amplifier plug-in
  • UAD Showtime '64 Tube Amp: Vintage-style tube guitar amplifier plug-in
  • Melodyne Essential by Celemony: Pitch and timing editing software
  • Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance: Includes Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
  • Virtual Drummer DEEP by UJAM: Virtual drum instrument
  • Virtual Bassist DANDY by UJAM: Virtual bass instrument
  • Splice INSTRUMENT: Included virtual instrument
  • Prisma - Producer Lab by UVI: Included UVI production software
  • FL Studio Producer Edition: Three months free

Specifications

  • Brand: Universal Audio
  • Model: Volt 2 Max
  • Product Type: USB Audio Interface
  • Simultaneous I/O: 10-In / 4-Out
  • Maximum Audio Resolution: 32-Bit / 192 kHz
  • Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
  • Bit Depth: 32-Bit
  • Microphone Preamps: 2
  • Microphone Preamp Gain: 60 dB
  • Preamp Tone Shaping: Warmth, Focus and Shine
  • Onboard Compression: Max Processing
  • Max Processing Presets: 6
  • Mic / Line Inputs: 2 x XLR / 1/4" Combo Jack
  • Instrument Inputs: 2 x Front-Panel 1/4" TS Hi-Z
  • Phantom Power: +48V Switchable Per Channel
  • Optical Input: ADAT or S/PDIF
  • ADAT Input: 8 Channels at 44.1 / 48 kHz, 4 Channels at 96 kHz, 2 Channels at 192 kHz
  • S/PDIF Input: 2 Channels at All Supported Sample Rates
  • MIDI: MIDI In / Out
  • MIDI Connector: 1/8" TRS Mini-Jack, Type A
  • Talkback: Built-In Microphone
  • Smart Display: Full-Colour Display with Gain-Reduction Metering
  • Auto-Gain: Yes
  • Clip Protection: Yes
  • Loopback: Yes
  • Monitor Outputs: 1 x Stereo Pair
  • Headphone Outputs: 2 x Stereo Outputs with One Shared Cue Mix
  • USB Host: USB 2.0
  • USB Hub: 1 x Peripheral Port, 5VDC @ 0.5A Maximum
  • USB External Power Input: USB Type-C, 5VDC @ 1A Minimum
  • USB Connector Type: USB Type-C
  • USB Bus Powered: Yes
  • Power Consumption: 4.1W Typical / 5.7W Maximum
  • Power Switch: Rear Panel

Instrument Input Specifications

  • Frequency Response: 20 Hz – 20 kHz ±0.02 dB
  • Dynamic Range: 116 dB A-Weighted
  • THD + Noise: -108 dB (0.0004%)
  • Maximum Input Level: 13 dBu
  • Input Impedance: 1 MΩ
  • Available Gain: 60 dB Digitally Controlled
  • Connector: 1/4" TS Unbalanced

Microphone Input Specifications

  • Frequency Response: 20 Hz – 20 kHz ±0.08 dB
  • Dynamic Range: 119 dB A-Weighted
  • THD + Noise: -110 dB (0.0003%)
  • Maximum Input Level: 14 dBu
  • Input Impedance: 2 kΩ
  • Available Gain: 60 dB Digitally Controlled
  • Phantom Power: +48V Switchable Per Channel
  • Connector: XLR Combo Jack, Pin 2 Positive

Line Input Specifications

  • Frequency Response: 20 Hz – 20 kHz ±0.05 dB
  • Dynamic Range: 119 dB A-Weighted
  • THD + Noise: -108 dB (0.0004%)
  • Maximum Input Level: 22 dBu
  • Input Impedance: 10 kΩ
  • Available Gain: 60 dB Digitally Controlled
  • Connector: 1/4" TRS Balanced or TS Unbalanced via Combo Jack

Monitor Output Specifications

  • Frequency Response: 20 Hz – 20 kHz ±0.05 dB
  • Dynamic Range: 126 dB A-Weighted
  • THD + Noise: -112 dB (0.0003%)
  • Maximum Output Level: 20.2 dBu
  • Output Impedance: 200 Ω
  • Connector: 1/4" TRS Balanced, DC Coupled

Headphone Output Specifications

  • Frequency Response: 20 Hz – 20 kHz ±0.08 dB
  • Dynamic Range: 116 dB A-Weighted
  • THD + Noise: -103 dB (0.0007%) into 300 Ω
  • Maximum Output Power at 32 Ω: 45 mW
  • Maximum Output Power at 300 Ω: 24 mW
  • Connectors: 1/4" and 1/8" TRS Stereo Unbalanced, DC Coupled

System Requirements

  • macOS: macOS 12 Monterey or Newer
  • Windows: Windows 10 64-Bit or Newer
  • iPad / iPhone: iPadOS / iOS 16 or Newer
  • Computer Processor: Intel, AMD or Apple Silicon
  • Computer Connection: Available USB 2.0 or Higher Port
  • Internet Connection: Required for Software Downloads
  • DAW Compatibility: Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and Other Major DAWs
