Attention:
The BaFang Display can only be matched with the BaFang mid mounted motor, for example, these models: BBS M400 G330 G510 G340 M615 BBSHD
Please ensure that your controller matches my monitor before purchasing.
UKC2+ display
Bafang UKC2+ Display LCD Colour Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit
Specification
•Power supply: 24V/36V/48V/52V/60V/72V
• Weight: 185 grams
• Rated power of the instrument is 1W
•The maximum power of the instrument is 5W
•Interface type: 5-pin waterproof interface
•Applicable handle size: 22.2mm/0.9 inches
•Support level mode: 0-9
•Storage temperature: -30~80 ℃
•Working temperature: -20~70 ℃
•Communication method: UART
•Turn off leakage current<1uA
•Waterproof rating: IP65
•Compatible motor: Suitable for BAFANG BBS01 BBS02 BBSHD mid mounted motor
Function Introduction
• Speed display: subtotal mileage(trip), total mileage(ODO) • Mileage display:Accumulated mileage ODO,Single trip,Cycling Time • Output power indication:Real time display of output power • Speed limit adjustment function;Adjustable speed limit setting • Current limiting regulation function:Adjustable setting to limit current

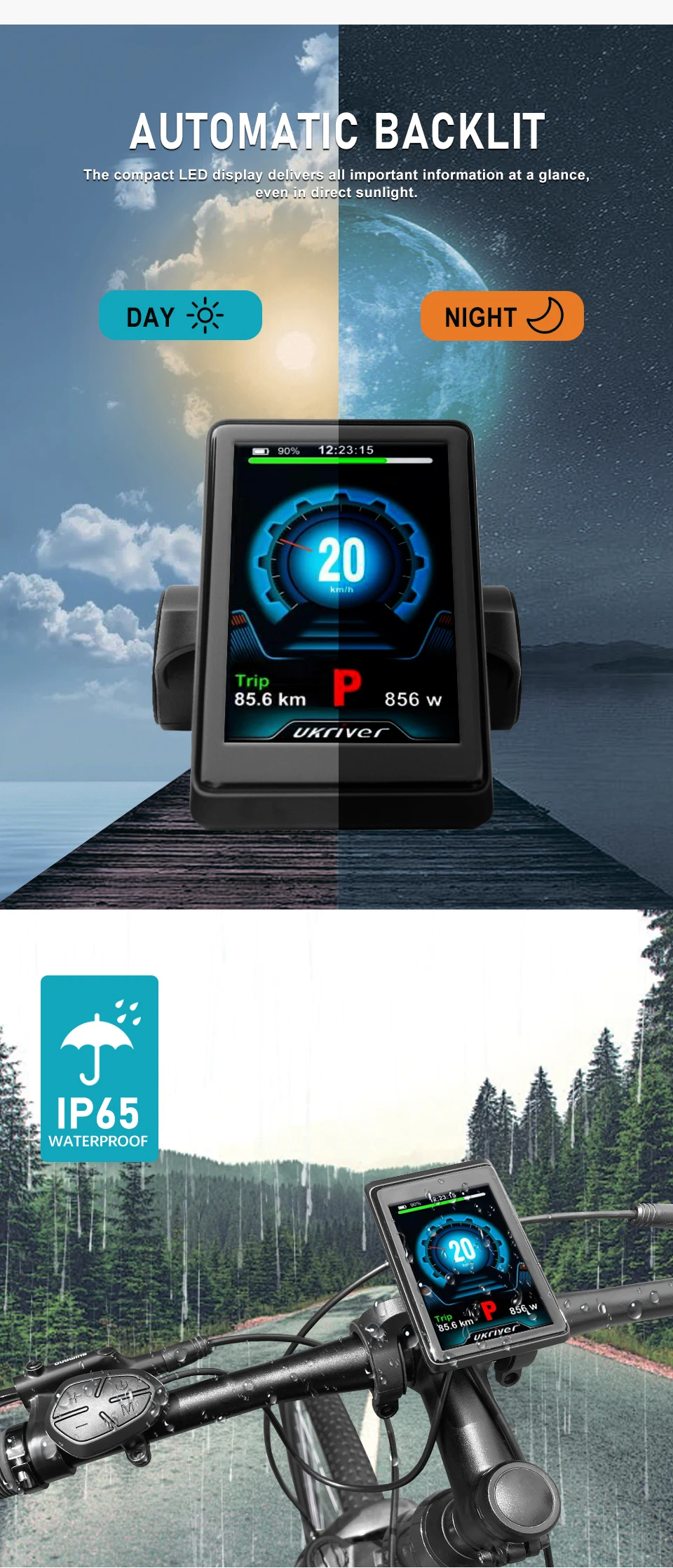

• Backlight brightness adjustment:Level 1 is the darkest, level 5 is the brightest
•Gear control:The number of gears can be set to 3/5/6/9 according to demand
•USB charging port,current:500mA/5V.
•Error code indication(The communication interface of the connecting line is convenient for system maintenanceand parameter setting)
PACKING LIST
1.Bafang LCD display
2.Display holder and gaskets
UL 2849 safety standards
