302WP-1AH-C M02 Relay 12V DC 20A at 125V AC 4-Terminal SPST-NO (2-Pack) Compatible with Select Microwave Ovens Water Heaters and Heating Equipment, for AC Load Control, Ref 302WP-1AH-C M02
Product Details
- Publisher: Sonzrod
- Publication date: 0
- Dimensions: 3 x 1.3 x 3.8 cm

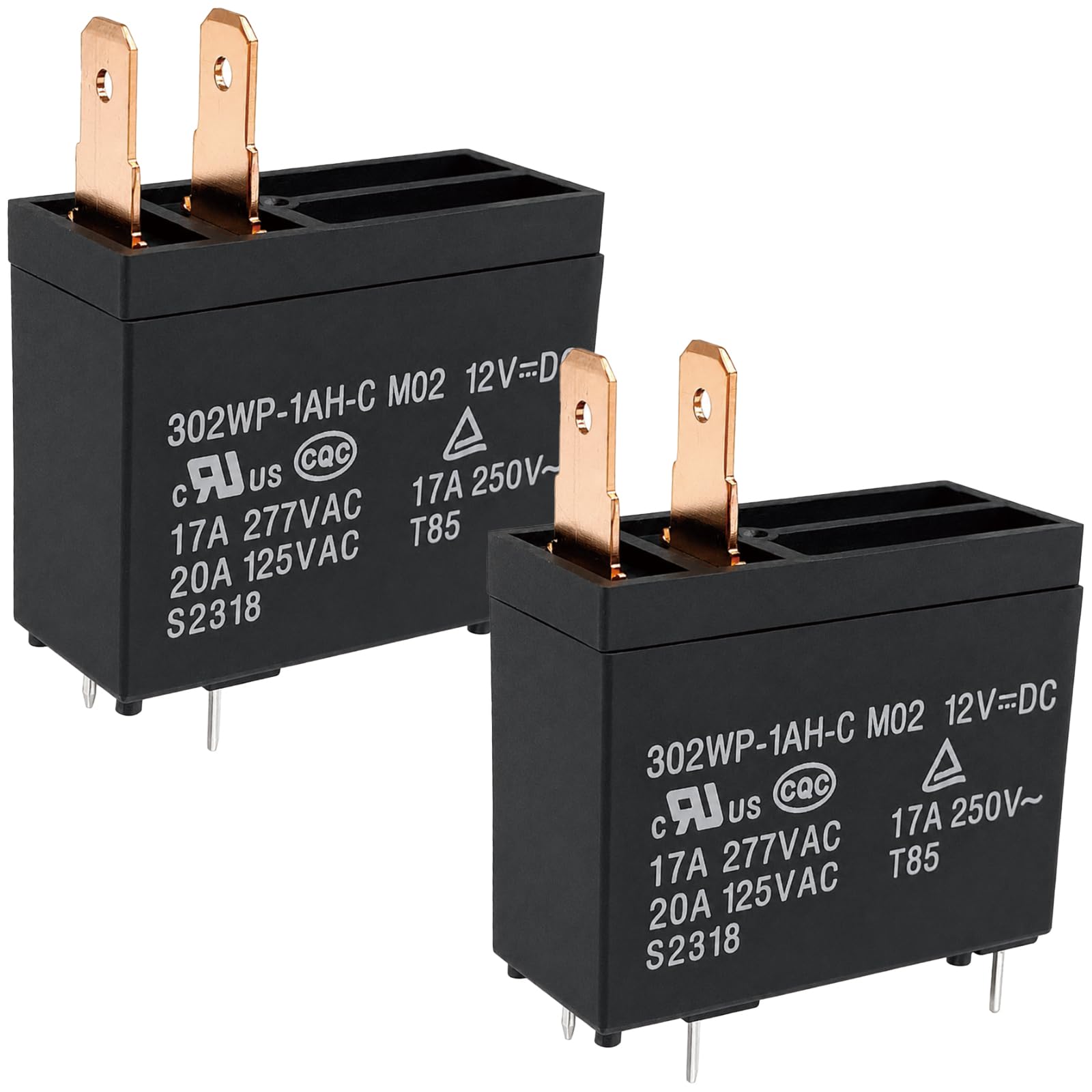

- RELAY MATCH SPECS — Built around the 302WP-1AH-C M02 marking, each relay uses a 12V DC coil, 1 Form A SPST normally open contacts, two quick-connect load terminals, and two PCB coil pins. Compare the model and terminal layout with the original component before installation
- ELECTRICAL RATING CHECK — The relay body is marked 20A at 125V AC, 17A at 277V AC, and 17A at 250V AC. Select the rating that corresponds to the equipment circuit and load; do not assume the 20A value applies at every operating voltage
- MATCHED APPLIANCE CONTROL — Compatible with select microwave ovens, water heaters, heating appliances, and equipment control boards when the original relay uses the same 12V DC coil, normally open function, four-terminal arrangement, housing size, and PCB mounting footprint
- READY EXTRA RELAYS — The package contains 2 matching relays for one confirmed repair with a second unit kept for another verified board position, maintenance stock, or future troubleshooting. Inspect each appliance and control board independently before replacement
- VERIFY BEFORE INSTALLING — Check the complete model marking, quick-connect blade positions, PCB pin spacing, load ratings, circuit function, and housing dimensions before soldering. A matched relay may restore switching only when the original relay is faulty and does not repair heaters, wiring, sensors, or control boards
302WP-1AH-C M02 Relay Match GuideBefore ordering, compare the complete model marking, 12V DC coil voltage, load ratings, four-terminal arrangement, quick-connect blade positions, PCB pin spacing, housing dimensions, and contact function with the relay removed from the equipment.Technical DetailsProduct Type: Appliance Power RelayModel Reference: 302WP-1AH-C M02Coil Voltage: 12V DCContact Configuration: 1 Form A / SPST Normally OpenElectrical Terminal Count: 4Load Connections: 2 Quick-Connect Blade TerminalsCoil Connections: 2 PCB Through-Hole PinsPrinted Load Rating: 20A at 125V ACPrinted Load Rating: 17A at 277V ACPrinted Load Rating: 17A at 250V ACInstallation Style: PCB Mount with Quick-Connect Load TerminalsHousing Color: BlackPackage Quantity: 2 RelaysCompatible ApplicationsDesigned for matched use in select microwave ovens, water heaters, heating appliances, and equipment control boards that require the same relay model, 12V DC coil, normally open switching function, terminal positions, and mounting footprint. Equipment brand or model number alone does not confirm compatibility.Common Use PositionsMay be used in matching control circuits where a 12V DC signal operates an AC heating element or another approved electrical load. The exact circuit function depends on the appliance wiring diagram, control-board design, and original relay specification.Reference NumbersSearch and replacement references include 302WP-1AH-C M02, 302WP-1AH-C-M02, and 302WP1AHC M02. Relays from the same series may differ in coil voltage, enclosure style, contact arrangement, or terminal configuration and should not be considered interchangeable without verification.Please Verify Before OrderingConfirm the original model, voltage type, current rating at the required operating voltage, SPST normally open circuit, blade-terminal orientation, PCB pin locations, housing size, and circuit-board footprint. Do not install a similar-looking relay with a different coil voltage or contact configuration.Relay replacement may help only when the equipment fault is caused by a failed relay with matching specifications. It will not repair burned wiring, damaged board traces, failed heating elements, thermal protectors, sensors, switches, or control-board faults.Pack SummaryIncludes 2 matching 302WP-1AH-C M02 relays, each with a 12V DC coil, four electrical terminals, SPST normally open contacts, two quick-connect load blades, and two PCB coil pins.
