0.20" Axis Offset Co-Axial Center Indicator Set 303-3300A S)
Description
| Package Dimensions | 12.24 x 9.37 x 3.94 inches |
| Item Weight | 2.27 pounds |
| Item model number | 303-3300-Parent |
Product description

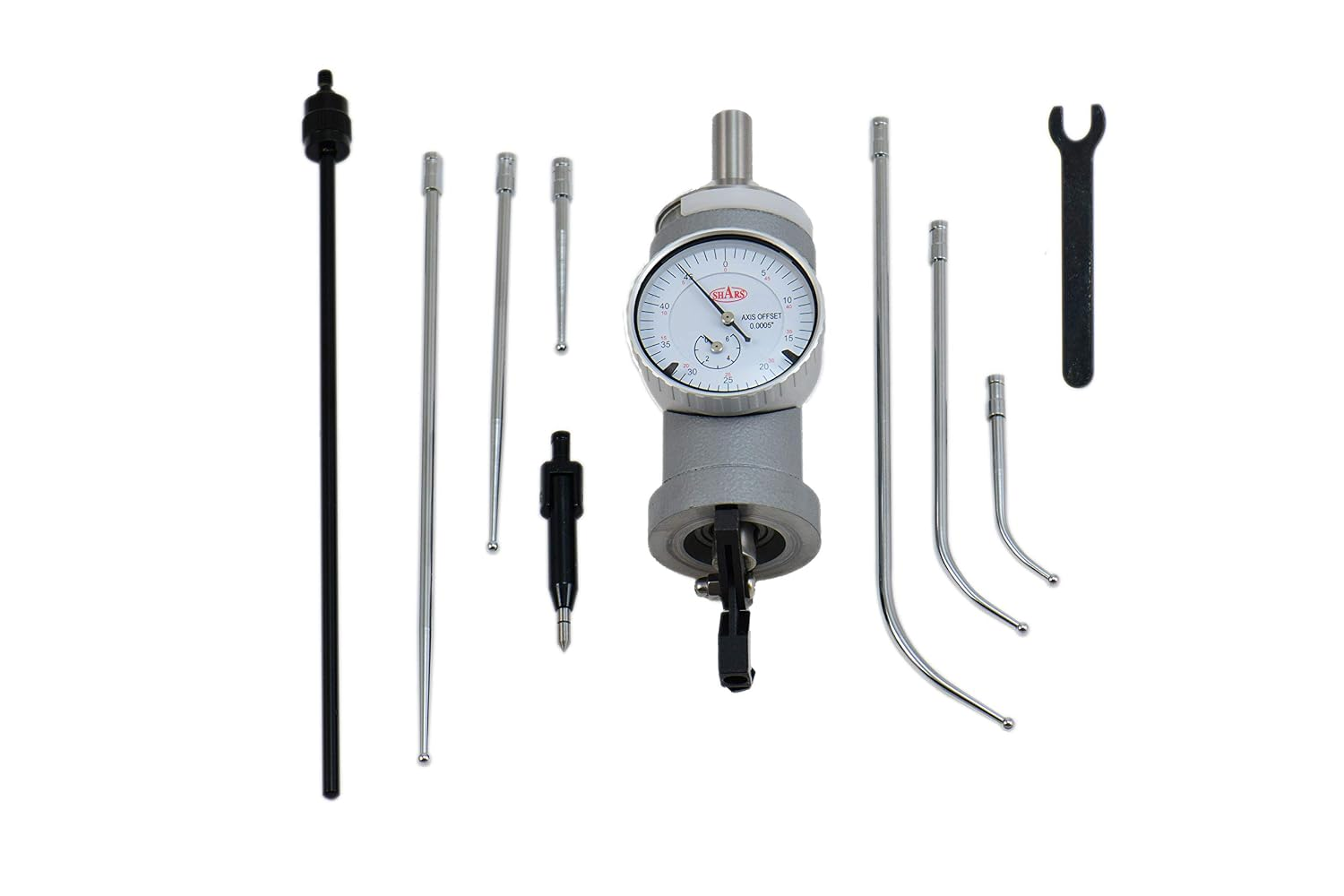

WHAT'S INCLUDED
- Coaxial indicator main body
- 2" Long internal feeler for 5/32" to 4-1/4" diameter bore
- 2" Long external feeler for 0 to 4-1/4" diameter bore
- 4" Long internal feeler for 5/32" to 8" diameter bore
- 4" Long external feeler for 0 to 8" diameter bore
- 6" Long internal feeler for 5/32" to 12" diameter bore
- 6" Long external feeler for 0 to 12" diameter bore
- Restraining stopping rod
- Fitted Case
Shars Tool Co-Axial Center Indicator Set
Part# 303-3300A
- Critical surface precision ground finished
- Shank: 3/8" diameter x 7/8" length
- Feeler Ball Diameter: 1/8"
- Measuring Range: 0.200 axis offset
- Internal capacity range is 5/32 to 12" diameter and external capacity range is 0 to 12" diameter depending on the feeler
- Speed: Max 800 rpm
- Locating Accuracy: .0002" from true center
- Operates at any angle, vertical or horizontal, internal or external
- Indicator remains in fixed position facing the operator while the spindle rotates
- OVERALL LENGTH: 6-7/8"
- CONTACT POINT BALL DIAMETER: 0.125"
- GRADUATION: 0.0005"
- ACCURACY: 0.0002"
- MEASURING RANGE DIAL INDICATOR: 0.15"
- DIAL READING: 0-50
Product Spotlight
Convenient tool to find and set up the position of a workpiece on vertical and horizontal machines. It can also be used to determine the position of a workpiece when the spindle is rotated by hand or automatic. Easy read-out from stationary dial indicator.
Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 187 4.3 out of 5 stars 70 — 4.5 out of 5 stars 56 4.2 out of 5 stars 17 4.7 out of 5 stars 4 Price $38.00$38.00 $76.99$76.99 — no data $55.95$55.95 $15.75$15.75 — no data Part No. 303-7201 303-3104 303-3098 303-5500(4) 202-9529(2pcs) 202-1784- SKU# 303-3300A
- OAL: 6-7/8"
- Contact Point Ball Diameter: 0.125"
- Measuring Range Dial Indicator: 0.15"
- Graduation: 0.0005"; Accuracy: 0.0002"
- Dial Reading: 0-50
- Maximum RPM: 800
- Feeler Ball Diameter: 1/8"; Feeler Length up to 6"
- Gray Color Body
