Specification：

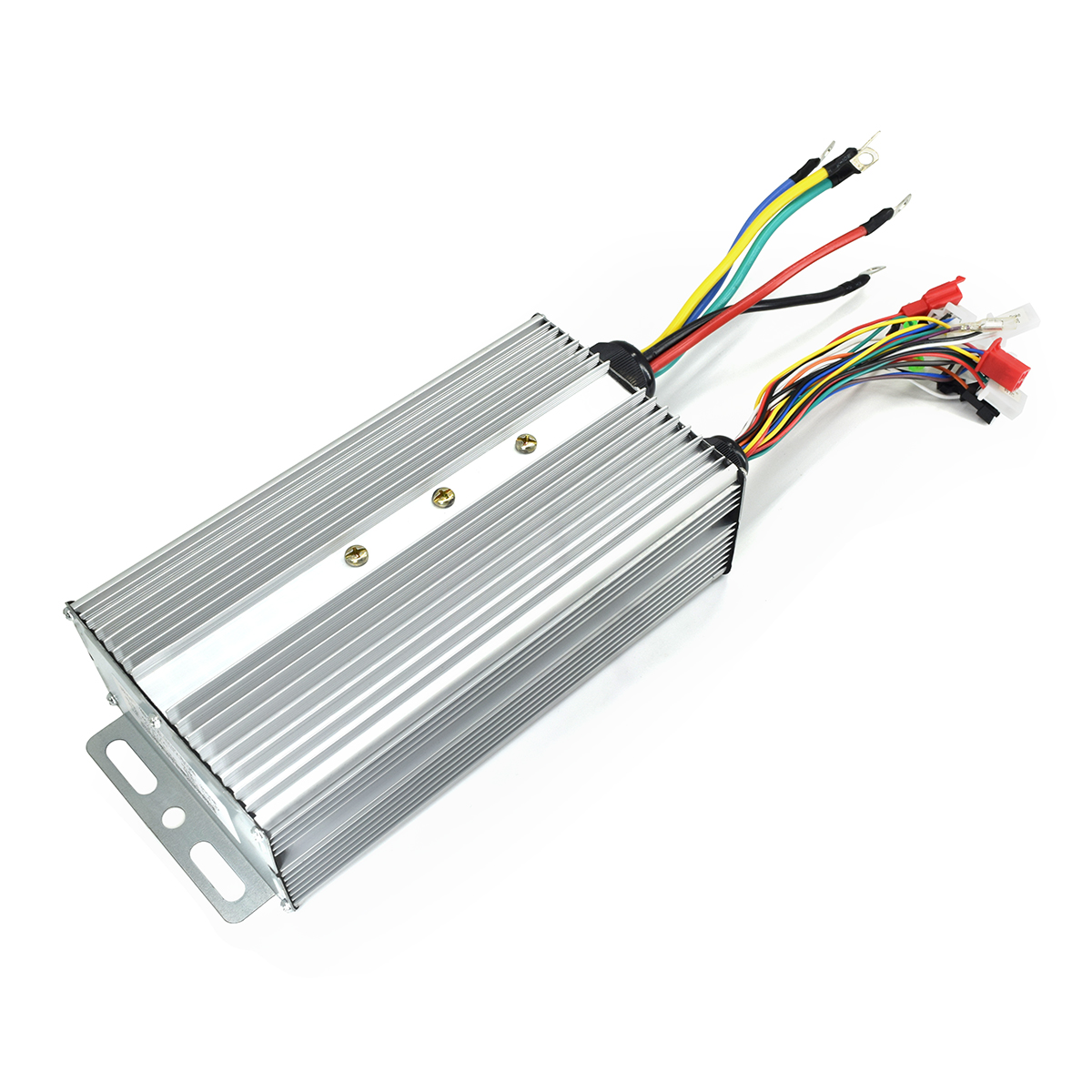

Name: Intelligent dual-mode brushless controller
Power: 3000W
Voltage: 60V-72V
Current limit: 60A
Undervoltage: automatic identification
MOS tube: 24mos
Phase: automatic identification (60 ° / 120 ° all can fit)
Brakes: low brake / high brake
Size: 225 * 118 * 68 mm

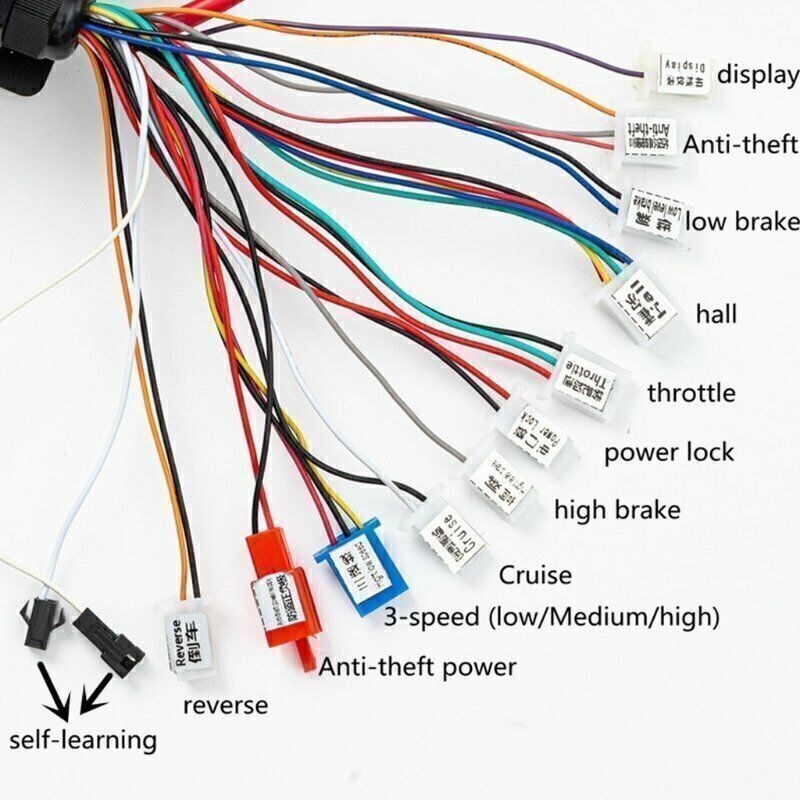

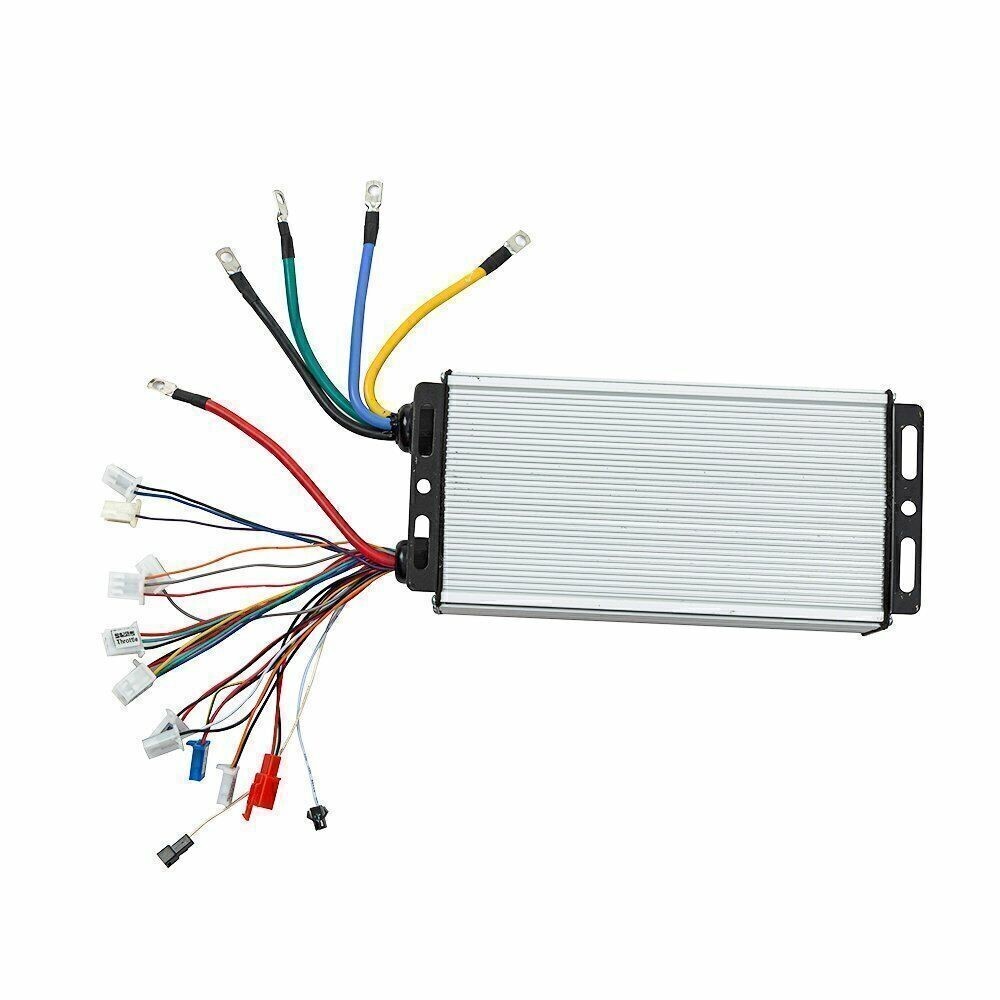

Function introduction (from the right to the left of the picture)
motor
、battery 、electric lock 、hall 、display 、throttle、throttle 3-speed
(low/medium/high）、high brake、reverse、alarm signal、alarm power、low
brake、self-learning、connect the motor line (color to color）、connect the
battery line(red:+ , black:-)
connect the controller throttle line, electric lock（if throttle not have
electric lock, connect controller electric lock to battery+ ）、
connect the hall line(if motor without hall line, don’t need connect)
docking the two self-learning lines, the wheel will forward or reverse.(1.if wheel forward ,Separate the self-learning line.
2.if
wheel reverse, Separate the self-learning line. Docking the
self-learning line again、if wheel forward ,Separate the self-learning
line.)
other functions can be connected as needed.

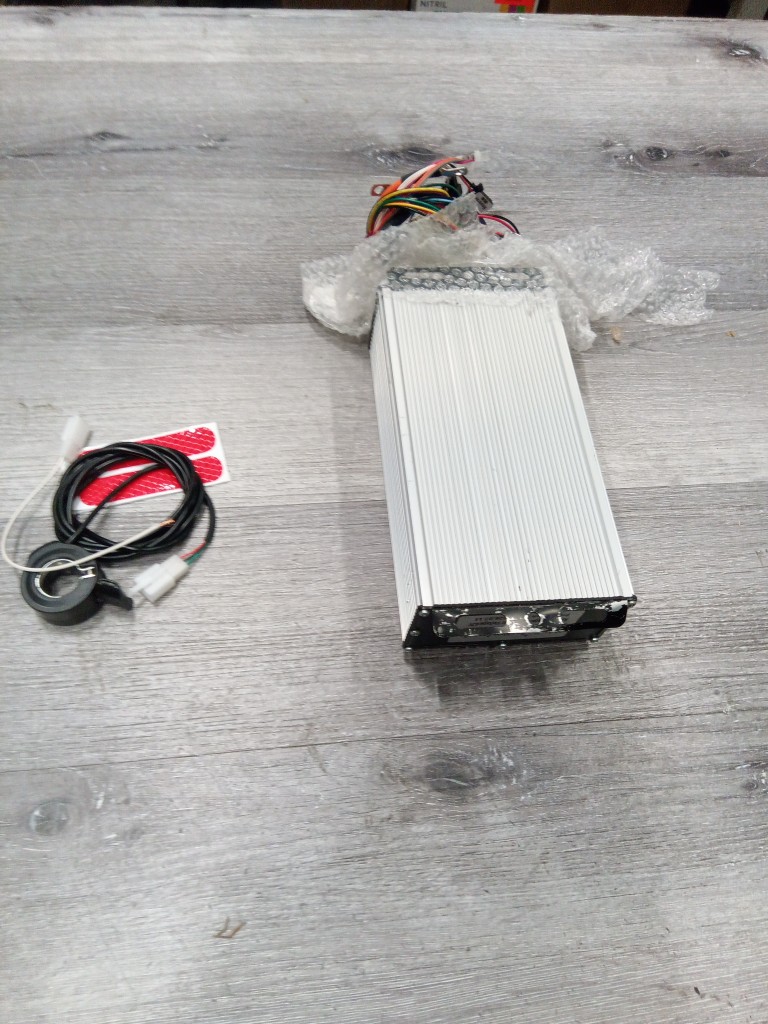

Package includes：
1* E-Bike brushless controller
