Description  

The CCD image sensor outputs digital signals that improve picture's clarity, color contrasting and sharpness to a better level than CMOS camera.

With its 18 individual Infrared (IR) LED, CCD camera shows clear images in low light conditions especially at night circumstances.

This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for a longer time without heating up, providing rearview at all time.


The advantages of 4-pin connector cable

One cable solution deals with both power and singal transmission. No power cable is needed to connect cameras. Special thick hard wire can shield vehicle's circuit interference better than normal AV cable.

* CCD camera has sharper pictures. It sharpens the focus of picture, making it as real as possible.


* CCD lens Makes clear night vision even in a low light environment.
* 18 infrared lamp used in the low light condition
* You can easily adjust the angle at Multi-level
* 120 degree angle lens, ensure car’s rear side for effective reversing and parking operation
* 100% complete waterproof
* 12V-24V input


This item is for 12V-24V power input vehivles


Monitor cable is approx. 2.5m (7.4ft) long.

Video cable is 20m(66ft) long.(Extra length video cable is available for purchase, please contact us for details.)


 

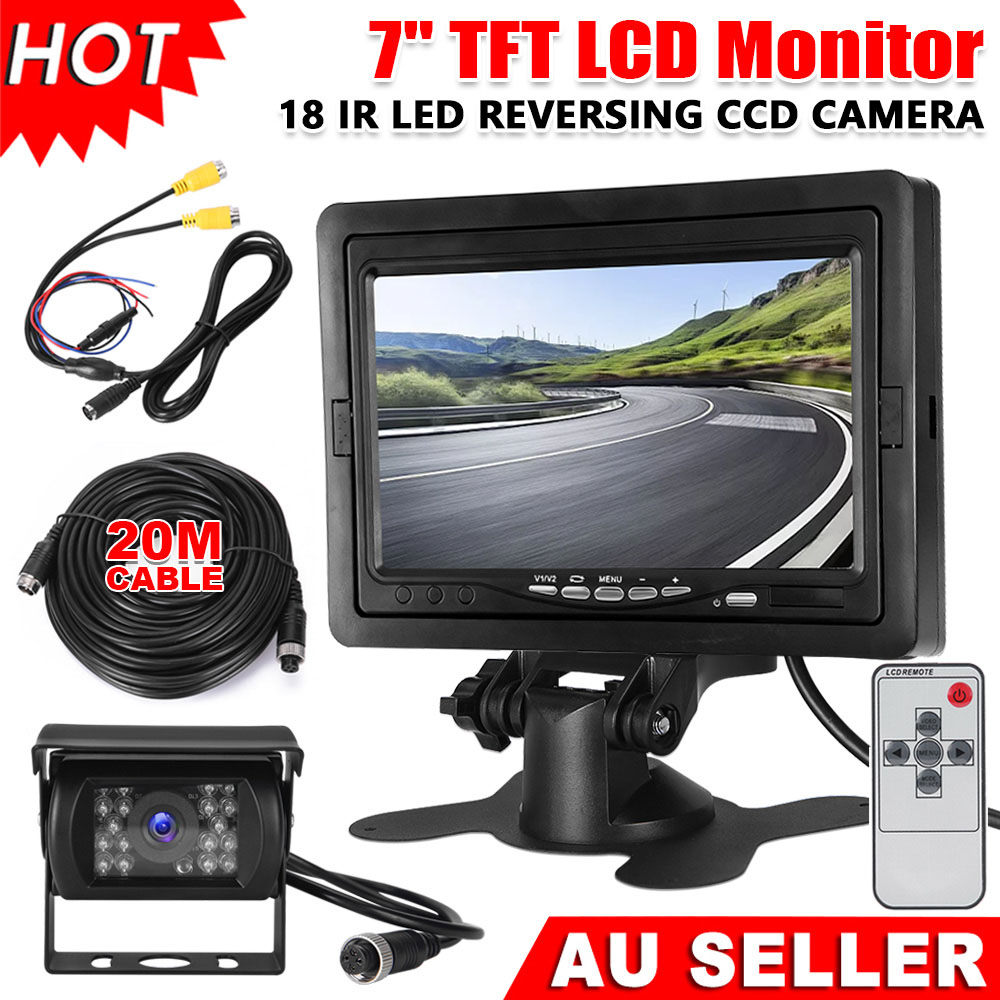

Color CCD Camera
Image Type
1/4'' High Performance Color SHARP CCD
Horizontal Resolution 480TV Lines
Number of pixels PAL:720(H)*586(V) ,NTSC:720(H)*580(V)
Usable Illumination 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)
Free viewing angle 120°
Waterproof IP68
Shockproof 10G
Video Output 1.0Vp-p75Ω
Power supply 12-24V
7'' CAR TFT LCD Monitor
Screen size
7-inch panel (diagonal length)
Input 4pin input
System NTSC/PAL System
Resolution R.G.B 800x480 pixel
Power Supply 12-24V DC
View Angle (left/right) 65 degrees(top) 40 degrees (up)
   
Contrast Color, brightness adjustable
Comsumption 7.5W
Video 2-channel video inputs
Audio no
Net Weight around 740g
   

 
