EXPLORE THIS ITEM
TECHNICAL DATA
Full specification.
| Model | Gigabyte GeForce RTX 4080 SUPER WINDFORCE V2 16G (GV-N408SWF3V2-16GD rev. 1.0) |
|---|---|
| GPU | NVIDIA GeForce RTX 4080 SUPER / AD103, revision A1 |
| Shaders | 10,240 CUDA cores |
| Memory | 16GB GDDR6X (Micron, shown in GPU-Z) |
| Memory interface | 256-bit |
| Memory clock / effective rate | 1,438 MHz / 23 Gbps |
| Memory bandwidth | 736.3 GB/s, shown in GPU-Z |
| Core clocks | Base 2,295 MHz / boost 2,550 MHz |
| Interface | PCI Express 4.0 x16 |

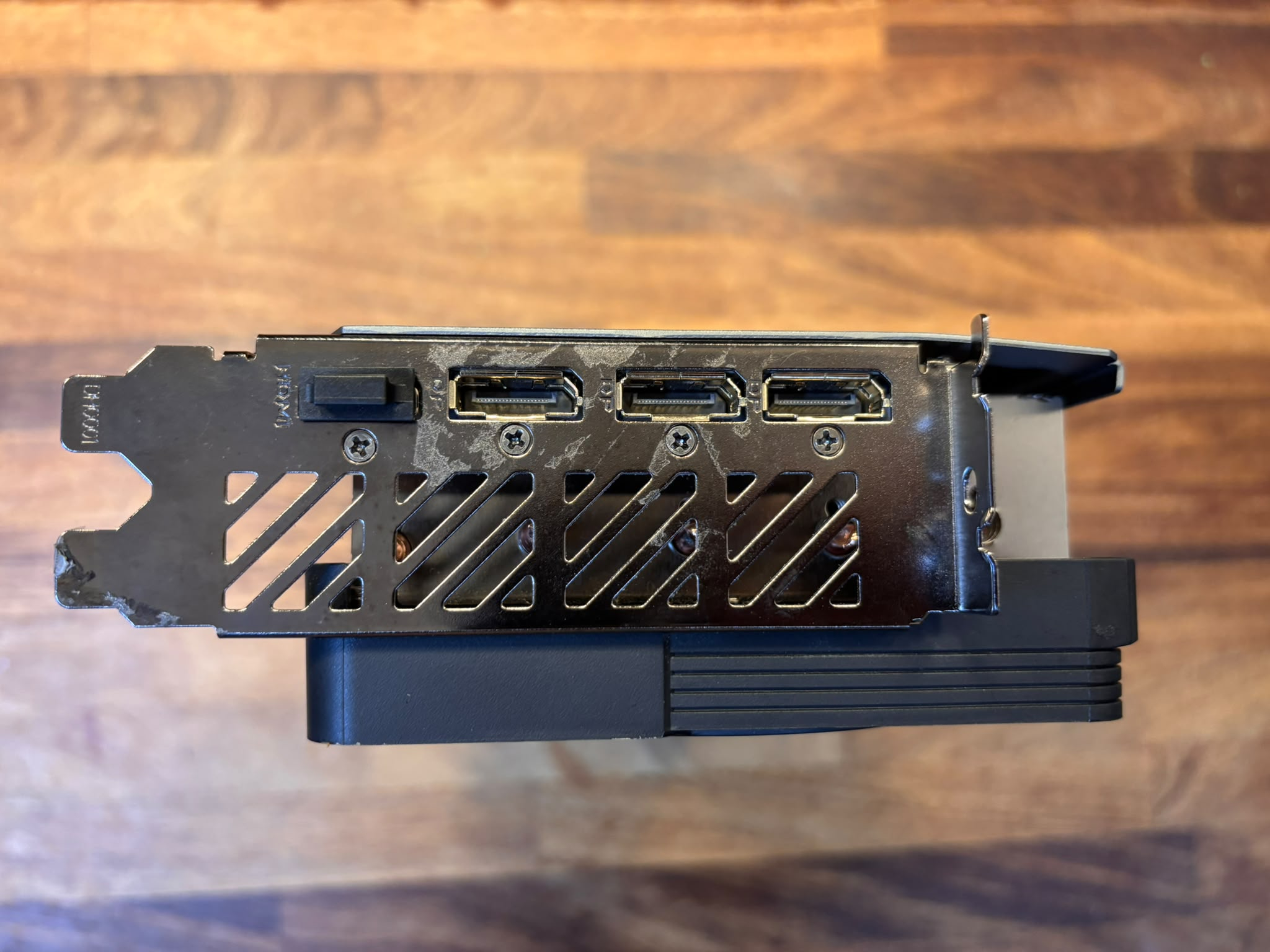

| Outputs | 3 × DisplayPort 1.4a / 1 × HDMI 2.1a |
| Maximum displays | 4 |
| Maximum digital resolution | 7680 × 4320 |
| Board power | 320 W (NVIDIA RTX 4080 SUPER reference total graphics power) |
| Power connector | 1 × 16-pin |
| Recommended PSU | 750 W |
| Dimensions | 330 × 136 × 58 mm |
| Card weight | No verified card-only weight found in manufacturer specifications or supporting sources |
| APIs | DirectX 12 Ultimate / OpenGL 4.6 |
| VBIOS captured | 95.03.44.40.2D |
¹ Power is a published specification, not measured consumption. The power figure is NVIDIA’s reference GPU specification; board behaviour can vary. GPU-Z records PCIe x16 1.1 on the test system; this capture is not a separate full-load link test. NVIDIA power specification. Gigabyte manufacturer specification
THE ITEM YOU ARE BUYING

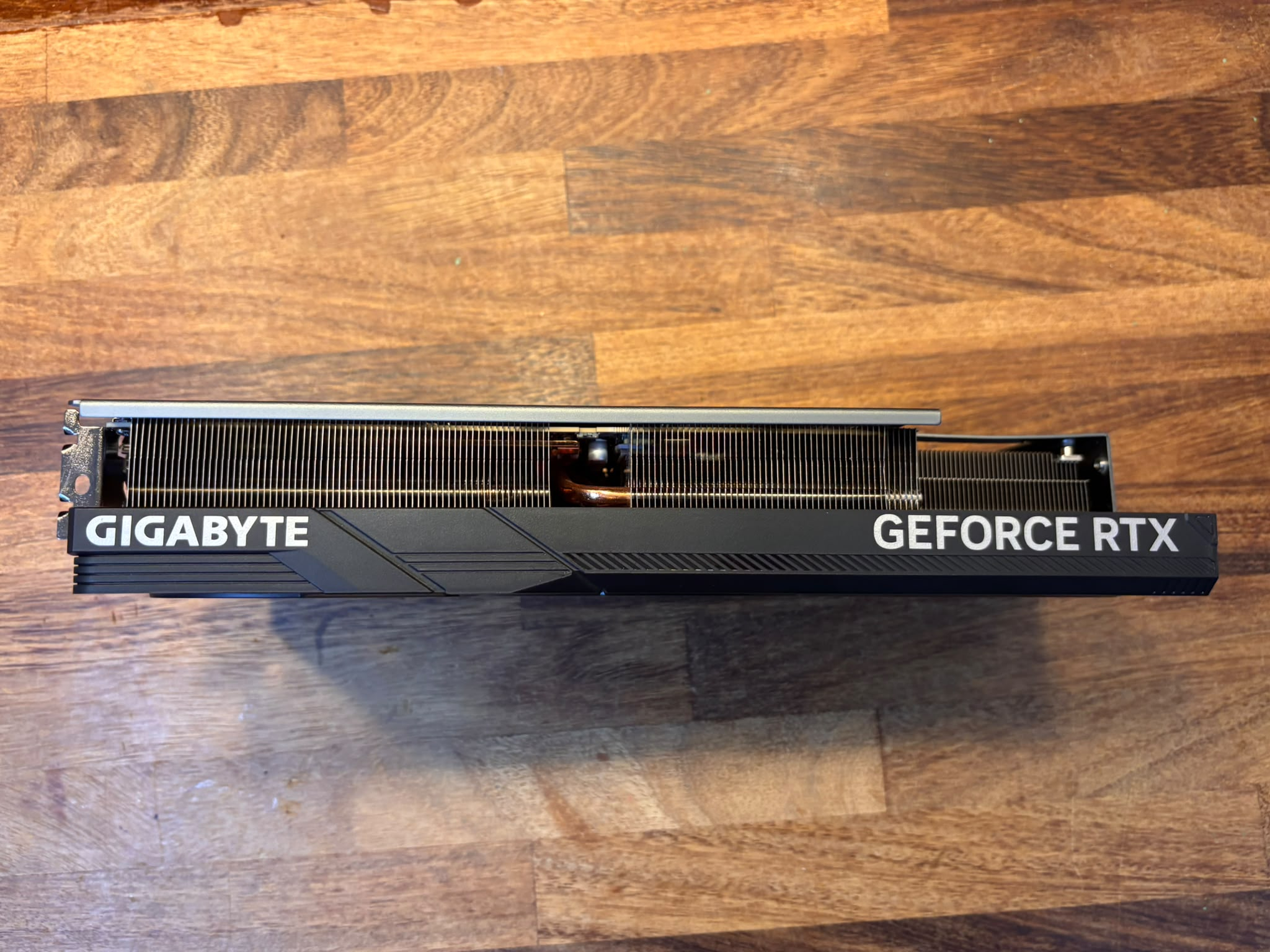

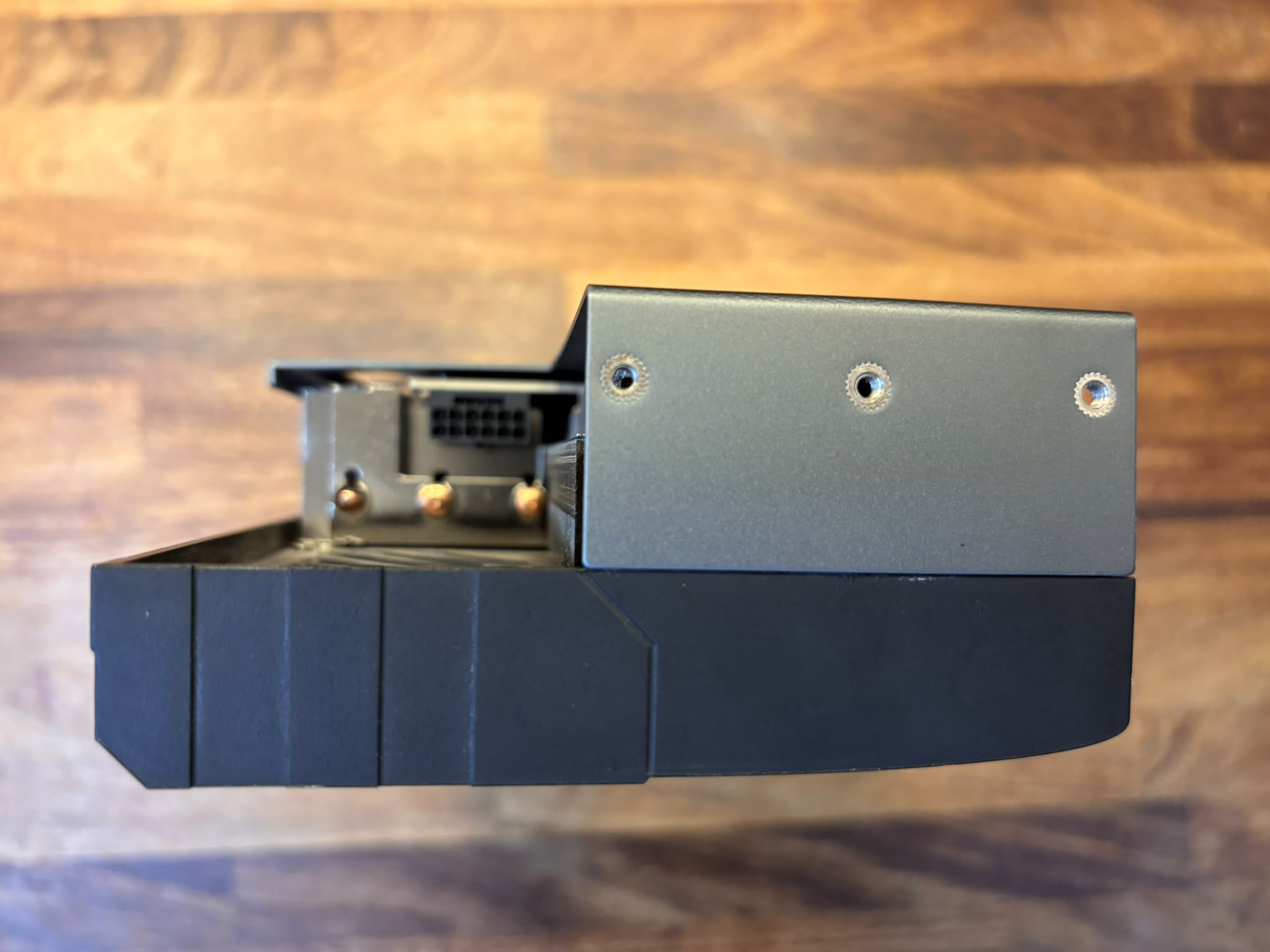

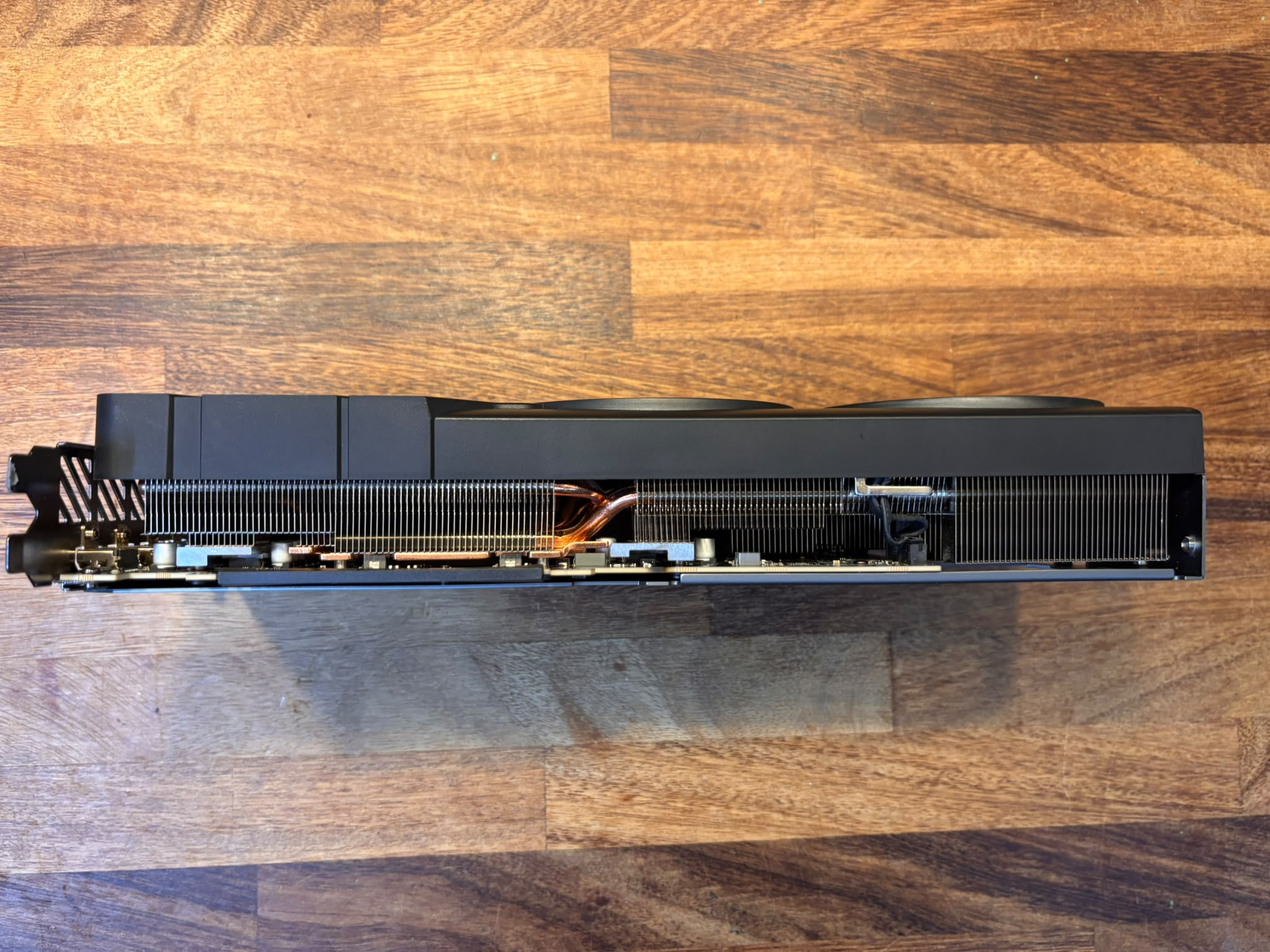

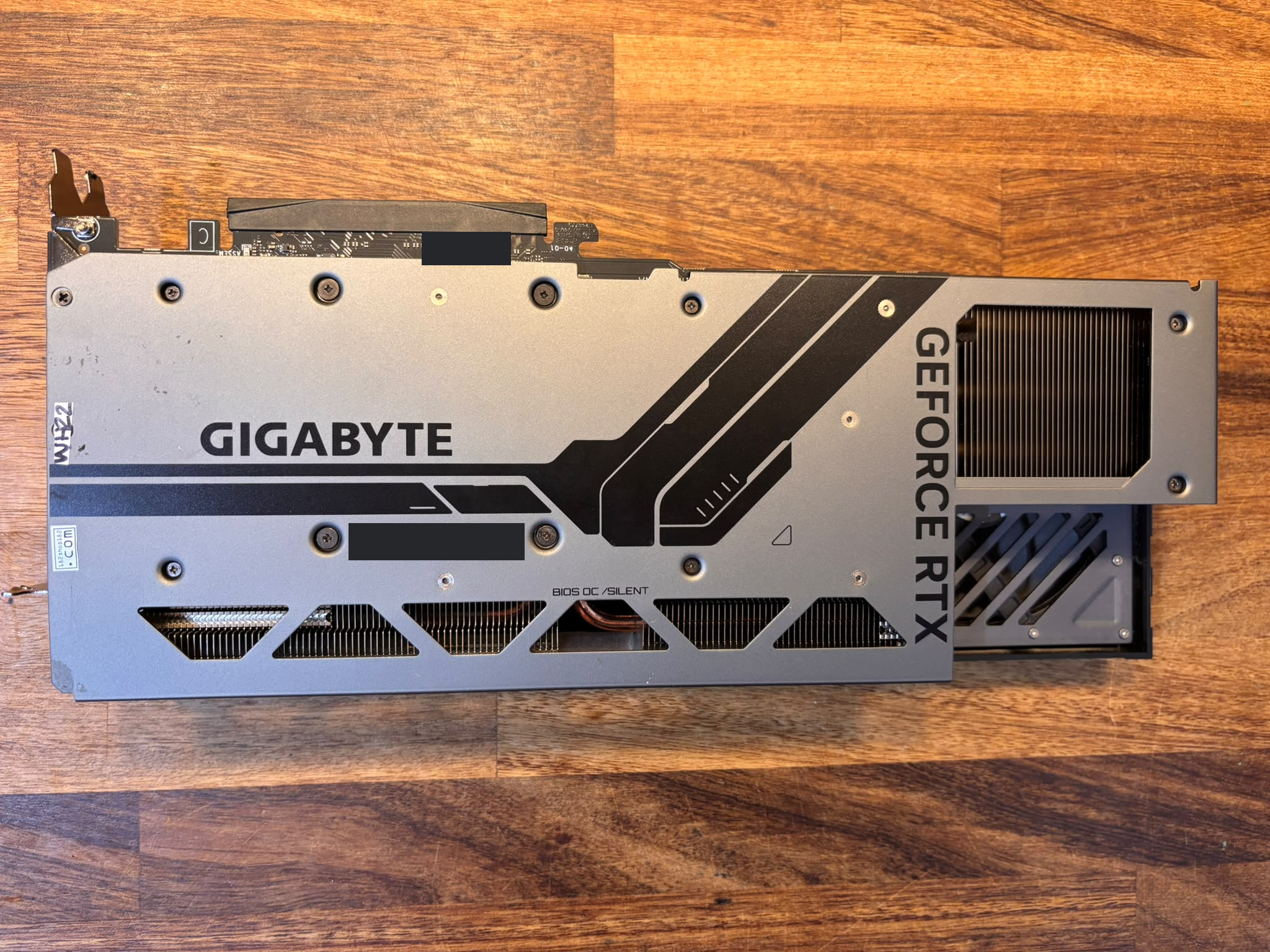

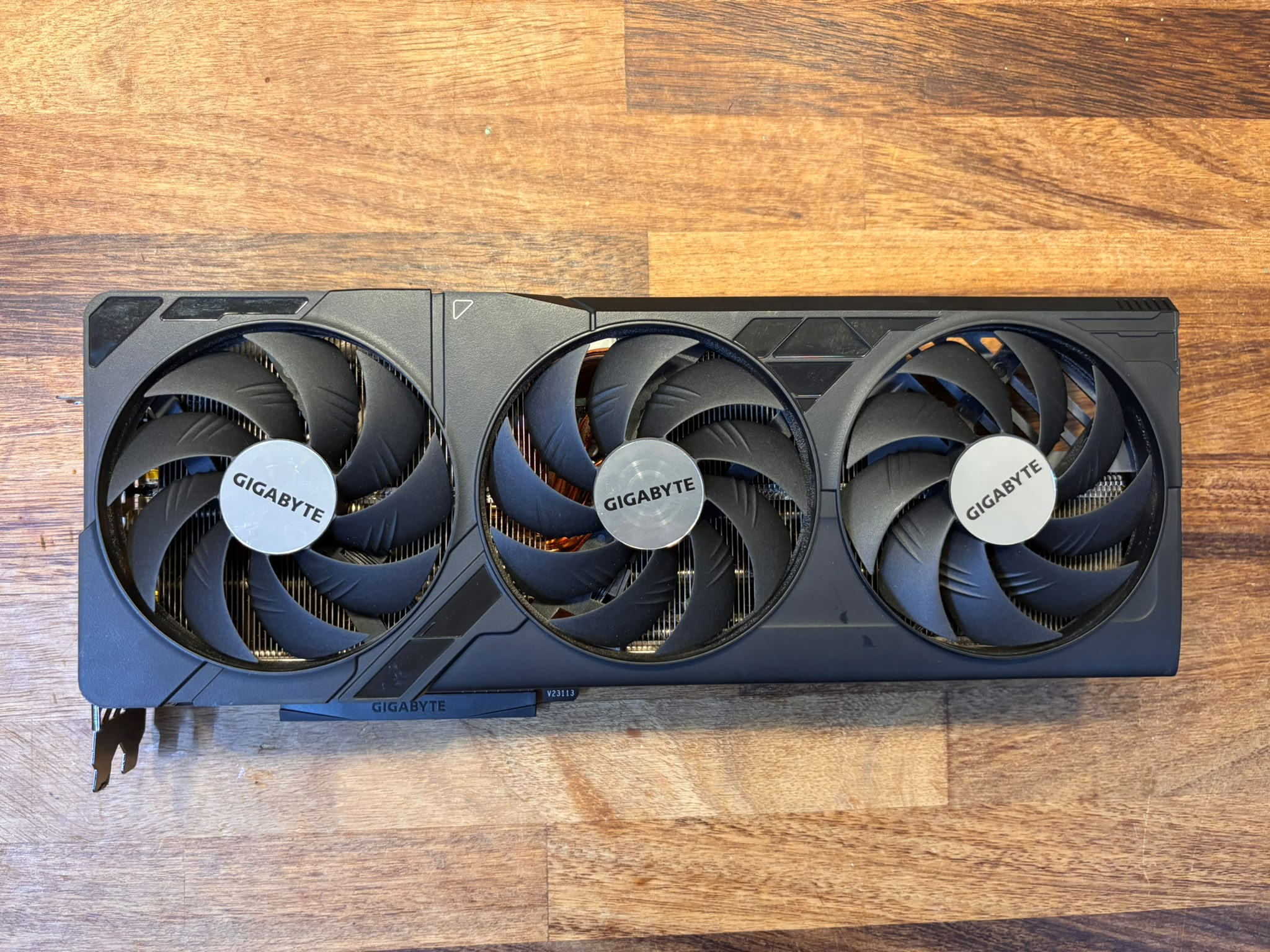

Six views of the actual card.

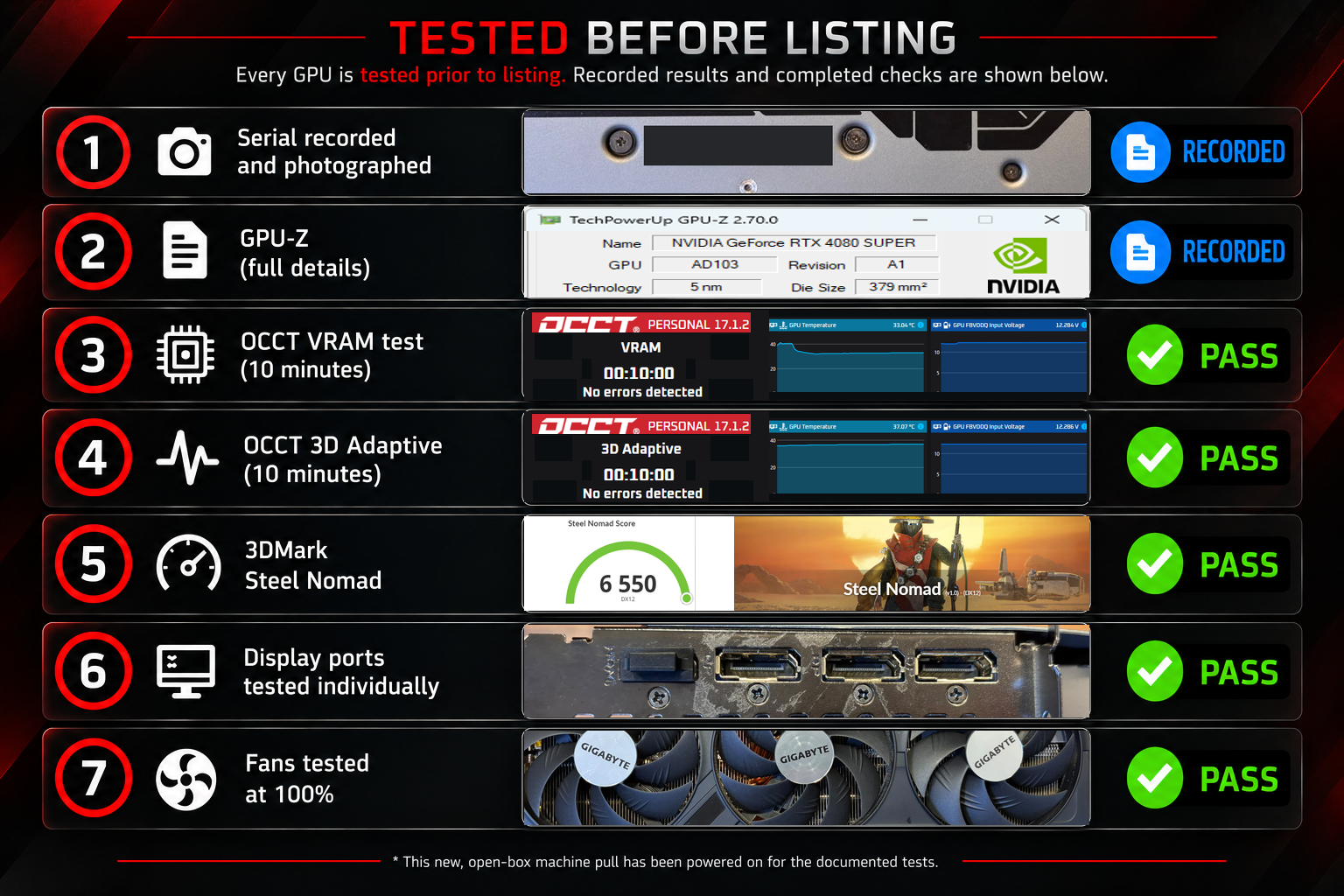

TEST EVIDENCE
The actual test captures.

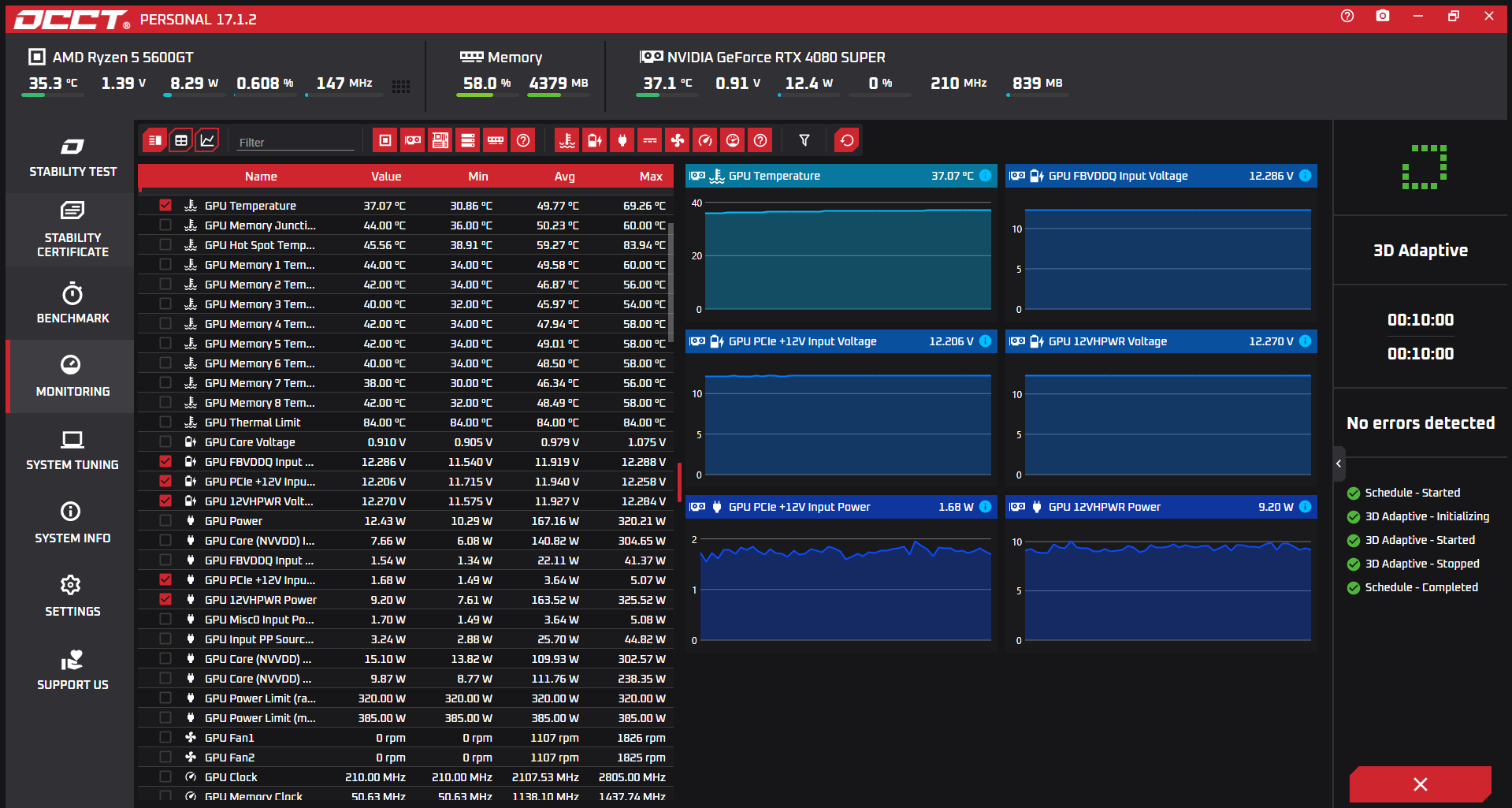

OCCT 3D ADAPTIVE
10 minutes · no errors detected

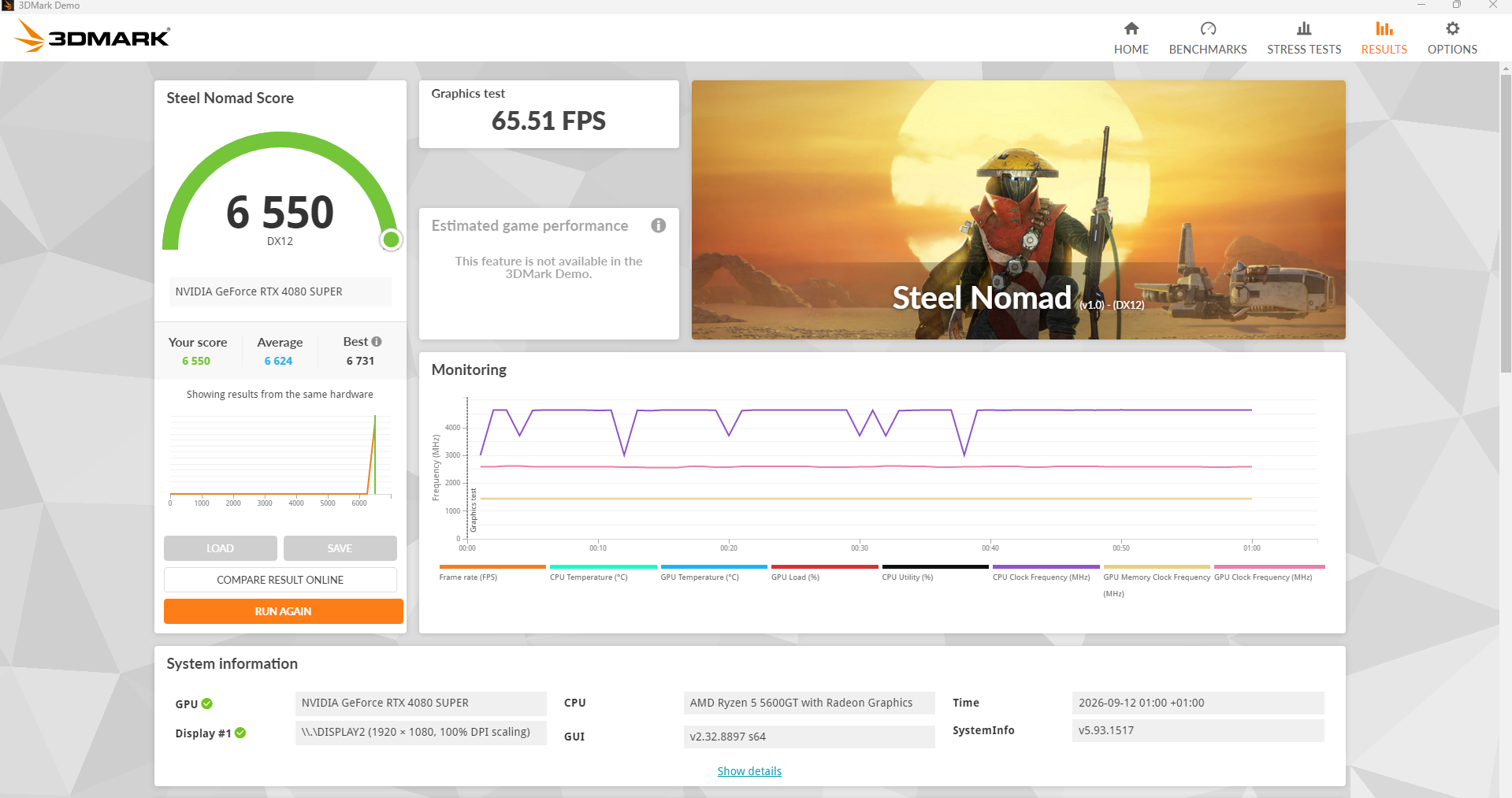

3DMARK STEEL NOMAD
6,550 points · 65.51 FPS (recorded result)

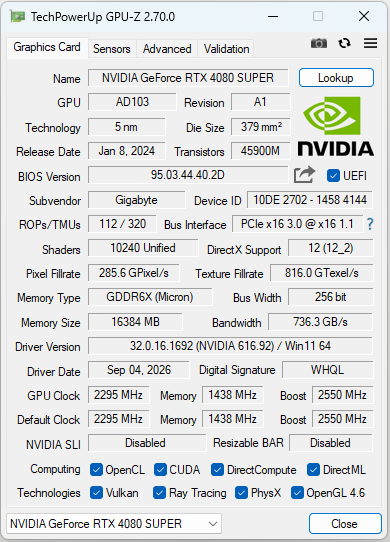

GPU-Z
16GB GDDR6X · 1,438 MHz memory

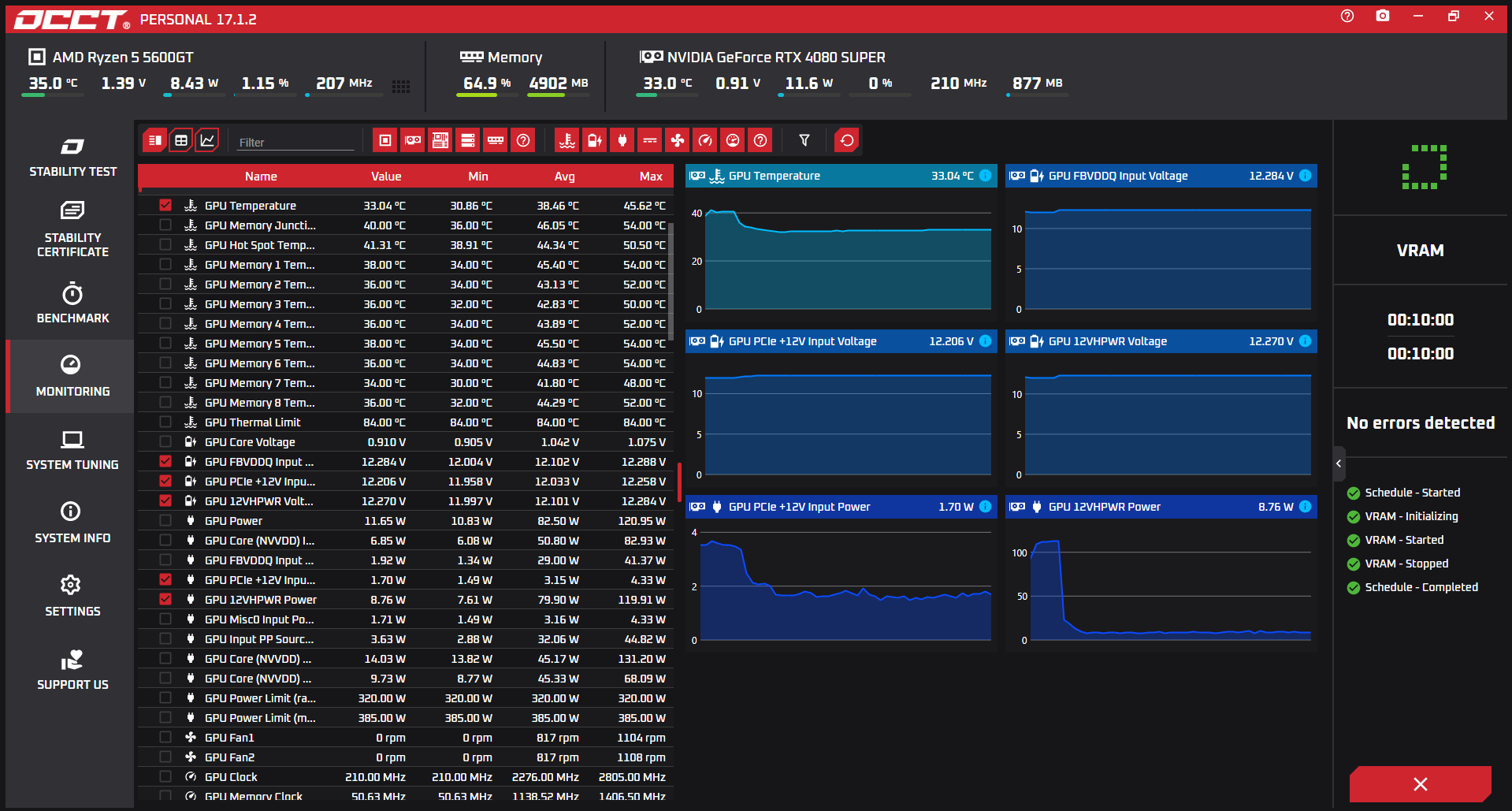

OCCT VRAM
10 minutes · no errors detected
