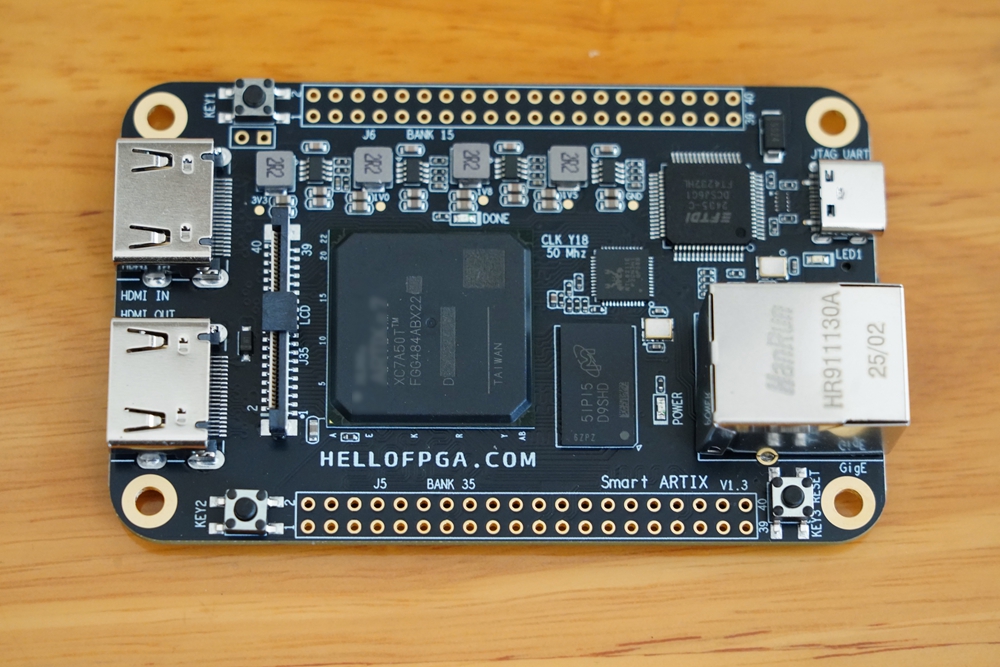

Description

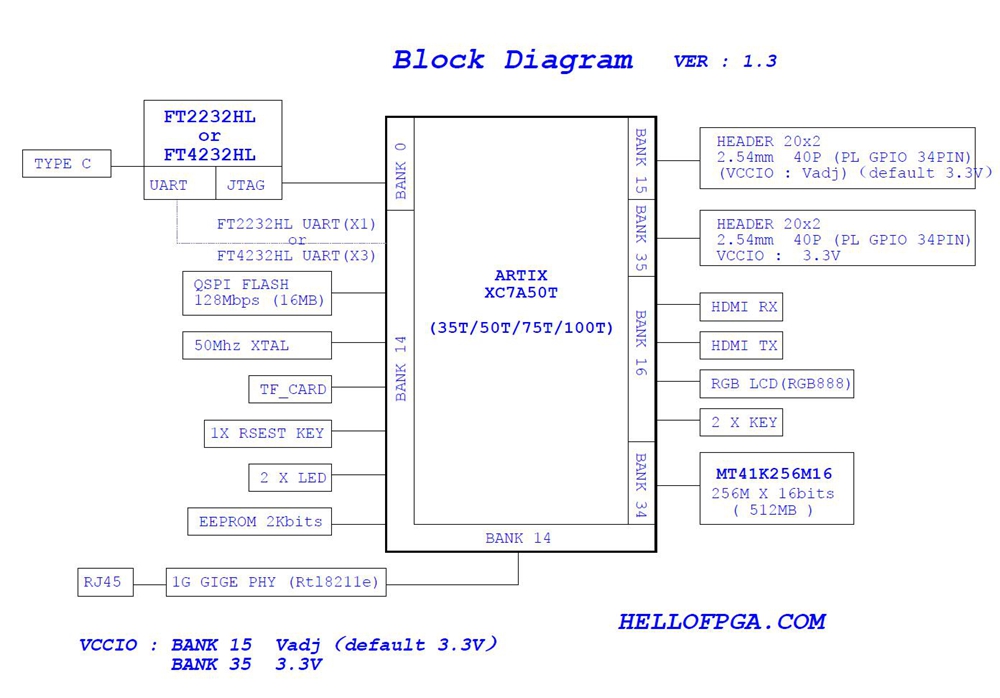

Specifications:

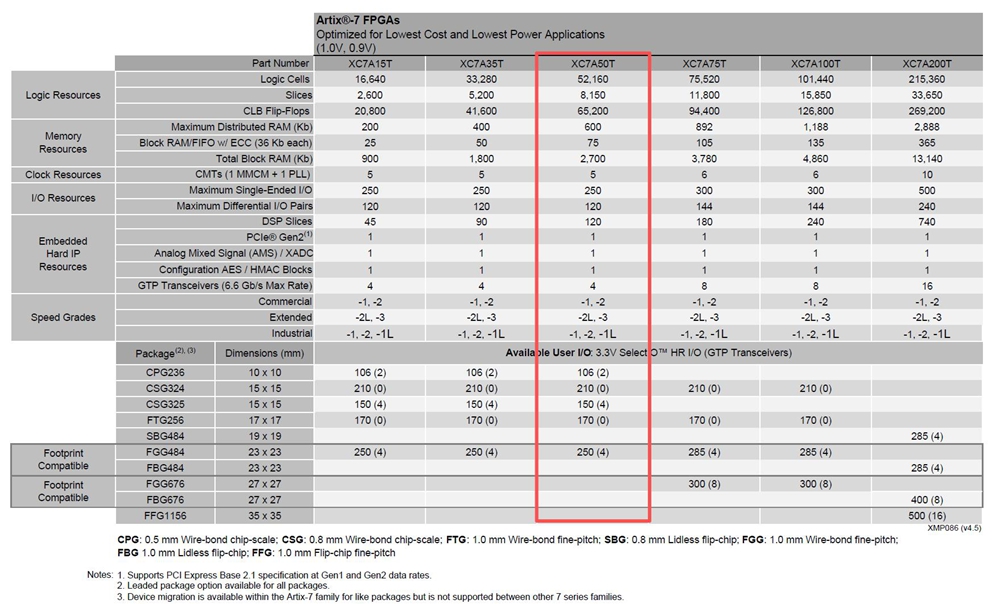

- Master chip: ARTIX XC7A50T-2FGG484I
- Motherboard layers: 8 layers
- DDR: 256M x 16bit (512MBB)
- FLASH: 128Mbits (16MB) (can be used for program solidification and startup)
- EEPROM: 24C02 2Kbits
- TF slot: Micro SD slot (TF card slot)
- Clock: 50M active crystal oscillator
- Network: 1-channel gigabit Ethernet RTL8211E
- HDMI-compatible: 2-channel HDMI-compatible (IO analog), one channel for transmission, the other for reception
- JTAG: onboard
- Serial port: 1-channel USB UART
- Note: The first batch of chips used for UART is FT4232HL, which will map out 3 serial ports, all of which are connected to the IO end of FPGA.
- Button: 3 buttons (one of which can serve as a system reset button)
- LED: 2 programmable LEDs+1 Done indicator LED+1 power indicator LED

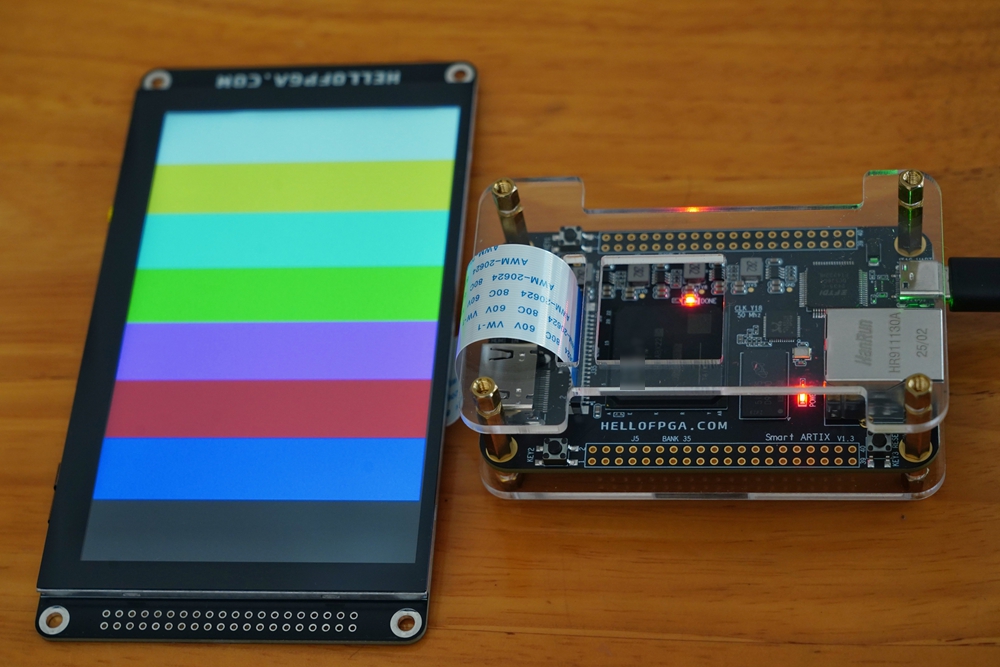

- LCD interface: with a 40PIN RGB LCD interface (40P FPC), the interface line sequence is compatible with the RGB screen of ALIENTEK
- Logic GPIO port: A total of 68 FPGA IOs are led out, and all the pins are led out in pairs using differential lines (equal length inside the differential lines, and equal length inside the BANK group on the same side of the pin bank)
- The bank voltage on one side of the GPIO can be changed separately (by replacing one SOT23-5 LDO), while the other side is fixed at 3.3V
- Power supply: The motherboard can be powered through the TYPE C port (JTAG or USB SLAVE), or a 5V power supply can be provided to the VCC pin of the motherboard through a pin adapter.
- Onboard downloader integrated; no external downloader required.
Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable (50cm)
- 1 x Metal Heat Sink
- 2 x 20Pin 2.54 Space Connector
- 1 x DuPont Cable
- Master chip: ARTIX XC7A50T-2FGG484I
- Motherboard layers: 8 layers
- DDR: 256M x 16bit (512MBB)
- FLASH: 128Mbits (16MB) (can be used for program solidification and startup)
- EEPROM: 24C02 2Kbits
- TF slot: Micro SD slot (TF card slot)
- Clock: 50M active crystal oscillator
- Network: 1-channel gigabit Ethernet RTL8211E
- HDMI-compatible: 2-channel HDMI-compatible (IO analog), one channel for transmission, the other for reception
- JTAG: onboard
- Serial port: 1-channel USB UART
- Note: The first batch of chips used for UART is FT4232HL, which will map out 3 serial ports, all of which are connected to the IO end of FPGA.
- Button: 3 buttons (one of which can serve as a system reset button)
- LED: 2 programmable LEDs+1 Done indicator LED+1 power indicator LED
- LCD interface: with a 40PIN RGB LCD interface (40P FPC), the interface line sequence is compatible with the RGB screen of ALIENTEK
- Logic GPIO port: A total of 68 FPGA IOs are led out, and all the pins are led out in pairs using differential lines (equal length inside the differential lines, and equal length inside the BANK group on the same side of the pin bank)
- The bank voltage on one side of the GPIO can be changed separately (by replacing one SOT23-5 LDO), while the other side is fixed at 3.3V
- Power supply: The motherboard can be powered through the TYPE C port (JTAG or USB SLAVE), or a 5V power supply can be provided to the VCC pin of the motherboard through a pin adapter.
- Onboard downloader integrated; no external downloader required.
Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable (50cm)
- 1 x Metal Heat Sink
- 2 x 20Pin 2.54 Space Connector
- 1 x DuPont Cable
