Description

Features:
- 200 groups of fusing modes, 80 groups of heating modes, 10,000 groups of fusing records and 1600 pictures.
- Modular design, according to user needs to expand the Bluetooth, Internet of Things and other functions.
- 5200mAh high-capacity lithium battery,fusion heating more than 340 cores.
- All-in-one multi-function fixture for all types of fiber optic splices.

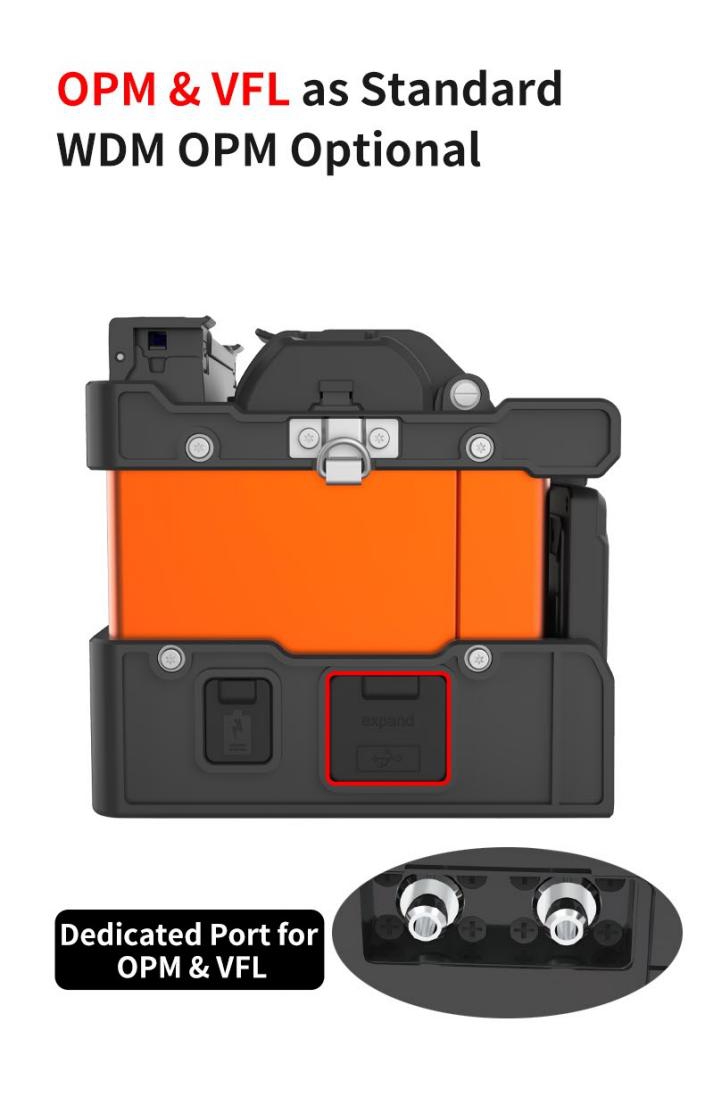

- Optional red light and optical power meter functions are available to meet diverse needs.

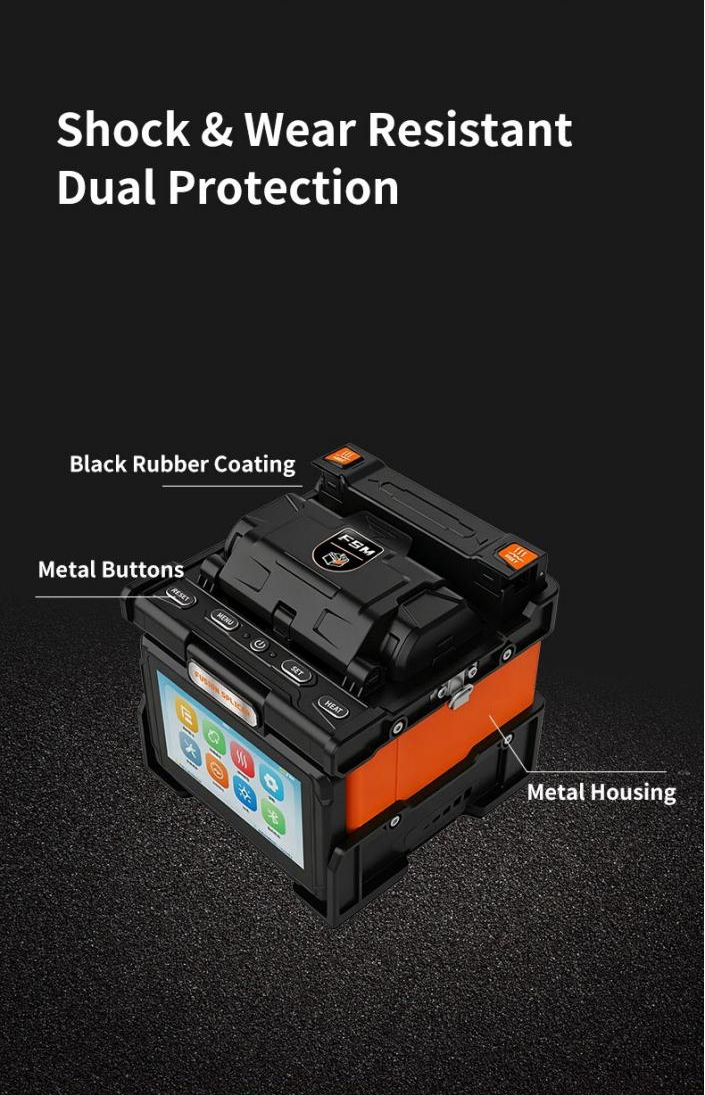

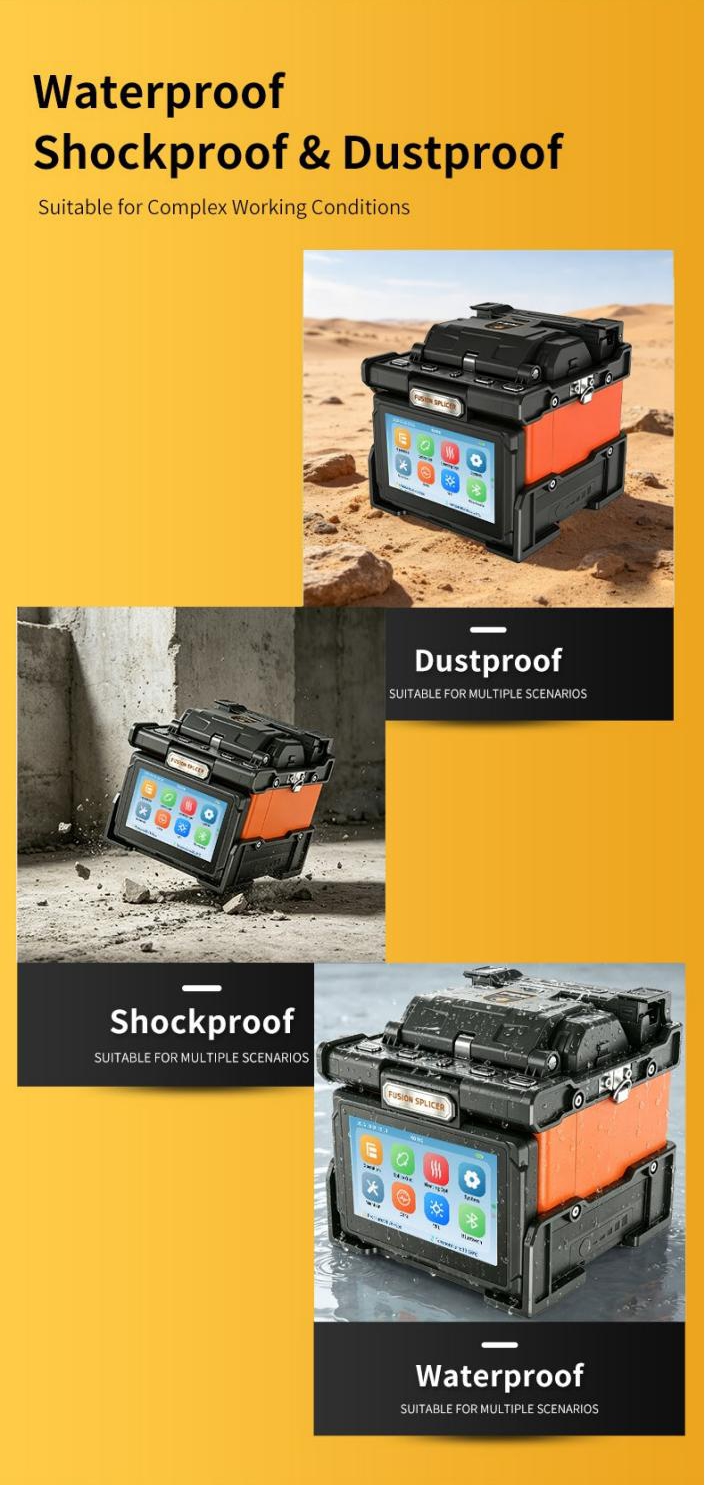

- Shockproof, waterproof, drop-proof, strong environmental adaptability.
- Batteries are independently removable and rechargeable.

Advanced Product Performance:

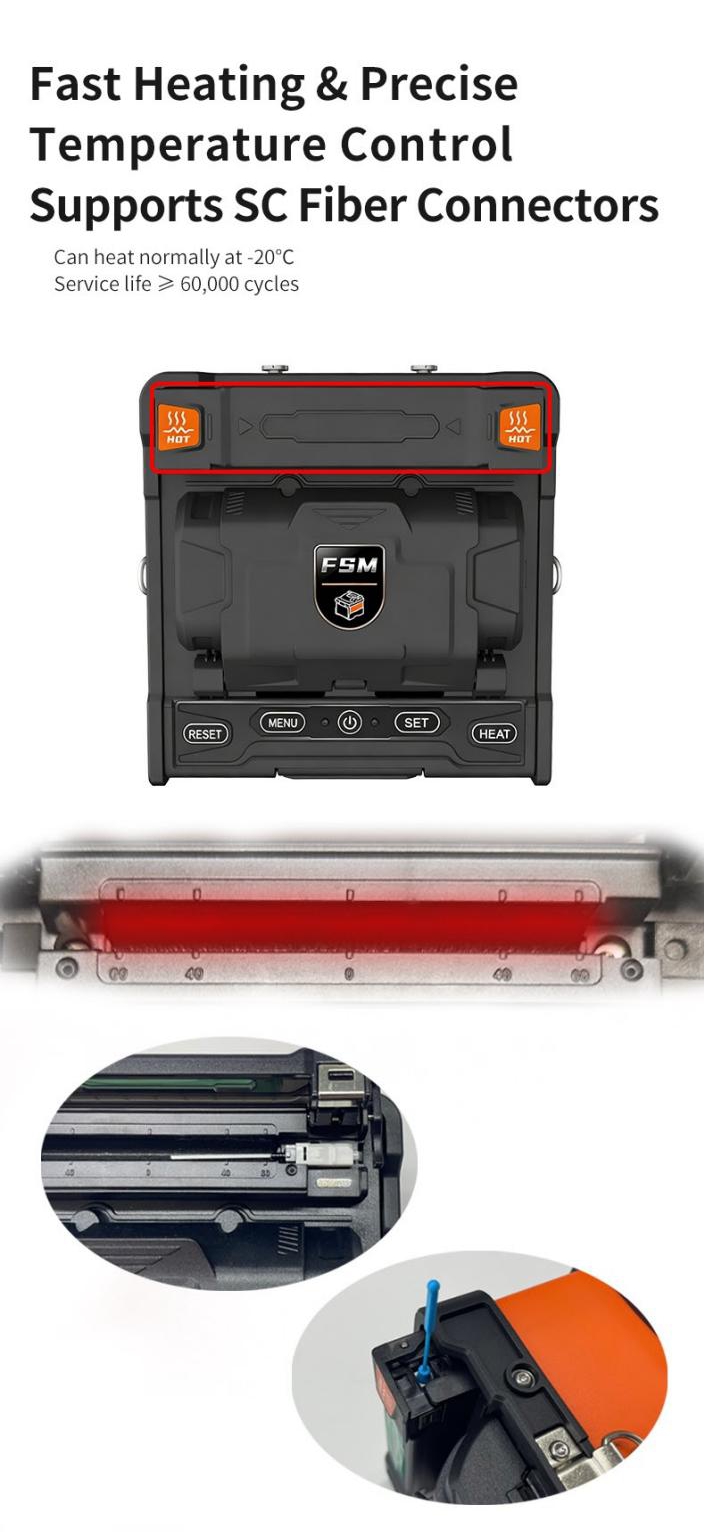

- Start-up heating furnace self-preheating: -20°C can also meet heating needs, and the heating furnace can work normally for more than 60,000 times.

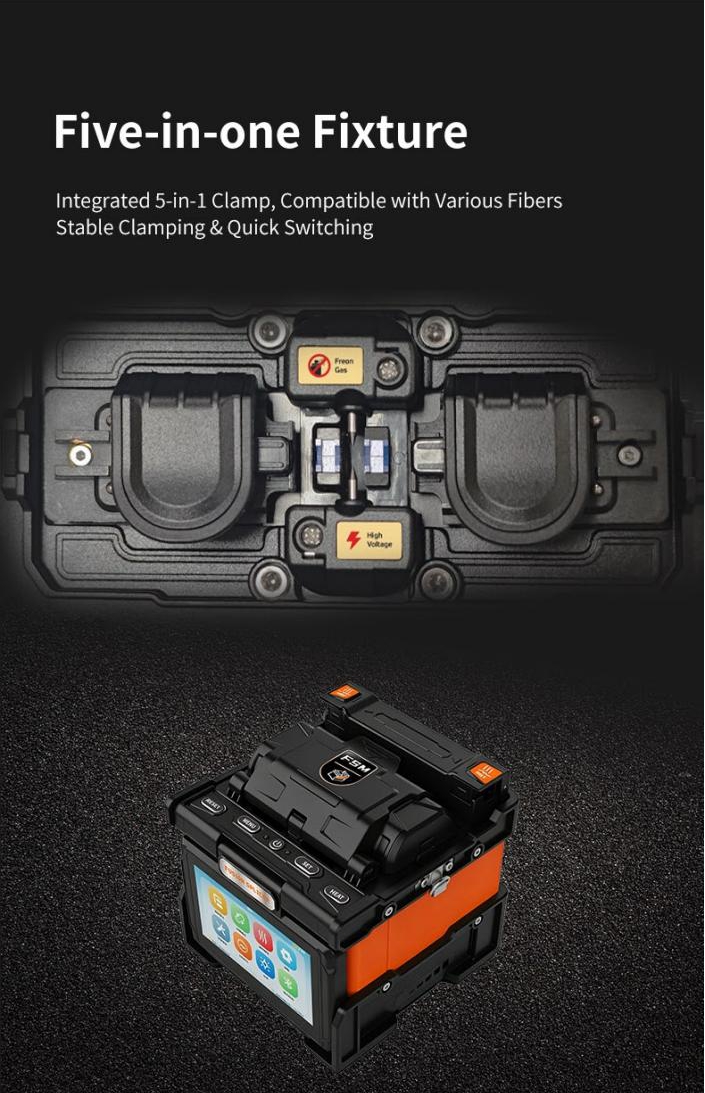

- Five-in-one clamp: Suitable for different types of optical fibers such as single core, leather cable, path cord, butterfly optical fiber, invisible optical fiber, etc.
- The movement frame uses high materials: Made of 7075 aviation aluminum material with high precision, corrosion resistance and good hardness, which is more stable and has a longer life than ordinary injection molding process.
- Adjustable core structure: Using precision guide rails that move in both directions with high precision XY.
- Industrial grade processor: High environmental adaptability, good reliability and faster speed.

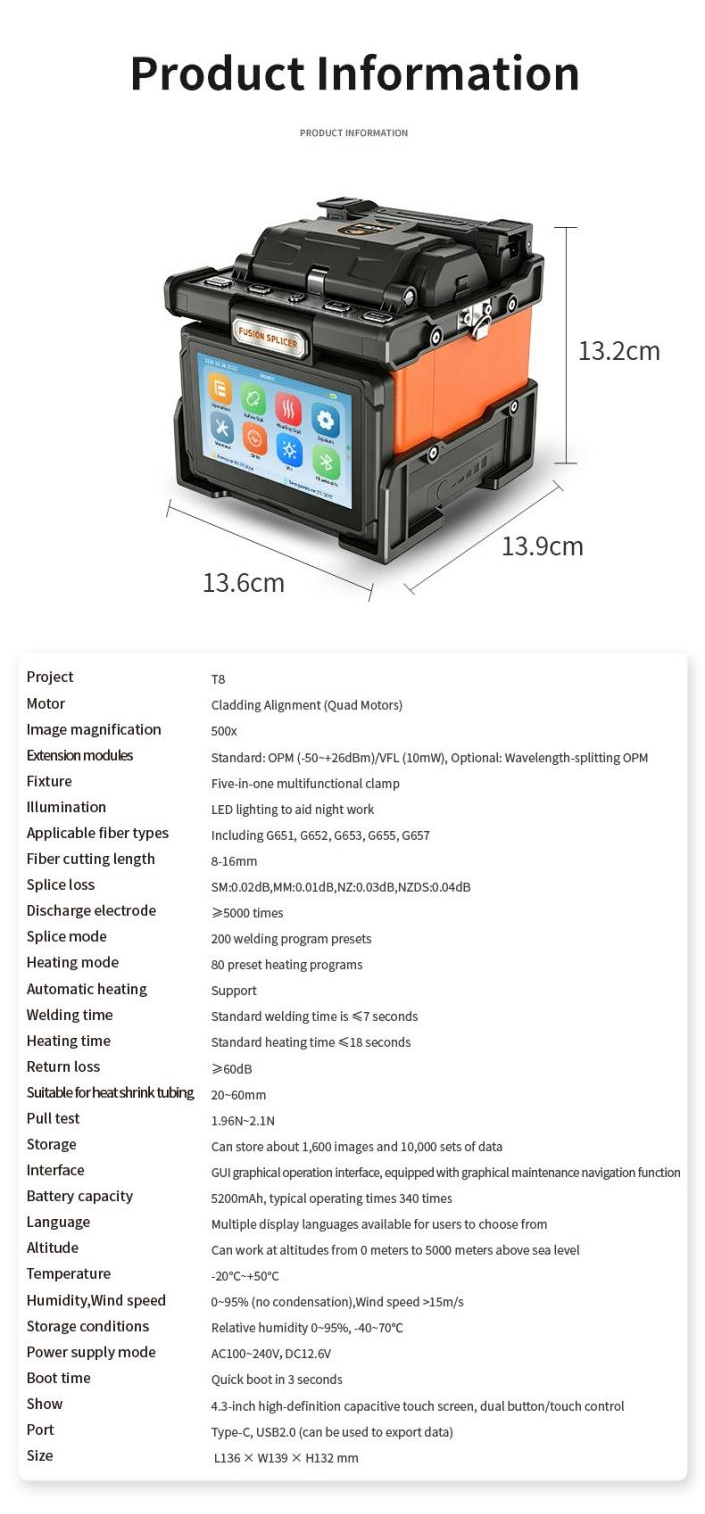

Technical Parameters:
- Motor: cladding alignment (quard motors)
- Image magnification: 320X
- Fixture: five-in-one multifunctional clamp
- Illumination: LED lighting to aid night work
- Applicable fiber types: including G651, G652, G653, G655, G657
- Fiber cutting length: 8 - 16mm
- Splice loss:
  SM: 0.02dB
  MM: 0.01dB
  NZ: 0.03dB
  NZDS: 0.04dB
- Discharge electrode: ≥5000 times
- Splice loss: 200 welding program presets
- Heating mode: 80 preset heating programs
- Automatic heating: support
- Welding time: standard welding time ≤7 seconds
- Heating time: standard heating time ≤18 seconds
- Return loss: ≥60dB
- Suitable for heat shrink tubing: 20 - 60mm
- Pull test: 1.96N - 2.1N
- Storage: can store about 1,600 images and 10,000 sets of data
- Interface: GUI graphic operation interface, equipped with graphical maintenance navigation function
- Battery capacity: 5200mAh, typical operating times 340 times
- Language: multiple display languages available for users to choose from
- Altitude: can work at altitudes from 0 meters to 5000 meters above sea level
- Temperature: -20℃ to +50℃
- Humidity, wind speed: 0 - 95% (non-condensing), wind speed > 15m/s
- Storage conditions: relative humidity 0 - 95%, -40℃ to 70℃
- Power supply: AC100 - 240V, DC12.6V
- Booth time: quick boot in 3 seconds

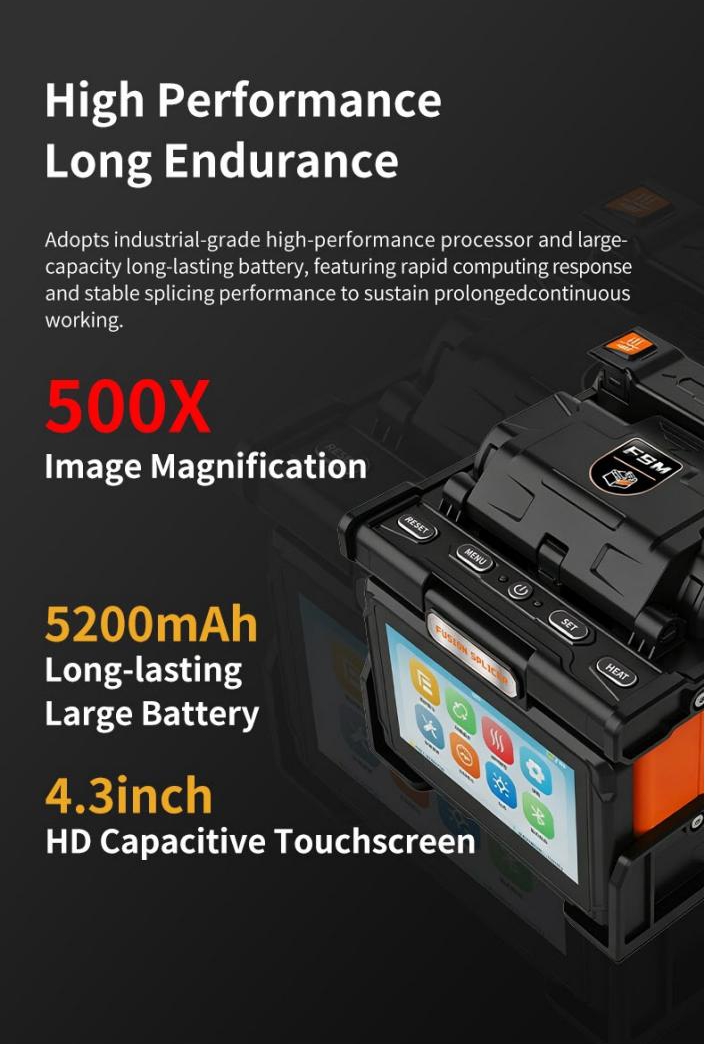

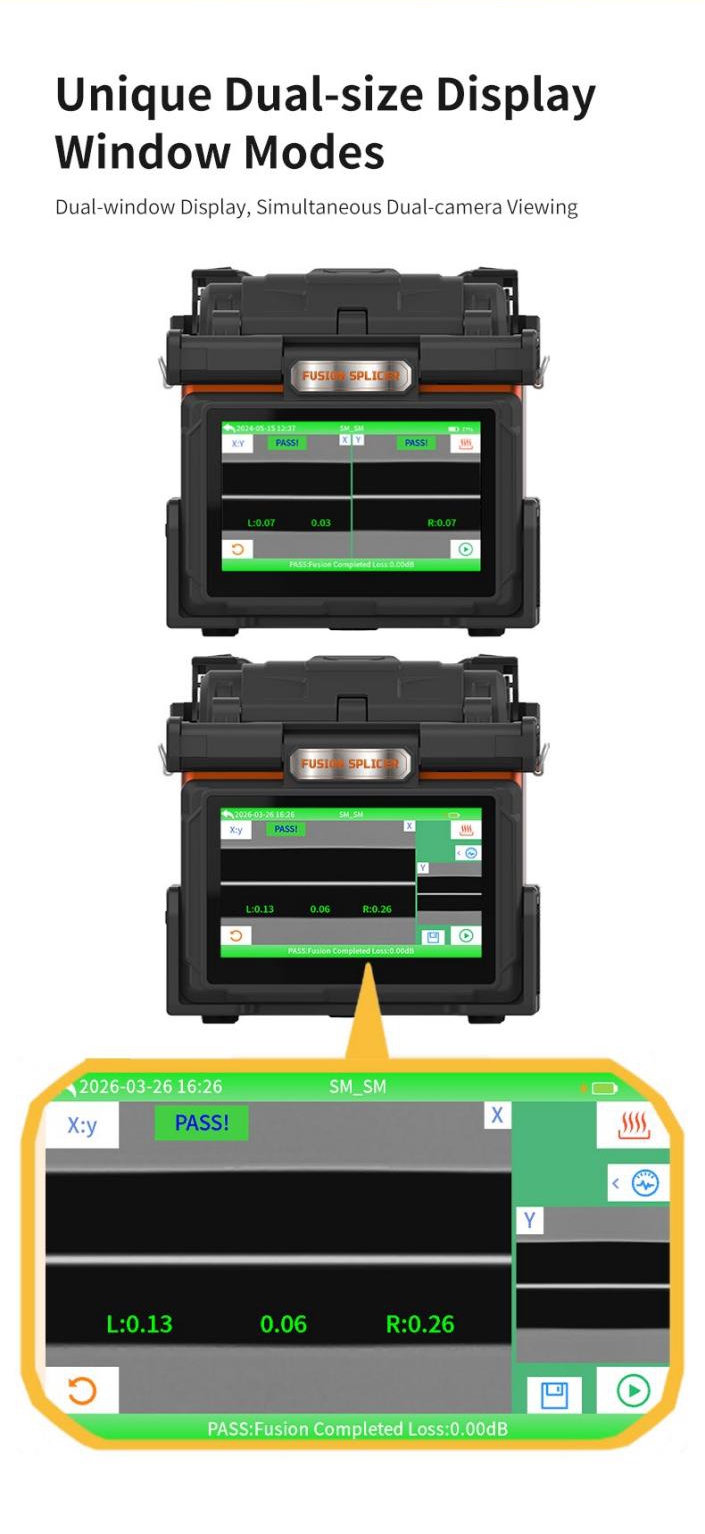

- Display: 4.3-inch high-definition capacitive touch screen, dual button/touch control
- Port: Type-C, USB2.0 (can be used to export data)
- Size: 136 x 139 x 132mm

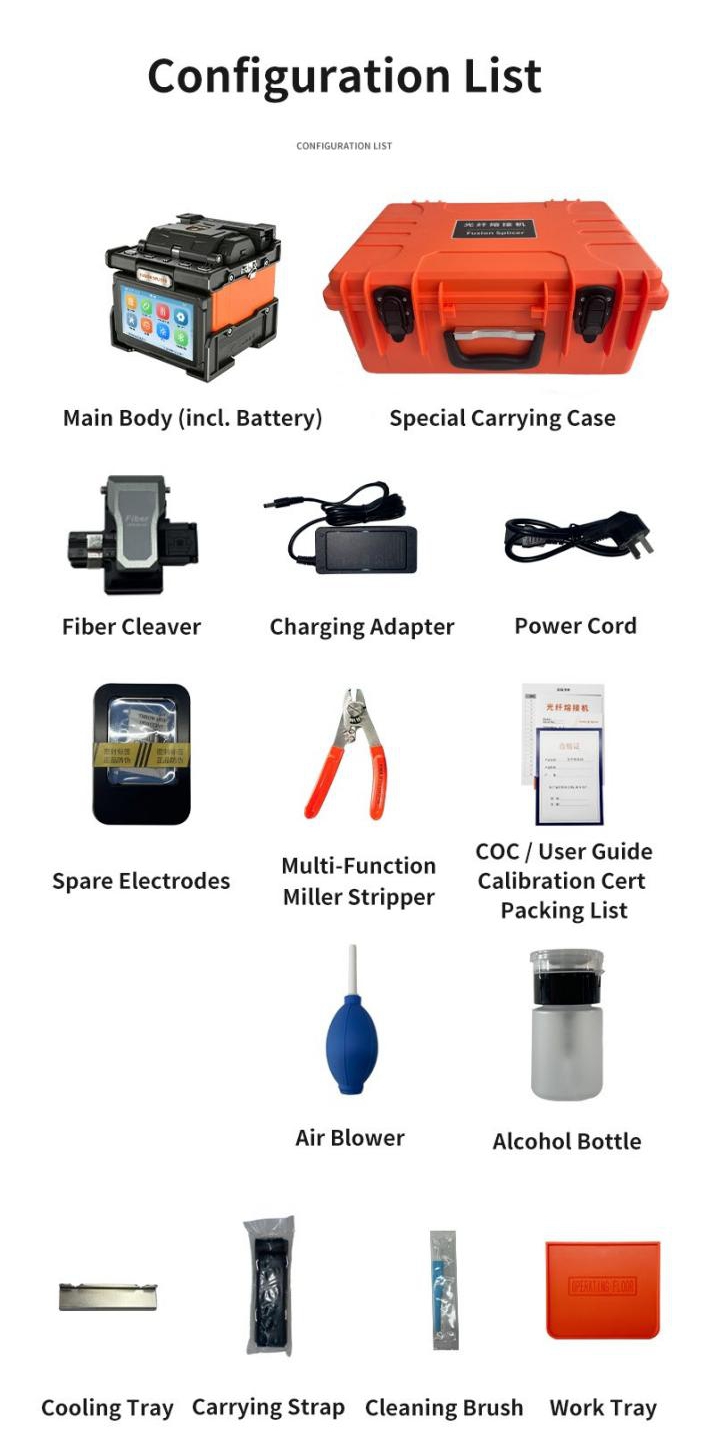

Package Included:
- 1 x Fiber Fusion Splicer
- 1 x Special Carrying Case
- 1 x Fiber Cleaver
- 1 x Charging Adapter
- 1 x Power Cord
- 1 x Spare Electrodes
- 1 x Multi-function Miller Stripper
- 1 x Air Blower
- 1 x Alcohol Bottle
- 1 x Cooling Tray
- 1 x Carrying Strap
- 1 x Cleaning Brush
- 1 x Work Tray
- 1 x User Manual
