Fluke 726 Precision Multifunction Process Calibrator

This product data sheet is originally written in English.


Kyozou Checkout

Newsletter




Quality Assurance


State & Local Government Ordering
sales summary

Full Warranty & Support


When purchasing from AAATesters you will be eligible for Future Discounts





Click For Larger ImageClick For Larger Image
Click For Larger ImageClick For Larger Image
Click For Larger ImageClick For Larger Image
Click For Larger Image

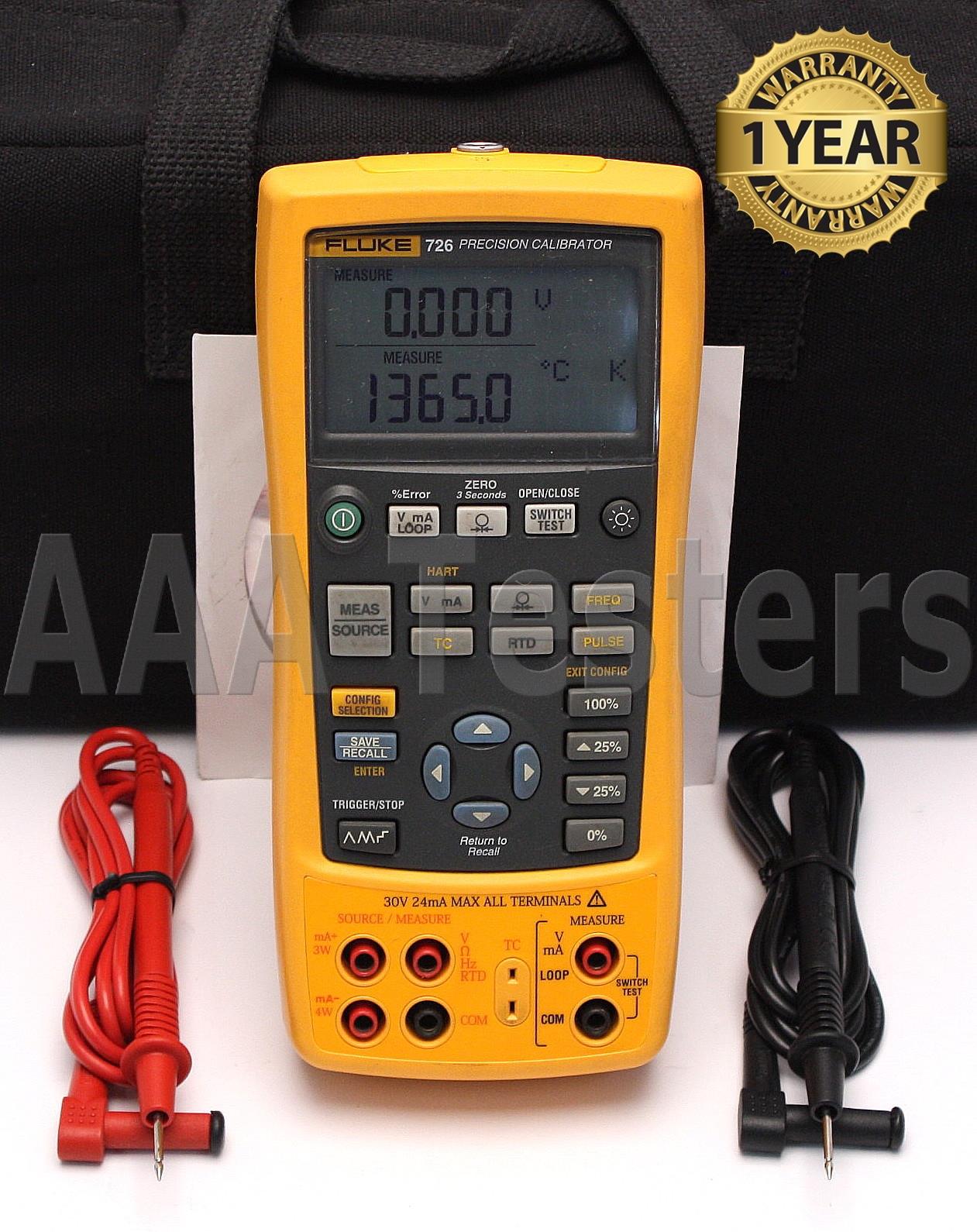

The Following Items Are Included:

  • Fluke 726 Precision Multifunction Process Calibrator (BC# 40138-L/T*)

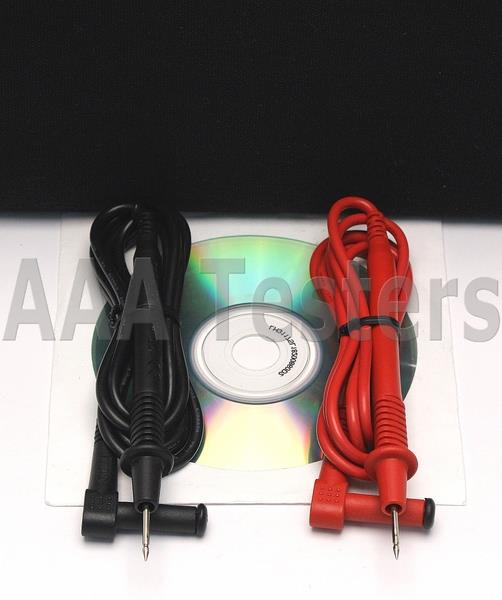

  • (2) 1000V Hard Point Test Leads
  • User Manual On CD-ROM
  • Carrying Case (G)


BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

Calibrated

This Item Has A Current Calibration!

 Calibrated

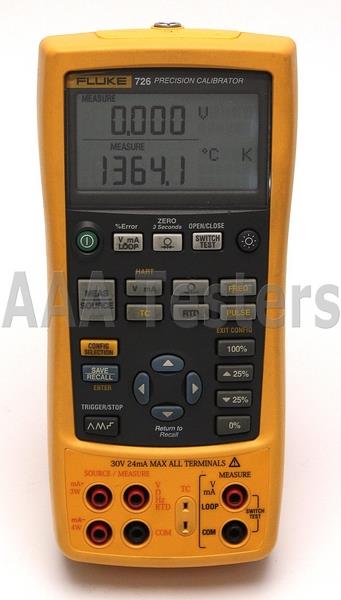

Fluke 726 Precision Multifunction Process Calibrator

Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters

Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters

Integrated pressure switch test allows you to capture the set, reset and deadband of a switch

Power transmitters during test using 24 V loop supply and simultaneous mA measurement

Includes Carrying Case & Accessories As Listed Above!





Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY




Fluke 726 Precision Multifunction Process Calibrator

More Calibration Power! The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind. The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis.


Features:

  • More precise measurement and calibration source performance, accuracies of 0.01%.
  • Two separate channels; measure, source and view process signals simultaneously
  • Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters
  • Measure or source pressure* using any of 29 Fluke 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
  • Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis
  • Transmitter error% calculation, interpret calibration results without a calculator
  • Perform fast linearity tests with auto step and auto ramp features
  • Power transmitters during test using 24 V loop supply and simultaneous mA measurement
  • Store frequently-used test setups for later use
  • Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
  • HART mode inserts 250 ohm resistor in mA measure and source for compatibility with HART instrumentation
  • Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
  • New voltage input protection design for improved reliability




Measurement Accuracy
Voltage DC
30.000 V  0.01%+ 2 mV (upper display)
20.000 V  0.01%+ 2 mV (lower display)
90.00 mV  0.01%+ 10μV
-10.00 mV to 75.00 mV  0.025 % + 1 count (via TC connector)
Current DC
24.000 mA  0.01%+ 2 mA
Resistance
0.0 to 4000.0 Ω  +/- 0.015%
Frequency
2.0 to 1000.0 CPM  0.05 % + 0.1 cpm
1.0 to 1000.0 Hz  0.05 % + 0.1 Hz
1.00 to 15.00 kHz  0.05 % + 0.01 kHz
Sensitivity  1 V peak-to-peak-minimum
Pressure
Accuracy  from 0.025% of range using any of 29 pressure modules.

 (for detailed specifications refer to pressure modules in options and accessories)

 Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC
100.00 mV  0.01%+10 μV
20.000 V  0.01%+2 mV
-10.00 mV to 75.00 mV  0.025 % + 1 count (via TC connector)
Current DC
24.000 mA (Source)  0.01%+ 2 μA
24.000 mA (Simulate)  0.01%+ 2 μA
Resistance
Range, Accuracy (Percent of reading + floor) and Excitation Current  5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5mA

 5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3mA

 400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA

 1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
Frequency
2.0 to 1000.0 CPM  0.05%
1.0 to 1000.0 Hz  0.05%
1.0 to 10.0 kHz  0.25%
10.0 to 15.0 kHz  0.5%
Waveform:  5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure and Source Accuracy:
Cu10  1.8 °C
NI-120  0.15 °C
PT-100 (385)  0.45 °C
PT-100 (392)  0.35 °C
PT-100 (391-JIS)  0.35 °C
PT-200 (385)  0.95 °C
PT-500 (385)  0.55 °C
PT-1000 (385)  0.35 °C
RTD Resolution:  0.01 C (0.01 F)
Cu10.01 C  0.1 C (0.1 F)
J:  0.4 °C
K:  0.5 °C
T:  0.4 °C
E:  0.4 °C
R:  1.4 °C
S:  1.4 °C
B:  1.4 °C
L:  0.45 °C
U:  0.45 °C
N:  0.6 °C
XK:  0.4 °C
BP:  1.1 °C
TC Resolution  J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F
Specifications
Ramp Functions
Source functions:  Voltage, current, resistance, frequency, temperature
Ramps  Slow ramp, Fast ramp, 25% step-ramp
Loop Power Function
Voltage:  24 V
Accuracy:  10%
Maximum current:  22 mA, short circuit protected
Step Functions
Source functions:  Voltage, current, resistance, frequency, temperature
Steps  25% of range, 100% of range
Environmental Specifications
Operating Temperature

 -10 °C to +55 °C
Storage Temperature

 -20 °C to +71 °C
Operating Altitude

 3000 m
Safety Specifications
Agency Approvals

 EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical & General Specifications
Size

 200mm x 96mm x 47mm (7.9 in x 3.8 in x 1.9 in)
Weight

 650 g (23 oz.)
Batteries

 4 AA alkaline batteries
Battery Replacement

 Separate battery compartment, accessible without breaking calibration seall
Side port connections

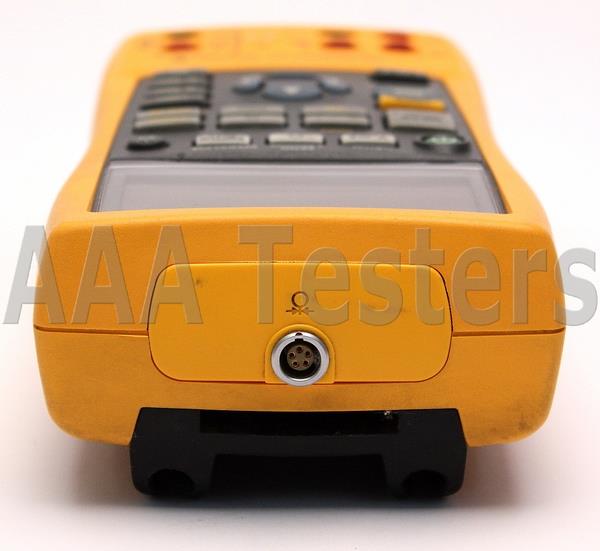

 Pressure module connector, also used for remote real-time programming







 For full Fluke 726 product specifications, please click here: Fluke 726
