Description
Features:
- Lightweight and convenient, each tracker weighs less than 19g.
- Low power consumption, long battery life; 300mah small volume battery with up to 30 hours of battery life.
- High precision sensor, industrial grade calibration.

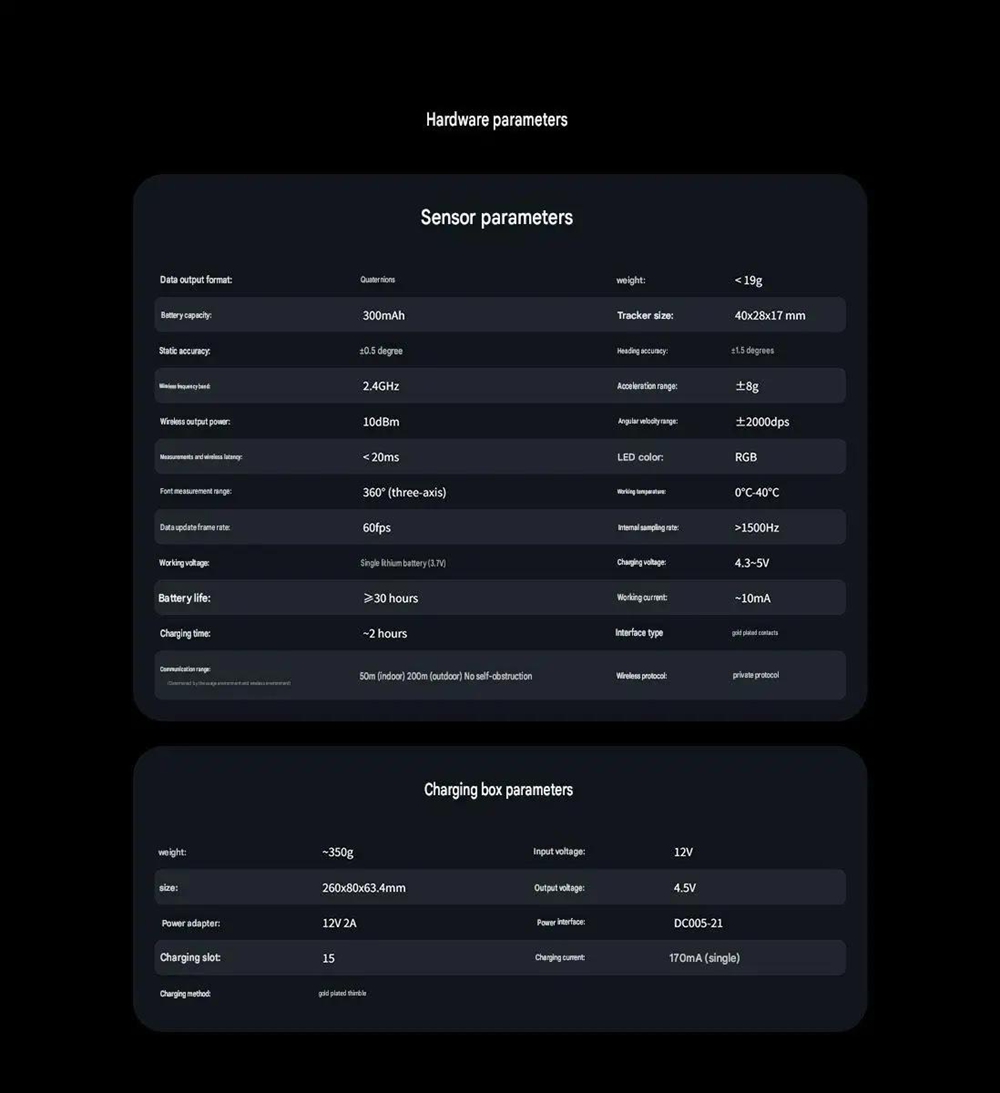

Sensor Parameters:
- Data output format: Quaternion
- Battery capacity: 300mAH
- Static accuracy: ±0.5 degree
- Wireless frequency band: 2.4GHz
- Wireless output power: 10dBm
- Measurement and wireless delay: < 20ms
- Font measuring range: 360-degree (three-axis)
- Data refresh frame rate: 60fps
- Working voltage: single lithium battery (3.7V)
- Working duration: ≥30 hours
- Charging time: about 2 hours
- Communication range (depends on working environment and wireless environment): 50m (indoor); 200m (outdoor)
- Net weight: <19g
- Tracker size: 40 x 28 x 17mm
- Heading accuracy: ±1.5-degree
- Acceleration range: ±8g
- Range of angular velocity: 2000dps
- LED color: RGB
- Working temperature: 0℃ to 40℃
- Internal sampling rate: >1500Hz
- Charging voltage: 4.3 - 5V
- Working current: about 10mA
- Interface type: gold-plated contact
- Wireless protocol: private protocol
Charging Box Parameters:
- Net weight: about 350g
- Size: 260 x 80 x 63.4mm
- Power Adapter: 12V 2A
- Charging slots: 15
- Charging method: gold-plated top pin
- Input voltage: 12V
- Output voltage: 4.5V
- Power interface: DC005-21
- Charging current: 170mA (single)
Package Included:
- 15 x Trackers
- 1 x Charging Box
- 1 x Receiver
- 1 x Power Adapter
- 15 x General Straps
- 1 x Sticker
- 1 x Tape Measure
- 1 x USB3.0 Extension Cable (1.5m)
- 15 x Quick Releases
- 11 x Wide Straps (5cm)
Reminder:
- Operating environment: for Win10 and above systems, and a relatively stable magnetic field environment is required. Some harsh magnetic field environments require frequent calibration.
- Professional plugin instructions: Similar to UE | Unity | Blender | SDK, it belongs to a professional type of software and requires corresponding professional abilities. Please download the software yourself and test its offline playback function to ensure that it can be used before purchasing.
- Lightweight and convenient, each tracker weighs less than 19g.
- Low power consumption, long battery life; 300mah small volume battery with up to 30 hours of battery life.
- High precision sensor, industrial grade calibration.
Sensor Parameters:
- Data output format: Quaternion
- Battery capacity: 300mAH
- Static accuracy: ±0.5 degree
- Wireless frequency band: 2.4GHz
- Wireless output power: 10dBm
- Measurement and wireless delay: < 20ms
- Font measuring range: 360-degree (three-axis)
- Data refresh frame rate: 60fps
- Working voltage: single lithium battery (3.7V)
- Working duration: ≥30 hours
- Charging time: about 2 hours
- Communication range (depends on working environment and wireless environment): 50m (indoor); 200m (outdoor)
- Net weight: <19g
- Tracker size: 40 x 28 x 17mm
- Heading accuracy: ±1.5-degree
- Acceleration range: ±8g
- Range of angular velocity: 2000dps
- LED color: RGB
- Working temperature: 0℃ to 40℃
- Internal sampling rate: >1500Hz
- Charging voltage: 4.3 - 5V
- Working current: about 10mA
- Interface type: gold-plated contact
- Wireless protocol: private protocol
Charging Box Parameters:
- Net weight: about 350g
- Size: 260 x 80 x 63.4mm
- Power Adapter: 12V 2A
- Charging slots: 15
- Charging method: gold-plated top pin
- Input voltage: 12V
- Output voltage: 4.5V
- Power interface: DC005-21
- Charging current: 170mA (single)
Package Included:
- 15 x Trackers
- 1 x Charging Box
- 1 x Receiver
- 1 x Power Adapter
- 15 x General Straps
- 1 x Sticker
- 1 x Tape Measure
- 1 x USB3.0 Extension Cable (1.5m)
- 15 x Quick Releases
- 11 x Wide Straps (5cm)
Reminder:
- Operating environment: for Win10 and above systems, and a relatively stable magnetic field environment is required. Some harsh magnetic field environments require frequent calibration.
- Professional plugin instructions: Similar to UE | Unity | Blender | SDK, it belongs to a professional type of software and requires corresponding professional abilities. Please download the software yourself and test its offline playback function to ensure that it can be used before purchasing.
