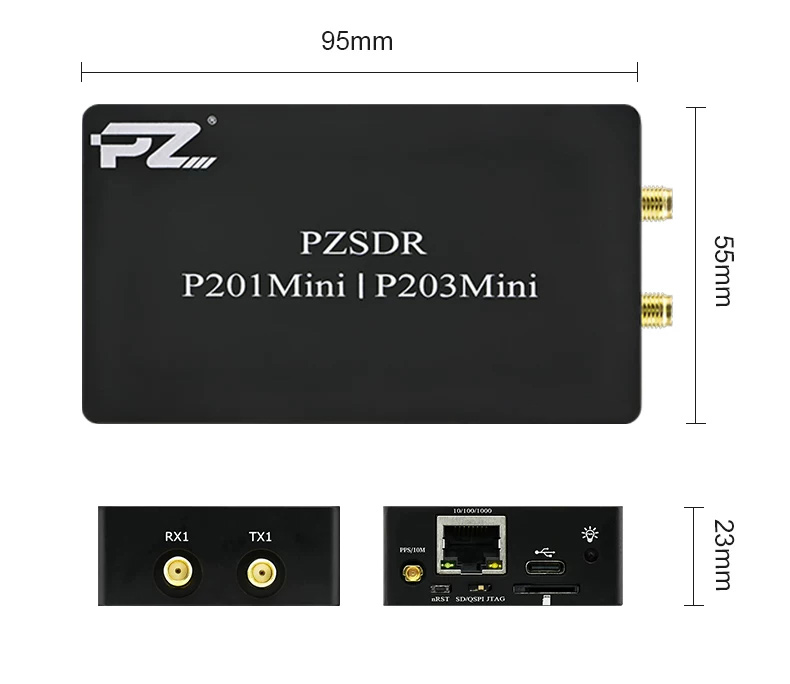

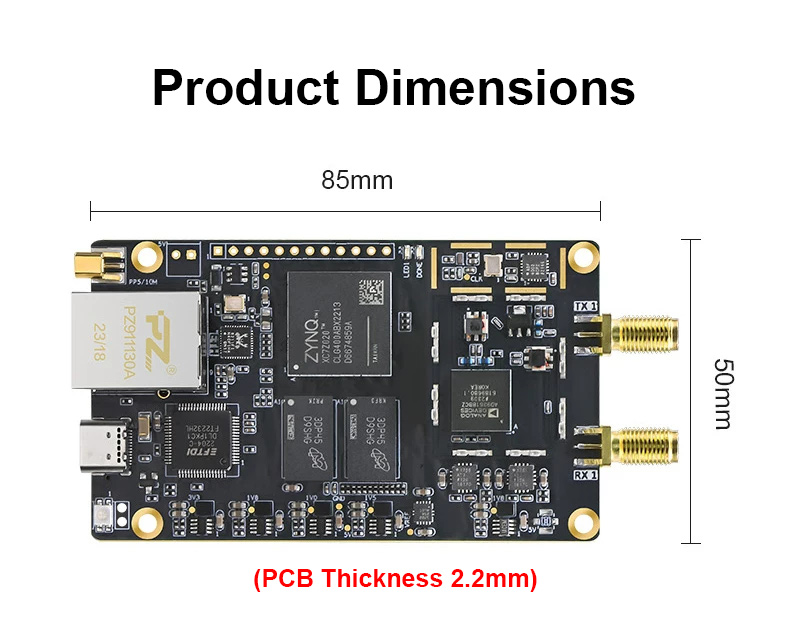

* Compact Size: PCB size is only 85 x 85mm, with a metal heat-dissipation enclosure measuring 95 x 55 x 23mm.

* Wide Operating Temperature: Supports a wide temperature range of -40°C to 85°C, using an XC7Z020 and industrial-grade DDR3 components.

* Direct Board-Level Power Supply: Equipped with an XH2.54 board-level power supply interface, allowing direct power from your device without requiring an additional power module.

* Compact and Reliable: Smaller footprint while maintaining industrial-grade reliability.

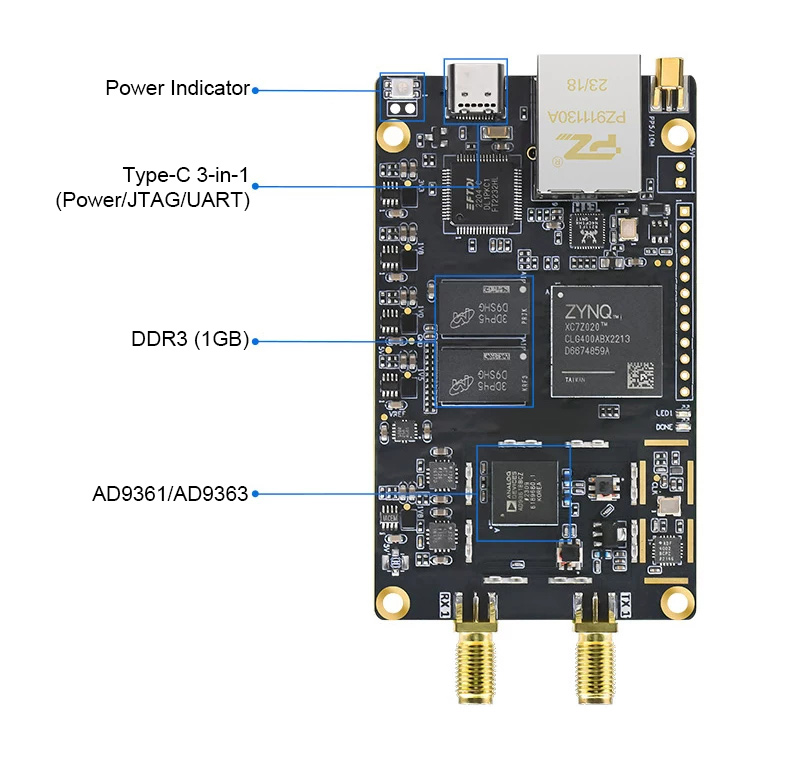

* Three Functions via One Cable: A single Type-C cable simultaneously handles power supply, JTAG downloading, and UART debugging, eliminating the need for additional emulators or serial converter boards.

* Pre-Installed Linux: Comes with Linux pre-installed and is adapted for Vivado.

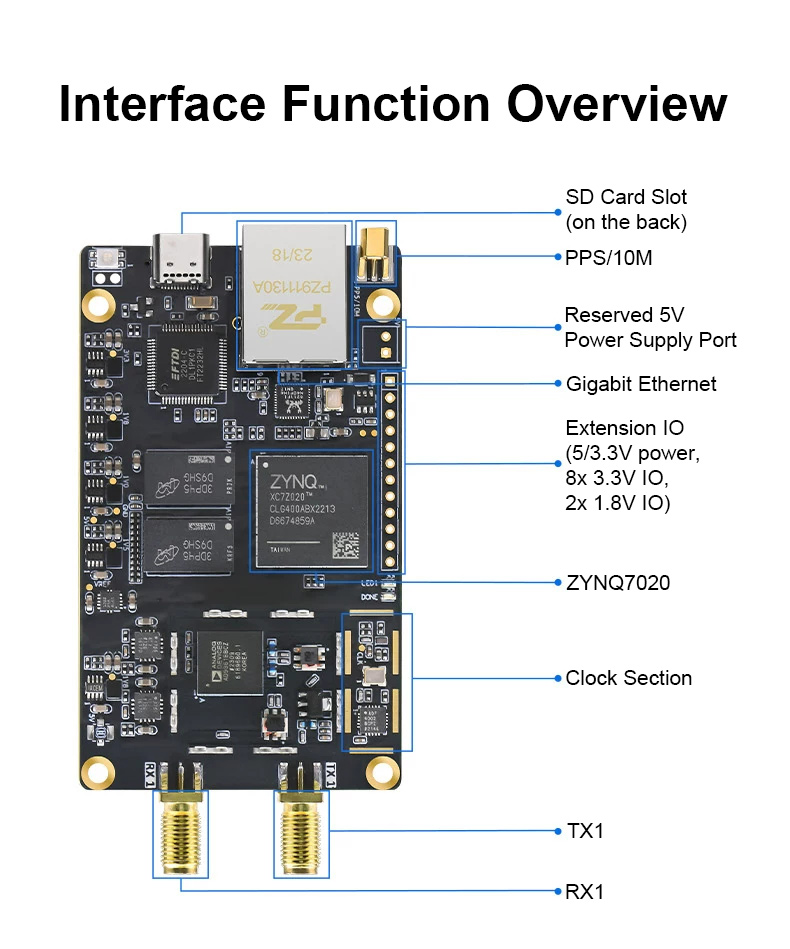

* Multiple Interfaces: Provides Gigabit Ethernet, UART, and SD interfaces.

* Ready for Testing: Power on and start testing immediately upon arrival.

* Automatic Boot Switching: Inserting an SD card automatically switches to SD boot; unplugging the SD card reverts to QSPI Flash boot.

* Supports 10+ mainstream SDR software and development environments. It is for GNU Radio, MATLAB Simulink, OpenWifi, SDR#, SDRangel, and PYNQ.

* 60+ Research Institutes: It serves more than 60 research institutes.

* Laboratory-Verified Stability: Product stability has been verified in laboratory testing.

* Embedded Wireless Module Prototype Verification

* Portable and Vehicle-Mounted Spectrum Monitoring

* Drone and Unmanned Platform Payload Experiments

* 5G and Private Network Physical Layer Verification

* Distributed Multi-Node Synchronous Acquisition with External PPS/10M

* University RF Teaching and Research

* From Prototype Verification to Product Integration

* One Compact Board for the Entire Development Process

* Also Suitable For Amateur Radio, ADS-B Decoding, Weather Satellite Reception, LoRa Verification, and Other Applications

* PlutoSDR

* UHD

* AD9361 Bare-Metal (Non-OS) Project

* Vivado 2019.1

* Ubuntu 18.04.4

* GNU Radio

* SDRangel

* SDR#

* MATLAB Simulink

* Gqrx SDR

* PYNQ

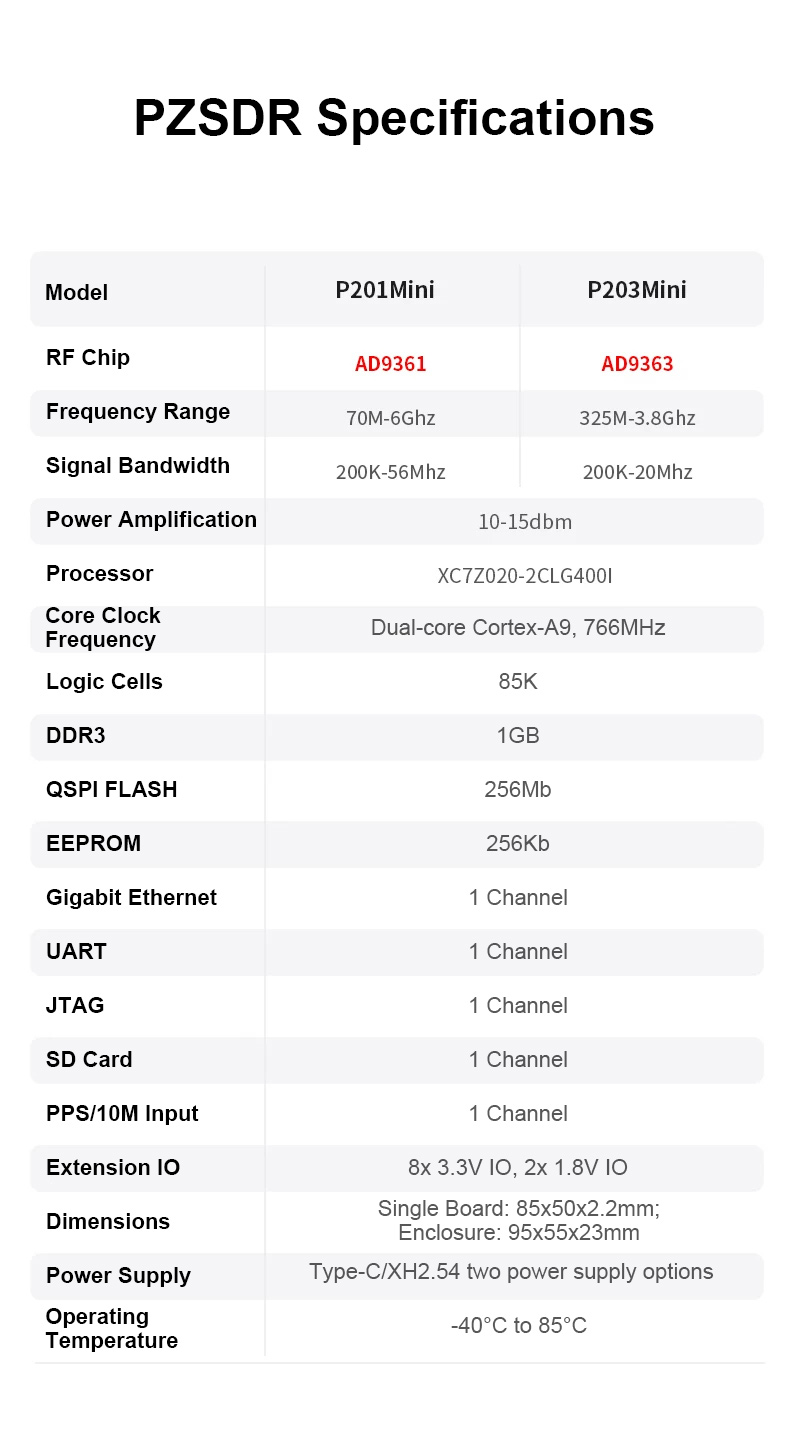

* Industry Certification: RoHS

* Processor Architecture: For ARM + FPGA and FPGA

* Expansion Slots: MicroSD and GPIO

* Operating System Support: Linux

* Typical Applications: General Industry, Embedded Hardware, and Industrial Applications

* Network Interfaces: RS485, UART, Gigabit Ethernet (1Gbps), and CAN (1Mbps)

* Operating Temperature: -40°C to 85°C

* Transmit Power: 10-15dBm

* Power Supply: Type-C/XH2.54, two power supply options

* Product Positioning: An SDR module designed to fit into your device

* 1 x Development Board

* 1 x Enclosure

* 1 x Type-C Cable

* 1 x Gigabit Ethernet Cable

* 2 x Dual-Band Rubber Antennas (2.4/5.8GHz)

* 2 x Spring Antennas (100M-6G)

* 1 x 32GB SD Card

* 1 x SD Card Reader

* Package Weight: 0.45kg
