Specification:

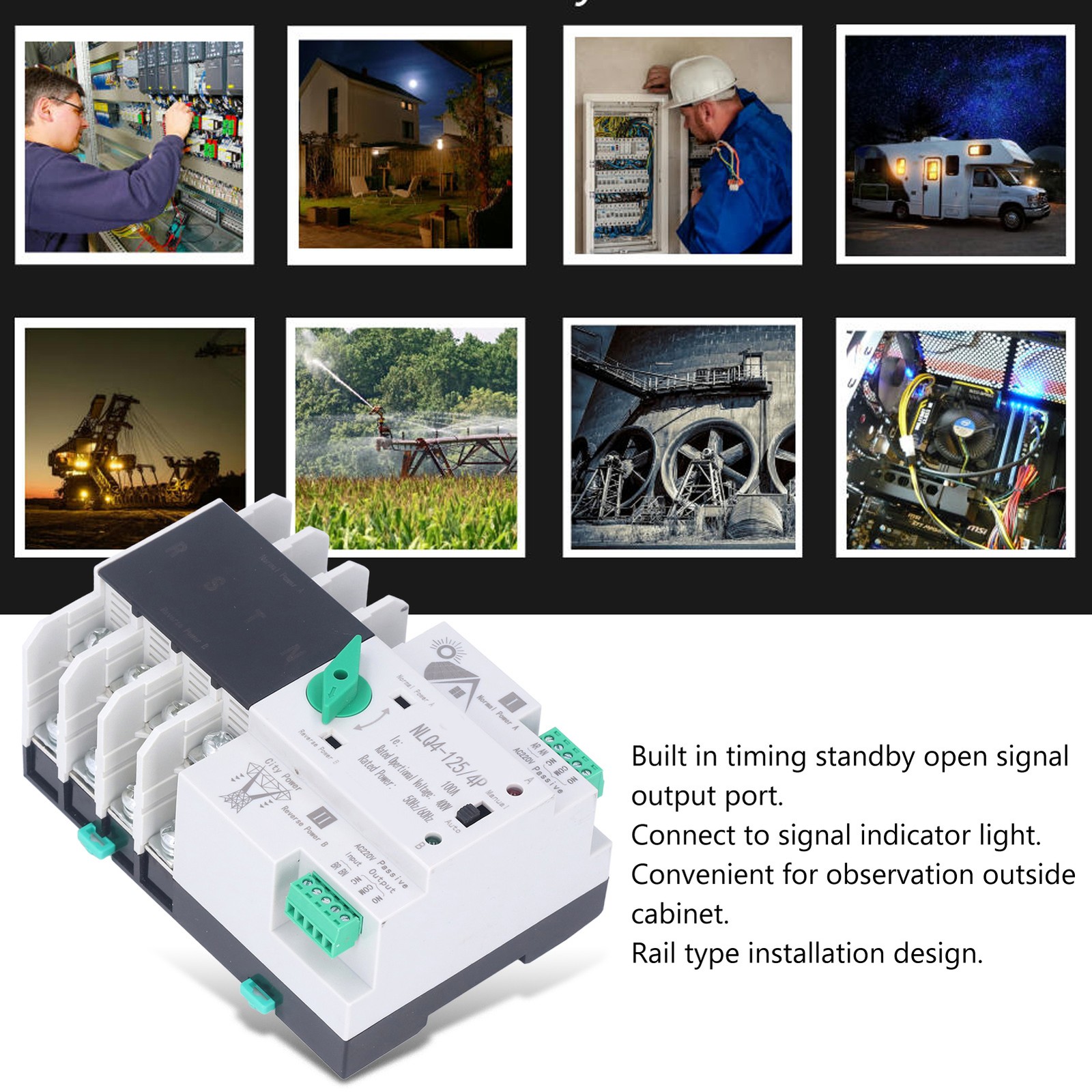

Item Type: Dual Power Automatic Transfer Switch
Product Model: 2P/3P/4P（according to your choice）
Switch Type: Secondary power distribution
Rated Current: 100A
Rated Voltage: 2P 230V/3P 4P 400V AC
Insulation Voltage: 690V AC
Rated Frequency: 50Hz/60Hz
Electrical Grade: PC grade isolation type
Service Life: Electrical: 2000 Times; Mechanical: 5000 Times
Rated Short Circuit Current: 50kA
SCPD (fuse): RT16-00-63A
Rated Impulse Withstand Voltage: 8kV
Control Circuit:
Rated Control Voltage Us: AC220 V 50Hz
Normal Working Condition: 85% Us-110% Us
Auxiliary Circuit: 2 Independent relays, each relay includes 2 sets of transformer contacts
Contact Capacity: AC220V 50Hz
Touch Time: <50ms
Operation Transition Time: <50ms
Return Time: <50ms
Off Time: <50ms
Package List:
1 x Dual Power Automatic Transfer Switch
Note:
1. The maximum ambient temperature should not exceed 40℃, the minimum should not be
lower than ‑5℃, and the average temperature within 24 hours should not be higher than 35℃.
2. The altitude of the installation site should not be higher than 2000meter.
3. When the maximum temperature reaches 40℃, the relative humidity of the installation site
should not exceed 50%; when the temperature is the lowest temperature of ‑5℃, the relative
humidity is higher, for example, if the temperature is 25℃, the relative humidity is 90%. Special
measures should be taken to deal with occasional condensation on product surfaces due to
temperature changes.
4. During conversion, the internal switch will lose the coil in the control circuit. The coil can work
normally at 85%‑110% of the rated working voltage. If the voltage in the coil is too low, it may
cause the coil to heat up or burn out.
How to use:
Please check the integrity of the ATS before installation, turn the ATS on or off with the operating
handle, check the flexibility of the transmission and detect the normal and backup power load
generation and disconnection conditions at each stage.
