Due to strict commerce control regulations, AAATesters does not ship or export Thermal Imagers to any countries outside of the United States.
|
International customers, please note that we cannot complete any order that includes a Thermal Imager product. AAATesters cannot complete any sale where the intent may be that a Thermal Imager product may be exported internationally by the end user.
|
All customers that are purchasing Thermal Imager products from AAATesters will be required to complete a BIS-711 end use agreement form to ensure that the Thermal Imager product will not be exported internationally.
|

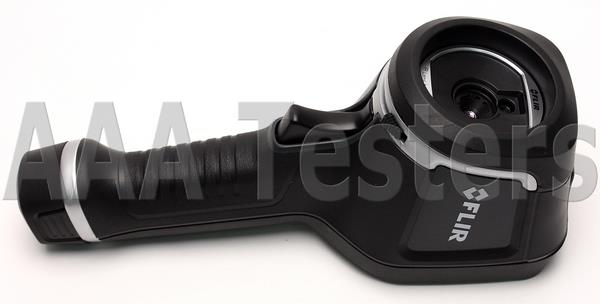

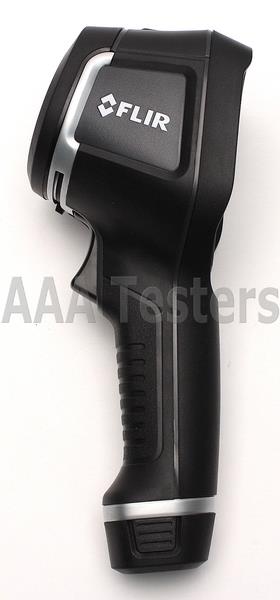

FLIR E8 PRO Infrared Thermal Imaging Camera
9 Hz With A Focal Plane Array Of 320 x 240
Temperature Range: -20°C to 550°C (-4°F to 1022°F)

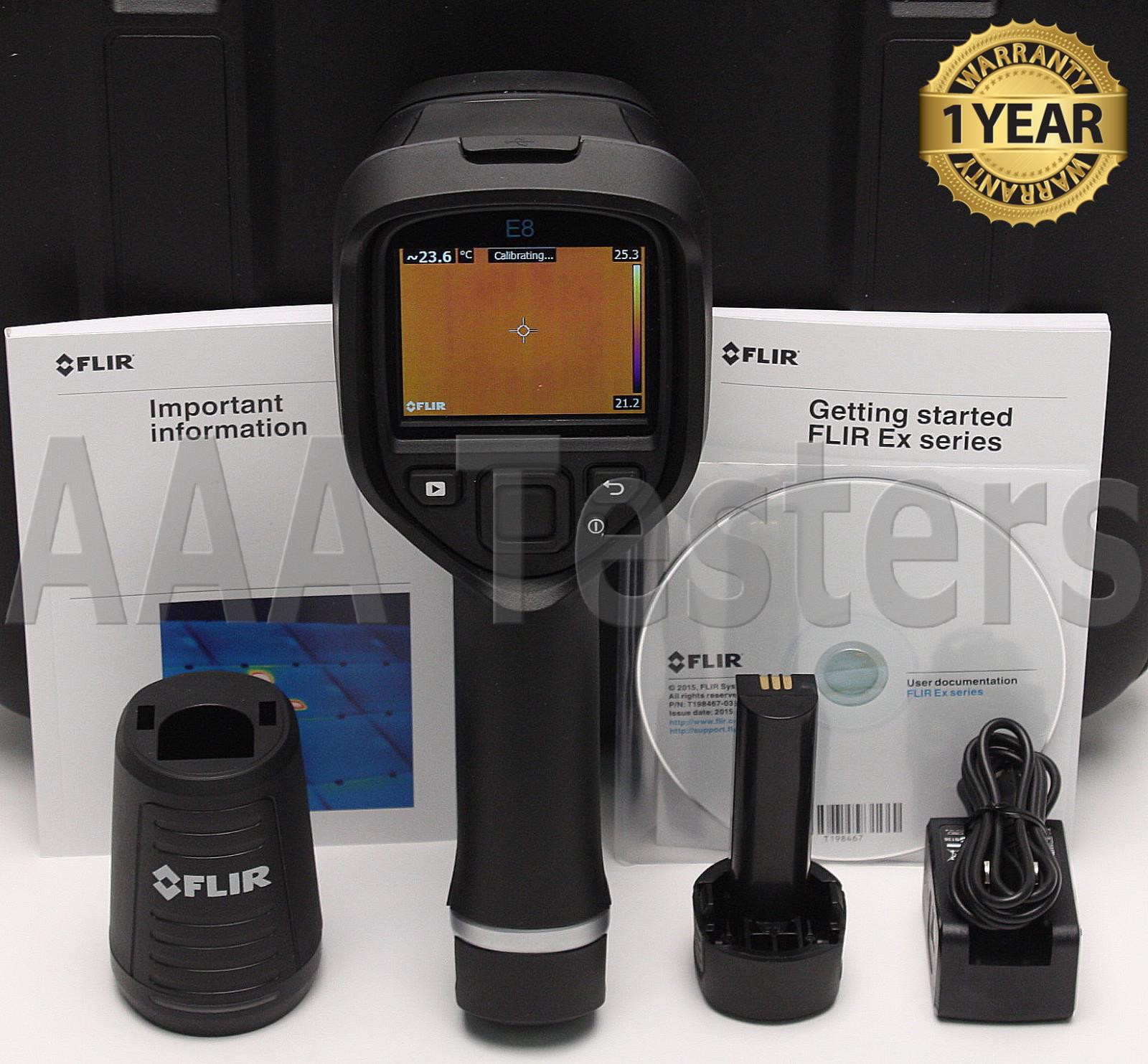

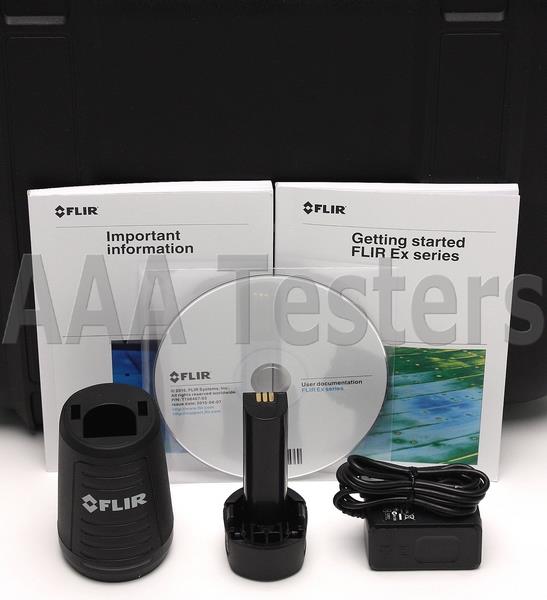

Includes Hard Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
FLIR E8 Pro Thermal Imaging Infrared Camera
The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.
Edit and organize your photos, add detailed notes, and upload files from the camera to the FLIR Ignite cloud for convenient access from any device.
FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
- Hassle-free sharing and reporting
Share images instantly and create quick reports in FLIR Ignite or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.
MSX® Image Enhancement
All Ex-Series thermal cameras feature FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Save Time With 1-Touch Level/Span

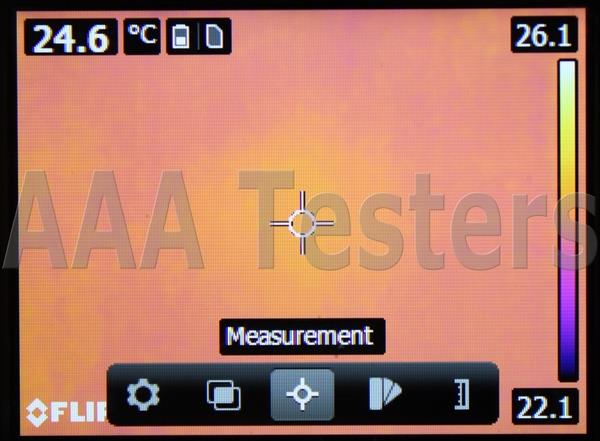

1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.
NFPA 70B Compliant - Delta T Measurement Tools
With NFPA 70B compliant Delta T measurement tools now built into Ex-Series cameras (Box1 Max - Spot1 Max, and Box1 Max - Atmosphere Temperature), you can save a lot of time by calculating ∆T on the camera without any additional steps.
Efficient Inspections at Your Fingertips
Add notes from the touchscreen

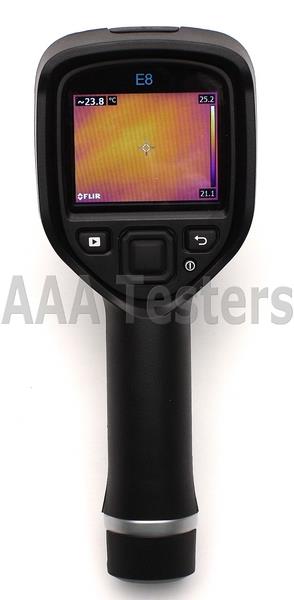

Featuring a 3.5-inch touchscreen, the FLIR E8 Pro allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.
Hassle-Free Data Transfer and Sharing with FLIR Ignite
- Desktop Sync eliminates issues created by damaged or missing SD cards and USB cables
- Secure Data Sharing to trusted team for easy collaboration and reporting
- Edit Anywhere allows you or coworkers to create reports on mobile devices, on a browser or desktop
Specifications:
| Features |
| IR Resolution |
320 × 240 (76,800 pixels) |
| Spatial resolution (IFOV) |
1.8 mrad |
| Thermal sensitivity/NETD |
<0.04°C (0.07°F) / <40 mK at 30°C (86°F) |
| Inspection Efficiency |
Multi Spectral Dynamic
Imaging (MSX) |
IR image enhanced with visible camera detail |
| FLIR Ignite |
Instant upload to cloud storage over Wi-Fi |
| FLIR Thermal Studio Suite |
Compatible with full range of analysis and reporting software |
| Capacitive Touchscreen |
Access to onscreen menus, features, and keyboard |
| 1-Touch Level/Span |
Yes; automatic contrast enhancement |
| Imaging & Optical |
| Field of view (FOV) |
33° × 25° |
| Focus |
Focus free |
| Image Frequency |
9 Hz |
| Color Palettes |
Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type |
Uncooled microbolometer |
| Measurement analysis |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C
to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Object Temperature Range |
20°C to 550°C (-4°F to 1022°F) in two ranges |
| Measurements Correction |
Emissivity; matt/semi-matt/semi-gloss + custom value, reflected
apparent temperature, atmospheric compensation |
| Isotherm |
Above alarm, below alarm |
| Spot Meter |
Center spot; box with min./max. |
| Delta T |
Yes, NFPA 70B compliant |
| Power system |
| Battery |
Li Ion, 4 hours operating time |
| Charging system |
Battery is charged inside the camera or in specific charger |
| Power management |
Automatic shutdown and sleep mode (user selectable) |
|
