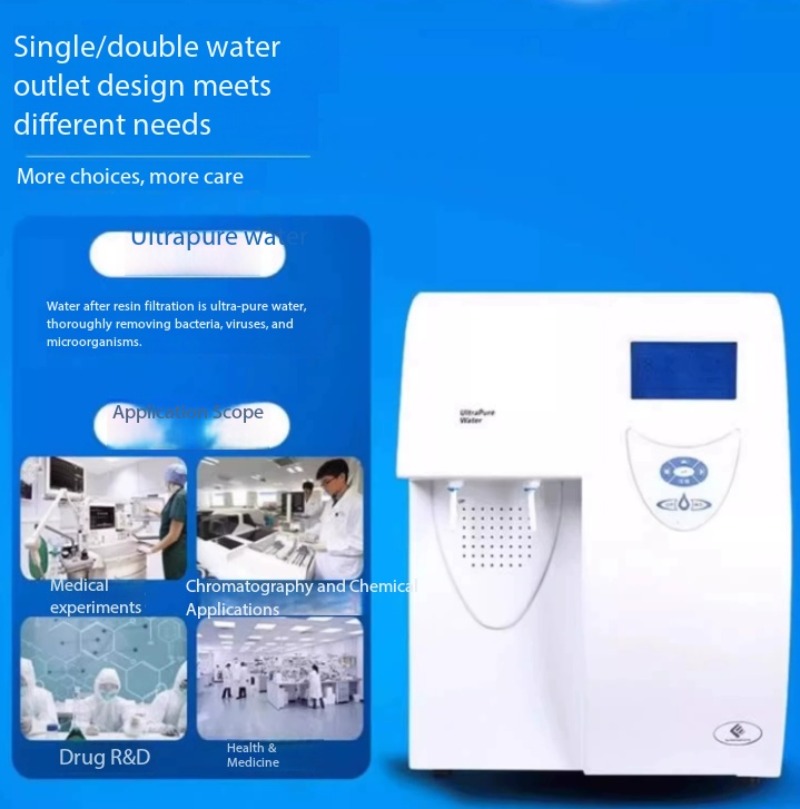

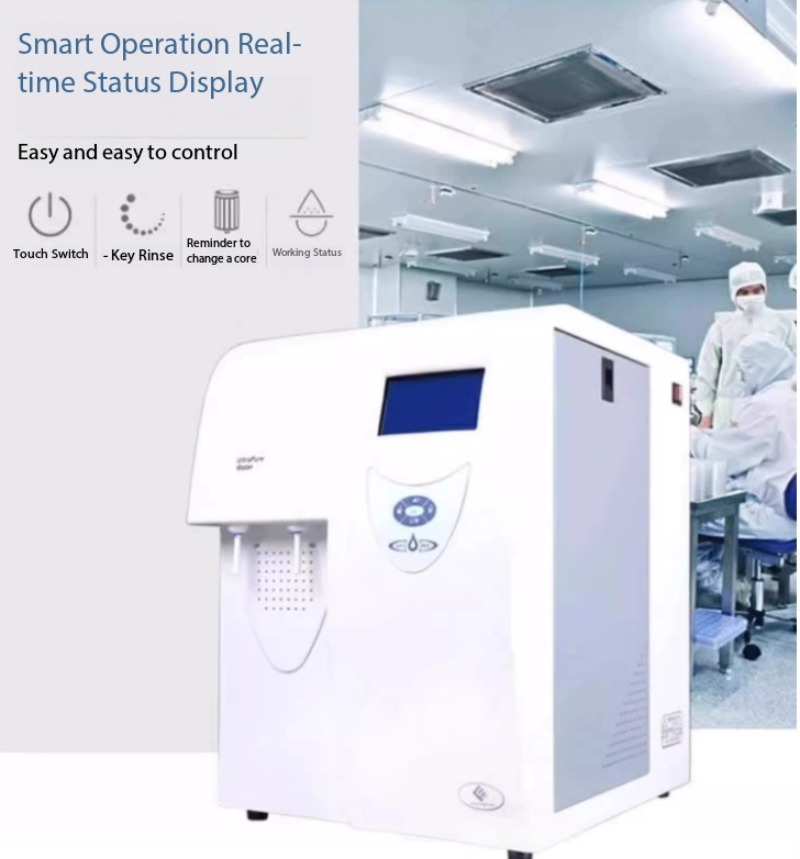

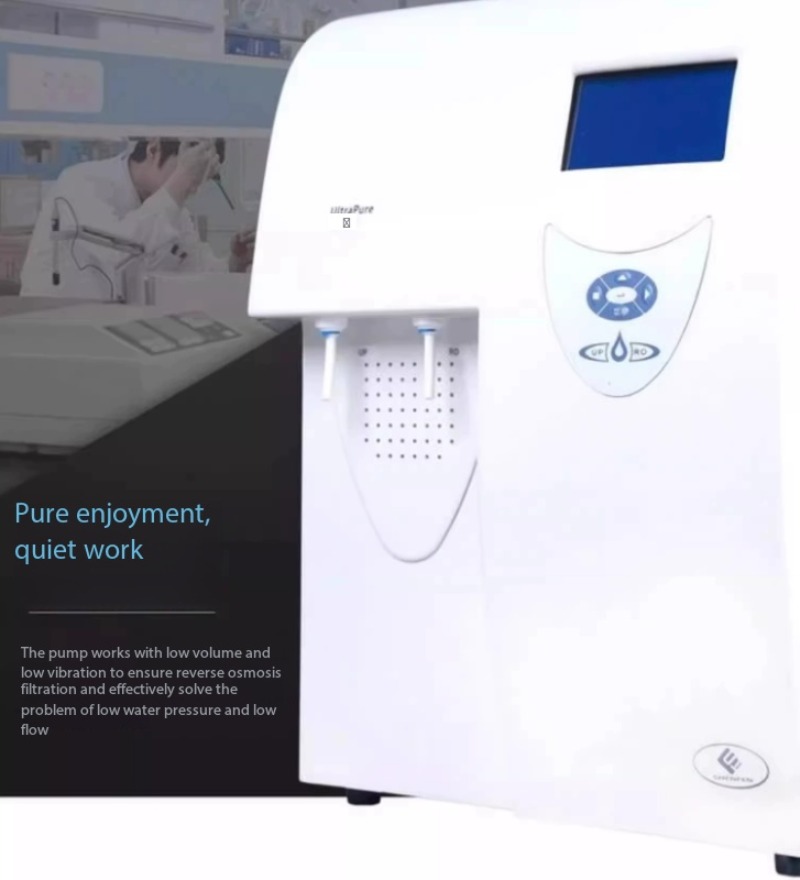

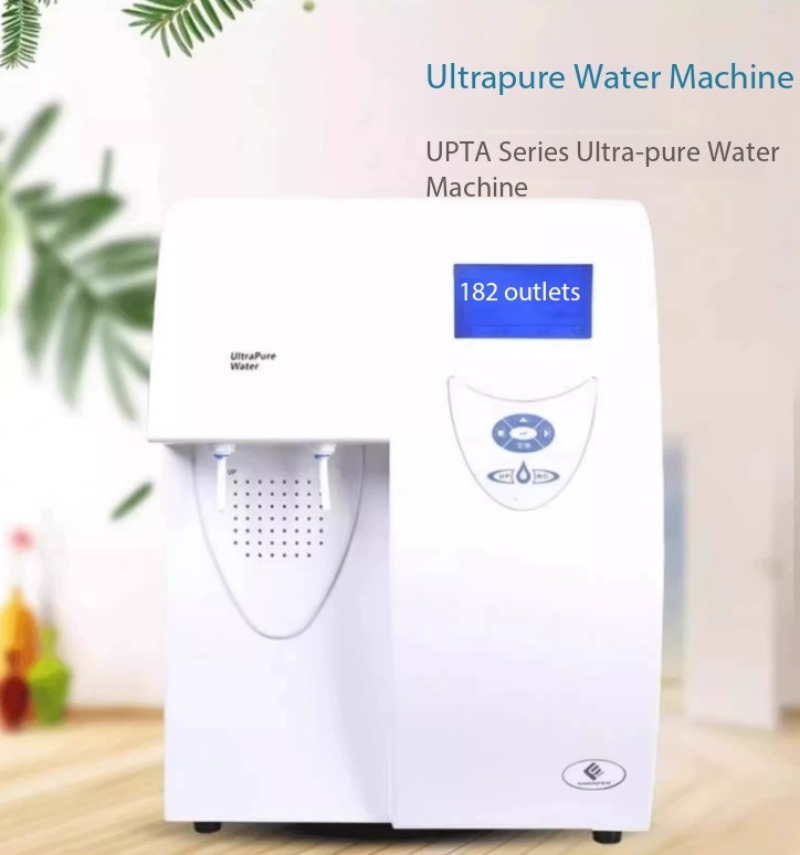

Product Name: UP Series Ultrapure Water System
Product Model: UPTA‑10/20 Basic Application Model
Feed Water: Municipal tap water, TDS < 200 ppm, water pressure > 0.1 MPa

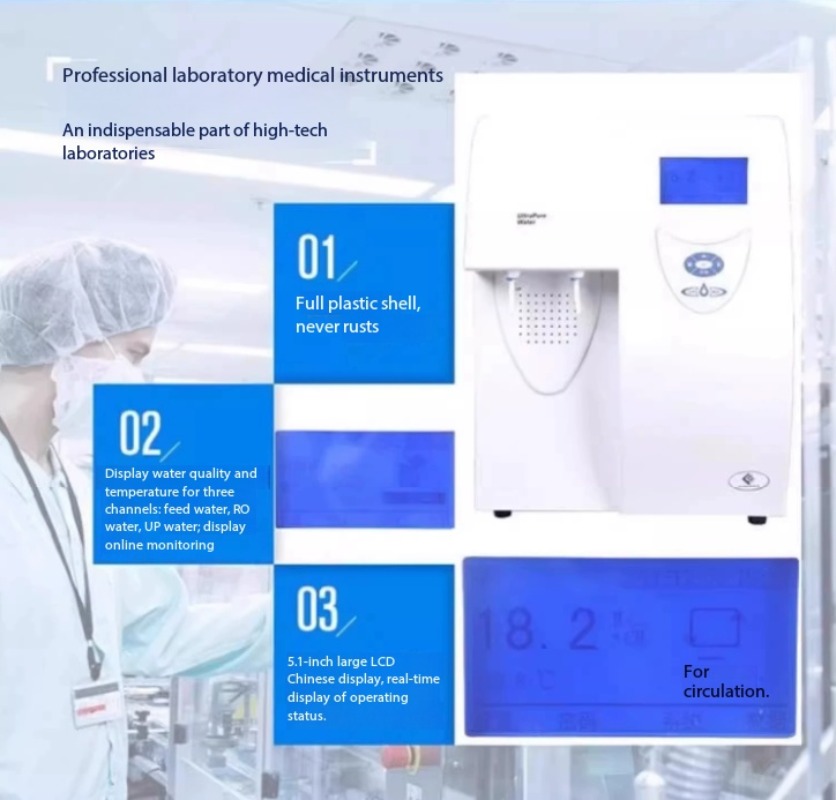

RO Output Conductivity: 2–10 μS/cm
UP Output Conductivity: 18.2 MΩ·cm @ 25°C
Water Production Rate: 10/20/h
Instantaneous Flow Rate: Pure Water 1.5/min, Ultrapure Water 1.2/min (Flow rate is slightly slower for models equipped with UF)
Total Organic Carbon: TOC < 10 ppb
Microorganisms: < 1 CFU/ml
Particulate Matter: <1/mL (>0.22 µm)
Heavy Metal Ions: <0.1 ppb

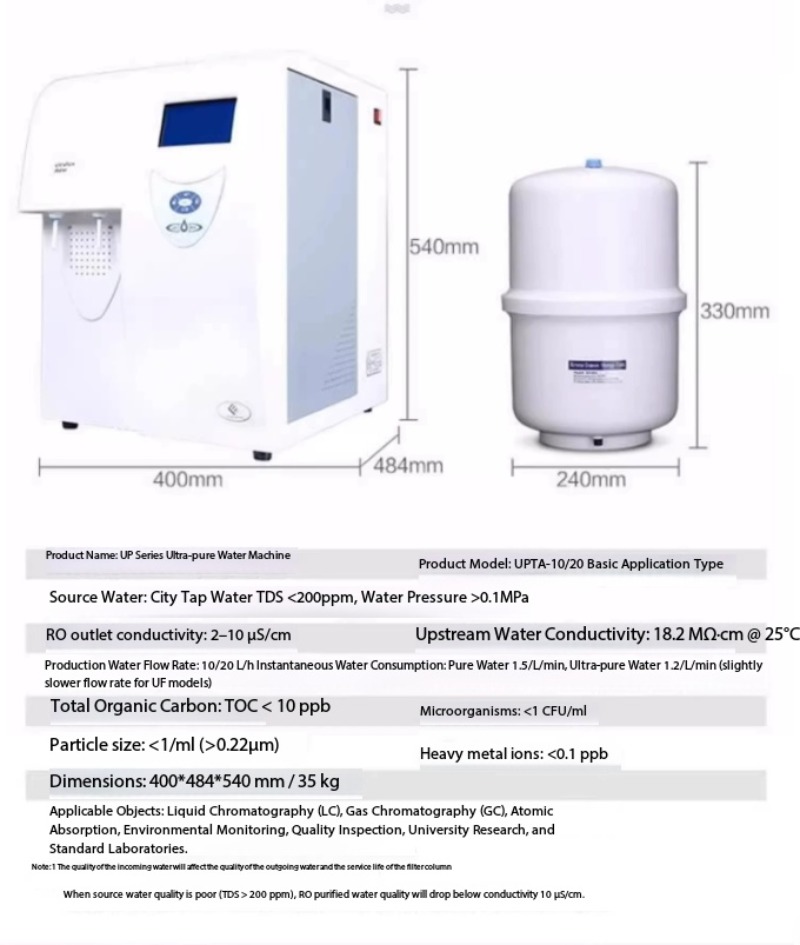

Dimensions: 400 × 484 × 540 mm
Weight: 35 kg
Applications: Standard laboratories for liquid chromatography (LC), gas chromatography (GC), atomic absorption spectrometry, environmental monitoring, quality inspection institutes, and university research

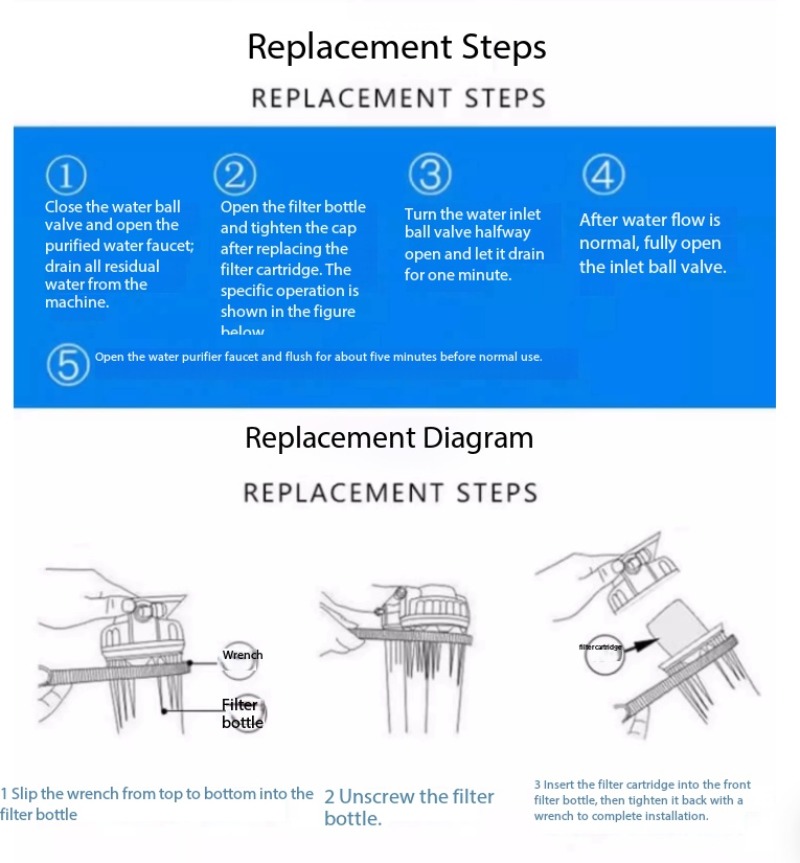

Note 1: The quality of the incoming water will affect the quality of the purified water and the service life of the filter column.
Note 2: When the source water quality is poor (TDS > 200 ppm), the quality of the RO purified water may drop to a conductivity of 10 μS/cm or higher.
