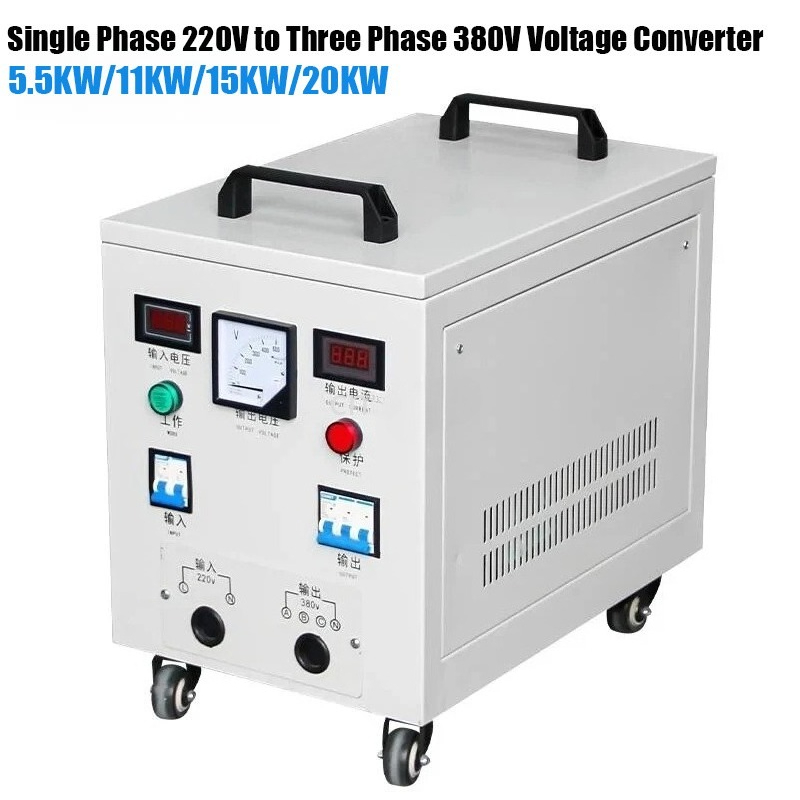

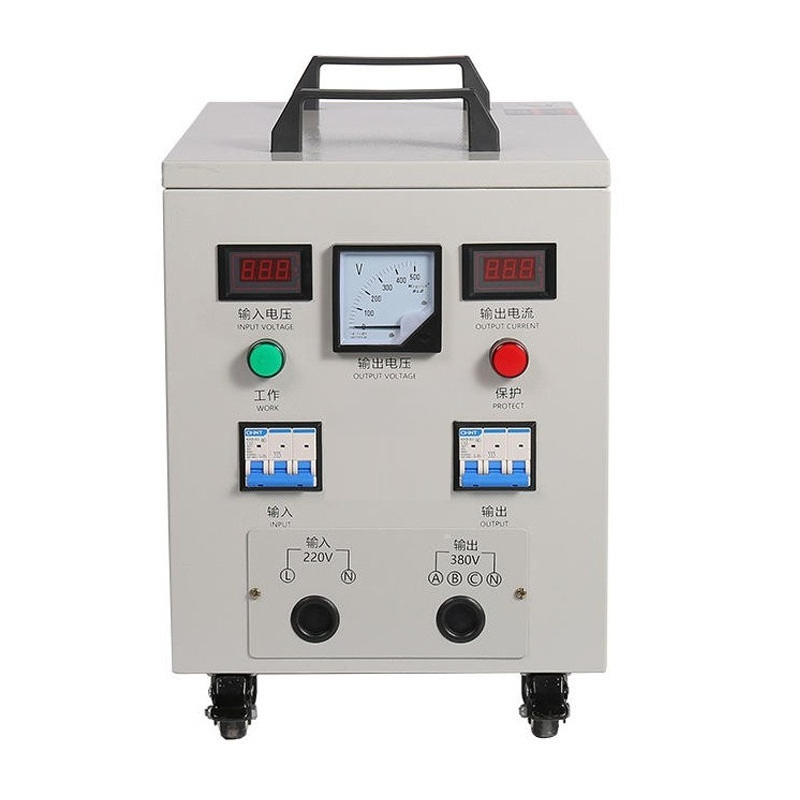

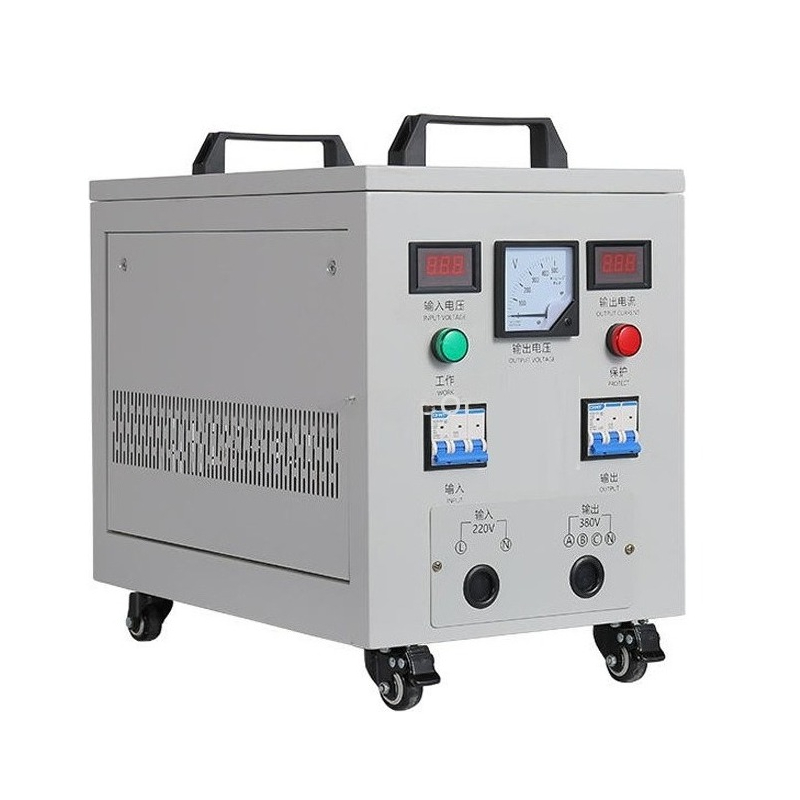

Single Phase 220V to Three Phase 380V Voltage Converter Step-up Transformer
5.5KW/11KW/15KW/20KW
The load voltage should preferably not exceed half.
eg: The 11KW transformer is suitable for a 5KW equipemnt.
Description:
The HBK-series Single-phase 220V to three-phase 380V step-up power converter, which converts single-phase 220V AC input into stable three-phase 380V sine-wave output. It adopts IGBT and PWM modulation technology, suitable for occasions where only single-phase power supply is available but three-phase equipment needs to be powered. It delivers stable three-phase power output with high conversion efficiency and reliable safety protection.
Main Technical Specifications:
|
Item
|
Parameters
|
|
Model
|
HBK-5.5KW
|
HBK-11KW
|
HBK-15KW
|
HBK-20KW
|
|
Circuit Topology
|
IGBT / PWM Modulation
|
|
Output Waveform
|
Standard Sine Wave, CF=1.4
|
|
Input Voltage
|
Single-phase Two-wire, 220V±10%, 50Hz/60Hz±3Hz
|
|
Output Voltage
|
Three-phase Three-wire, 380V ± 10%
|
|
Output Current
|
Max. Load Current 8.35A
|
Max. Load Current 16.7A
|
Max. Load Current 22.7A
|
Max. Load Current 30.38A
|
|
Output Frequency
|
50Hz / 60Hz
|
|
Frequency Stability
|
≤0.01 %
|
|
Load Voltage Regulation
|
≤1%
|
|
Waveform Distortion
|
≤2% (Resistive Load)
|
|
Phase Angle
|
120° ±1°
|
|
Crest Factor
|
31
|
|
Panel Display
|
Input Voltage, Output Voltage, Output Current
|
|
Protection Functions
|
Overload Protection, Over-voltage Protection, Under-voltage Protection, Short-circuit Protection
|
|
Protection Response Time
|
≤2ms
|
|
Overall Efficiency
|
≥90%
|
|
Dielectric Withstand Voltage
|
1800V AC/10mA/1min
|
|
Insulation Resistance
|
500V DC/50M Ω
|
|

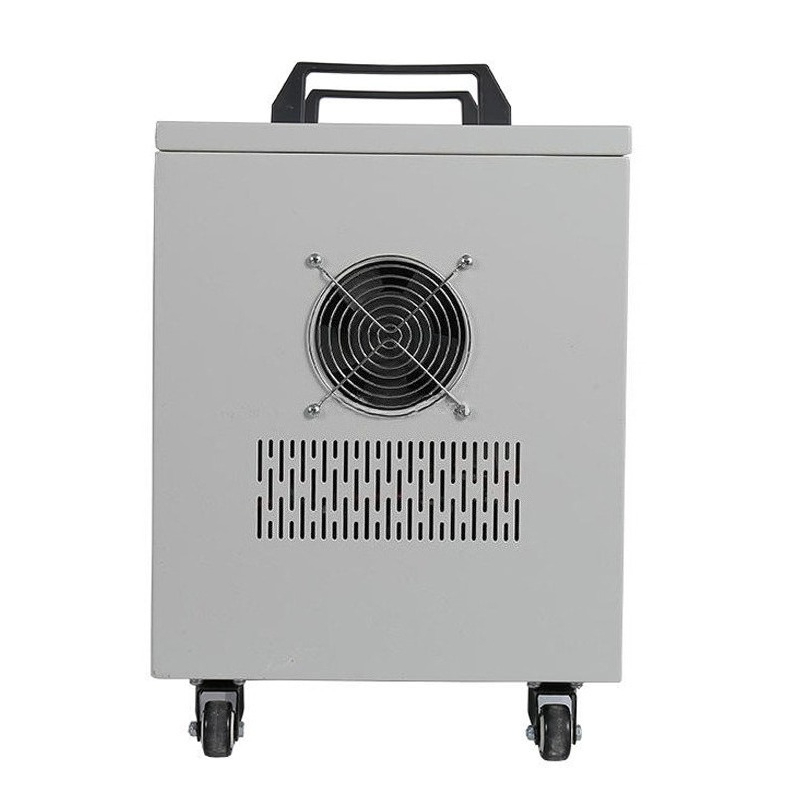

Cooling Method
|
Forced Air Cooling
|
|
Noise
|
Less than 60dB at 1m
|
|
Operating Ambient Temperature
|
0~45℃
|
|
Relative Humidity
|
0~95% (Non-condensing)
|
|
Dimension
|
500x300x400mm
|
500x300x400mm
|
620x420x650mm
|
620x420x650mm
|
|
Weight
|
25kg
|
30kg
|
60kg
|
65kg
|
What's in Package:
1x Single Phase 220V to Three Phase 380V Voltage Converter
