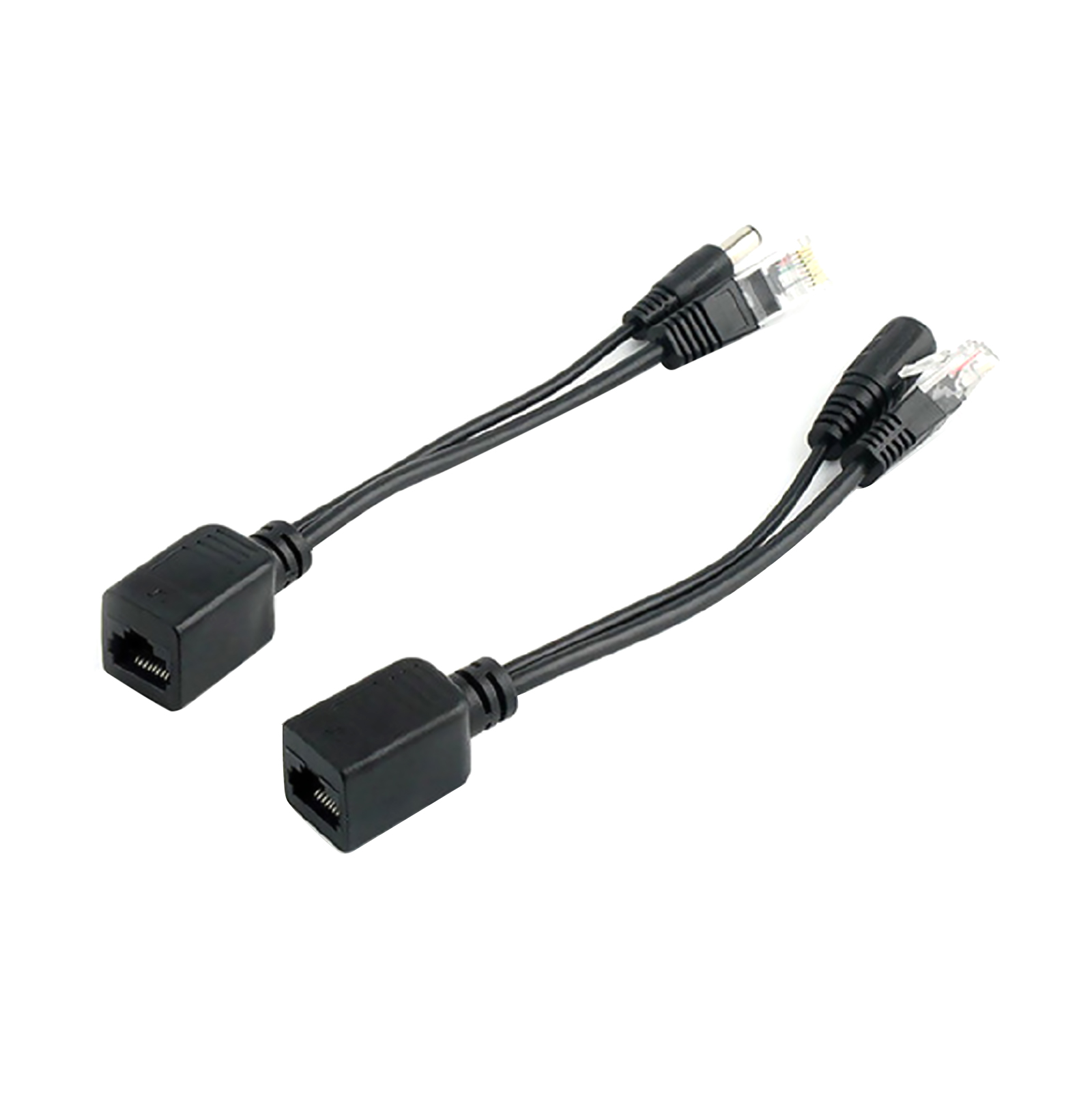

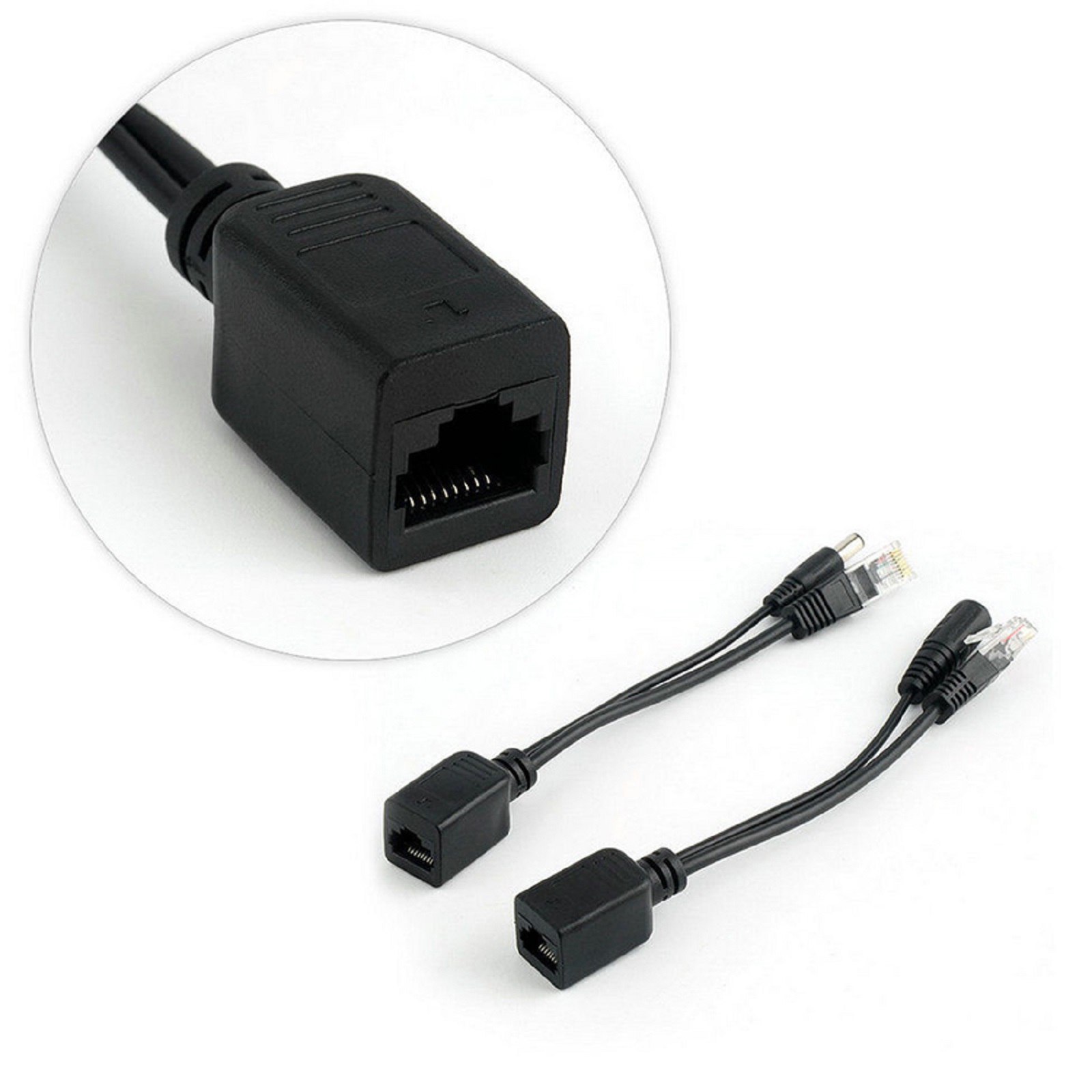

POE Cable Passive Power Over Ethernet Adapter Cable POE Splitter RJ45 Injector Power Supply Module 12v For IP Camea

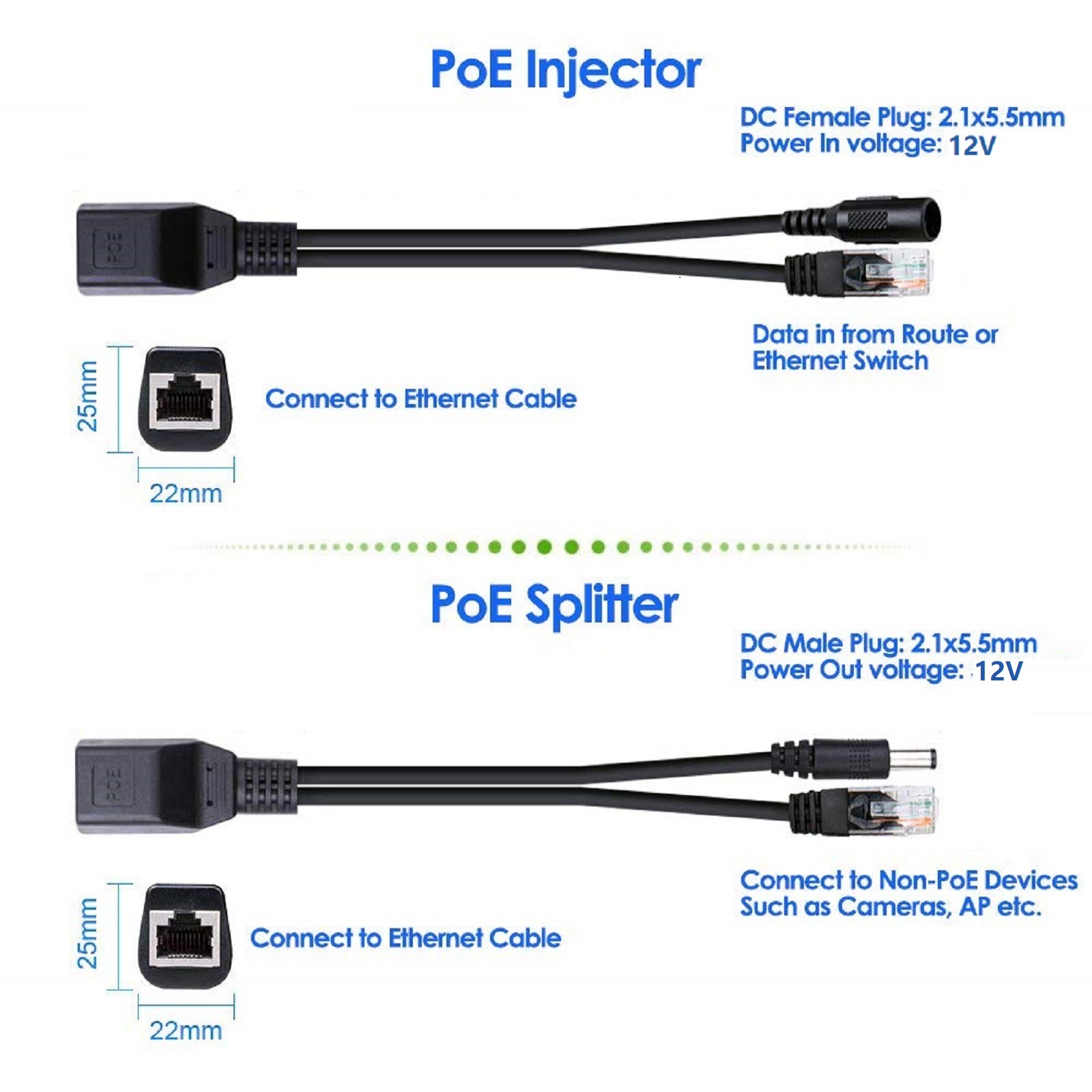

Specifications:
Power Pin Pin: 4/5 (+), 7/8 (-)
Data Pin Pins: 1,2,3,6

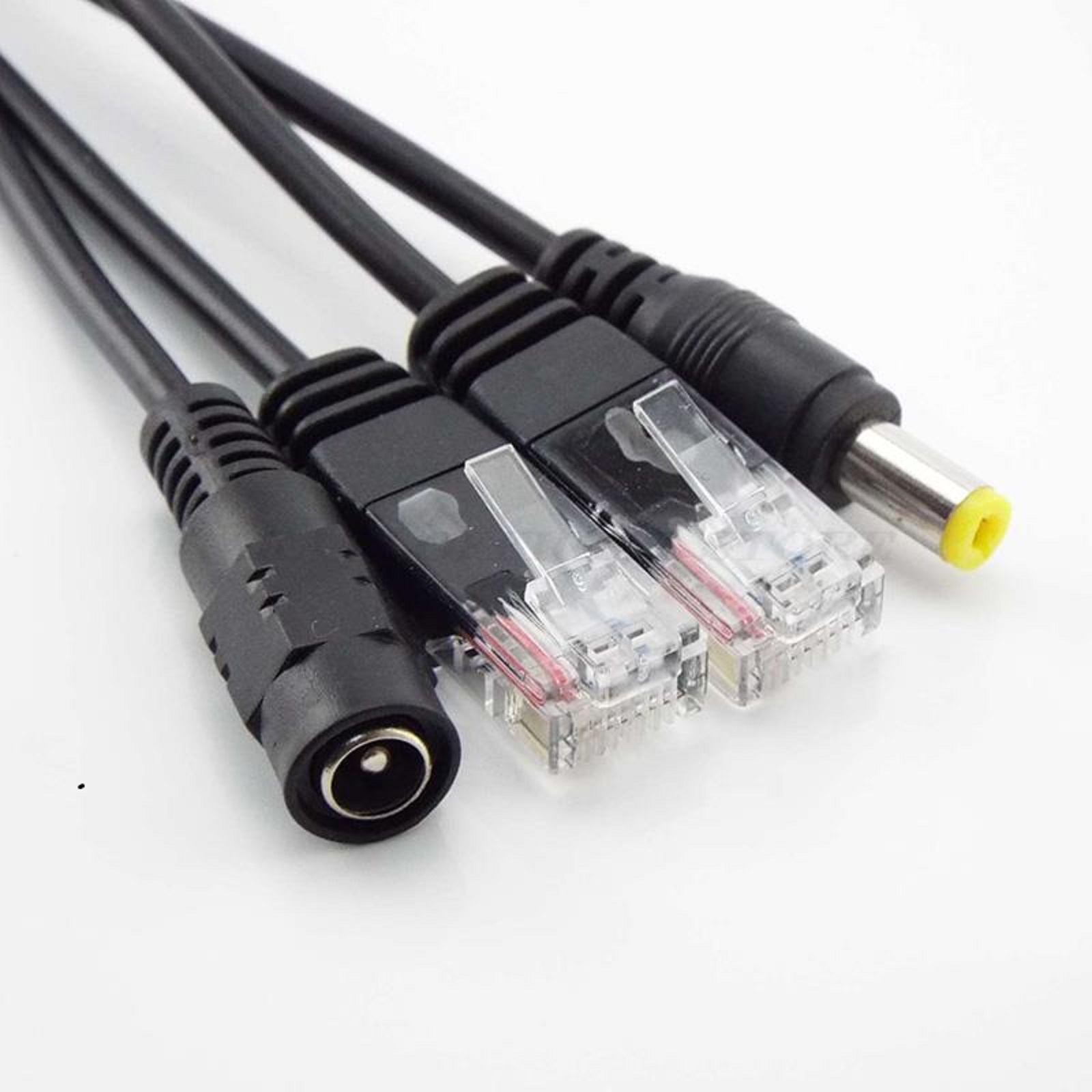

DC female head: 5.5*2.1mm
DC male head: 5.5*2.1mm
DC Input Voltage:12V
DC Output Voltage: 12V
Over Current Protection None
Work range: Below 30 meters.
DC Plugs :2.1mmx5.5mm
Features:

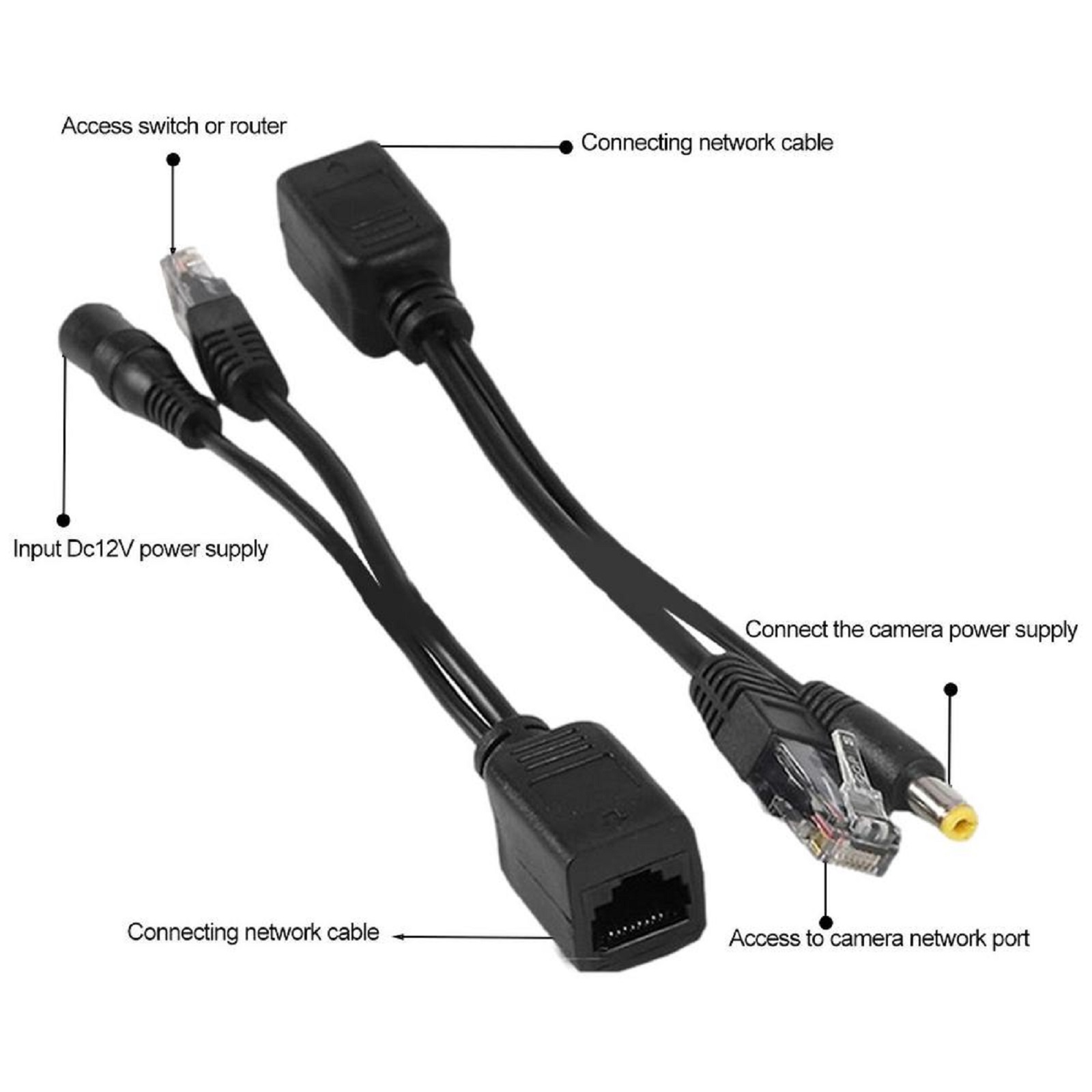

1. Application: WLAN, routers, switches, internet telephony, security monitoring etc

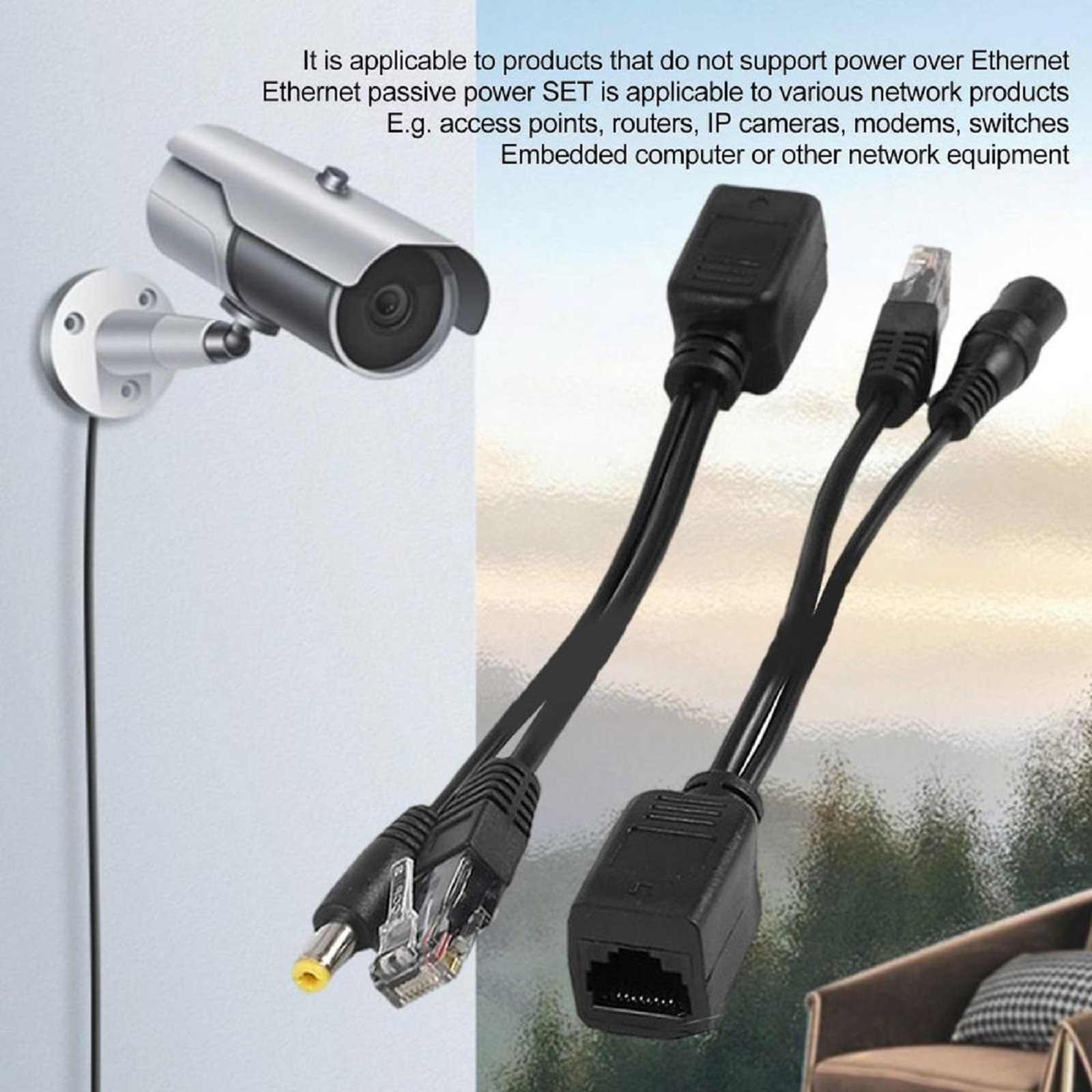

2. Use with IP security camera, wireless access point and other devices.
Can work up to 30 metres/100ft (depending on the quality of the cable and the power draw of the device).

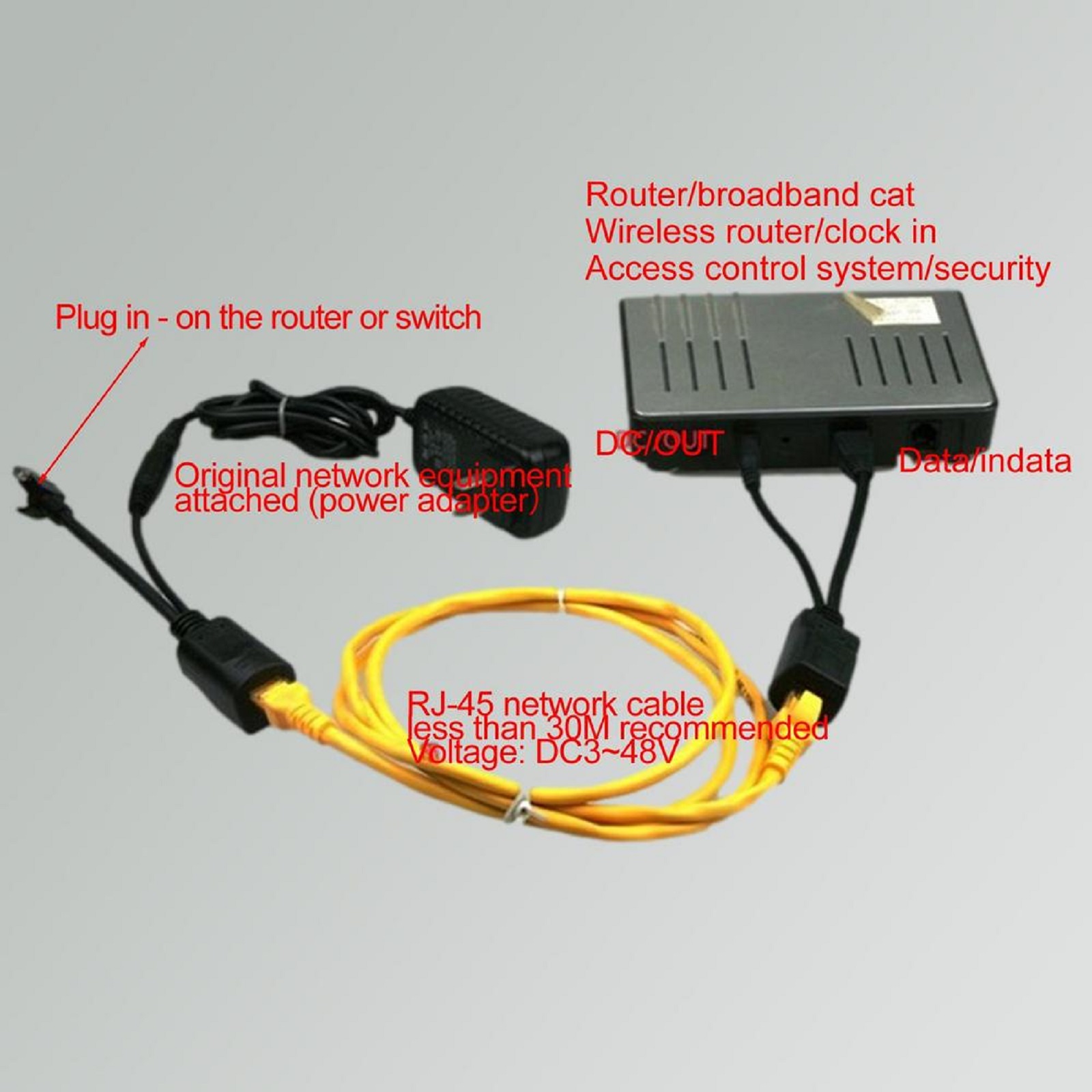

3. Using this set of POE power supply cables can solve the problem of power supply for indoor and outdoor equipment that is inconvenient to pull the power supply, and it is very convenient to install and control the power supply of the equipment indoors! It can also be used for WLAN, wireless routers, switches, Internet phones, gateways, access control, security monitoring, etc.
4. The principle of POE power supply through the cable: The standard Category 5 network cable has four pairs of twisted pairs, but only two of them are used in l0M BASE-T and 100M BASE-T. IEEE80 2.3af allows two usages. When using idle pins for power supply, pins 4 and 5 are connected as positive poles, and pins 7 and 8 are connected as negative poles. When using the data pin to supply power, add the DC power to the midpoint of the transmission transfer, which will not affect the data transmission. In this way, pairs 1, and 2, and pairs 3, and 6 can be of any polarity. The standard does not allow both cases to be app
Packaging includes:
1 pair POE Cable Adapter
