Product Description




✅【PRODUCT HIGHLIGHTS】

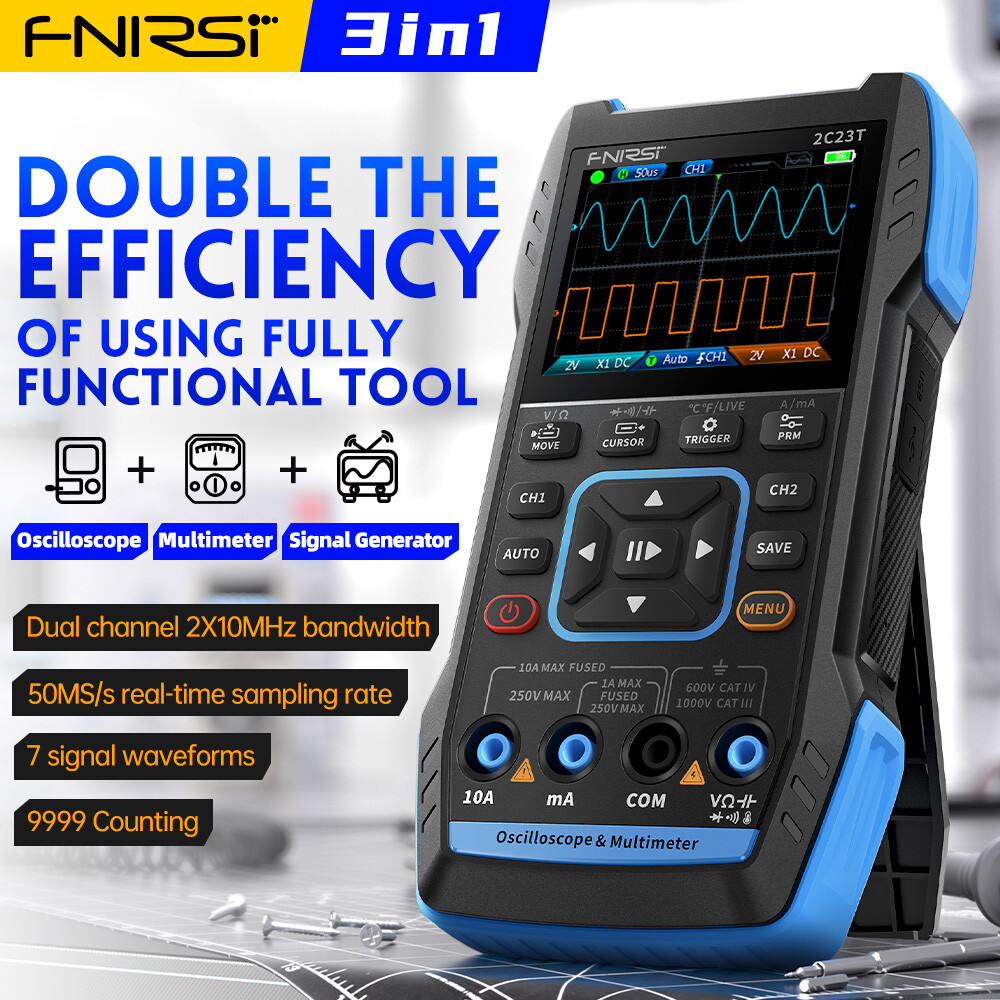

  • 3‑IN‑1 HANDHELD INSTRUMENT: Combines a dual‑channel oscilloscope, signal generator, and digital multimeter in one compact device.

  • ISOLATED DUAL‑CHANNEL OSCILLOSCOPE: 2 × 10 MHz independent isolated channels prevent cross‑talk for accurate signal capture. Features 50 MS/s sampling and 32 kpts memory depth.

  • PROFESSIONAL HARDWARE ARCHITECTURE: Uses a high‑performance ARM + FPGA + high‑speed ADC platform (not CPU‑based), delivering powerful triggering and detailed waveform capture.

  • ONE‑KEY AUTO‑SETUP: Intelligent auto‑scale and trigger modes (Auto/Normal/Single) quickly display signals without manual adjustments.

  • INTELLIGENT ANTI‑BURN PROTECTION: Built‑in dual‑fuse protection prevents damage from overloads, safe for beginners and professionals.

  • LONG‑LIFE BATTERY: 3000 mAh rechargeable battery with USB‑C charging; provides up to 8 hours of continuous use.

📋【PRODUCT SPECIFICATIONS】

  • Model: 2C23T 3‑in‑1 Digital Oscilloscope

  • Display: 2.8‑inch TFT color screen (320×240)

  • Battery: 3000 mAh Li‑ion (USB‑C 5 V/1 A charging)

  • Standby Time: Up to 8 hours (theoretical max)

📋【DIGITAL MULTIMETER FUNCTIONS】

  • DC Voltage: 9.999 V / 99.99 V / 999.9 V (±0.5%+3)

  • AC Voltage: 9.999 V / 99.99 V / 750.0 V (±1%+3)

  • DC/AC Current: 9999 µA / 99.99 mA / 999.9 mA / 9.999 A

  • Resistance: 9.999 MΩ – 999.9 Ω (±0.5%+3)

  • Capacitance: 9.999 mF – 9.999 nF

  • Temperature: ‑55 ℃ to 1300 ℃ (‑67 ℉ to 2372 ℉)

  • Additional: Diode Test, Continuity, Live‑Wire Detection

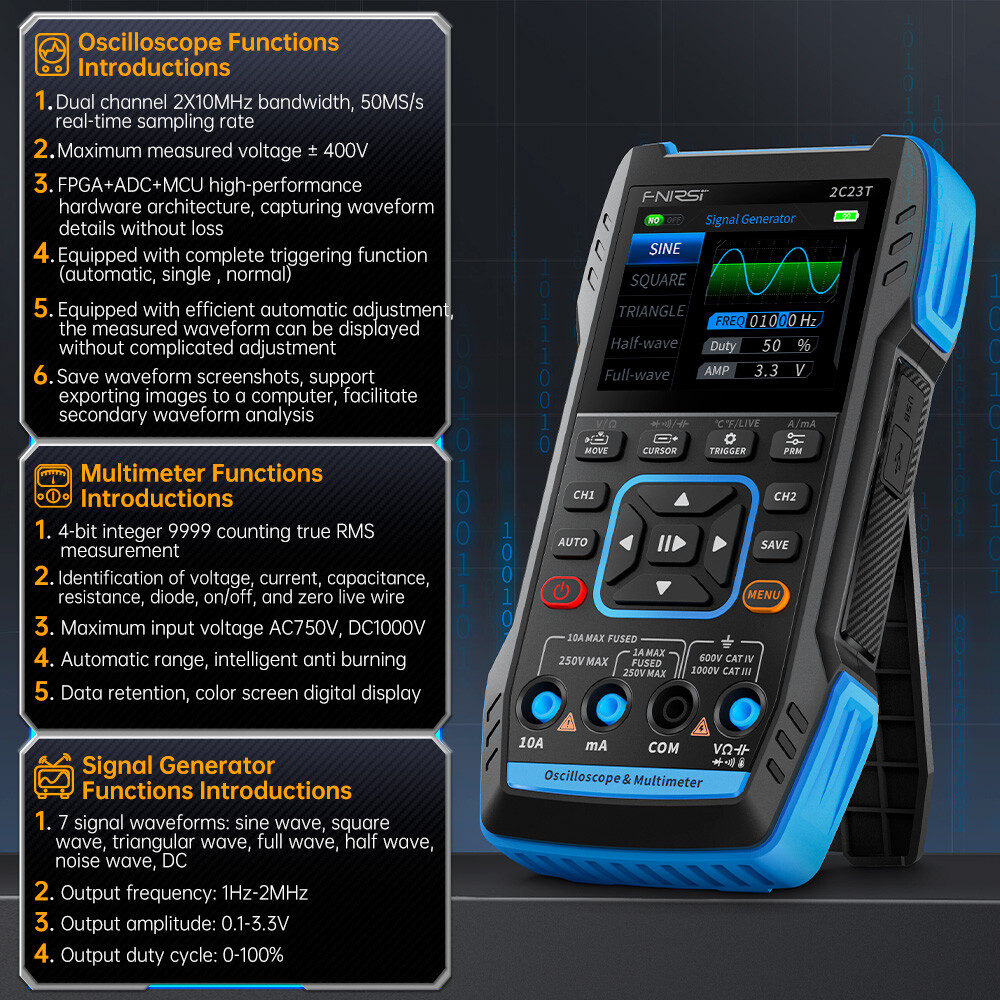

📋【OSCILLOSCOPE SPECIFICATIONS】

  • Channels: 2 isolated channels (10 MHz each)

  • Sample Rate: 50 MS/s

  • Memory Depth: 32 kpts

  • Input Impedance: 1 MΩ

  • Timebase Range: 50 ns – 10 s

  • Vertical Sensitivity: 20 mV/div – 10 V/div

  • Max Input Voltage: ±400 V

  • Trigger Modes: Auto, Normal, Single

  • Coupling: AC/DC

  • PC Connectivity: Waveform screenshot & PC viewing supported

📋【SIGNAL GENERATOR SPECIFICATIONS】

  • Channel: Single channel

  • Frequency Range: 1 Hz – 2 MHz

  • Amplitude: 0.1 – 3 V (adjustable)

📦【PACKAGE OPTIONS】

Standard Version:

  • 1 × Main Unit

  • 1 × Oscilloscope Probe

  • 1 × Alligator Clip Probe

  • 1 × Multimeter Test Lead Set

  • 1 × USB‑C Charging Cable

  • 1 × User Manual
