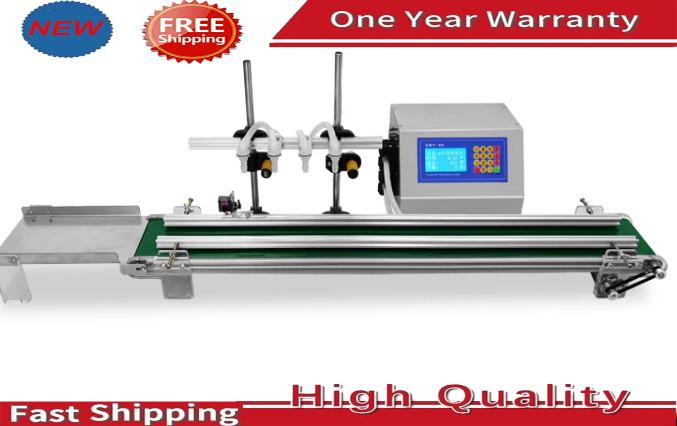

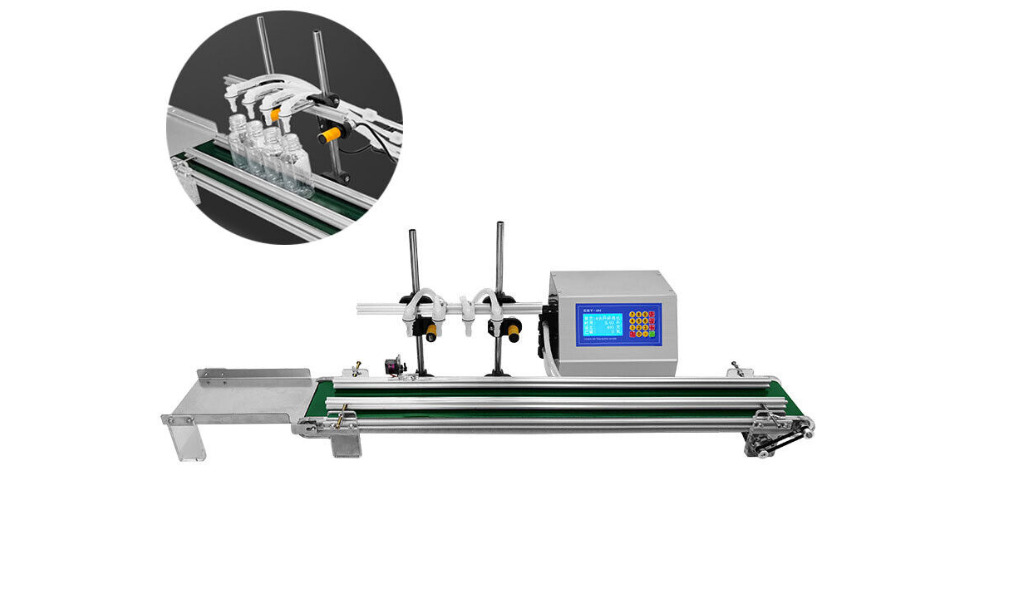

Automatic 4 Heads Liquid Filling Machine Bottles Filler 3.2L/1.2L Conveyor Belt

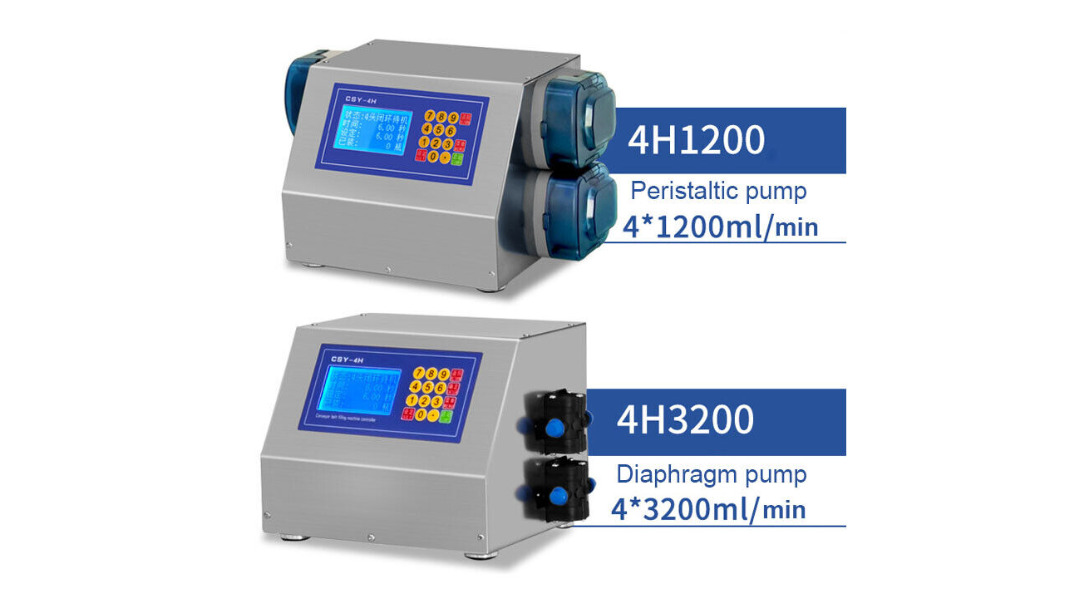

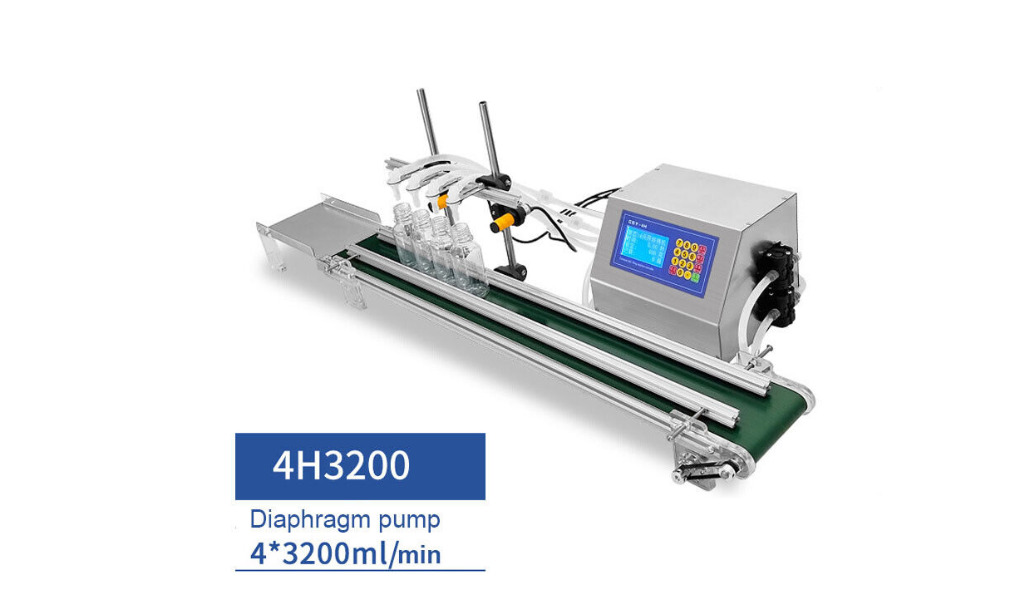

3.2L/Min: 3200 grams per minute is the liquid passing through the pump and tube of the diaphragm pump. The error in canned 500ml is about 5 grams, which is not suitable for canned oil,
1.2L/min : 1200 grams per minute is a peristaltic pump, which is relatively expensive and has a small error. The liquid only passes through the pipe without passing through the pump, making it easy to replace the pipe. The error of filling 500 milliliters is about 2 grams
Open loop, closed-loop selection:
1. Closed loop mode can be used for bottles with a width of 30-90mm that are not easy to collapse
2. It is recommended to use open loop mode when the width of the bottle body is less than 30mm
3. Bottles that are thin, unstable, and prone to tipping can only be used in open loop mode.
Specification:
Type: Conveyor Belt 4 Heads Liquid Filling Machine

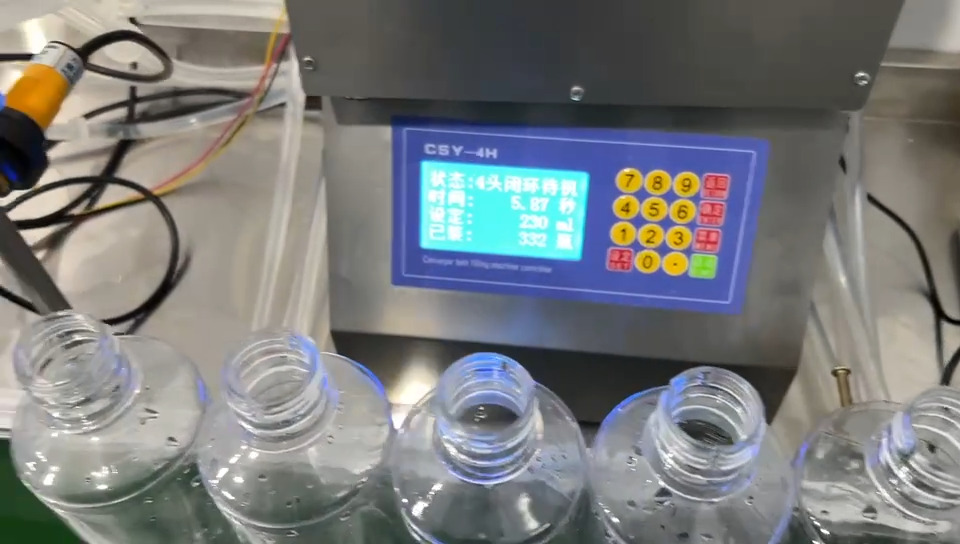

Model: CSY-4H
Voltage: 220V
Max filling capacity: 4*3.2L/min; 4*1.2L/min (water)
Version: Close loop (can be set to open loop)
Bottle width: 20~90mm (bottle width>mouth width)
Mouth ID: 10~80mm
Filling height: 40~250mm
Bottle type: suit for cylindrical bottle
Host size: 22*18*18cm
Conveyor size: 100*13*9cm
Weight: 9kg
Packing weight: 11kg
Packing size: 96*16*16cm+35*25*25cm
Working temperature: 0℃~+50℃
Storage temperature: -10℃~+60℃
