⚙️ DESCRIPTION

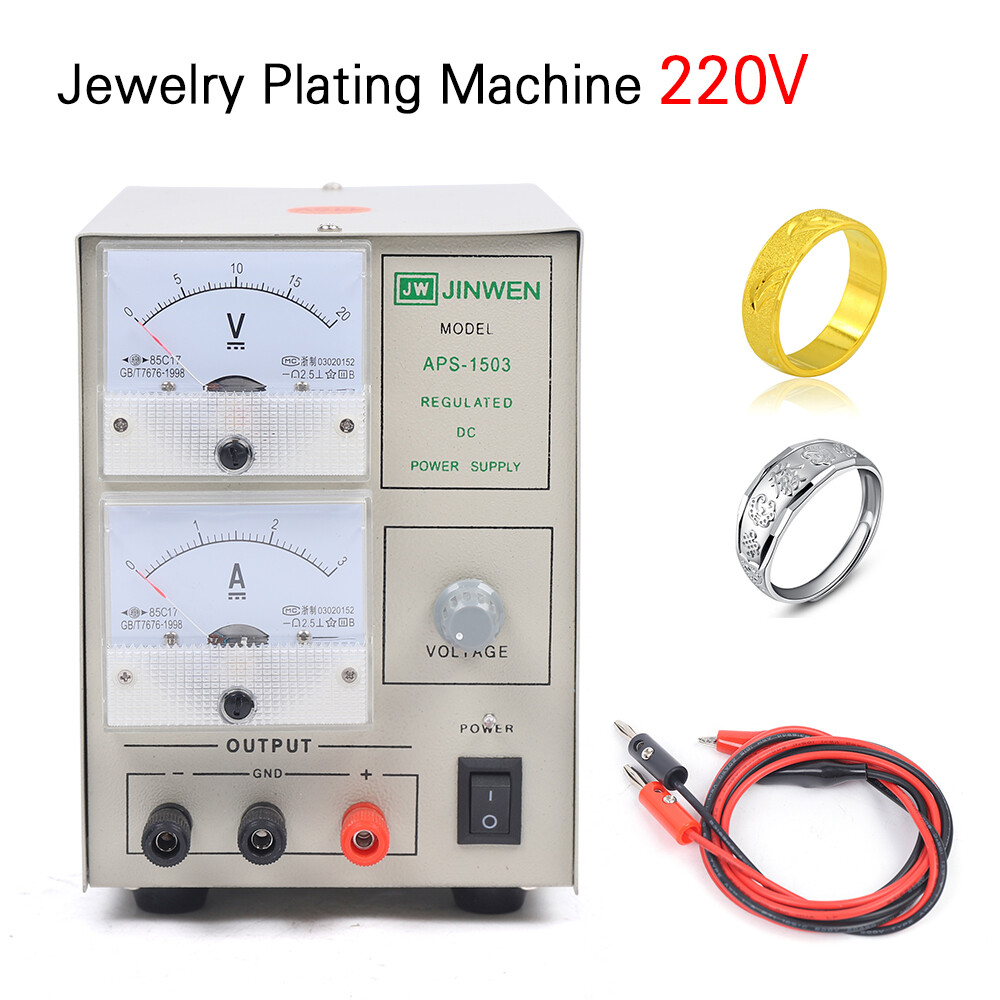

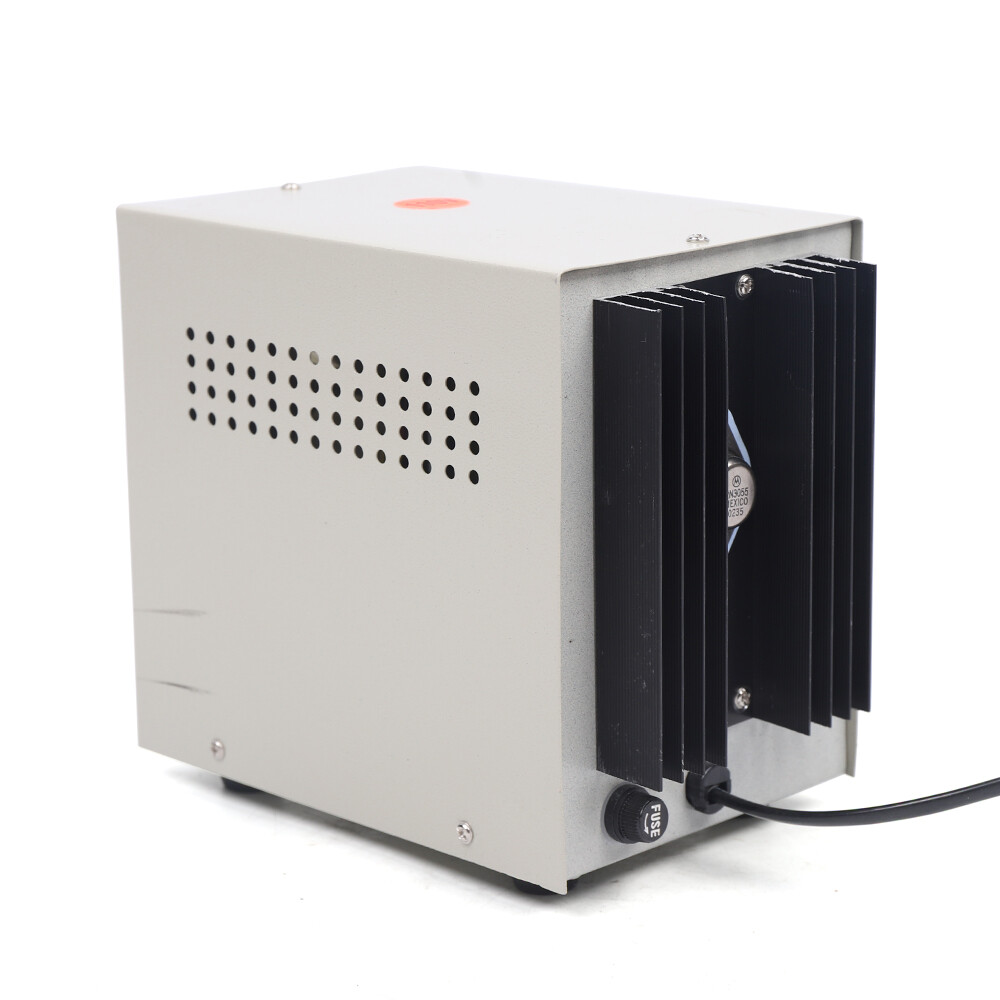

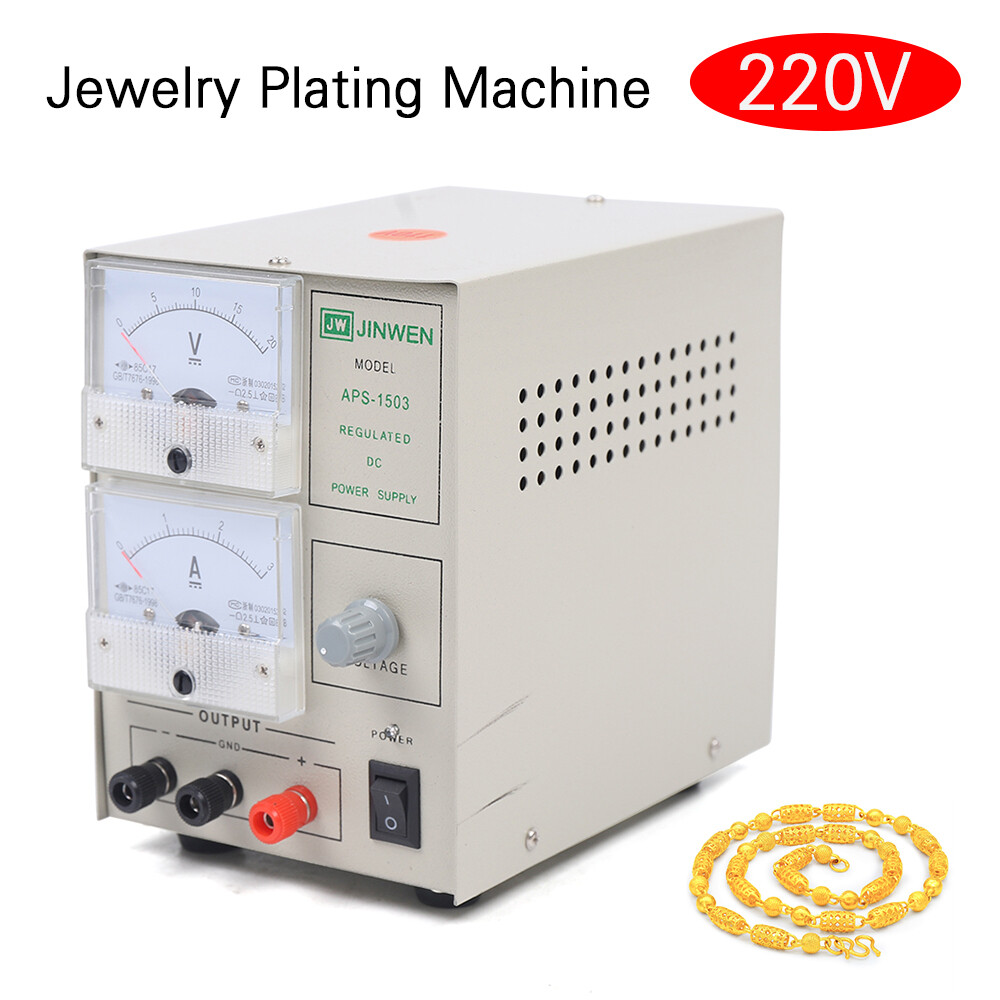

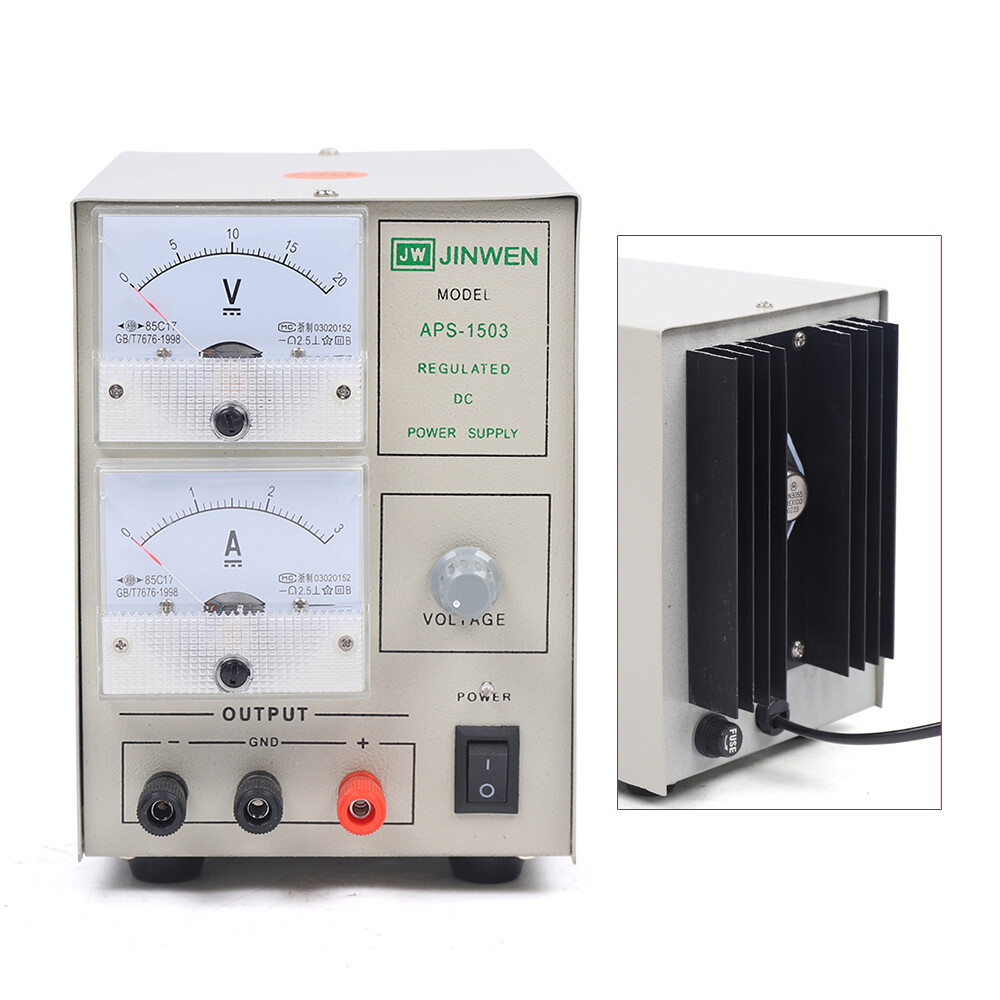

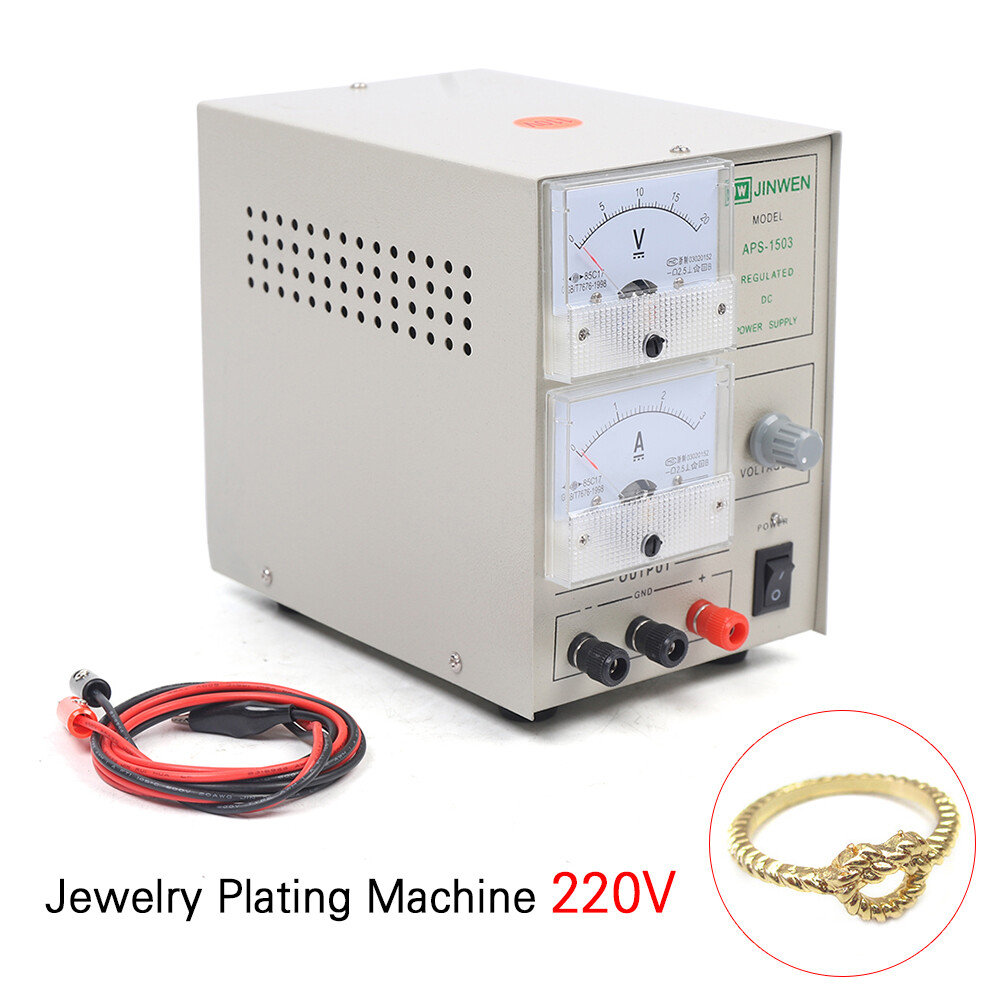

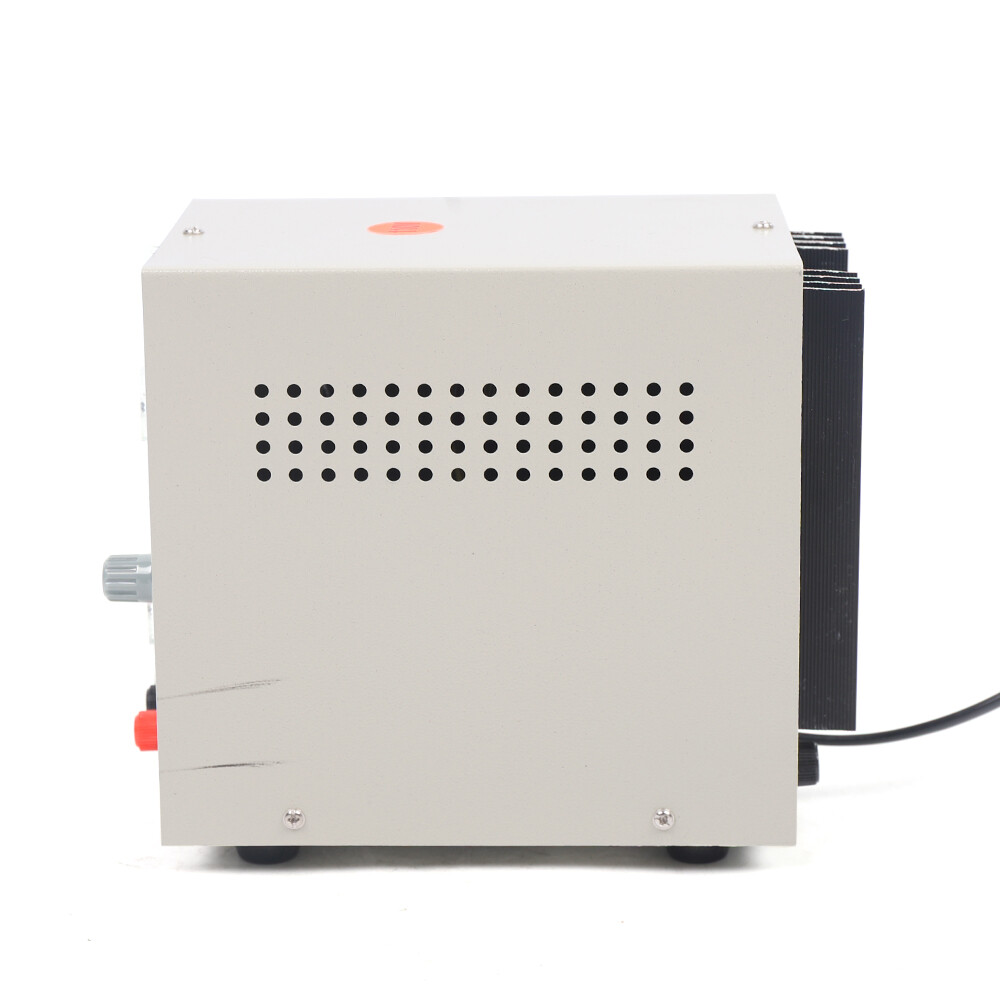

Model: 1503
Product size: 162*170*117 (mm)
Product weight: 2200g
Voltage: 220VAC
✅ PROPERTIES
The electroplating surface treatment power supply has high efficiency and has the functions of automatic voltage regulation, constant current, thyristor rectifier overvoltage and overcurrent protection, undervoltage and phase loss protection functions.
Small, light weight, easy to carry.
The tension is adjustable, you can adjust it as you need.
The conductive connecting wire is made of high-quality materials, which is comfortable to the touch and has good conductive properties.
🔧 TO USE
It has obvious implications for different types of plating (copper, nickel, chromium, gold, silver, electrophoresis, etc.). The coating is even, especially on workpieces with irregular performance (less coating time).
📋 INSTRUCTIONS
1: Platinum plating process
Positive (+): titanium mesh
Negative (-): clip jewelry
Voltage: 3-4 volts
Temperature: 30-40°C
The electroplated items need to be shaken at the beginning, the recommended gilding time is 90-120 seconds
2: Gold Plating Method (14K.18K.24K)
Temperature: 70-80°C
The electroplated items need to be shaken, and the recommended gilding time is: 20-50 seconds
Electroplating accessories: beaker, titanium mesh, gilding machine, water pipe, electric furnace, thermometer
3: Silvering method
Positive (+): titanium mesh
Negative (-): clip jewelry
1: First follow the electrolytic cleaning salt process to clean
2: After electrolysis, 3 cup cleanings are required
3: 54 g silver salt 54% 500 ml distilled water
Temperature: 40°C, Voltage: 3V
The electroplated items need to be shaken, the recommended electroplating time is 3-5 seconds
⚠️ NOTE
Pure distilled water must be used for all silver salts, electrolytic cleaning salts and cup cleaning.
🔨 ELECTROPLATING STEPS
S 1: Polished with cloth wheel and grinder
S 2: ultrasonic cleaning machine plus dewaxing water cleaning (heating)
S 3: Polishing with a polishing machine
S 4: Steam cleaner cleaning
S 5: Electrolysis and electroplating processes completed
📦 PACKAGE INCLUDES
1 * electroplating machine
2 * conductive wire
