100A Controller connection diagram：
The 100A controller is a sine wave controller. If you want to turn it into a square wave , connect the two 1-pin red wires on the controller to make it a square wave controller. If you don't know how to connect it, you can consult customer service（as shown in the figure below）
100A Controller Parameter:
●Type: 100A Controller SM Plug
●Size(L*W*H):225*60*101mm
●Rated Power:3000W-5000W
●Speed Set:1.1-4.2V
●Mosfet:24 Mosfet
●Brakes:Low-Level
●Rated Voltage:DC48V/72V
●Compatible with motors with or without Hall
●SM Controller line length:150mm/5.9in
●With motor forward and reverse learning function
●Can manually connect to the 25km/h speed limit line
Note:
●Due to the influence of light, the actual color of the item may be slightly different from the color shown in the picture. Please understand, thank you very much.
●Due to manual measurement, please allow for a measurement deviation of 1-2cm.

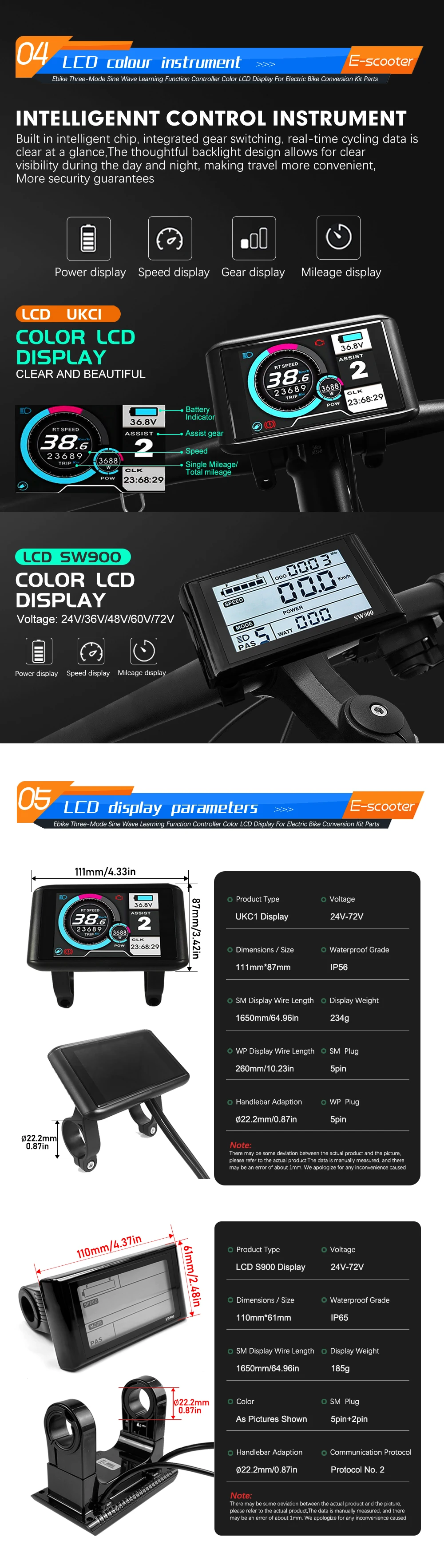

LCD Display
●Type :LCD Color Display
●Voltage :24V 36V 48V 52V 60V 72V
●Plug :5Pin Female SM Plug
●Holder Diameter :φ22mm
●Cable Length:30cm ( SM )
