Raspberry Pi Compute Module 4
The full Raspberry Pi 4 platform on a 55 × 40mm System-on-Module. Top-tier 8GB memory, operating system on built-in eMMC flash, and a wired-only design for secure industrial, kiosk and OEM installations.
Why the CM4008016?
Raspberry Pi’s Compute Module range packs the CM4’s processor, memory, flash and power circuitry onto a single module for designers who want the Raspberry Pi software stack inside their own hardware. The 8GB / 16GB / no-wireless variant is the pick for memory-hungry applications that live on a wired network.
8GB LPDDR4-3200 RAM
The largest memory option available on Compute Module 4. High-capacity memory for demanding applications: multi-service edge gateways, in-memory databases, machine-vision pipelines, digital signage with heavy web content, and container hosts running several workloads at once.
- 8GB LPDDR4-3200 SDRAM (top of the 1 / 2 / 4 / 8GB range)
- Same memory subsystem as the Raspberry Pi 4 Model B 8GB
- Headroom for 64-bit Raspberry Pi OS, Ubuntu Server, Docker and virtualised services
Broadcom BCM2711 -- Quad-Core 64-bit Cortex-A72 @ 1.5GHz
Raspberry Pi 4-class performance in module form. The same ARM v8 SoC found in the Pi 4 Model B, with VideoCore VI graphics, hardware H.265 4Kp60 decode and H.264 1080p30 encode.
- 4× ARM Cortex-A72 cores, 64-bit, 1.5GHz
- VideoCore VI GPU -- OpenGL ES 3.0
- H.265 (HEVC) decode up to 4Kp60; H.264 decode up to 1080p60, encode 1080p30
- Dual HDMI 2.0 -- 4Kp60 on a single display, or 4Kp30 on each of two displays
16GB Onboard eMMC -- No SD Card Required
The operating system runs directly from soldered-down eMMC flash. No microSD slot to fail, wear out or work loose -- the reliability step that makes CM4 suitable for unattended, always-on and vibration-prone installations.
- 16GB eMMC flash, peak bandwidth 100MB/s (4× faster than previous Compute Modules)
- Flashed via USB using rpiboot from a carrier board with a USB slave / programming port (e.g. the official Compute Module 4 IO Board)
- Non-Lite module: the SDIO / SD-card pins are not exposed on this variant

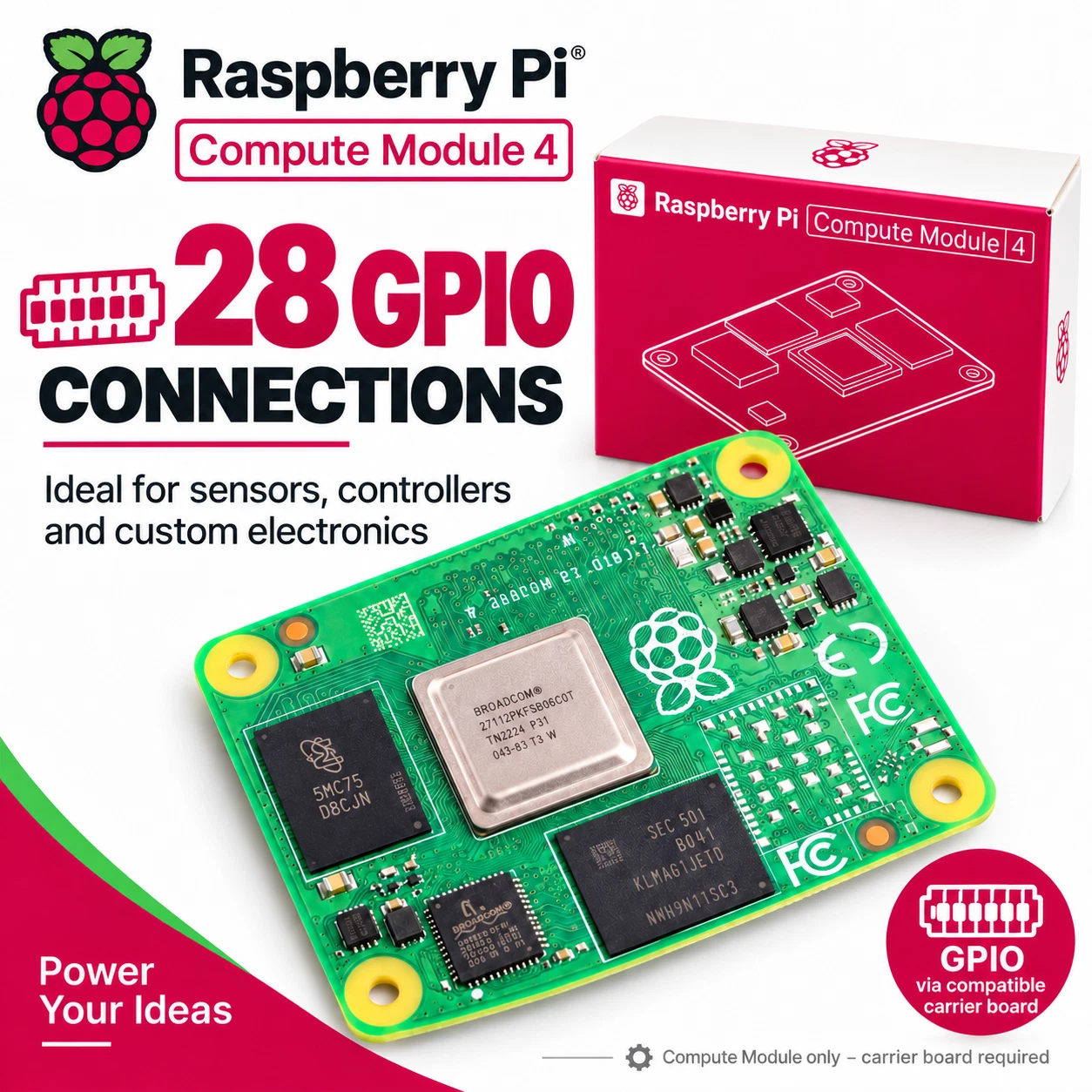

28 GPIO Connections + PCIe, Ethernet, Camera & Display
Every interface is brought out through two 100-pin high-density board-to-board connectors, giving carrier-board designers more I/O than any standard Raspberry Pi.
- 28× GPIO (1.8V or 3.3V signalling) -- up to 5× UART, 5× I2C, 5× SPI, SDIO, DPI, PCM, 2× PWM
- 1× PCIe Gen 2 x1 host (5Gbps) -- NVMe, USB 3 controllers, network cards, custom hardware
- Gigabit Ethernet PHY (Broadcom BCM54210PE) with IEEE 1588 precision timing
- 2× MIPI CSI-2 camera ports (2-lane + 4-lane) and 2× MIPI DSI display ports (2-lane + 4-lane)
- 1× USB 2.0 (480Mbps), dual HDMI 2.0

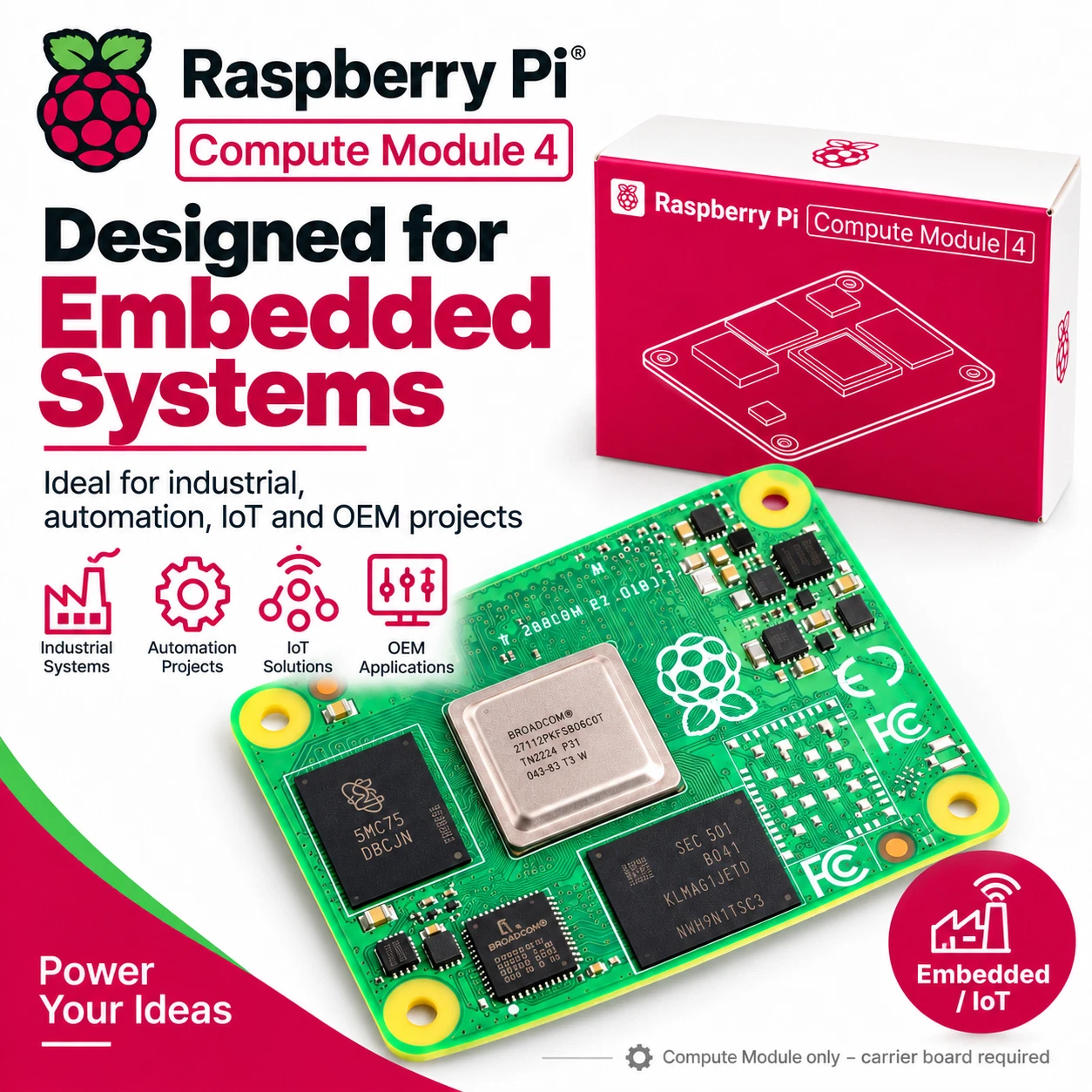

Designed for Embedded Systems -- 55 × 40mm
Ideal for industrial, automation, IoT and OEM projects. Powerful computing in an ultra-compact footprint with four M2.5 mounting holes, a single +5V supply input, and on-board 3.3V / 1.8V regulators that can feed up to 600mA each to your carrier electronics.
- 55mm × 40mm × 4.7mm module, 4× M2.5 mounting holes
- Operating temperature −20°C to +85°C (non-condensing)
- Single +5V input (4.75–5.25V); typical draw ~1.4A under load, ~400mA idle
- Supplied in an ESD-coated retail box -- no separate ESD bag needed
Carrier Board Required -- Not a Standalone Computer
The Compute Module has no sockets, no ports and no power connector of its own. To use it you need a compatible carrier / IO board (sold separately) that mates with the two 100-pin connectors and provides the physical Ethernet jack, HDMI, USB, power input and GPIO header.
- Works with the official Raspberry Pi Compute Module 4 IO Board and the wide range of third-party CM4 carriers (NAS boards, router boards, kiosk / signage carriers, mini-ITX and industrial designs)
- No Wi-Fi and no Bluetooth on this variant -- networking is wired Gigabit Ethernet via the carrier board
- Not compatible with Compute Module 3 / 3+ SODIMM carriers, and not compatible with Compute Module 5 carriers ⚠
No Wi-Fi / No Bluetooth
Wired-only variant for secure networks, EMC-sensitive enclosures and installations where radio is not permitted. Nothing to disable, nothing to certify.
Standard Pi 4 Software
Runs Raspberry Pi OS (32 / 64-bit), Ubuntu, and the full Pi 4 software ecosystem. Same BCM2711 GPIO numbering as the 40-pin header.
Long-Term Availability
Compute Module 4 is a production-grade platform designed for multi-year product lifecycles, not a hobbyist-only board.
Technical Specifications
Figures verified against the official Raspberry Pi Compute Module 4 datasheet (Release 4, June 2026).
| Model & Variant | |
|---|---|
| Part number | CM4008016 |
| Variant | 8GB RAM • 16GB eMMC • No wireless |
| Manufacturer | Raspberry Pi Ltd -- made in the UK |
| Module type | System-on-Module (SoM), non-Lite (eMMC fitted) |
| Processor & Memory | |
|---|---|
| SoC | Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz |
| GPU | VideoCore VI, OpenGL ES 3.0 |
| Video codecs | H.265 (HEVC) decode up to 4Kp60; H.264 decode up to 1080p60, encode 1080p30 |
| RAM | 8GB LPDDR4-3200 SDRAM |
| Storage | 16GB eMMC flash, peak 100MB/s |
| Interfaces (via carrier board) | |
|---|---|
| Video output | 2× HDMI 2.0 -- up to 4Kp60 (single) or 4Kp30 (both) |
| Camera | 2× MIPI CSI-2 (1× 2-lane, 1× 4-lane) |
| Display | 2× MIPI DSI (1× 2-lane, 1× 4-lane) |
| PCIe | 1× PCIe Gen 2 x1 host (5Gbps) |
| Ethernet | Gigabit Ethernet PHY (BCM54210PE), IEEE 1588-2008 -- requires RJ45 MagJack on carrier |
| USB | 1× USB 2.0 high speed (480Mbps), OTG capable |
| GPIO | 28× GPIO, 1.8V or 3.3V signalling; up to 5× UART, 5× I2C, 5× SPI, 1× SDIO, 1× DPI, 1× PCM, 2× PWM, 3× GPCLK |
| Wireless | None -- no Wi-Fi, no Bluetooth on this variant |
| Connector | 2× 100-pin high-density board-to-board (Hirose DF40 series, 1.5mm or 3.0mm stacking height) |
| Electrical & Mechanical | |
|---|---|
| Power input | Single +5V (4.75–5.25V) via carrier board |
| Power consumption | Typical ~400mA idle, ~1.4A operating (application dependent) |
| Regulator outputs | +3.3V and +1.8V, up to 600mA each for carrier peripherals |
| Dimensions | 55mm × 40mm × 4.7mm |
| Mounting | 4× M2.5 holes, inset 3.5mm from module edge |
| Operating temperature | −20°C to +85°C, non-condensing |
| In the box | 1× Raspberry Pi Compute Module 4 (CM4008016) in official ESD-coated retail box. ⚠ No carrier board, cables, PSU, heatsink or antenna. |
⚠ Amber markers indicate points to double-check against the physical unit before purchase if critical to your application.
Built for Deeply Embedded Applications
Where a standard Raspberry Pi is too big, too exposed, or needs interfaces it does not have.
Industrial Control
PLC bridges, HMI panels and machine controllers with 8GB headroom and no radio to certify.
Network & NAS Appliances
PCIe for SATA / NVMe / 2.5GbE cards on router, firewall and storage carrier boards.
Digital Signage & Kiosks
Dual 4K HDMI output with the OS locked onto tamper-proof internal eMMC.
Vision & Edge AI
Two camera inputs plus 8GB RAM for inference, recording and streaming workloads.
IoT Gateways
Wired Gigabit uplink with IEEE 1588 timing, running Docker or Home Assistant.
Automation Projects
28 GPIO with full peripheral multiplexing for sensors, relays and motor drivers.
OEM Products
Design your own carrier once, then drop in the exact CM4 variant your product needs.
Secure Wired Installs
No Wi-Fi / Bluetooth hardware for sites where wireless is prohibited or undesirable.
Compatibility & What You Will Need
Please check before you buy -- the Compute Module cannot be used on its own.
✔ Compatible with
- Official Raspberry Pi Compute Module 4 IO Board
- Third-party CM4 carrier boards (Waveshare, Seeed, DFRobot, Turing Pi, DeskPi, mini-ITX and NAS carriers, etc.)
- Any carrier with Hirose DF40C-100DS-0.4V (1.5mm) or DF40HC(3.0)-100DS-0.4V (3.0mm) connectors
- Raspberry Pi OS, Ubuntu, and other Raspberry Pi 4 operating systems
- Official Raspberry Pi cameras (OV5647, IMX219, IMX296, IMX477, IMX708) and official DSI displays via carrier
✖ Not compatible / not included
- Compute Module 1 / 3 / 3+ SODIMM-style carrier boards
- Compute Module 5 carrier boards
- Standard Raspberry Pi cases, HATs or 40-pin accessories (no header on the module)
- No Wi-Fi or Bluetooth -- cannot be added to this variant
- No carrier board, power supply, heatsink, cables, microSD or antenna in the box
Buy With Confidence
Fast UK Dispatch
Same or next working day, Royal Mail Tracked 48.
30-Day Returns
Free returns within 30 days if it is not right for you.
12-Month Warranty
UK-based warranty support on every unit.
Genuine Stock
Official Raspberry Pi product in original retail packaging.
Frequently Asked Questions
Can I plug this into a monitor and keyboard and use it like a Raspberry Pi 4?
No. The module has no ports. It must be mounted on a carrier / IO board, which provides HDMI, USB, Ethernet and power. With a carrier fitted it behaves just like a Raspberry Pi 4 Model B.
How do I install the operating system?
The 16GB eMMC is flashed over USB using Raspberry Pi’s rpiboot tool from a carrier board with a programming / USB slave port (the official IO Board has one). There is no microSD slot on this non-Lite module.
Does it have Wi-Fi or Bluetooth?
No. CM4008016 is the wireless-free variant. If you need on-board Wi-Fi / Bluetooth choose a CM41xxxxx part instead.
Can I get 4K on two screens?
Yes -- with both HDMI outputs in use each runs up to 4Kp30. A single display can run up to 4Kp60. Your carrier board must break out both HDMI ports.
Does it work with the Raspberry Pi 5 / Compute Module 5 IO Board?
No. CM4 and CM5 carriers are not interchangeable. Use a Compute Module 4 carrier only.
Is a heatsink needed?
Under sustained load the BCM2711 will throttle above 85°C. For enclosed or high-ambient installs a heatsink or thermal pad to the enclosure is recommended. None is supplied.
Will it run 64-bit Raspberry Pi OS and Docker?
Yes. With 8GB RAM this is the ideal CM4 variant for 64-bit operating systems and container workloads.
Raspberry Pi Compute Module 4 -- CM4008016
8GB RAM, 16GB eMMC, no wireless. Genuine Raspberry Pi stock shipped tracked from the UK with a 12-month warranty. Remember: a compatible carrier board is required and is not supplied.
Add to Basket Questions about carrier boards or variant choice? Message us before ordering -- we reply fast.Item Specifics
| Brand | Raspberry Pi |
| Model | Compute Module 4 (CM4) |
| MPN | CM4008016 |
| Type | System-on-Module / Compute Module |
| Processor | Broadcom BCM2711 Quad-Core Cortex-A72 1.5GHz |
| RAM | 8GB LPDDR4 |
| Storage | 16GB eMMC |
| Wireless | None (No Wi-Fi / No Bluetooth) |
| Connectivity | Gigabit Ethernet PHY, PCIe Gen 2 x1, USB 2.0, 2× HDMI 2.0, 2× CSI, 2× DSI, 28 GPIO |
| Form factor | 55 × 40mm, dual 100-pin connectors |
| Operating temperature | −20°C to +85°C |
| Country of manufacture | United Kingdom |
| Condition | Brand new, sealed retail box |
| Carrier board | Required -- not supplied |
