1000/1500N Linear Actuator 12V Linearantrieb Elektrischer Linearmotor 2"-18"
Feature:

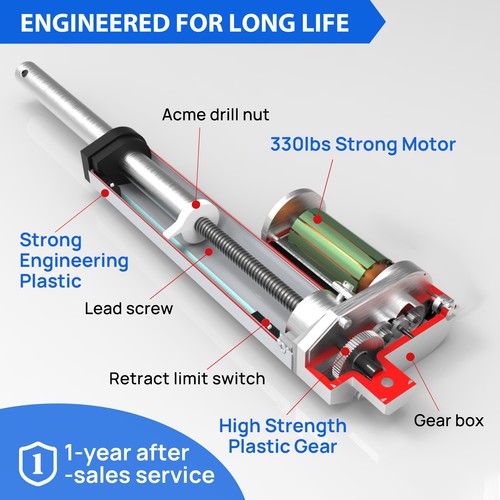

- Linear motor has a gearbox and is rated to hold up when not moving. All-Metal housing and is water-resistant and sealed against dust for rugged durability.

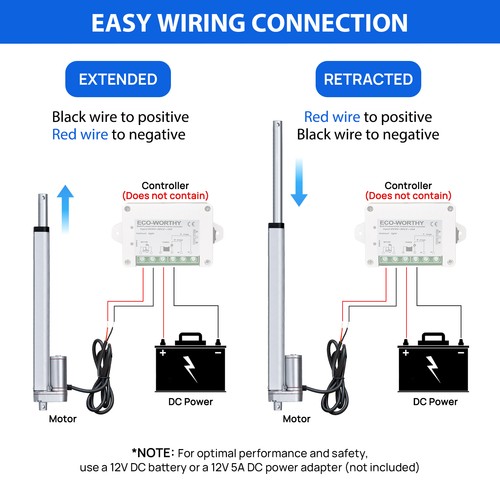

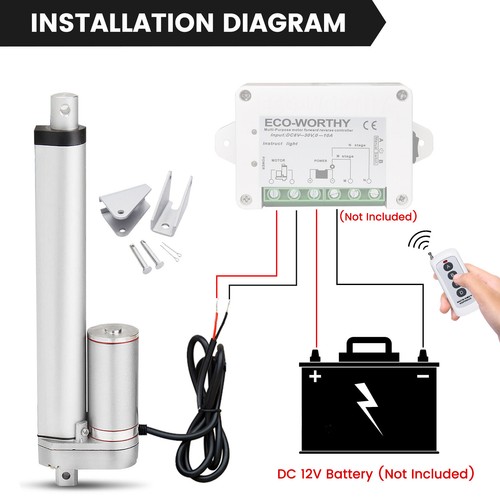

- The Linear Motor can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller.
- Quiet and energy-efficient operation.Accurately positions the load at variable and repeatable locations within the full stroke.

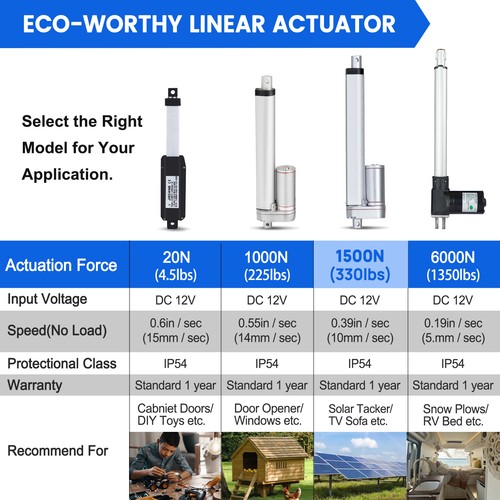

1000N:
Input Voltage :12V DC

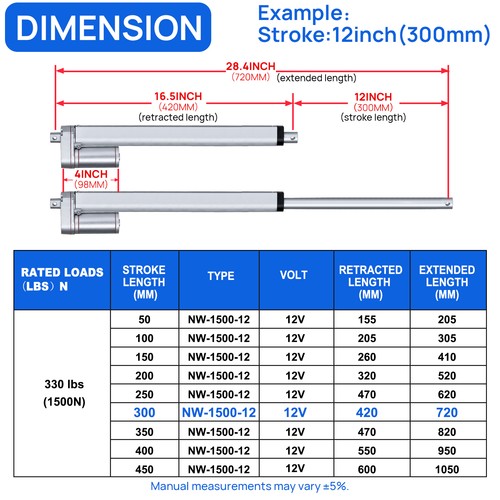

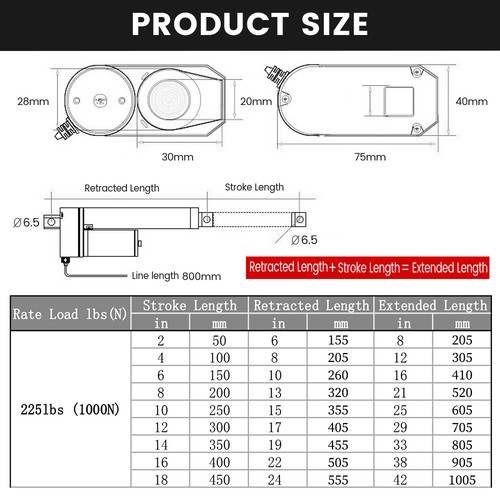

Stroke size :2"-18"
Speed :14mm/s
Load Capacity :1000N/100KG
Max Pull Load :1000N/225lbs/100KG
Max Pull Load :1000N/225lbs/100KG
Duty Cycle :25%

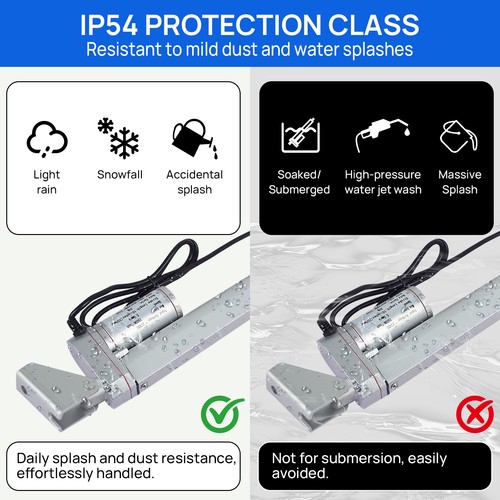

Protection Class :IP54
Material Aluminum :alloy
Color: Silver grey

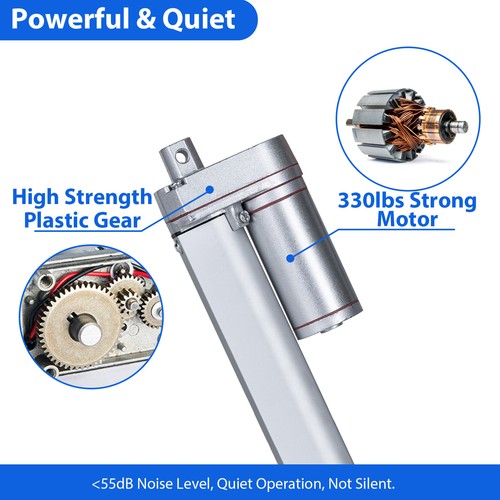

Low noise :db<45 (A)
Certification :CE and RoHS
Operation Temperature :-26°C~+65°C
Built-in limit switches :Not adjustable
Input Voltage :12V DC
Stroke size :2"-18"
Speed :14mm/s
Load Capacity :1000N/100KG
Max Pull Load :1000N/225lbs/100KG
Max Pull Load :1000N/225lbs/100KG
Duty Cycle :25%
Protection Class :IP54
Material Aluminum :alloy
Color: Silver grey
Low noise :db<45 (A)
Certification :CE and RoHS
Operation Temperature :-26°C~+65°C
Built-in limit switches :Not adjustable
1500N:
Input Voltage ：12V DC
Stroke size ：2"-18"
Speed :10mm/s
Load Capacity :1500N/330lbs/150KG
Max Push Load :1500N/330lbs/150KG
Max Pull Load :1500N/330lbs/150KG
Duty Cycle :25%
Protection Class: IP54
Material Aluminum:alloy
Color ：Silver grey
Low noise：db<45 (A)
Certification ：CE and RoHS
Operation Temperature ：-26°C~+65°C
Built-in limit switches :Not adjustable
Input Voltage ：12V DC
Stroke size ：2"-18"
Speed :10mm/s
Load Capacity :1500N/330lbs/150KG
Max Push Load :1500N/330lbs/150KG
Max Pull Load :1500N/330lbs/150KG
Duty Cycle :25%
Protection Class: IP54
Material Aluminum:alloy
Color ：Silver grey
Low noise：db<45 (A)
Certification ：CE and RoHS
Operation Temperature ：-26°C~+65°C
Built-in limit switches :Not adjustable
Motor Controller Specifications
• Input Voltage: 8—30V
• Output Voltage: 8—30V
• Fuse: 10A/30V
• Max Current: 5A
• Control Distance: 50Meters
• Operating Temperature: -20 to + 60℃
• Overtime protection: Yes
• Control Modes:Jog Control, Self-Lock Control.
◆Over-current, over-load and short-circuit protection.
◆ Can control DC motor’s positive&inversion rotation or control two-way DC loads.
◆ Two control modes (Jog Control, Self-Lock Control) are switchable, easy for operation.
◆ The wireless remote with learning function, easy for coding.
◆ With million group address coding which are independent.
◆ With highly sensitive receiver, remote control distance is more than 50M.
◆ With limit ports.
• Input Voltage: 8—30V
• Output Voltage: 8—30V
• Fuse: 10A/30V
• Max Current: 5A
• Control Distance: 50Meters
• Operating Temperature: -20 to + 60℃
• Overtime protection: Yes
• Control Modes:Jog Control, Self-Lock Control.
◆Over-current, over-load and short-circuit protection.
◆ Can control DC motor’s positive&inversion rotation or control two-way DC loads.
◆ Two control modes (Jog Control, Self-Lock Control) are switchable, easy for operation.
◆ The wireless remote with learning function, easy for coding.
◆ With million group address coding which are independent.
◆ With highly sensitive receiver, remote control distance is more than 50M.
◆ With limit ports.
Package Include:
Single Linear Actuator with brackets OR one controller
TIPS: You need to select the controller if you want it, thanks!!
