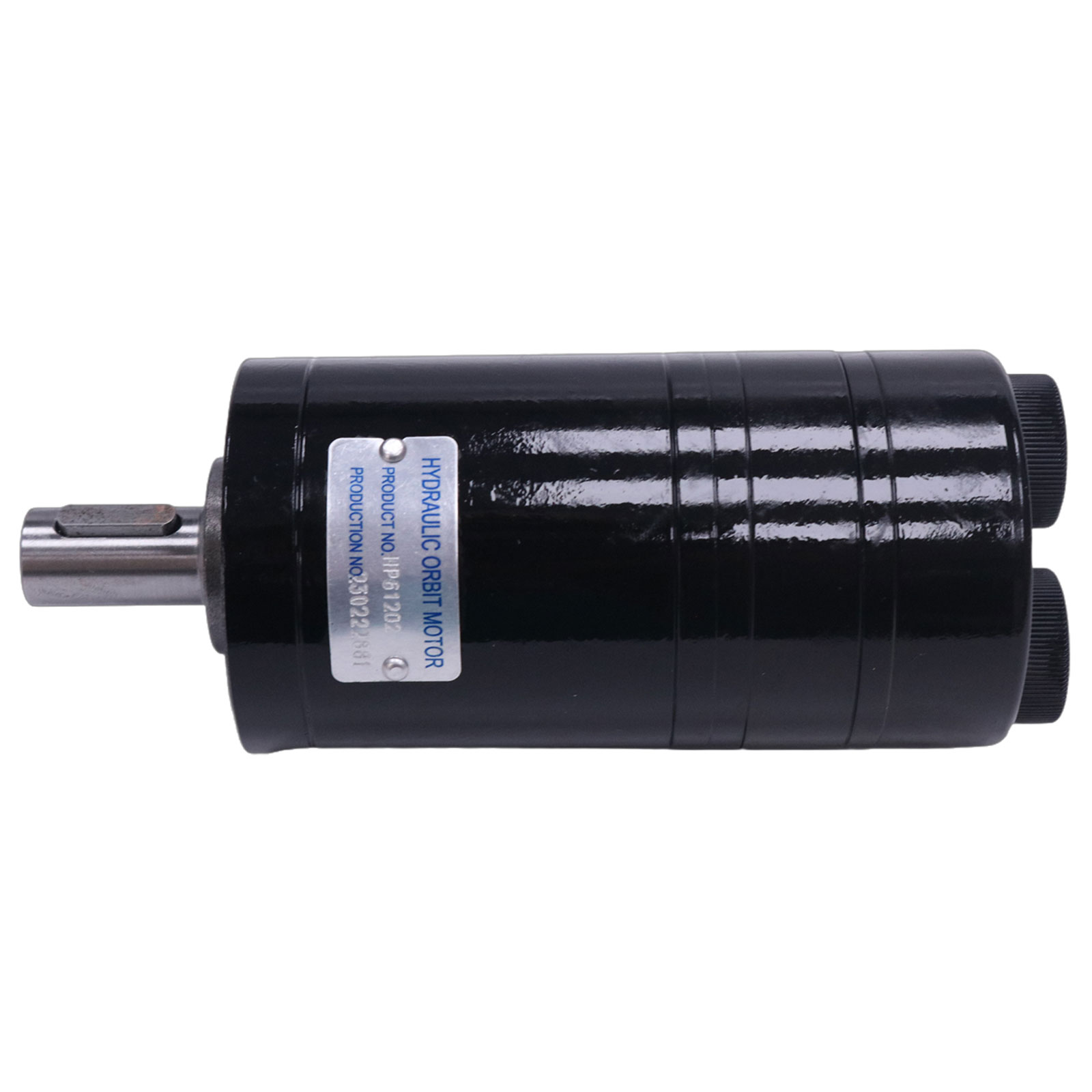

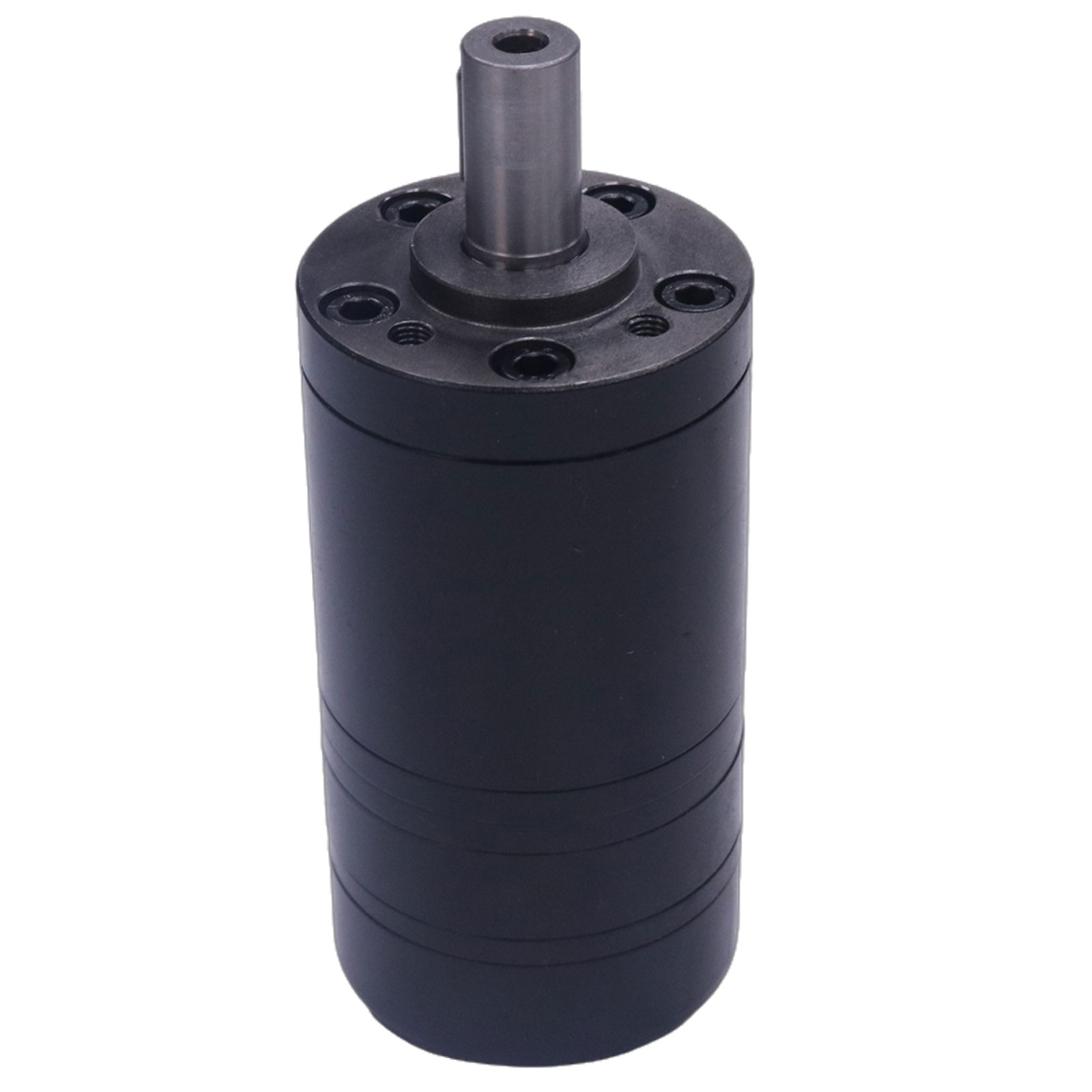

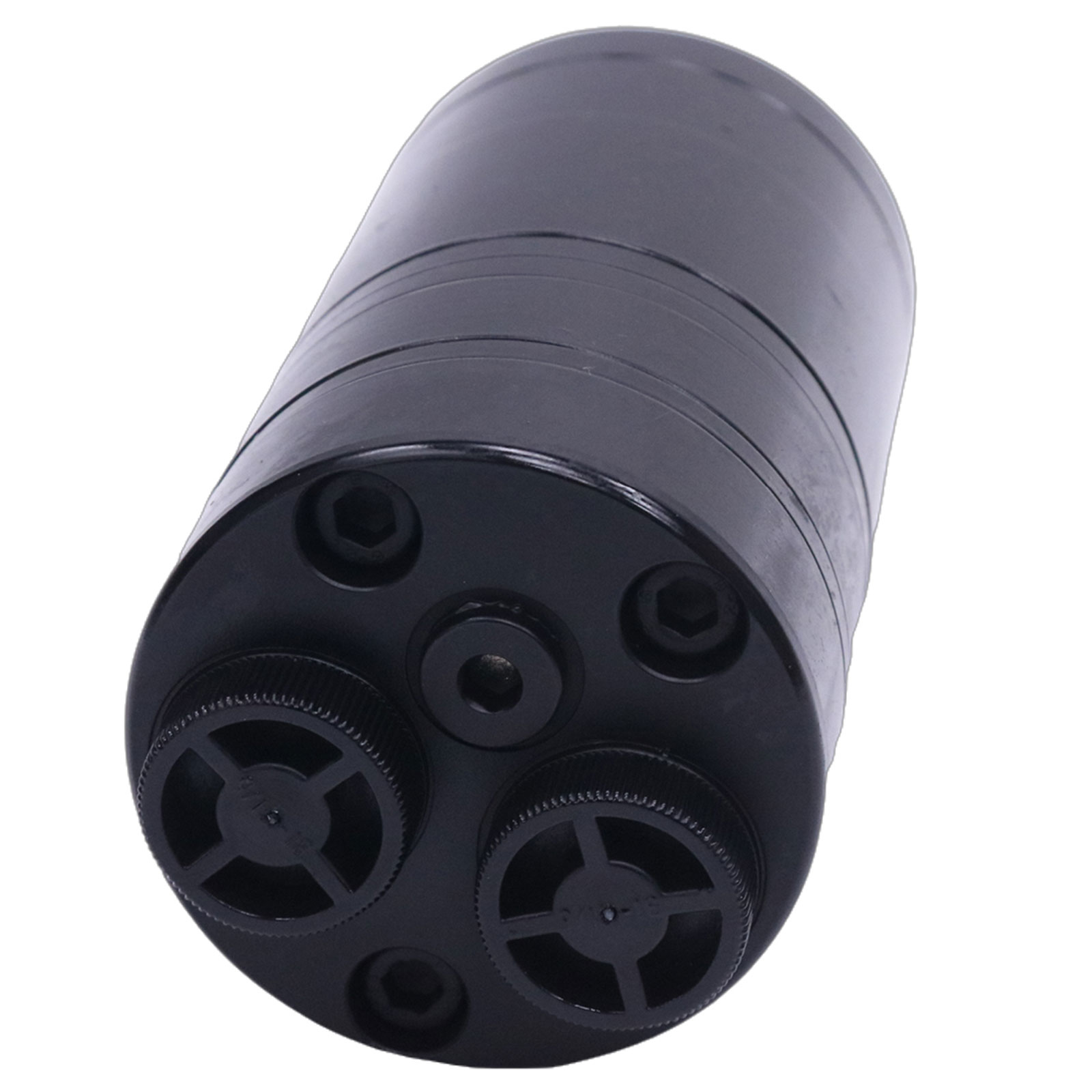

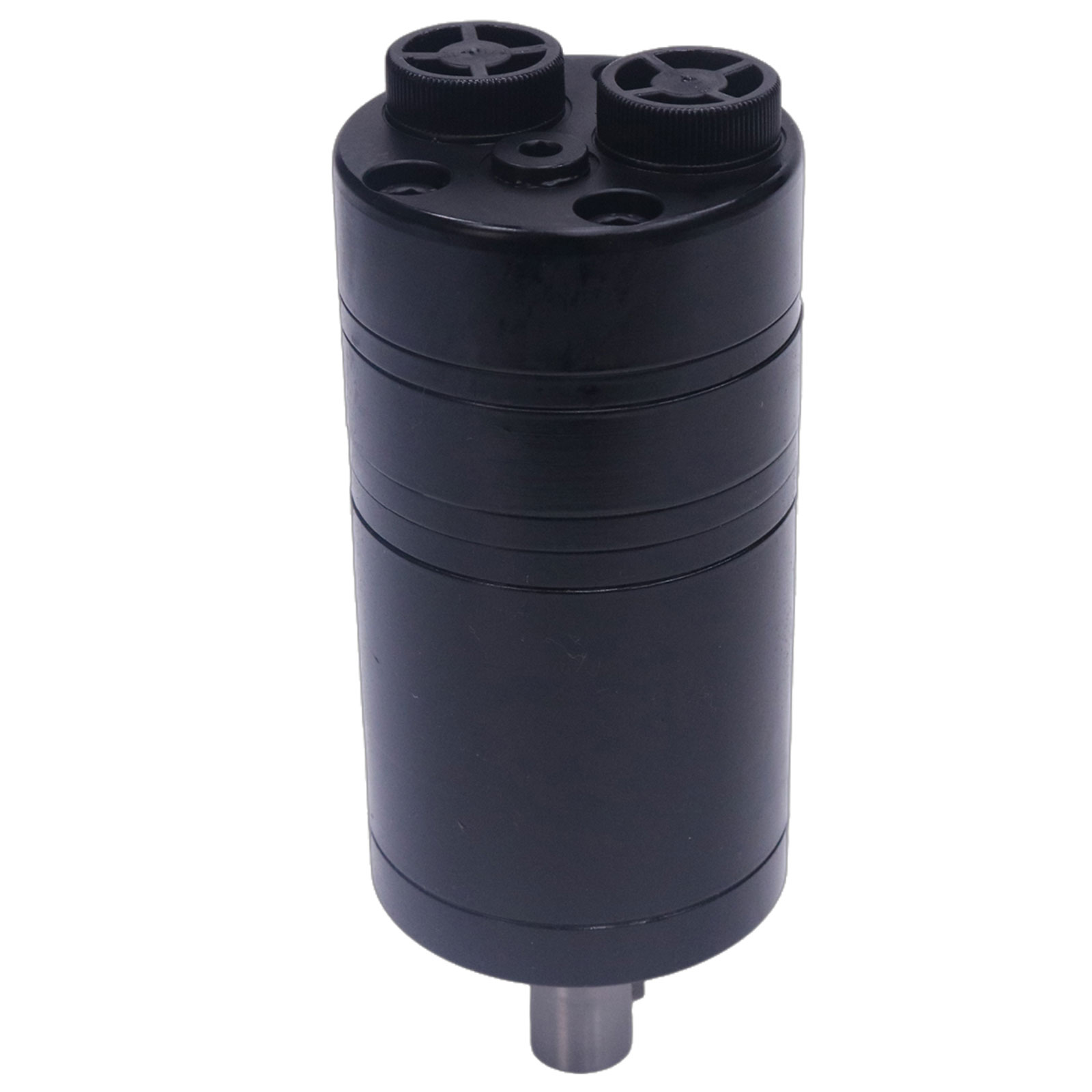

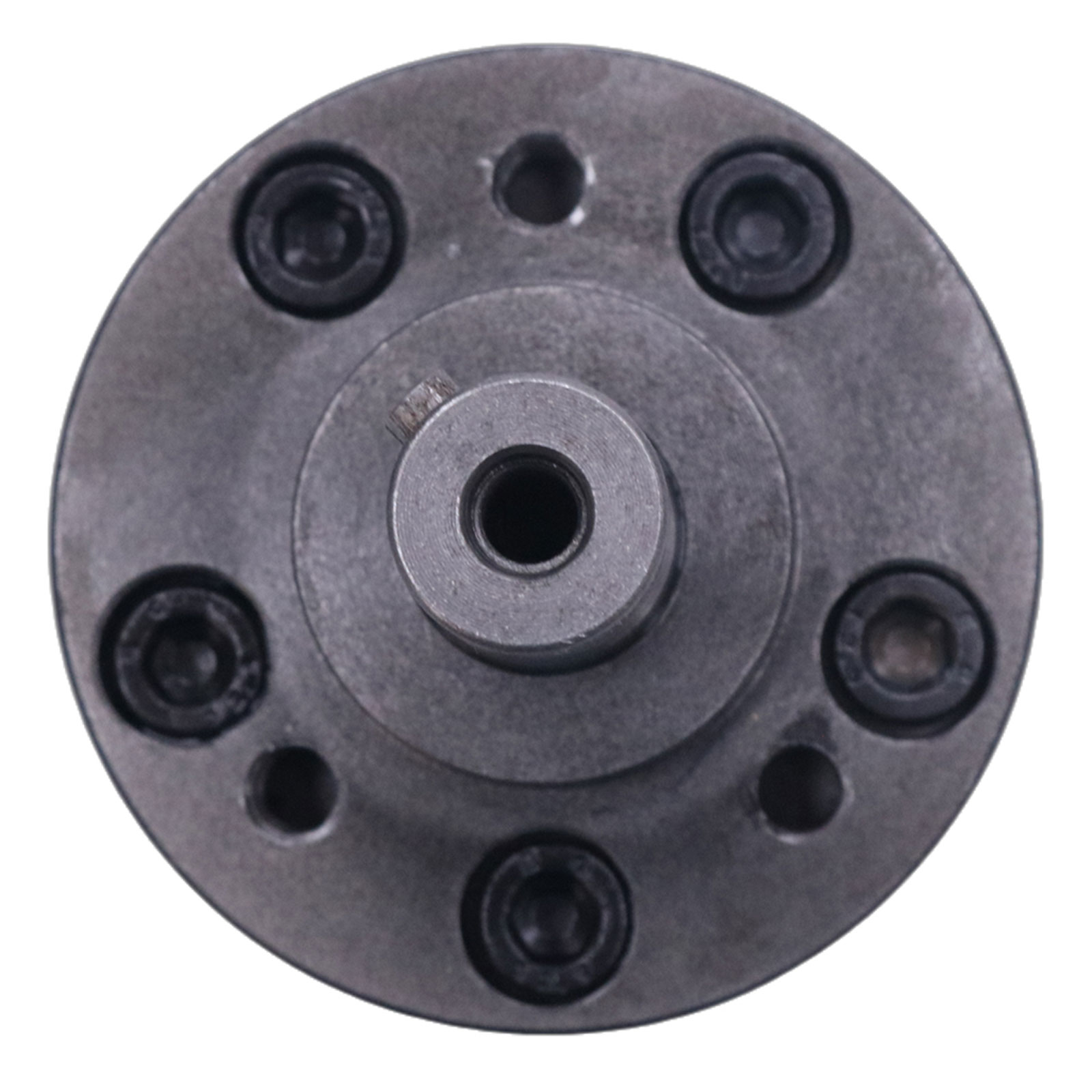

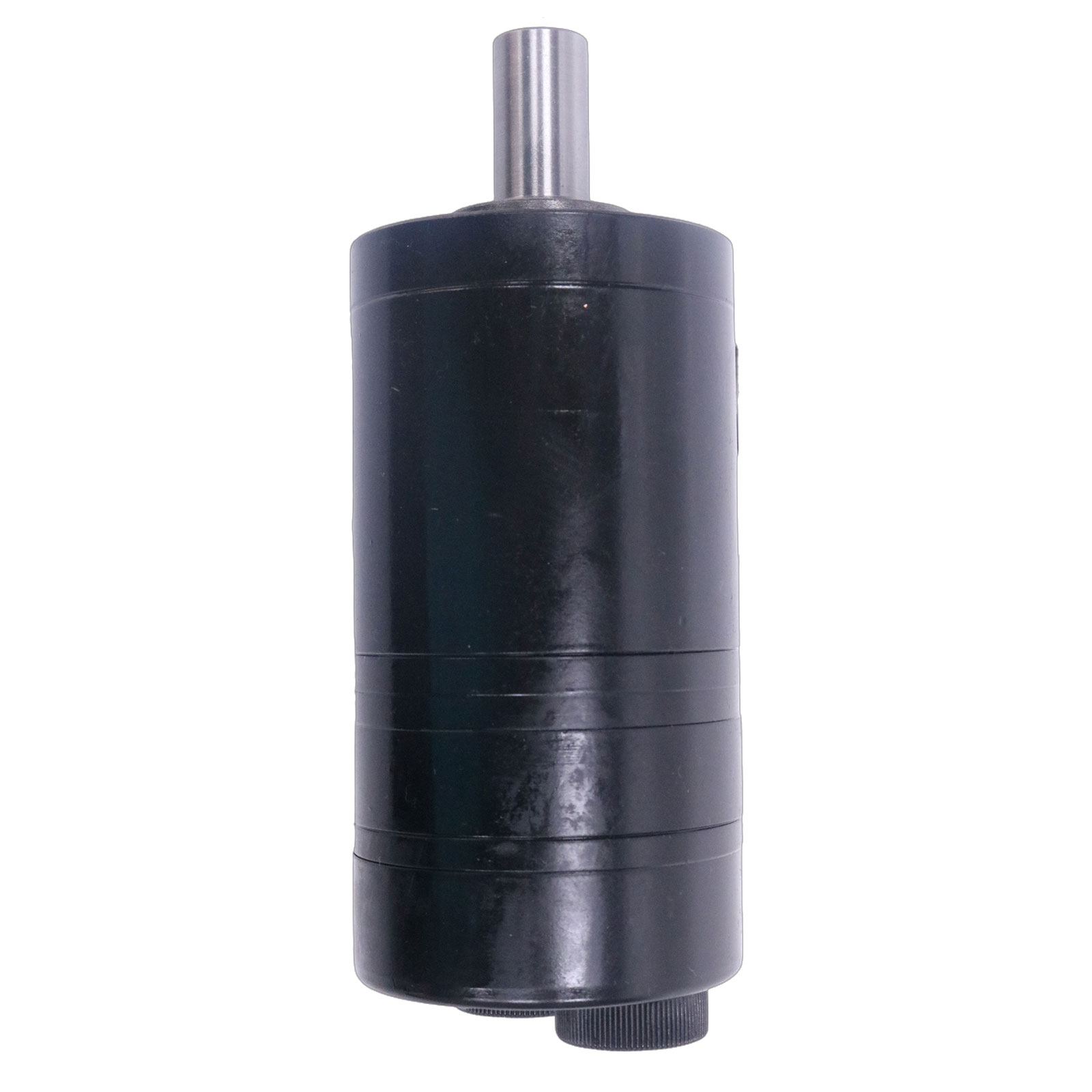

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMM32-151G0033 OMM32151G0033, 151G0033
Specification:
Type: OMM
Motor Size: 32
Geometric displacement: 31.6cm³/[1.93in]
Max speed cont: 630 rpm
Max speed int: 800 rpm
Max torque cont: 40Nm/[350lbf in]
Max torque int: 57Nm/[500lbf in]
Max output power cont: 2.4kW/[3.2hp]
Max output power int: 3.2kW/[4.3hp]
Max pressure drop cont: 100bar/[1450psi]
Max pressure drop int: 140bar/[2030psi]
Max pressure drop peak: 160bar[2320psi]
Max oil flow cont: 20L/min
Max oil flow int: 25L/min
Max starting pressure with unloaded shaft: 4bar/[60psi]
Min starting torque at max press drop cont: 34Nm/[300lbf in]
Min starting torque at max press drop int: 48Nm/[425lbf in]
Max inlet pressure cont: 140bar/[3050psi]
Max inlet pressure int: 175bar/[3630psi]
Max inlet pressure peak: 225bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 225bar/[3050psi]
