Details

Slots & Sponge: All tools are fitted into suitable slots in the box with a sponge on the lid to prevent them from falling off or being knocked around during transportation.

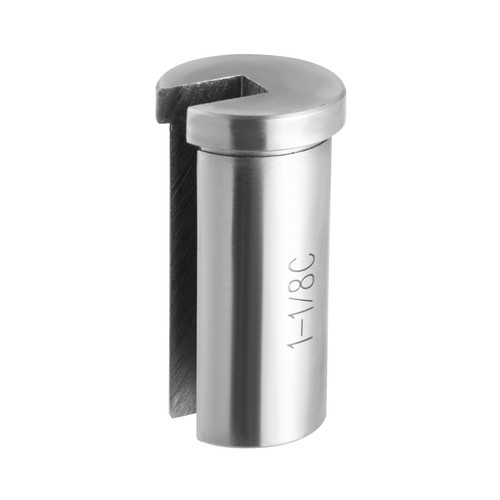

Clear Labeling: The model number labeling on collared bushings helps you to search and use them quickly.

Plastic Box: The broach is housed in a suitable plastic box to prevent damage or injury to your hands during handling.

Application

It is suitable for special broaching machines to produce keyways on steel and iron workpieces.

Specification

Material: High-Speed Steel, Wood

Process: Grinding

Case Size: 35*20*8 cm/13.78*7.87*3.15 in

Numbers of Items: 18

Package Size: 36*19*7 cm/14.17*7.48*2.76 in

Gross Weight: 3.5 kg/7.72 lbs

Specification of Broach 1/8" B

Broach Dimensions: 3/16"x6-3/4"

Length of Cut Min: 19/64"

Length of Cut Max: 1-11/16"

Specification of Broach 3/16" B

Broach Dimensions: 3/16"x6-3/4

Length of Cut Min: 19/64"

Length of Cut Max: 1-11/16"

Specification of Broach 1/4" C

Broach Dimensions: 3/8"x11-3/4"

Length of Cut Min: 25/64"

Length of Cut Max: 2-1/2"

Specification of Broach 3/8" C

Broach Dimensions: 3/8"x11-3/4"

Length of Cut Min: 25/64"

Length of Cut Max: 2-1/2"

Package Included

4* Broaches

9 *Collared Bushings

5 * Shims

1 * Wooden Case

Notes

• Please do not place the case upside down.
• This product is suitable for specialized equipment, please check whether the product size is what you need before purchasing.
• Before using broaches, one should check whether the cutters are sharp, the existence of edge or damage, the row of cutting grooves with or without hurt, and dirt.
• After using a broach, the tool needs to be sharpened in a timely manner to keep the tool sharp. You should avoid overuse of broaches that may cause the blade to wear down to the point of irreparable damage.
