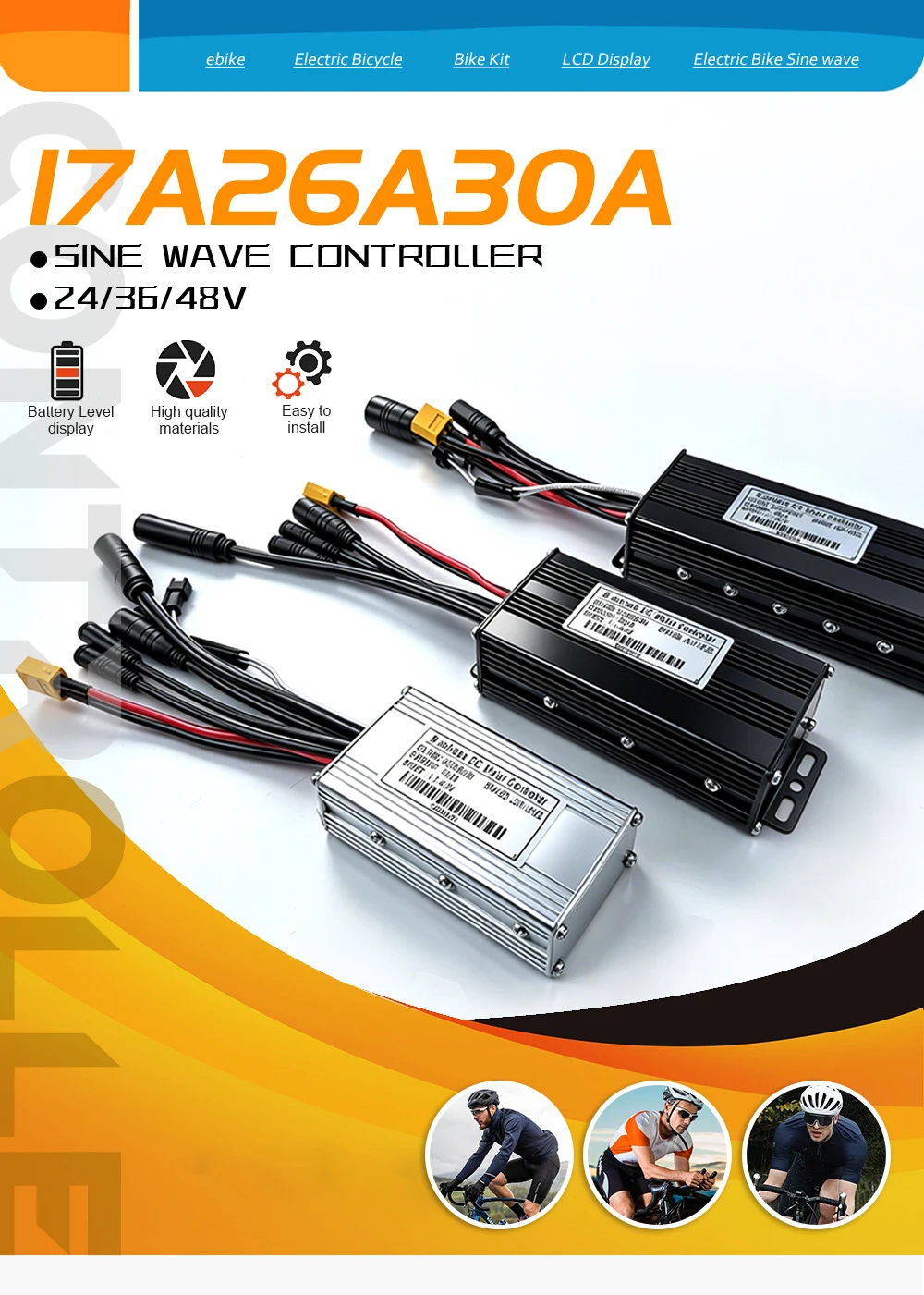

3Mo Waterproof Controller Functions:
1. Sine wave brushless waterproof controller, with lower and more stable noise during cycling.
2. The controller comes with a XT60 battery waterproof plug, which is compatible with XT60 battery plugs.
3. The controller can adjust the phase angle and forward/reverse motor function, and can work with or without Hall effect.
4. The complete set of electric bicycles can be used by simply connecting them.However, it should be noted that the motor wires of 30A1000W are different from those of other controllers.Please check if your bicycle motor can be used properly before purchasing.

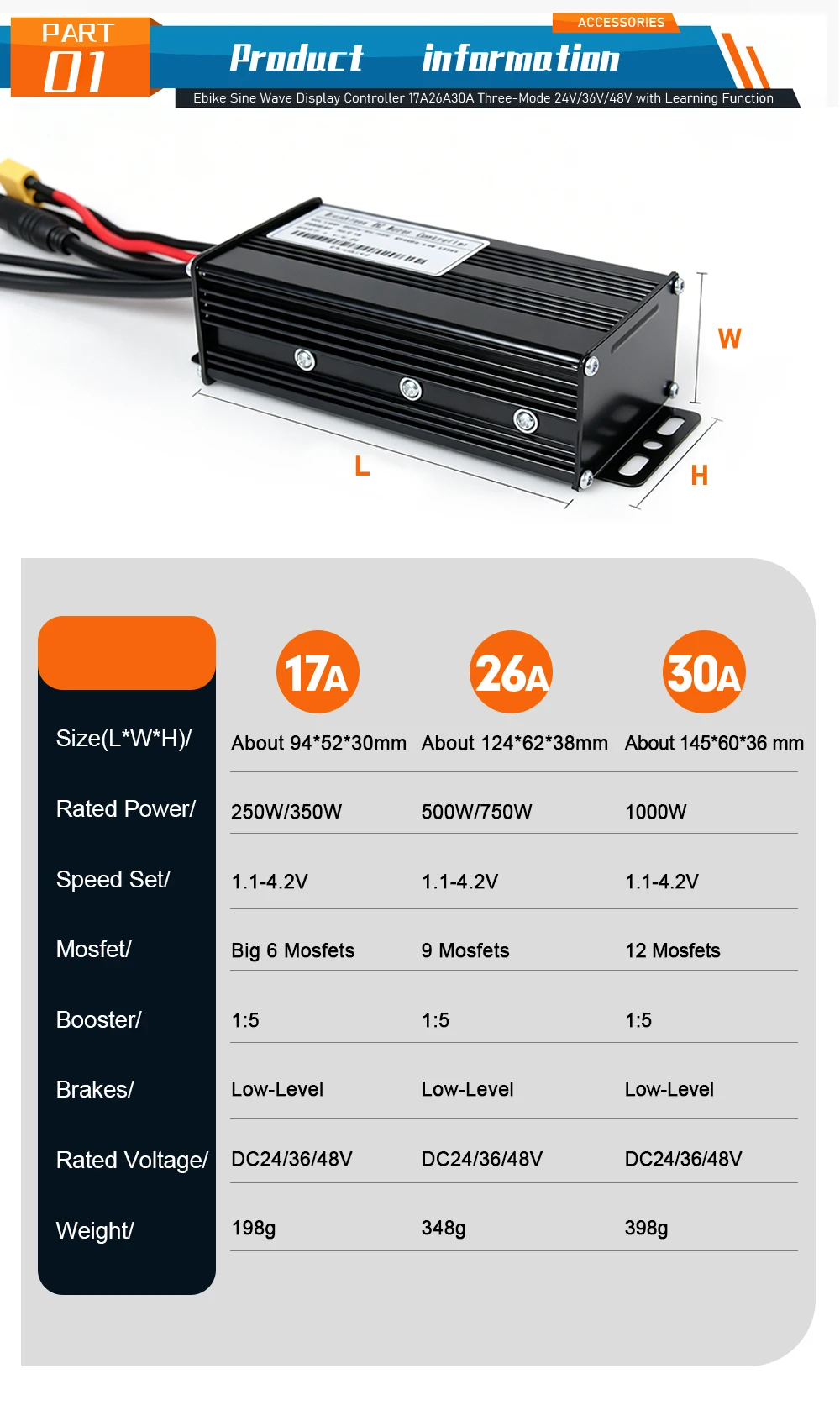

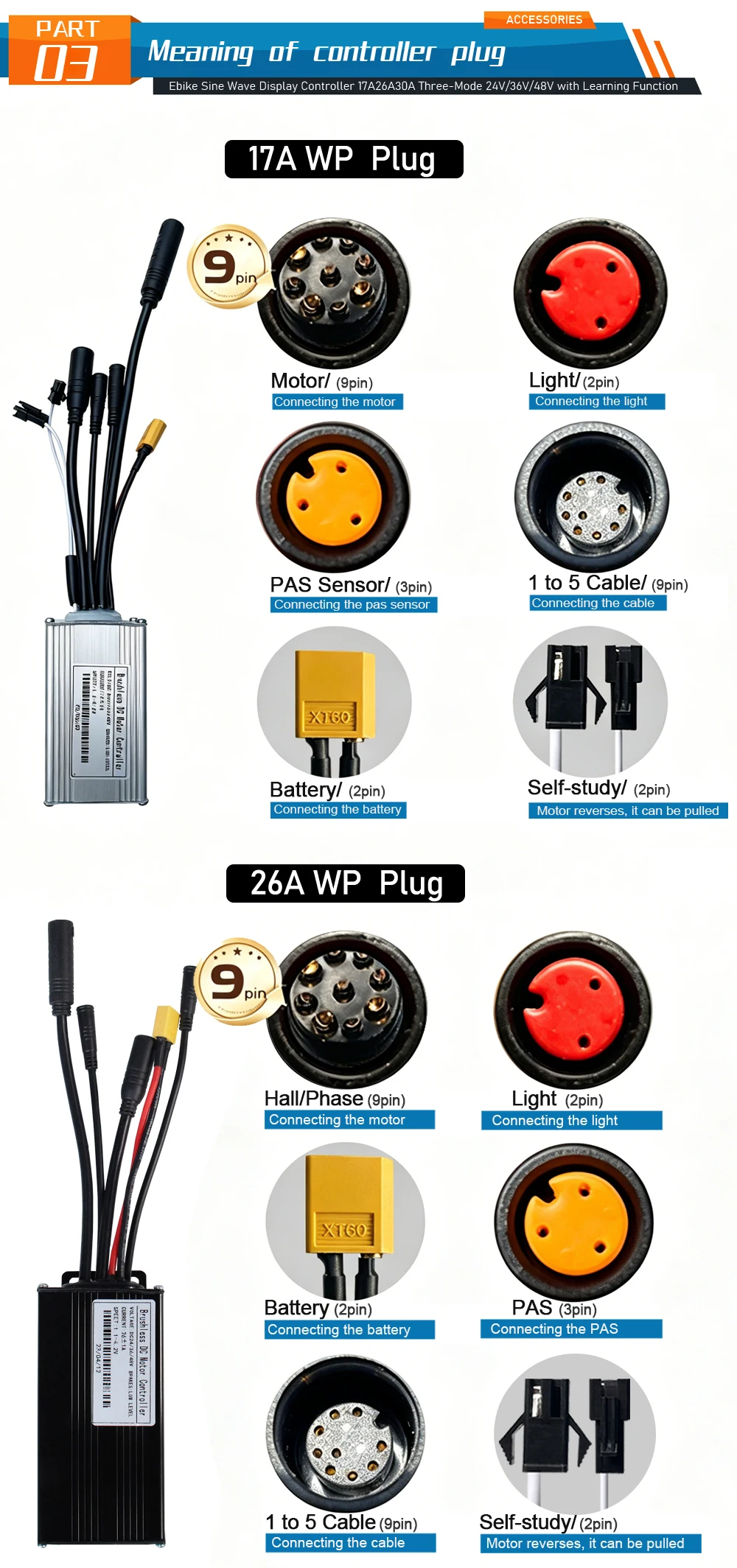

Type:17A Sine Wave Controller ：
●Size(L*W*H):About 97*30*52mm
●Rated Power:350W
●Speed Set:1.1-4.2V
●Mosfet:Big 6 Mosfets
●Booster:1:5
●Brakes:Low-Level
●Rated Voltage:DC24V/36V/48V
●Compatible with motors with or without Hall
●With motor forward and reverse learning function
Type:26A Sine Wave Controller：
●Size(L*W*H):About 150*40*65mm
●Rated Power:500W/750W
●Speed Set:1.1-4.2V
●Mosfet:Big 9 Mosfets
●Booster:1:5
●Brakes:Low-Level
●Rated Voltage:DC24V/36V/48V
●Compatible with motors with or without Hall
●With motor forward and reverse learning function

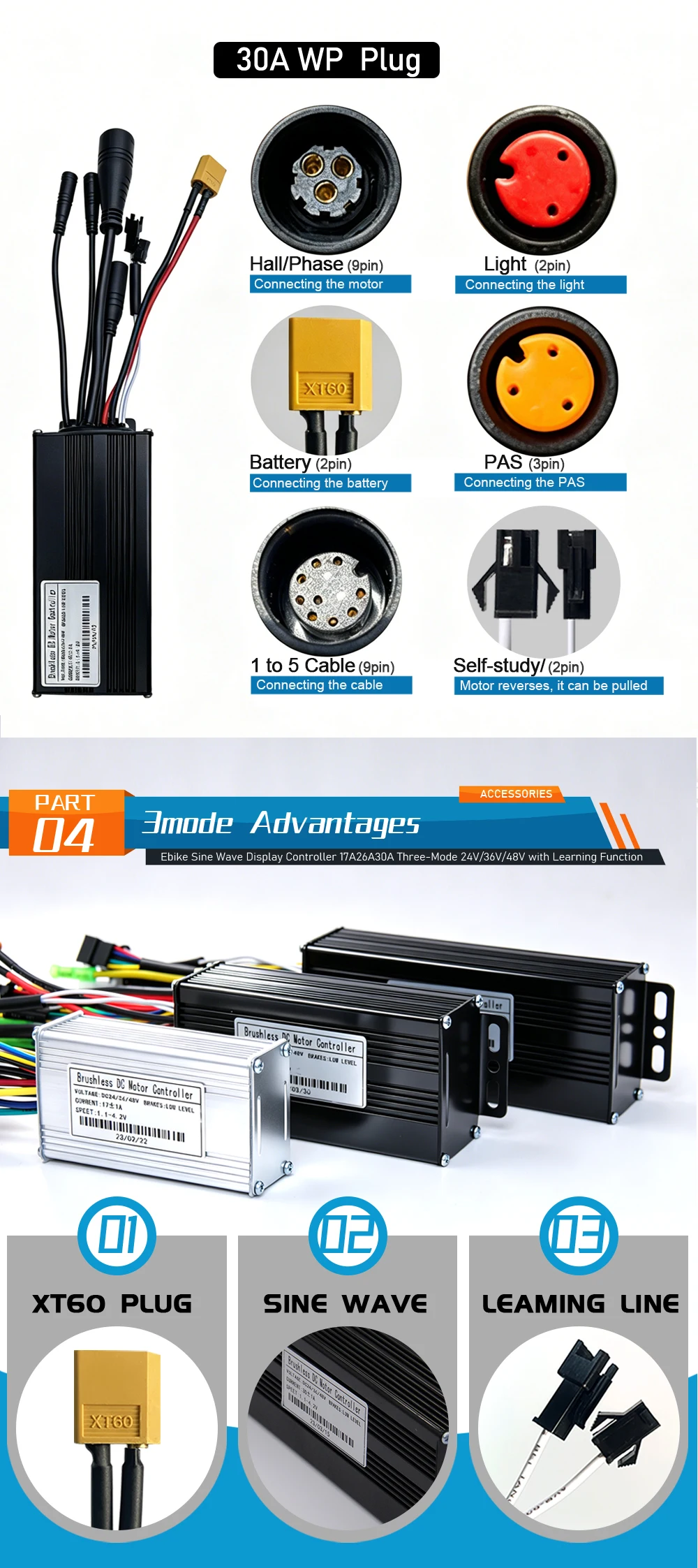

Type:30A Sine Wave Controller：
●Size(L*W*H):175*40*65mm
●Rated Power:1000W
●Speed Set:1.1-4.2V
●Mosfet:12 Mosfet
●Booster:1:5
●Brakes:Low-Level
●Rated Voltage:DC24V/36V/48V
●Compatible with motors with or without Hall
●With motor forward and reverse learning function

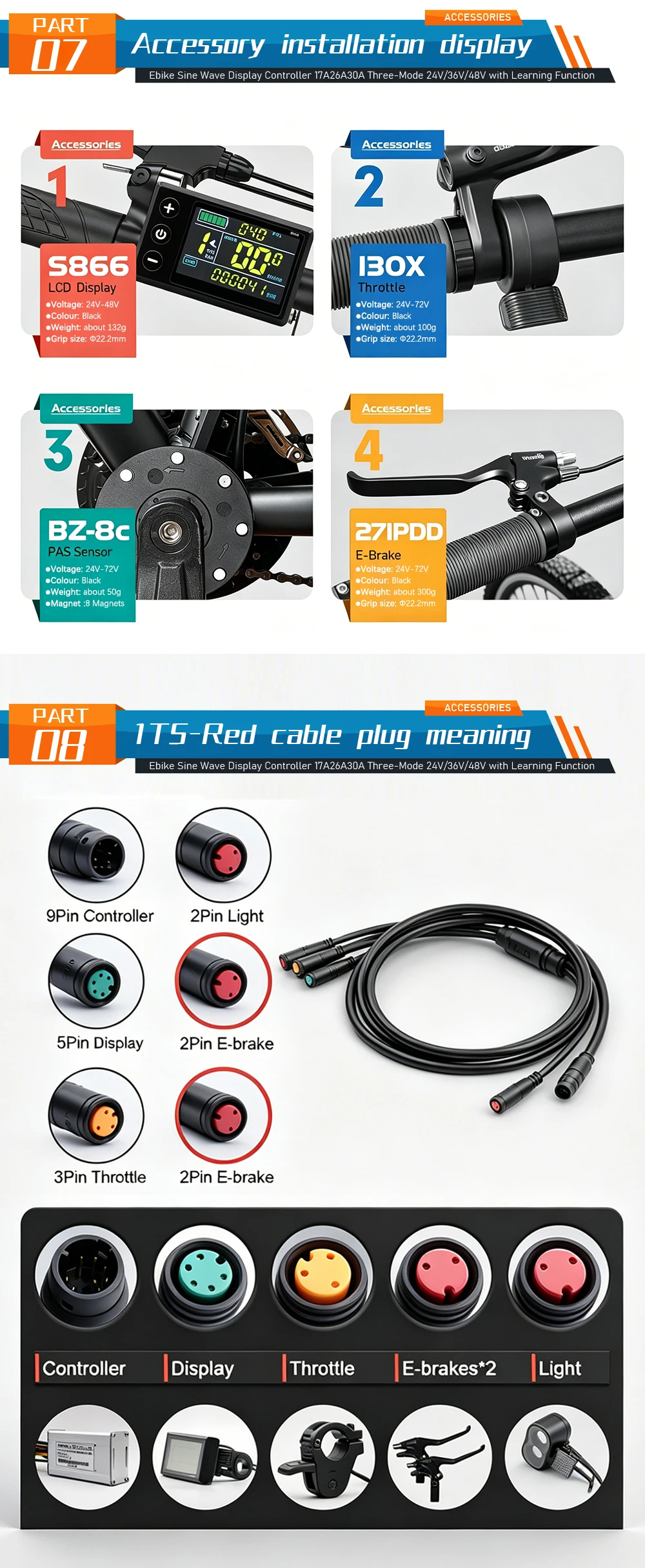

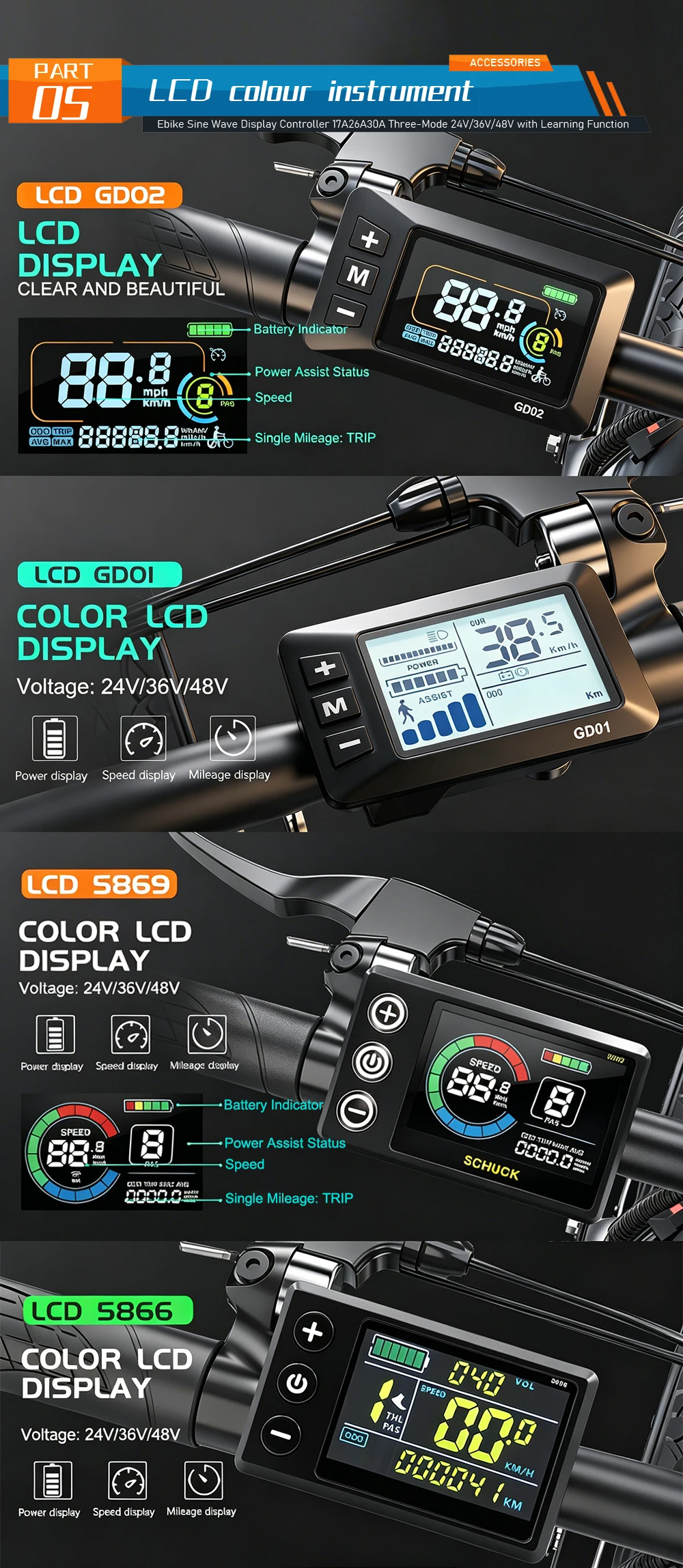

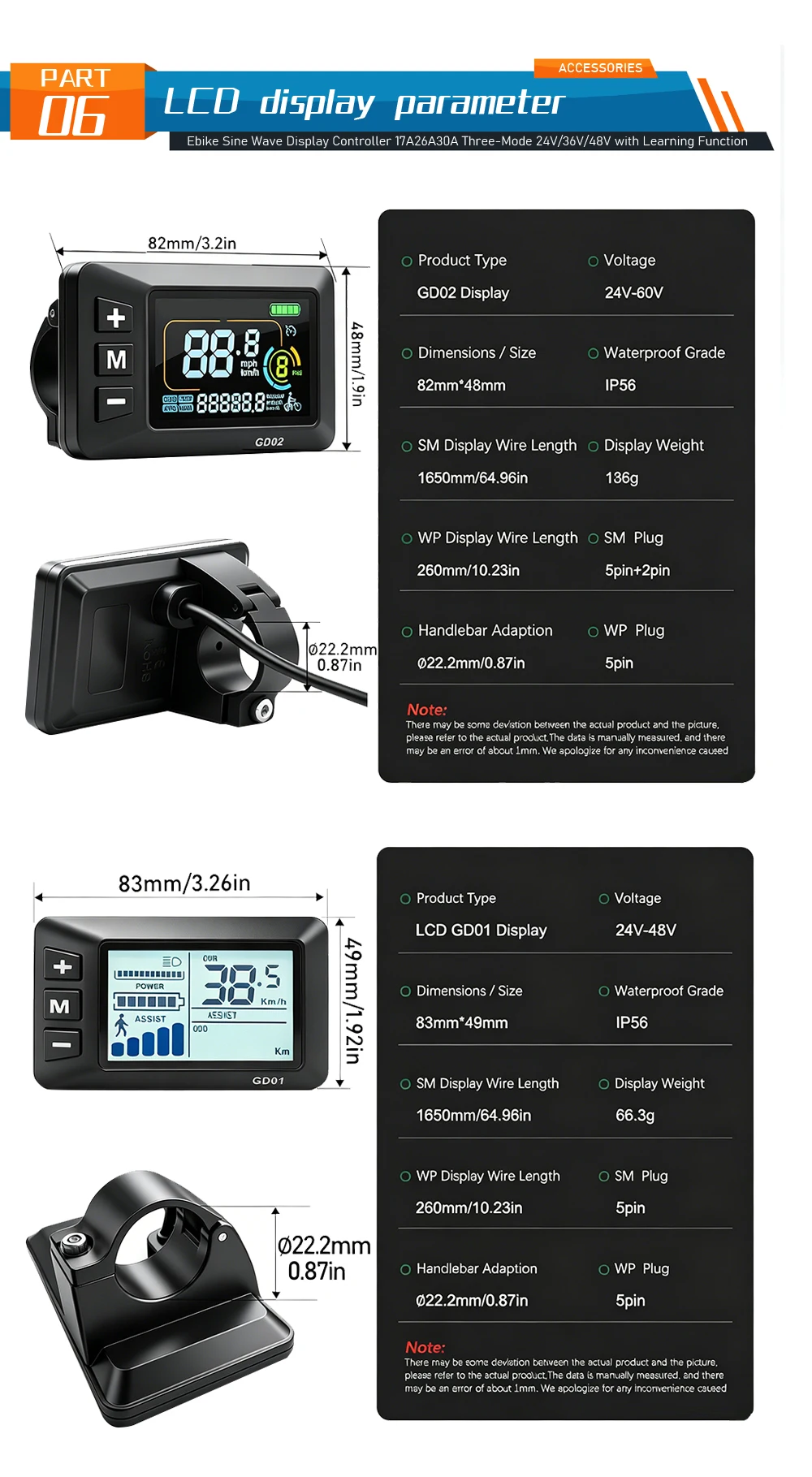

LCD Display Parameter：
●Type : LCD Display
●Voltage : 24V 36V 48V 52V
●Plug : 5Pin male Waterproof Plug
●Holder Diameter :φ22mm
●Cable Length: 20cm
