3Z Telecom RF Aligner RFA-1000 GPS Antenna Alignment Tool

This product data sheet is originally written in English.

Quality Assurance

State & Local Government Ordering

Full Warranty & Support

When purchasing from AAATesters you will be eligible for Future Discounts

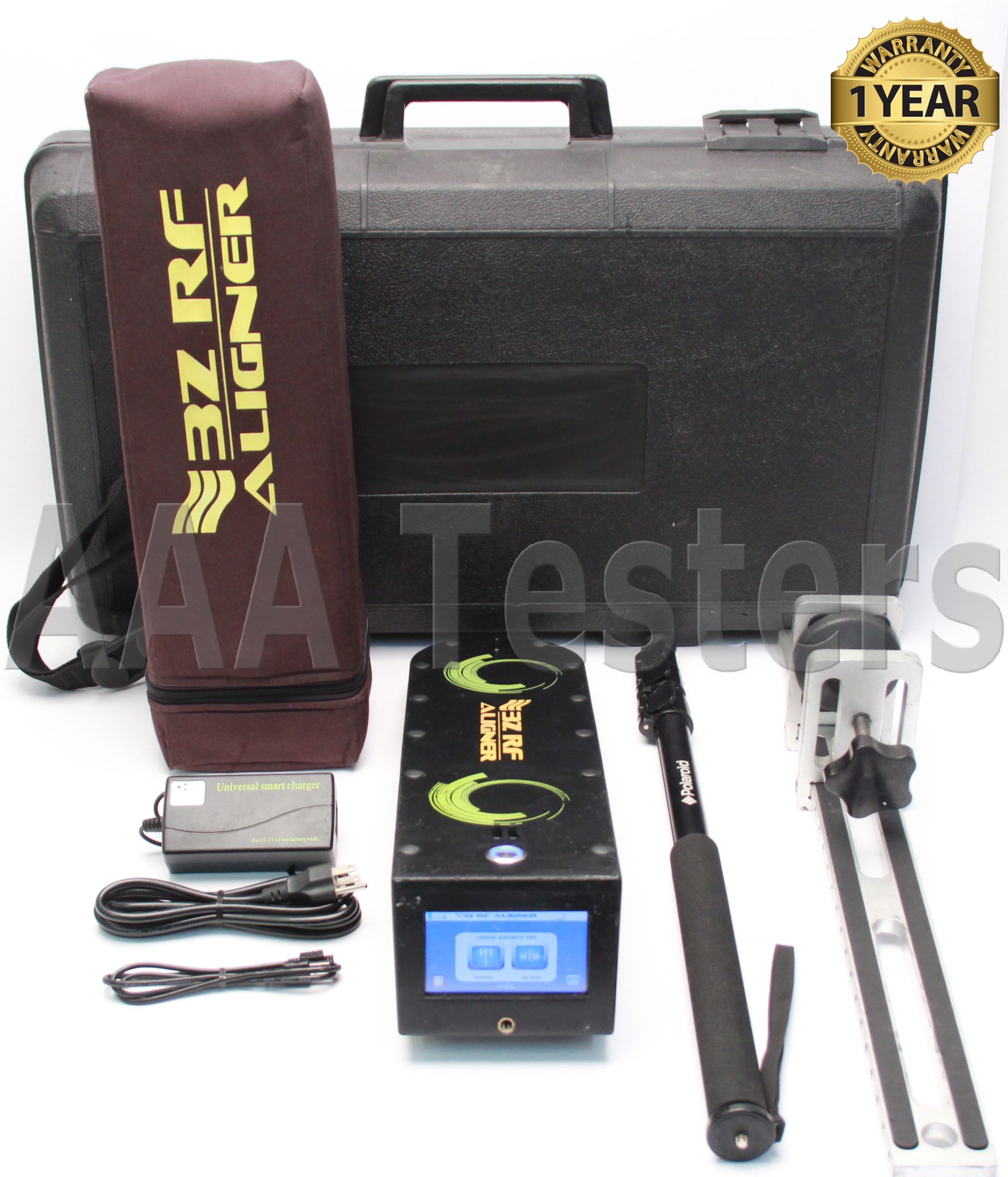

The Following Items Are Included:

3Z Telecom RFA-1000 Antenna Alignment Tool (BC# 43456-L/T*)
3Z Monopod
3Z RF Aligner Unit Bracket Assembly
AC Adapter/Charger
Power Cord
USB PC Interface Cable
Case For Aligner
Hard Carrying Case

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

3Z Telecom RFA-1000 Antenna Alignment Tool

Incorporates GPS technology to calculate precise Azimuth, Tilt, Roll and AGL measurements for a multitude of directional antenna systems

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

jdsu jd723a cable and antenna analyzer specifications table

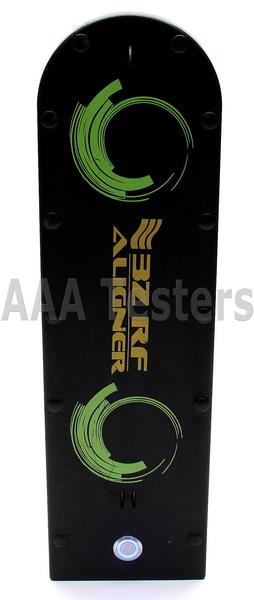

3Z Telecom RFA-1000 Antenna Alignment Tool

Install Antennas Right the First Time. No Go Backs!

The 3Z RF Aligner is the world's leader Antenna Alignment Tool for both panel antennas and microwave systems. The 3Z RF Aligner reduces site re-visits and re-climbs by optimizing network performance.

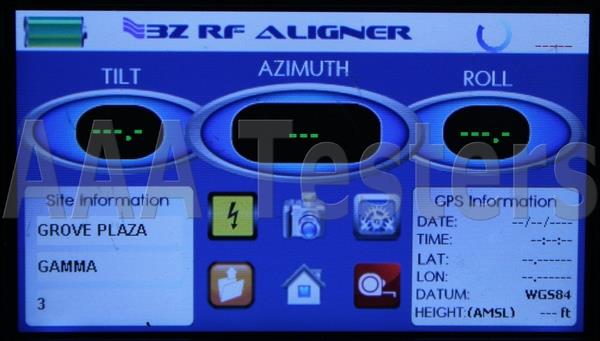

The 3Z RF Aligner is the most compact GPS Antenna Alignment Tool in the industry. It incorporates GPS technology to calculate precise Azimuth, Tilt, Roll and AGL measurements for a multitude of directional antenna systems. Our universal antenna mounting system is used for quick antenna attachment and release. The 3Z RF Aligner is user friendly and easy to transport up any tower. Save all your antenna installation measurements for recordkeeping and reporting; easily accessible over USB.

Tower Crew

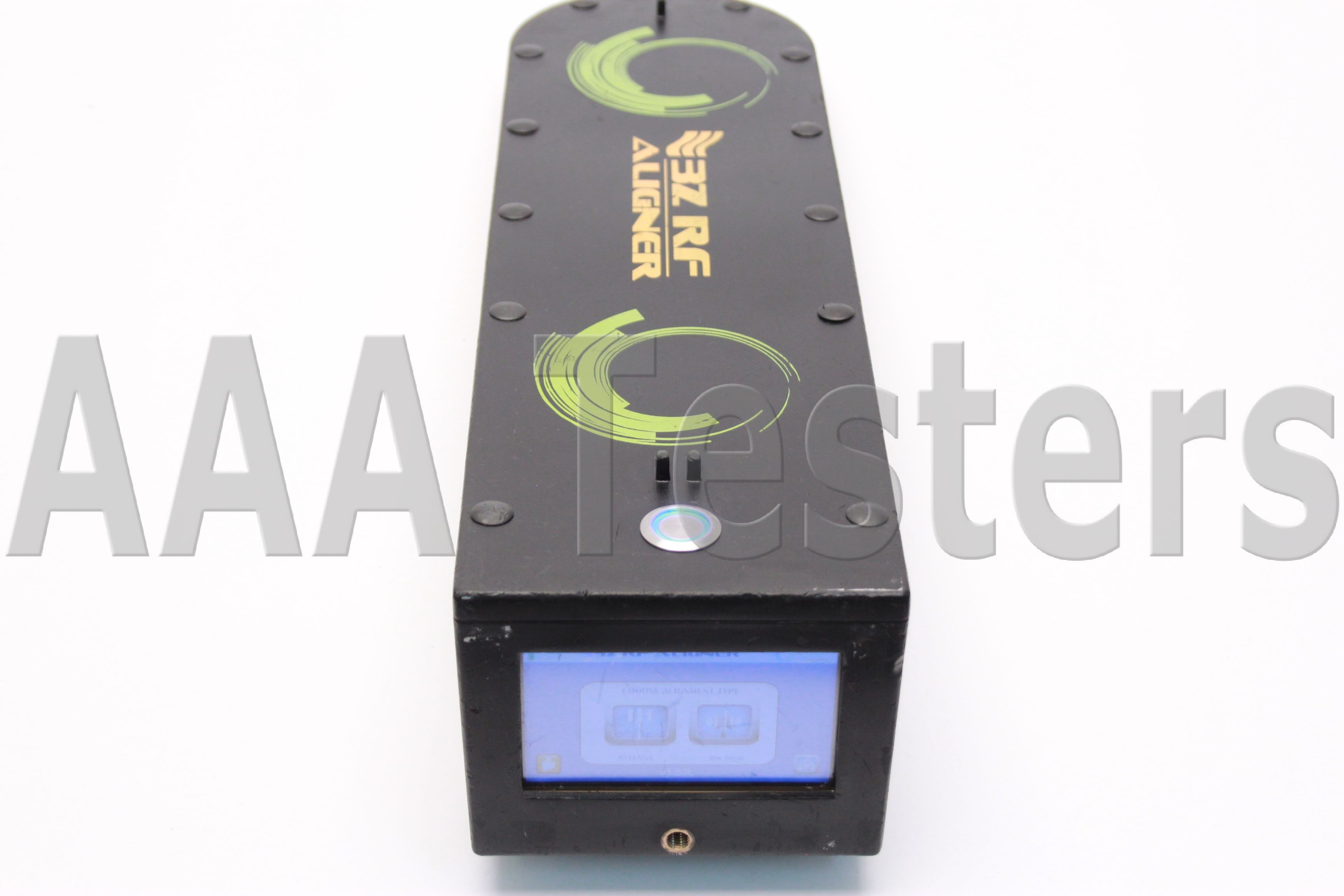

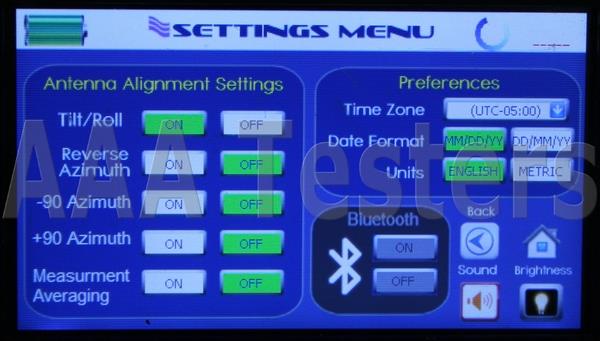

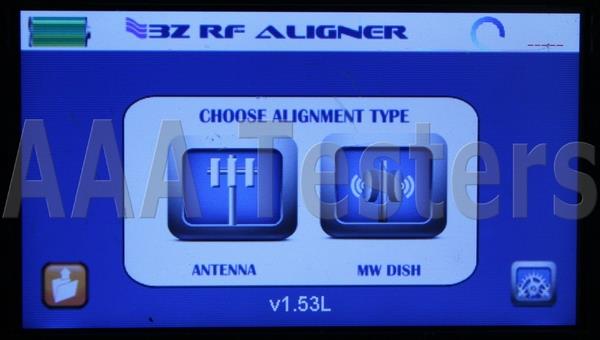

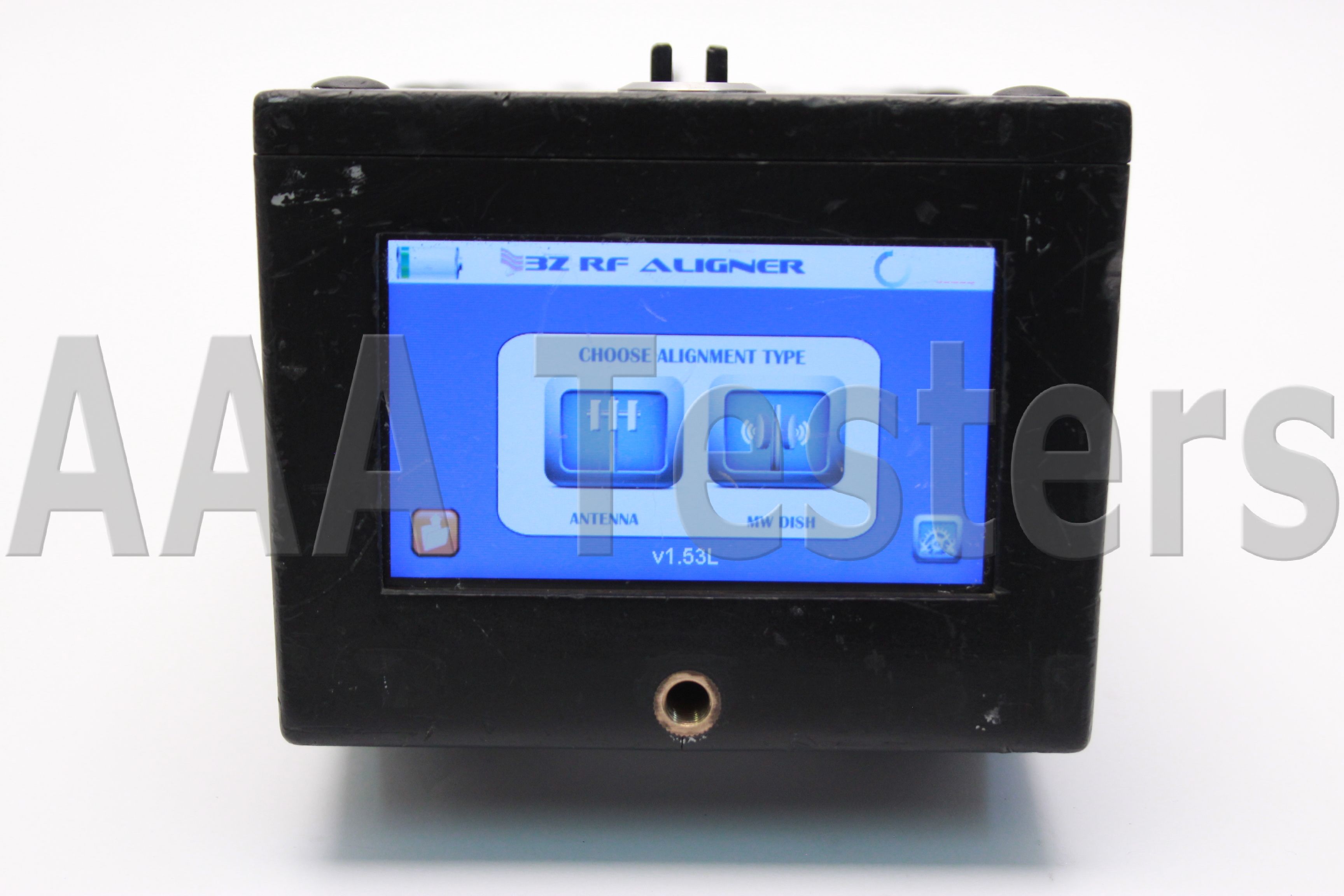

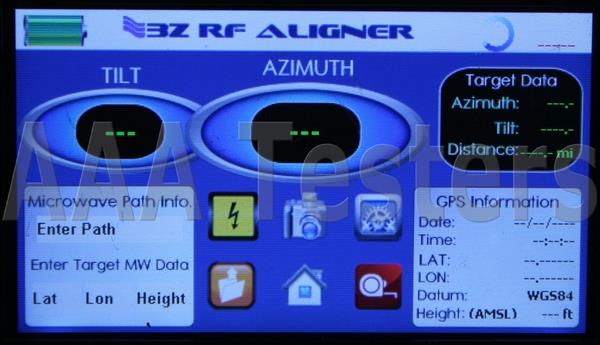

Designed with the tower technician in mind, the 3Z RF Aligner easily attaches to virtually any directional antenna and comes with an easy to read 4.3" built-in color LCD Display. Screenshots save measurements in seconds.

Specifications:

Dimensions
Length:	18.75" (47.6 cms)
Width:	5.375: (13.6 cms)
Height:	4.5" (11.43 cms)
Weight:	3.675 lbs (1.66 kg)
Accuracy
Heading:	<0.75° RMS
Tilt/Roll:	<0.5° RMS
Position:	<1m RMS
Altitude/Height:	<2m RMS
LCD Display
Interface:	Touch
Visibility:	Backlighting
Type:	TFT WQVGA
Size:	4.3"
Battery
Internal Battery:	Lithium-Ion
Operation Time:	11 Hours
Communications:	Type: Mini-USB
Memory:	Internal, 4GB
Environmental
Operating Temp:	-4 to 140°F (-20 to 60°C)
Storage Temp:	40 to 185°F (-40 to 85°C)
Humidity:	95% Non-condensing
Vibration:	IEC60945
EMC:	FCC Part 15, Subpart B, CISPR22, CE
