UE Systems Ultraprobe 10,000 MPH Ultrasonic Leak Detector
Select any of 6 applications Generic, Leaks, Valves, Bearings, Electrical or Steam and the Ultraprobe 10,000 automatically sets relevant fields for your data logging convenience
In addition to on-board data logging, the Ultraprobe 10,000 accepts and stores data from external devices such as thermometers and tachometers

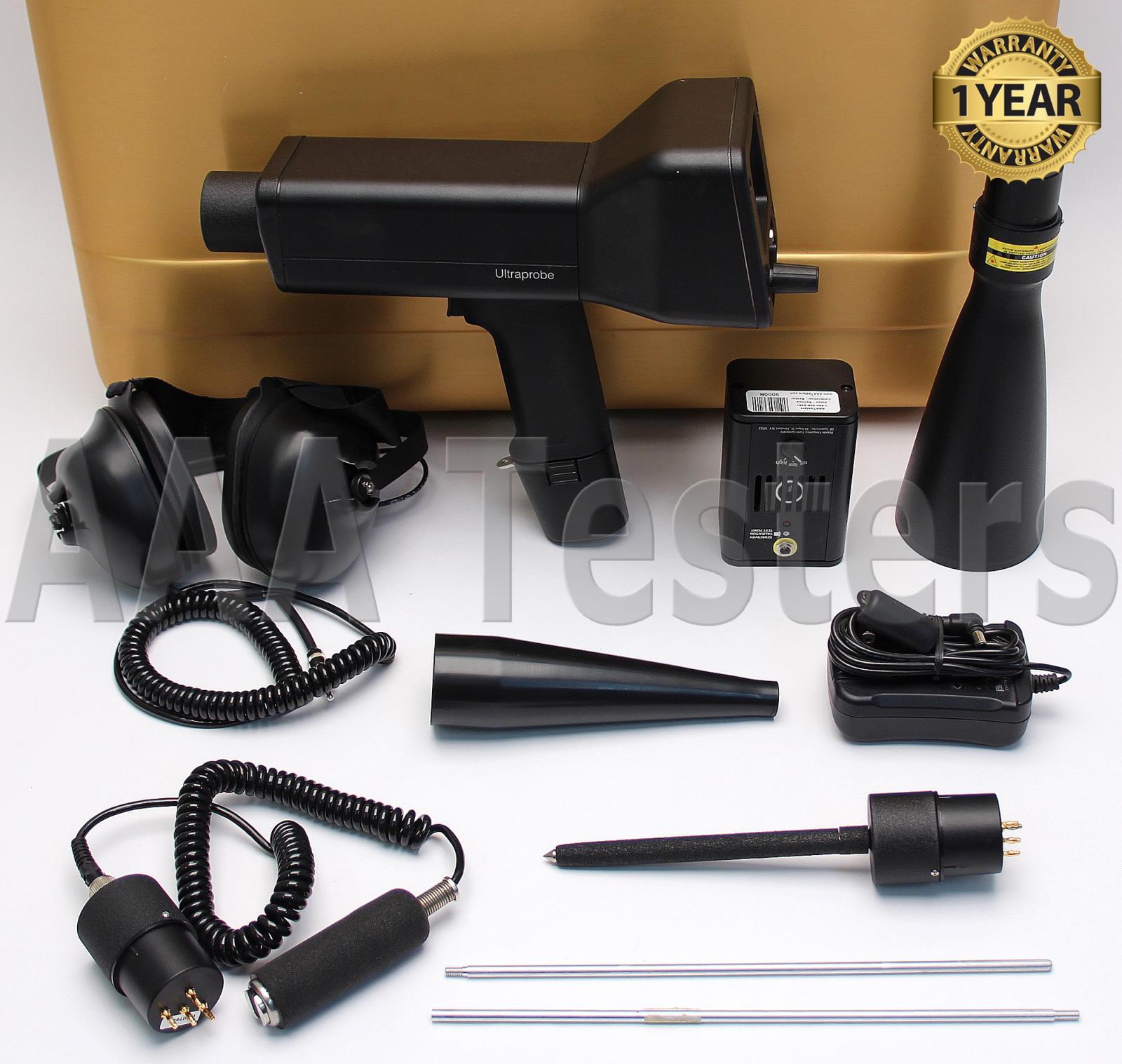

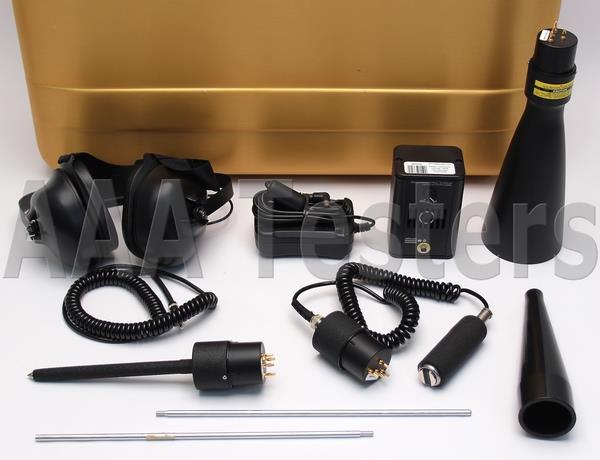

Includes Hard Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Calibrated
Warranty: 1 YEAR WARRANTY

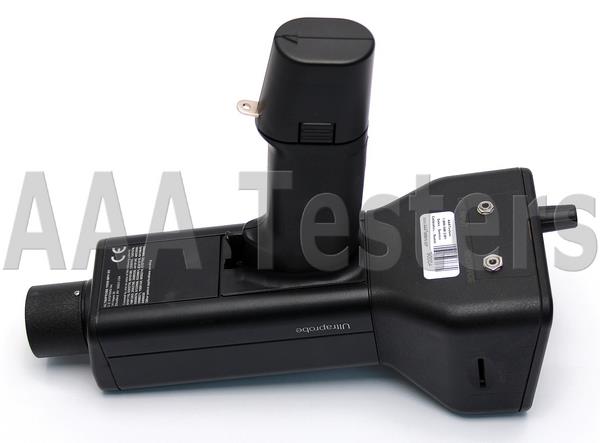

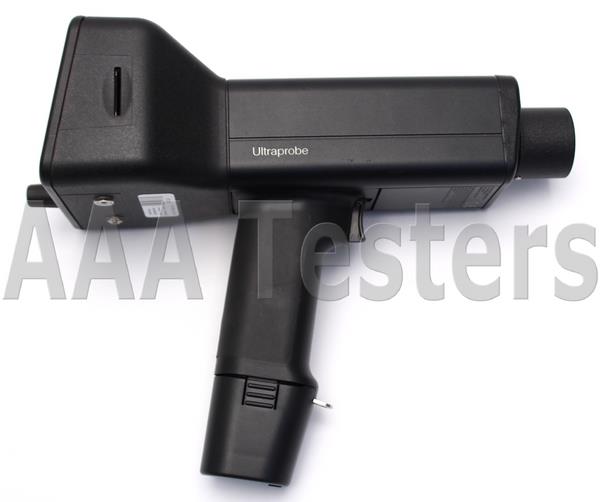

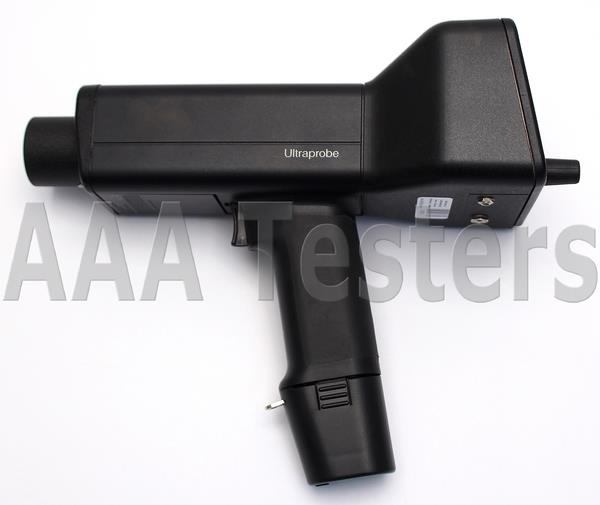

UE Systems Ultraprobe 10000 Ultrasonic Detection System
The Ultraprobe 10,000 is the world's most advanced ultrasonic inspection system! This innovative instrument is jam-packed with so many features it will make your inspections efficient and easy! From the very instant you hold the Ultraprobe 10,000 in your hand, you'll be convinced that this is a truly remarkable feat of engineering. Feel the well-balanced pistol grip, the elegance of simplicity and the clarity of signal. The "10,000" is ready to unleash the potential of any inspection program for you. The Ultraprobe 10,000 enables you to:
- Record and Analyze Sound Samples
- Perform Condition Analysis
- Store Test Data
- Trend Results
- Review Inspection Results
- Manage your Test Data...
ALL WITH JUST ONE INSTRUMENT! And that's just the tip of the iceberg
The Ultraprobe 10,000 features on-board Sound Recording with a push of a button. You'll record a sound sample directly into the instrument and link it to one of 400 record files stored in the Ultraprobe!
The Ultraprobe simplifies sound recording with user-friendly Spin and Click technology using just two controls. Test the way you want with:
- Specialized Application Screens
- Adjustable On/Off Features
- Connection to External Devices
- Flexible Reporting Options
What do you want to test?
Whatever it may be the Ultraprobe 10,000 has application-specfic software for you. With the click of a button, you can select an application with specialized fields for accurate reporting and analysis.
Select any of 6 applications
Generic, Leaks, Valves, Bearings, Electrical or Steam and the Ultraprobe 10,000 automatically sets relevant fields for your data logging convenience - all stored data is easily downloaded to the Ultratrend DMS Software.
Expand your inspections
In addition to on-board data logging, the Ultraprobe 10,000 accepts and stores data from external devices such as thermometers and tachometers.
Data Based Mechanical Inspection/Trending Applications:
- Bearing Conditions
- Rubbing Conditions
- Cavitation
- Gears/Gear Boxes
- Pumps/Motors
- Lack of Lubrication
Data Based Leak Detection/Energy Audits Applications:
- Compressed Air
- Compressed Gases (0², NO, etc.)
- Vacuum Leaks
- Seals and Gaskets
- Condenser Tubes
- Cockpit Windows
- Hatches
- Boilers
- Heat Exchangers
- Valves
- Steam Traps
Data Based Electrical Inspection Applications:
- Arcing
- Tracking
- Corona
- Switchgear
- Transformers
- Insulators
- Relays
- Bus Bars
Specifications:

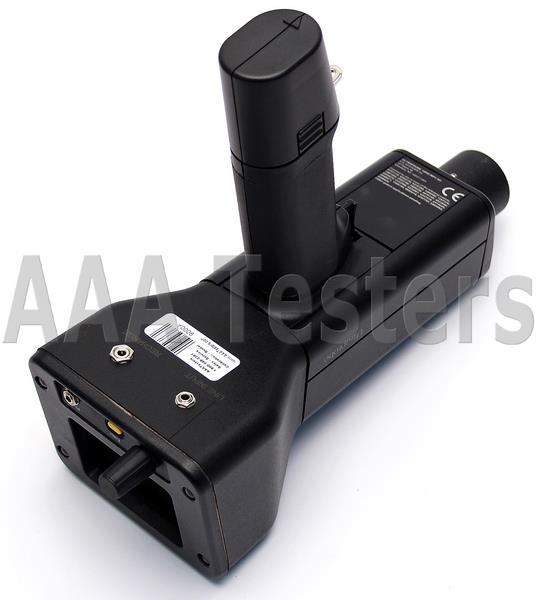

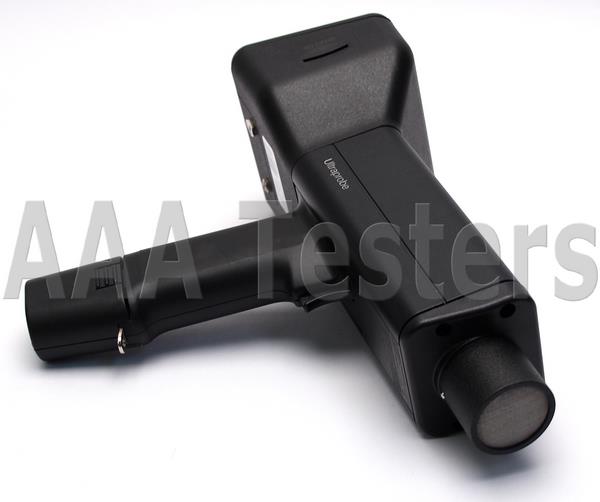

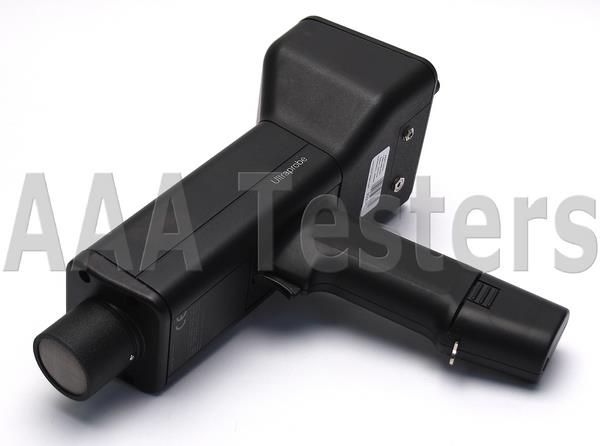

Construction:
|
Hand-held pistol type made with coated aluminum and ABS plastic
|
Circuitry:
|
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
|
Frequency Range:
|
20 kHz to 100 kHz (tunable in 1 kHz increments)
|
Response Time:
|
< 10 ms
|

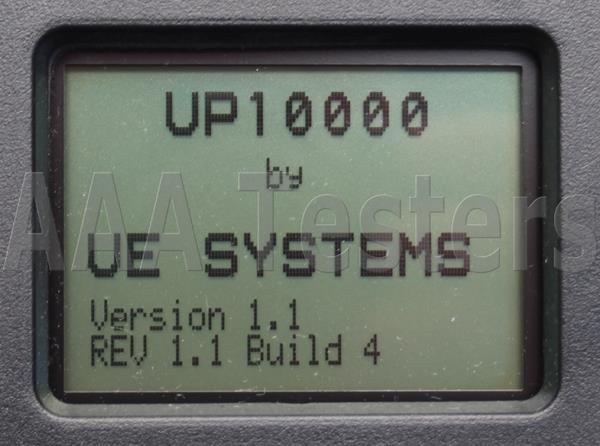

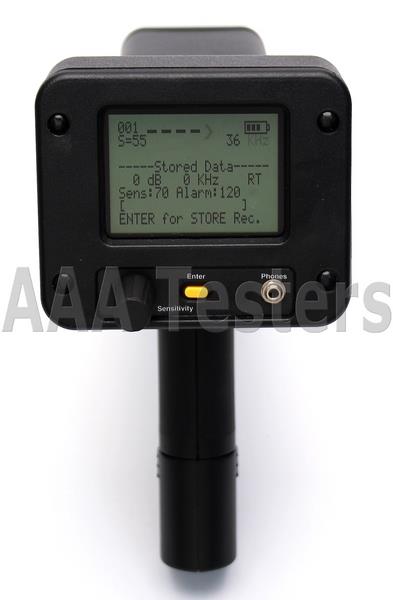

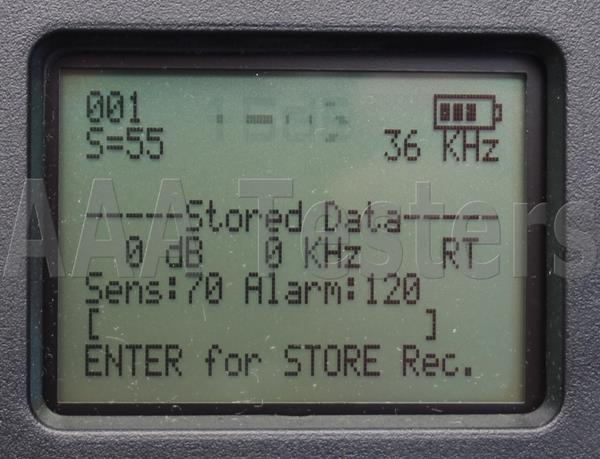

Display:
|
128 x 64 LCD with LED backlight
|
Memory:
|
400 storage locations
|
Battery:
|
Lithium ION Rechargeable
|
Operating Temperature:
|
32°F to 122°F (0°C to 50°C)
|
Outputs:
|
Calibrated hetrodyned output, decibel (dB) frequency,
|

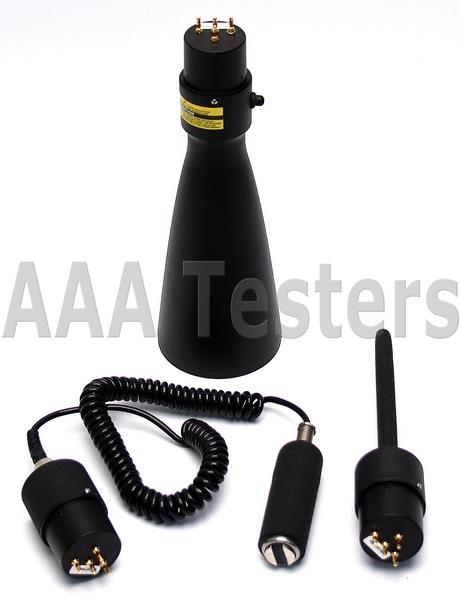

Probes:
|
Trisonic Scanning Module and Stethoscope Module, Long Range Module (Laser Sighting) and RAS-MT
|

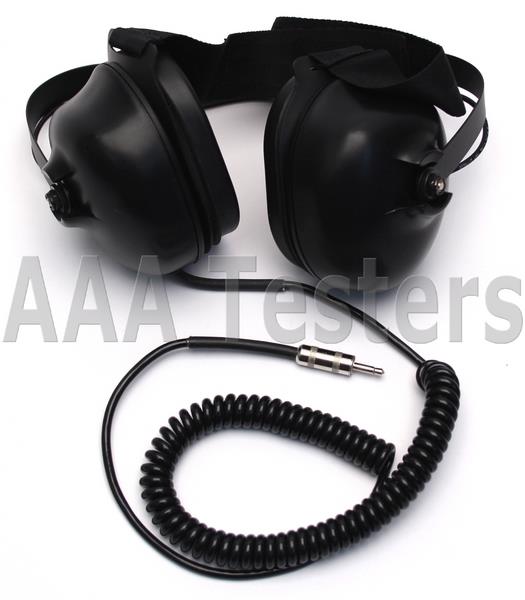

Headset:
|
Deluxe noise attenuating headphones - for hard hat use
|
Indicators:
|
dB, Frequency, Battery Status and 16 Segment Bar Graph
|
Sensitivity:
|
Detects .005" (.127 mm) diameter leak @ 5 PSI (.34 bar) at a distance of 50 ft. (15.24 m)
|
| Dimensions: |
Complete kit in Zero Halliburton aluminum carrying case 21.5" x 18.5" x 8" (55 x 47 x 20 cm)
|
Weight:
|
Pistol Unit: 2.35 lbs. (1.1 kg)
Complete Carrying case: 19 lbs. (8.6 kg)
|
Display Modes:
|
Real Time, Snap Shot, peak Hold, Storage Display and Application Specific
|
For full UE Systems Ultraprobe 10000 product specifications, please click here: UE Systems Ultraprobe 10000
|
