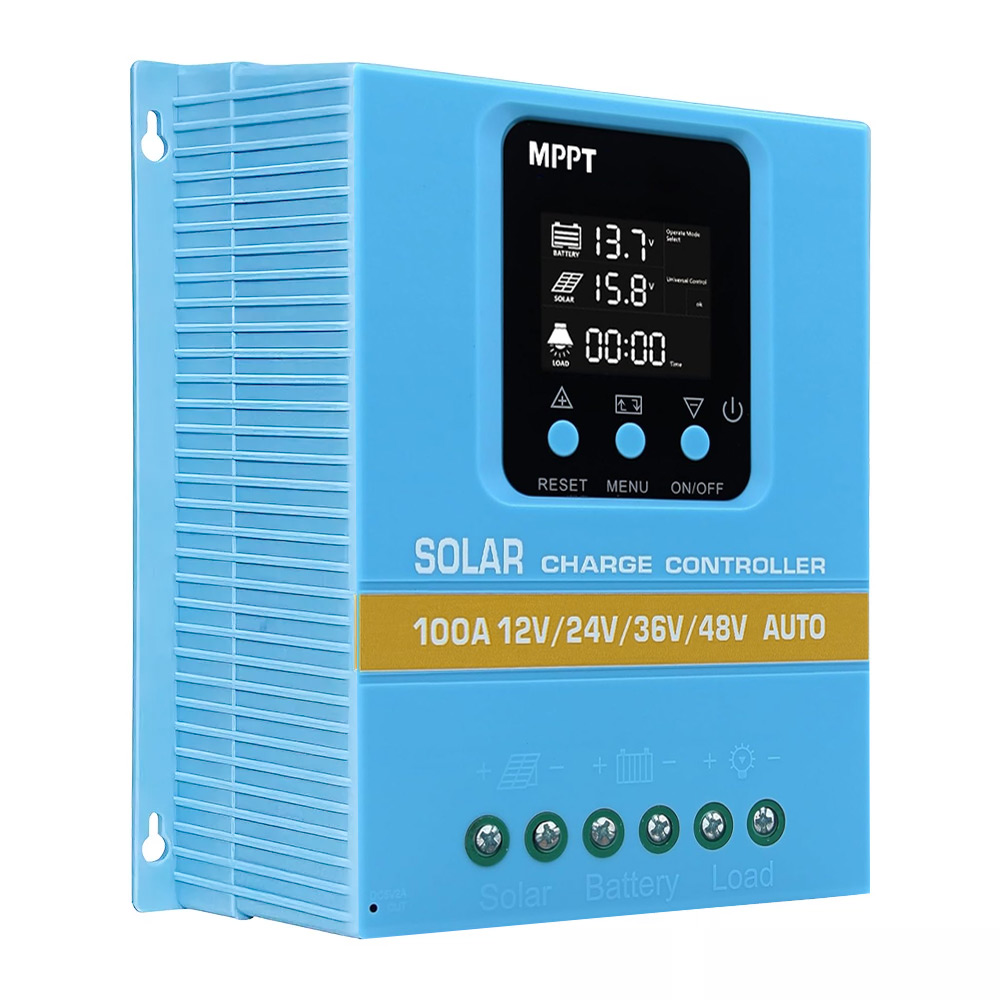

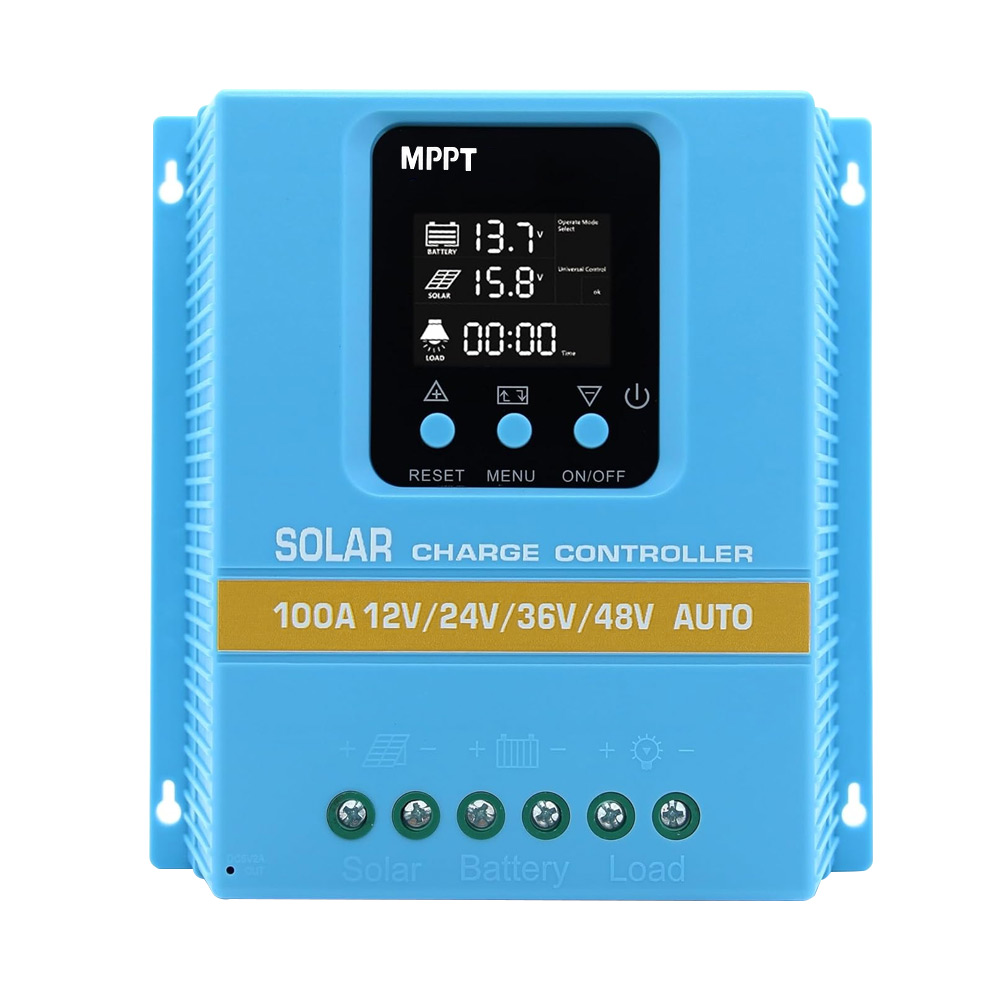

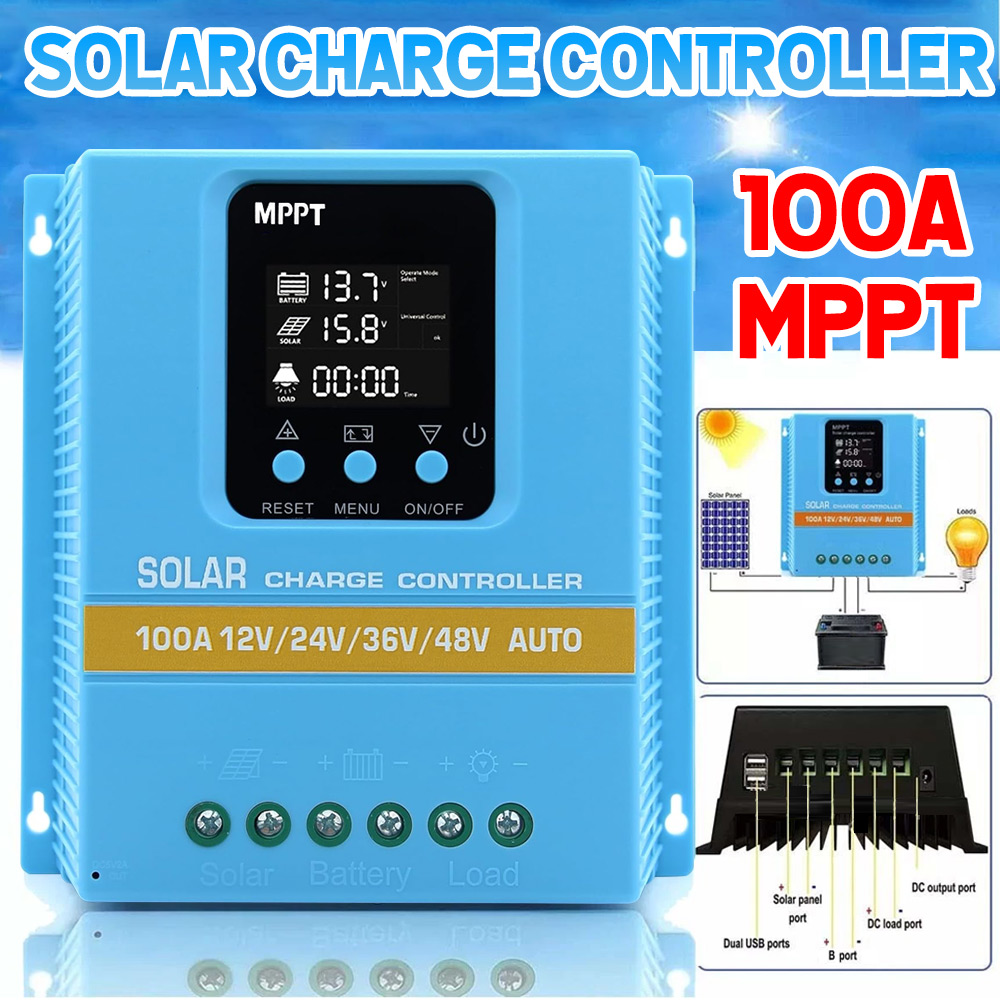

100A Upgraded MPPT Solar Charge Controller 12V-48V Battery Intelligent Regulator

Support Battery: Gel battery, Lead-acid battery, LifePO4, Flooded, Seal

Specifications:

*Type: MPPT Solar Charge Controller

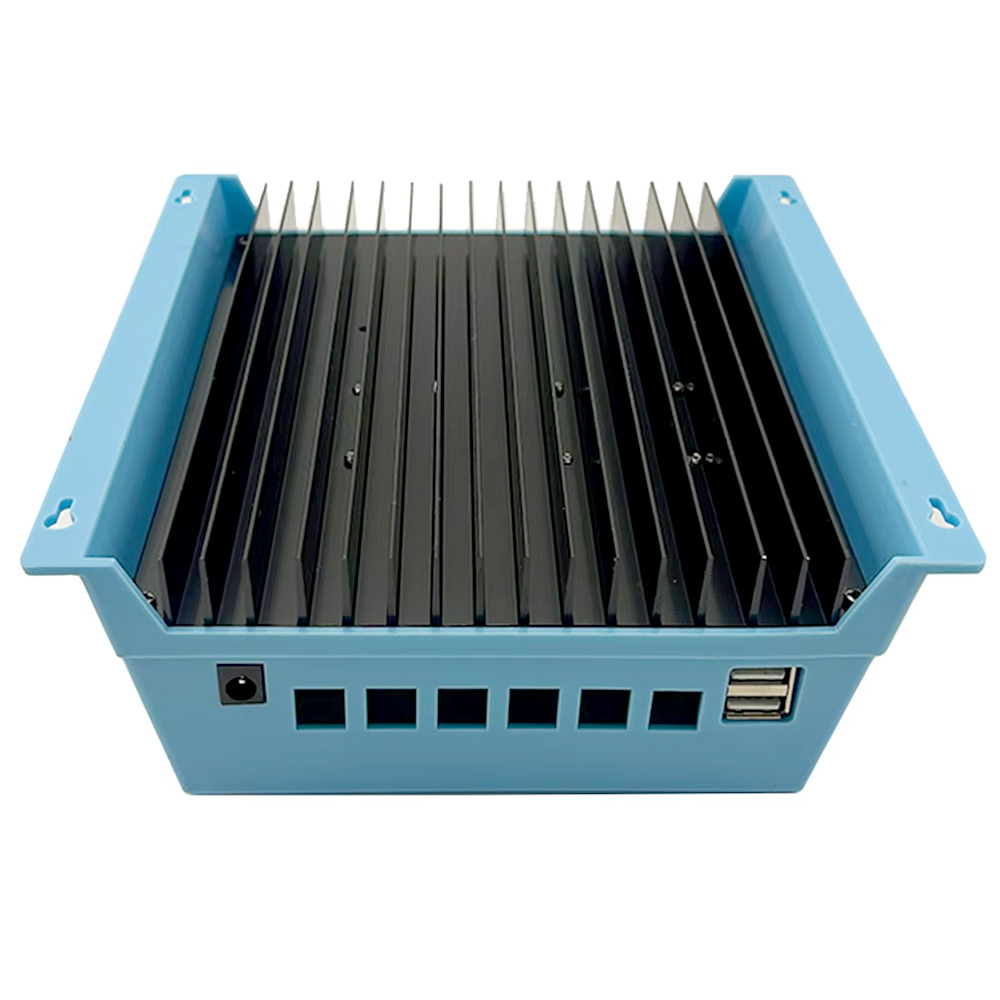

*Material: Plastic + Aluminum Alloy

*Product Size: 19.5*18.6*6.5cm / 7.68*7.32*2.56 inches

*Battery Voltage: 12V/24V/36V/48V Automatic

*Charging Current: 100A

*aximum Solar Input (Voc): 15-25V (12V Battery); 30-50V (24V Battery); 45-75V (36V Battery); 60-100V (48V Battery)

*Maximum input power of photovoltaic panels: 1000W (12V), 2000W (24V), 3000W (36V), 4000W (48V)

*Maximum PV Input Power 100A: 1200W (12V battery); 2400W (24V battery); 3600W (36V battery); 4800W (48V battery)

7 Kinds Of Working Mode Selection:

1.  Charging mode: in any case, never discharge.

2.  Light control mode: when the controller detects nights, it will delay ten minutes then start to discharge;   when it detects daytime, it will delay ten minutes then stop discharging.

3.  Light and time delay control mode: when the controller detects nights, it will delay ten minutes then start to discharge and count down, if the timer stops by zero, discharge will stop.   The longest duration of delay is 23:59.

4.  Universal control mode: under the trouble-free condition, it always keep discharging.

5.  Manual control mode: it uses “▼” for discharging or not.

6.  Timing control mode: it opens or closes the discharge regularly.

7.  Test mode: it is the same as light and time delay control mode but only loses ten minutes of time delay.

8.  The controller still discharges under low voltage protection.   Touch-holding “▼” for 5 seconds, discharge continues to output.

But discharge is only stopped by hand.   Notice that this performance may damage the battery, be careful with it!

Features:

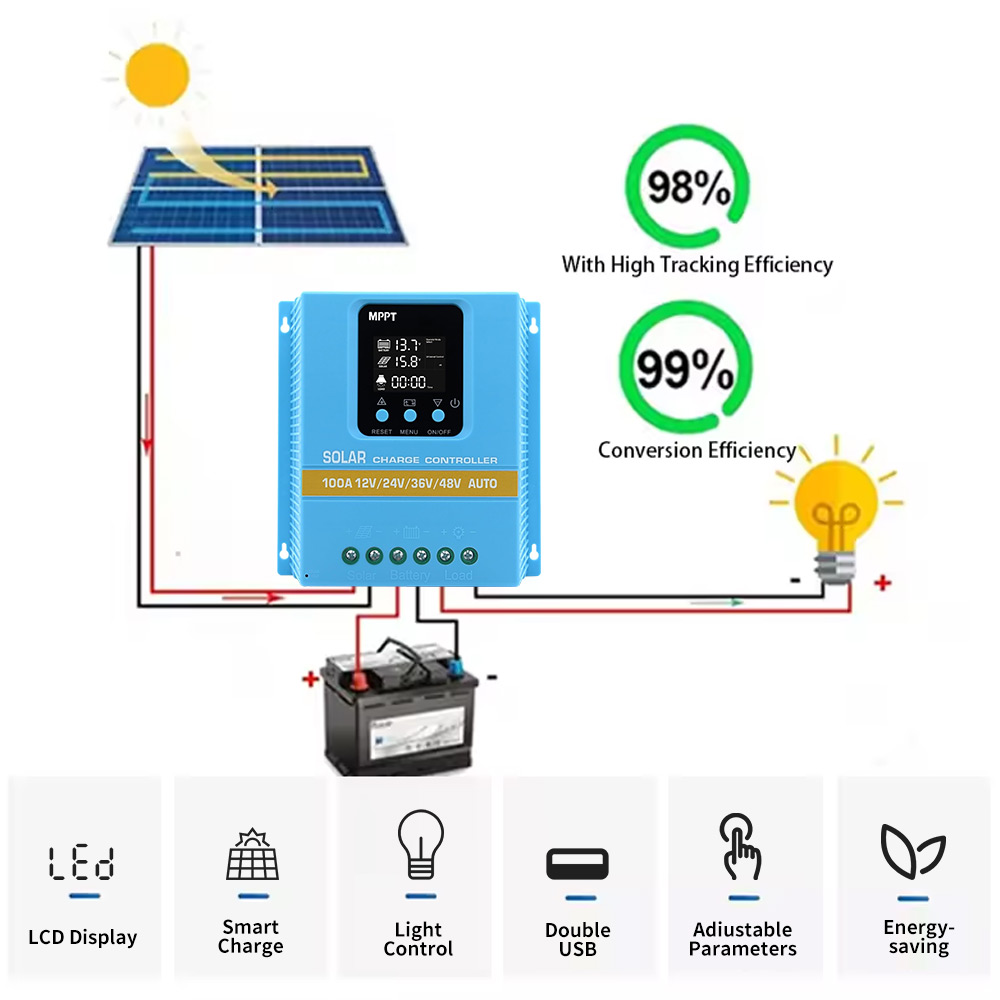

*【Superior MPPT Technology】This 100A MPPT solar controller is equipped with an advanced MPPT maximum power point tracking technology algorithm. It automatically recognizes 12V/24V/36V/48V systems and features dual USB 5V charging ports. The controller can swiftly track the maximum power point of the PV array in any environment, ensuring a tracking efficiency of no less than 99.5%. This significantly enhances the energy utilization in the solar system.

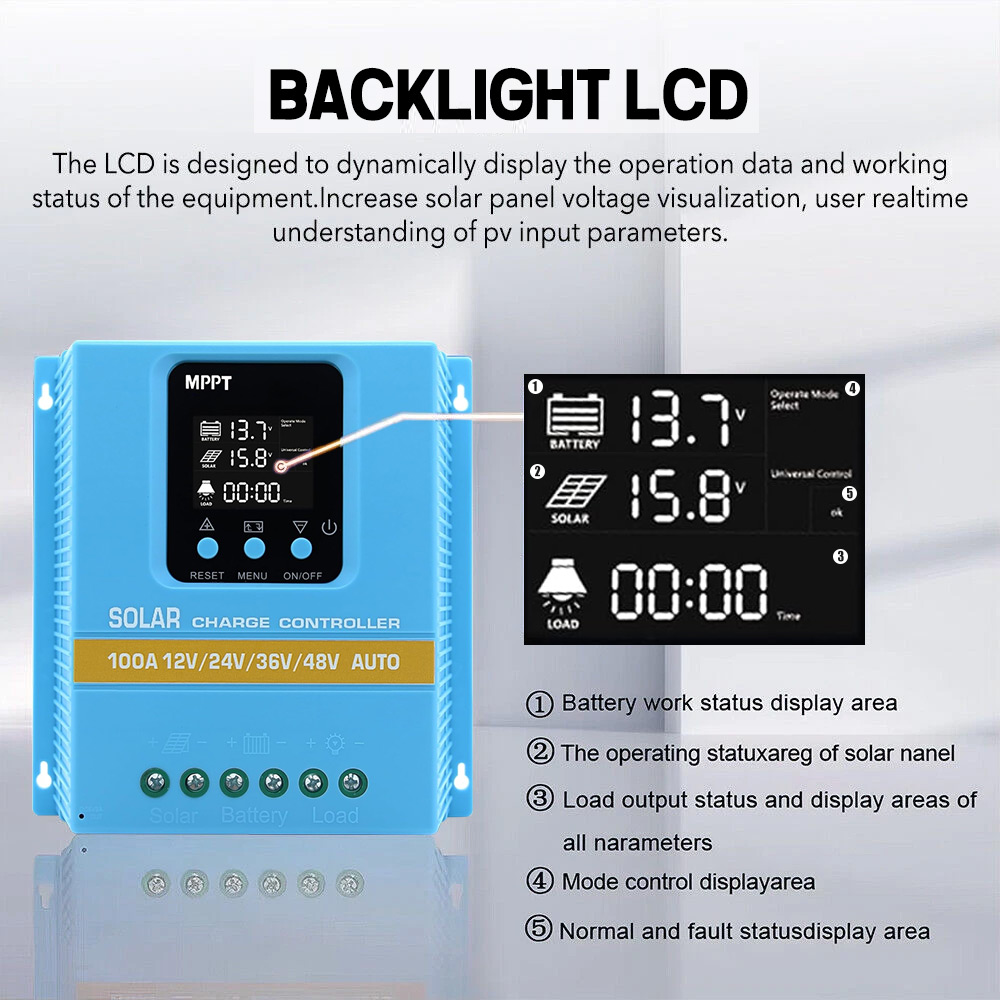

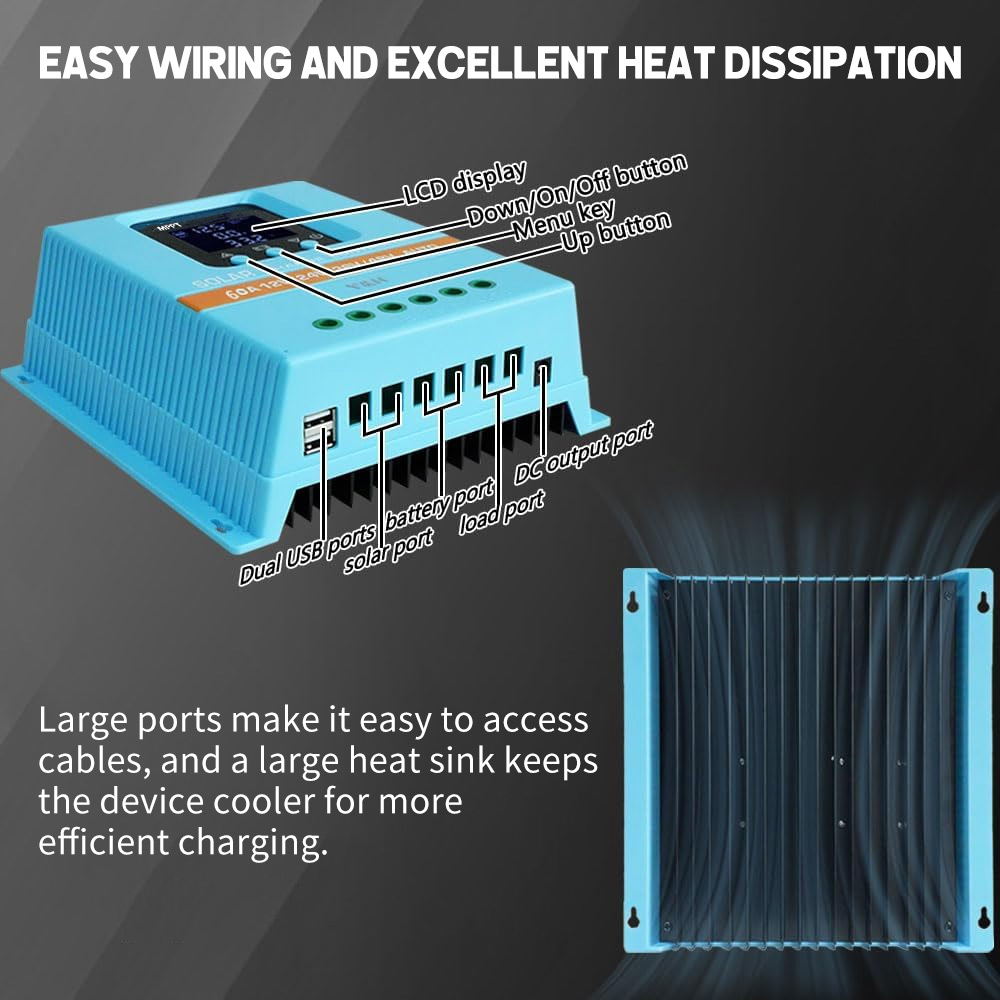

*【User-Centric Design】 The LCD is designed to dynamically display the operational data and working status of the equipment. It shows controller parameters such as working mode, battery voltage, PV charging current, battery discharging current, product working temperature, and delay time. For scenarios requiring configuration resets or restoring default settings, a "reset to factory settings" feature has been added, providing a quick and effective solution

Package Include:

*1x MPPT Solar Controller

*1x User Manual

Note:

1.Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.

Warning:

1.Due to manual measurement, please allow 1-3cm error.

2.Due to the difference between different monitors,and shooting problems such as light, there will be chromatic aberration, pls make sure you do not mind before you bid.
