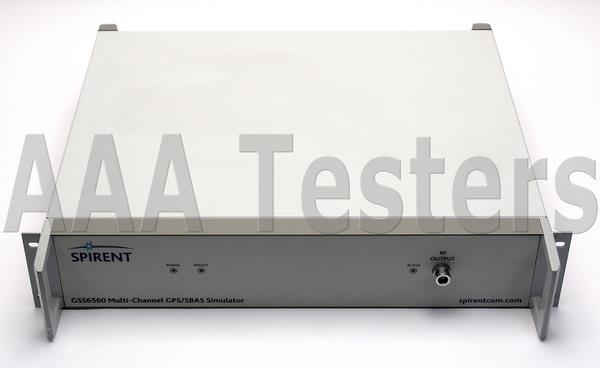

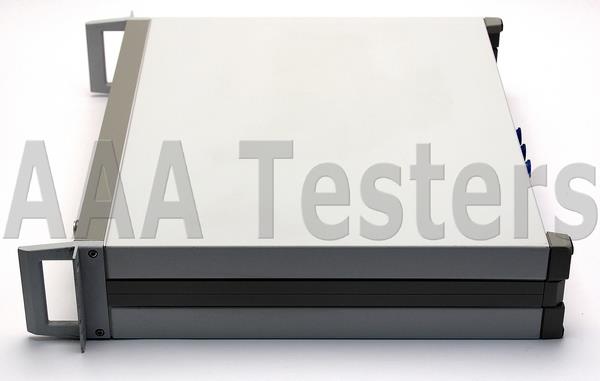

Spirent GSS6560 GPS L1 SBAS RF Signal Generator Multi-Channel Simulator

This product data sheet is originally written in English.


Kyozou Checkout

Newsletter




Quality Assurance


State & Local Government Ordering
sales summary

Full Warranty & Support


When purchasing from AAATesters you will be eligible for Future Discounts





Click For Larger ImageClick For Larger Image
Click For Larger ImageClick For Larger Image
Click For Larger ImageClick For Larger Image
Click For Larger ImageClick For Larger Image

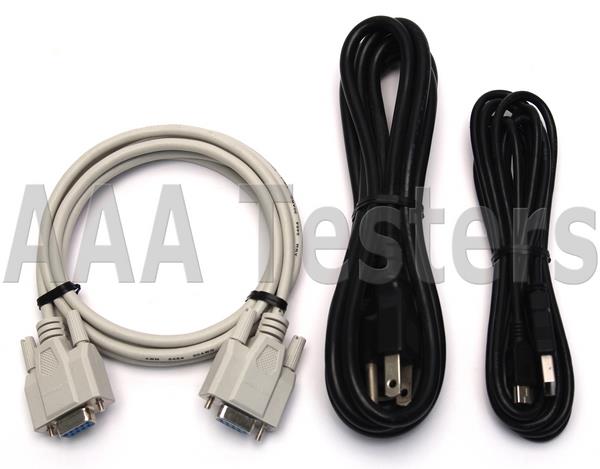

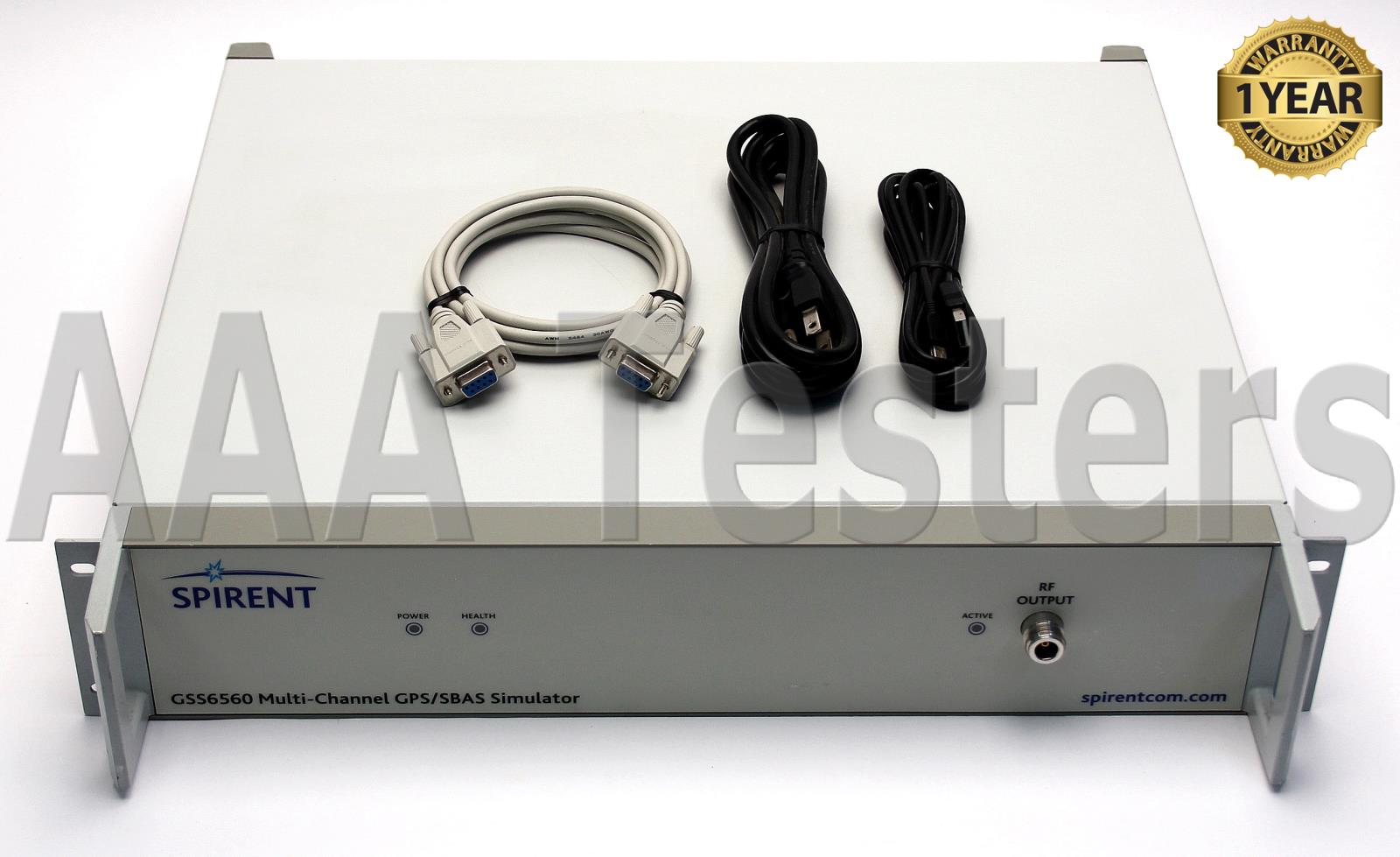

The Following Items Are Included:

  • Spirent GSS6560 GPS/SBAS Signal Generator (BC# 41844-L/T*)
  • Power Cord
  • RS232 PC Interface Cable
  • USB PC Interface Cable


BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!


Spirent GSS6100 GPS/SBAS RF Signal Generator

The GSS6560 12 channel GPS/SBAS simulation system from Spirent offers full user control of scenario creation and data analysis, making it ideally suited to use in a development/verification environment.

Includes Accessories As Listed Above!



Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY



Spirent GSS6560 Multi-Channel Fully Flexible GPS/SBAS Simulation System


The GSS6560 12 channel GPS/SBAS simulation system from Spirent offers full user control of scenario creation and data analysis, making it ideally suited to use in a development/verification environment.


Key Features:

- 12 independent channels GPS L1 C/A code
- Complete scenario generation capability using Spirent’s SimGEN for Windows® software
- Class leading accuracy, fidelity and reliability
- All digital architecture
- High dynamic capabilities
- Full user control of GPS constellation, errors and atmospheric effects
- Control of vehicle motion, antenna modelling and terrain modelling
- Interactive run time control
- Comprehensive data capture, manipulation and presentation capabilities
- Up to 4 RF outputs to support differential and attitude testing
- Supports Space Based Augmentation System (SBAS) signal (WAAS/EGNOS/MSAS) as standard


The GSS6560 Multi-Channel GPS/SBAS signal generator is the solution of choice for developers and integrators wishing to reduce development and verification costs and improve product resilience and capability.

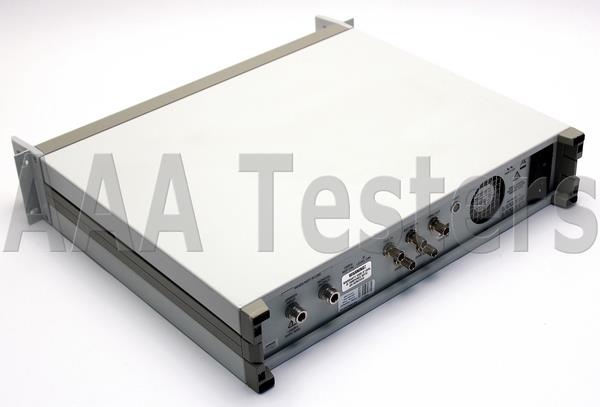

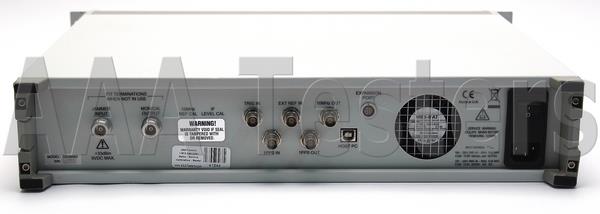

A full range of hardware integration signals are provided including 1PPS in and out, 10MHz in and out and hardware Trigger. The generator also features a low-loss external RF Interference input. Simulation data is available for storage and subsequent processing. Graphing tools are included.

The GSS6560 is supplied pre-installed with Spirent’s SimGEN for Windows® software suite. SimGEN offers complete flexibility and scenario definition capability in an intuitive Windows-based environment, including:
- satellite constellation definition and modelling
- atmospheric effects modelling (Iono/Tropo)
- vehicle motion modelling for aircraft, cars and spacecraft
- vehicle motion trajectories from a user-supplied file or in real time via ethernet, including full remote control for 100Hz hardware-in-the-loop applications
- antenna and multipath modelling
- wide range of error models
- terrain obscuration modelling
- definition files sharable between scenarios
- real time data displays including tabulations and multiple graph plots


Specifications
Output Frequency
L1
 @1575.42MHz
Signal Dynamics
Max Velocity
 ± 15000m/s
Max Acceleration
 ± 450m/s2
Max Jerk
 ± 500m/s3
Signal Accuracy
(RMS max over 1 minute)
Pseudorange uncertainty
 ±2mm
Pseudorange rate uncertainty
 ±1mm/s
Interchannel bias
 Zero
Signal Quality
Spurious (Max)
 <-30dBc
Harmonics (Max)
 <-35dBc
Phase Noise (Max)
 <0.02 Rad RMS
Frequency Stability
 <±5 x 10-10 over 1 day
Signal Level
L1 C/A Code
 -130 dBm nominal
Signal level Control
Range
 + 15/-20dB
Resolution
 0.1dB
Accuracy
 ±1.0dB RSS nominal
Uncertainty
Signal Generator Unit
Generator Channels
 12
Channel Type
(independent)
Interference Input
 Type ‘N’, coupling loss, 1dB
Size (HxWxD)
 89 x 449 x 386mm
(3.5 x 17.75 x 15.25inch)
480mm (19inch) desktop/
rackmount case
Weight
 5.5kg (12lb)
Power
 100-250V ac, 48-62Hz
Computer Specification
Operating System
 Microsoft® Windows® Professiona
Power
 115v/230V,450V,50/60Hz


For full Spirent GSS6560 product specifications, please click here: Spirent GSS6560
