⚠️ Note: One antenna set supports adding multiple‑band radiators for extra bands. Please contact customer service for separate radiator pricing.
- 40m (7MHz): 19.7m (full extended arm length)
- 20m (14MHz): 9.8m (full extended arm length)
- 15m (21MHz): 6.6m (full extended arm length)
- 10m (28‑29MHz): 4.8m (full extended arm length)
Product Overview
This is a full‑size half‑wave horizontal dipole antenna with weather‑resistant construction. Suitable for portable field deployment or permanent fixed installation.
Supports mounting 2‑3 sets of radiators simultaneously for multi‑band operation.

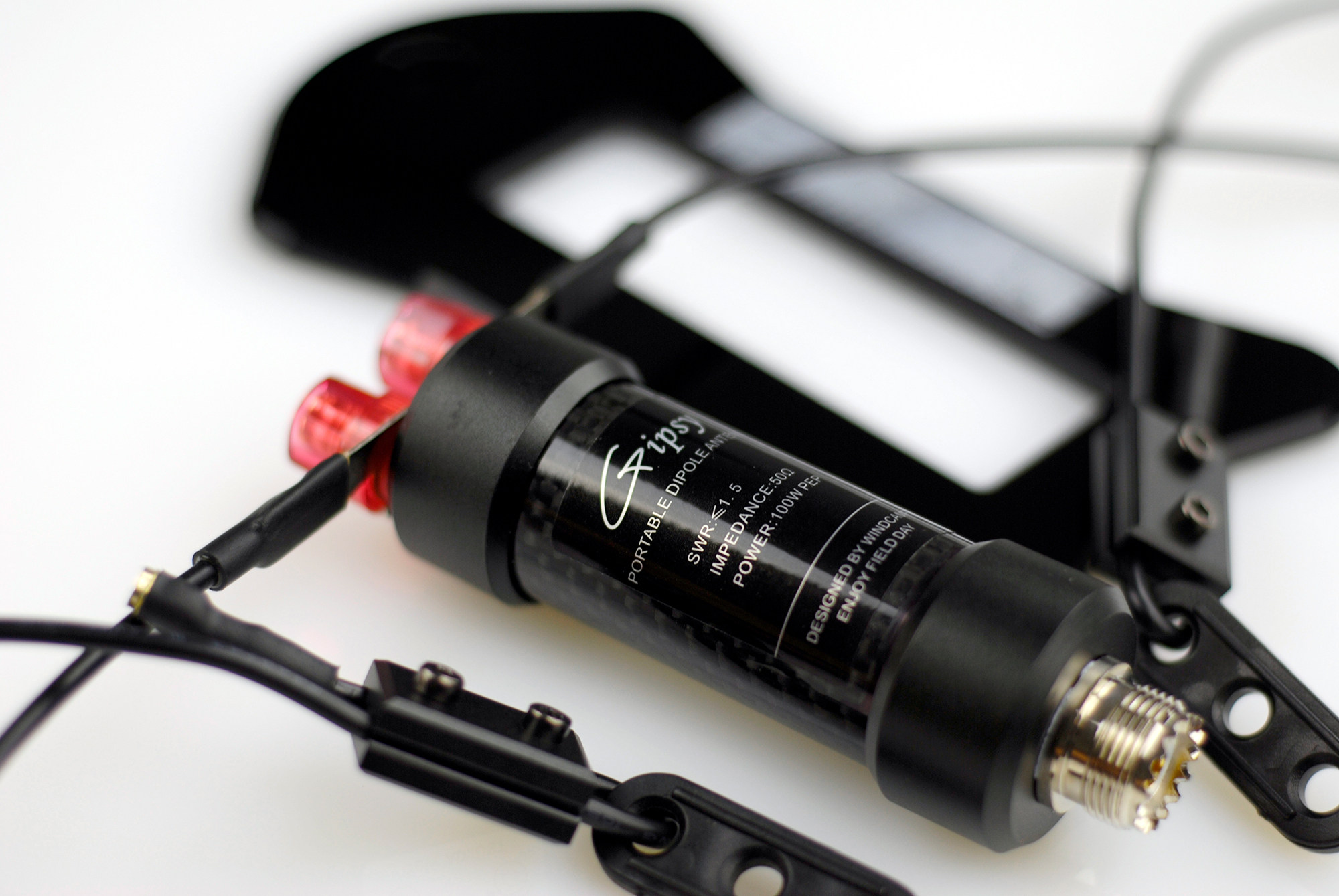

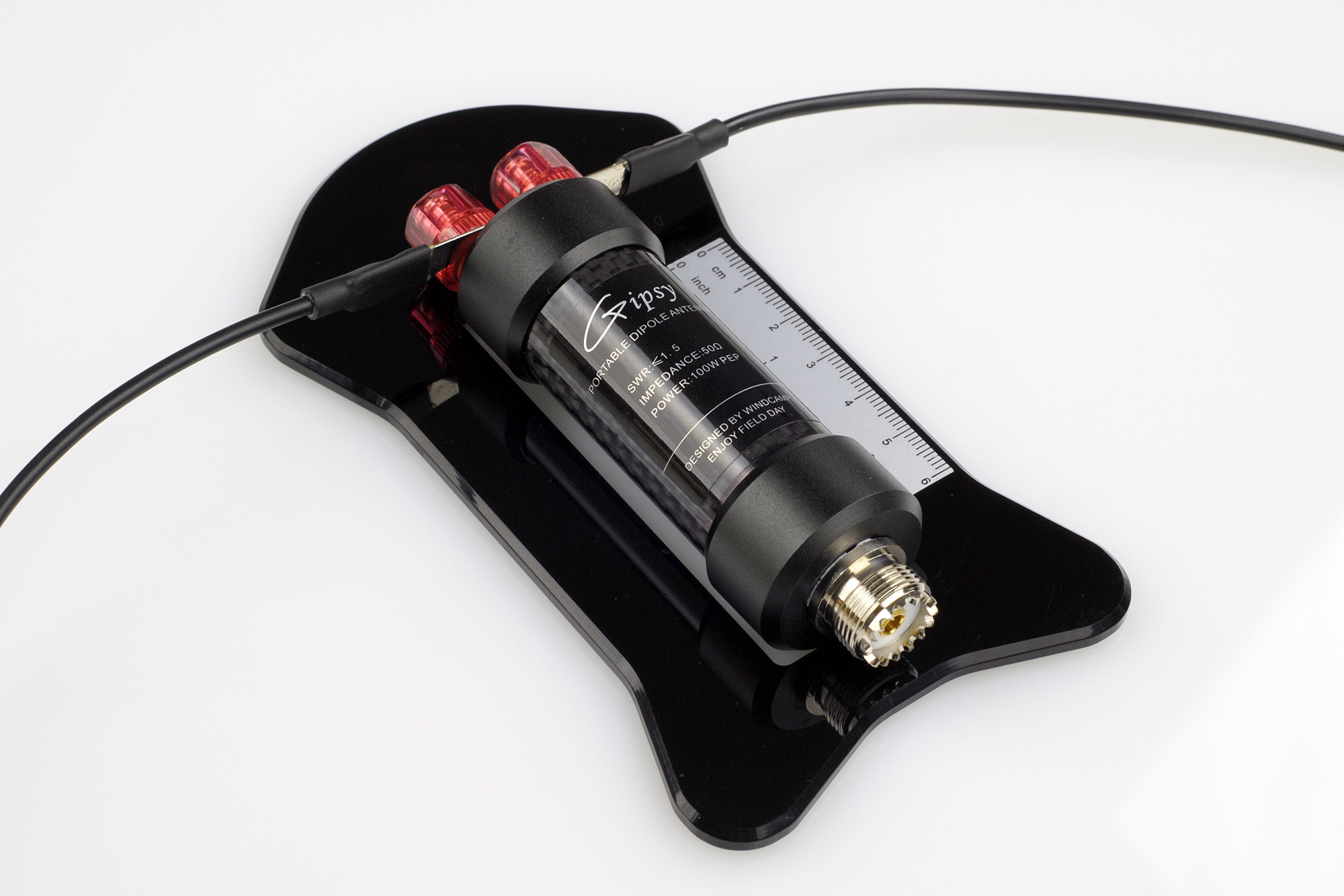

- Carbon‑fiber balun housing & CNC‑machined aluminum hardware

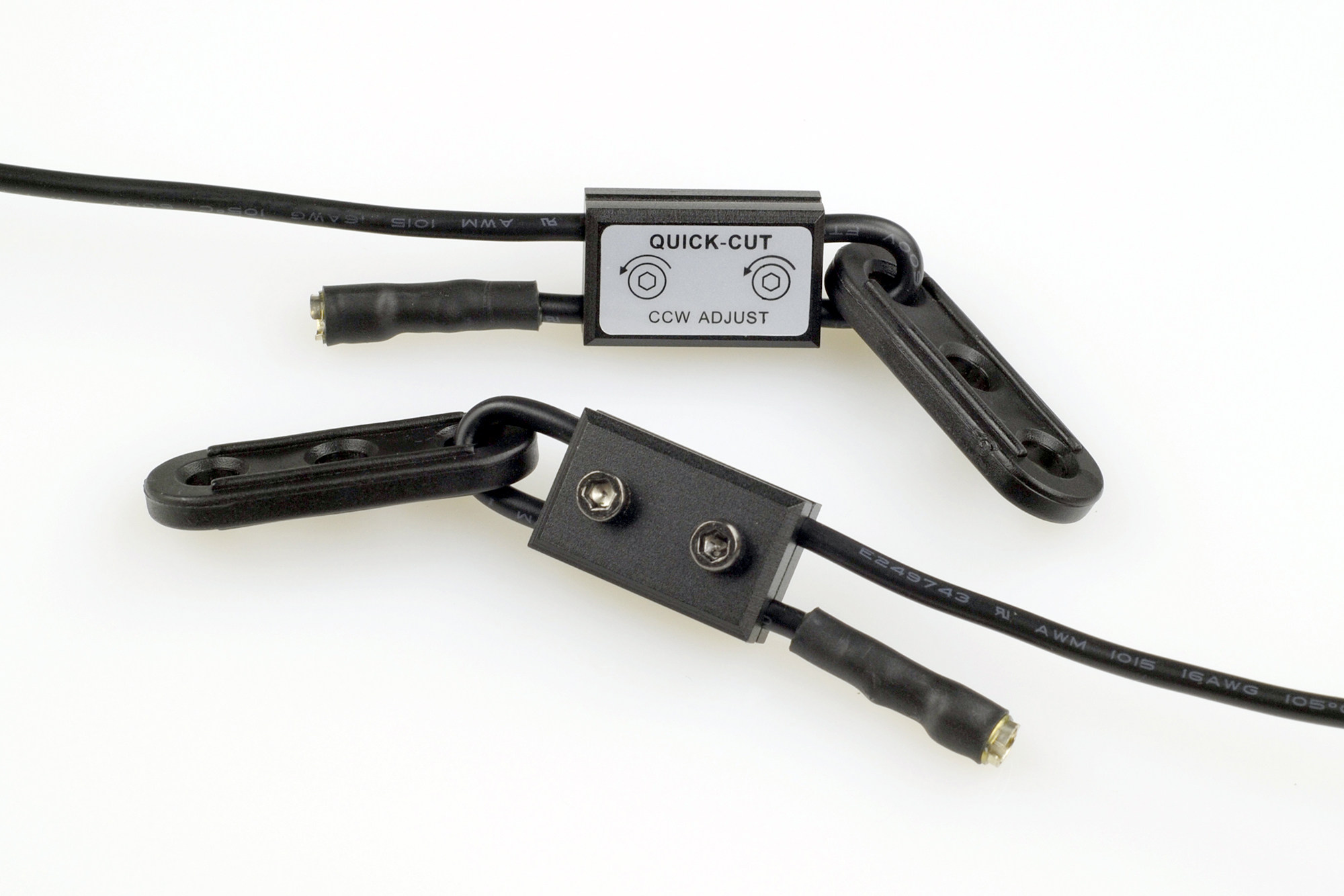

- Quick‑adjust radiator tuner for fine‑tuning resonant frequency (factory pre‑tuned, adjustment rarely required)

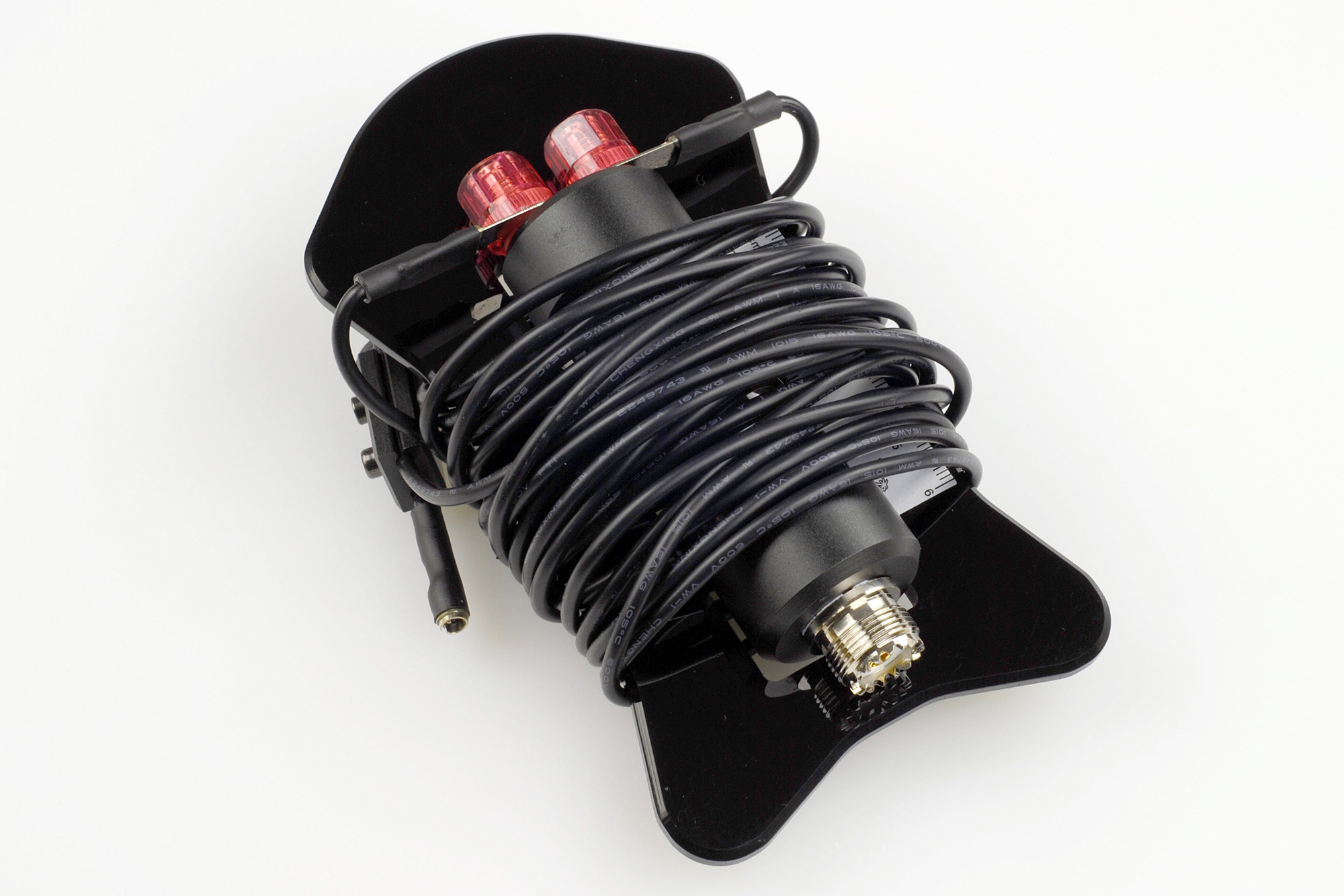

- Comes with multi‑function wire reels and storage bag for easy transport.
Specifications
|
Item
|
Parameter
|
|
Supported Bands
|
40m(7MHz)/20m(14MHz)/15m(21MHz)/10m(28‑29MHz), single‑band selectable
|
|
SWR
|
≤1.5
|
|
Impedance
|
50Ω
|
|
Power Rating
|
100W PEP
|
|
Connector
|
SL‑16
|
|
Radiator Wire
|
AWG16 tinned copper wire
|
|
Balun
|
1:1 Forced‑balance magnetic‑core current balun
|
|
Package Dimension
|
210×130×60 mm (W×D×H)
|
|
Net Weight
|
0.6 kg (20m band reference)
|

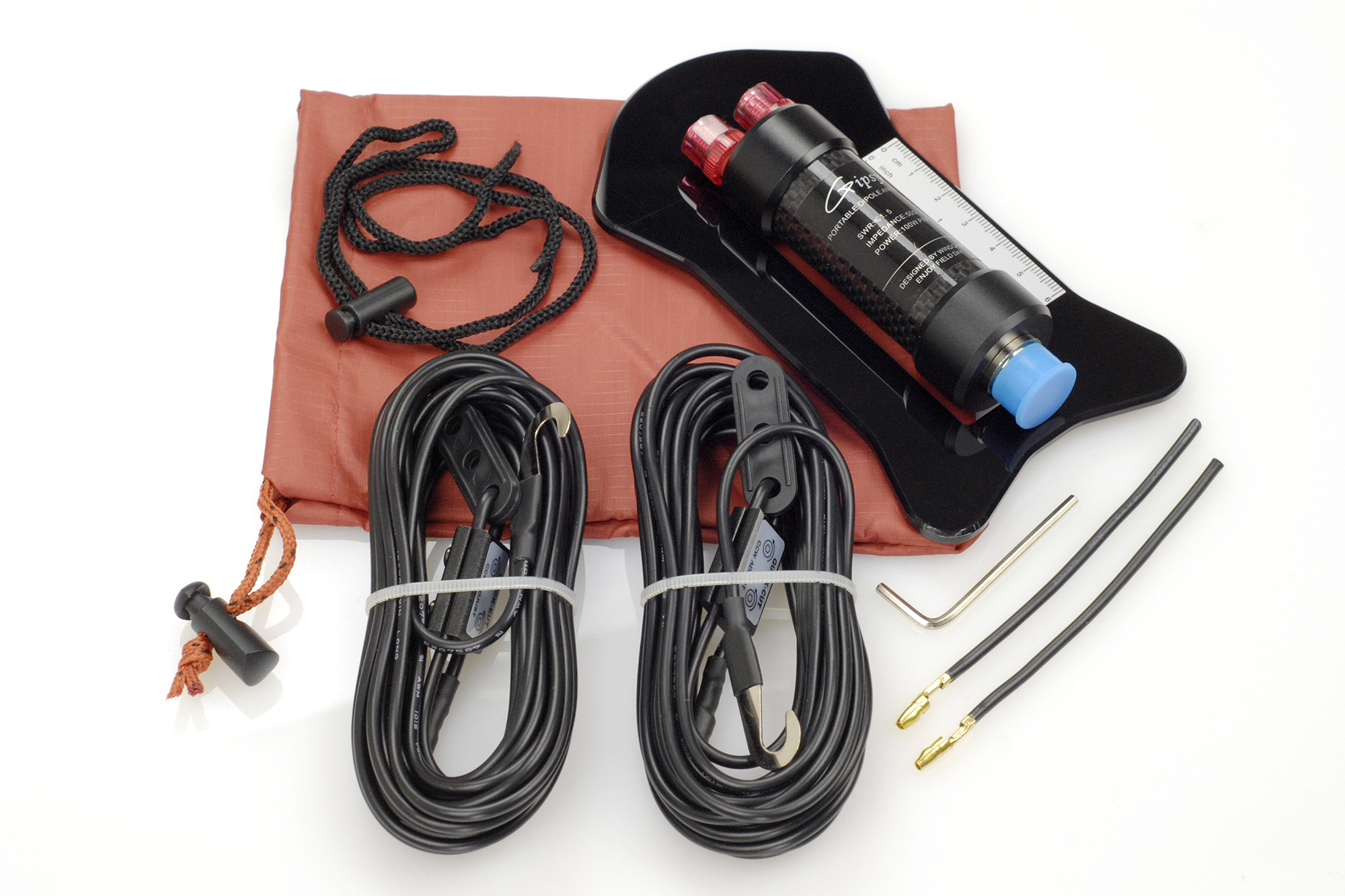

Packing List
- Balun ×1
- Balun hanging cord ×1
- Radiator ×1
- Wire reels ×1
- Storage bag ×1
- Wrench ×1

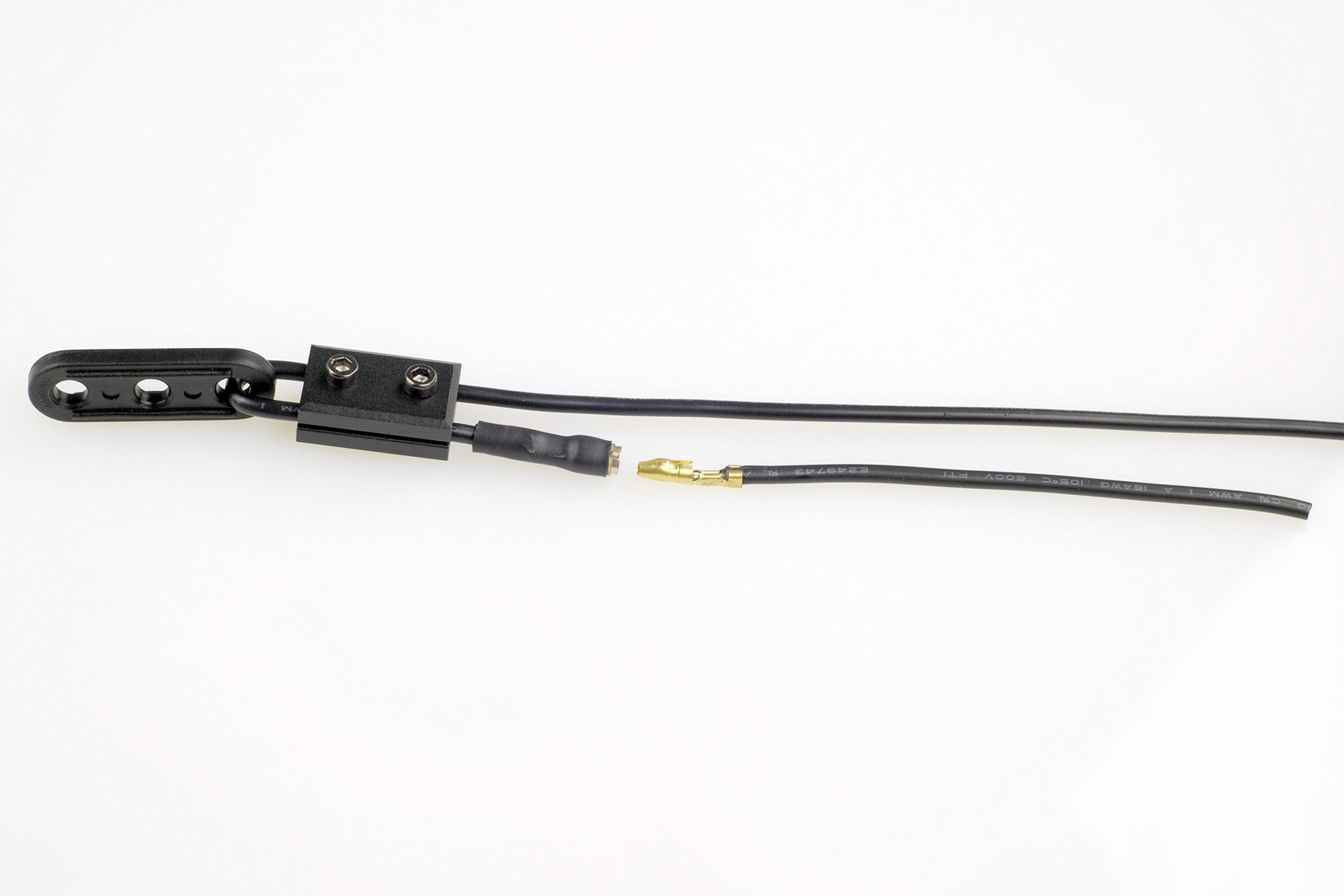

- Radiator tuning wires ×2
- User manual ×1
