Specification:

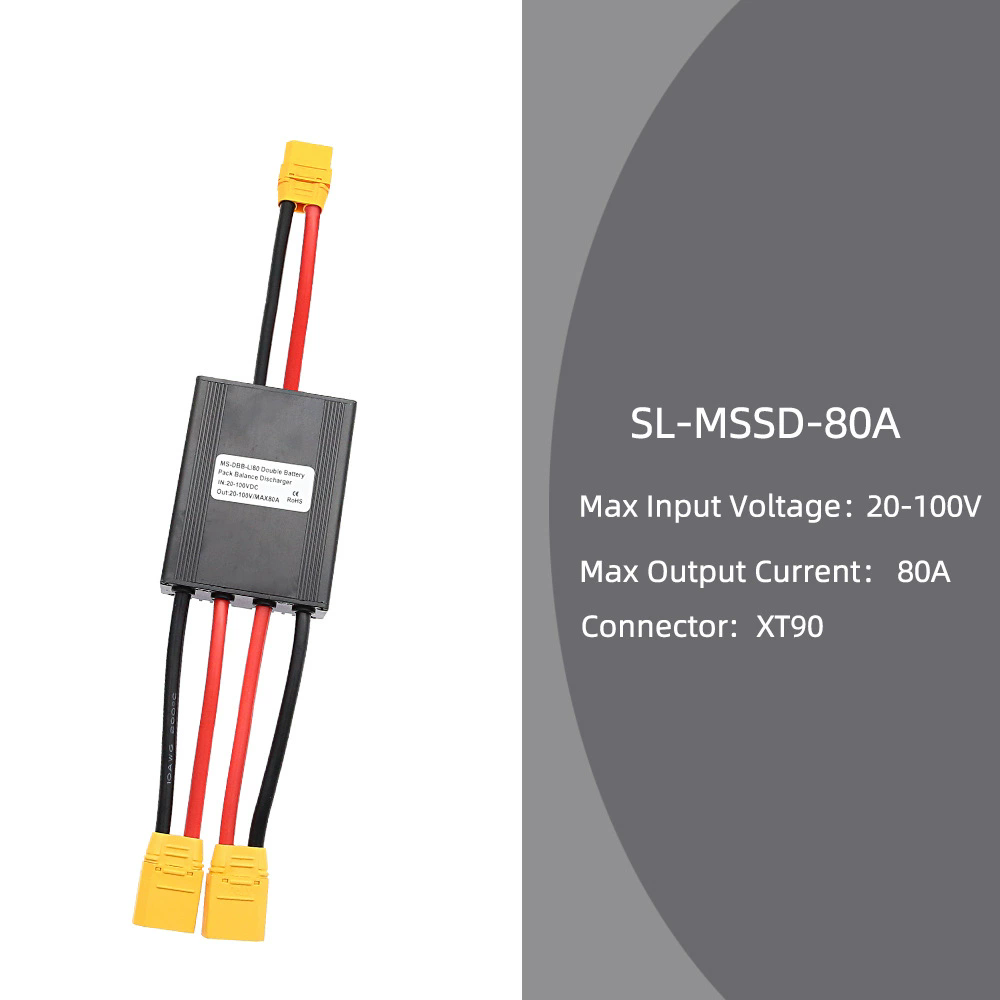

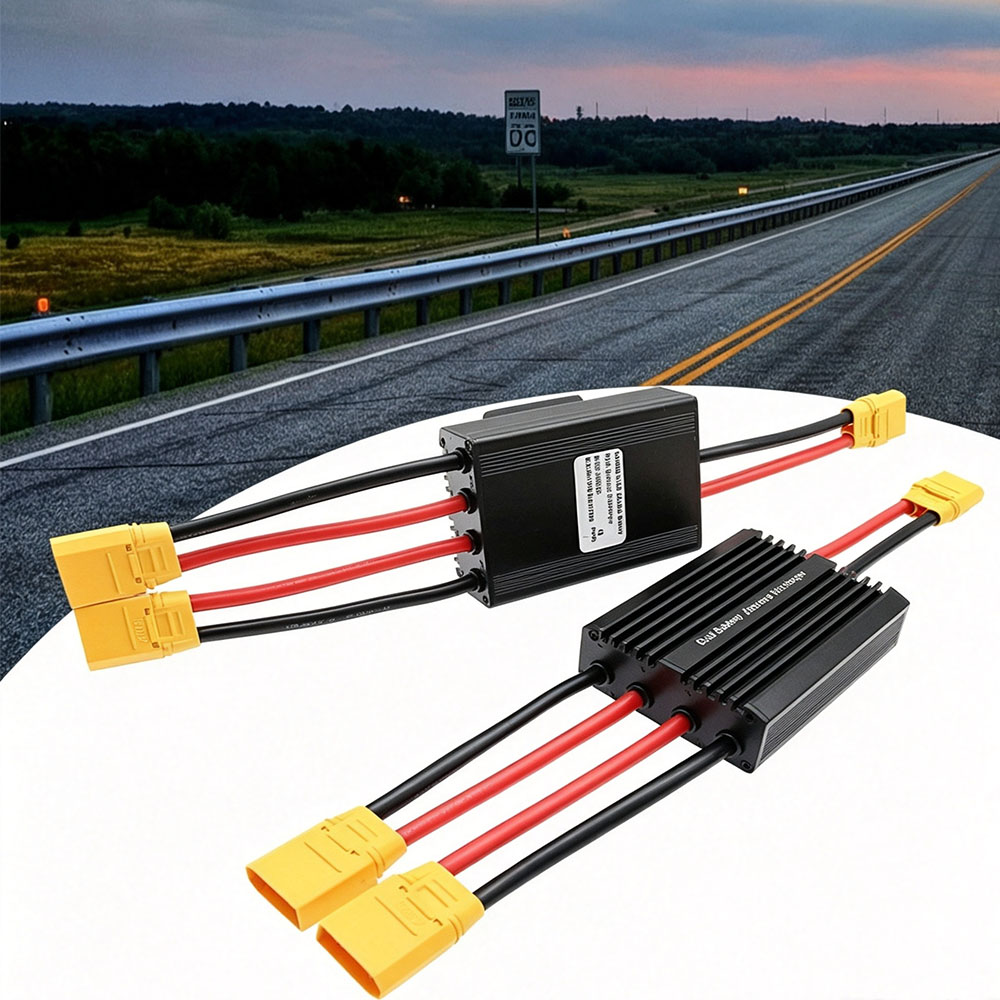

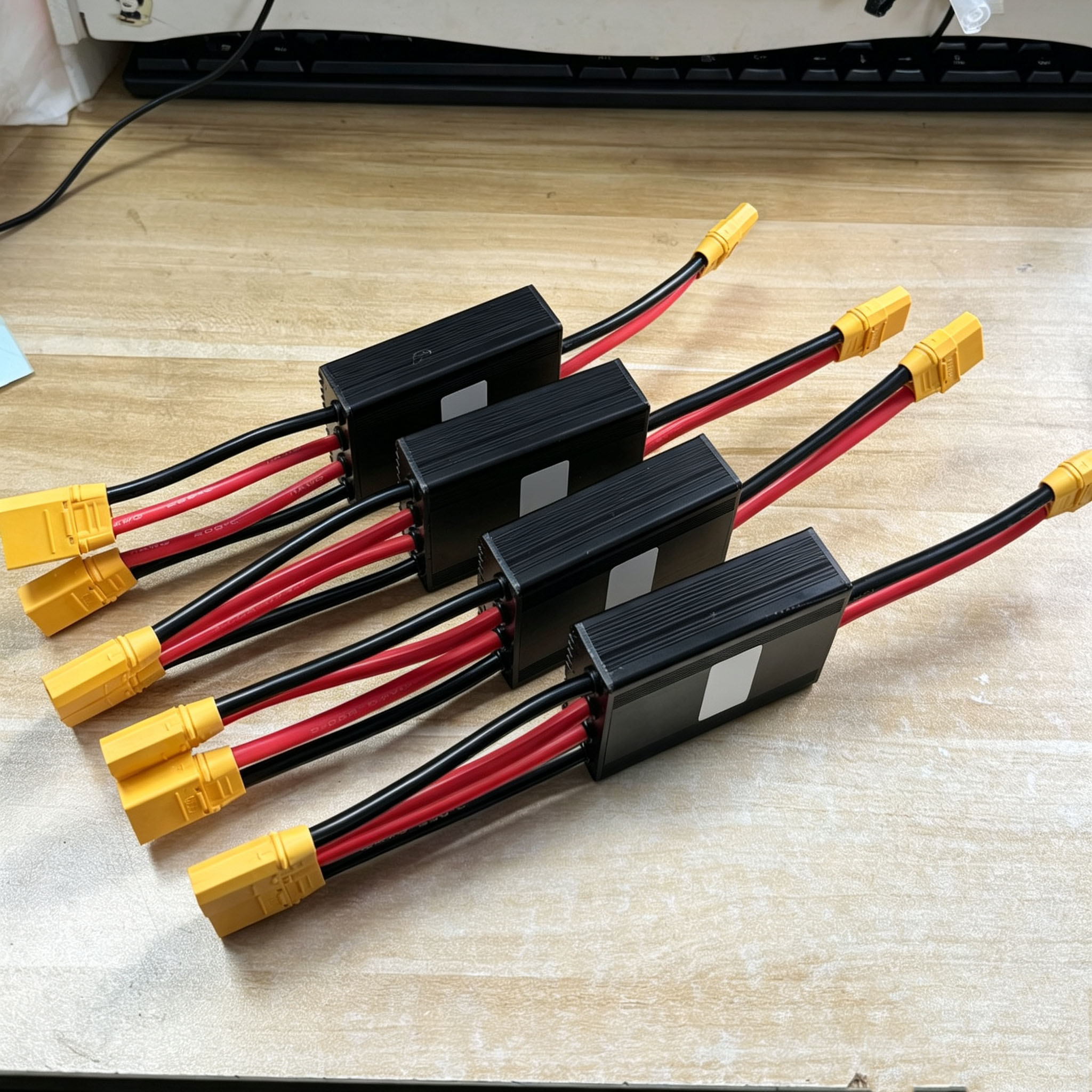

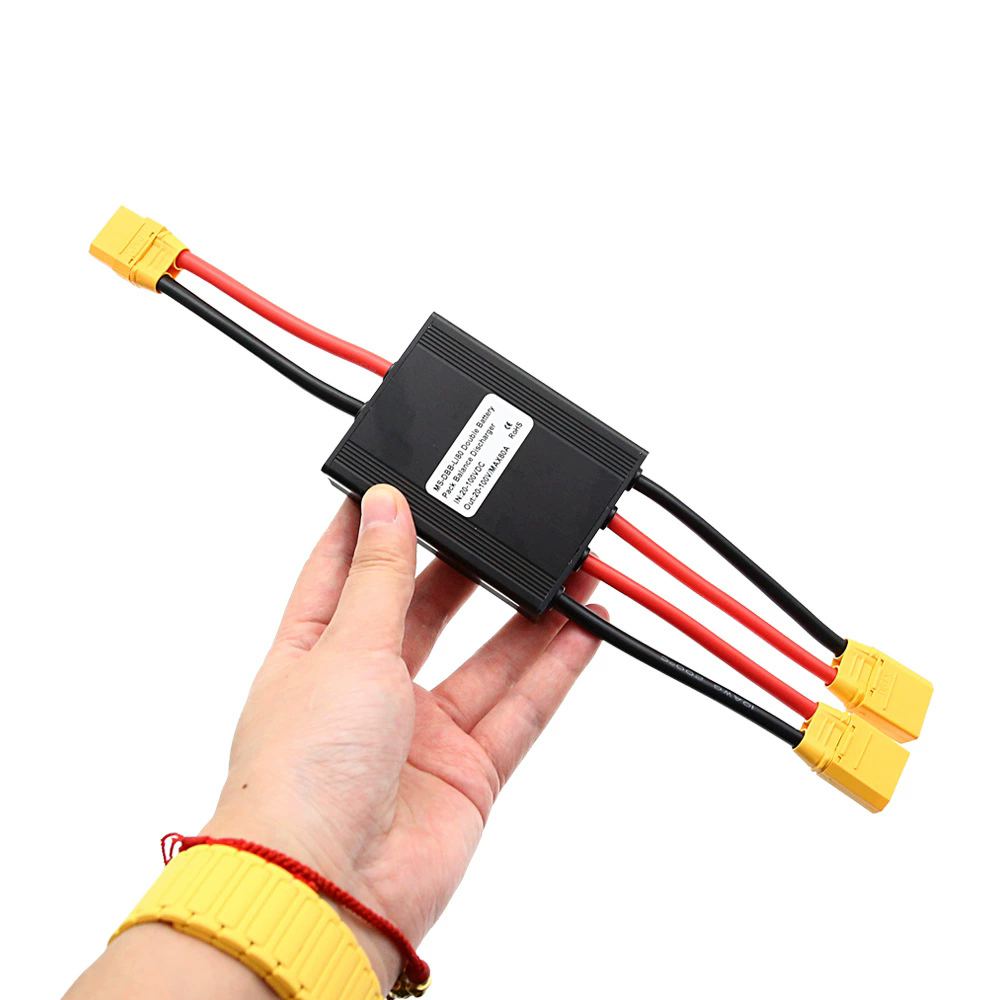

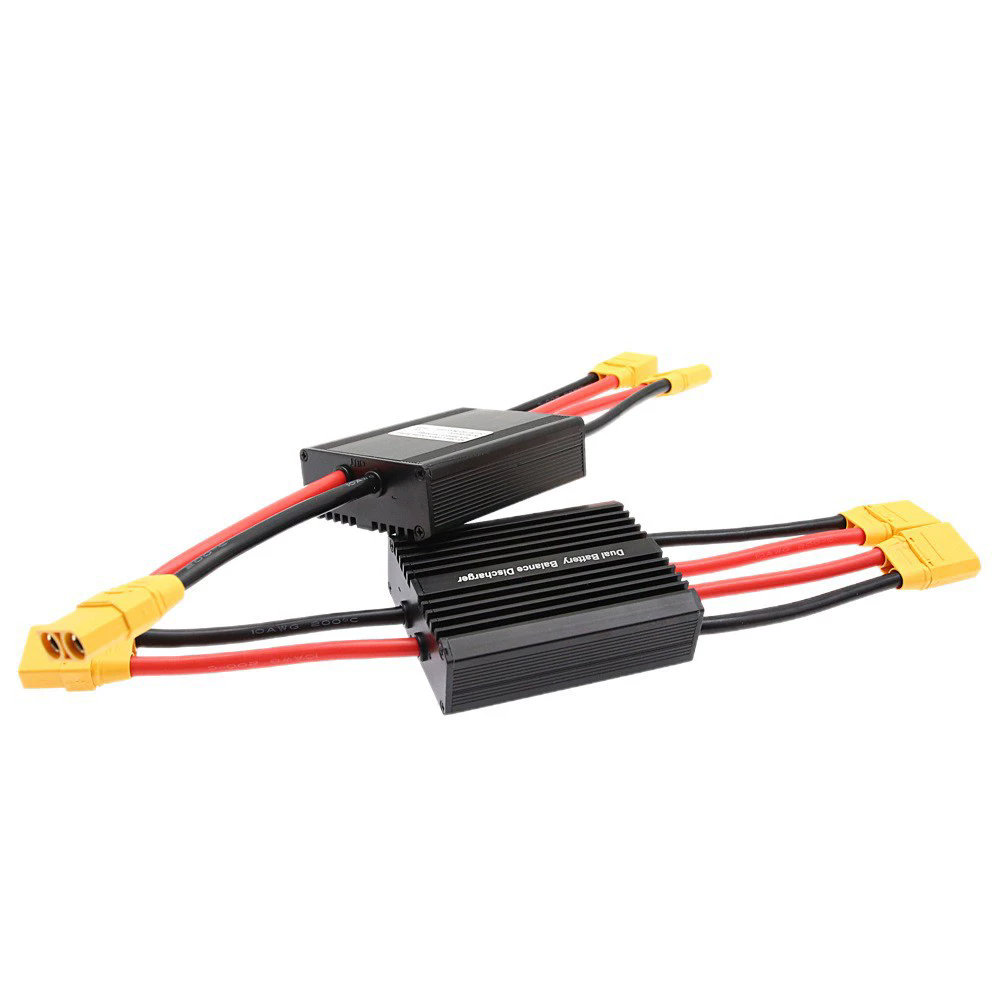

Product Name:E-bike Dual Battery Discharge Converter

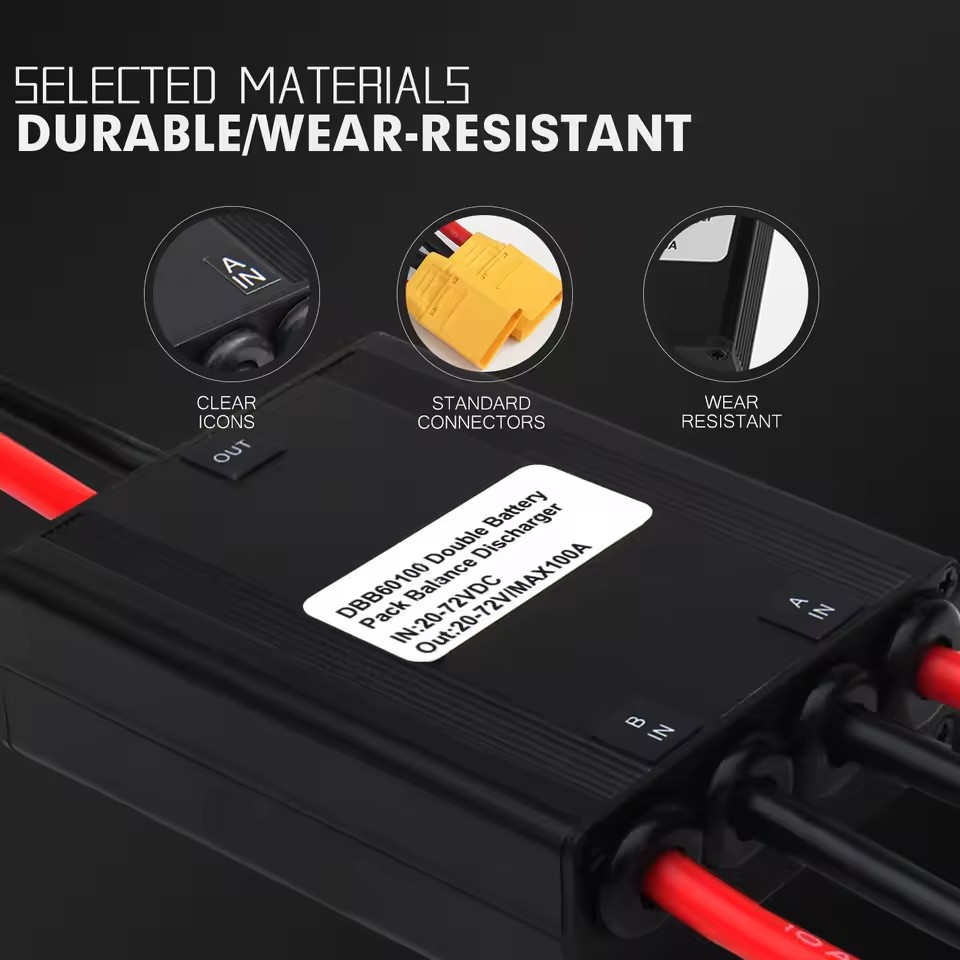

Material: Aluminum alloy
Color: Black (As Pictures Show)

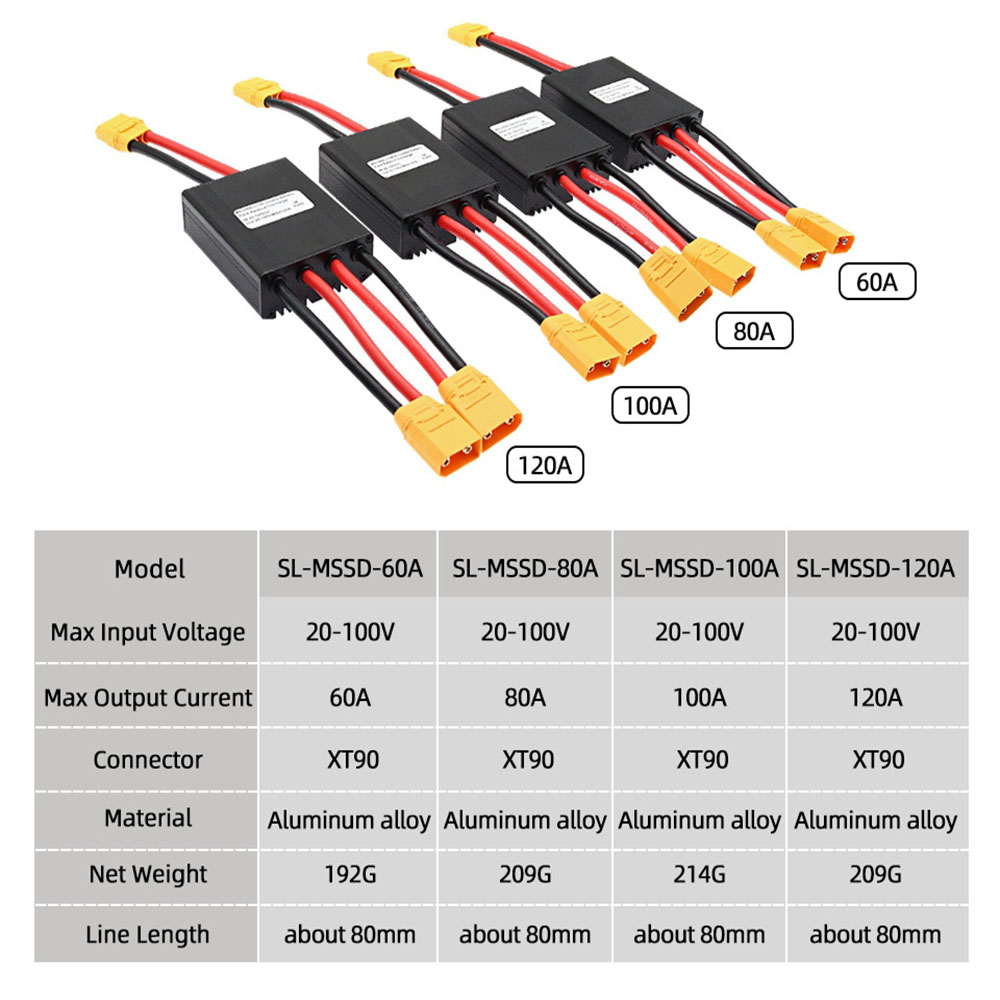

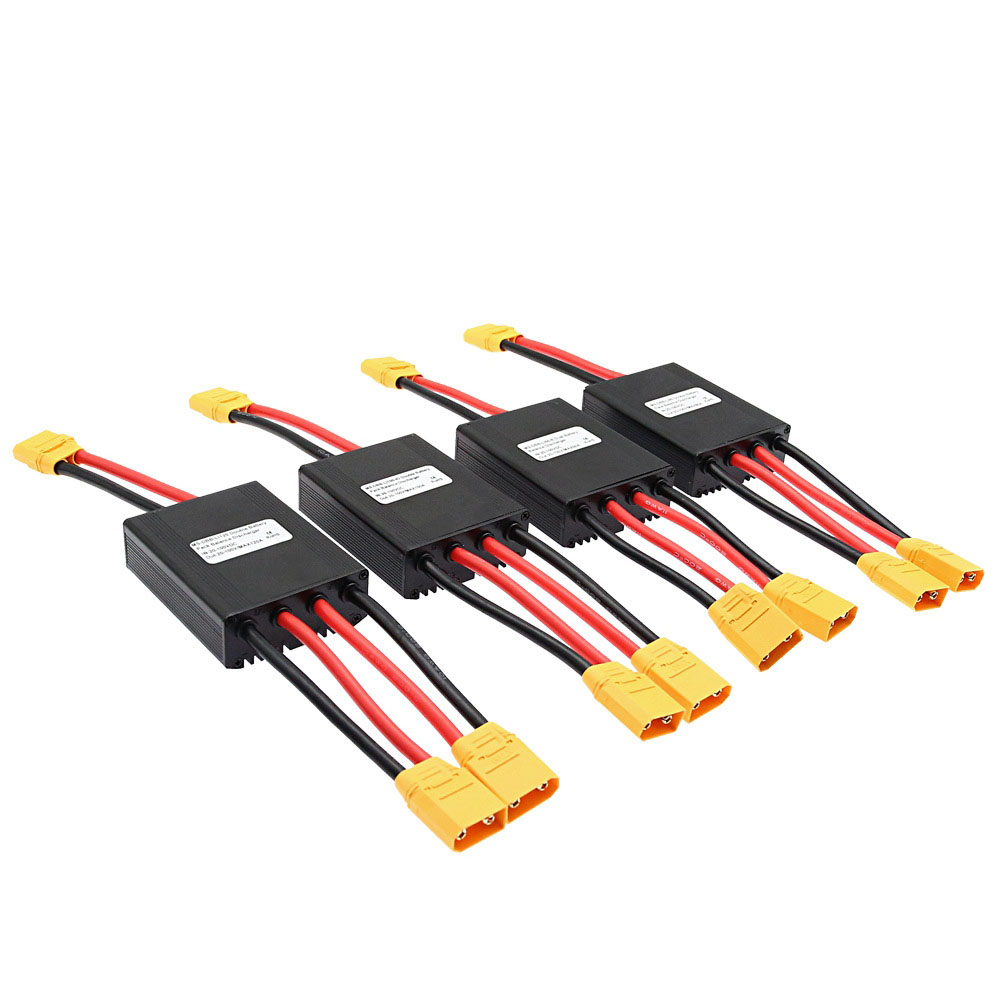

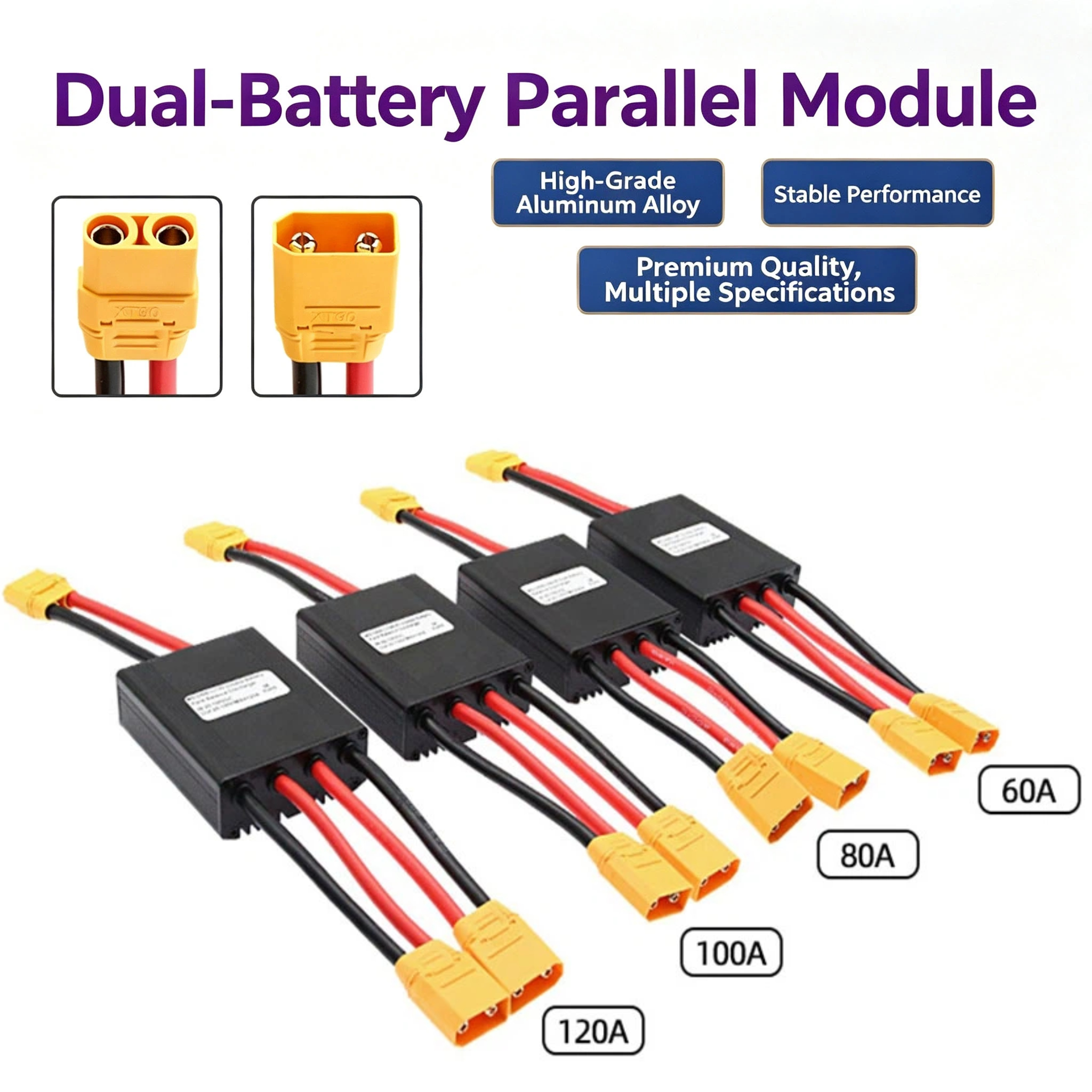

Current:60A/80A/100A/120A
Voltage:20V-100V(max full charger voltage 100V)

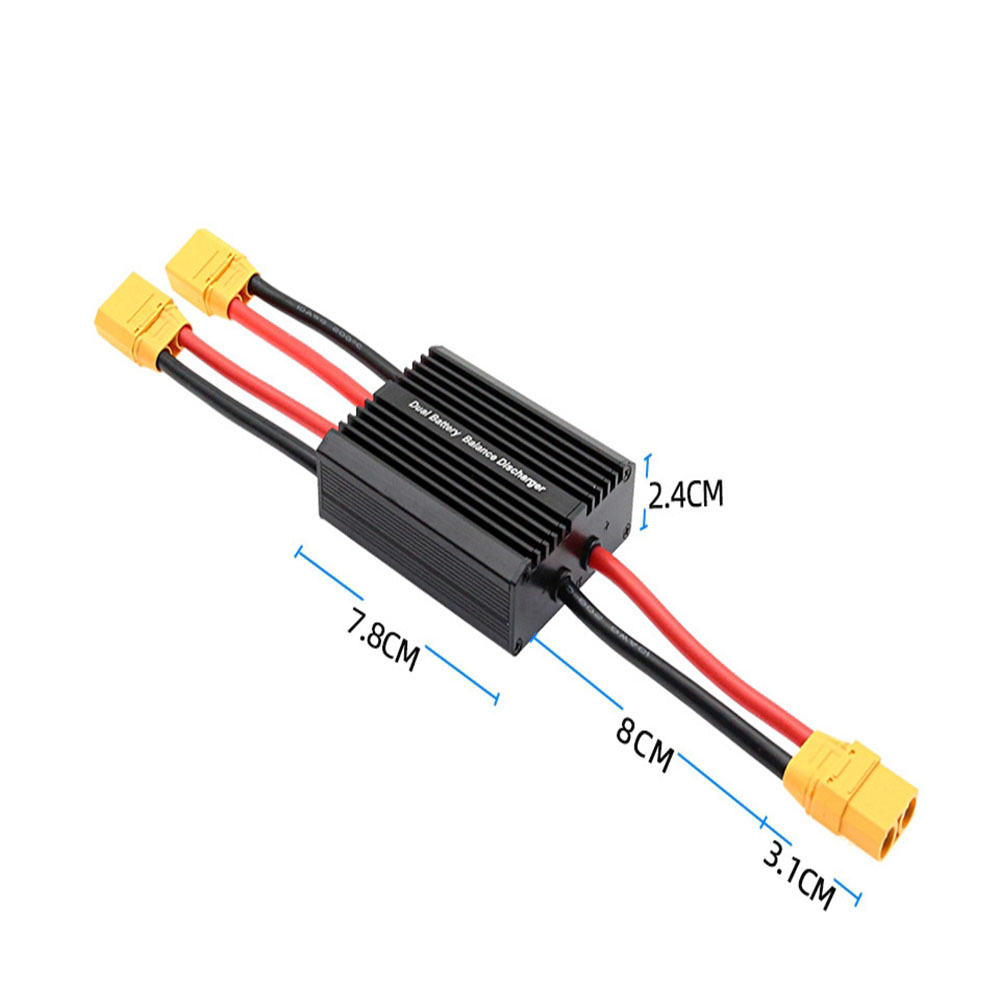

Wire length: 120-123mm

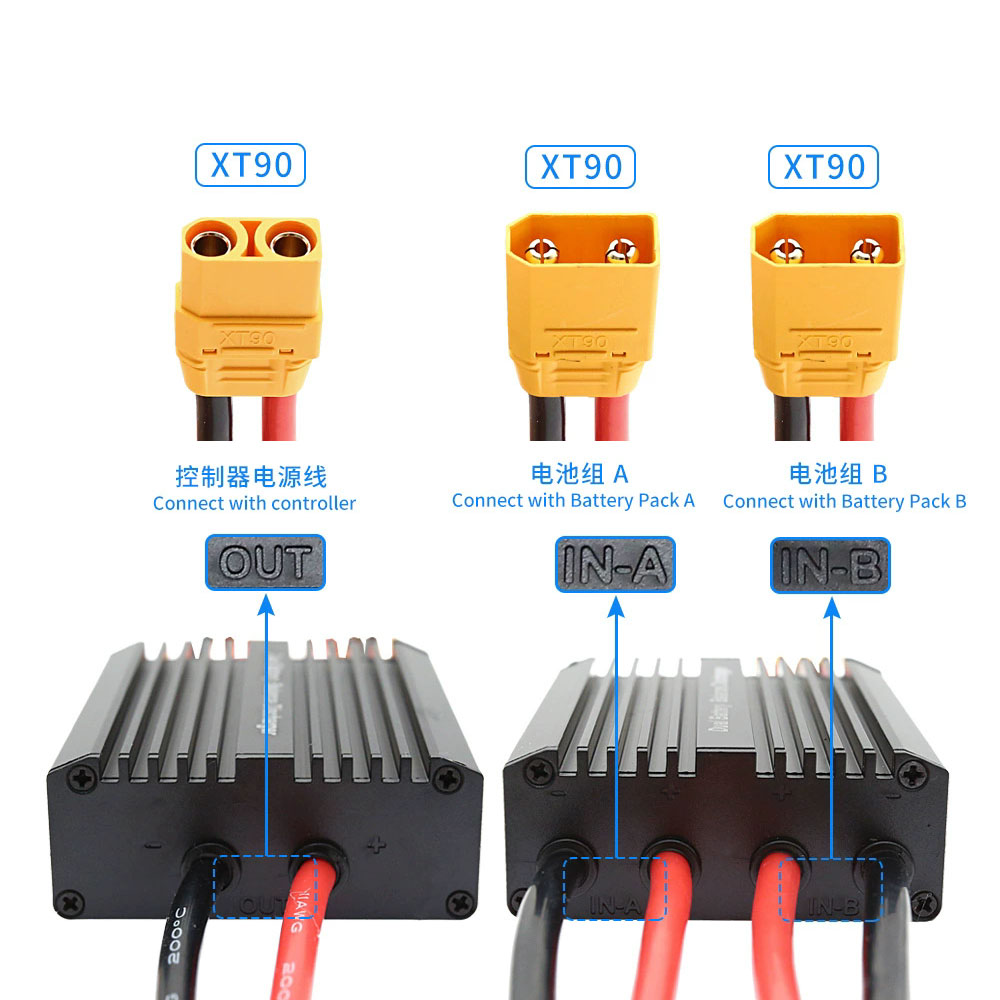

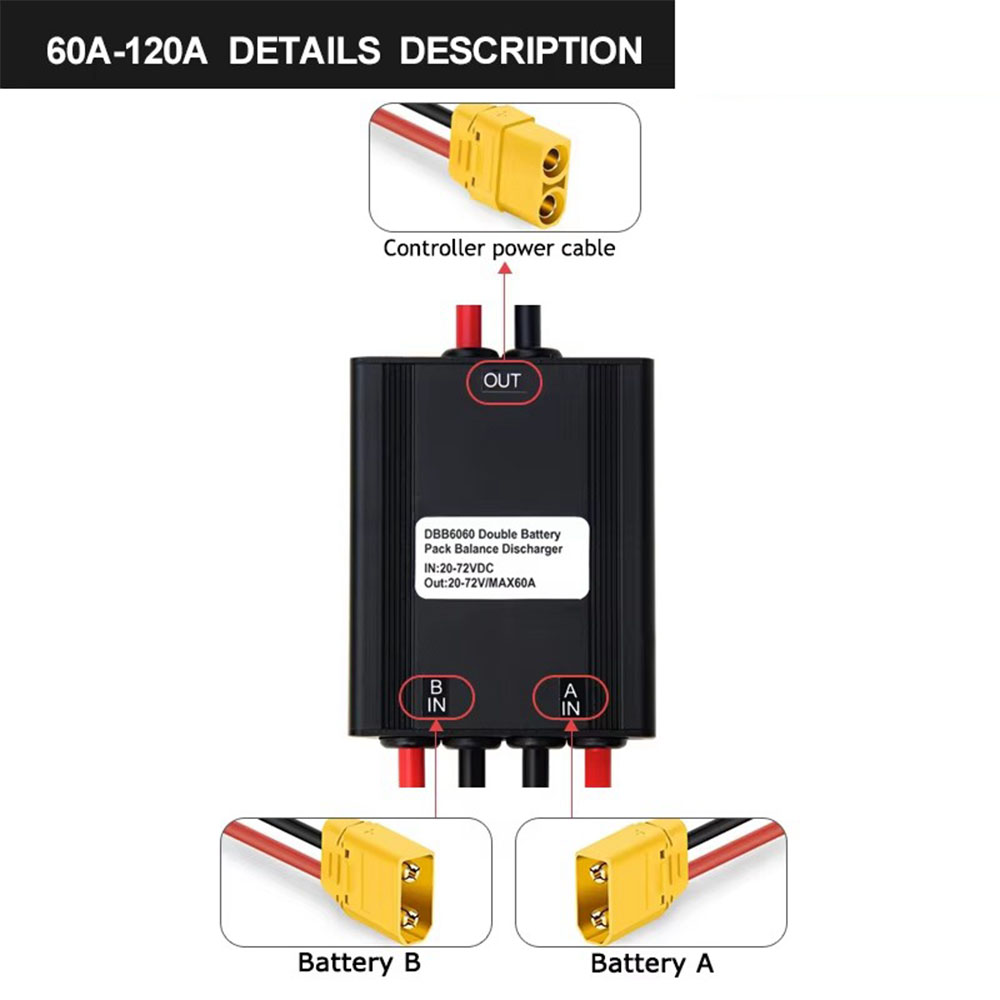

Connector: XT90:
60A/80A/100A/120A Input XT90 Male,output XT90 Female(80A/120A is with 10AWG
Wire, can't fit XT60 plug)
All Converter are upgraded versions,support Ebike or Scooter Energy Recovery
Funtion
Note:For
1.Converter with Charge Funtion
2.60A/80A/100A/120A Total Max Charge current 10A
3.Batteries Voltage and battery type Must need Same, Capacity Can be different.

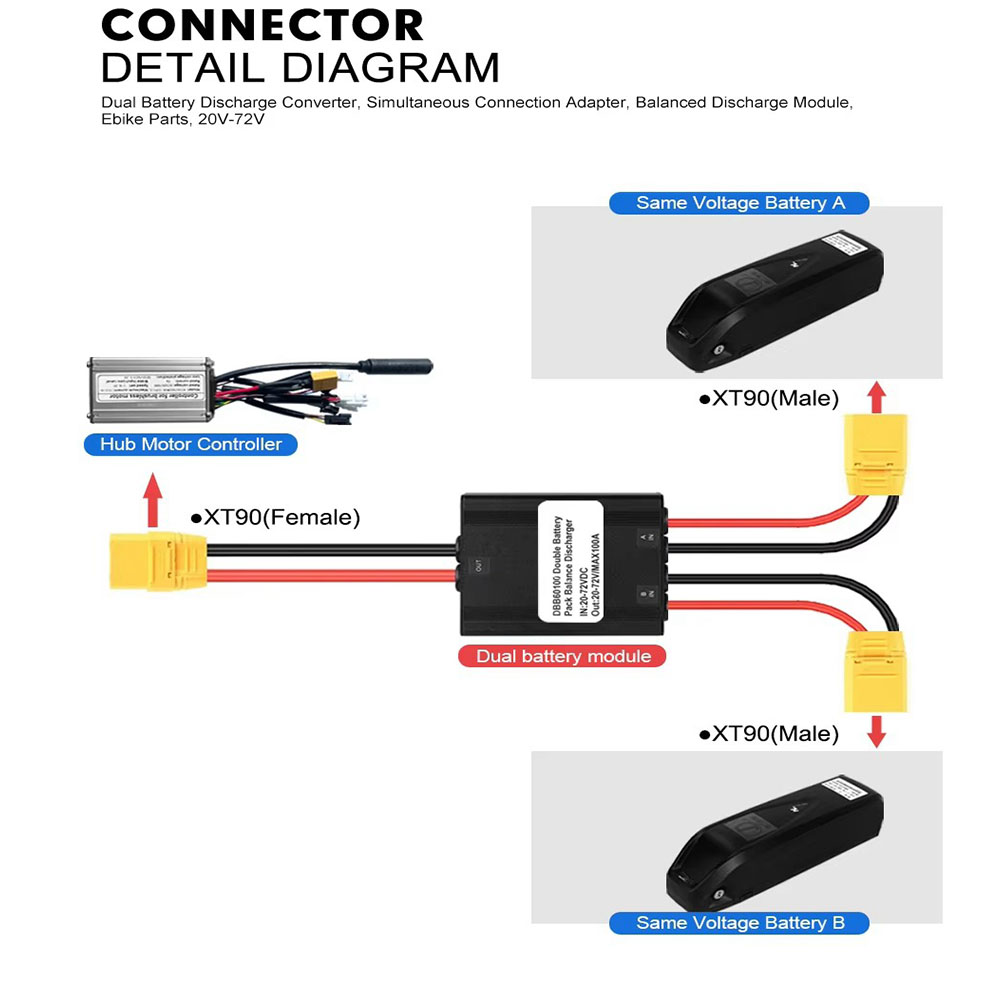

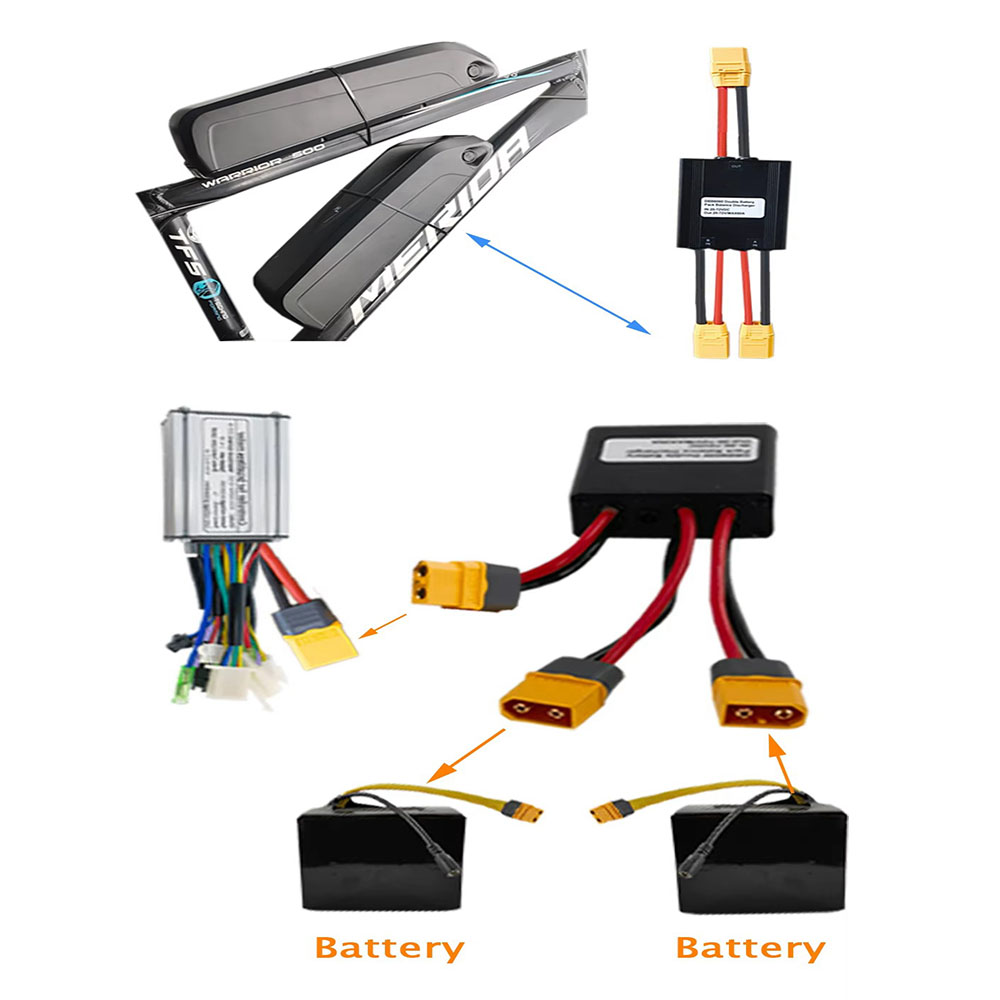

If you wish to use our parallel module to charge two batteries simultaneously,
please ensure that all your batteries use the same port for both charging and
discharging, or that the BMS inside your battery supports a single port for both
charging and discharging. Only under these conditions will it be compatible.
If your battery has separate ports for charging and discharging, or if the
internal BMS of your battery uses separate ports for charging and discharging, Using it under such
conditions may damage your battery,need to order our converter without charge
funtion.
Package includes:
1*E-bike Dual Battery Discharge Converter
