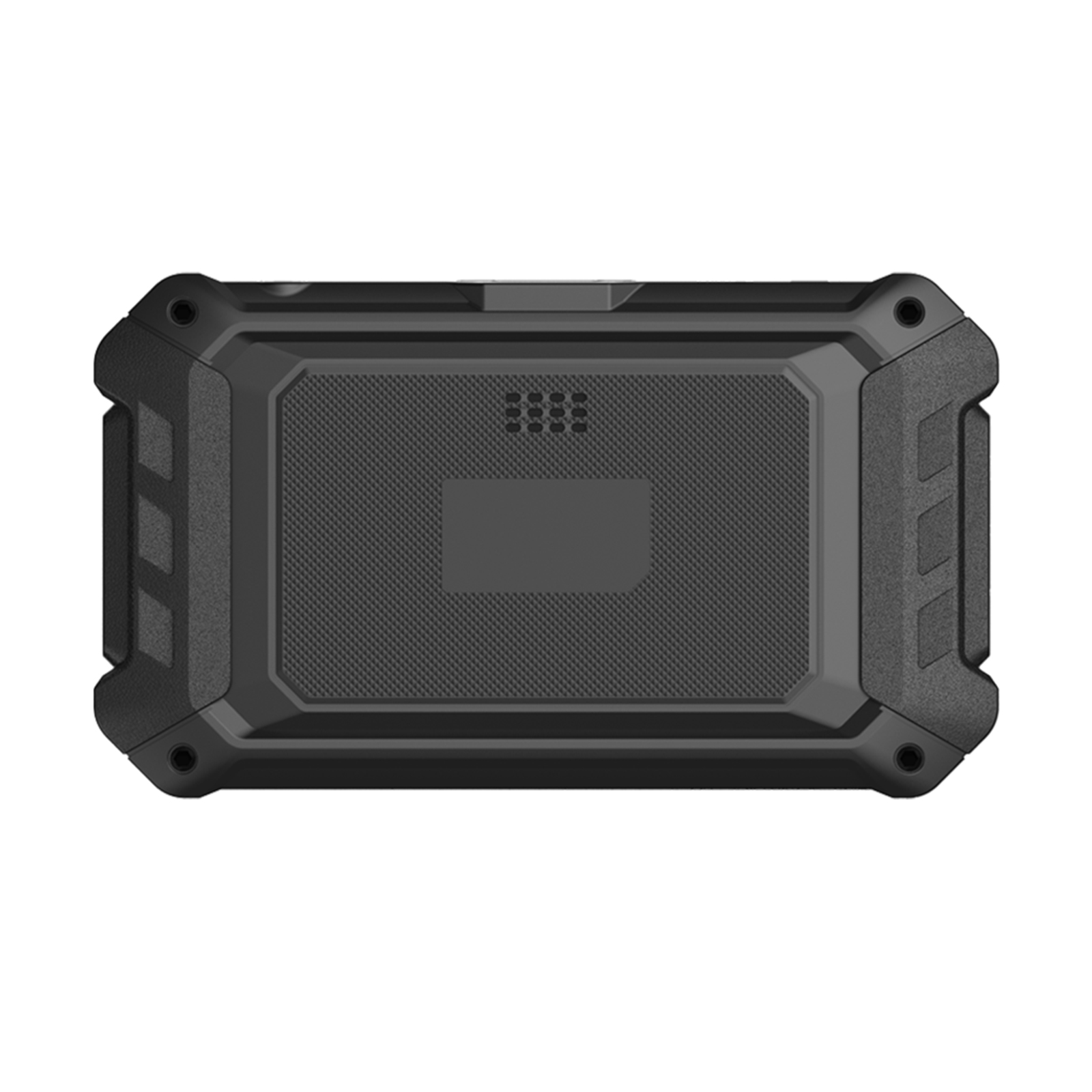

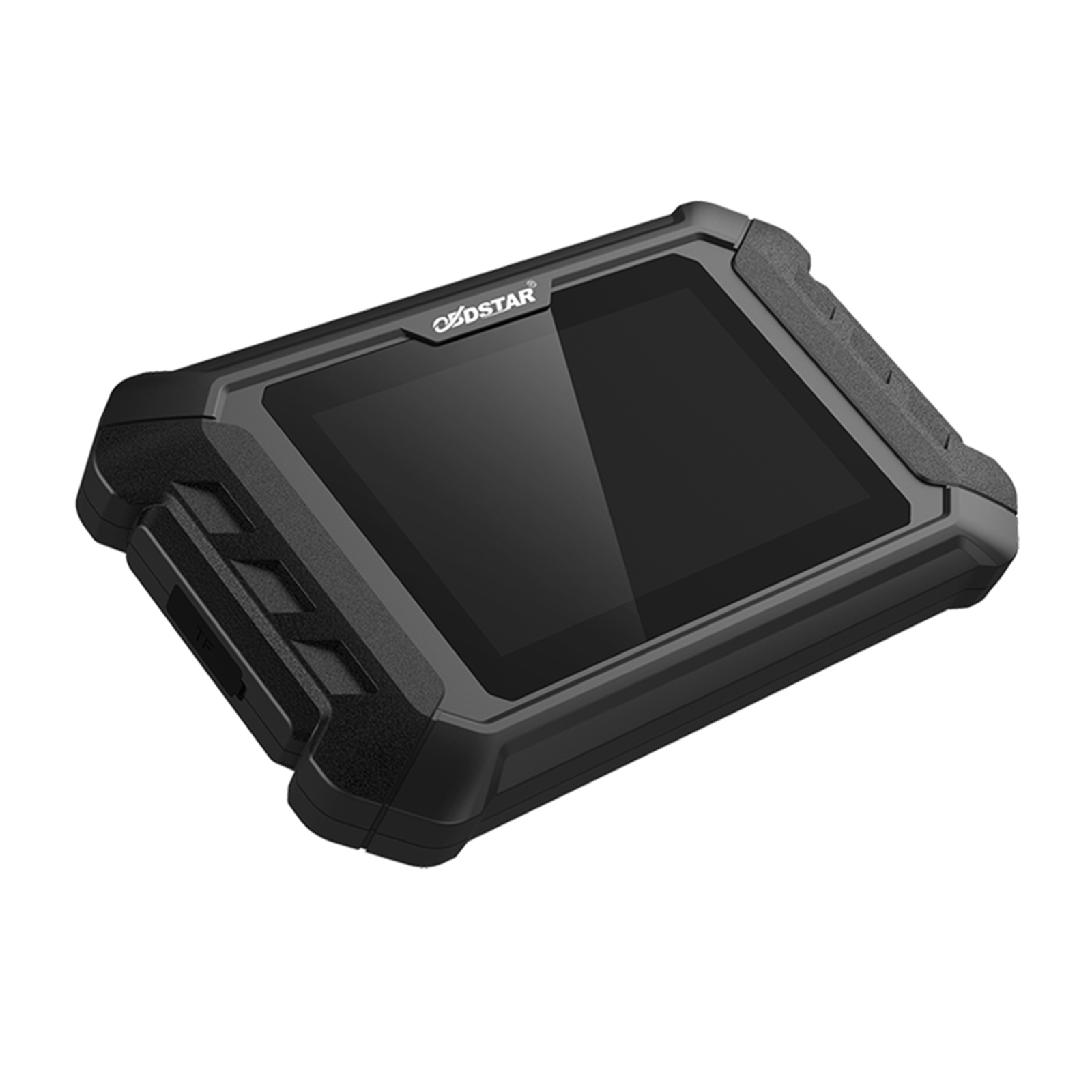

OBDSTAR ISCAN for GILERA Motorcycle Diagnostic Equipment for GILERA
ISCAN for GILERA is a portable tablet which has super performance and industrial appearance design specialized for GILERA. It is a new generation of motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Support for GILERA diagnosis and k-e-y progarmming
Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced function
1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module progarmming and coding, E-C-U setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
4.Supported languages: EN,ES,RU,PT,TH,TR,FA,FR,DE,PL,IT,ID,VN
Motorcycle/snowmobile/ATV/UTV diagnostic support series
For GILERA
Function Display

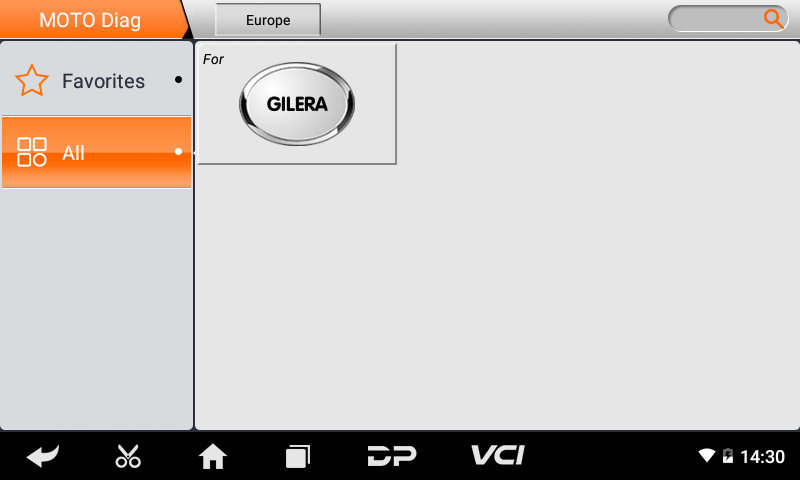

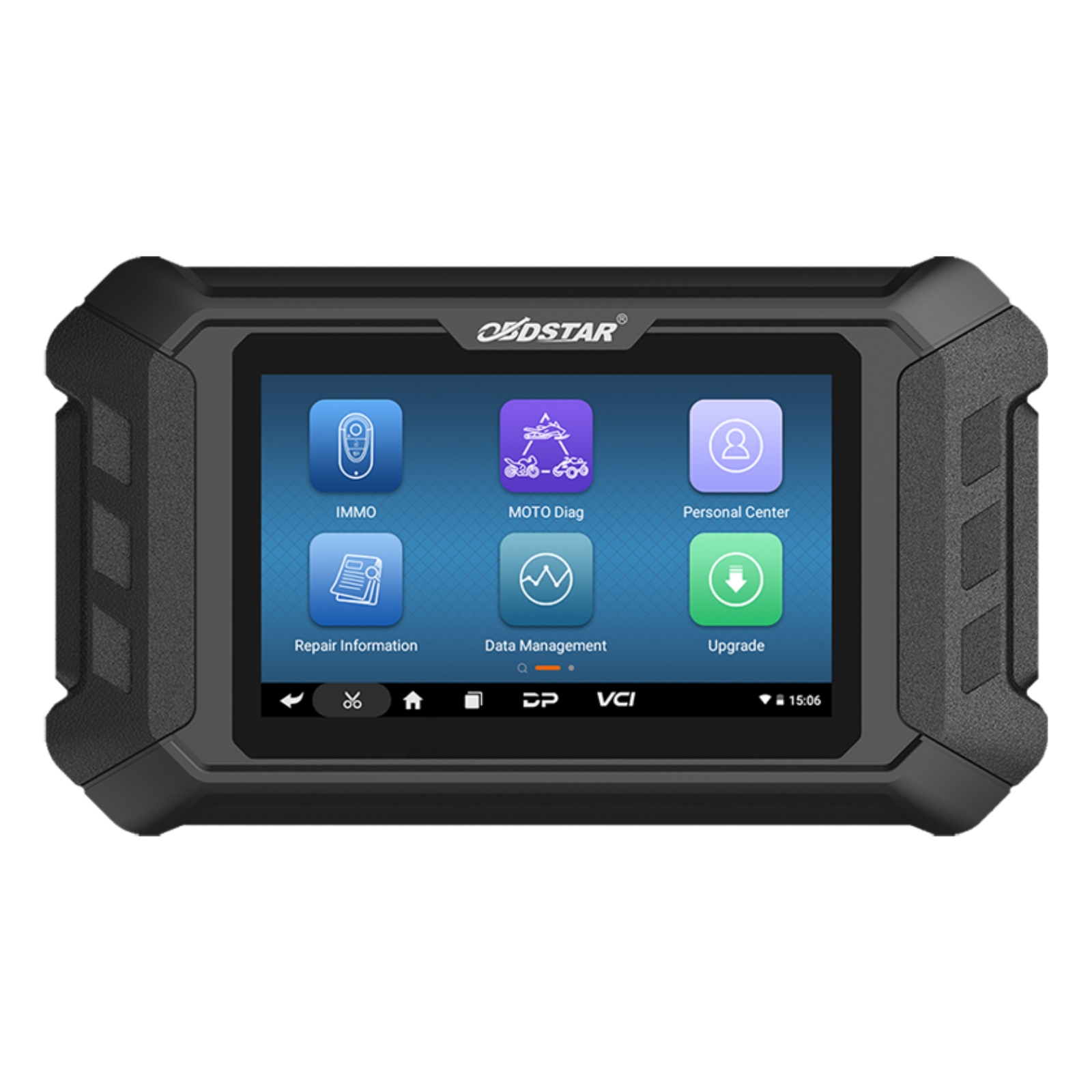

1) Main Page/Brand Supported
2) Help Data/Technical Bulletin
3）Supported Systems List/Vehicles List
4) Diag Socket/Diag Connector Location
5) Special Function
Specifications
Operation system | Android 5.1.1 |
CPU | RK3128 quad-core cortex A7 |
Battery | 2600mA, rechargeable polymer lithium battery |
Extension memory card | 32G micro SD (TF) card supported |
| LCD | 5.0 inch |
LCD resolution | 800*480 |
Touch screen | Capacitive touch screen |
Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
Storage temperature | -20℃~70℃ (-4℉~158℉) |
Weight | About 700g |
Dimension | 198mm*115mm*31mm |
Package Includes:
1pc x ISCAN for GILERA Tablet
1pc x M001A Main cable
1pc x M002 Power cable
1pc x N004 for GILERA-3
1pc x N041 OBD-6
1pc x 12V2A charger
Please note: Optional accessories are not included in the package!
FAQ：
Q: Where can I find a list of supported functions for a product?
A: You can download the list of supported models for each module from the “Function Manual” on the product page of our official website, and we usually synchronize the update at the end of each month.
Q: Does the device need the annual subscription fee?
A: Our current policy is that upgrades are free for 1 year from the time of registration. From the 2nd year of device usage, there will be an annual subscription fee.
