SGX-1610-100 (Effective stroke: 100 mm)
Includes motor; lead screw specification: 1610; lead screw accuracy: ±0.05 mm; horizontal load: ≤35 kg; vertical load: ≤15 kg; weight: approximately 1.8–2.1 kg.

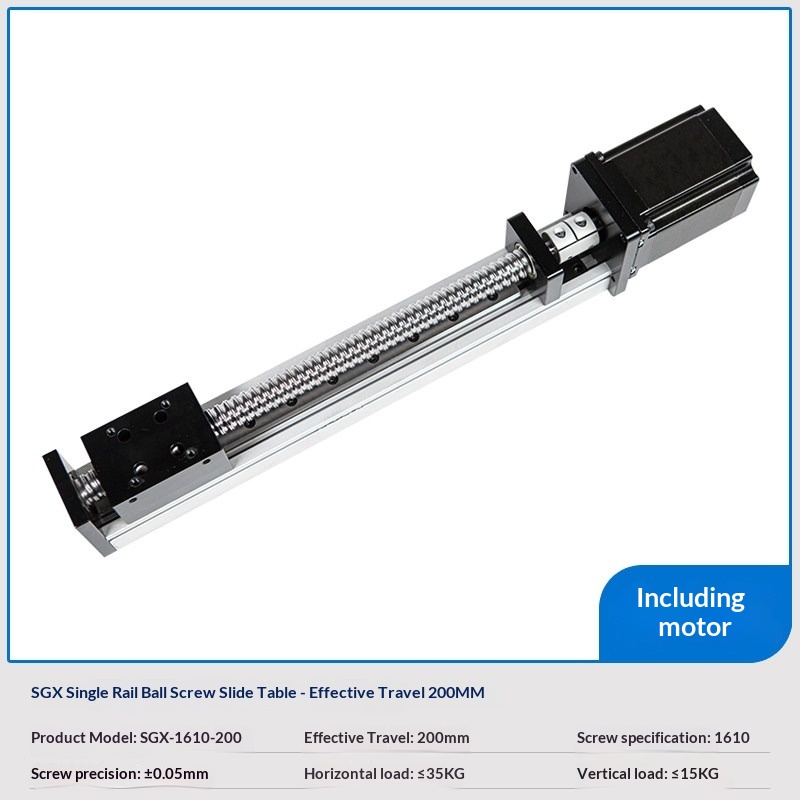

SGX-1610-200 (Effective stroke: 200 mm)
Includes motor; lead screw size: 1610; lead screw accuracy: ±0.05 mm; horizontal load: ≤35 kg; vertical load: ≤15 kg; weight: approx. 2.1–2.4 kg.
SGX-1610-300 (Effective Stroke 300 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 2.4–2.7 kg.
SGX-1610-400 (Effective Stroke 400 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 2.7–3.0 kg.
SGX-1610-500 (Effective Stroke 500 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 3.0–3.3 kg.
SGX-1610-600 (Effective Stroke 600 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 3.3 kg
SGX-1610-700 (Effective Stroke 700 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 3.6–3.9 kg.
SGX-1610-800 (Effective Stroke 800 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 3.9–4.2 kg.
SGX-1610-900 (Effective Stroke 900 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 4.2–4.5 kg.
SGX-1610-1000 (Effective Stroke 1000 mm)
Includes motor; lead screw specification 1610; lead screw accuracy ±0.05 mm; horizontal load ≤35 kg; vertical load ≤15 kg; weight approximately 4.5–4.8 kg.
