Product Description

Features:

--Wind & Solar MPPT charging method, make sure the power get max input into the battery and high charging efficiency.

--Can be used for 3000W wind turbines with high compatibility.

--Independent boost circuit: solved the charging efficiency of low power vertical wind generator.

--12V/24V (12V/24V/48V) system auto detect function.

--Mini size, easy to install.

--LCD display with visible and intuitive parameters.

--Nominal wind power: 100-1000W.

--PV rated power: 100-2000W

Functions:

✔ Wind generator MPPT boost charge function.

✔ Wind PWM dump load, external dump load resistor, intelligent solar charge separation.

✔ Dual power supply function: battery + solar power supply.

✔ LCD shows parameters such as voltage and current of wind, solar and load. Some parameters can be set by the user.

✔ DC output with 3 output modes.

✔ Controller inner board is sprayed with protective paint to prevent dust, moisture and static electricity.

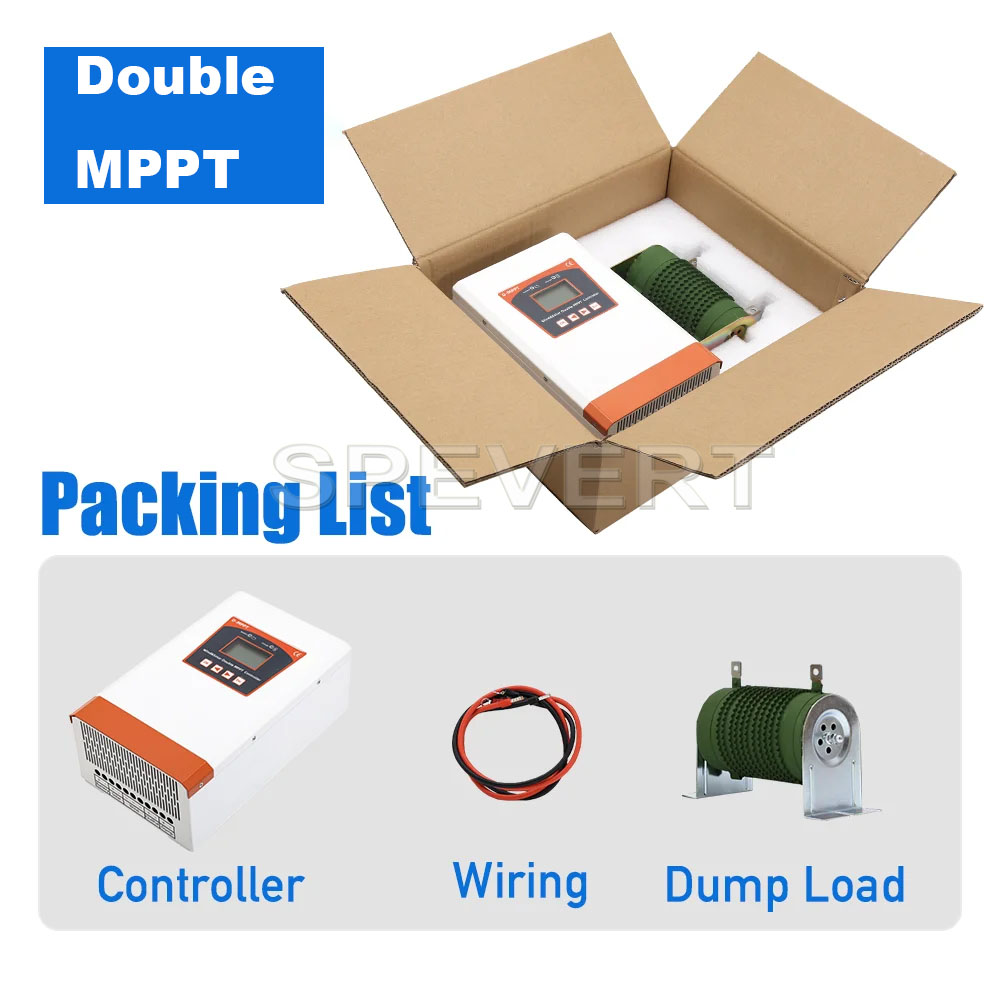

Package List:

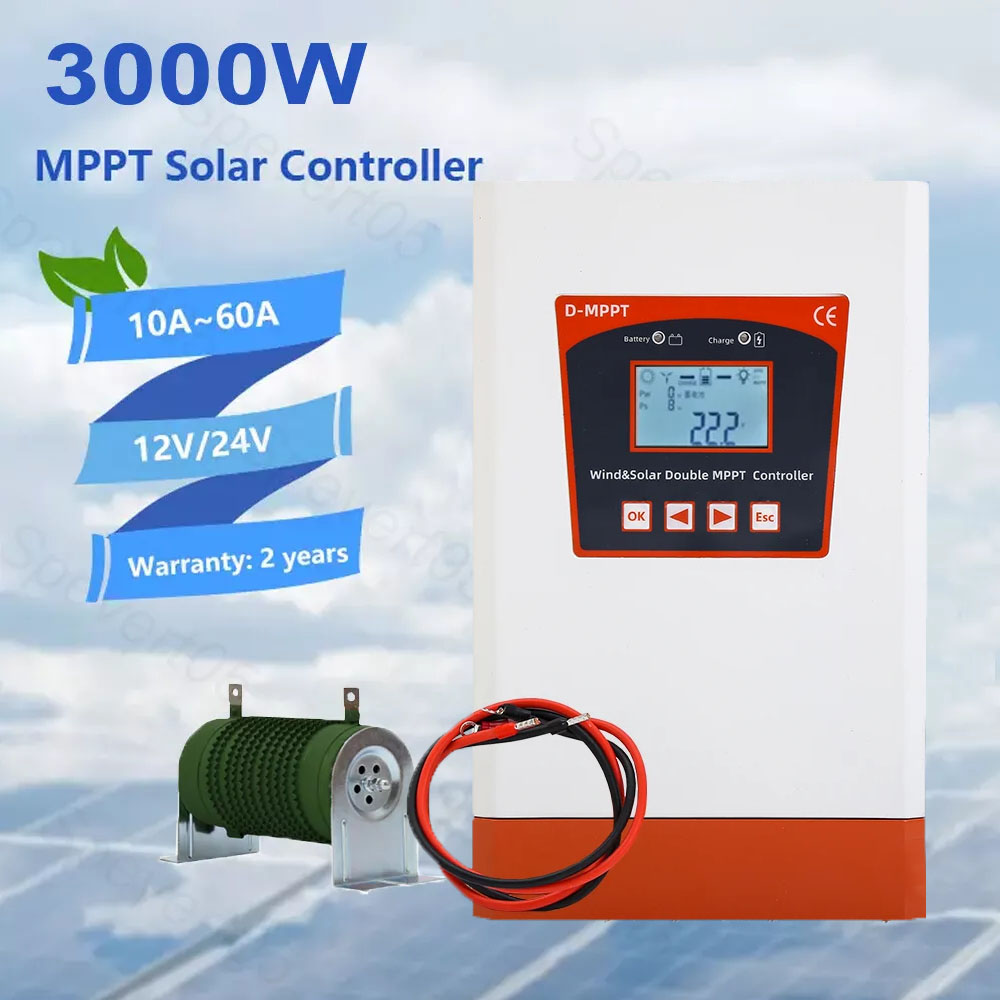

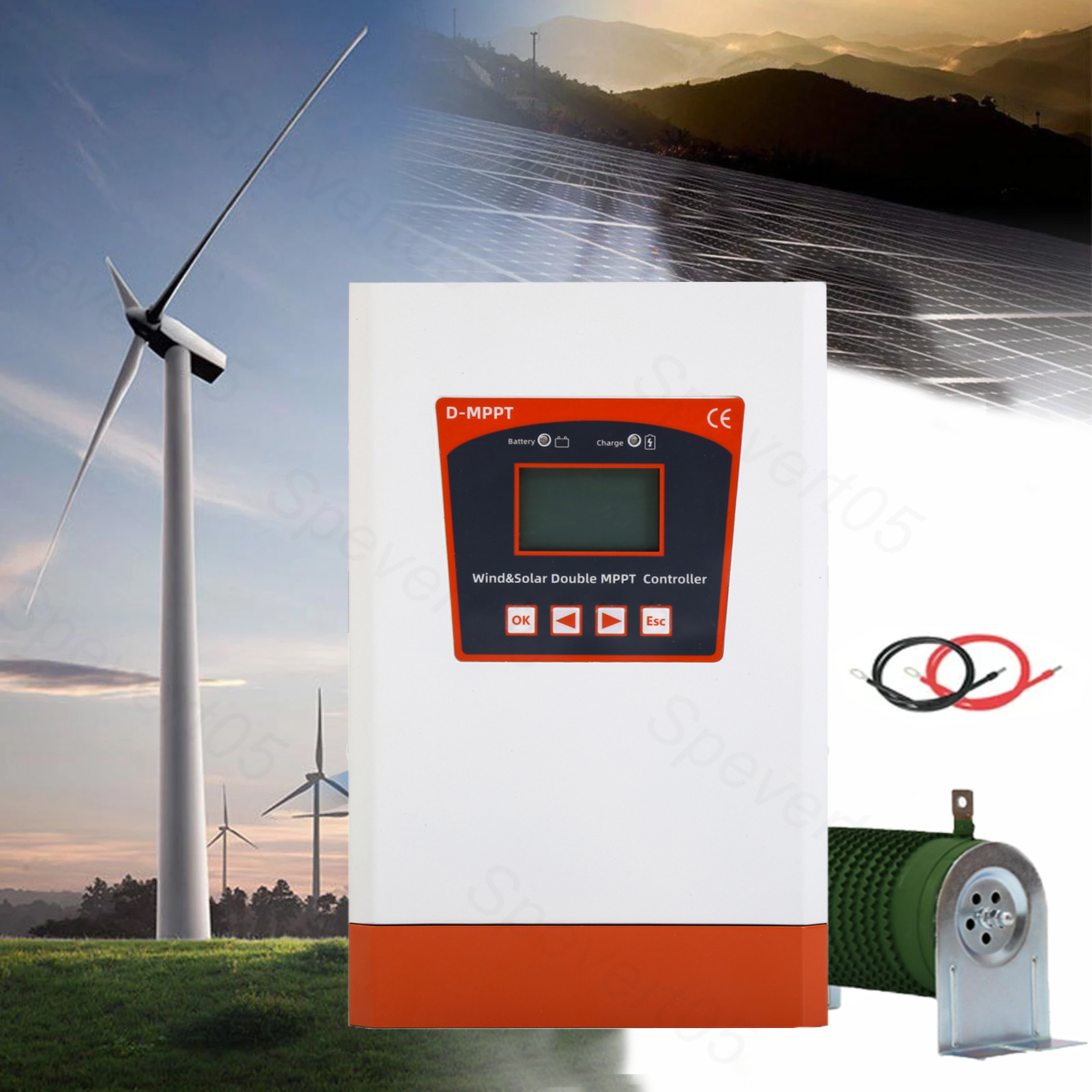

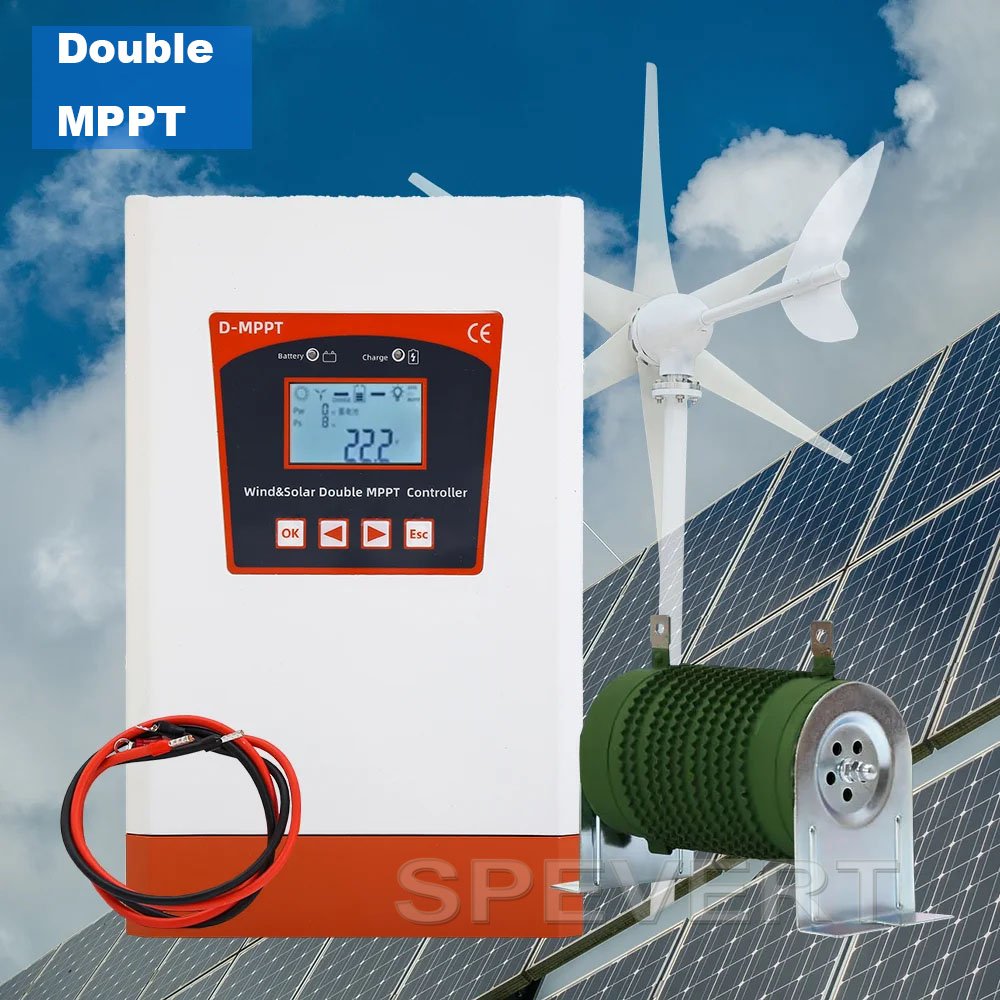

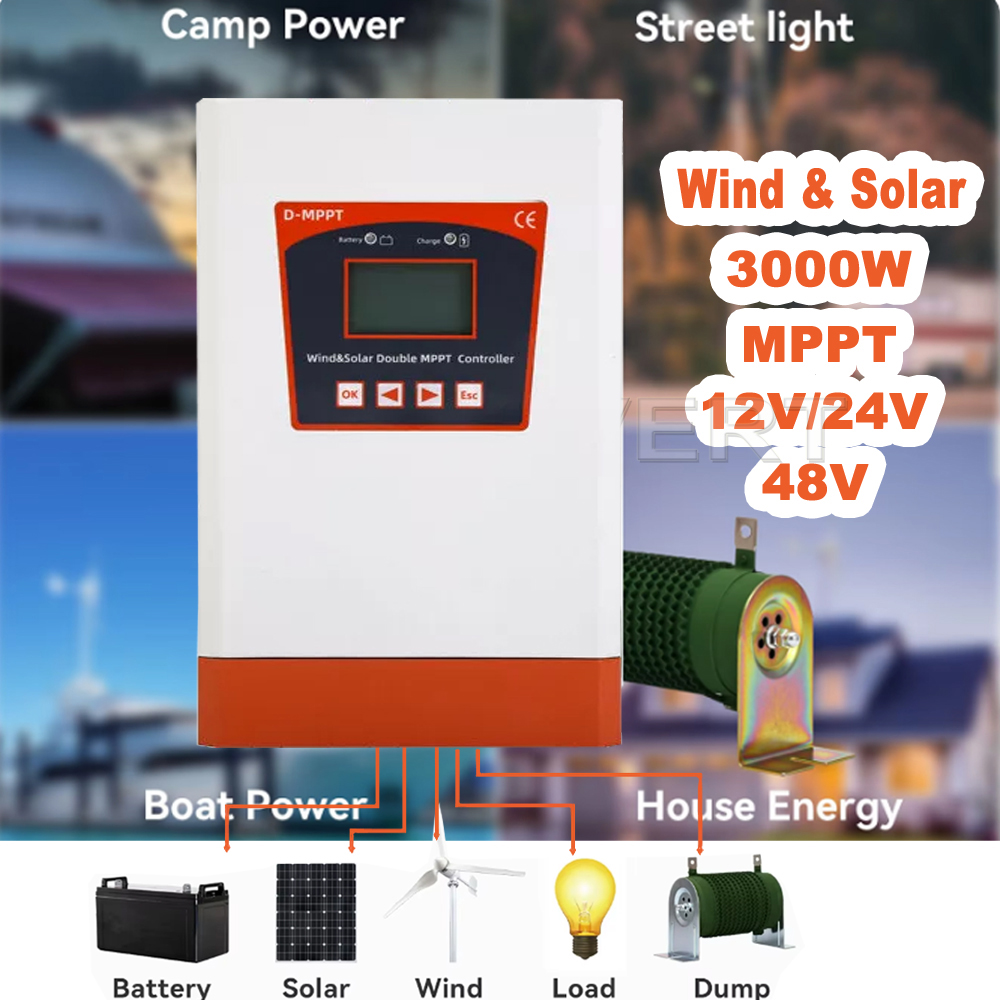

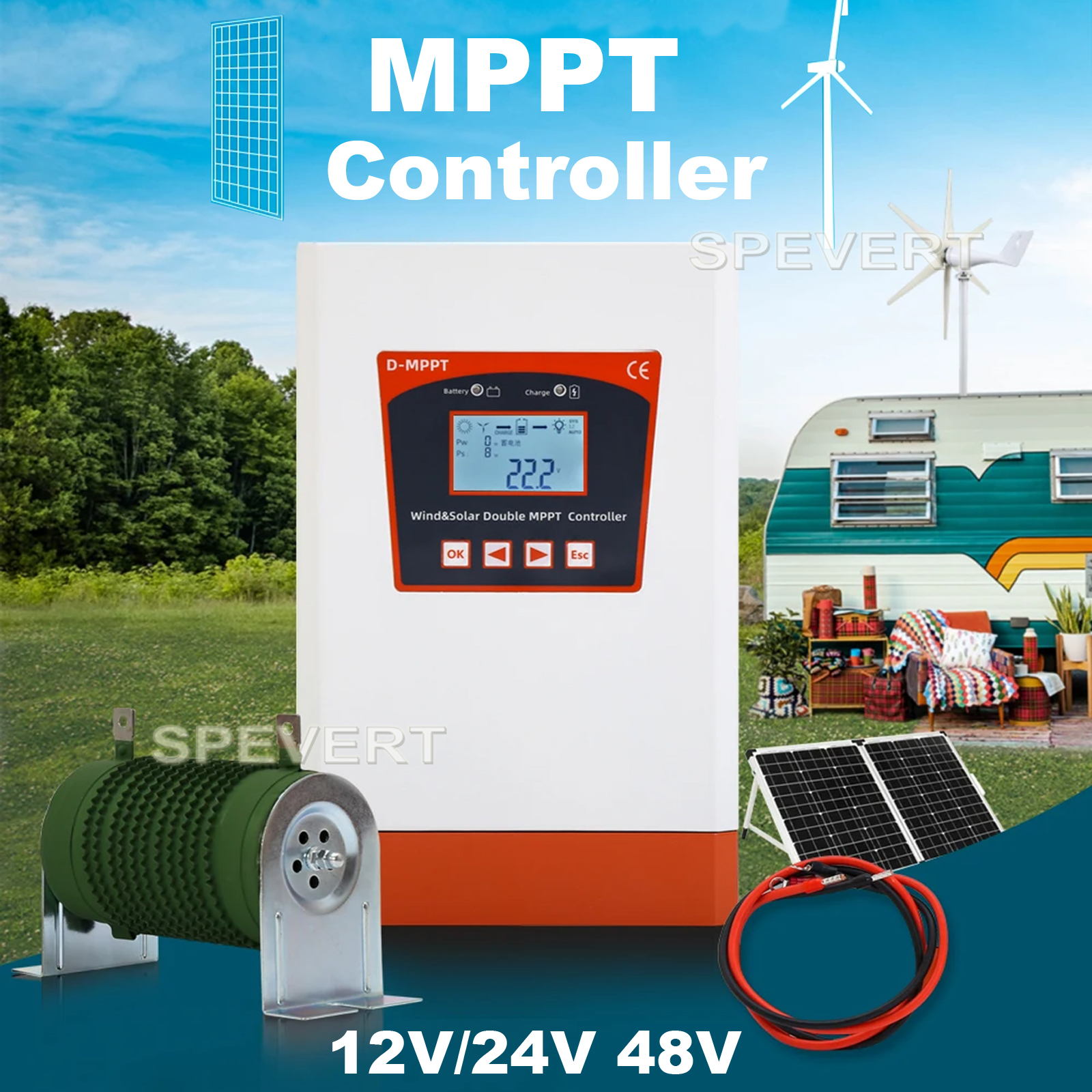

1 x Double-MPPT Wind & Solar Charger Controller

1 x External Dump Load

Specification:

Rated system voltage: 12V、24V、48V、12/24 ATUO、24/48V AUTO（ONE OF FIVE）

Rated wind power: 600W/12V,800W/24V,1000W/48V

Rated PV power: 1000W/12V,1500W/24V,2000W/48V

Charge way for Wind turbine: Mppt boost &PWM

Charge way for PV: MPPT&PWM

Max input voltage for wind : 12/24V system：wind≤80V ；48V system：wind≤130V

Max input voltage for solar: 12/24V system：solar≤80V；48V system：solar≤130V

Dump load way: External dump load ，wind power ≤1KW with R1，wind power ≥1KW with R2

No-load Current (DC): ≤0.06A

Controller power mode: Battery or solar panel

Output load working mode(Mode): Mode 1: Light-control on. Light-control off (3 modes adjustable)

Display: LCD display (clear and easy to understand )

Display content: LCD display,Voltage, Percentage of battery power, Current, working mode of load, etc

Protection: Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.

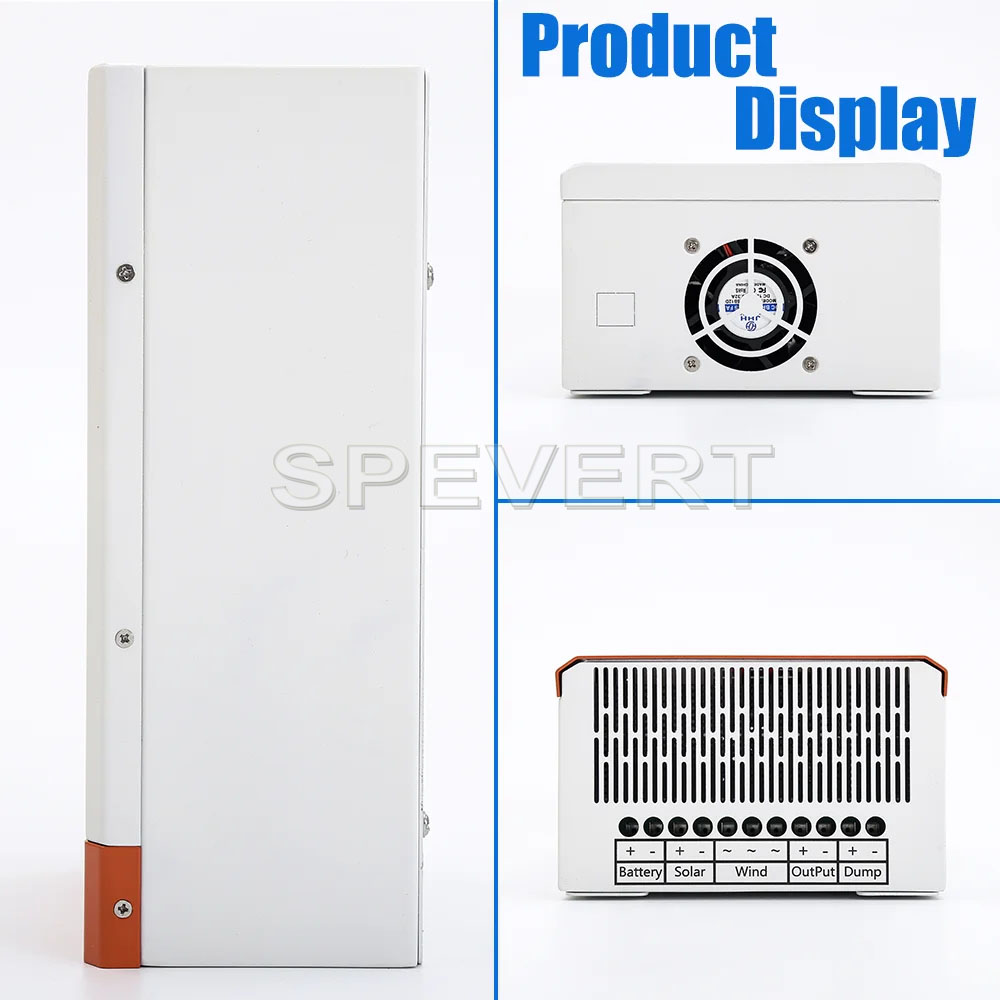

Cooling mode: Cooling fan and self-cooling

Workingtemperature/ Relative humidity: ﹣20~﹢55℃/35~85%RH (non-condensing)

NW. For R1，R2: R1：0.95Kg 、R2：1.35Kg

Dump load size ：R1：210*70*130mm、R2：200*90*150mm
