RadioMaster GX15 RC Radio 16CH Transmitter V6 Hall Gimbal Dual 2.4GHz ExpressLRS Gemini


Features:

1. Powerful Core & Precise Control: Equipped with STM32H7 processor for fluent system operation, original V6 Hall gimbal delivers zero-drift precise control. Replaceable shoulder switches support customized operation.

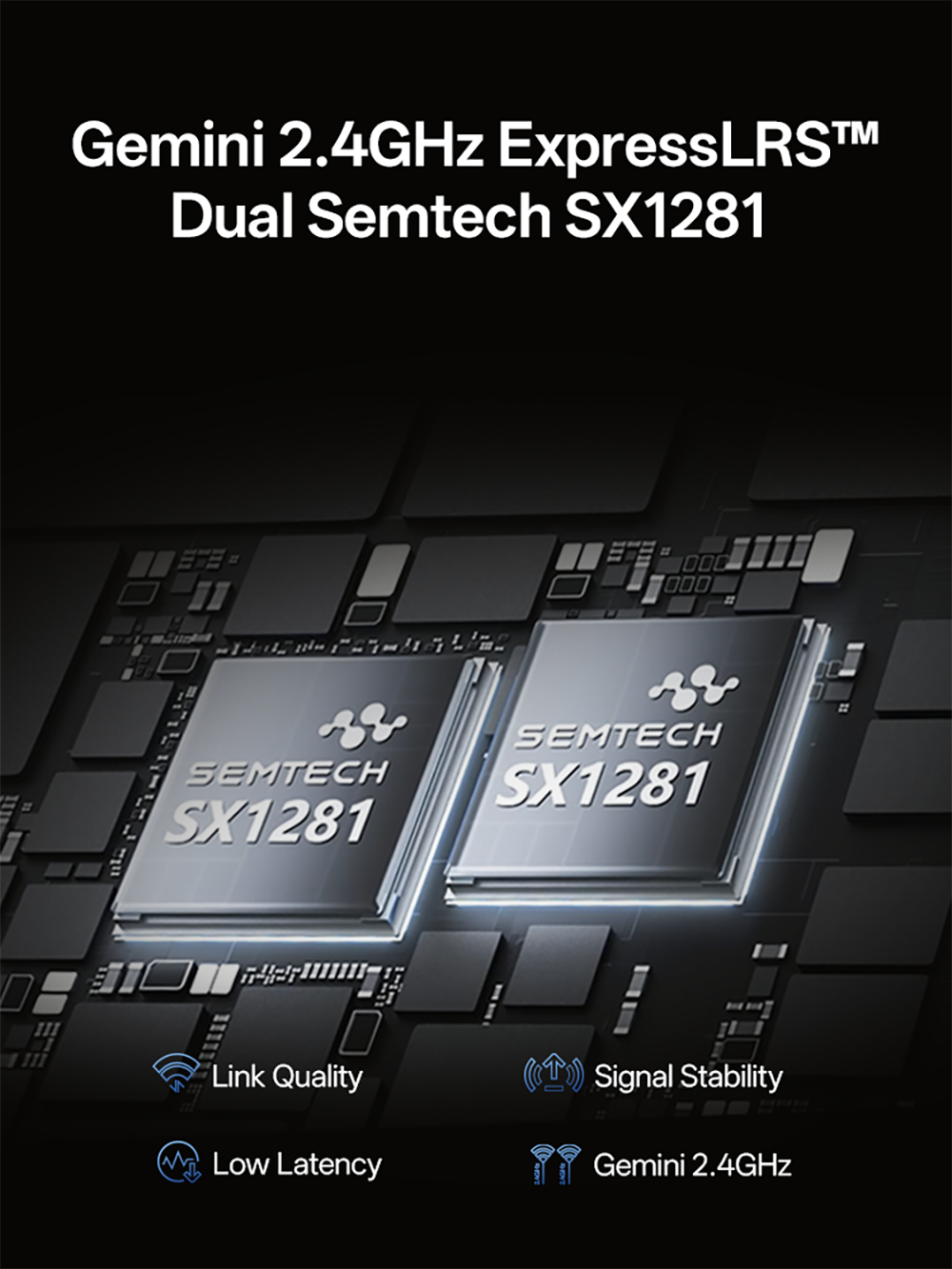

2. Dual ELRS Gemini Link: Adopts dual SX1281 RF chips for stable 2.4GHz dual-link transmission. Supports F1000 high-speed mode and up to 16 channels with compatible receivers, ultra-low latency.

3. 3.5" High-Bright Touch IPS Screen: 480×320 resolution, 262K colors and 600 nits high brightness, clear display even under strong sunlight.

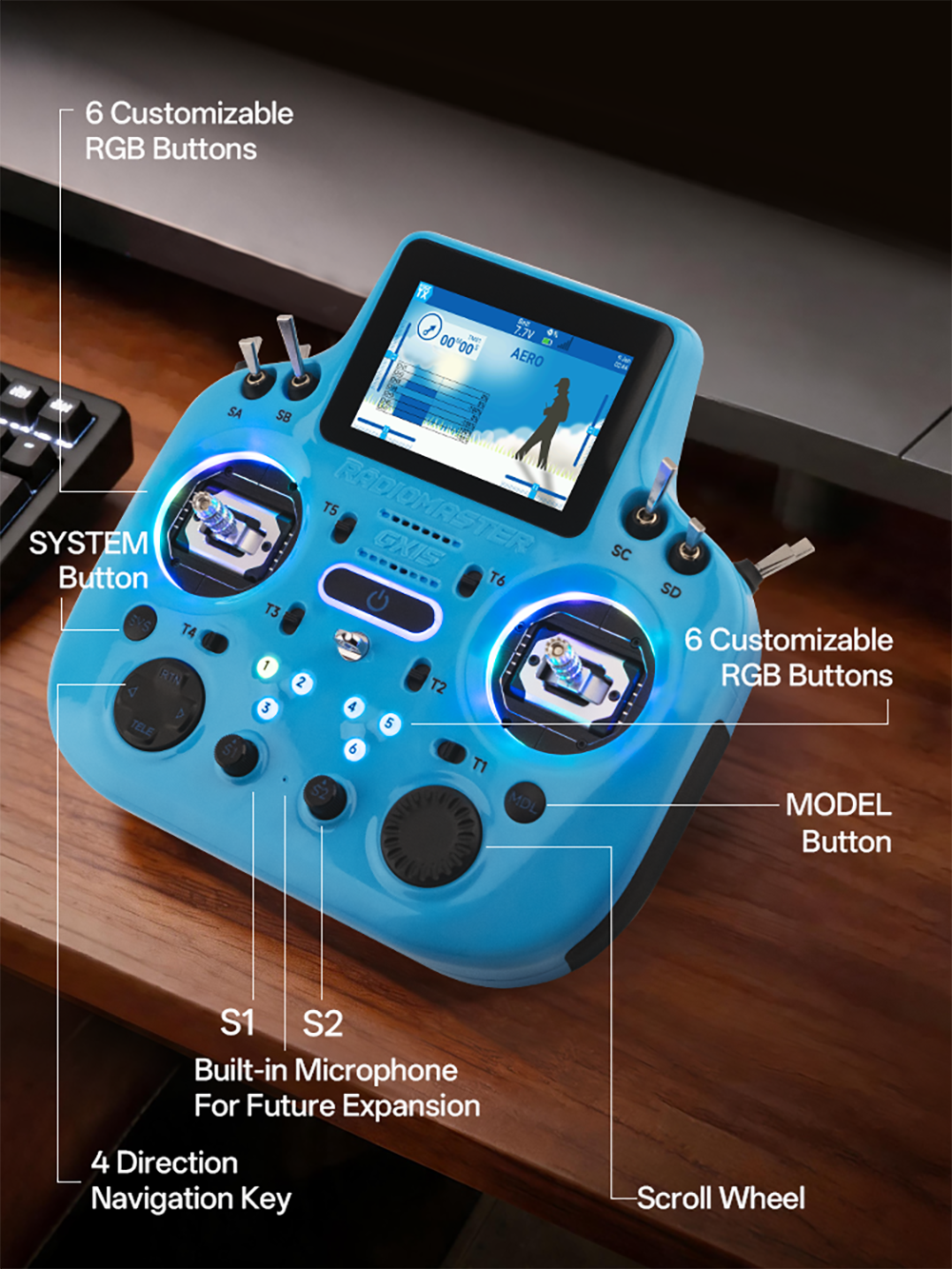

4. Built-in Gyro & Expandable Functions: Supports tilt control for switches, gimbal pitch adjustment and voice telemetry. Reserved microphone port for future function upgrades.

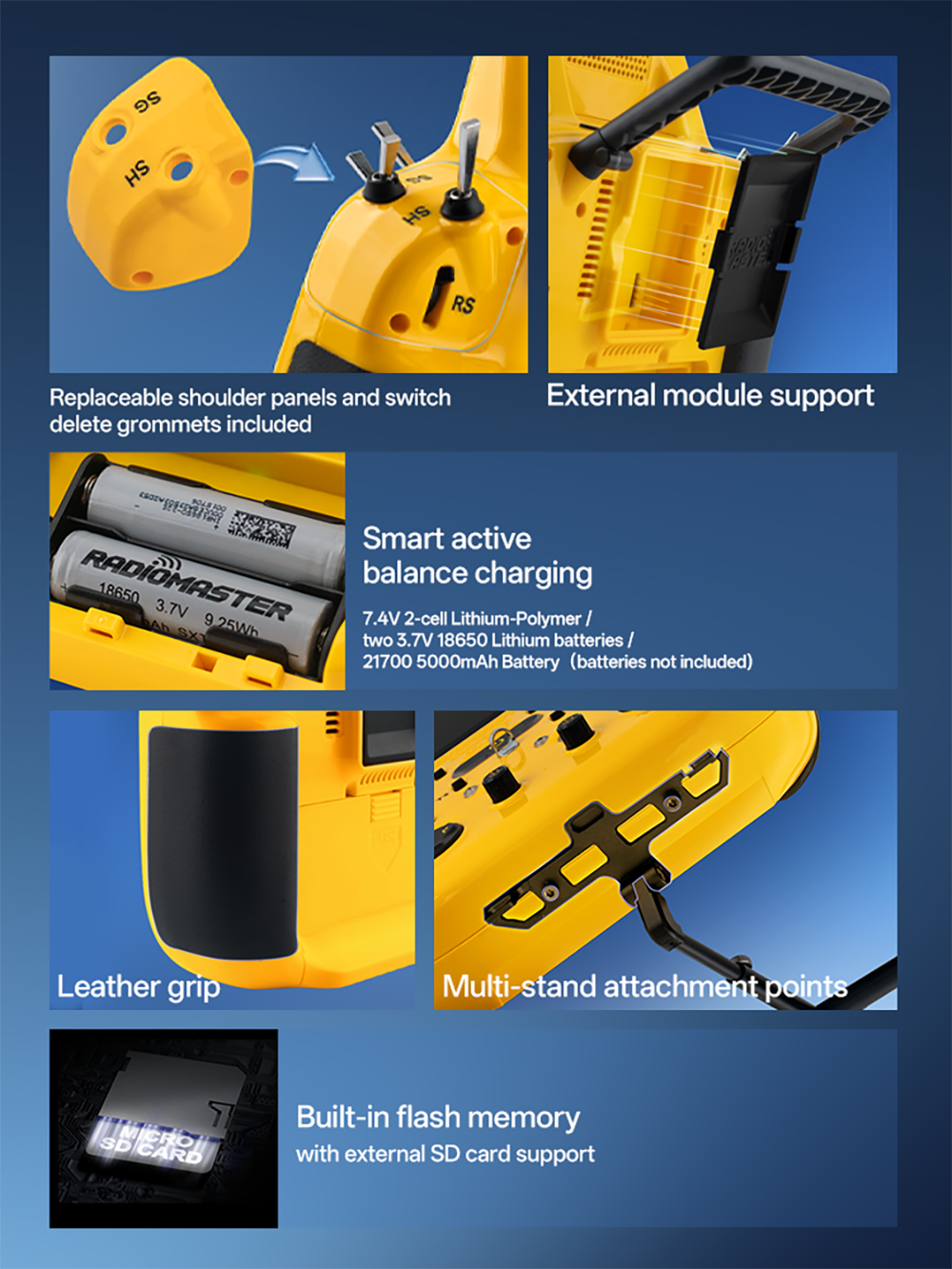

5. Wide Voltage & Multi-Battery Compatibility: 6.6–8.4V DC wide voltage range. Compatible with 18650/21700 Li-ion and 7.4V LiPo batteries (batteries not included).

6. Efficient Cooling & Stable Signal: Silent cooling fan and aluminum alloy heat sink ensure stable long-time operation at high temperature. Built-in high-gain 2.4GHz antenna provides steady signal transmission.

7. Dual Storage & Flexible Upgrades: Onboard storage + up to 32GB FAT32 TF card support with automatic storage switching. Features USB-C / UF2 upgrade and standard JR module slot for external RF expansion. Pre-installed EdgeTX V2.12.0 or higher.

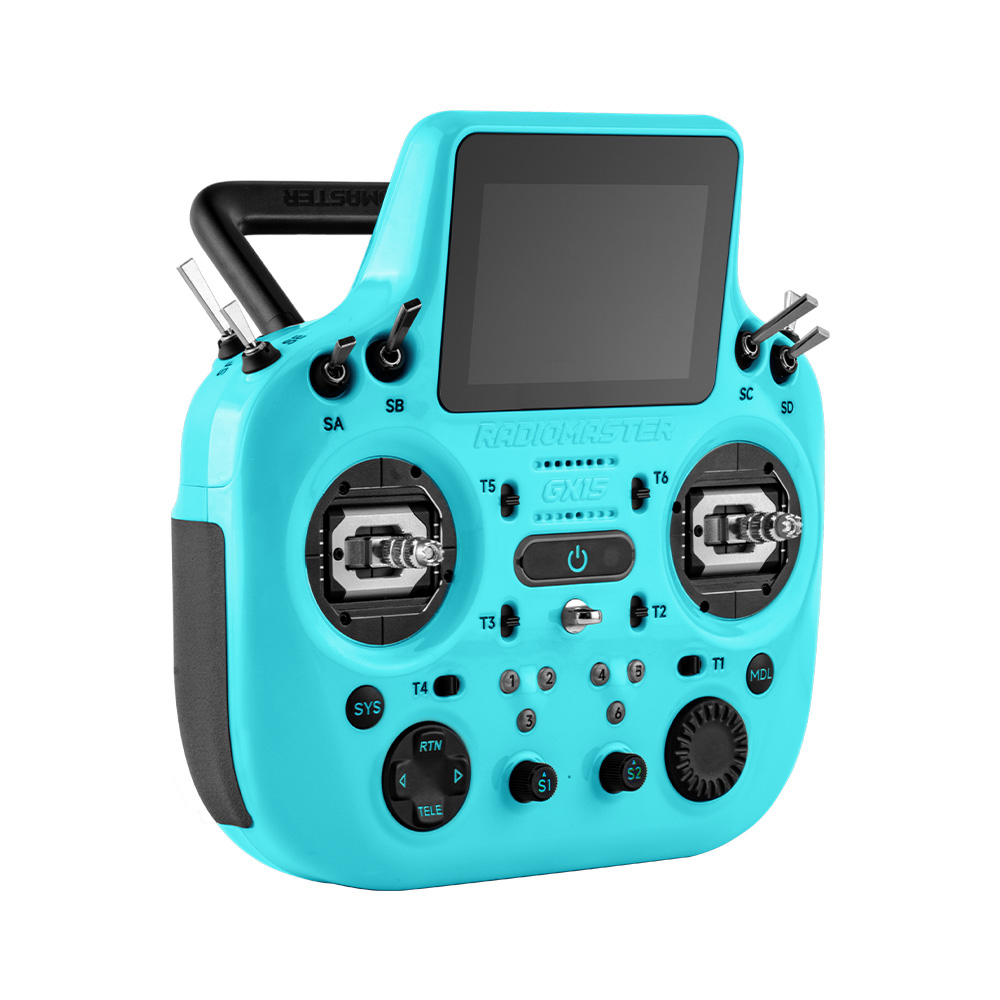

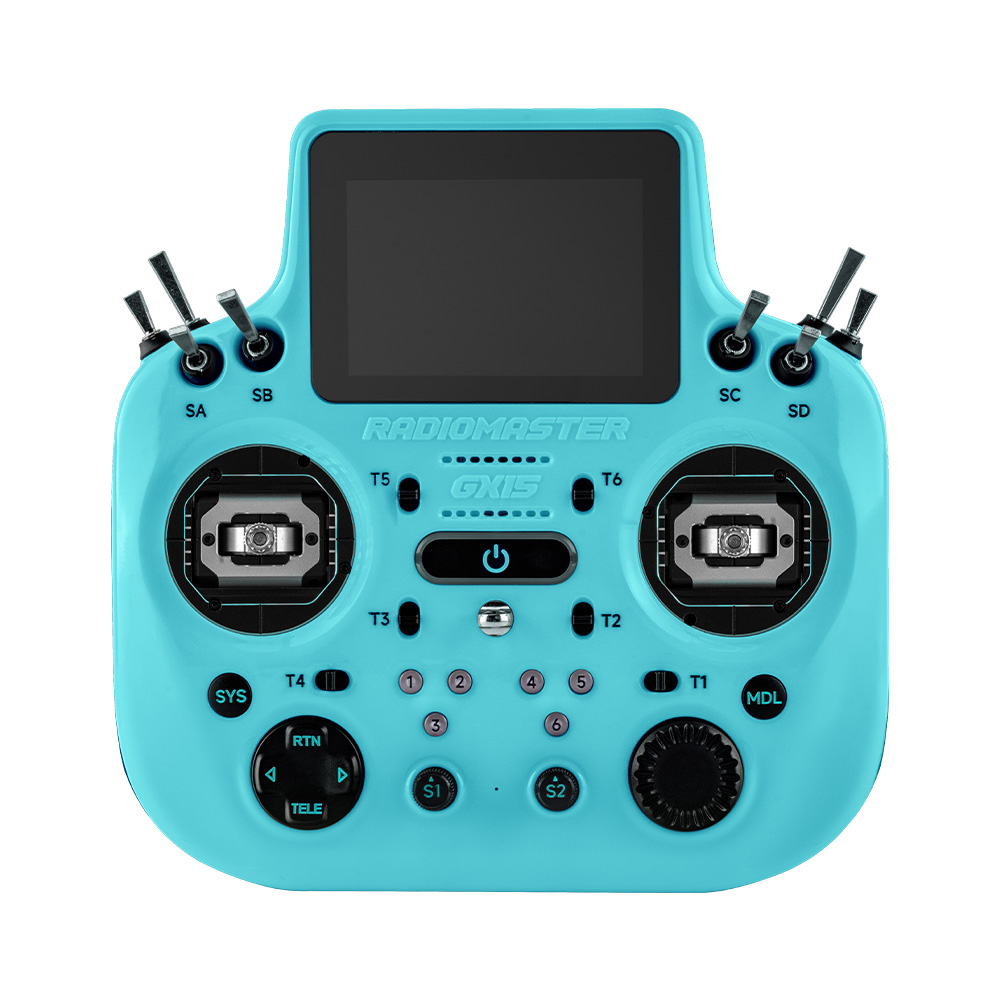

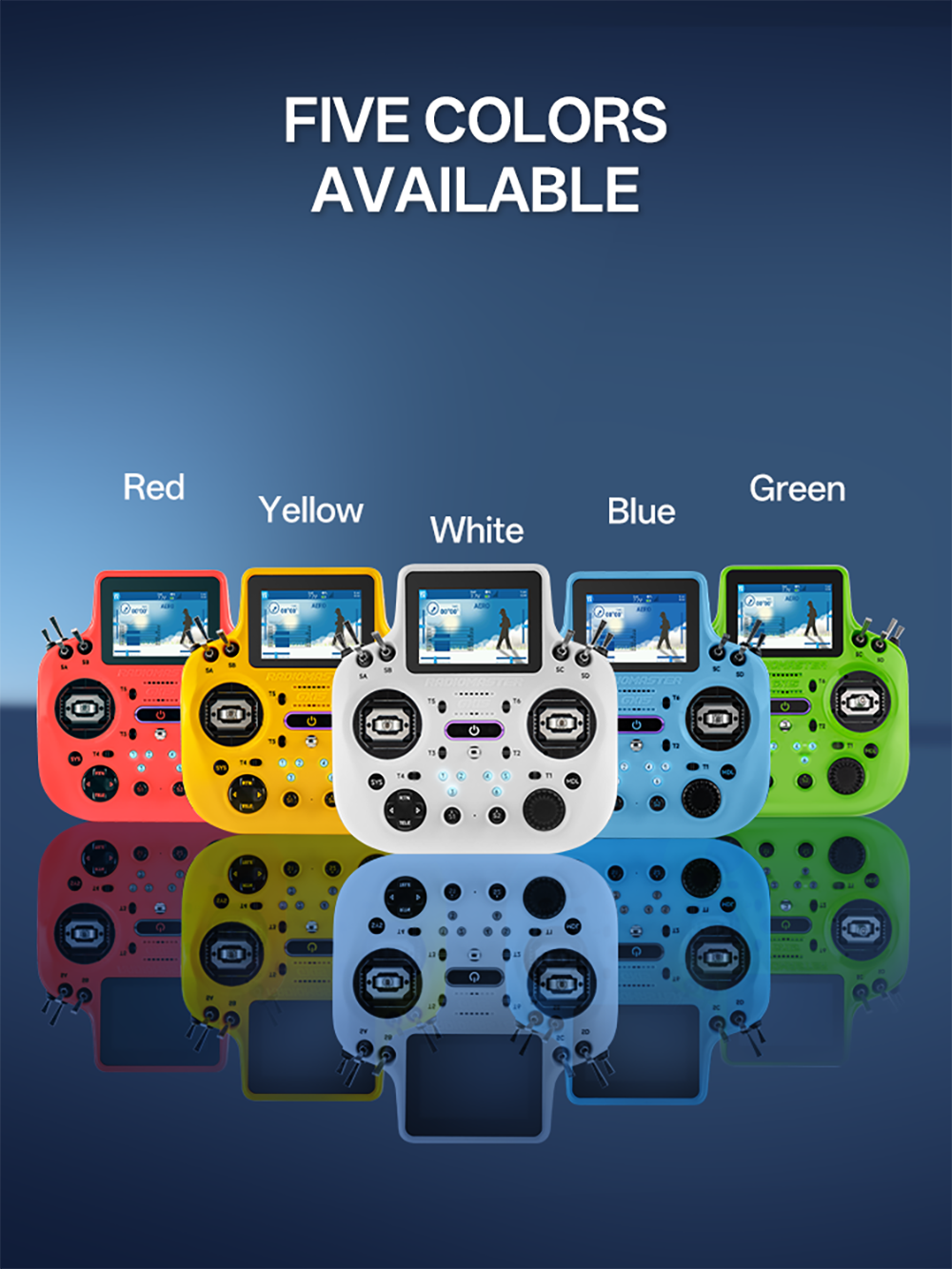

8. Lightweight Portable Design: Available in white and blue. Equipped with USB-C port and M4 gimbal thread. Compact size 178×168×81mm, only 681g (without battery), easy to carry for outdoor flying.

Description:

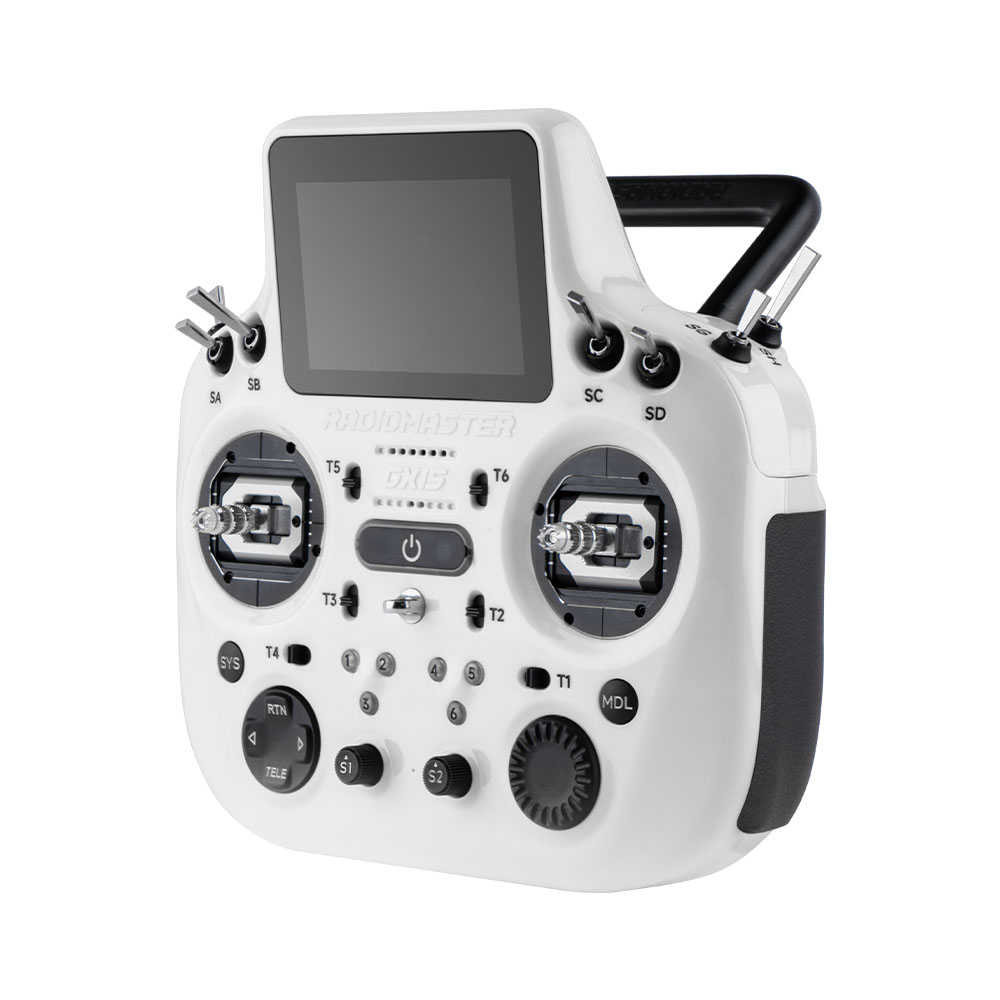

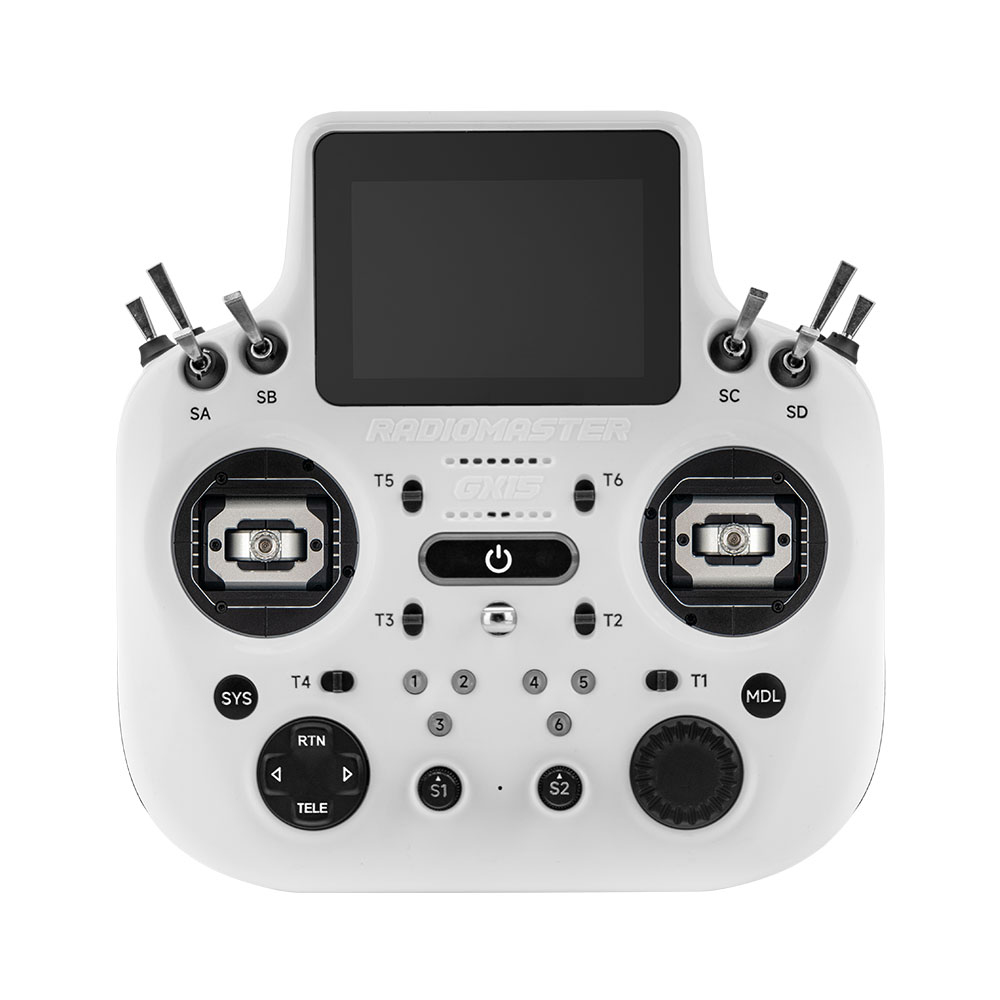

GX15 RC transmitter equipped with STM32H7 processor and original V6 Hall gimbal, fitted with a 3.5-inch high-bright touch IPS screen, built-in gyroscope and efficient cooling system, adopting dual SX1281 chips for dual ELRS Gemini link that supports F1000 mode,  multiple upgrade options and a standard JR module slot with lightweight portable design.

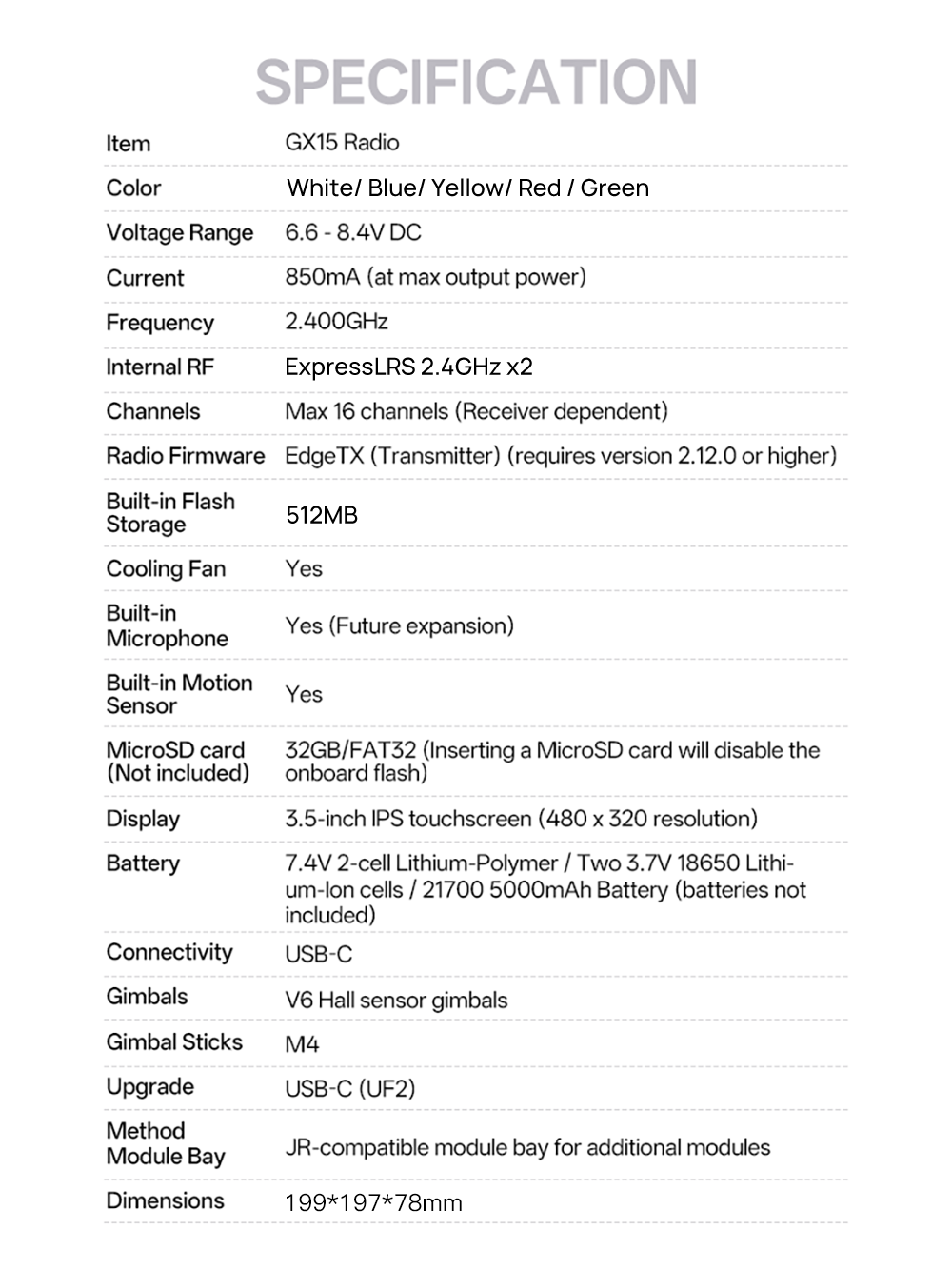

Specifications:

Main Chip: STM32H7

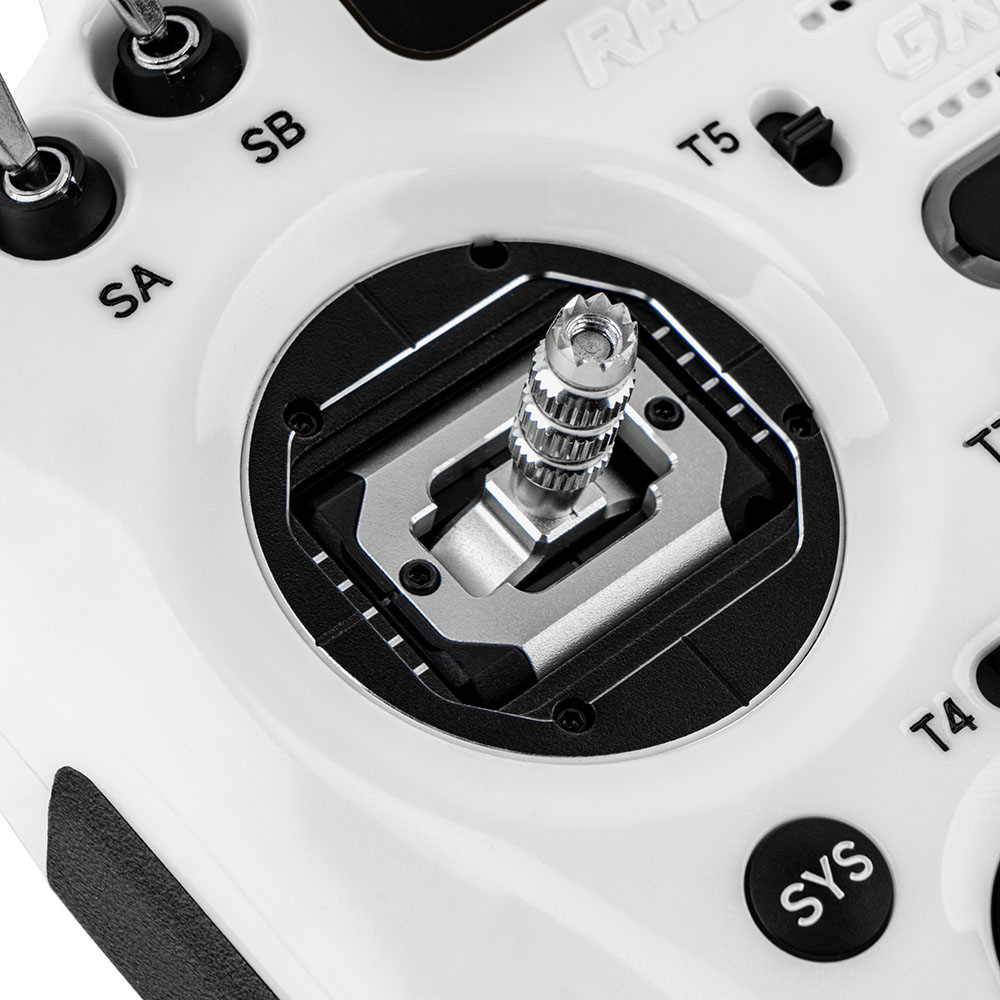

Gimbal: V6 Hall Sensor Gimbal, M4 thread

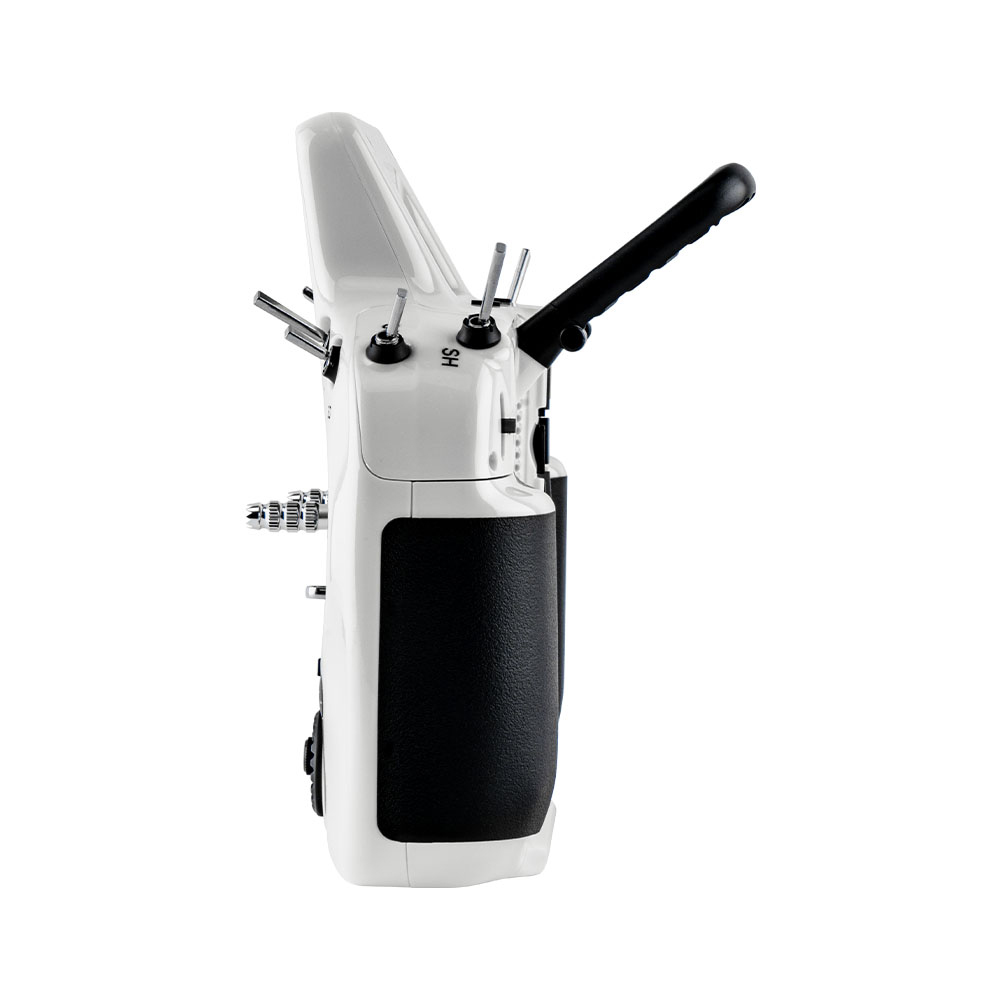

Shoulder Switches: Replaceable

RF System: Dual 2.4GHz ELRS Gemini (Dual SX1281), F1000 Mode, max 16 channels

Screen: 3.5" IPS Touch Screen, 480×320, 262K Colors, 600 nits

Gyroscope & Mic: Built-in gyro; reserved microphone port

Operating Voltage: 6.6–8.4V DC

Compatible Batteries: 18650/21700 Li-ion, 7.4V LiPo (batteries excluded)

Cooling: Silent fan + aluminum heat sink

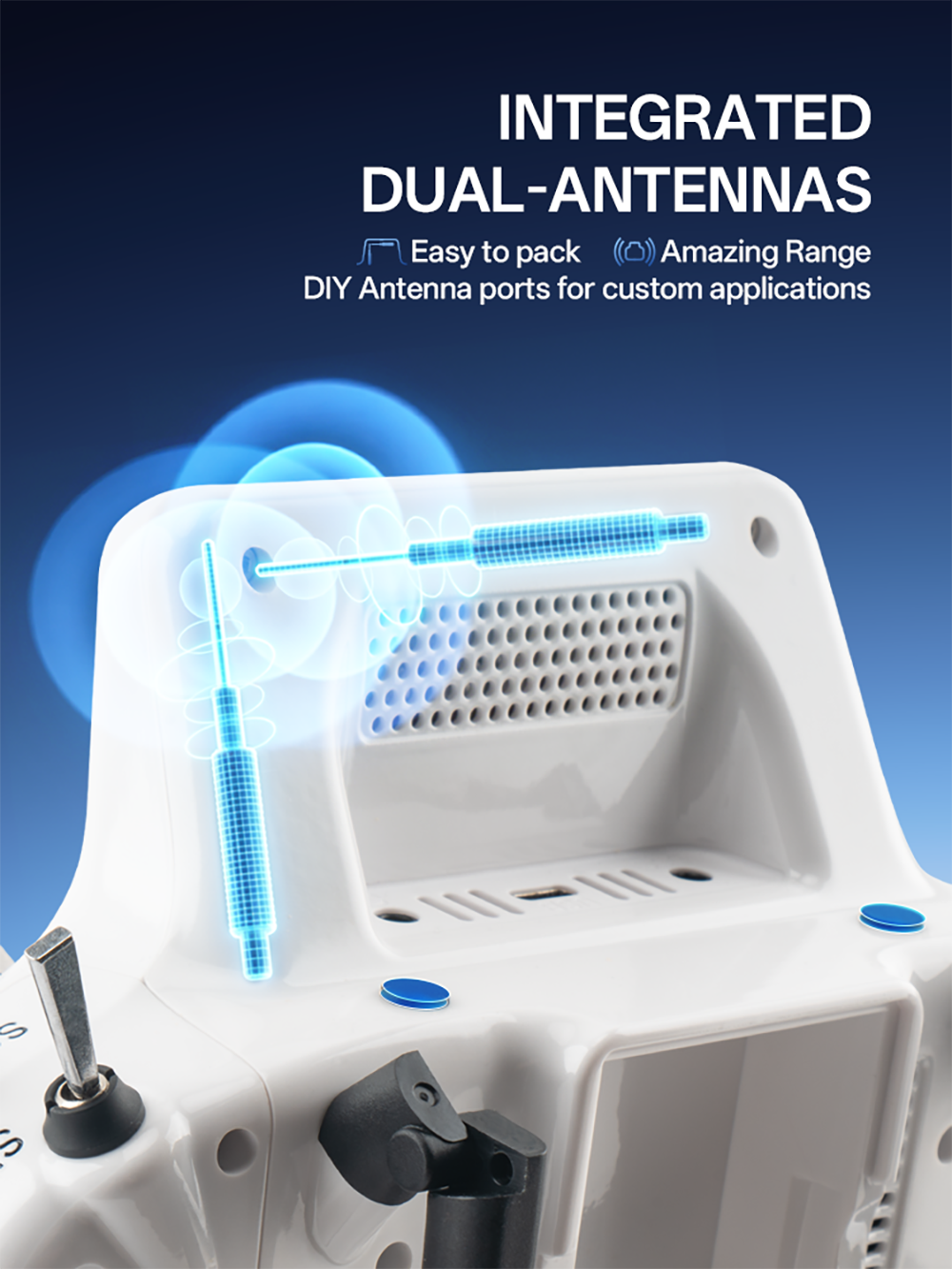

Antenna: Built-in high-gain 2.4GHz antenna

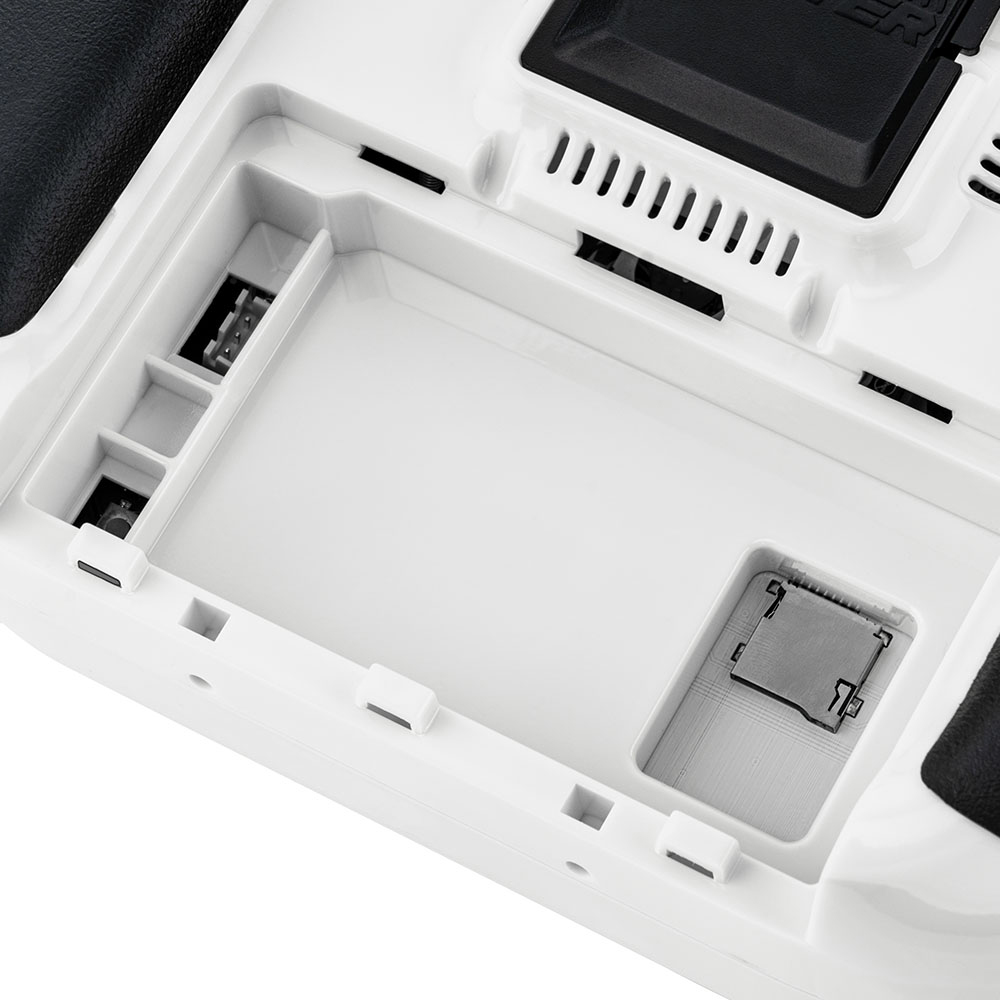

Storage: Onboard storage, TF card up to 32GB (FAT32)

Upgrade: USB-C online / UF2 offline

External Module Slot: Standard JR slot

Firmware: EdgeTX V2.12.0 or higher

Interface: USB-C

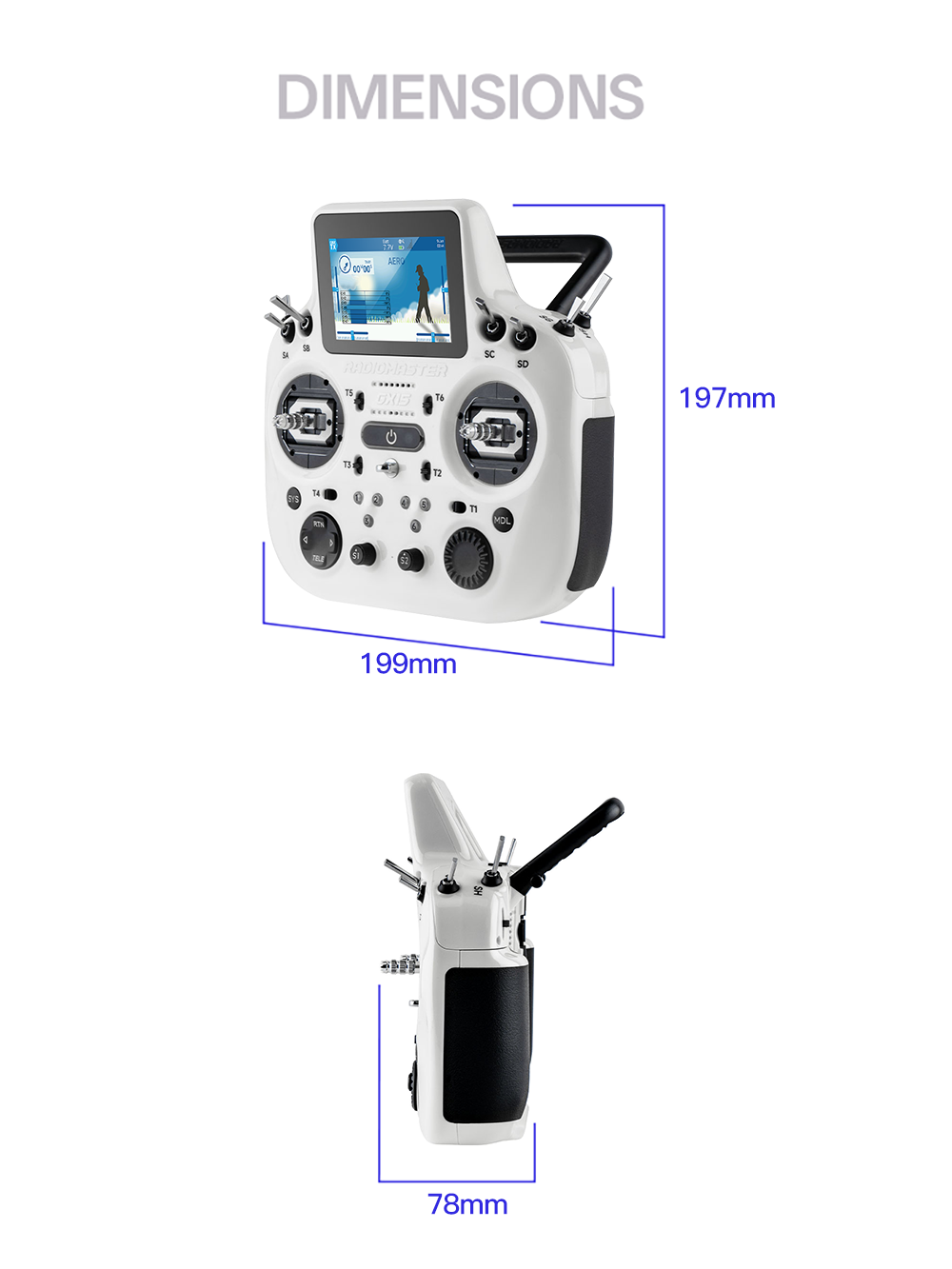

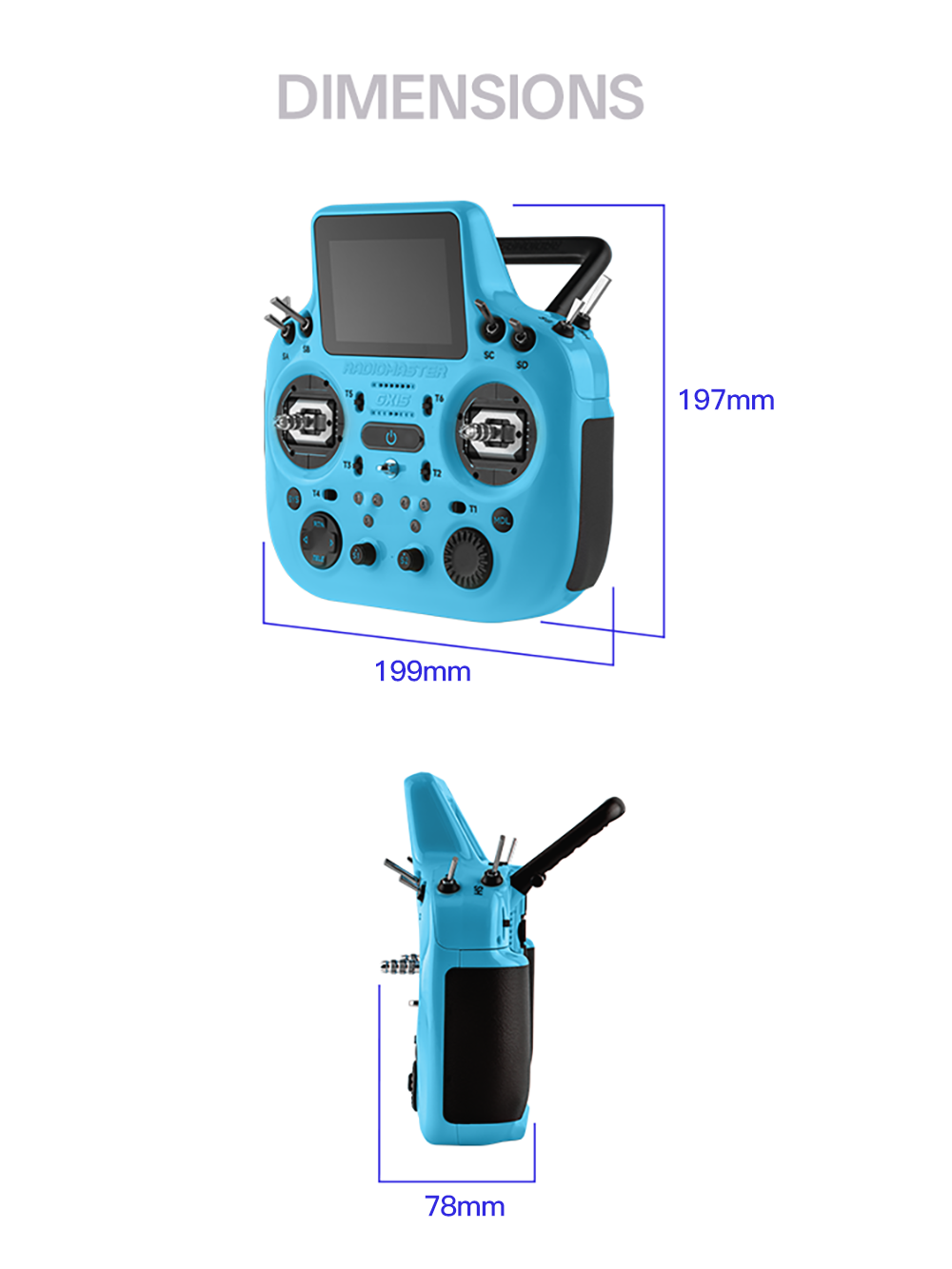

Dimension: 199*197*78mm

Weight: 681g (without battery)

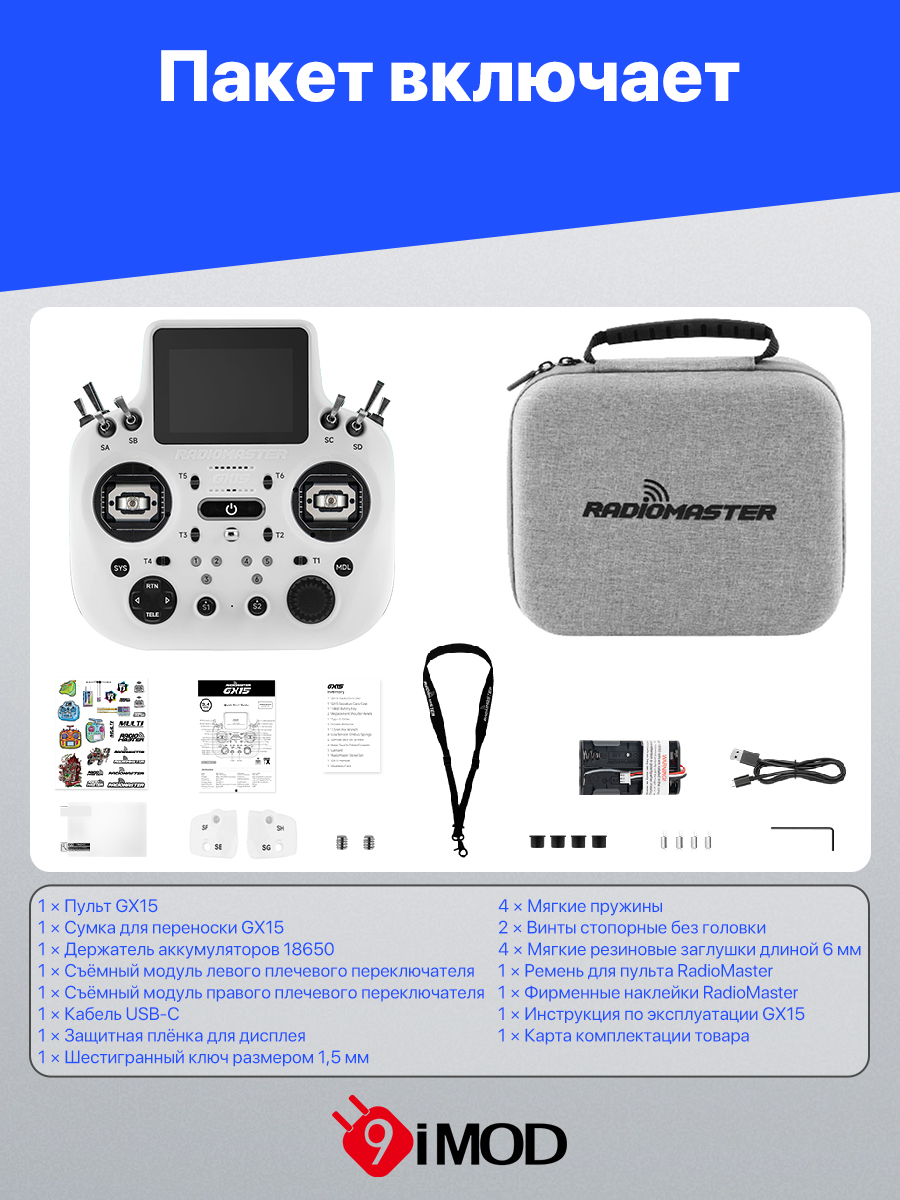

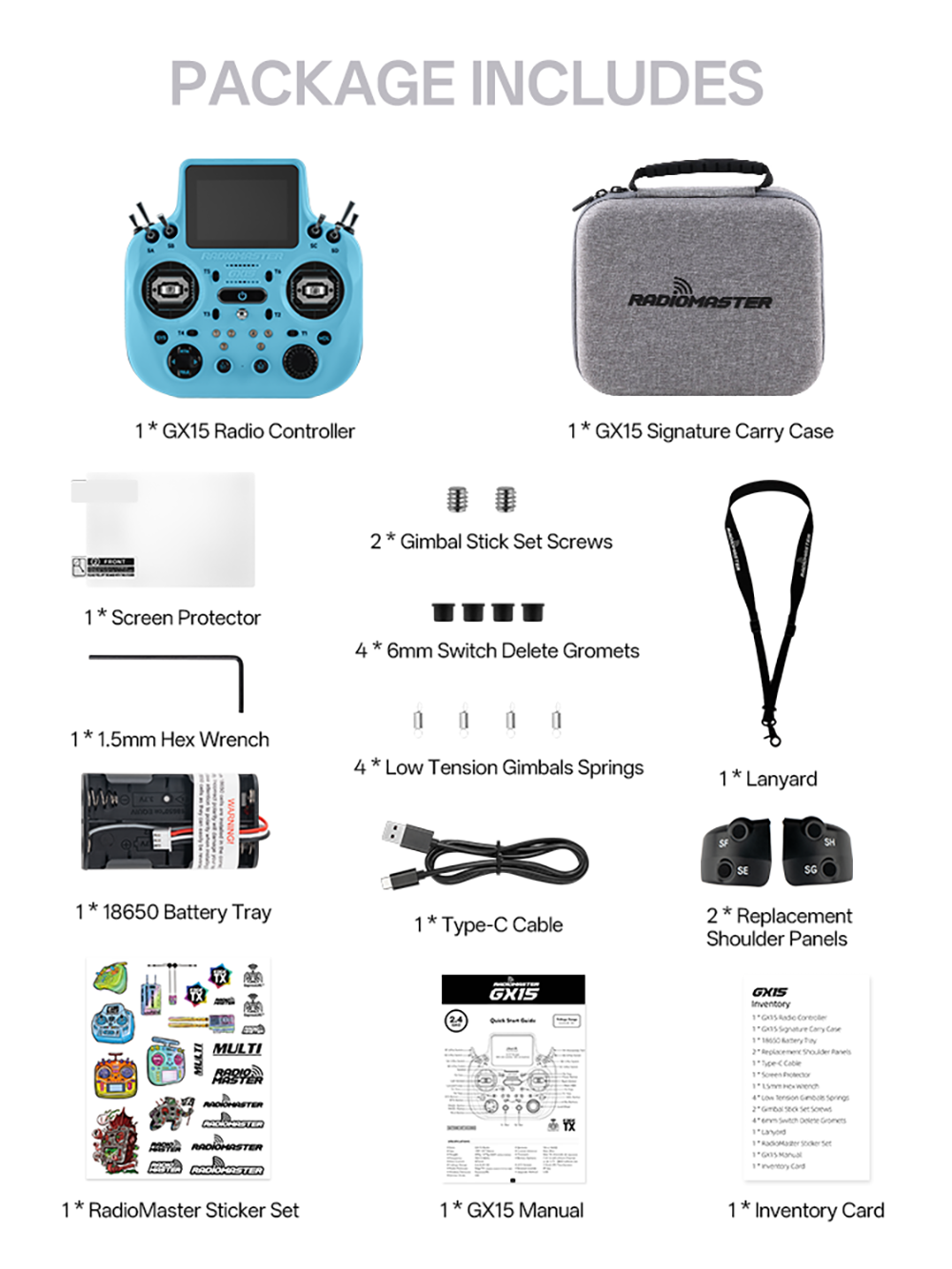

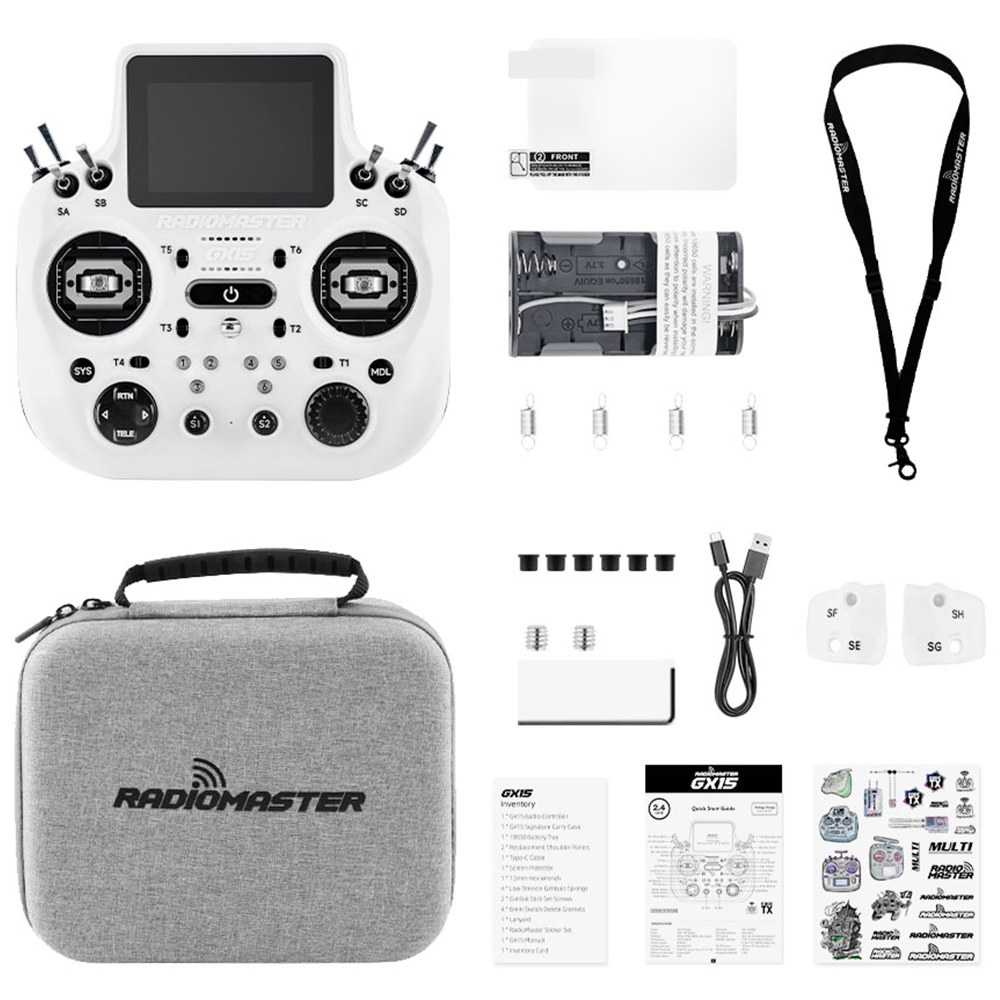

Package contents:

1 × GX15 Transmitter

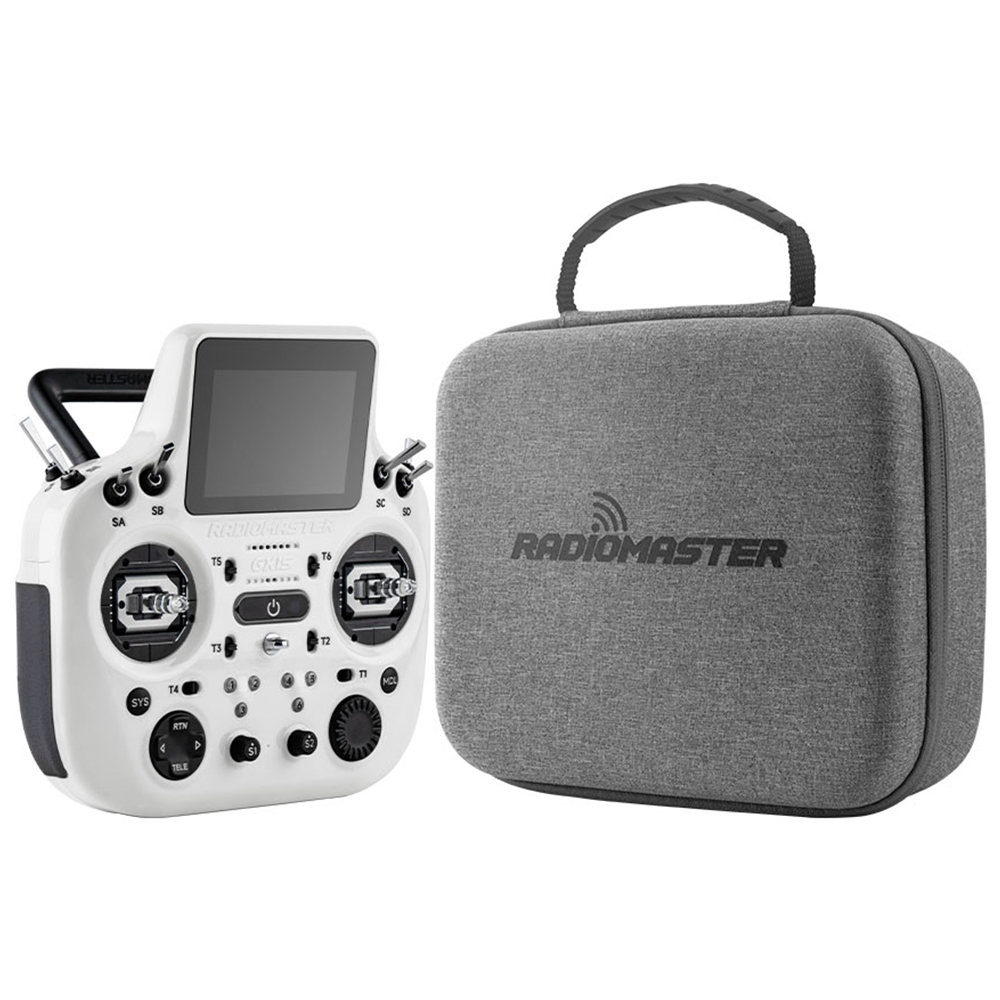

1 × Carry Case for GX15

1 × 18650 Battery Holder

1 × Left Shoulder Switch Replacement Module

1 × Right Shoulder Switch Replacement Module

1 × USB-C Cable

1 × Screen Protector

1 × 1.5mm Hex Wrench

4 × Soft Springs

2 × Set Screws

4 × 6mm Soft Rubber Plugs

1 × RadioMaster Lanyard

1 × RadioMaster Sticker

1 × GX15 User Manual

1 × Packing List Card

Note: Batteries are not included, purchase separately as needed.
