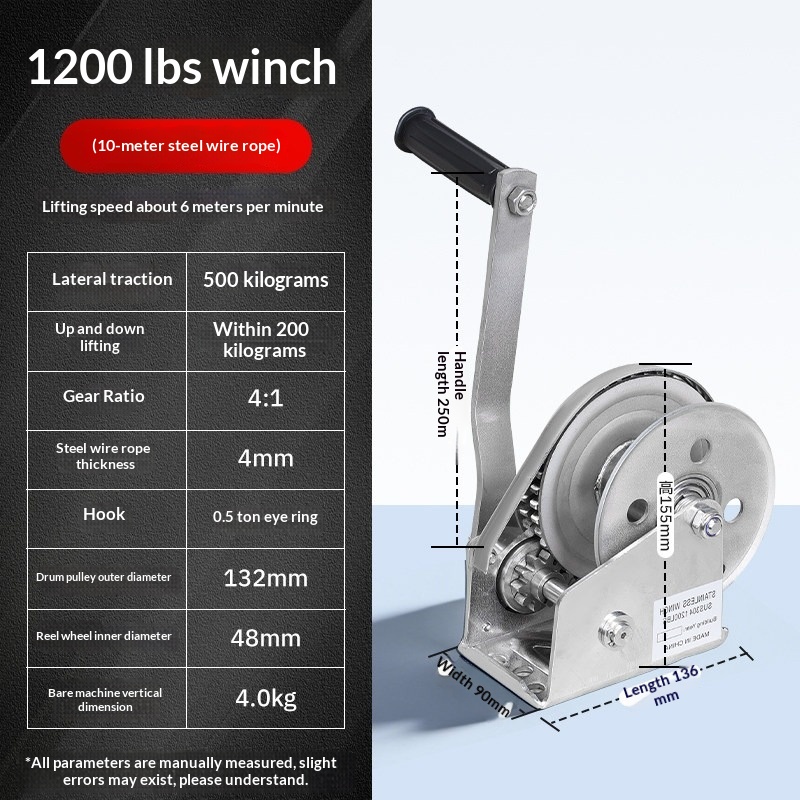

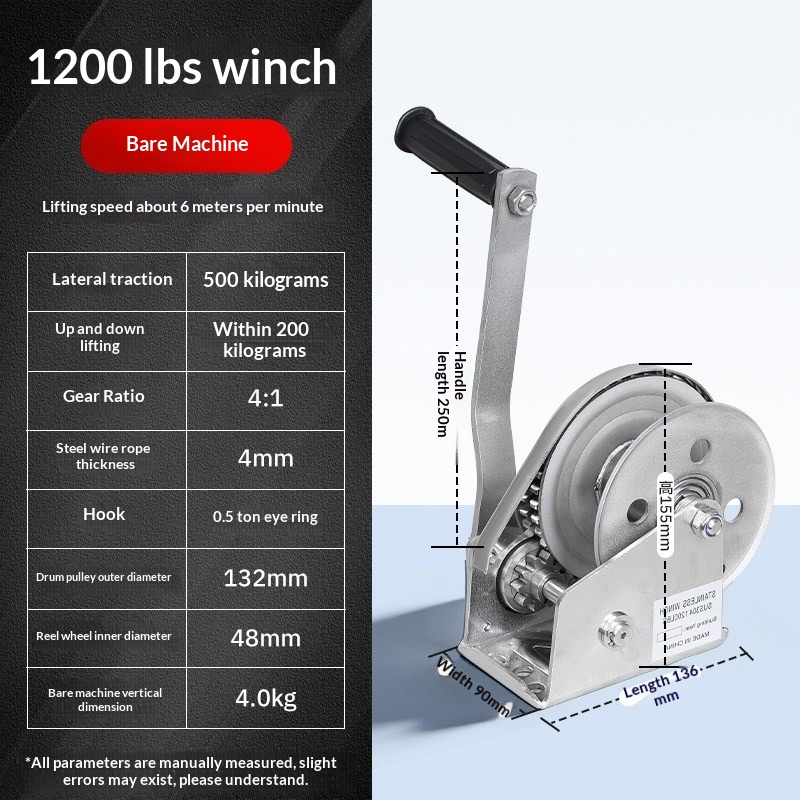

1,200-pound Winch (Bare Unit)
Lifting Speed: Approximately 6 meters per minute
Lateral Traction: 500 kilograms
Lifting Capacity: Up to 200 kilograms
Gear Ratio: 4:1

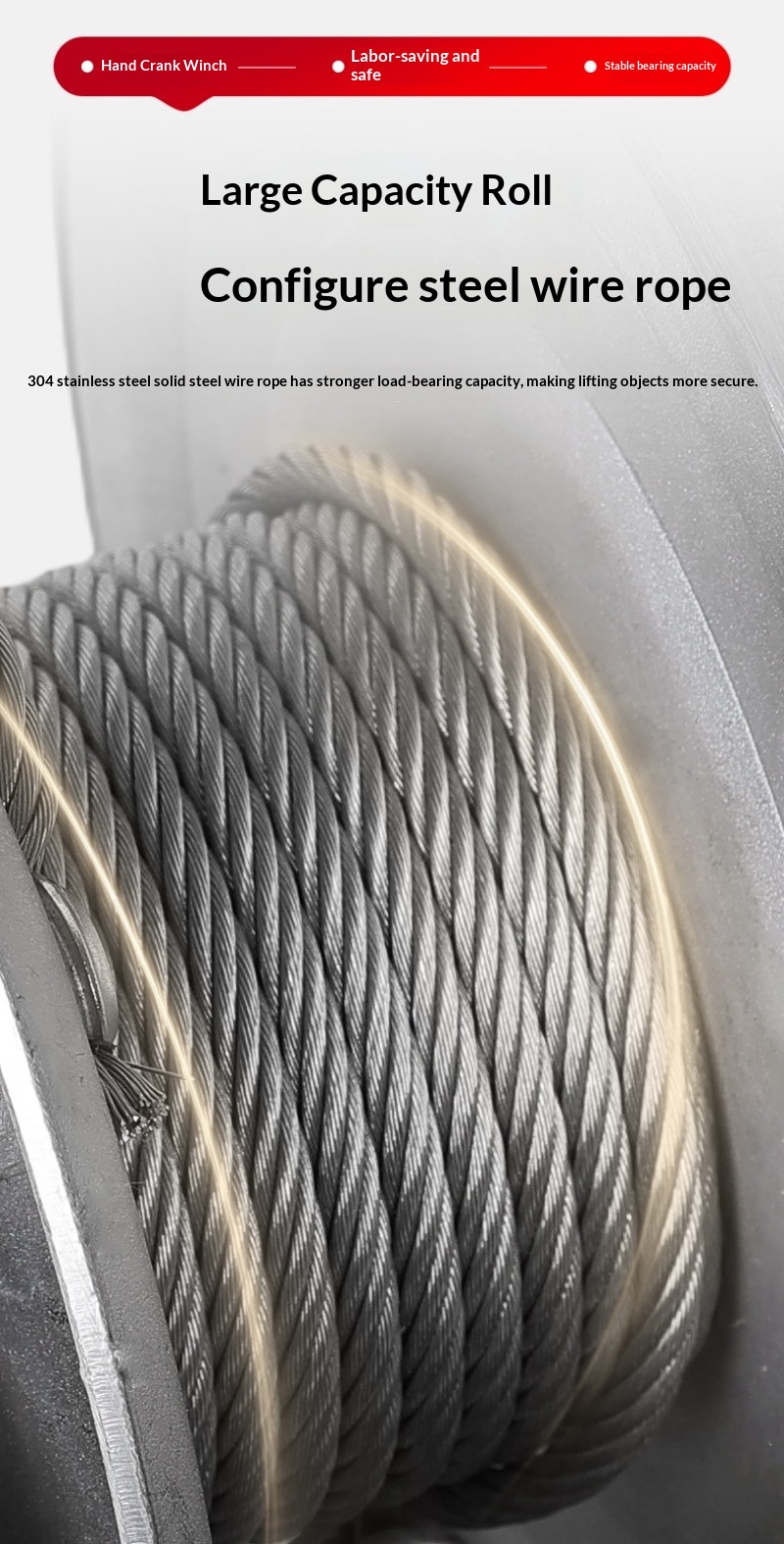

Wire Rope Diameter: 4 mm

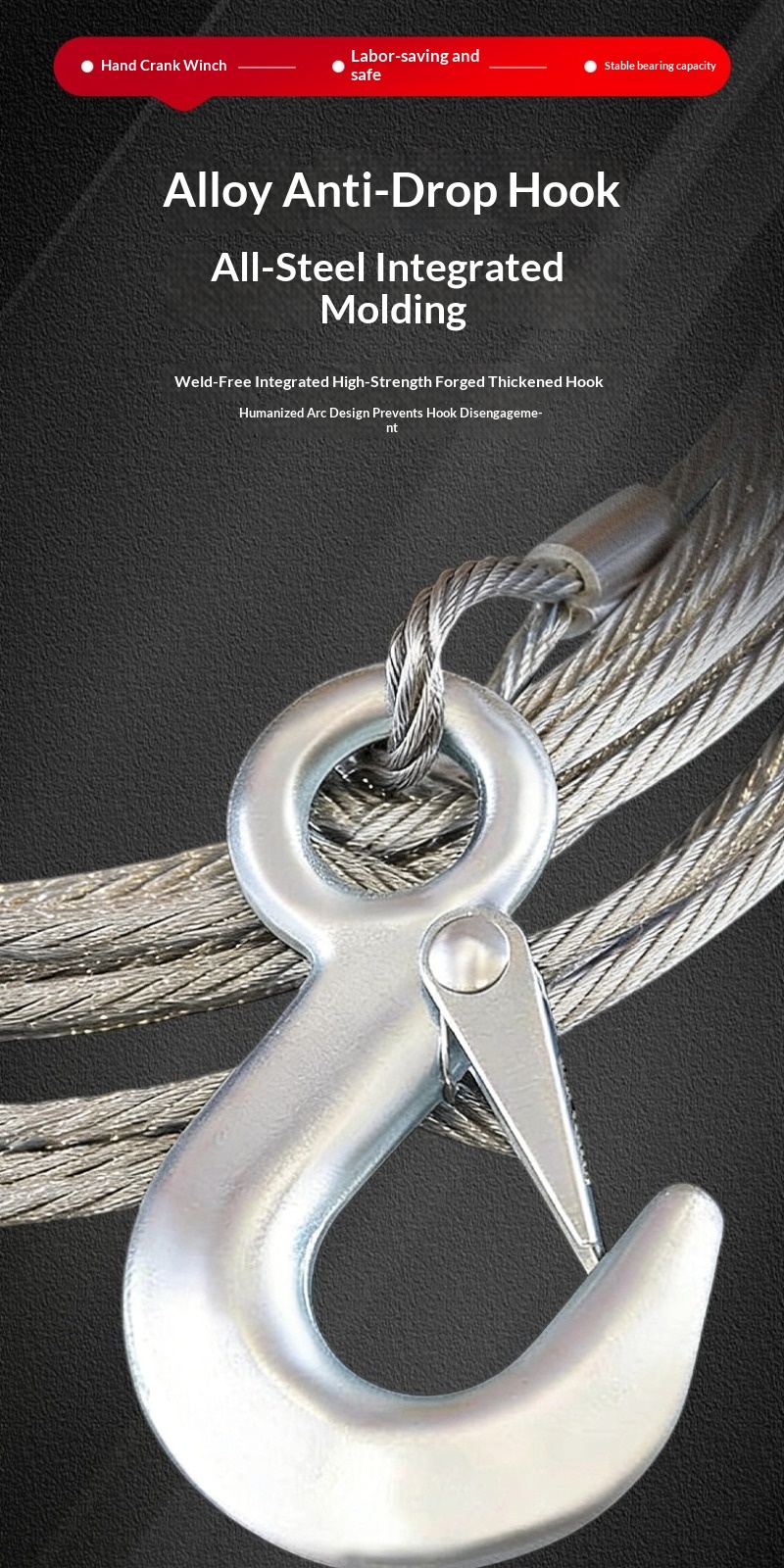

Hook: 0.5-metric-ton eye hook
Drum Outer Diameter: 132 mm
Drum Inner Diameter: 48 mm
Weight (bare unit): 4.0 kg
Product Dimensions: Length 136 mm × Width 90 mm × Height 155 mm (Handle length 250 mm)

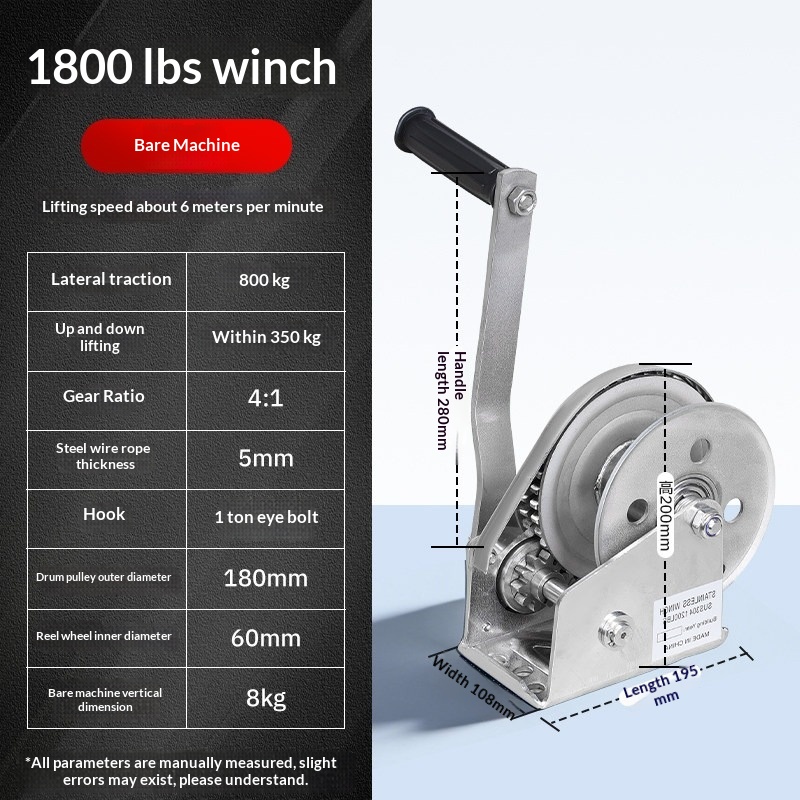

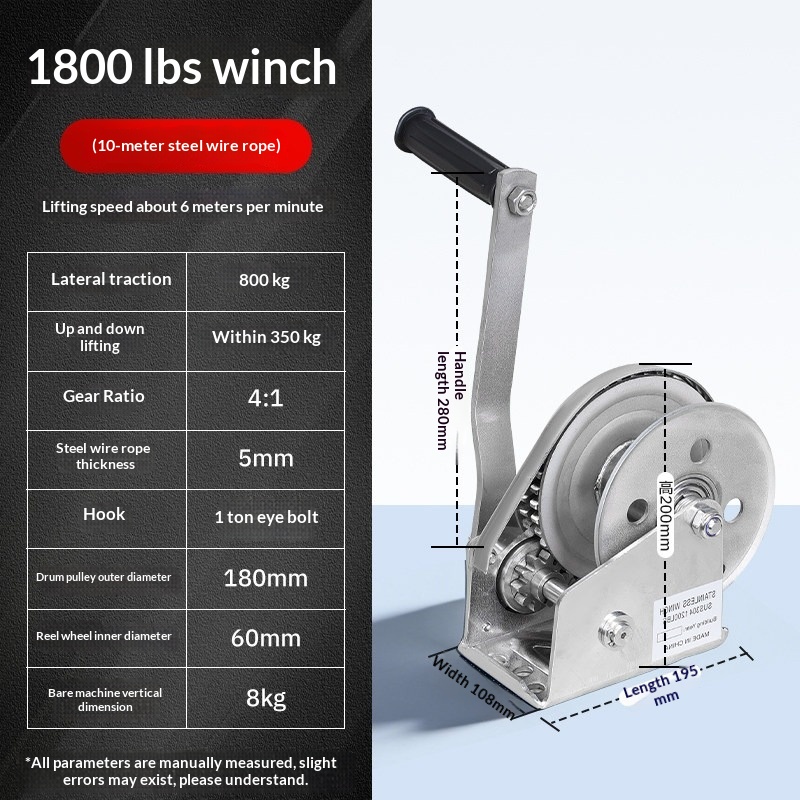

1,800-pound Winch (Bare Unit)
Lifting Speed: Approximately 6 meters per minute
Lateral Traction: 800 kg
Hoisting Capacity: Up to 350 kg
Gear Ratio: 4:1
Wire rope diameter: 5 mm
Hook: 1-metric-ton eye hook
Drum outer diameter: 180 mm
Drum inner diameter: 60 mm
Weight (bare unit): 8 kg
Product Dimensions: Length 195 mm × Width 108 mm × Height 200 mm (Handle Length 280 mm)
2,600-pound Winch (Bare Unit)
Lifting Speed: Approximately 6 meters per minute
Lateral Traction: 1,100 kg
Hoisting Capacity: Up to 600 kg
Gear Ratio: 8:1
Wire rope diameter: 6 mm
Hook: 1-metric-ton eye hook
Drum outer diameter: 180 mm
Drum inner diameter: 75 mm
Weight (bare unit): 10.3 kg
Product dimensions: Length 240 mm × Width 128 mm × Height 210 mm (handle length 280 mm)
