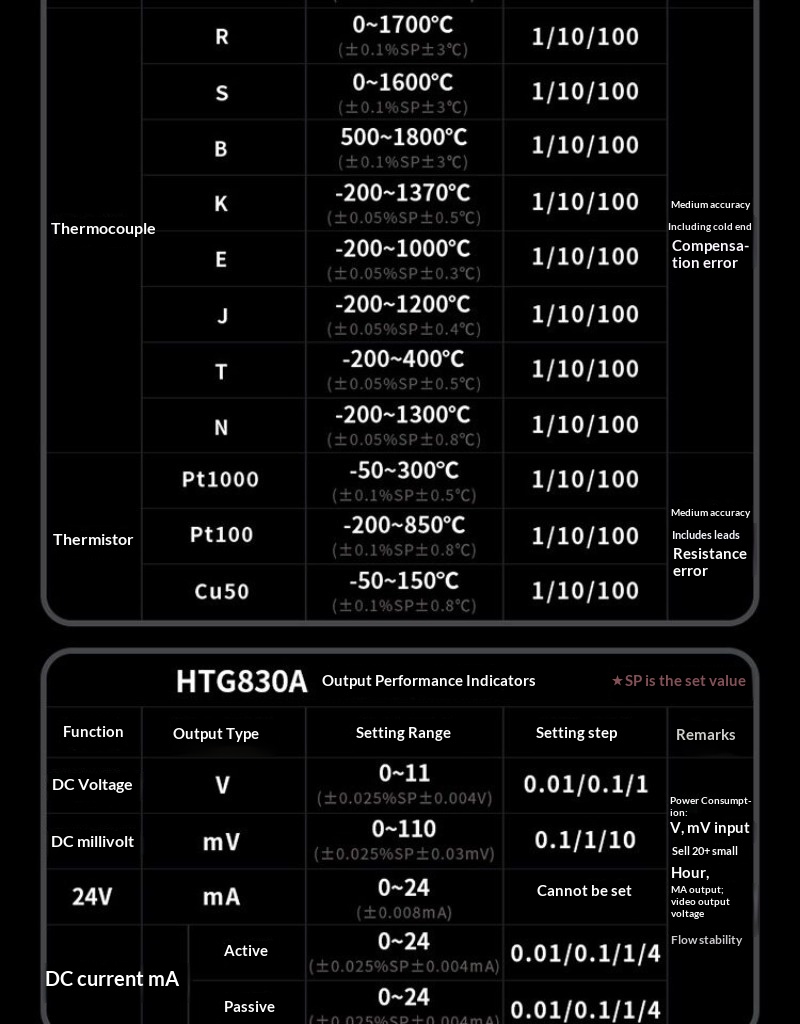

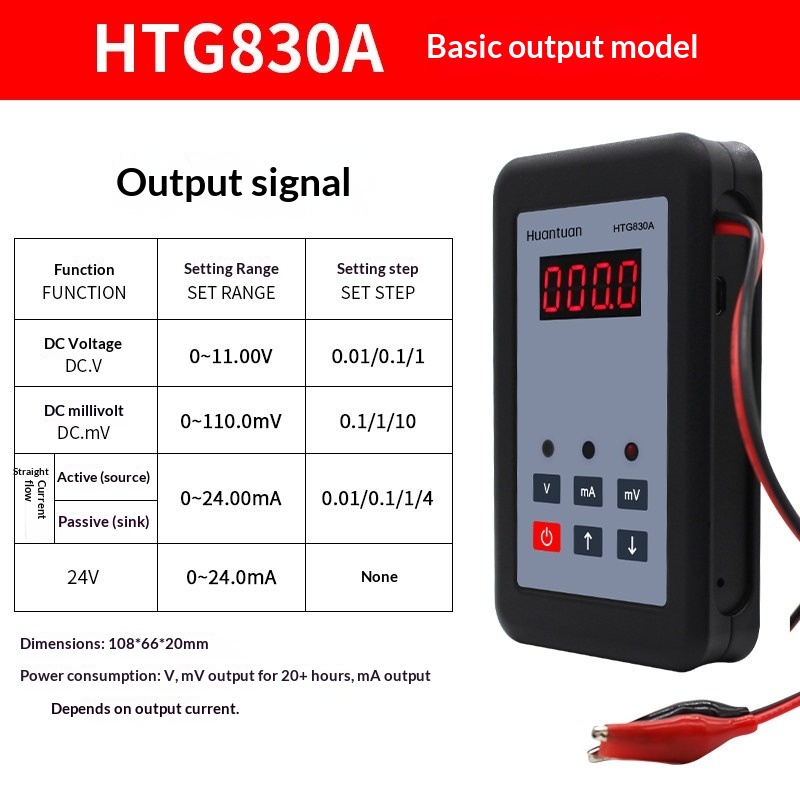

HTG830A (Basic Output Model)
Dimensions: 108 × 66 × 20 mm
Power Consumption: 20+ hours for V and mV outputs; for mA output, depends on the output current.
Output Signals:
DC Voltage (DC.V): Setting range 0–11.00 V, setting increments 0.01/0.1/1
DC millivolts (DC.mV): Setting range 0–110.0 mV, setting steps 0.1/1/10
DC current (active source): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
DC Current (Passive sink): Setting range 0–24.00 mA, setting increments 0.01/0.1/1/4
24V: Setting range 0–24.0 mA, no setting increments

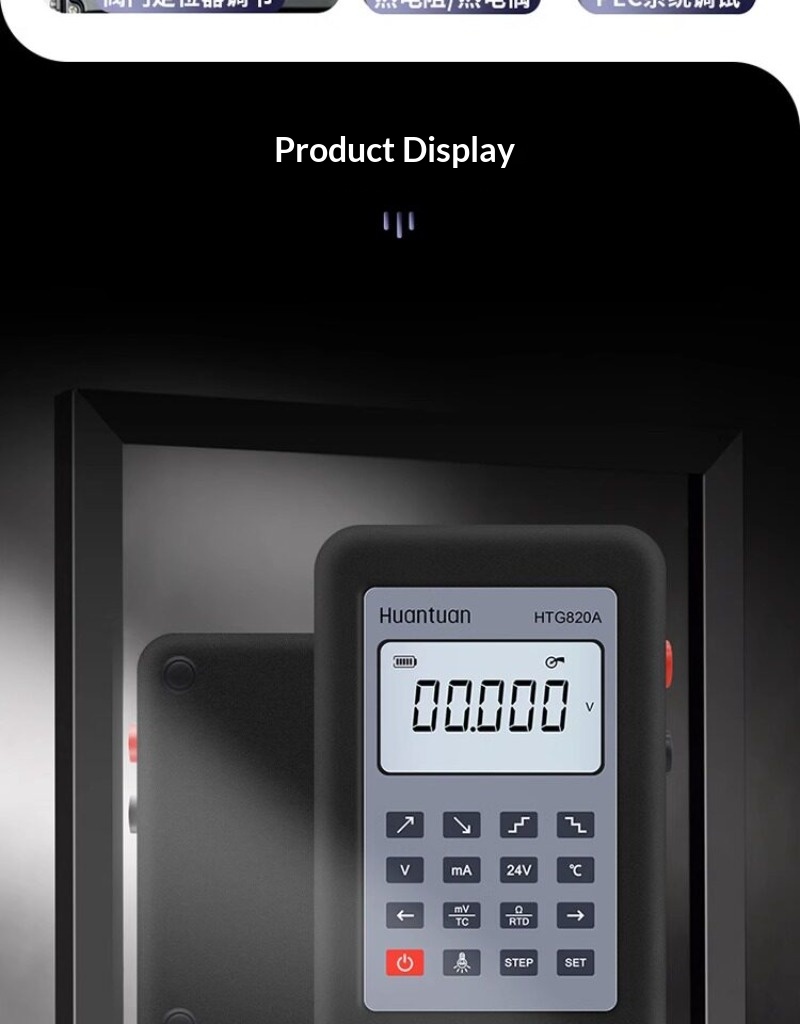

HTG820A (Measurement + Output)
Dimensions: 120 × 78 × 25 mm
Power consumption: 20+ hours for V and mV outputs; mA output depends on the output current.
Output signals:
DC Voltage (DC.V): Setting range 0–11.00 V, setting increments 0.01/0.1/1
DC Millivolts (DC.mV): Setting range 0–110.0 mV, setting increments 0.1/1/10
DC Current (Active Source): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
DC Current (Passive Sink): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
24V: Setting range 0–24.0 mA, no setting increments

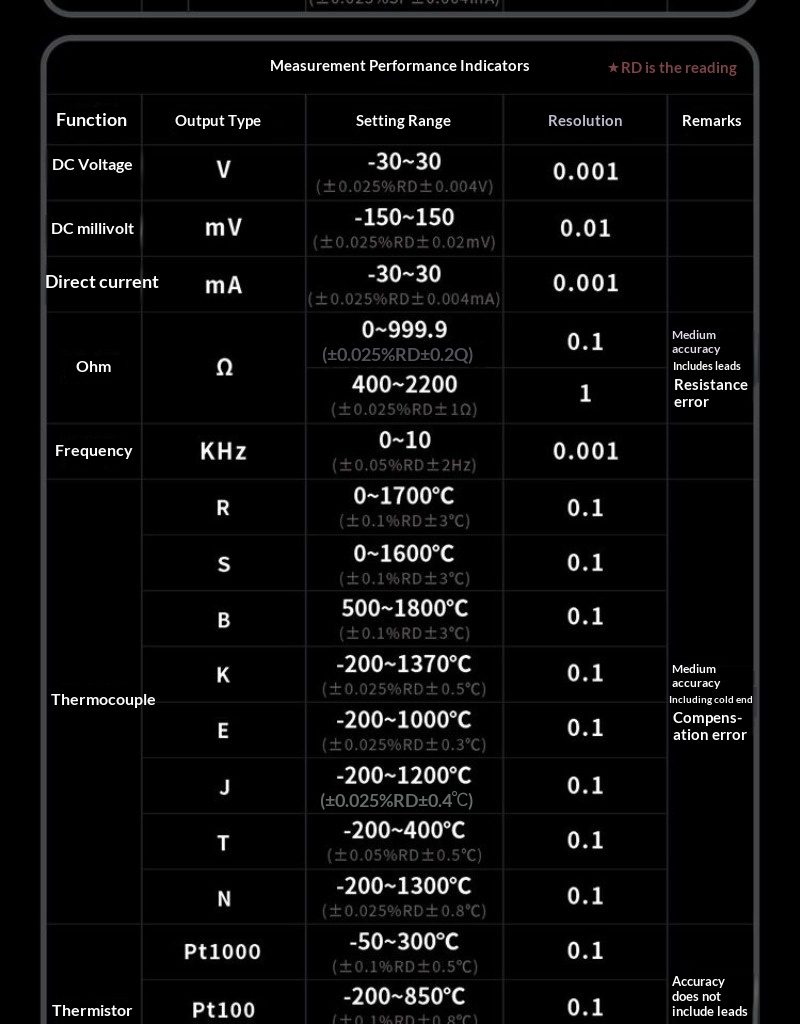

Measurement Performance:
DC Voltage (DC.V): Setting range 0–30 V, resolution 0.001
DC Millivolts (DC.mV): Setting range 0–150 mV, resolution 0.1
DC Current (DC.mA): Setting range 0–30 mA, resolution 0.001
Thermocouple: Setting range -200–1300°C, resolution 0.1

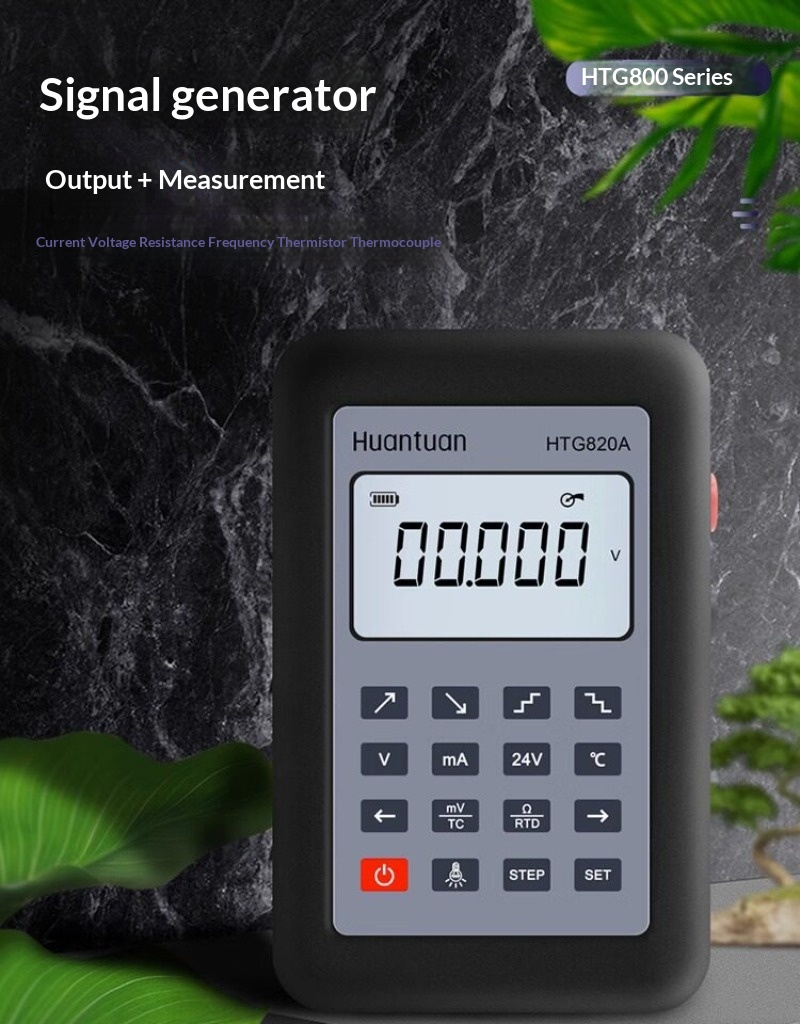

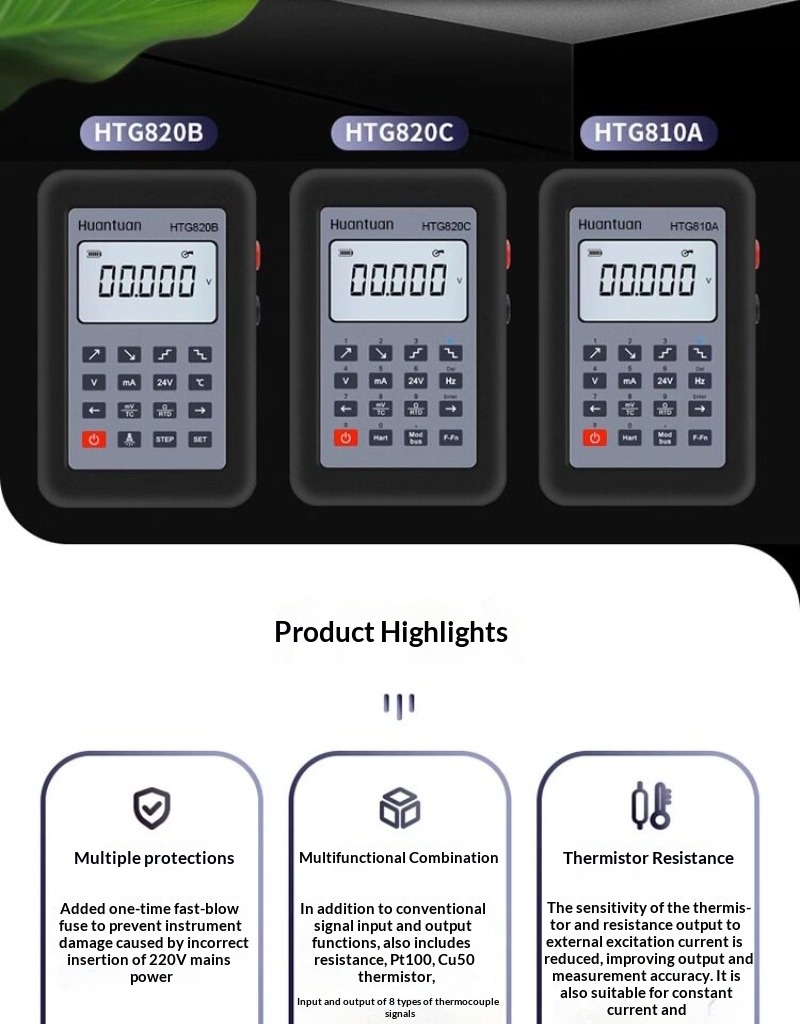

HTG820B (Measurement + Output)
Dimensions: 120 × 78 × 25 mm
Power consumption: 20+ hours for V and mV outputs; mA output depends on the output current.
Output Signals:
DC Voltage (DC.V): Setting range 0–11.00 V, setting increments 0.01/0.1/1
DC Millivolts (DC.mV): Setting range 0–110.0 mV, setting increments 0.1/1/10
DC Current (Active Source): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
DC Current (Passive Sink): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
24V: Setting range 0–24.0 mA, no setting increments
Measurement Performance:
DC Voltage (DC.V): Setting range 0–30 V, resolution 0.001
DC Millivolts (DC.mV): Setting range 0–150 mV, resolution 0.01
DC Current (DC.mA): Setting range 0–30 mA, resolution 0.001
Thermocouple: Setting range -200–1300°C, resolution 0.1

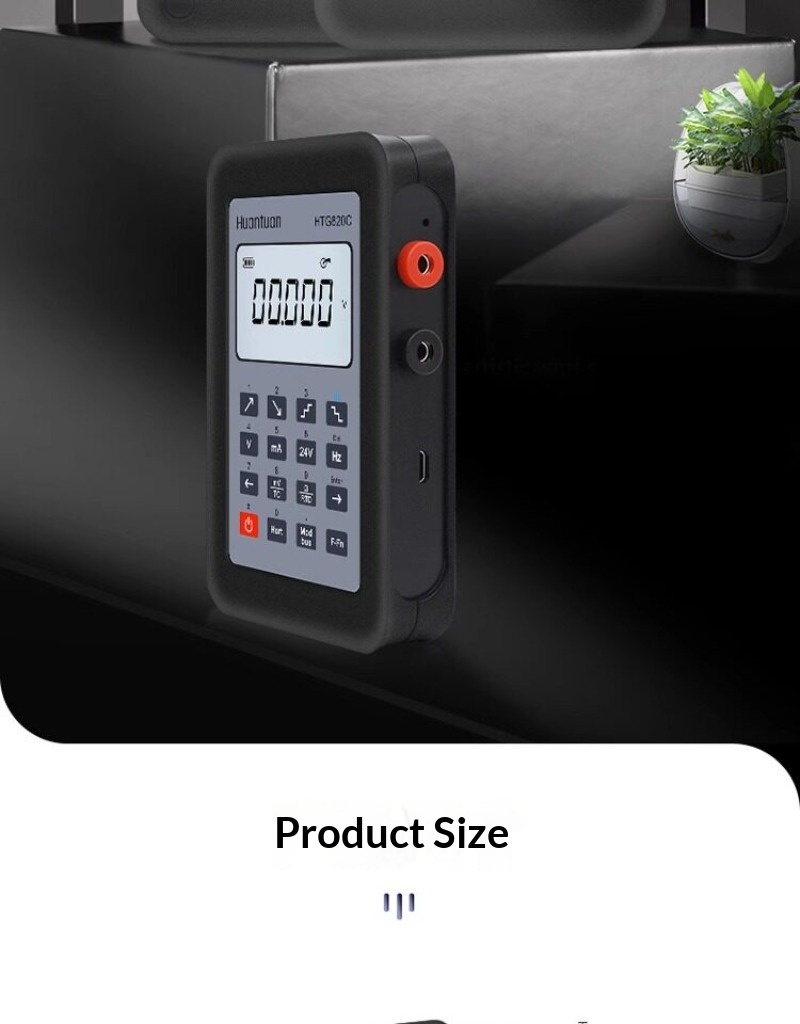

HTG820C (Measurement + Output)

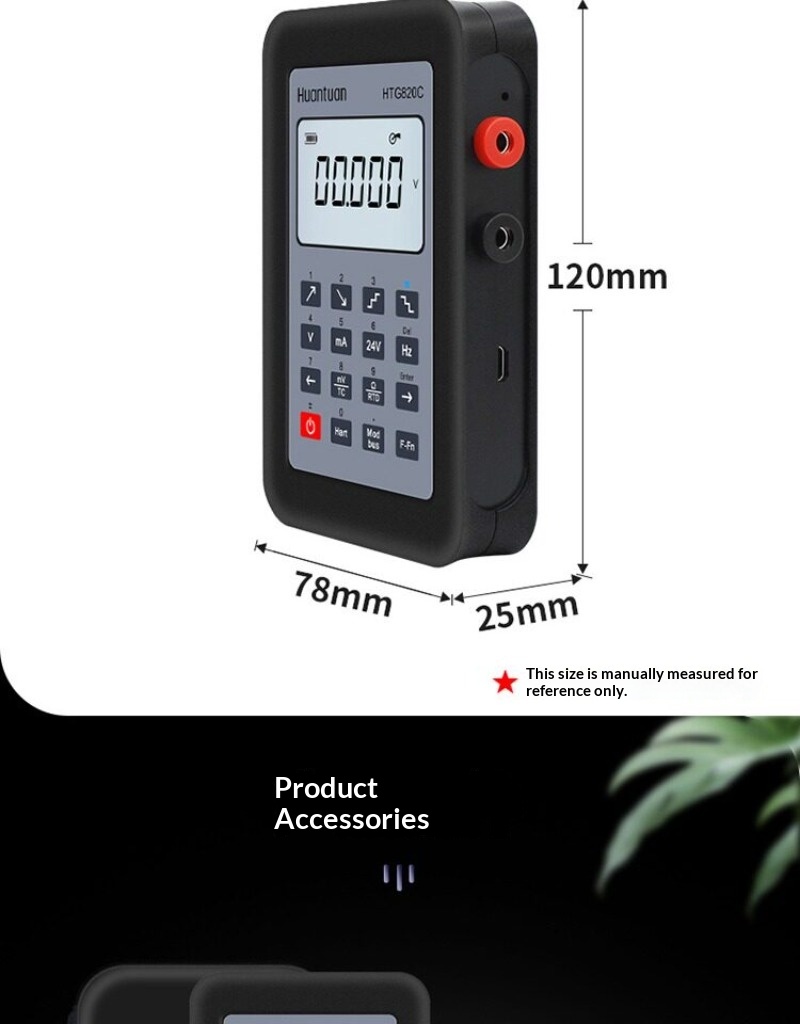

Dimensions: 120 × 78 × 25 mm
Power consumption: 20+ hours for V and mV outputs; mA output depends on the output current.
Output Signals:
DC Voltage (DC.V): Setting range 0–11.00 V, setting increments 0.01/0.1/1
DC Millivolts (DC.mV): Setting range 0–110.0 mV, setting increments 0.1/1/10
DC Current (Active Source): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
DC Current (Passive Sink): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
24V: Setting range 0–24.0 mA, no setting increments
Measurement Performance:
DC Voltage (DC.V): Setting range 0–30 V, resolution 0.001
DC Millivolts (DC.mV): Setting range 0–150 mV, resolution 0.01
DC Current (DC.mA): Setting range 0–30 mA, resolution 0.001
Thermocouple: Setting range -200–1300°C, resolution 0.1

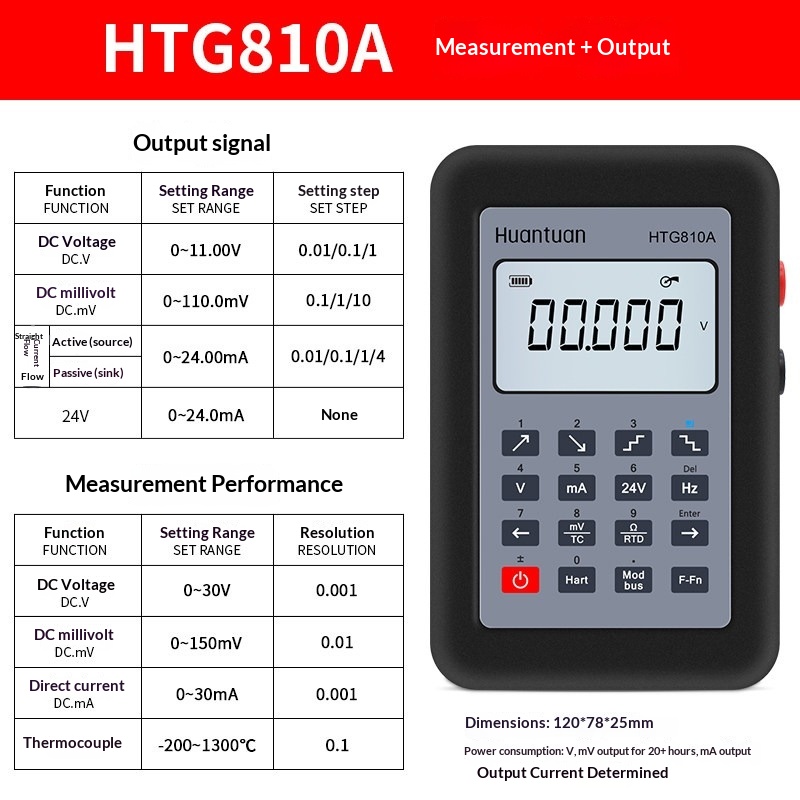

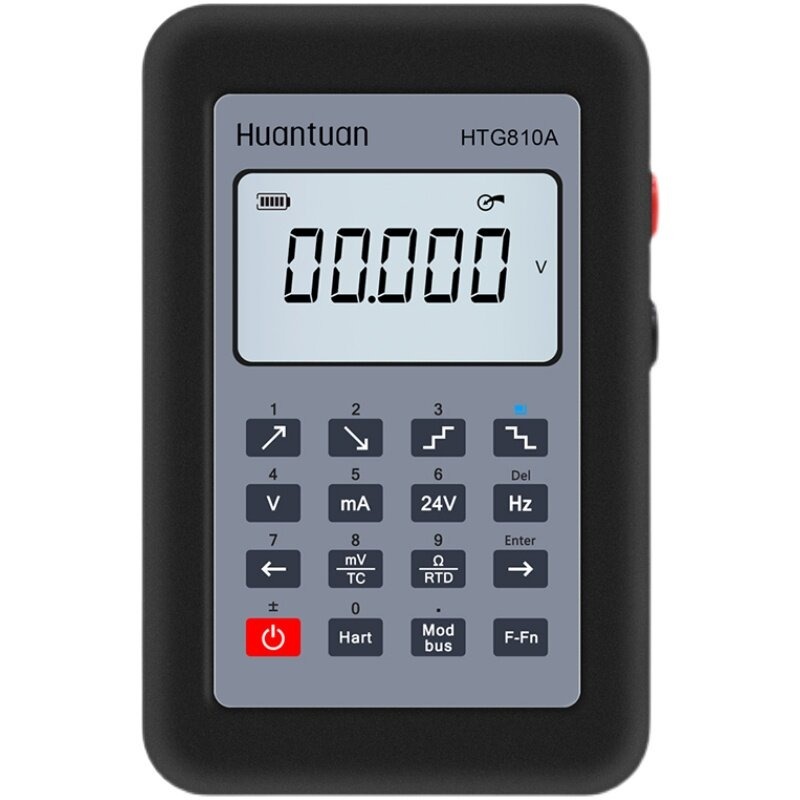

HTG810A (Measurement + Output)
Dimensions: 120 × 78 × 2
5 mm
Power Consumption: 20+ hours for V and mV outputs; for mA output, depends on the output current.
Output Signals:
DC Voltage (DC.V): Setting range 0–11.00 V, setting increments 0.01/0.1/1
DC Millivolts (DC.mV): Setting range 0–110.0 mV, setting increments 0.1/1/10
DC Current (Active Source): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
DC Current (Passive Sink): Setting range 0–24.00 mA, setting steps 0.01/0.1/1/4
24 V: Setting range 0–24.0 mA, no setting steps
Measurement Performance:
DC Voltage (DC.V): Setting range 0–30 V, resolution 0.001
DC Millivolts (DC.mV): Setting range 0–150 mV, resolution 0.01
DC Current (DC.mA): Setting range 0–30 mA, resolution 0.001
Thermocouple: Setting range –200–1300 °C, resolution 0.1
