Xinwa98 SDVC31-S /M 1.5A 3.0A Variable Frequency Digital Controller for Vibratory Feeder
Xinwa98 offer top-quality products and attentive service. Browse our selection and reach out with any questions. Enjoy your shopping!
Product Description：
Original CUH SDVC31-S 1.5A/ SDVC31-M 3.0A Variable Frequency Digital Controller for Vibratory Feeder
Features:

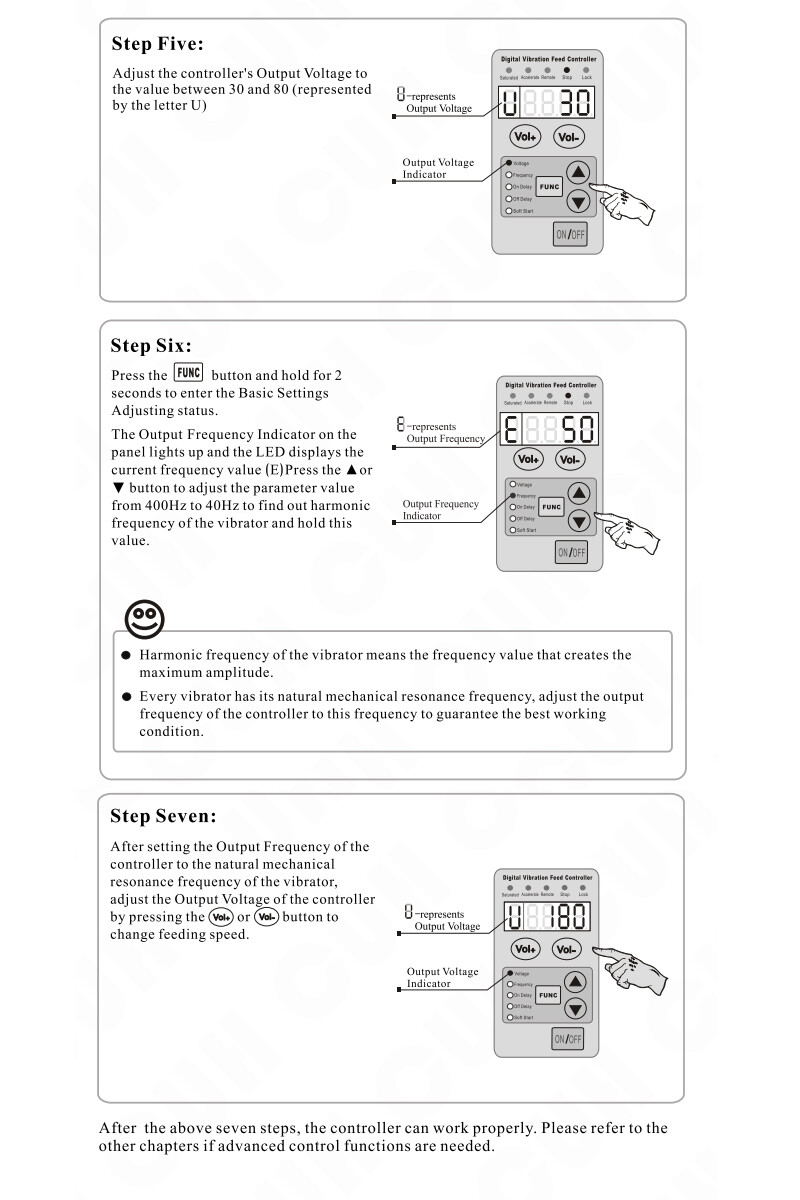

Frequency Adjustment: Output frequency of the controller can be manually adjusted to resonant frequency of the vibratory feeder to get smooth, quiet and energy-saving feed effect.
Automatic High Precision Voltage Regulation:The internal digital voltage regulation circuit can eliminate feed speed variation caused by mains voltage fluctuation.
Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when power on to avoid sudden shake. Soft start time can be digitally preset.
Switch Sensor ON/OFF Control:1 NPN switch sensor or PLC can be connected to turn on/off the controller.
Photoelectric Sensor ON/OFF Control:The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
Remote Speed Control:Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DC signal.
DC Control Output: The controller can output low voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices.
Keypad Lock: Lock all buttons on the keypad to prevent misoperation by pressing the ON/OFF button and hold for 2 seconds.
Digital Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself.
Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load.
Restorable Short Circuit Protection:If output of the controller is short-circuited,the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit at the output side,the controller will work again after power on.
Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high voltage.

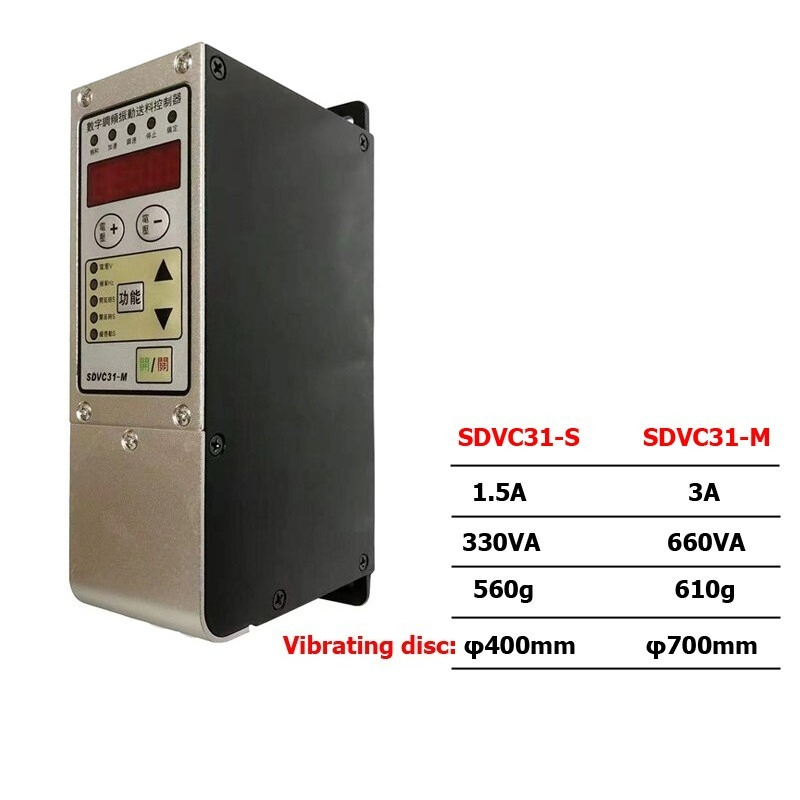

Parameter:
|
Model |
SDVC31-S |
SDVC31-M |
|
Input voltage range |
85-260VAC |
|
|
Output frequency range |
40-400Hz |
|
|
Max output current |
1.5A |
3.0A |
|
Max output power |
330VA |
660VA |
|
Vibrating disc |
φ400mm |
φ700mm |
|
Weight |
560g |
610g |
|

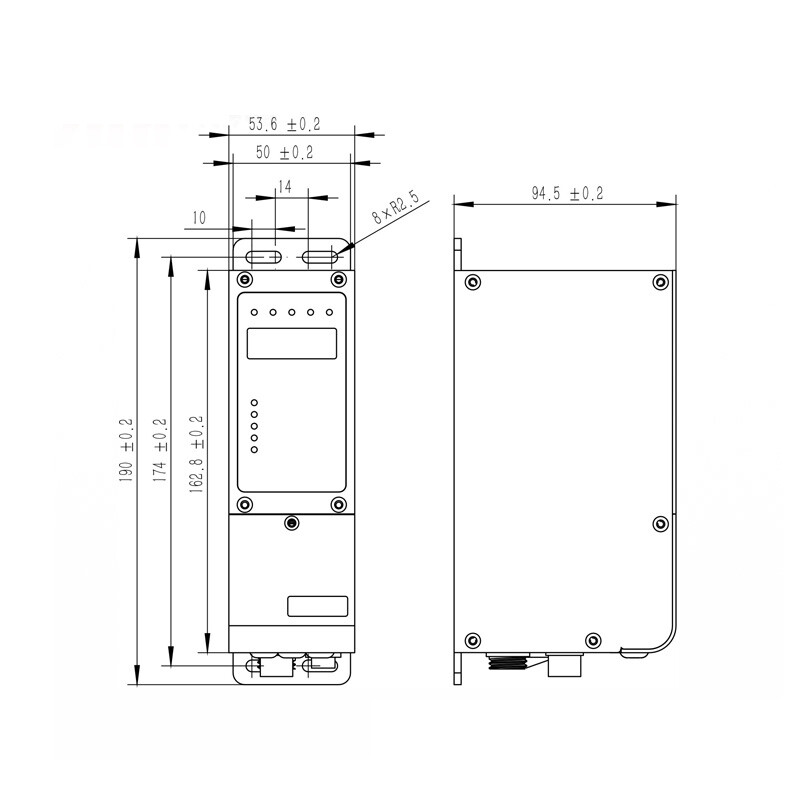

Dimension |
190*53.6*94.5mm |
190*53.6*94.5mm |

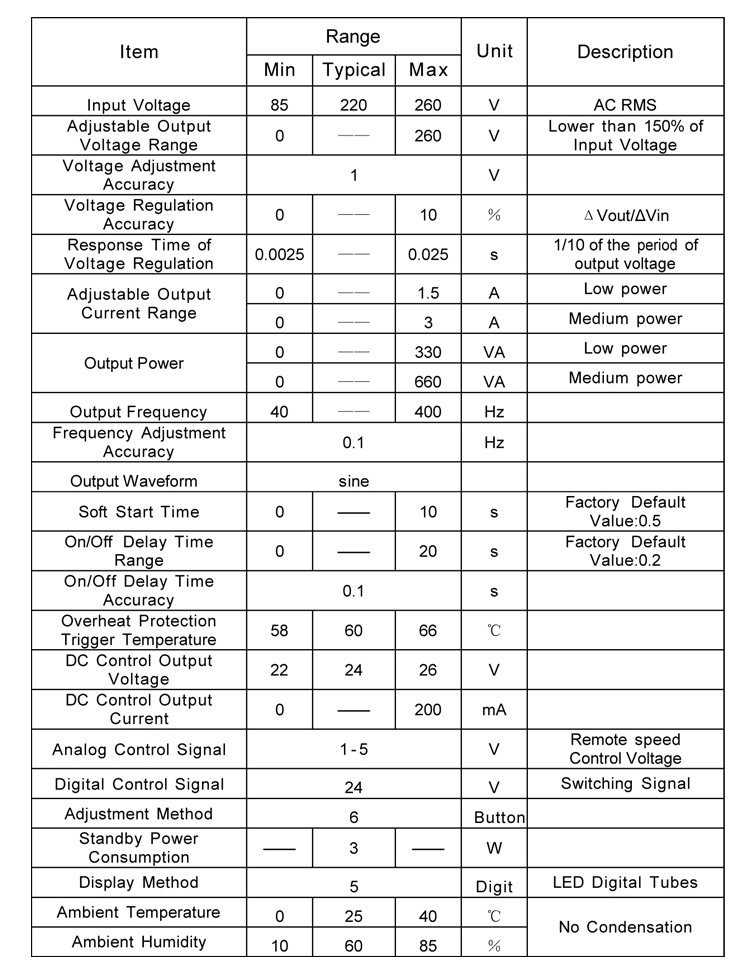

Technical Specification:

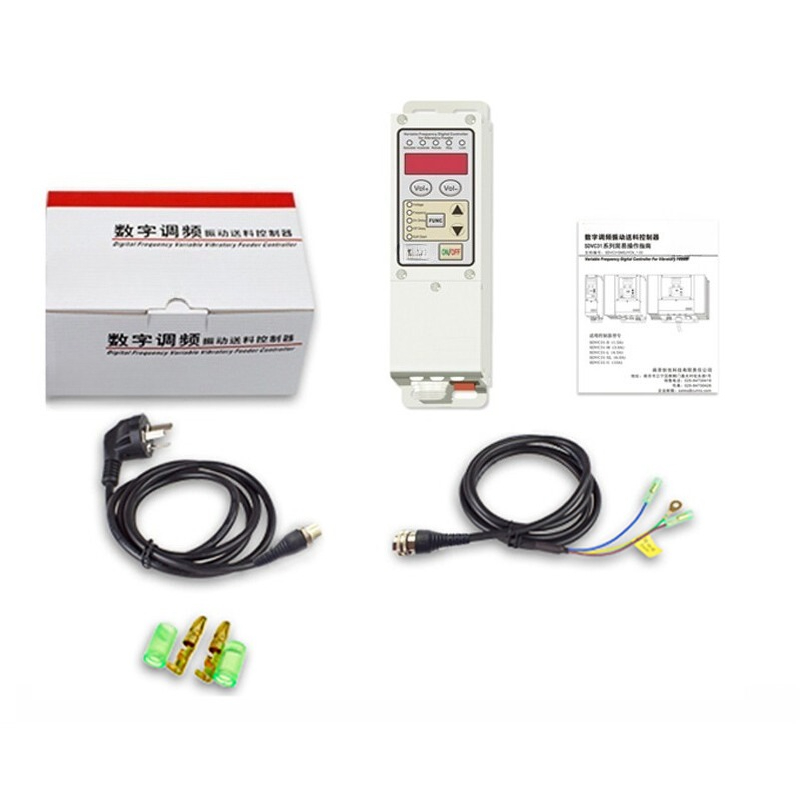

What's in Package:

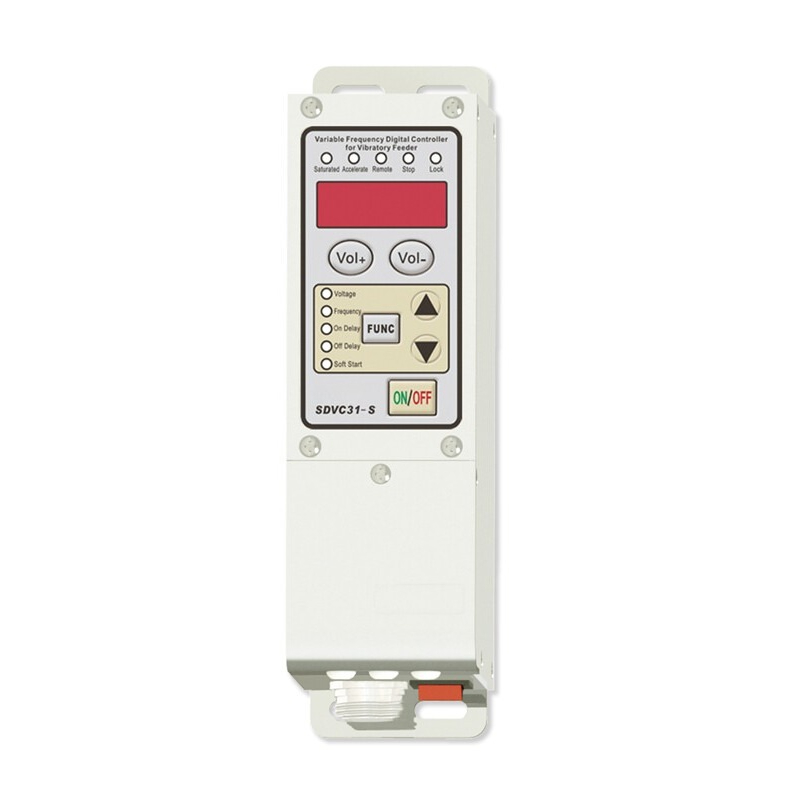

1x SDVC31-S Variable Frequency Digital Controller

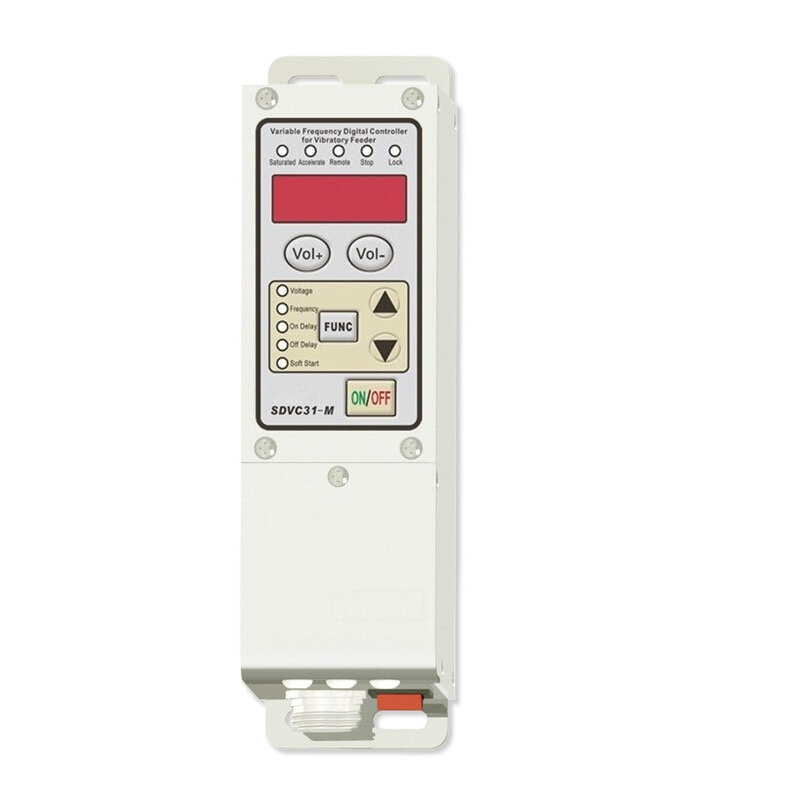

OR 1x SDVC31-M Variable Frequency Digital Controller
