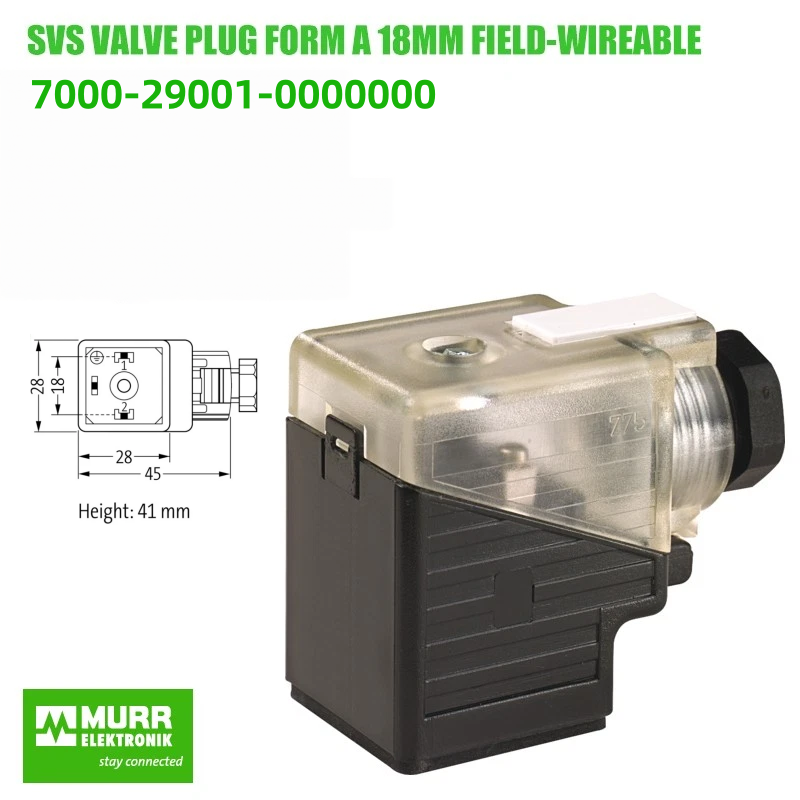

Product Description
Description
24 V AC/DC ±25%
LED and Z-diode
metric
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
| Family construction form | Valve connector form A |
|---|---|
| Mounting method | pluggable, screwed |
| Degree of protection (EN IEC 60529) | IP65 |
| Operating voltage AC | 24 V |
|---|---|
| Operating voltage DC | 24 V |
| Current operating per contact max. | 4 A |
| Status indication LED | yellow |
|---|
| Tightening torque | 0,4 Nm |
|---|---|
| Tightening torque clamping screw | 0,2 Nm |
| Mounting set | M3x31 |
| Connection information | Wire end ferrules |
| No. of poles | 2 + PE |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Material group (IEC 60664-1) | I |
| Clamping range min. | 5 mm |
|---|---|
| Clamping range max. | 10 mm |
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 60 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN 175301-803 |
|---|
Commercial data
| URL Webshop | https://shop.murrelektronik.com/7000-29001-0000000 |
|---|---|
| EU-Customs tariff number | 85366990 |
| US-Customs tariff number | 8536694020 |
| ETIM-9.0 | EC002635 |
| ETIM-10.0 | EC002635 |
| customs tariff number | 85366990 |
| EAN | 4048879187688 |
| Packaging unit | 1 |
