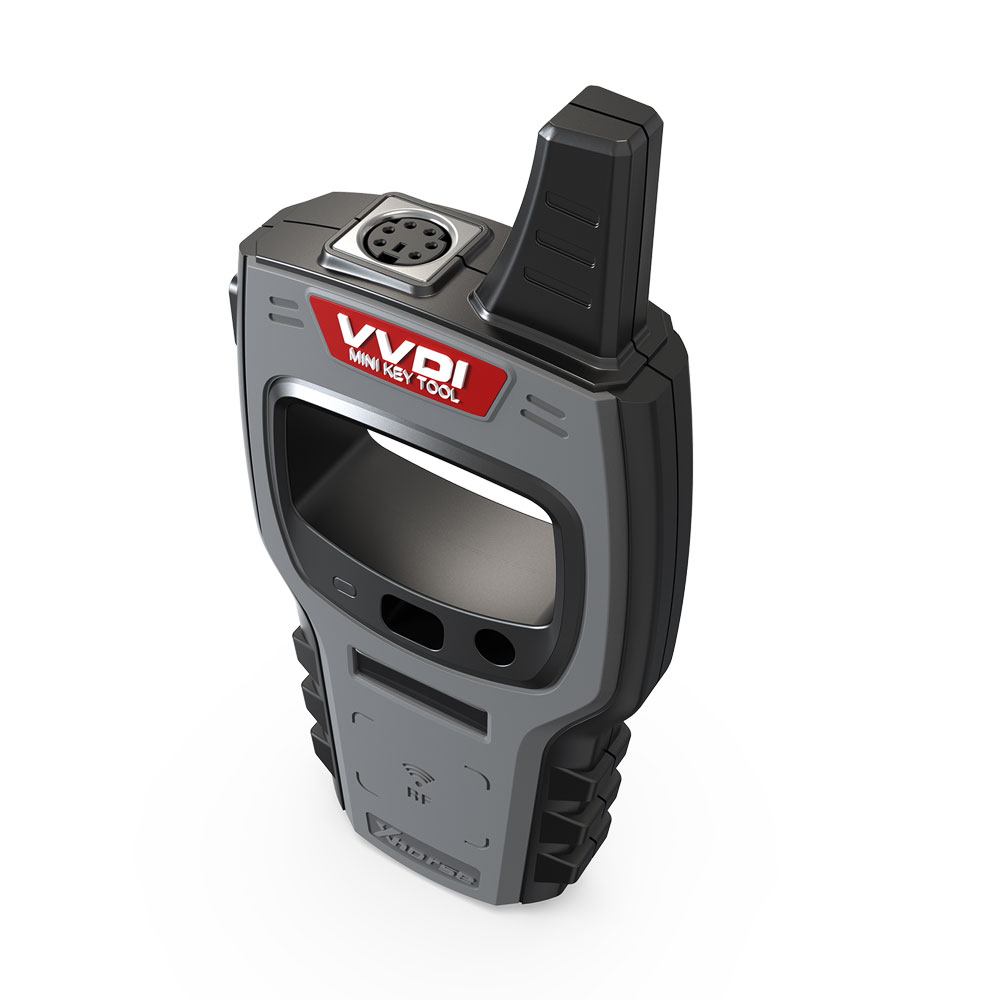

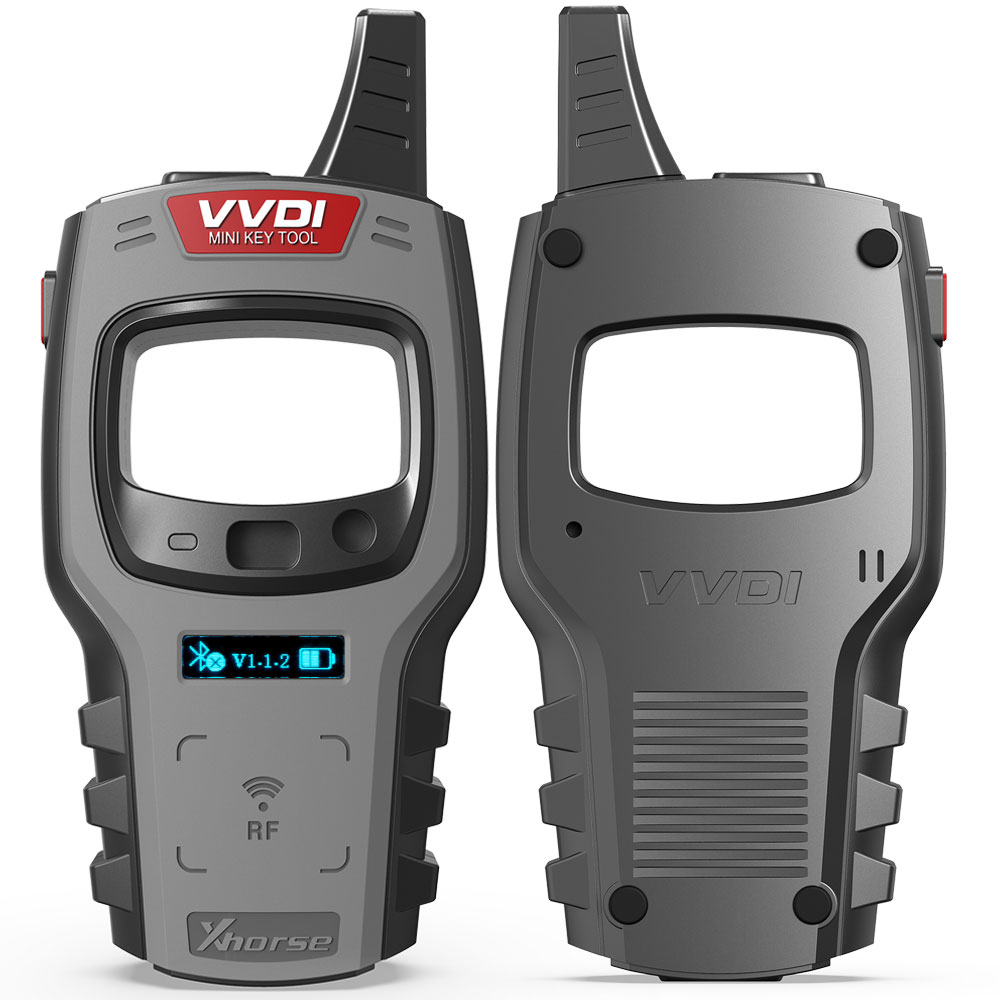

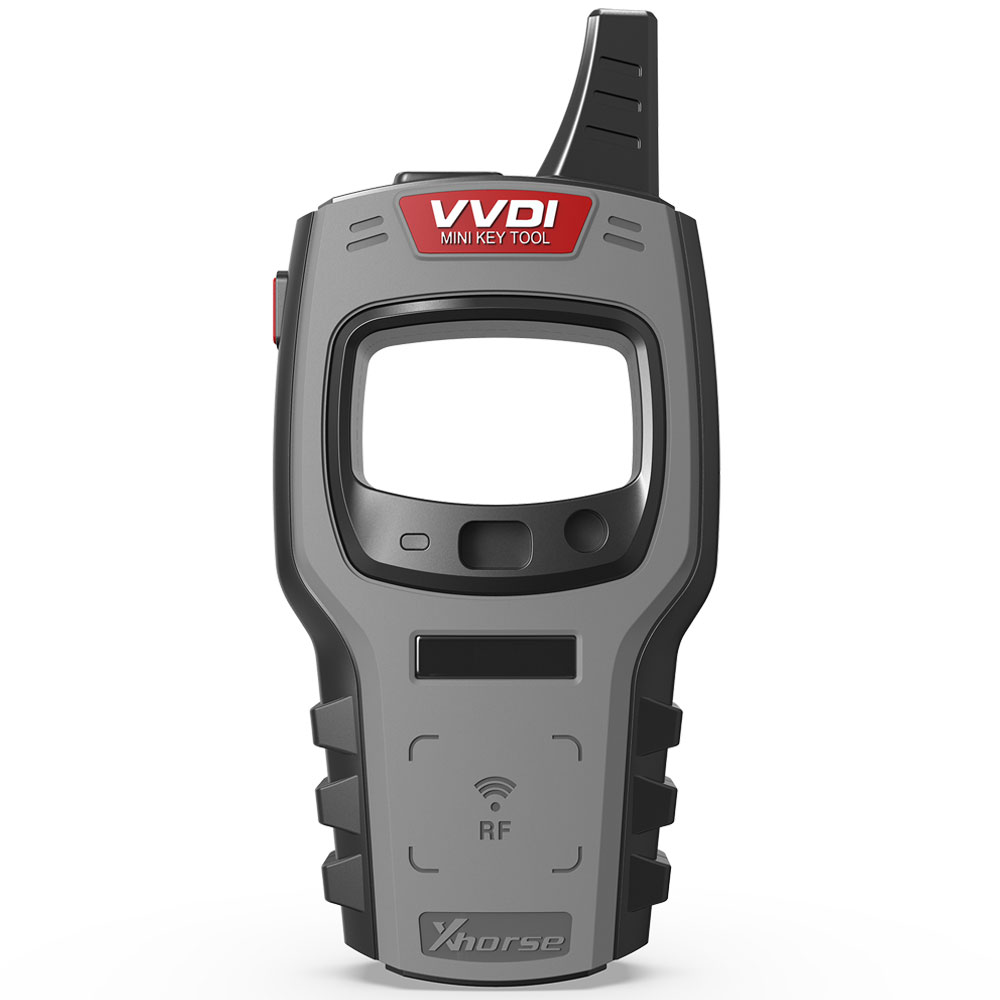

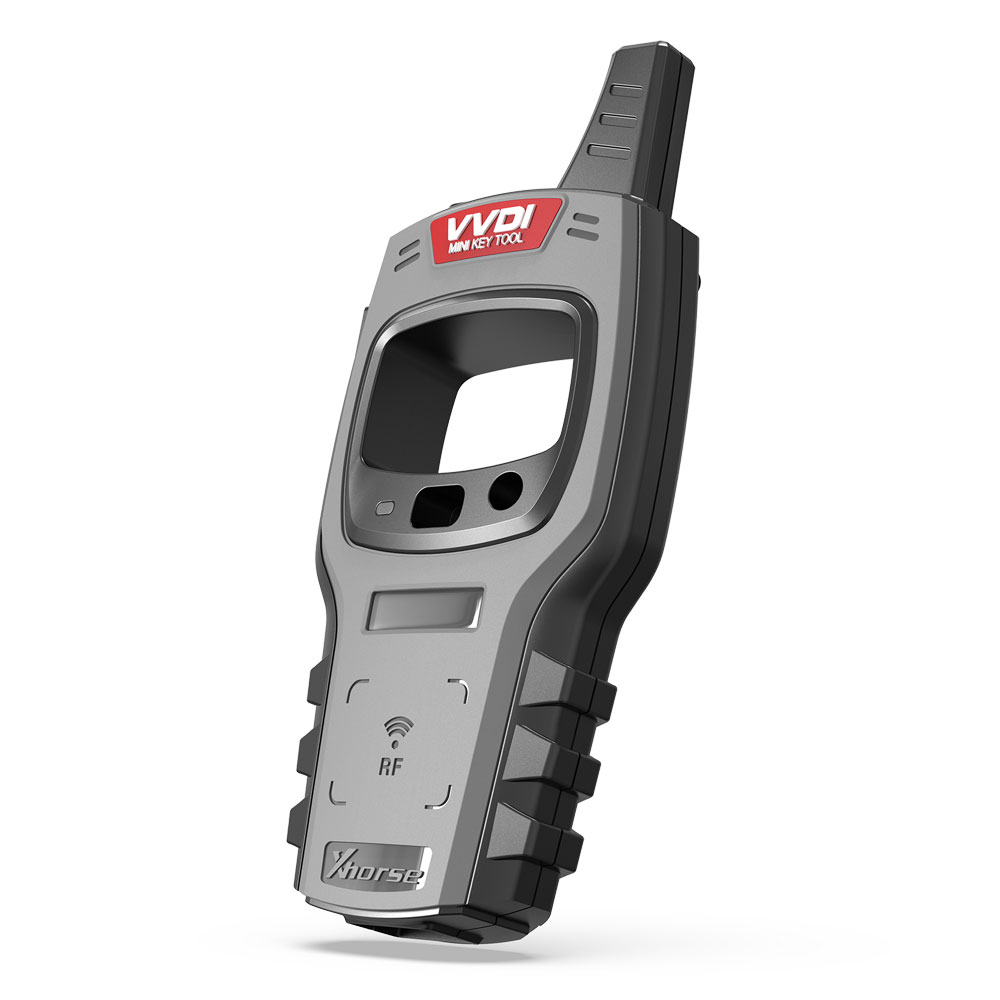

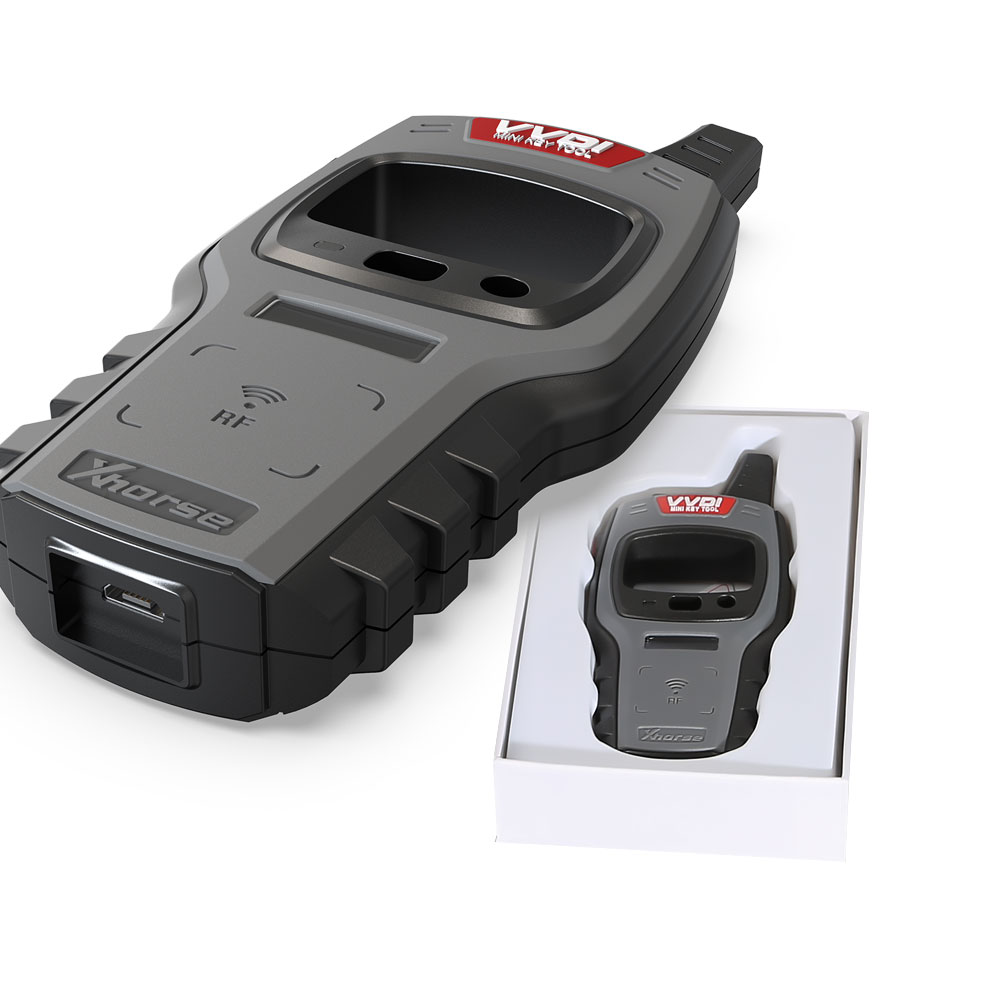

Xhorse VVDI Mini Key Tool Remote Tester GL Version No ID48 96bit No Free Token

Note:

1. From the beginning of 2023, Xhorse factory not have VVDI MINI with ID48 function & Token any more. Now VVDI MINI No ID48 Function, No ID48 Token.

2. ID48 function you can generate 10pcs new VVDI remotes to get ,after collect points,1 hour later,server will open ID48 96bit function free.

VVDI MINI Key Tool Features:

• Newest Firmware Version: V1.9.6 (Firmware support to update in xhorse app)

• Support remote renew function. (Renew Cable is not included in the package!)

• Xhorse APP Multi-Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese

• Starts and runs very fast: (20 seconds to test frequency)

• Smaller, lighter, and portable.

• Support Toyota H transponder generation.

• New Function: MINI KEYTOOL-> Specia function ->VVDI remote function-> support query remote usage record

• The mini key tool can copy 48 96 bit

  Please use mini key tool to generate Xhorse new remote key 10pcs,after collect points,1 hour later,server will open ID48 96bit function free.

About GL version explaination

From different regions customer's feedback, they also need some other regions remote options(like ME region they also need some SE and EU database options)

So from 2.3.5 firmware there is GL version(Global) for customers

1. GL version from old 3 regions include(EU ME SE), those 3 old regions will automatically change to GL version from 2.3.5 firmware.

2. GL version will cover more remote options, will keep updating and adding more remotes（if you find any options missing compare to old region version,you can contact us , we will update）

3. GL version already released more universal smart K-ey generation options

4. If customer still prefer to keep old region version, just send us your device SN, we will setting back for you. (GL or keep old region version,contact us from Xhorse APP online service or PM Xhorse support)

VVDI MINI Key Tool Function List :

1. Transponder Editing & Cloning

2. Transponder Generation

Support TP transponder & parts of special transponder more than 700 vehicle models, reduce the stock of transponders efficiently.

3. Remote Cloning

Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

ID48 transponder clone you need generate 10 new VVDI remotes or purchase to activate, as well as the ID48 token, each online clone will cost one token or 100 points.

4. Garage Remote Generation

Support more than 100 types.

5. Remote Generation

Support 200 brands, over 2000 vehicle models. Generate more abundant and thorough K-ey pictures, transponder types, K-ey blanks and remote matching data.

6. Frequency Test

Support the power test within the range of 300-450MHz.

7. For Toyota H transponder

Activate Toyota H transponder generation function

8. Special Functions:

Remote Renew

Ignition switch coil signal detection (Only support 46 47 4D)

Set type of VVDI super chip

VVDI Special TP

Unlo-ck Toyota Smartkey

Special 4D to 4C

ID63 to ID83

Detect remote

VVDI remote repair calibration

VVDI smart key clone

VVDI smart key customization

Remote charge battery

for Honda cycle key renew

IC/ID Clone

8E remote upgrade, unlo-ck and frequency conversion

XM smart key customization

for Toyota smart key frequency setting

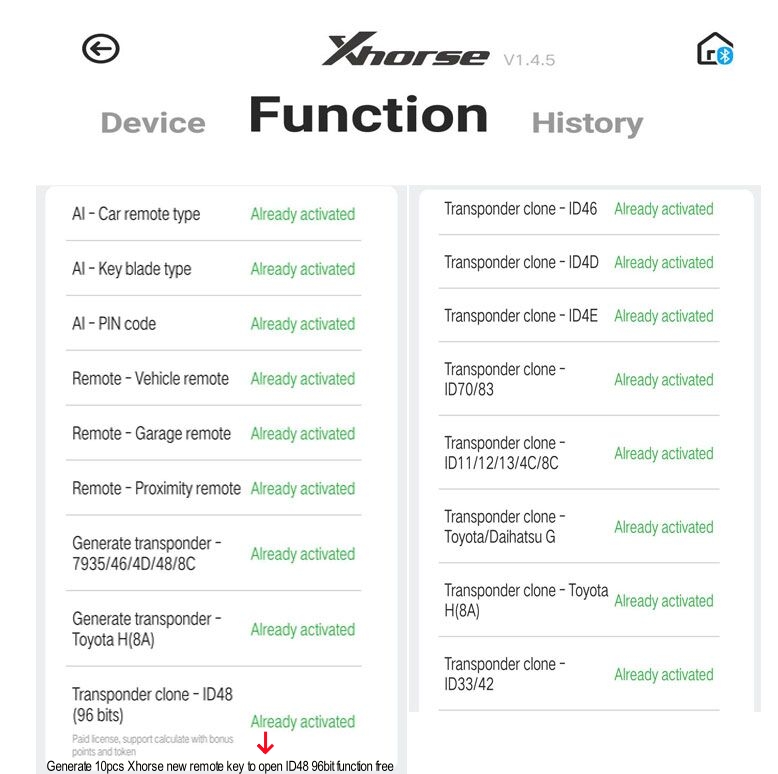

VVDI Mini Keytool FULL Authorization:

AI - Car remote type Already activated

AI - Key blade type Already activated

AI - PIN code Already activated

Remote - Vehicle remote Already activated

Remote - Garage remote Already activated

Remote -Proximity remote Already activated

Generate transponder - 7935/ 46/ 4D/ 48/ 8C Already activated

Generate transponder -Toyota H (8A) Already activated

Transponder clone - ID48 (96 bits) No (Use 10 new VVDI Remotes to generate to get)

Transponder clone - ID46 Already activated

Transponder clone - ID4D Already activated

Transponder clone - ID4E Already activated

Transponder clone - ID70/ 83 Already activated

Transponder clone - ID11/ 12/ 13/ 4C/ 8C Already activated

Transponder clone - Toyota/ Daihatsu G Already activated

Transponder clone - Toyota H (8A) Already activated

Transponder clone - ID33 /42 Already activated

Transponder edit - 11/12/13/4C Already activated

Transponder edit - 46/ 47/ 48/ 4D/ 4E Already activated

Remote clone - Fix code Already activated

Remote clone - Rolling code Already activated

Remote clone - make new Already activated

Detect remote frequence Already activated

Set type of VVDI super transponder Already activated

VVDI Special TP Already activated

Special 4D to 4C Already activated

Unlo-ck Toyota smartkey Already activated

ID63 to ID83 Already activated

Hyundai/ KIA PIN code Already activated

Copy BYD smart key Already activated

Detect ignition coil signal Already activated

Online technical support Already activated

Technical center Already activated

Video center Already activated

History Already activated

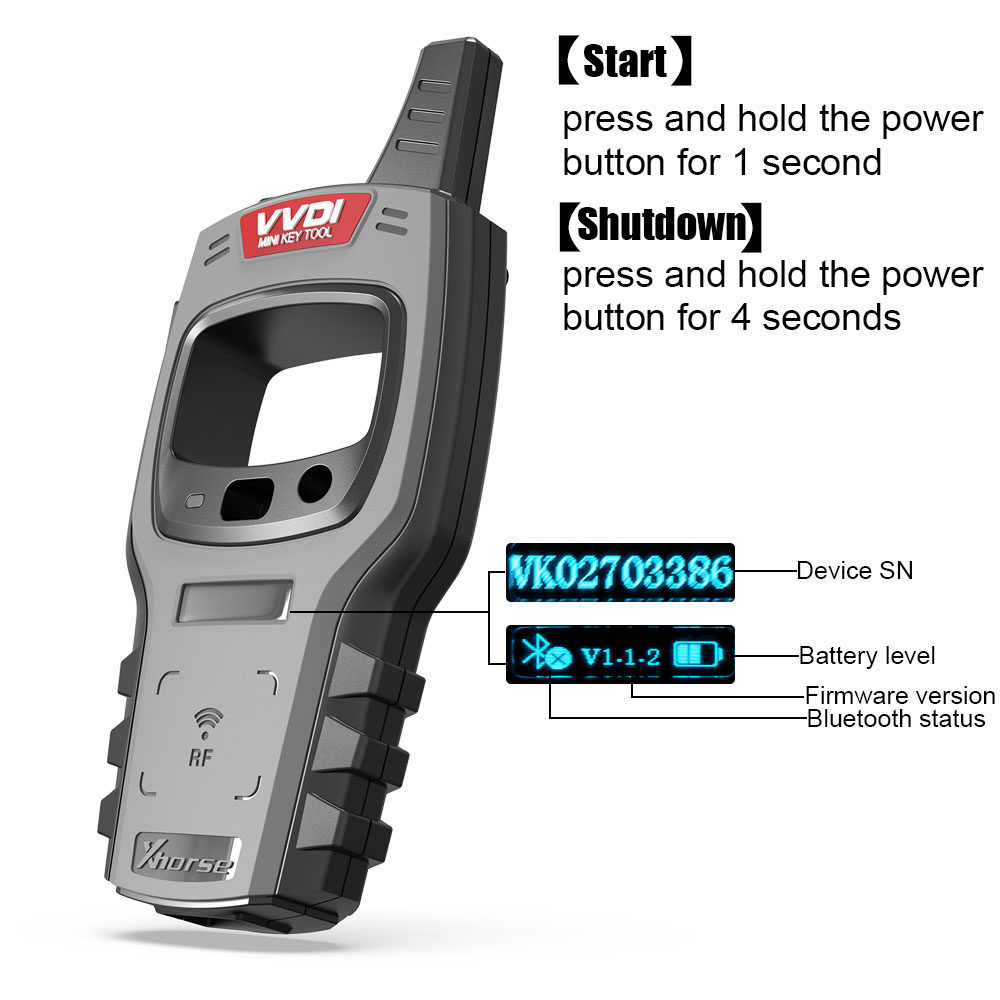

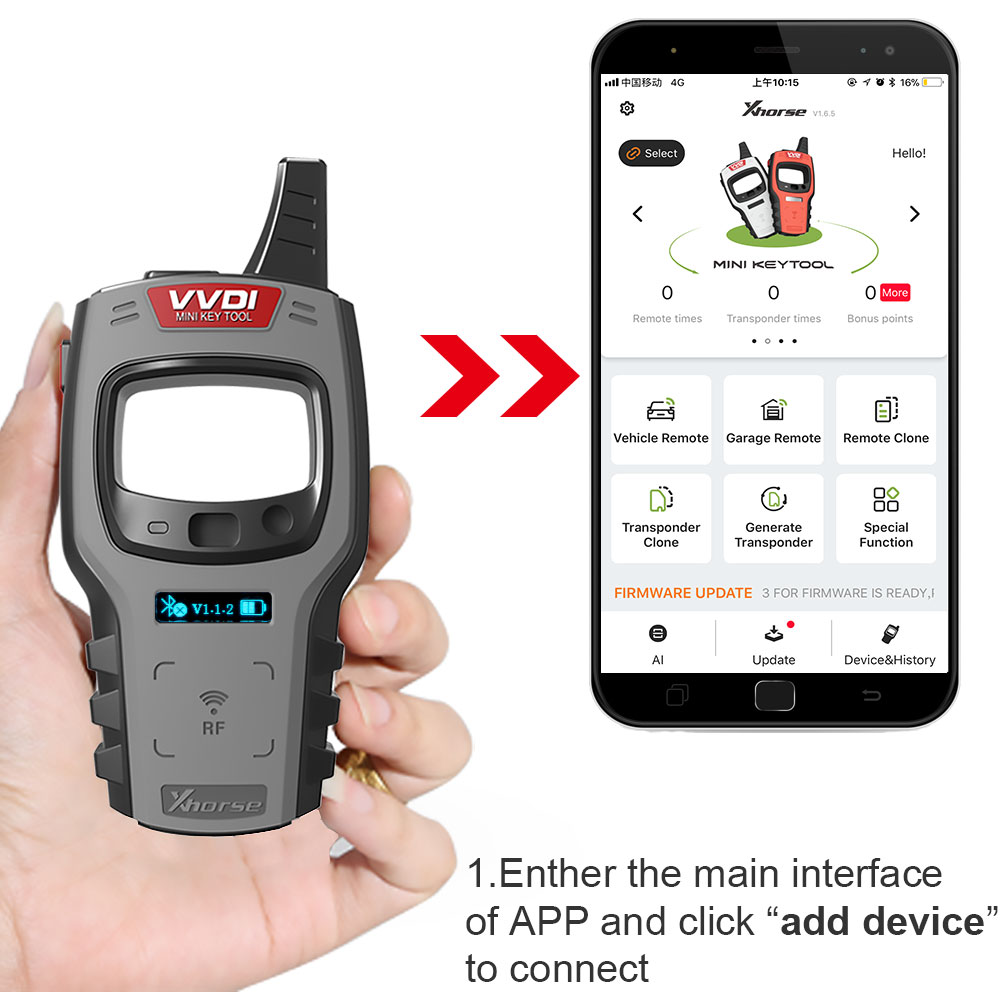

Steps To Use VVDI Mini K-ey Tool :

How to Change VVDI Mini K-ey Tool Language:


VVDI Mini K-ey Tool Firmware Update:


Database Update: (via a PC or mobile phone)

update on a PC

update on a mobile (iOS or Android)

Key Tool Max and MINI Key Tool Comparison:

Item	VVDI Key Tool MAX	VVDI MINI KEY TOOL	VVDI Key Tool Max Pro
Product Photo
Generate remote	√	√	√
Gerage remote	√	√	√
Copy remote	√	√	√
Copy transponder chip	√	√	√
Generate special chip	√	√	√
Frequency test	√	√	√
Immobilizer	X(requires mini obd)	X(requires mini obd on xhorse app)	√
ID/IC Copy	√	√	√
Unlo-ck remote	√	√	√
Unlo-ck Toyota smart key	√	√	√
Detect ignition coil signal	√	√	√
Remote simulator	√	X	√
Write key via dump	√	X	√
Acquisition test	√	X	√
Current/Voltage test	X	X	√
Charge remote	√	√	√
ID48/ID48 96bit copy	√(Need to generate 10 new vvdi remotes to get)	√(Need to generate 10 new vvdi remotes to get)	√(Need to generate 10 new vvdi remotes to get)

VVDI Max can work with VVDI MINI OBD Tool, has own screen. ID48 96bit function needs to generate 10 xhorse remote keys to activate.

VVDI MAX and vvdi mini transponder/remote function is similar. But for some keys need to generate online or file make key, only VVDI2 or VVDI Max (Pro) is OK.

Xhorse MINI Key Tool Parameters:

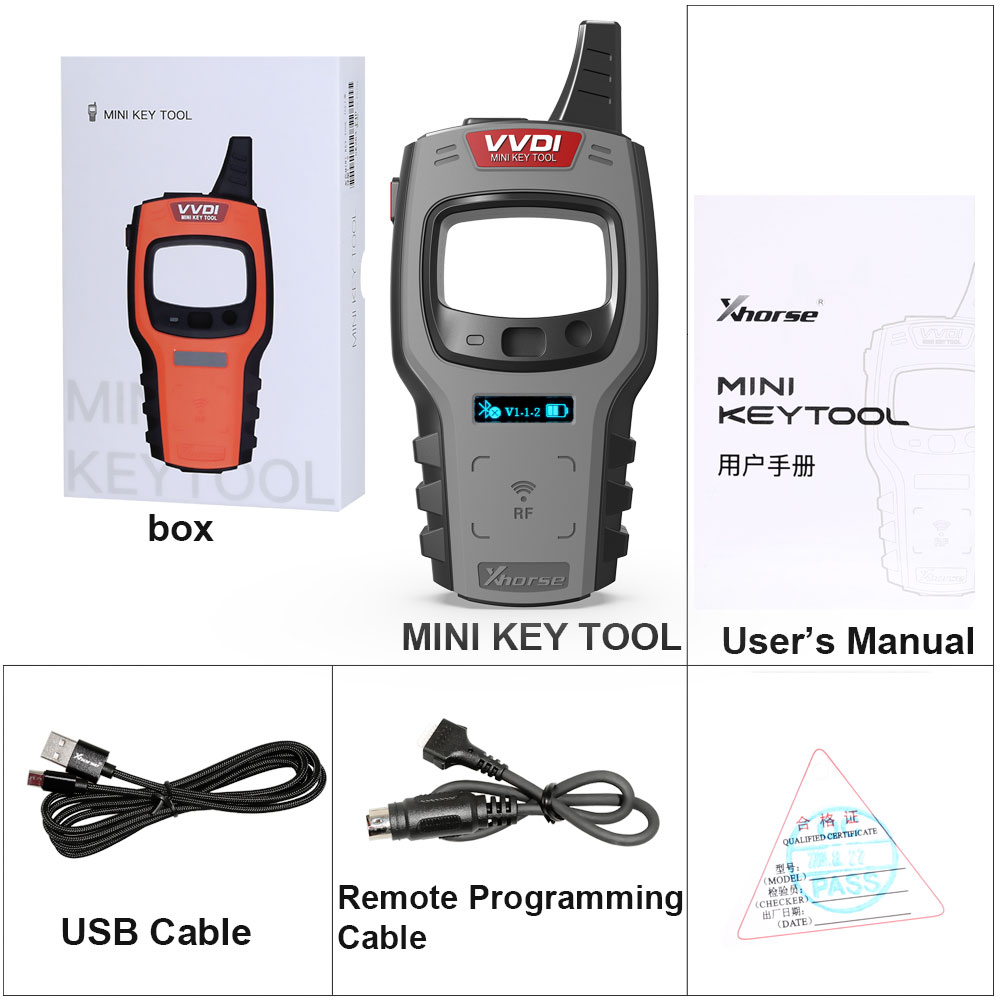

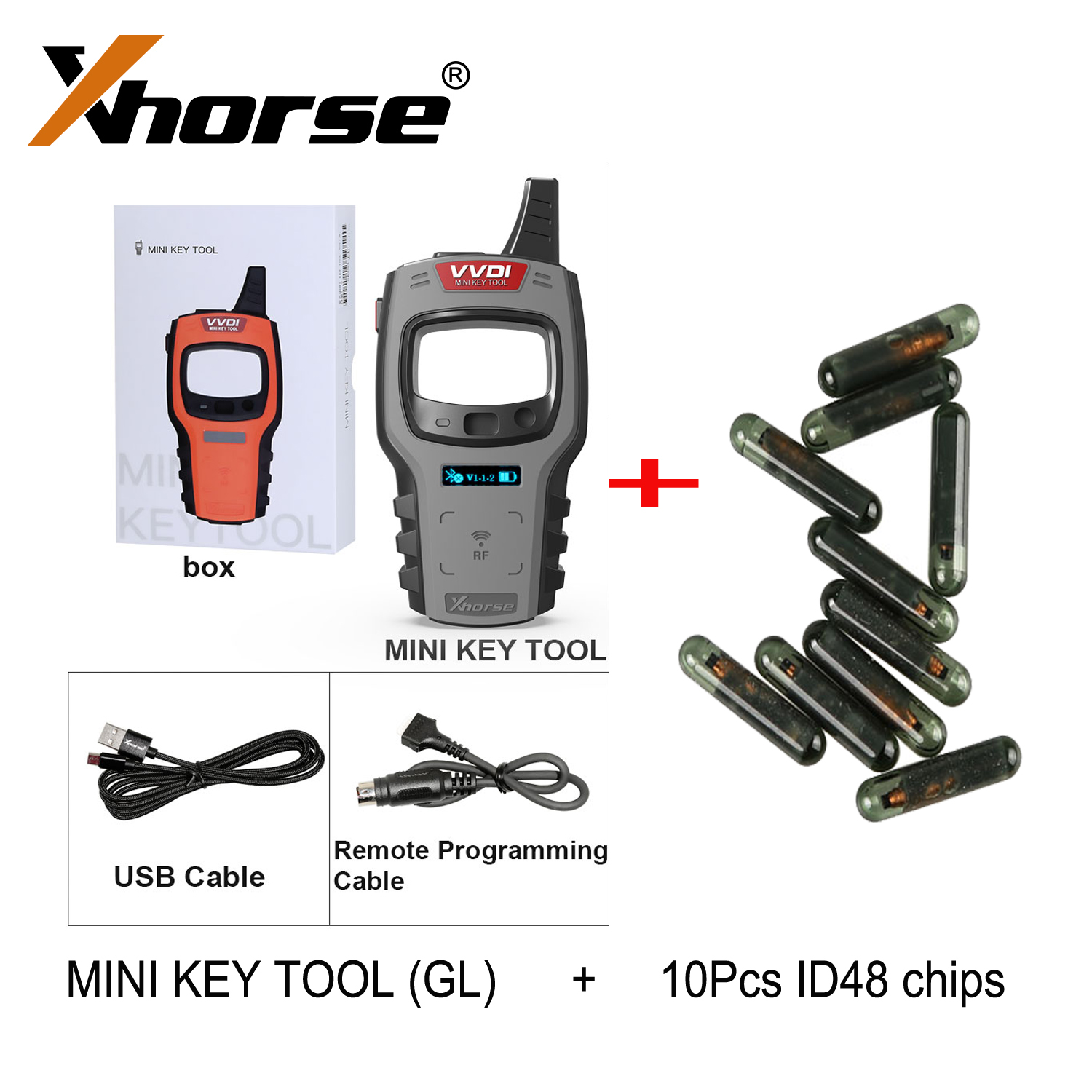

Package List:

1pc x VVDI Mini Key Tool Device

1pc x Remote Progarmming Cable

1pc x USB cable

1pc x User Guide

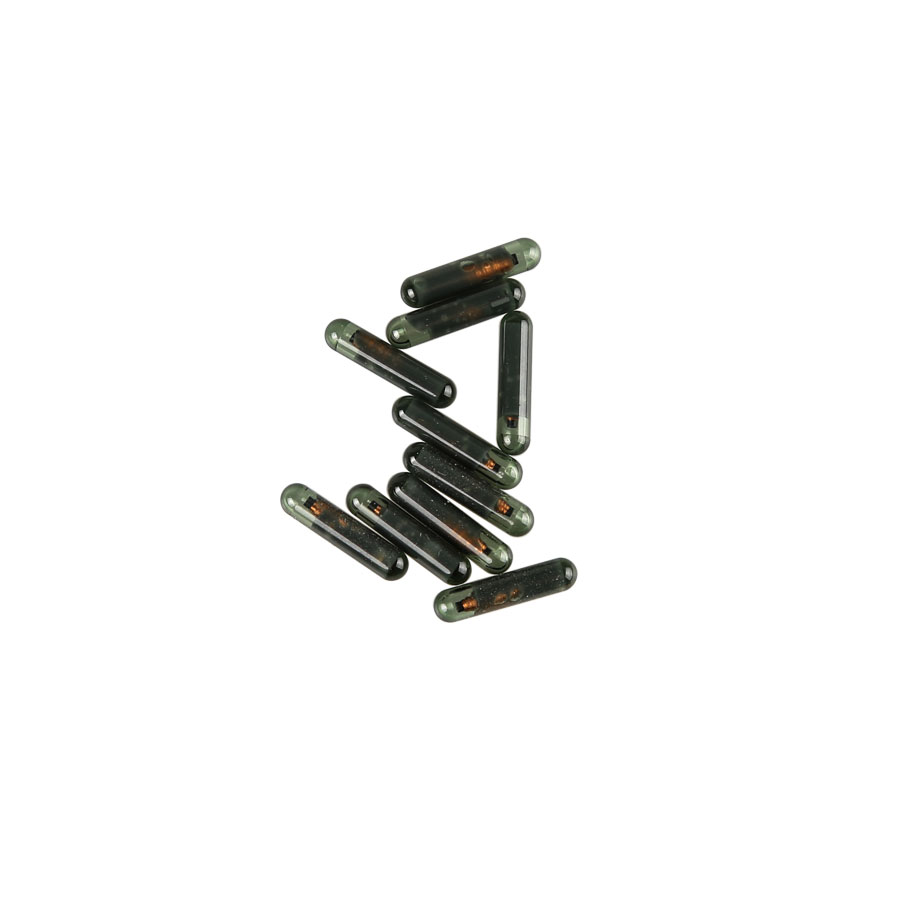

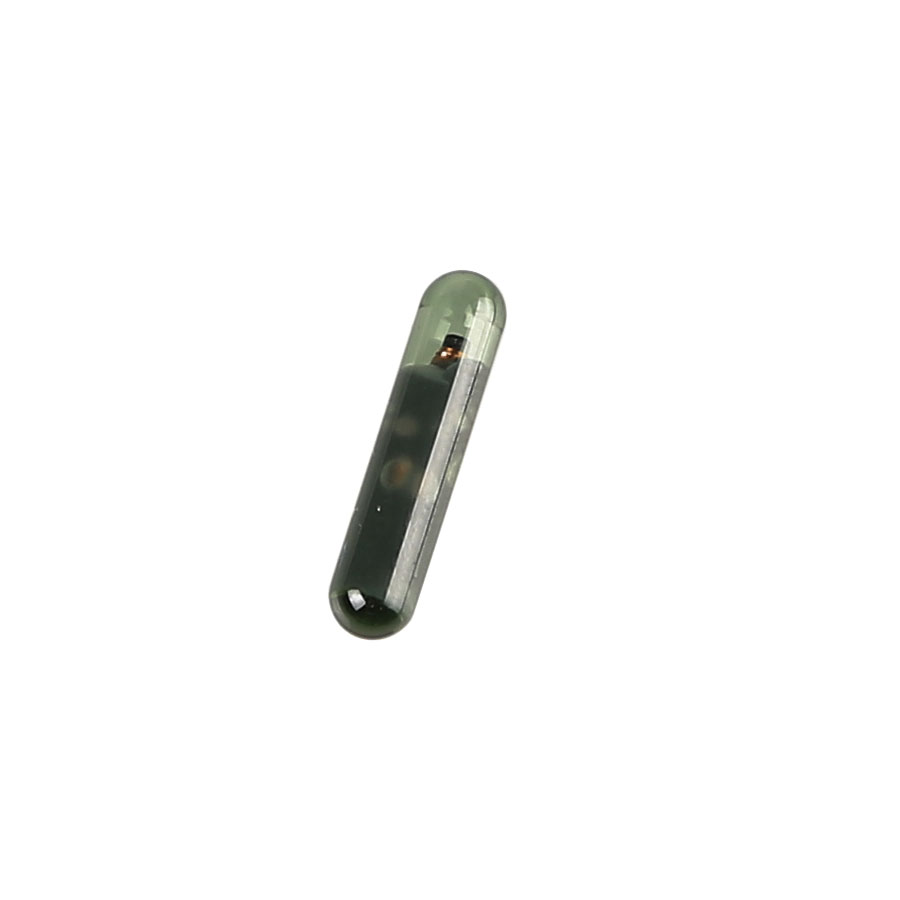

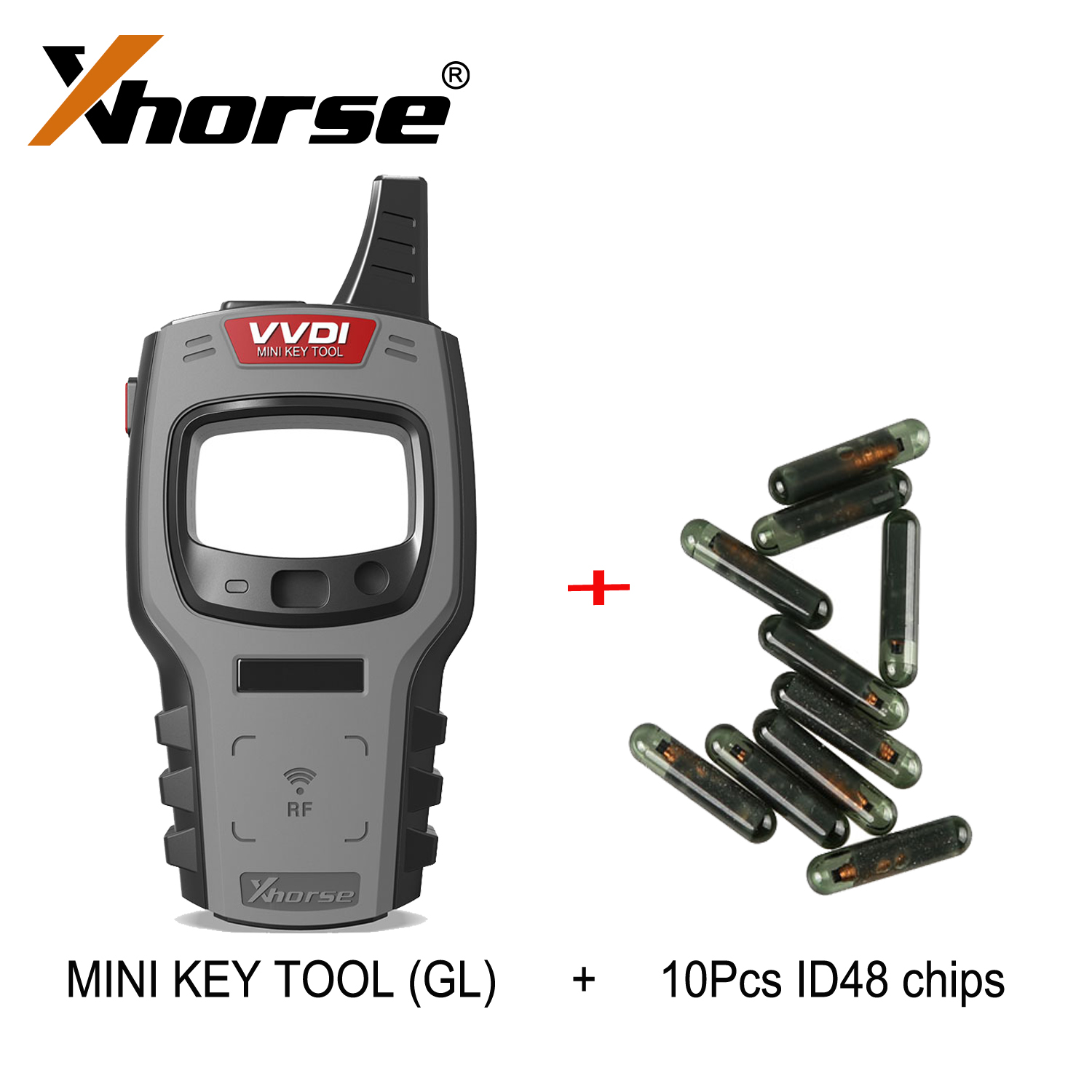

ID48 Chip For XHORSE VVDI2 48 Transponder Copier

Can be used for V-W,For Audi,For Great Wall, For V-olvo 48 chip car's copy and adaptation

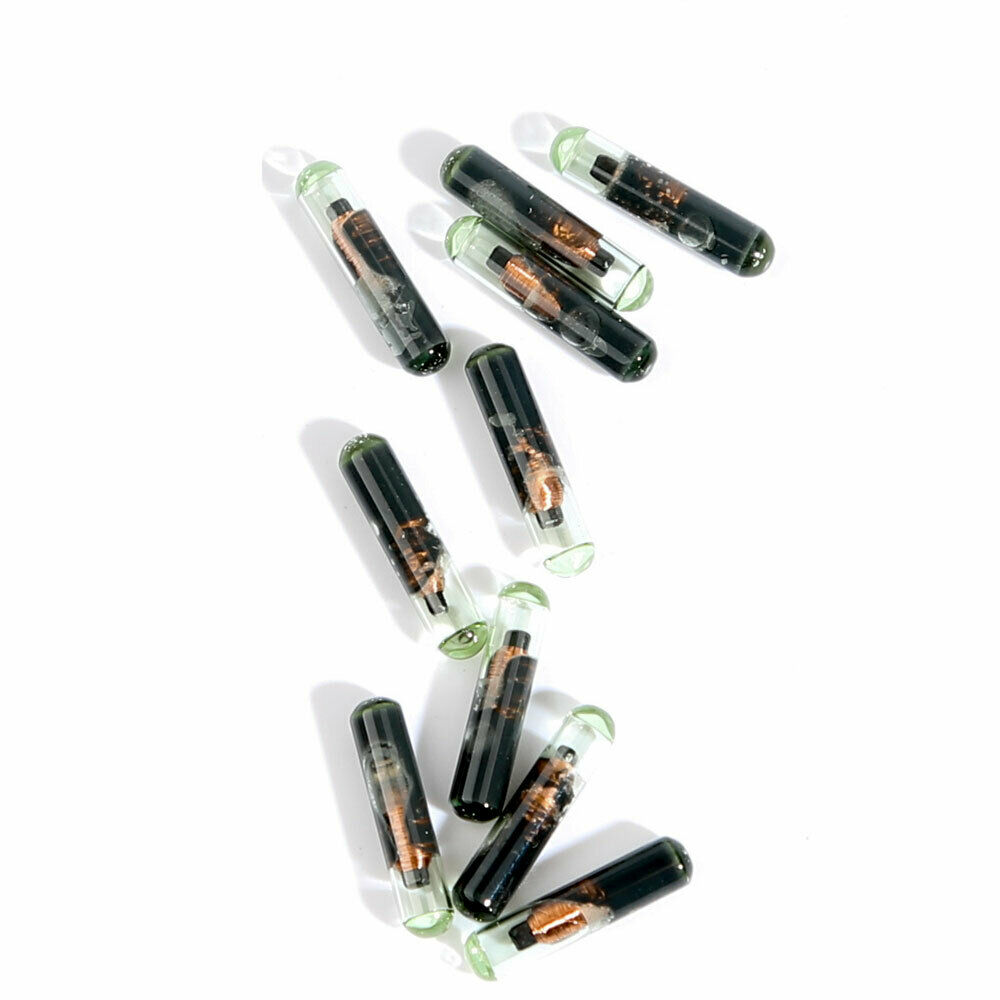

Package List:

10pcs x ID48 Chip for XHORSE VVDI2 48 Transponder Copier
