| Eigenschaften | Schutzklasse Ⅱ; Schnelle Montage & werkzeuglose Demontage; Dichtringe für wasserdichten Schutz; kompatibel mit unterschiedlichen PV‑Kabel‑Isolationsdurchmessern; temperaturbeständig & feuerfest; hohe Strom‑ und Spannungsbelastbarkeit |
| Schutzart | IP2X (ungesteckt), IP67 (gesteckt) |
| Nenn‑ / Bemessungsstrom | 22 A (2,5 mm²), 30 A (4 mm²) |
| Spannungsfestigkeit | 1000 V DC |
| Kontaktwiderstand | ≤ 0,2 mΩ |
| Temperaturbereich | ‑40 ℃ ~ +125 ℃ |
| Isolationsmaterial | PPO + PA / PC / PA, schwarz |
| Kontaktmaterial | Kupfer, verzinnt |
| Flammenklasse | UL94‑V0 / UL94‑5VA |
| Geeignete Kabel | 2,5 mm², 4 mm² (AWG14, AWG12) |
| Stift‑ / Kraftwerte | Stift‑Ø 4,0 mm; Einsteckkraft ≤50 N; Rückzugskraft ≥50 N |
| Verbindung | Crimpverbindung |
| Lieferinhalt | Paar Solar‑PV‑Steckverbinder (Stecker + Buchse) Hinweis: Bitte prüfen Sie vor dem Kauf die gewählte Menge. |
Protection Class:2
Rated Current:22(2.5 mm),30A(4 mm)
Protection Degree:IP2X,unmated;IP67,mated

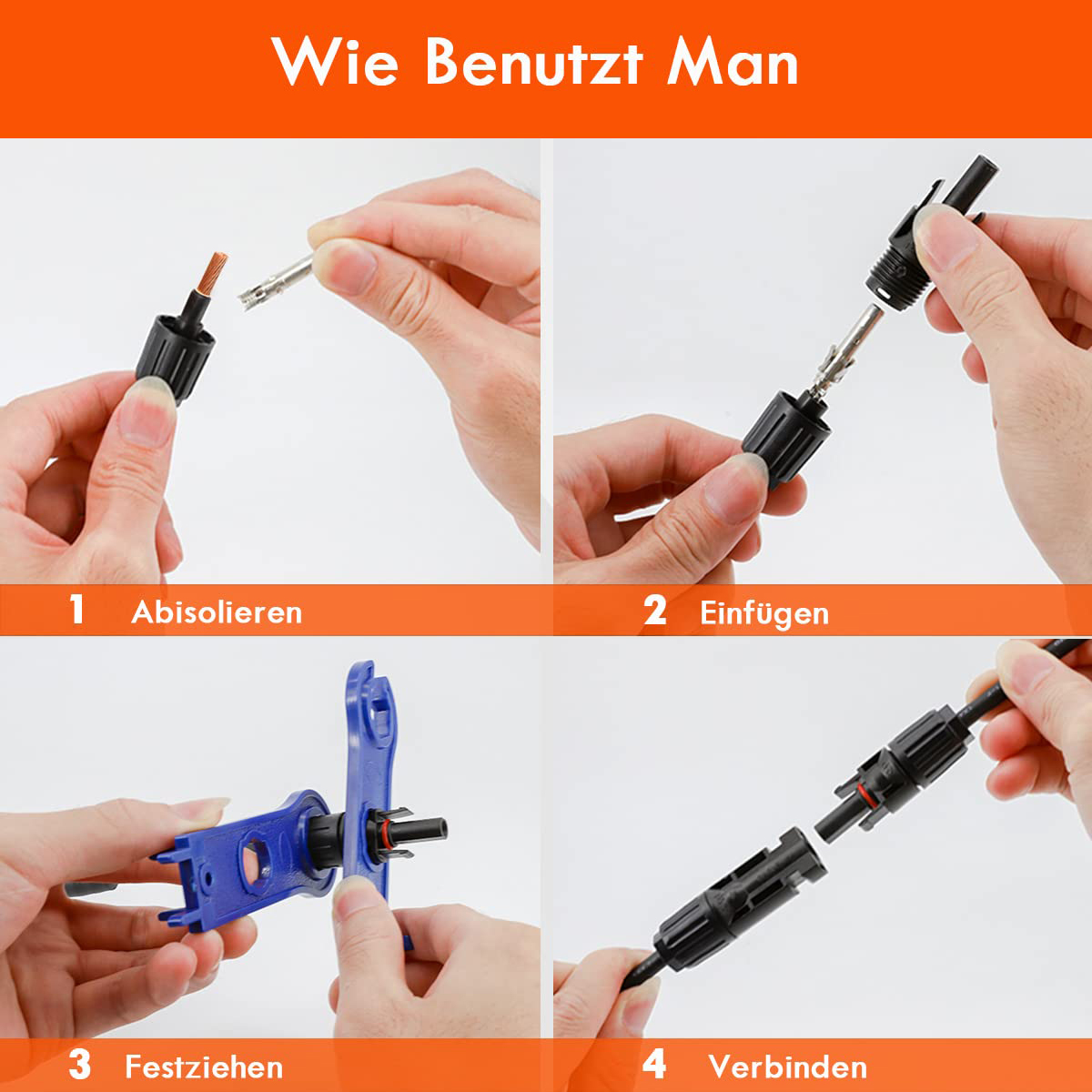

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

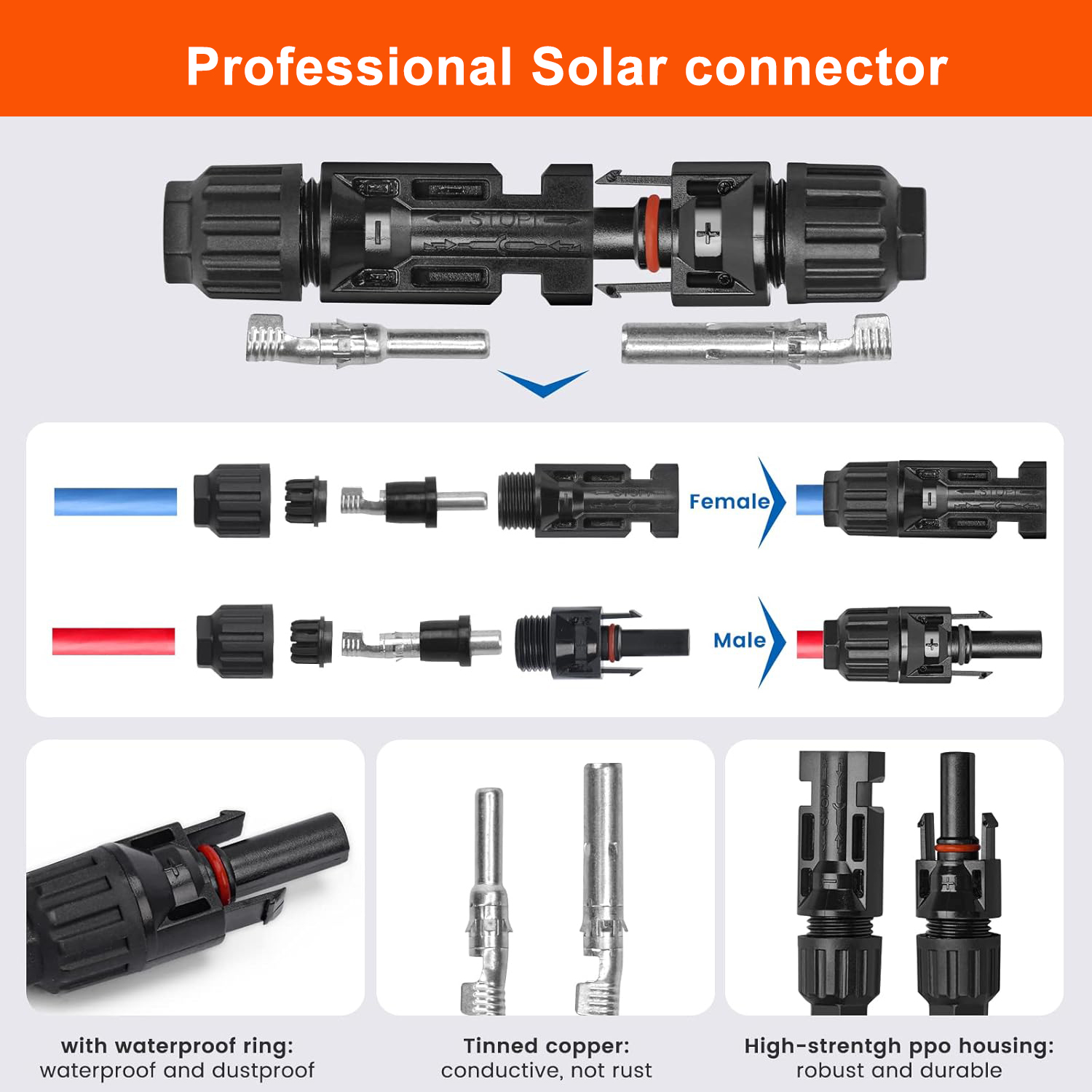

1 pairs of Solar Panel Cable Connectors (1Pcs of Male and 1Pcs of Female) Double seal rings for better waterproof effect
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage
Details:
Protection Class:2
Withstanding Voltage:1000 V DC
Rated Current:22(2.5 mm),30A (4mm)
Contact Resistance:Less than 0.5 Mohms
Specification:
Insulation Material:PC/PA, black
Temperature Range: -40 C ~ +90 C
Contact Material: Copper, Sliver plated
Flame Class: UL94-VO or UL94-5VA
Rated Current: 30A
Suitable cable: 2.5mm2, 4mm2, (AWG14, AWG12)

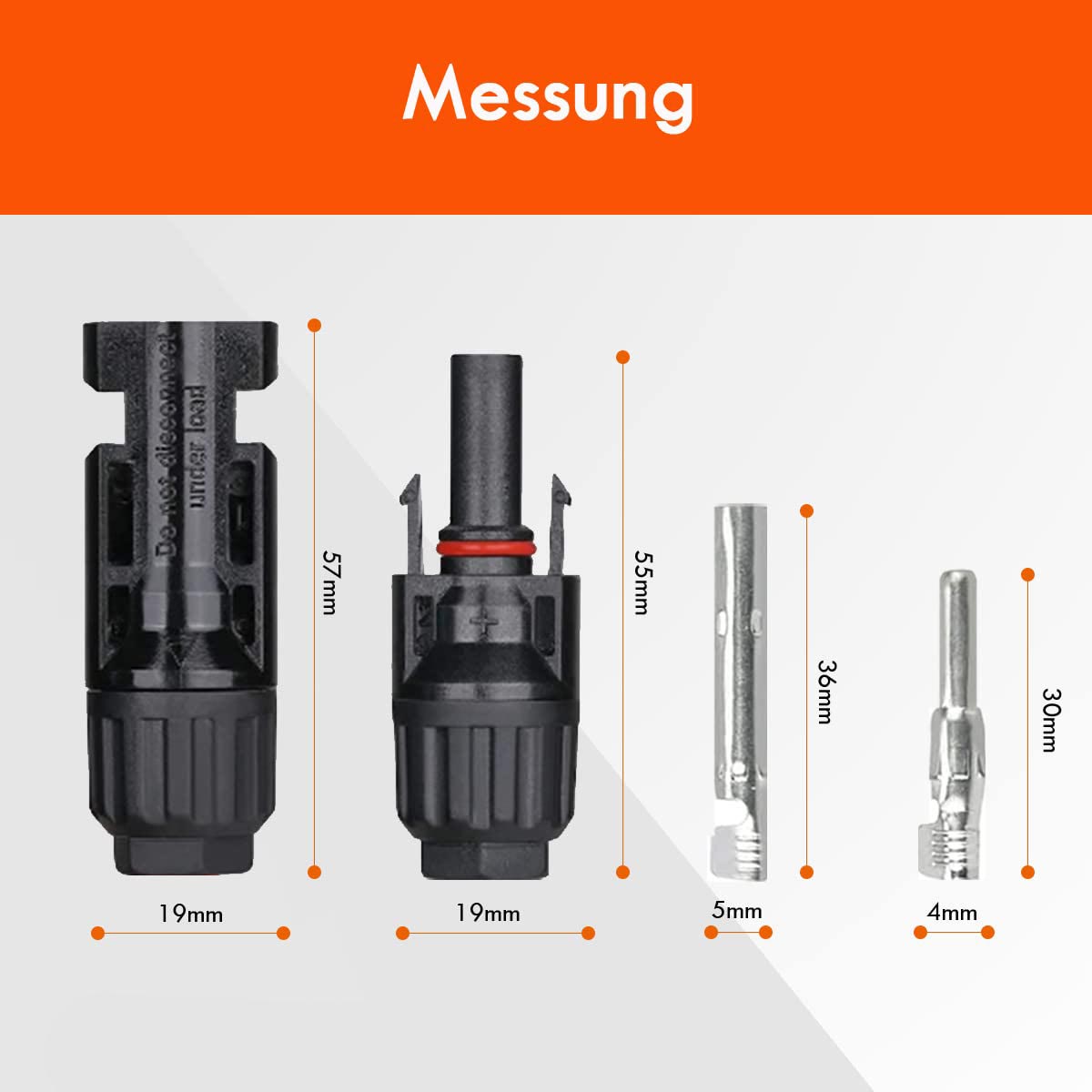

Pin dimension: 4.0 mm dia.
Contact resistance: ≤0.2mmΩ

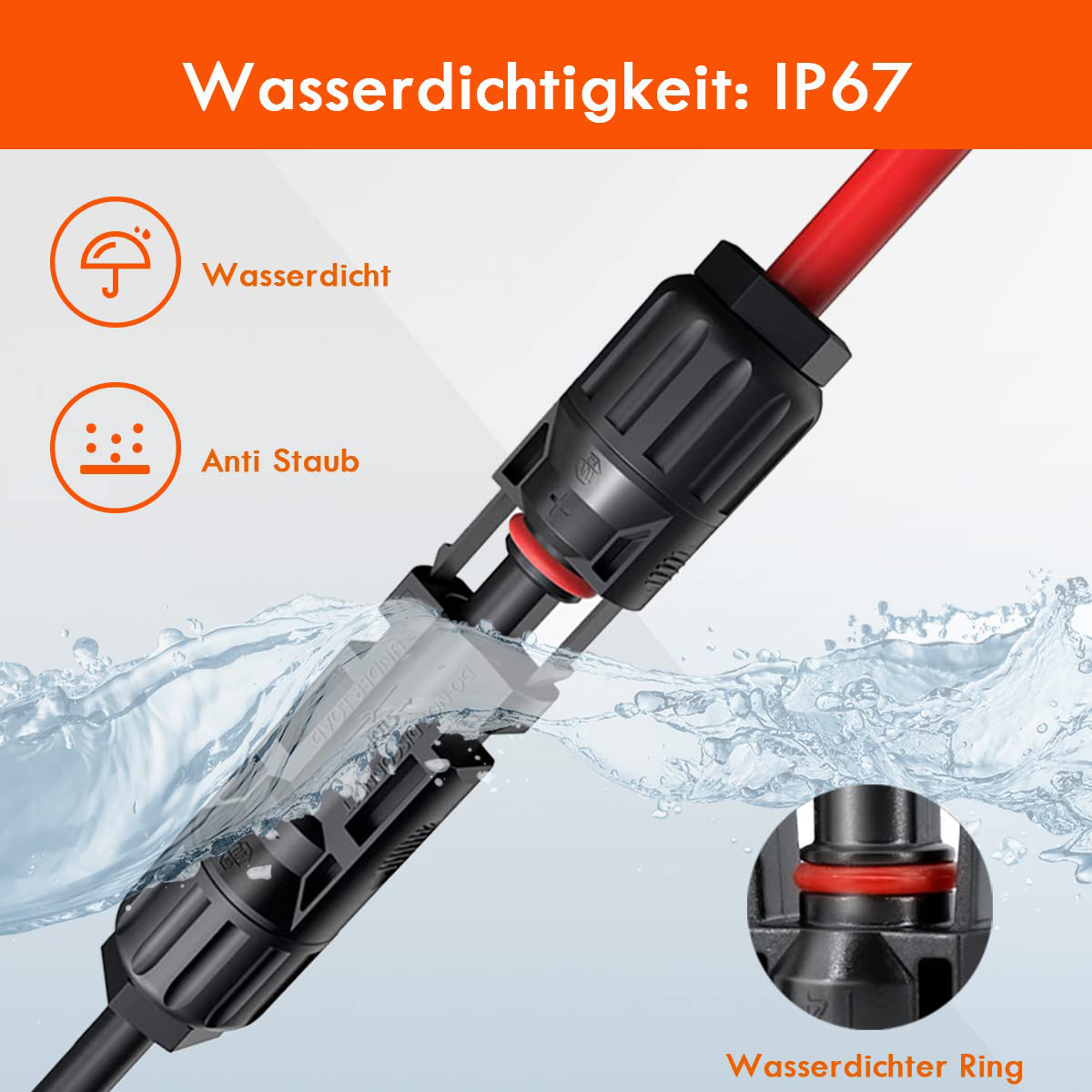

Waterproof degree: IP67
Flame class: UL94-VO
Safety Class: Ⅱ
Withdrawal force: ≥50N
Insertion force: ≤50N
Insulation material: PPO + PA
Connecting system: crimping connection
Contact material: copper, tin plated
Temperature range: -40 ℃ ~ +125 ℃
Protection Degree: IP 2X unmated; IP67, mated
Wire Size Range: 2.5mm2, 4mm2, [AWG14, AWG12]
Material Features:
Insulation Material: PC/PA, black
Contact Material: Copper, Sliver plated
Flame Class: UL94-VO or UL94-5VA

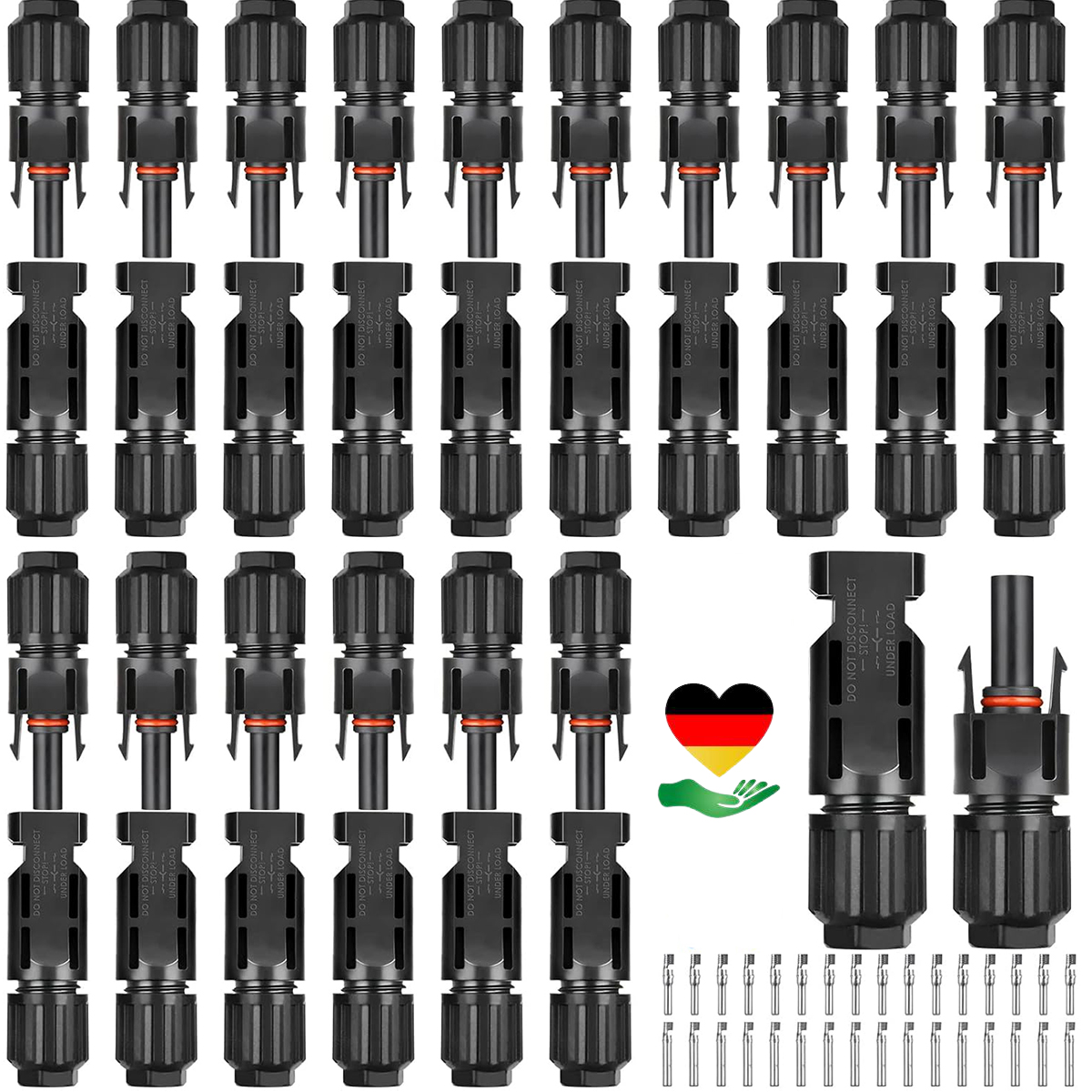

Package included:
We will send you quantity what you choose, pls check the item option carefully before you purchase, thanks.
