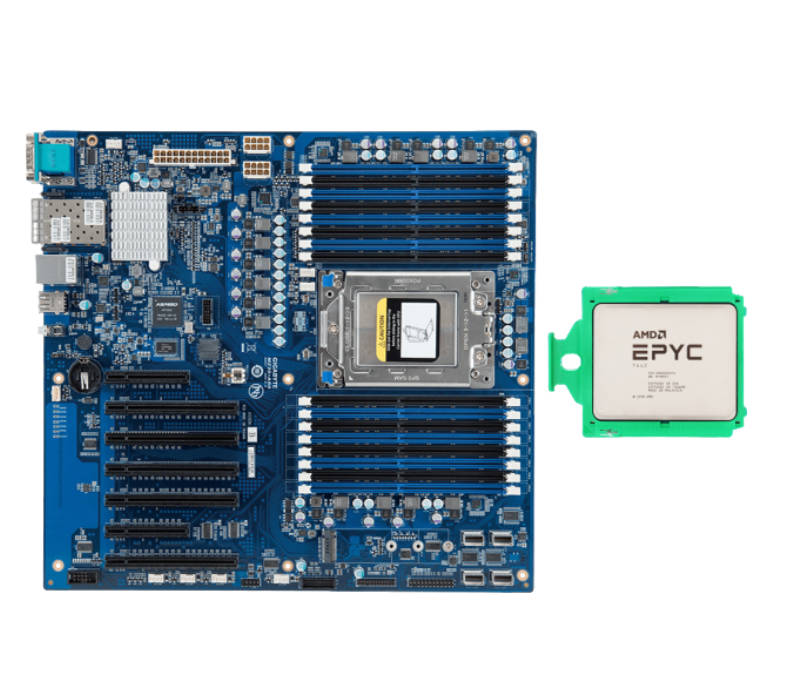

Gigabyte mz31-ar0 + AMD EPYC 7402 24 CORE 48 threads 2.80-3.35GHZ

Product Description

Package include:

1X  Gigabyte mz31-ar0

1 x AMD EPYC 7402 24 CORE 48 threads 2.80-3.35GHZ   (USED)

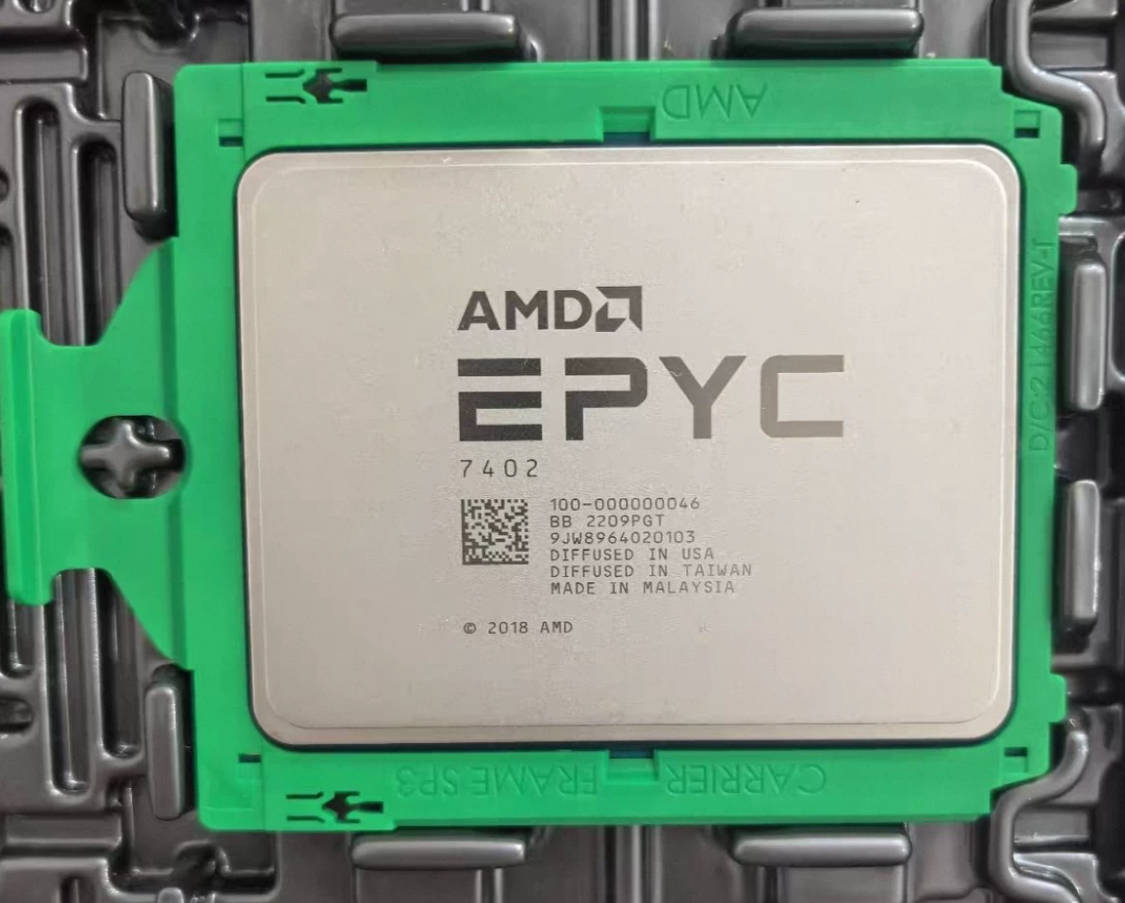

CPU

Parameter
Value
Product Name
AMD EPYC™ 7402
Product Series
EPYC
Product Sub-series
EPYC 7002 Series
Application Form Factor
Server
CPU Core Count
24
Thread Count
48
Max Boost Clock Speed
Up to 3.35 GHz
Base Clock Speed
2.8 GHz
L3 Cache
128 MB
1k Unit Pricing
1783 USD
Default Thermal Design Power (TDP)
180W
Platform Socket
SP3
Supported Socket Configuration
1P / 2P
PCI Express Version
PCIe 4.0 x128
System Memory Type
DDR4
Memory Channel Count
8
Max Memory Speed
Up to 3200 MT/s
Single-socket Memory Bandwidth
204.8 GB/s
Boxed Product ID
100-100000046WOF
Tray Product ID
100-000000046

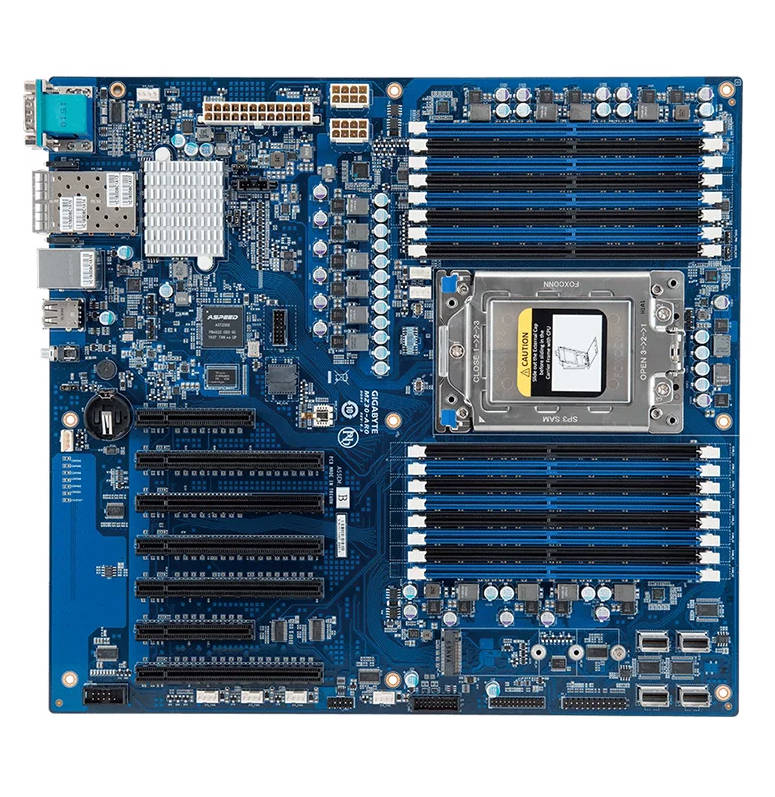

Motherboard


Parameter
Details
Board Size
E-ATX form factor, 305 (width) × 330 (depth) mm
Supported Processors
Supports single AMD EPYC™ 7002/7001 series processors (Socket SP3, 7nm for 7002 series), up to 64 cores / 128 threads per processor, TDP up to 225W, cTDP up to 240W
Socket Type
Socket SP3
Chipset
System on Chip (SoC)
Memory Specifications
16 DDR4 DIMM slots, 8-channel memory architecture, supports up to 3200/2933 MHz memory speed, supports RDIMM/LRDIMM modules up to 128GB per slot (max total 2TB capacity)
Integrated Network
2 × 10Gb/s SFP+ LAN ports (Broadcom® BCM 57810S), 1 × 10/100/1000 Mbps management LAN port
Integrated Graphics
Integrated Aspeed® AST2500 2D video controller, max resolution 1920×1200@60Hz 32bpp
Integrated SATA Controller
4 × SlimSAS interfaces, total 16 × SATA III 6Gb/s ports
RAID Support
Not supported
Expansion Slots
7 × PCIe Gen3 slots (mix of x8/x16 bus width), 1 × M.2 M-key slot (PCIe Gen3 x4, supports NGFF 2242/2260/2280 form factors)

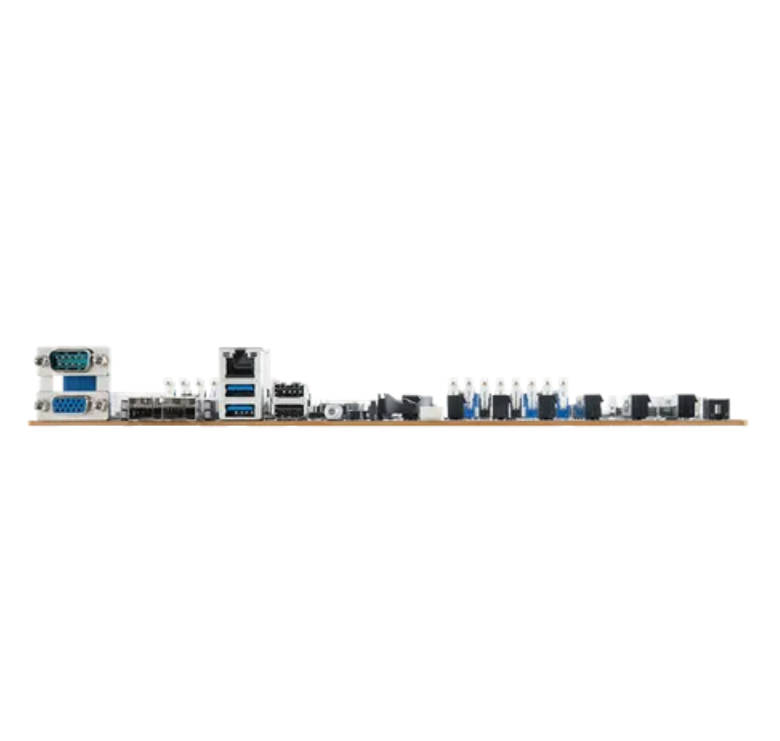

Rear I/O Ports
2 × USB 3.0, 2 × USB 2.0, 1 × VGA, 1 × COM port, 2 × SFP+ ports, 1 × management LAN port, 1 × ID button with LED
Supported OS (AMD EPYC 7002 series)
Windows Server 2016; Red Hat Enterprise Linux 7.6+/8.0+/9.0+; SUSE Linux Enterprise Server 12 SP4+/15 SP1+; Ubuntu 16.04.6 LTS+/18.04.3 LTS+/20.04 LTS+; VMware ESXi 6.5 EP15+/6.7 Update3+/7.0+/8.0+; Citrix Hypervisor 8.1.0+
Supported OS (AMD EPYC 7001 series)
Windows Server 2012 R2; Red Hat Enterprise Linux 7.4+/8.0+/9.0+; SUSE Linux Enterprise Server 11 SP4+/12 SP3+/15+; Ubuntu 16.04 LTS+/18.04 LTS+/20.04 LTS+; VMware ESXi 6.5 Update1+/6.7+/7.0+/8.0+; Citrix Hypervisor 7.1.0 CU2+/7.4.0+/8.0.0+
Server Management
Powered by Aspeed® AST2500 management controller, supports GIGABYTE Management Console (AMI MegaRAC SP-X) web interface, features include KVM, sensor monitoring, remote firmware update, user management, event log etc.
Power Connectors
1 × 24-pin ATX main power connector, 2 × 8-pin ATX 12V power connectors
Operating Temperature
10°C to 40°C (non-condensing)
Operating Humidity
8% to 80% (non-condensing)
Non-operating Temperature
-40°C to 60°C (non-condensing)
Non-operating Humidity
20% to 95% (non-condensing)
Integrated Audio
Not supported
